18650 Li-Ion charger case

18650 Li-Ion charger case 3D print model

Description

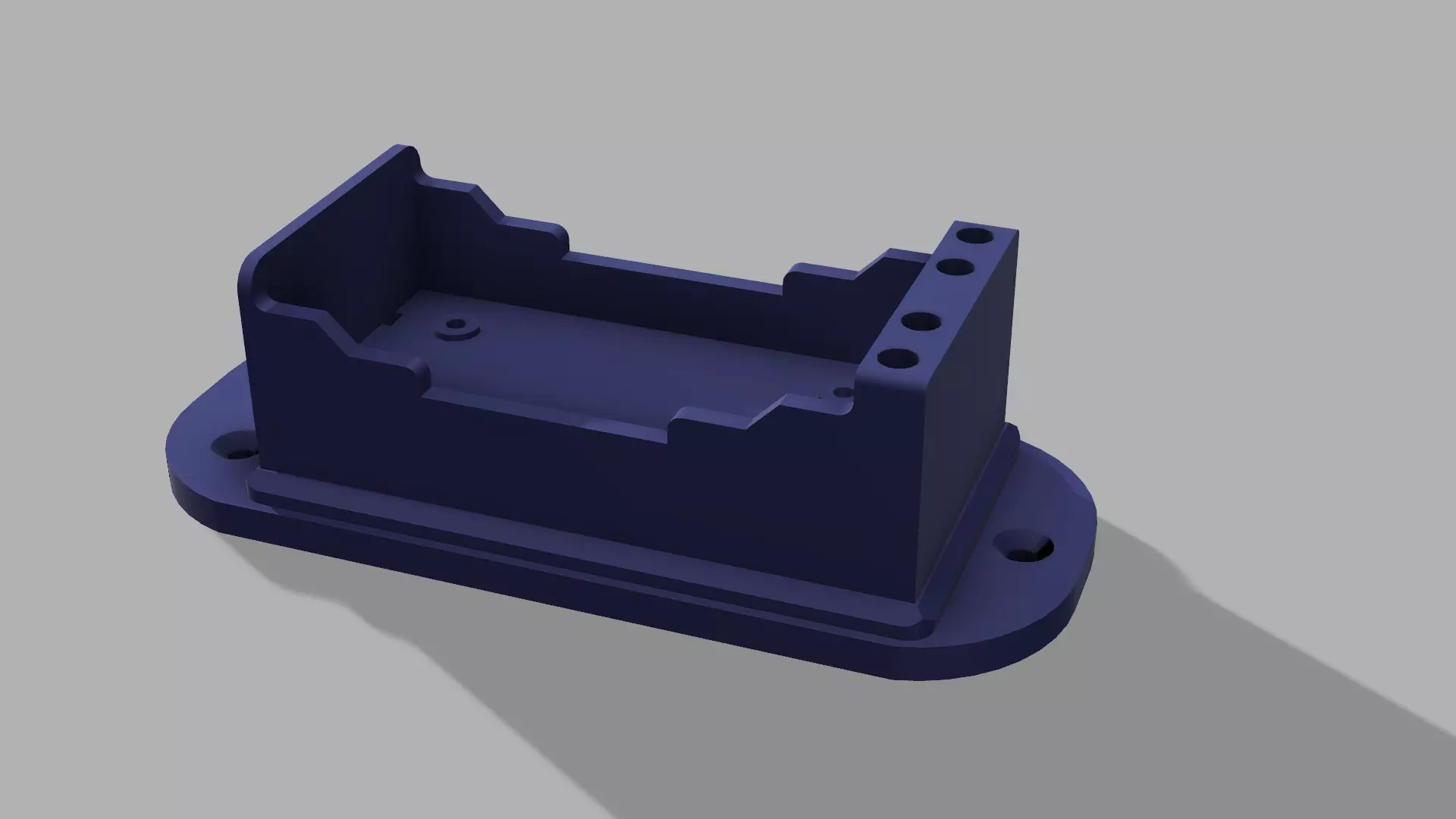

Charging case designed for two 18650 Li-Ion cell battery holder and two one cell TP4056 battery charging and protection circuit, the design is simple and after assembly can be mounted using the 3 ouside holes, usb cable cut-out, contour on top follows the battery holder lines, 4 holes ( two for each battery) for 5mm LEDs which can be connected in parallel with charging circuits LEDs, both components can be glued permanently or connected with 3mm screws, charging boards cand be glued inside. I printed the cahrger case 3 times with different colors with 0.1mm layer hight.

links for example components: charging boards - https://www.aliexpress.com/item/New-1Pcs-lot-5V-1A-Micro-USB-18650-Lithium-Battery-Charging-Board-Charger-Module-Protection-Dual/32786777105.html?spm=2114.search0104.3.1.869d243f3bfr0I&ws_ab_test=searchweb0_0,searchweb201602_2_10065_10068_319_10059_10884_317_10887_10696_321_322_10084_453_10083_454_10103_10618_10304_10307_10820_10301_10821_537_536,searchweb201603_35,ppcSwitch_0&algo_expid=873286da-778e-46a5-b8f5-0a9634854417-3&algo_pvid=873286da-778e-46a5-b8f5-0a9634854417 2 cell holder - https://www.aliexpress.com/item/2-Slot-18650-Cell-Battery-Holder-Connector-Box-Case-Wire-Pins-Shell-Case/32997250922.html?spm=2114.search0104.3.217.666c3505mUHQub&ws_ab_test=searchweb0_0,searchweb201602_2_10065_10068_319_10059_10884_317_10887_10696_321_322_10084_453_10083_454_10103_10618_10304_10307_10820_10301_10821_537_536,searchweb201603_35,ppcSwitch_0&algo_expid=032f06cb-1f0b-4406-b15b-319ca2f11ae6-32&algo_pvid=032f06cb-1f0b-4406-b15b-319ca2f11ae6

Item rating
0 0
18650 Li-Ion charger case
$5.00

Royalty Free License
18650 Li-Ion charger case
$5.00

Royalty Free License
Response - % in - h

3D Model formats

Format limitations
  • Stereolithography (.stl) (2 files)451 KBVersion: 1Version: 1

3D Model details

  • Publish date2019-04-05
  • Model ID#1943407
  • Ready for 3D Printing
