Generali tower - Hadid Tower

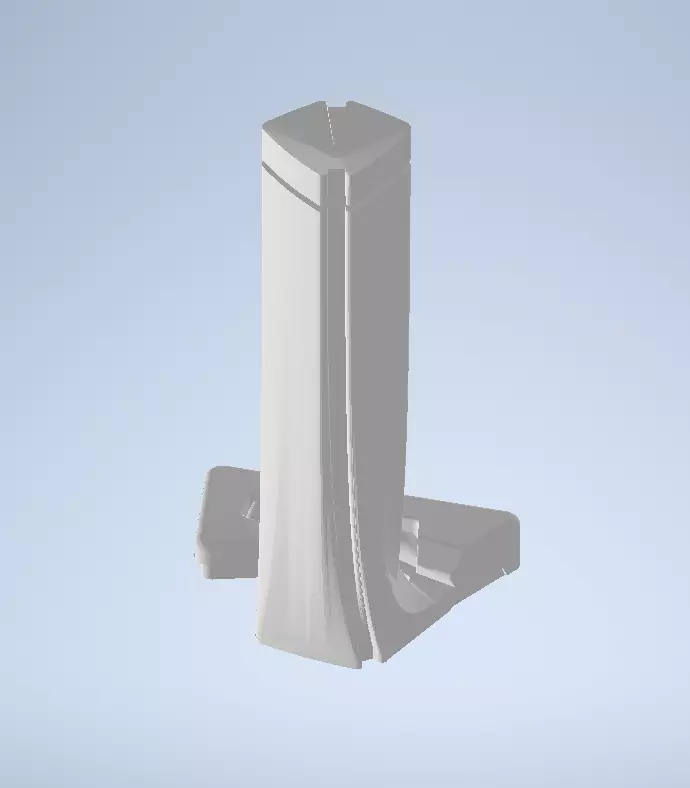

Generali tower - Hadid Tower 3D print model

Generali Tower (lo Storto,the Twisted One) is a skyscraper completed in 2017 in Milan, Italy that reaches a height of 191.5 m (628 ft) with 44 floors (+ 3 floors basement), and a total floor area of about 67,000 square metres (720,000 sq ft). Its designer is the Anglo-Iraqi architect Zaha Hadid, hence it is also called torre Hadid (Hadid Tower). The geometry of the building is that of a warping shape, where both the floors dimension and their orientation vary along the tower axis. The structure is concrete and composite. A central core acts as main horizontal stiffening and resisting element. Foundations are of mixed raft and piles type, where the piles are used as settlement reduction devices. The base raft is a 2.5-metre thick (8.2 ft) concrete slab, resting on 64 piles arranged in clusters and points under the main load points. In order to resis the main torsional effects due to the warped column arrangement, the core lintels above main doors feature composite solutions with a mixed use of steel elements, rebar and concrete. Due to the specific form-dependent deformation effects, a highly sophisticated stage analysis both for construction and long term effects has been effected. A steel, free form podium for commercial use surrounds the base of the building. In October 2019 the tower was awarded first place for excellence in the mid-rise category by the American Concrete Institute. The building hosts offices of Assicurazioni Generali, the third largest insurance group in the world by revenue. [Wikipedia]

Item rating
0 0
Generali tower - Hadid Tower
$49.00

Royalty Free License
Generali tower - Hadid Tower
$49.00

Royalty Free License
Response - % in - h
3D Modeling
3D Print Modeling
Post Production
Hire me

3D Model formats

Format limitations
  • Stereolithography (.stl)4.12 MB
  • OBJ (.obj, .mtl)2.17 MB
  • STEP (.stp)1.83 MB

3D Model details

  • Publish date2021-02-03
  • Model ID#2851430
