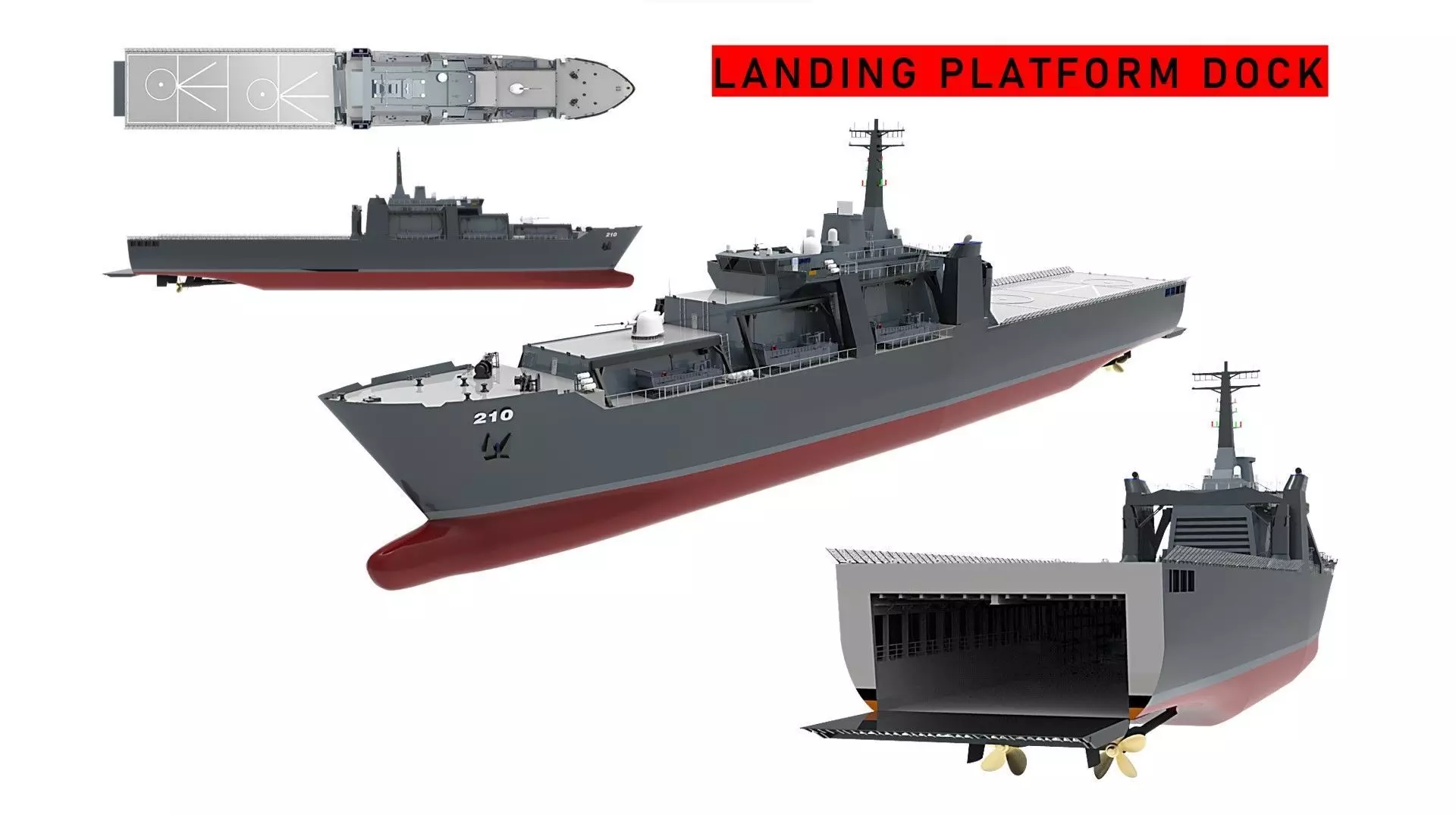

LPD singapore RSS Presistance 209 3D model

The navy's intention to purchase the Endurance-class was revealed by former Defence Minister Dr. Tony Tan during his visit to Tuas Naval Base on 3 August 1996. These ships were to replace the five ex-United States Navy (USN) County-class LSTs, which were acquired by Singapore from the United States in the 1970s. ST Marine was awarded the government contract to design and build the four ships – a significant milestone for the local defence and shipbuilding industries given the scale and extensiveness of the programme. Class and type Endurance-class landing platform dock Displacement
Standard: 6,500 t (6,400 long tons; 7,200 short tons) Full load: 8,500 t (8,400 long tons; 9,400 short tons) Length 141.0 m (462 ft 7 in) Beam 21.0 m (68 ft 11 in) Draught 5.0 m (16 ft 5 in) Ramps 2 × (bow and stern) Installed power 4 × Ruston 6RK215 diesel generators, each producing 875 kW (1,173 hp) Total output: 3,500 kW (4,690 shp) Propulsion
Combined diesel and diesel (CODAD) arrangement 2 × Ruston 16RK 270 diesels, each producing 5,500 kW (7,400 hp), coupled to two Kamewa controllable-pitch propellers Total output: 11,000 kW (14,800 shp) Speed In excess of 15 kn (28 km/h; 17 mph) Range 5,000 nmi (9,300 km; 5,800 mi) at 15 kn (28 km/h; 17 mph) Boats & landing craft carried
4 × 13 m (43 ft) Fast Craft Equipment & Utility (FCEU) on davits 2 × 25 m (82 ft) Fast Craft Utility (FCU) inside well deck Capacity 18 tanks, 20 vehicles and bulk cargo Troops > 350–500 Crew 65 (8 officers and 57 men) Sensors and processing systems
Search radar: IAI/ELTA EL/M-2238 Navigation radar: Kelvin Hughes Type 1007 (I band) Weapon control: CS Defense NAJIR 2000 electro-optronic director Electronic warfare & decoys
ESM/ECM: RAFAEL RAN 1101 Decoys: 2 × GEC Marconi Marine Shield III 102 mm sextuple fixed chaff/decoy launcher Armament
Anti-air: Mistral missiles launched from 2 × Simbad twin launcher mounts Main gun: 1 × Oto Melara 76 mm super rapid gun Autocannons: 2 × 25mm M242 Bushmaster Mk 38 Mod 2 (with stabilised Typhoon weapon sighting system, mounted amidships on port and starboard side)[1] Machine guns: 4 × STK 50MG 12.7 mm (0.50 in) HMGs Aircraft carried AS 332M Super Puma or AS532UL/AL Cougar or CH-47SD Chinook helicopters Aviation facilities Flight deck and enclosed hangar for up to 2 medium-lift helicopters
