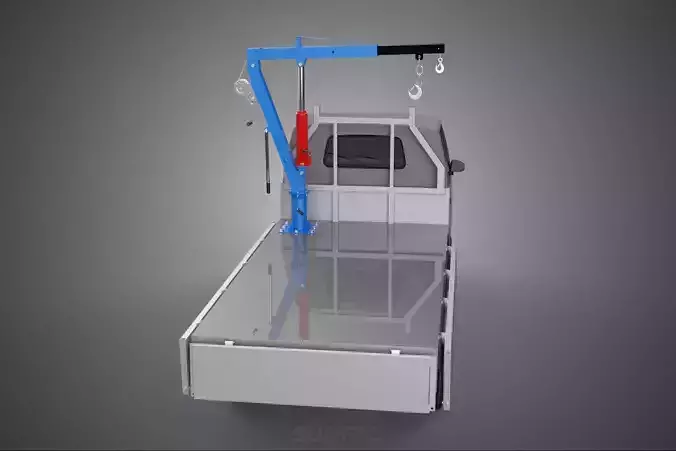

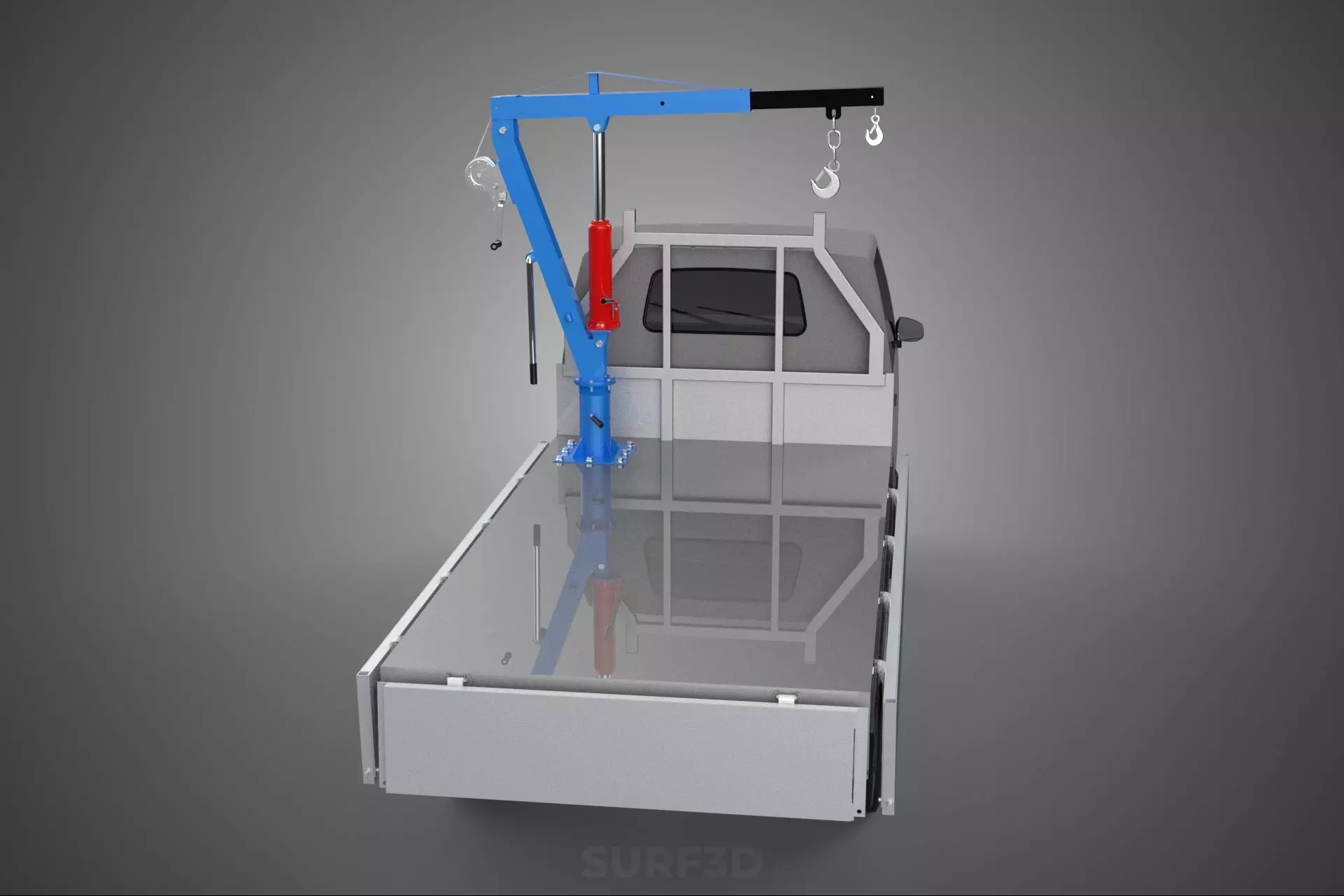

A Wide Deck Jib Crane Lift Hoist Manual Winch Hook Truck Pickup refers to a specialized, self-contained mobile lifting apparatus designed for light to medium-duty applications, integrating a jib crane system onto an expanded or reinforced deck area of a pickup truck. This configuration is engineered to provide portable lifting capabilities, often in remote locations, without reliance on external power sources for its hoisting mechanism.

Components and Functionality:

1. Pickup Truck Base and Wide Deck: The foundational element is a standard pickup truck, often modified with a reinforced or custom-fabricated wide deck or flatbed. This enlarged platform provides a stable and secure mounting surface for the crane's mast and allows for greater versatility in cargo management, accommodating the crane while still permitting the transport of materials or equipment. The truck's inherent mobility makes the entire system self-contained and transportable to diverse work sites.


2. Jib Crane Structure: A jib crane is characterized by its horizontal boom (or jib) extending from a vertical mast. The mast is securely affixed to the truck's deck, typically at one corner or side. This design allows the jib to rotate through a specified arc (commonly 180° to 360°, depending on mounting and truck configuration) around the mast, providing lateral movement for the hoisted load. The jib itself is structurally designed to support the suspended load and the hoisting mechanism, facilitating precise load positioning within its operational radius.


3. Manual Winch and Lift Hoist Mechanism: The lift hoist component, responsible for vertical load movement, is powered by a manual winch. This mechanical device comprises a drum around which a wire rope or cable is wound, operated by a hand crank or lever. The manual operation eliminates the need for electric or hydraulic power, making the unit ideal for remote locations or situations where power access is limited or undesirable. The winch provides precise control over the lifting and lowering of loads, albeit at a slower pace and typically with a lower lifting capacity compared to powered systems.


4. Hook: The hook is the terminal lifting accessory attached to the end of the hoist cable. Typically a robust, forged steel safety hook equipped with a latch, it serves as the direct interface for attaching to slings, chains, eye-bolts, or other lifting hardware connected to the load.

   Operation and Applications:

   Operation involves positioning the truck at the desired lift point, stabilizing the vehicle (if equipped with outriggers, though less common on manual pickup cranes), extending and rotating the jib to position the hook over the load, and then manually cranking the winch to raise or lower the object.

   This specialized equipment finds common application in various fields requiring localized, mobile lifting, such as:

5. Field Service: Assisting technicians with lifting heavy components (e.g., generators, pumps, engine parts) at remote sites.

6. Construction: Small-scale material handling, loading/unloading tools or supplies, and positioning structural elements in residential or light commercial projects.

7. Agriculture: Moving feed bags, implements, or farm equipment components.

8. Maintenance and Repair: Facilitating the handling of heavy parts in workshops or during roadside assistance.

9. Marine Applications: For launching/retrieving small boats or handling equipment on docks and marinas.

   Advantages and Limitations:

   Advantages: Portability, independence from external power sources, lower initial cost, simplicity of operation, and minimal maintenance. The manual winch offers fine control for delicate positioning.
   Limitations: Restricted lifting capacity (typically limited by manual effort and vehicle stability), slower operation compared to powered hoists, and reliance on operator strength and endurance. The reach and lifting height are also generally more constrained than with larger, powered cranes.
