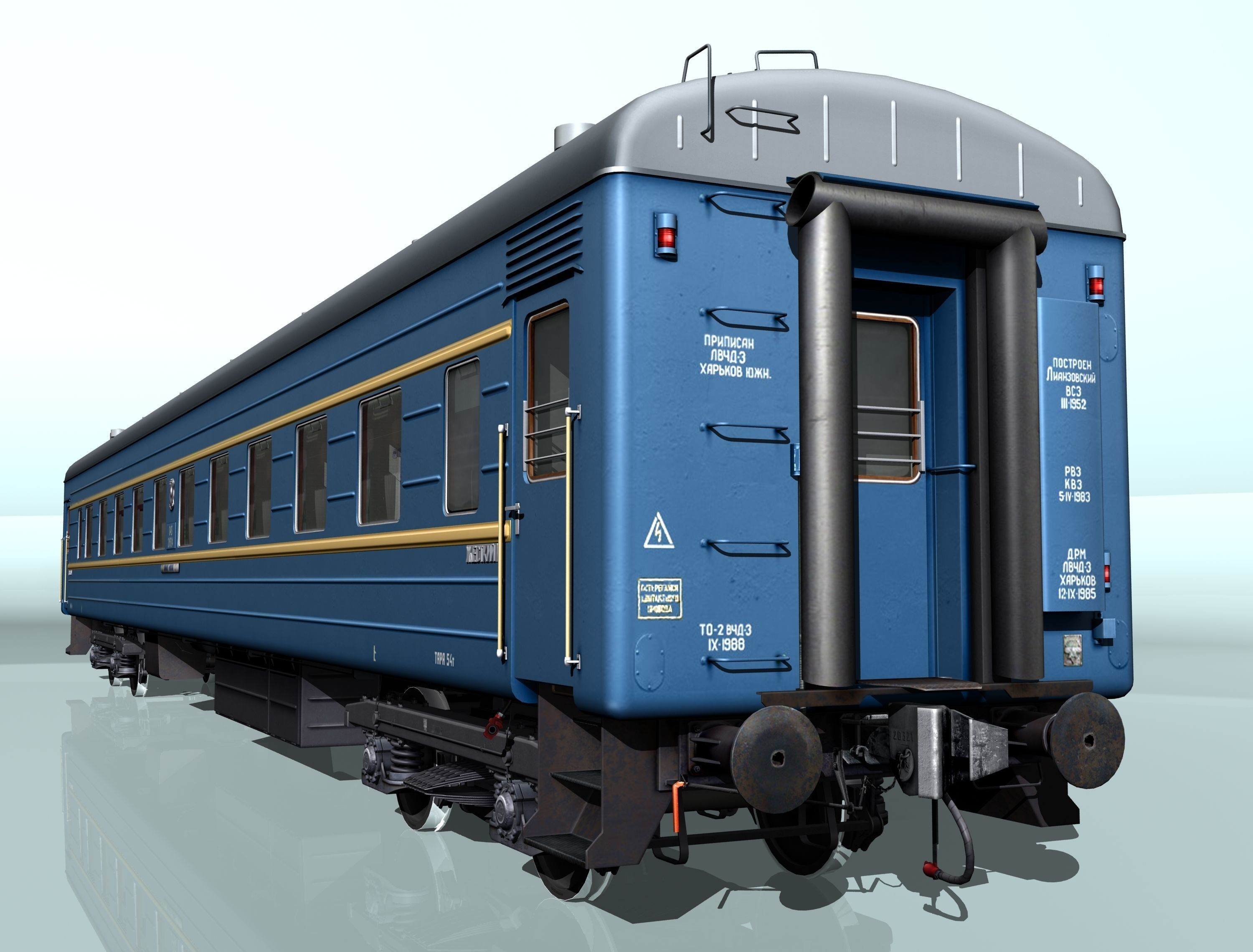

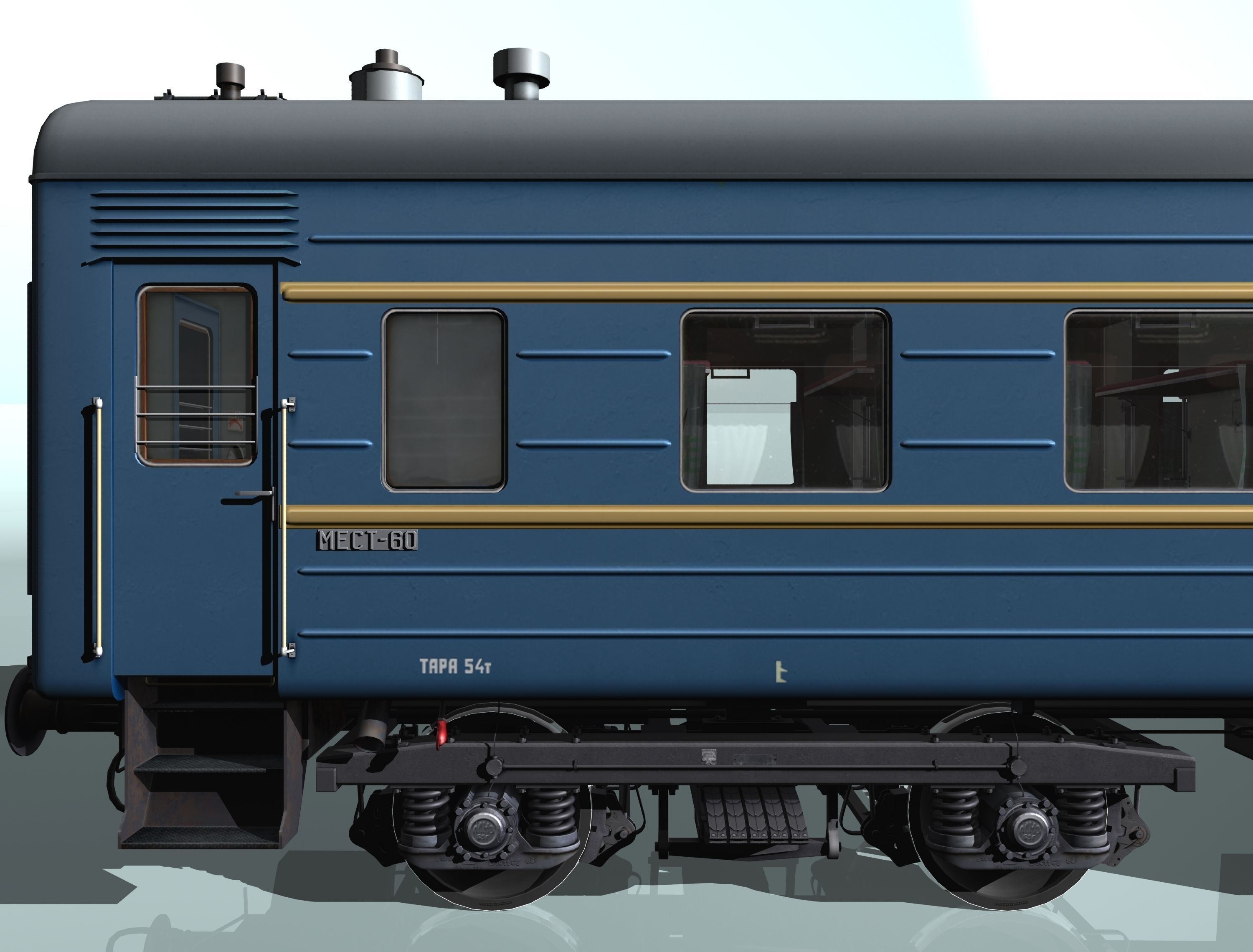

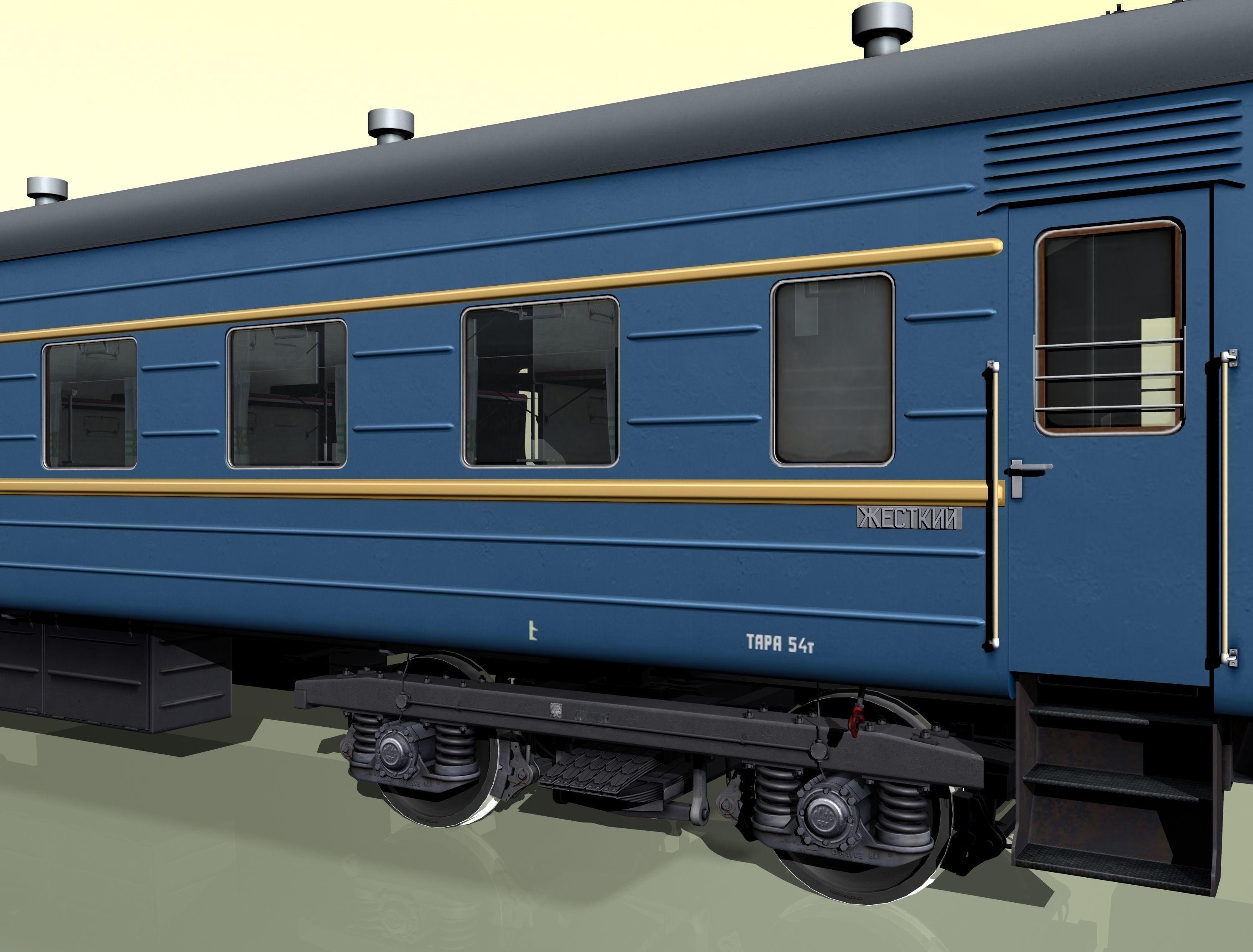

railcar CMV LVZ Low-poly 3D model
4-axle all-metal passenger railcar (carriage)
Prototype description: Second-class passenger railcar type PW-LVZ one of the latest editions of Lianozovsky (LVZ) plant (goffering type: 2-2-1). Sample 1950. Passenger capacity of railcar with 60 seats. Lianozovsky factory built railcars until December 1951, after which the production of was discontinued. In 1983 for this railcar was made a complete overhaul and modernization:
- replaced window frames and glazing,
- was the replacement elastic playground (railcar souffle platform) of the transition between the tambours of railcars,
- complete renovation of the interior part,
- upgraded ventilation system and heating.

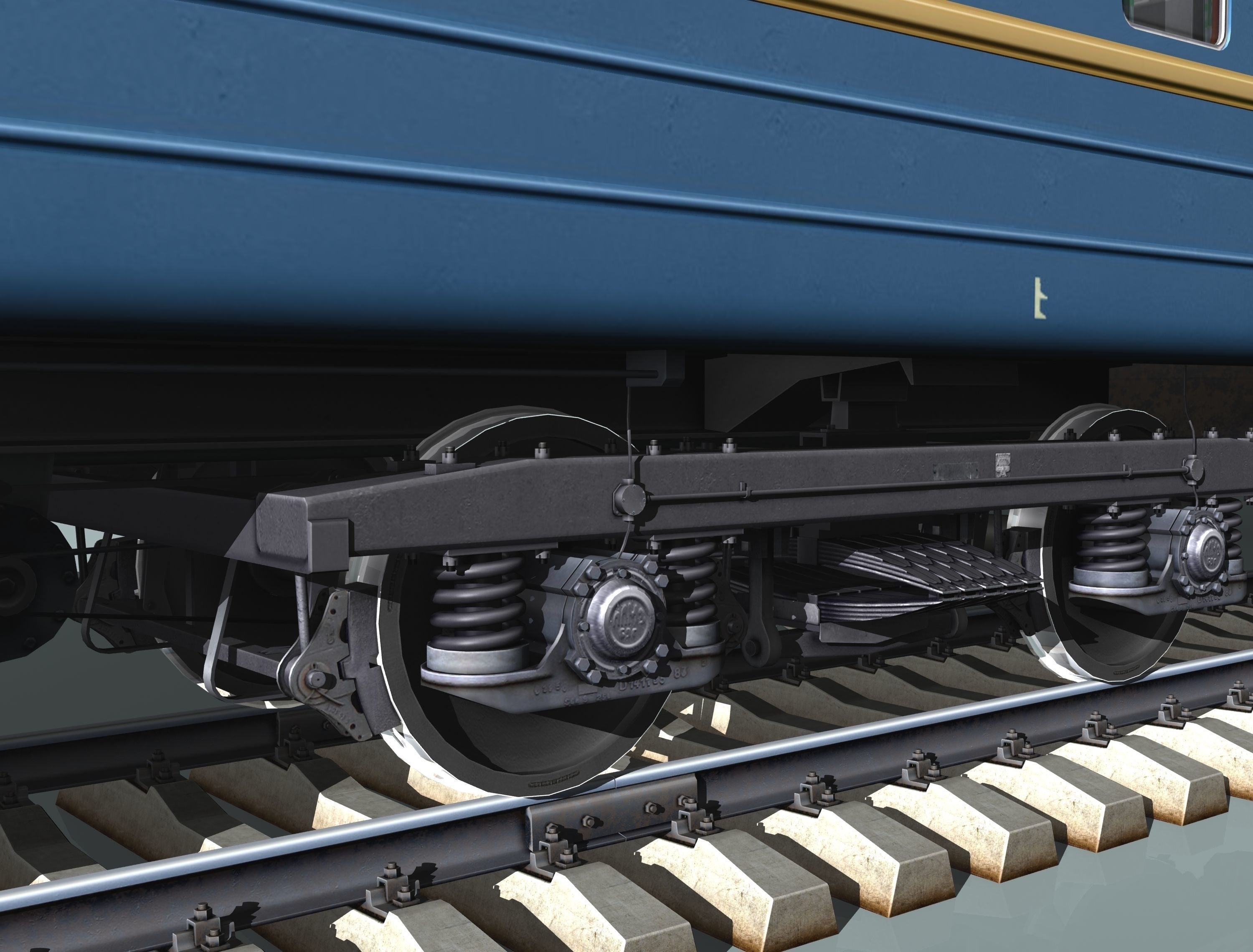

Technical characteristic: Seats (bench): 60 Length of corpus: 23,6m Width (full gabarit): 3,22m Height (from rail head): 4,54m Base of the railcar: 17,0m Tara of railcar: 54t The axis type - III Gabarit type: 0-T Coupling: auto coupling type SA3. Wheelbase: 4-axles, two bogie-type CMV-LLMZ-2M7. Bogie, bearings, details of bearings and bearing boxes, the production of LLMS (Lublin foundry-mechanical plant) Wheels: forged steel with bandages. Diameter 1050mm Heating: water, autonomous. Lighting - electrical net. Ventilation: natural, air injection from the air stream.
3D model description: The archive includes a basic model in 3dsmax format (2009), and the files of the export models in formats: .FBX (Autodesk FBX), .OBJ and .3DS. As well as executed the LOD (34%) for of this model. The project is executed according to the archived drawings and photographs.
The archive is the original texture files of the railcar in the format .PSD (Photoshop). File name lvz 043 21924 PSD zip-folder. This will allow you to change the color of the railcar, the name on the label, changing rooms, signs and labels...

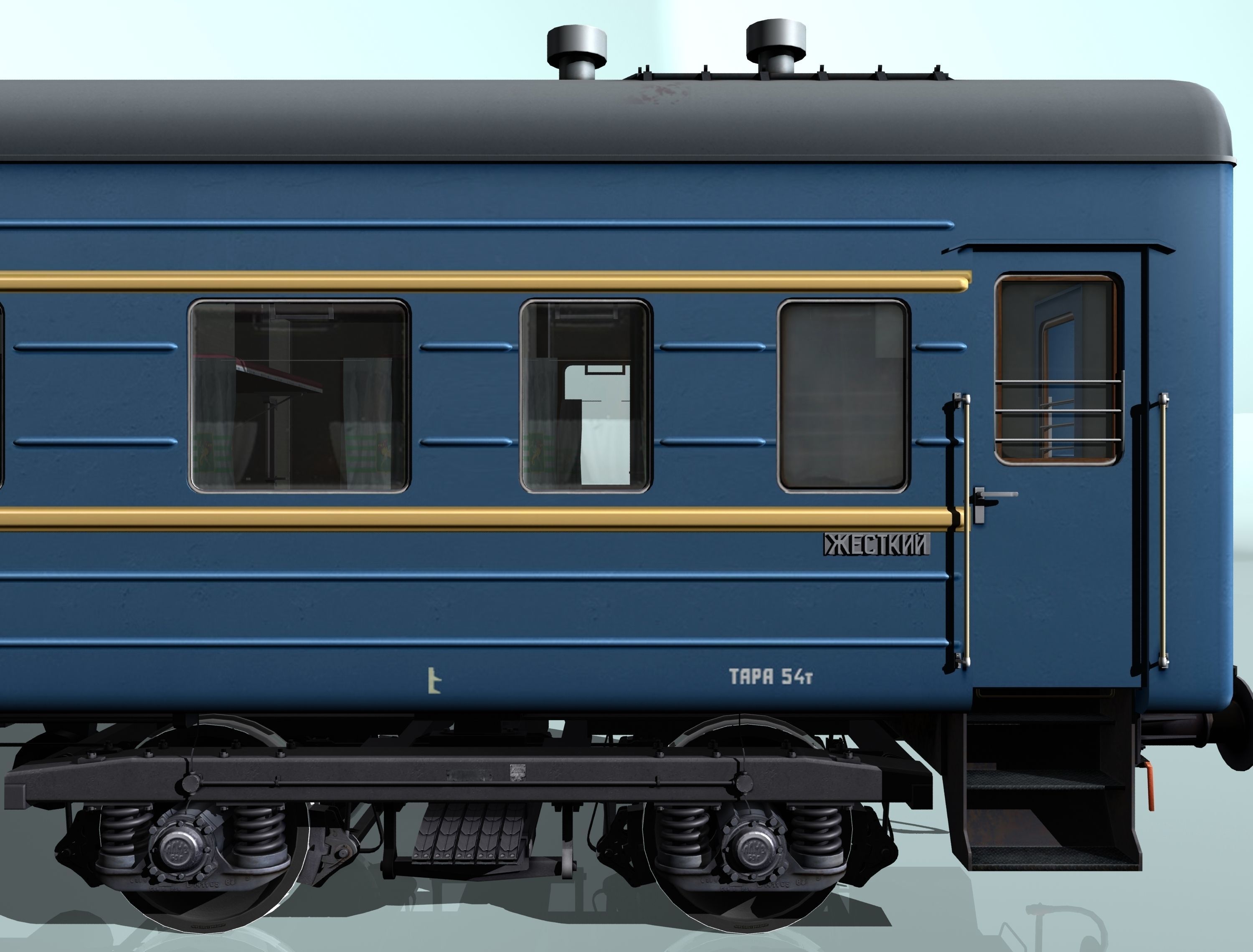

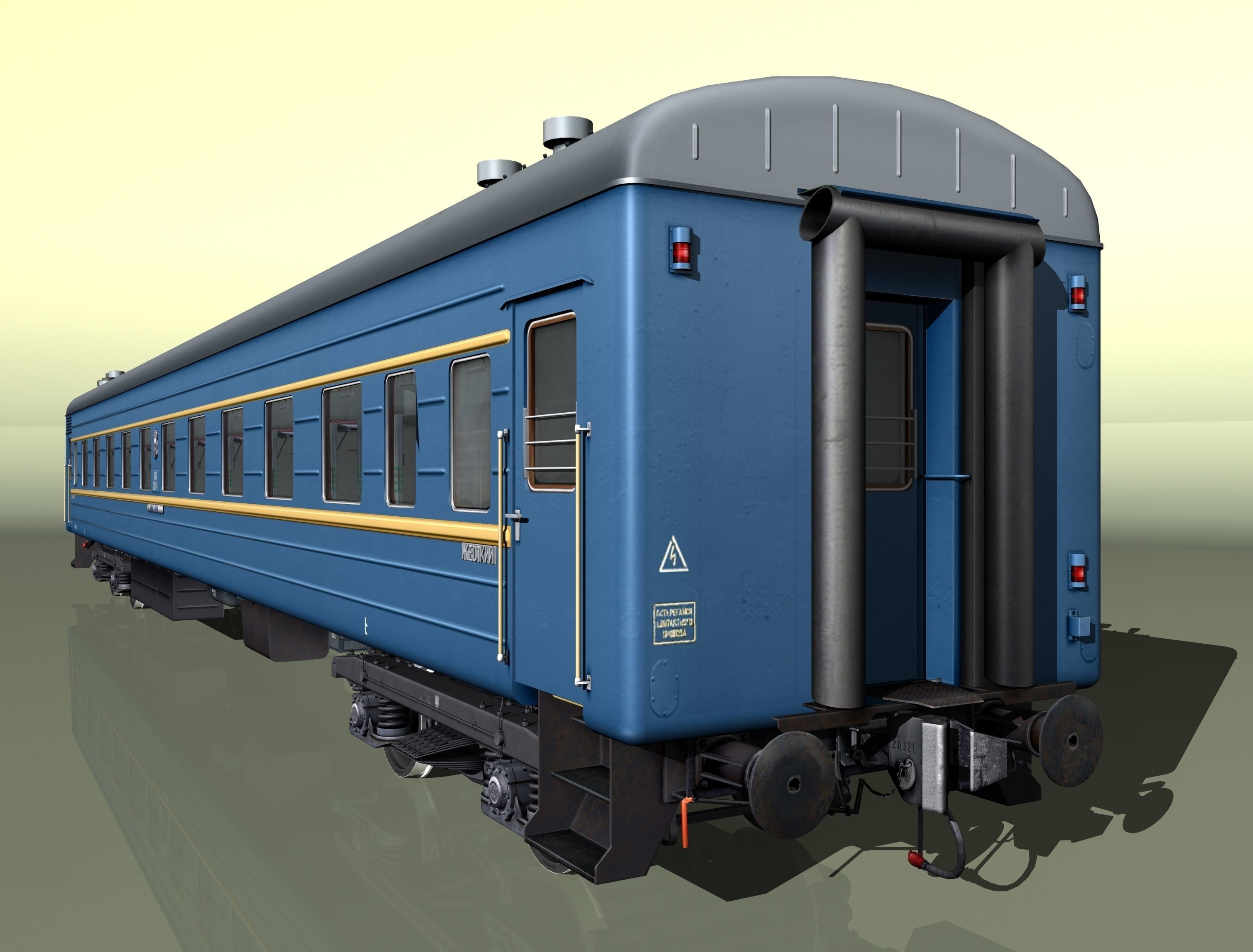

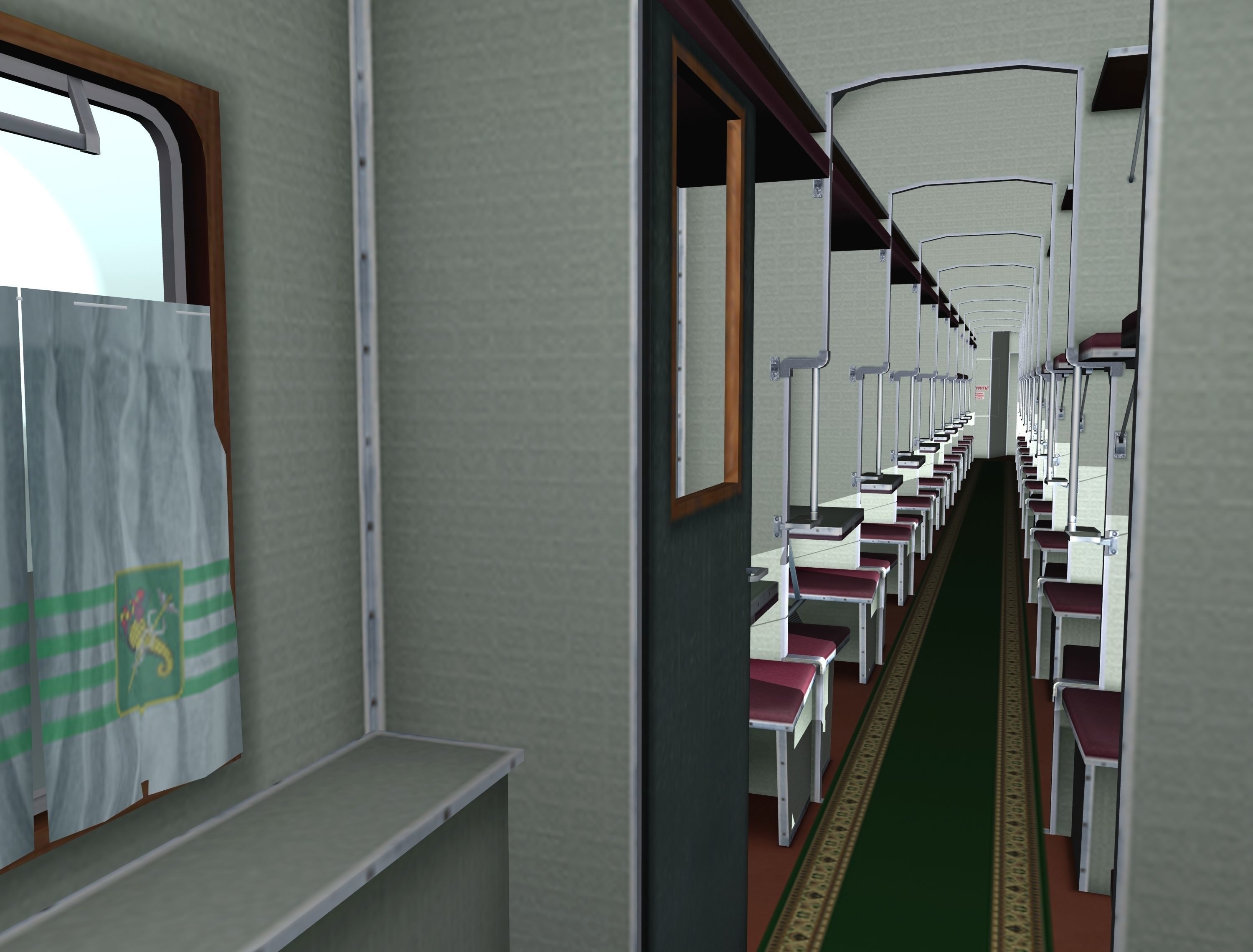

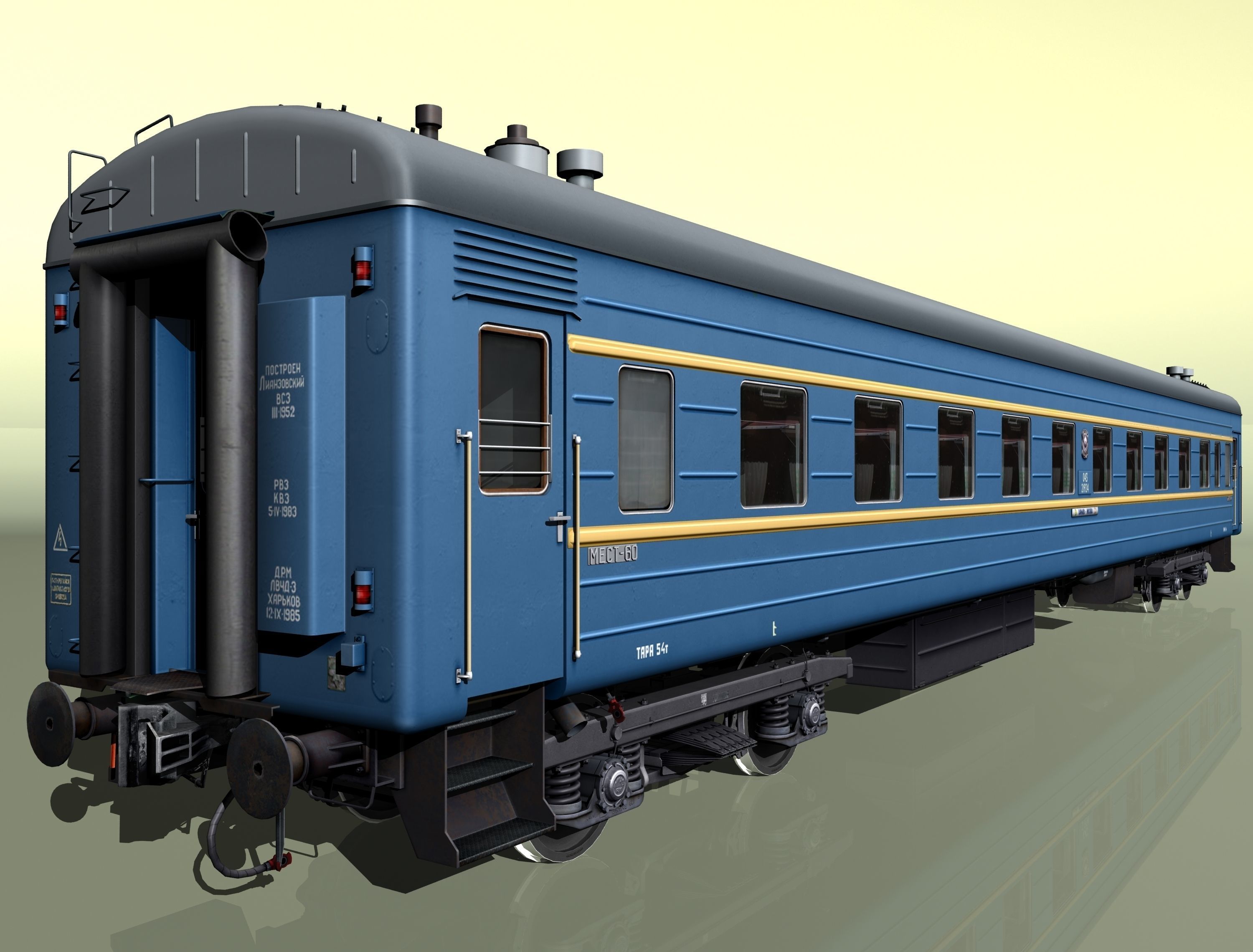

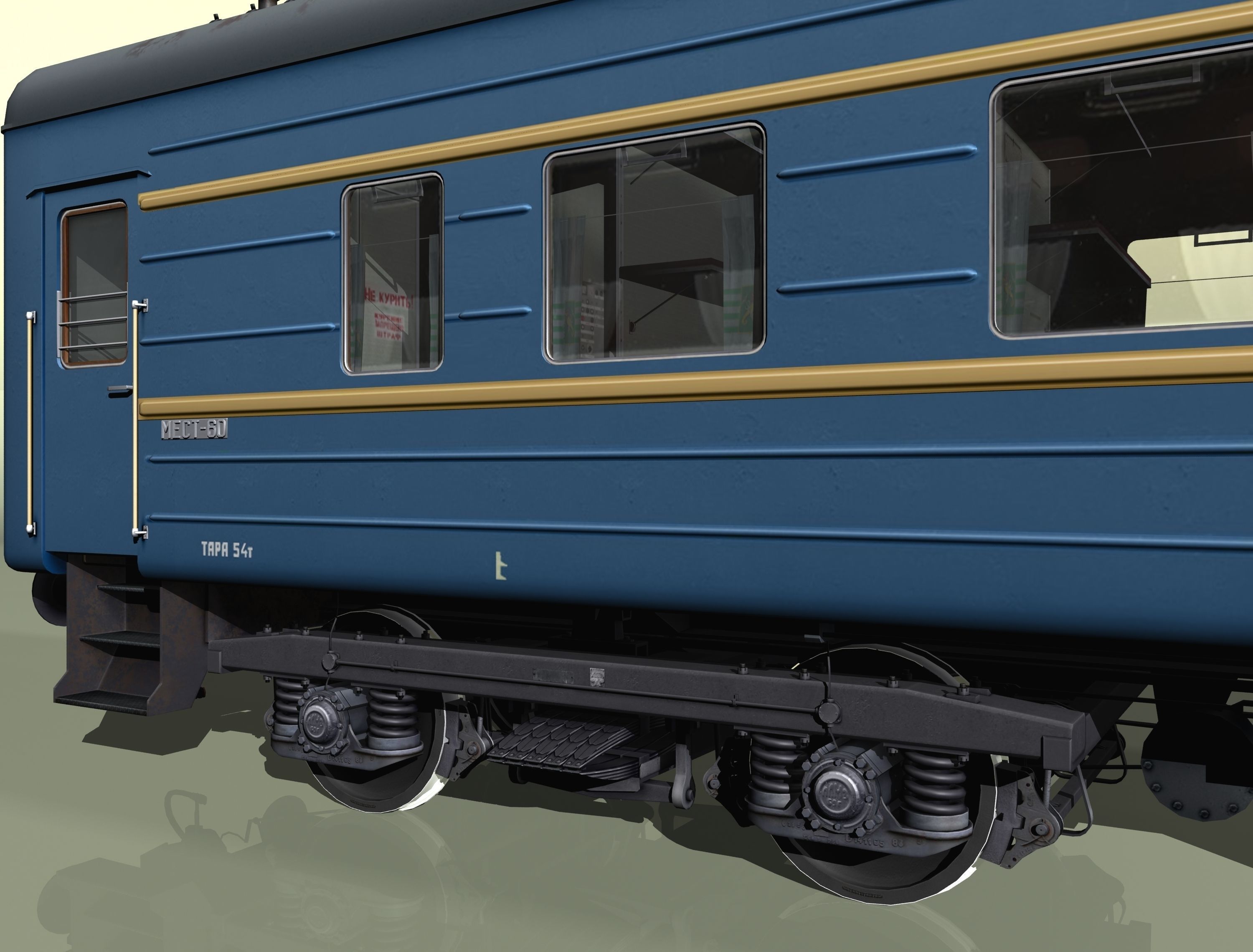

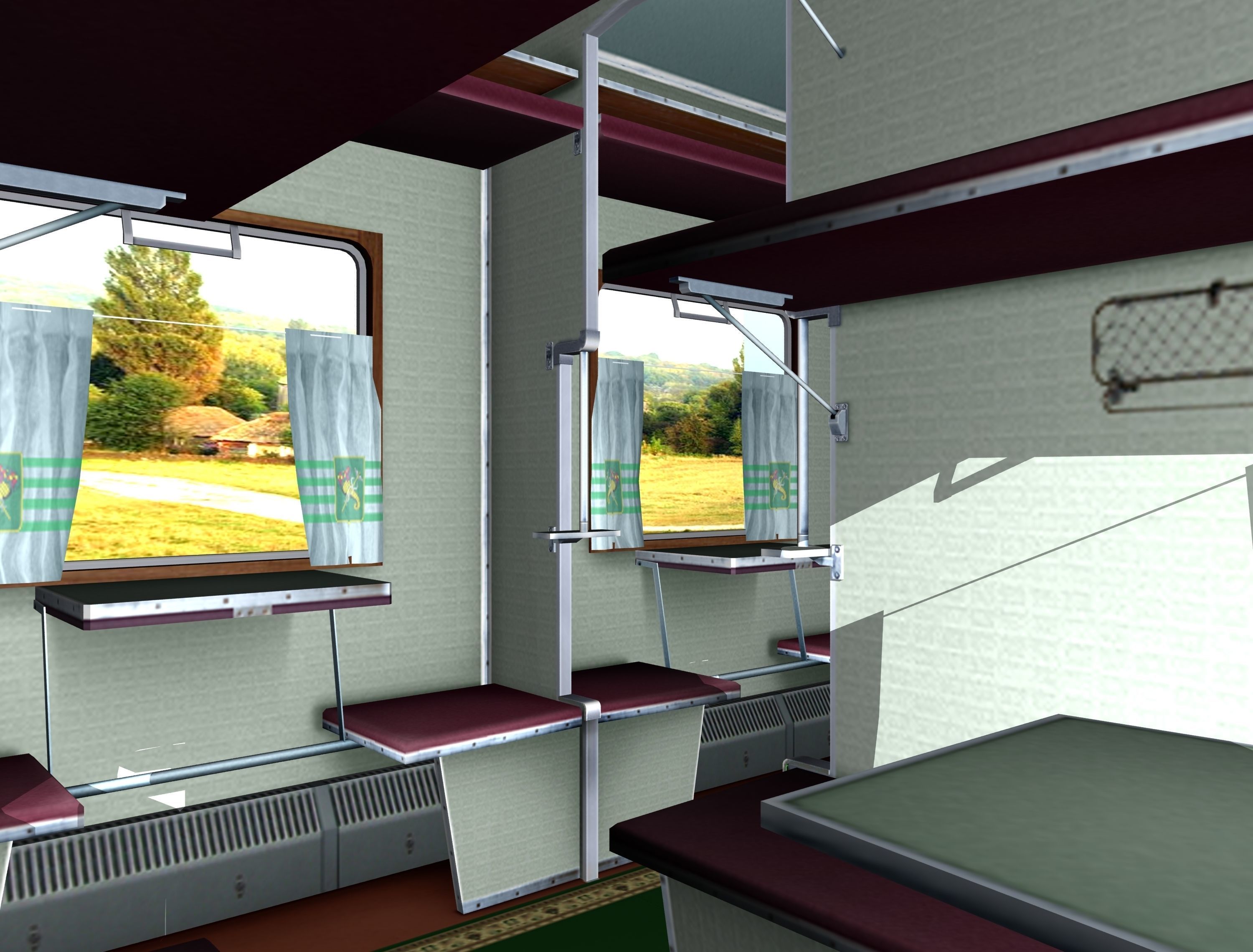

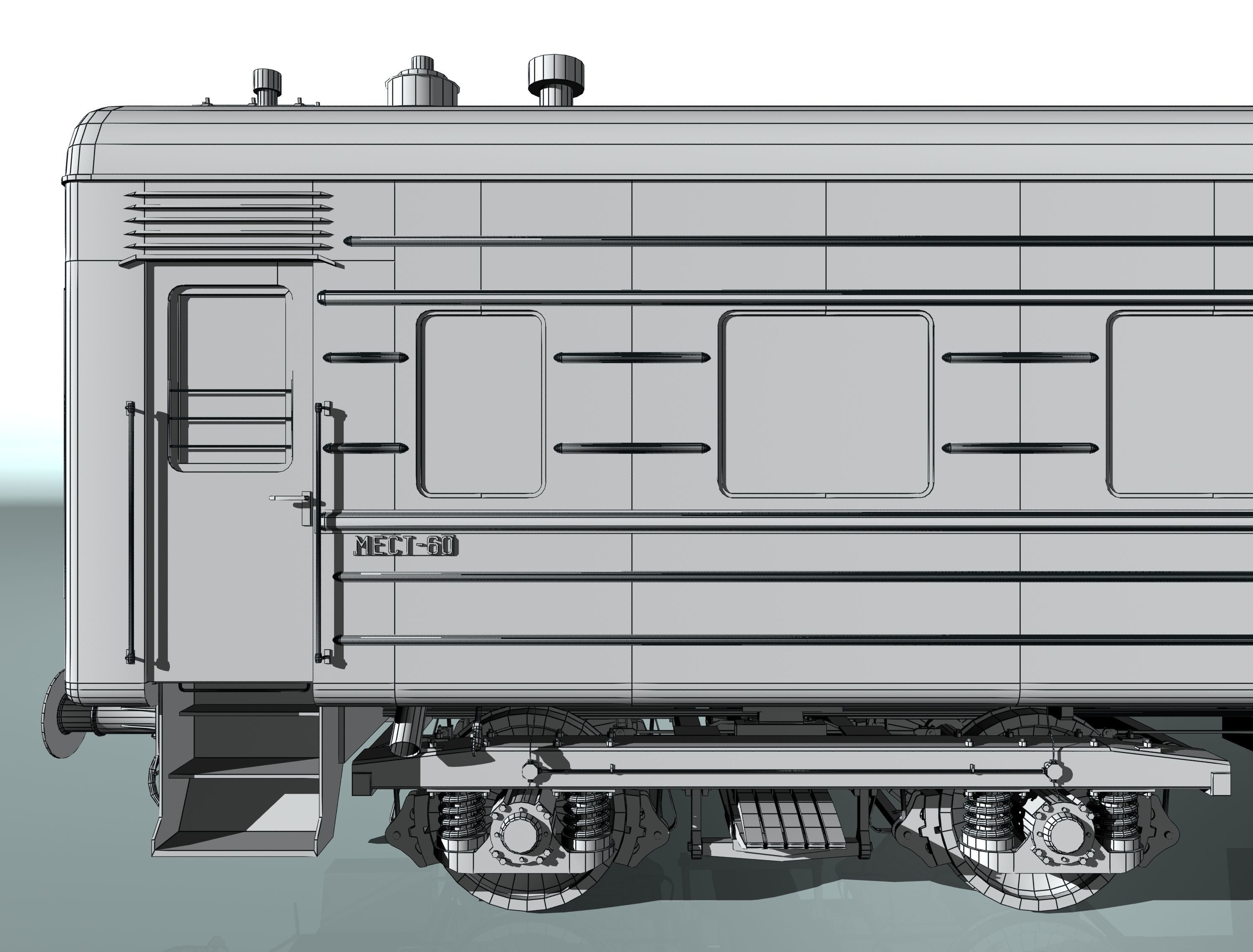

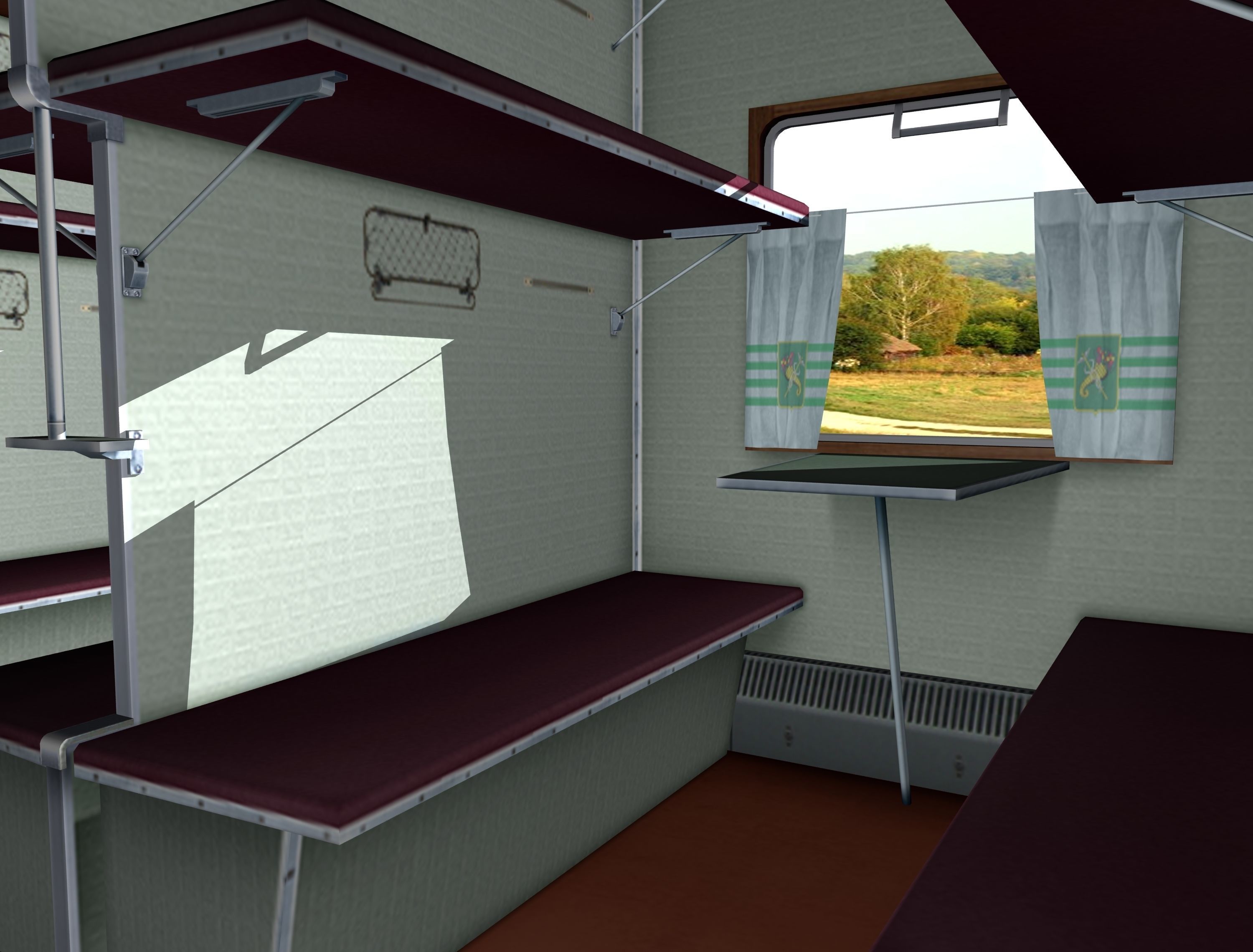

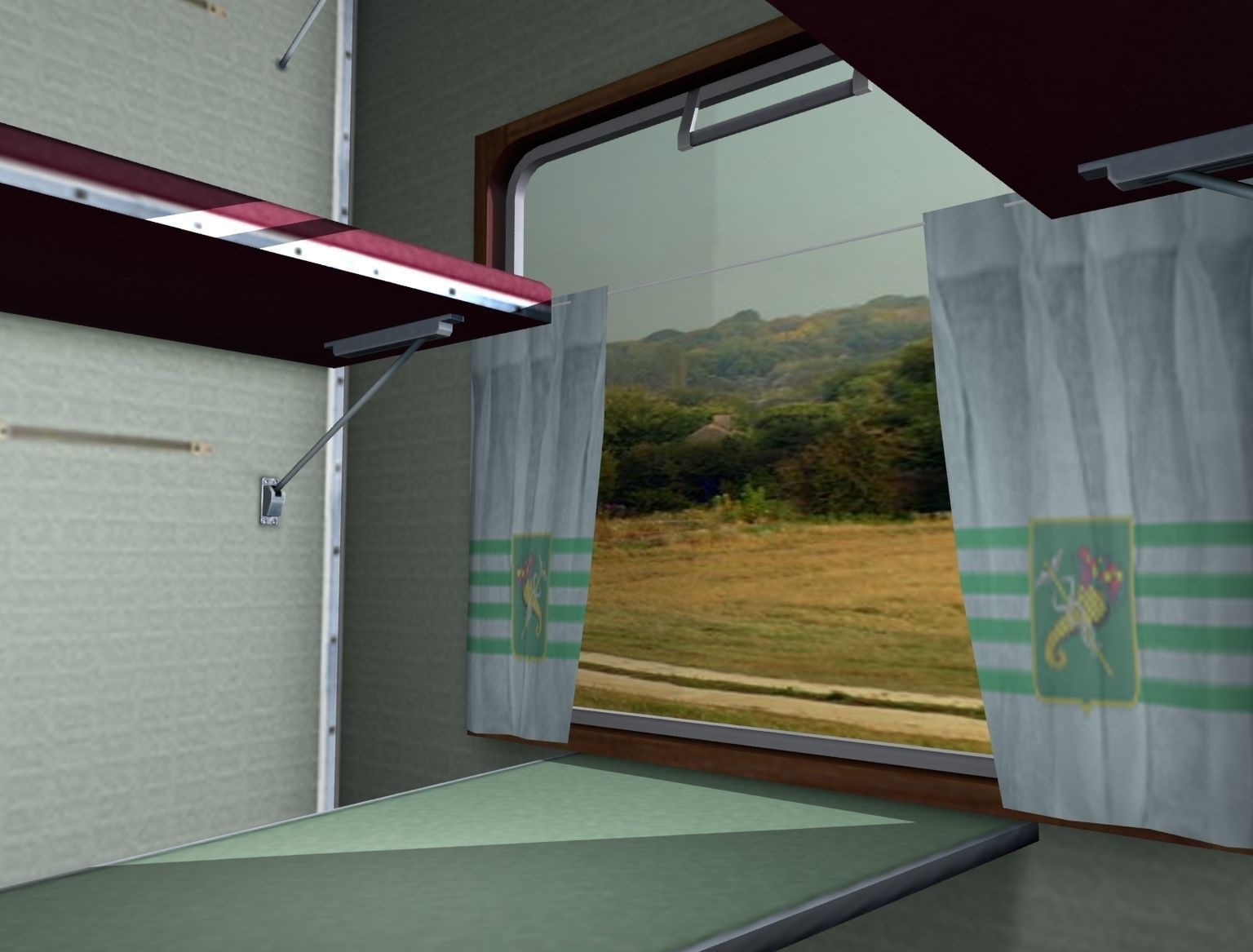

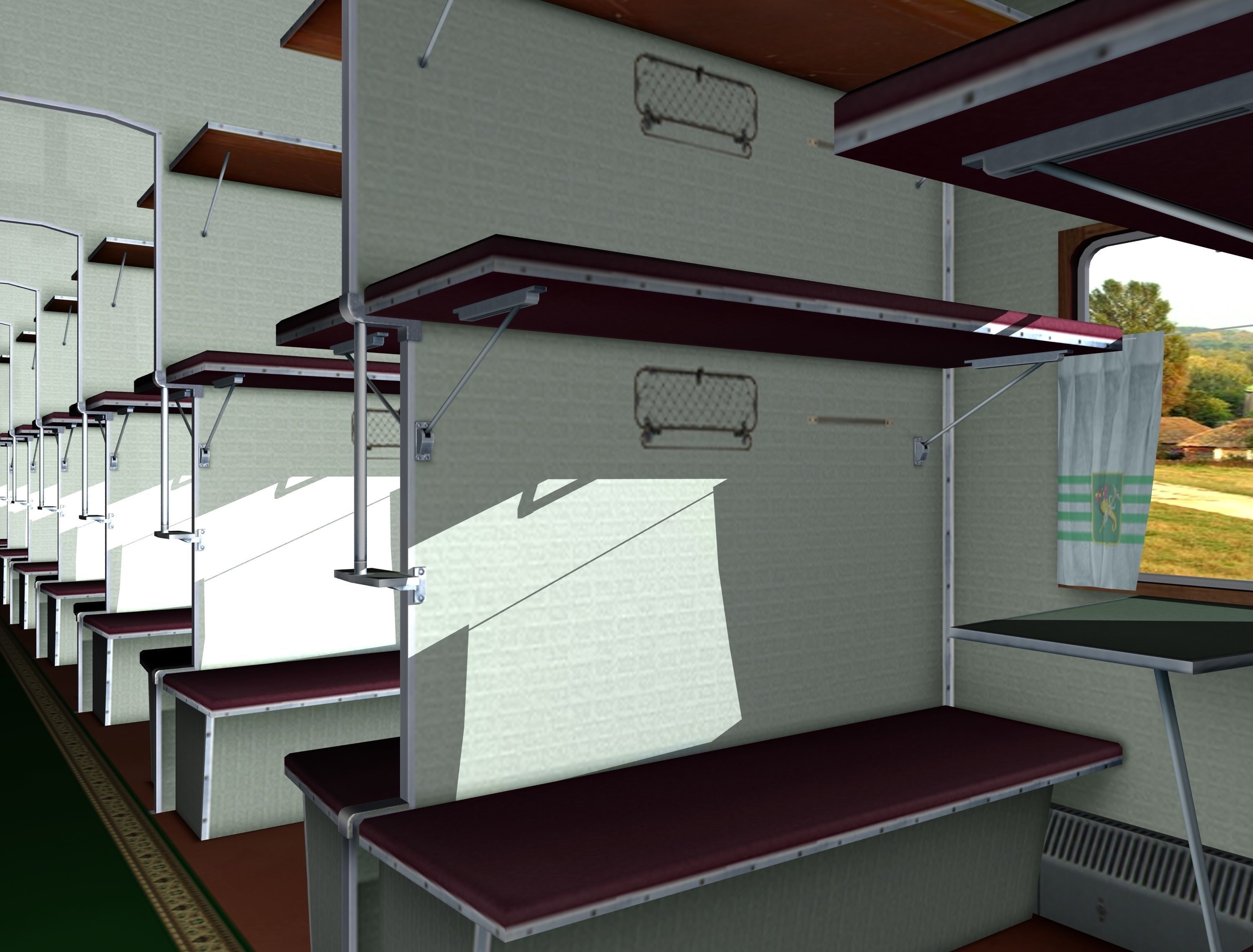

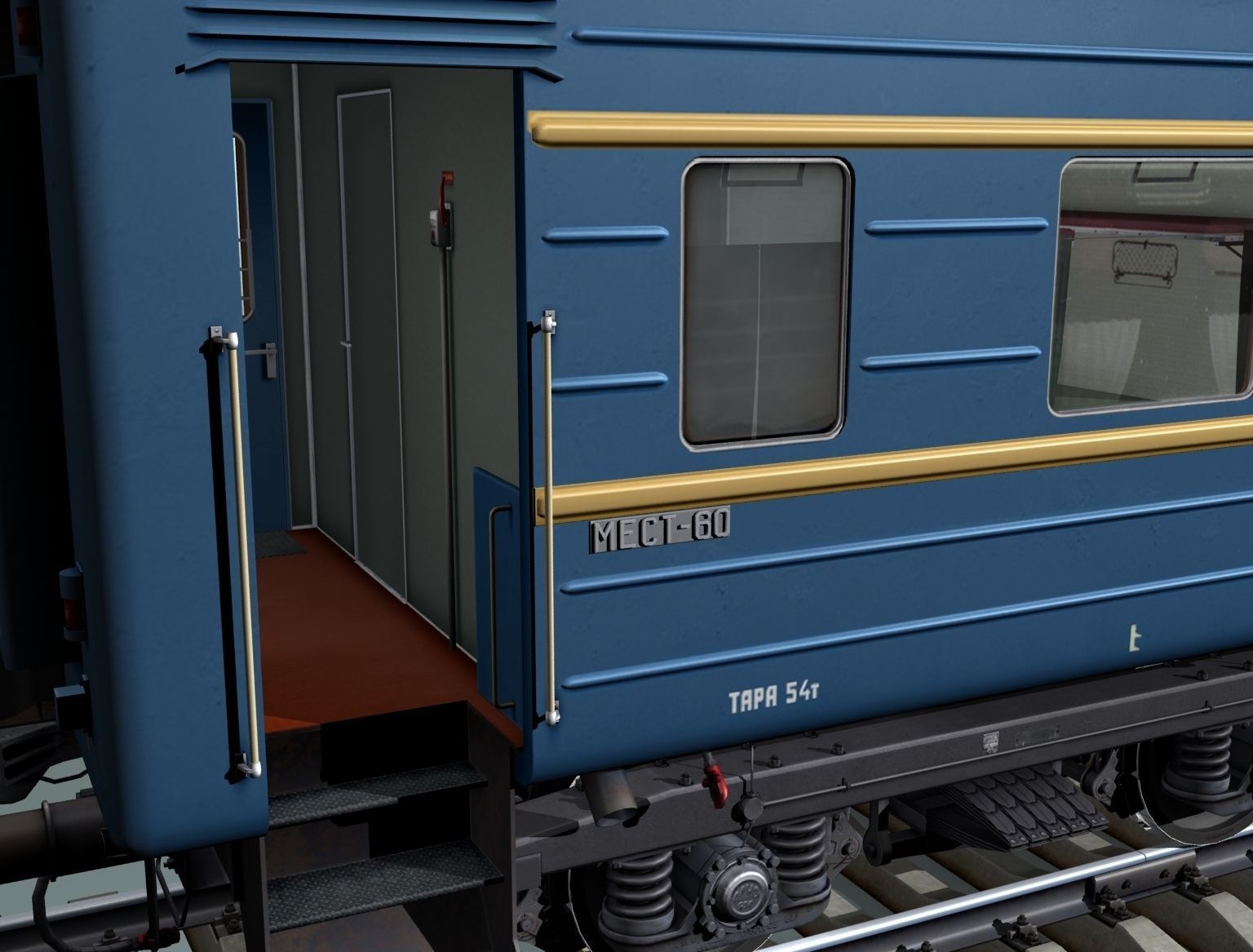

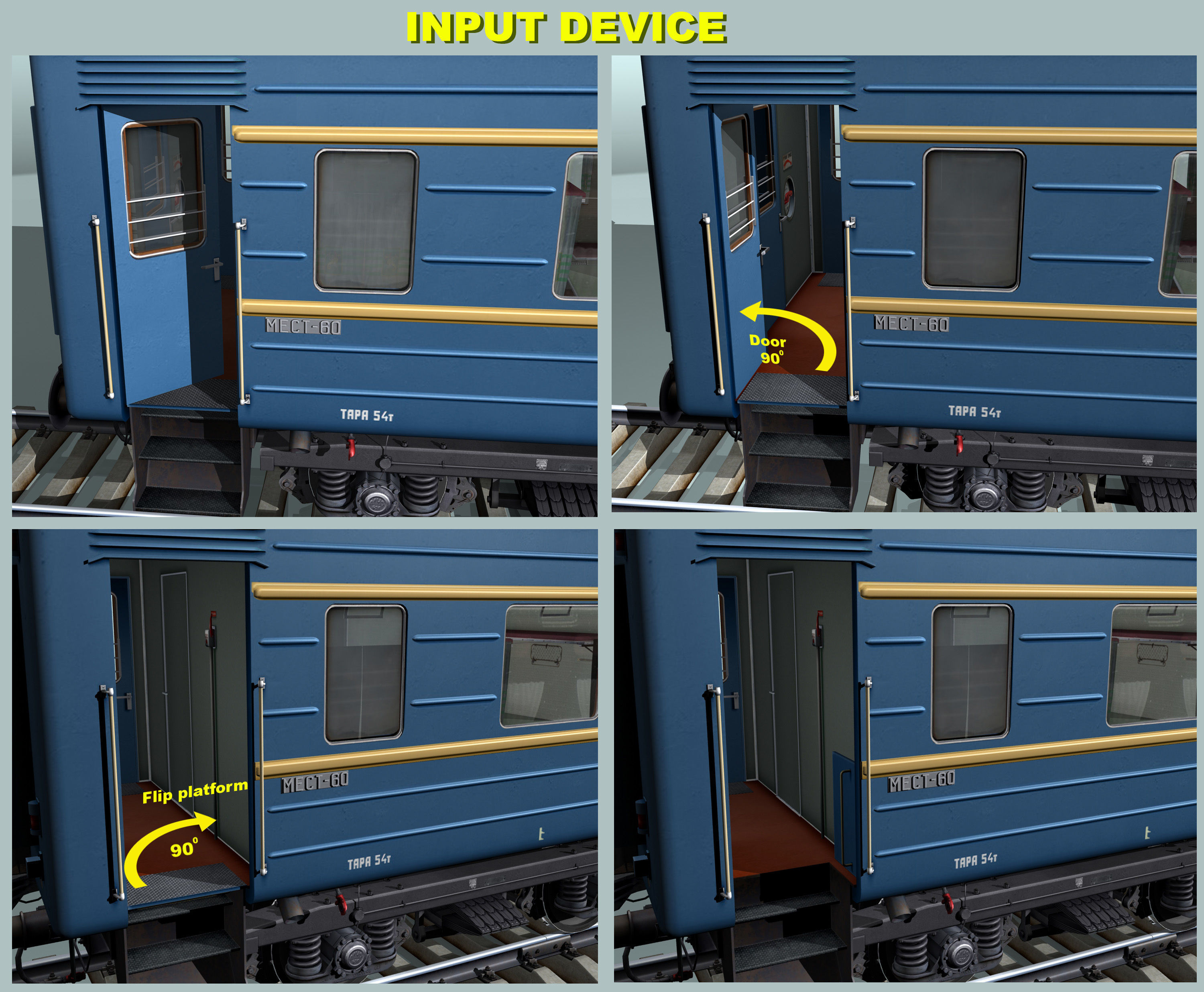

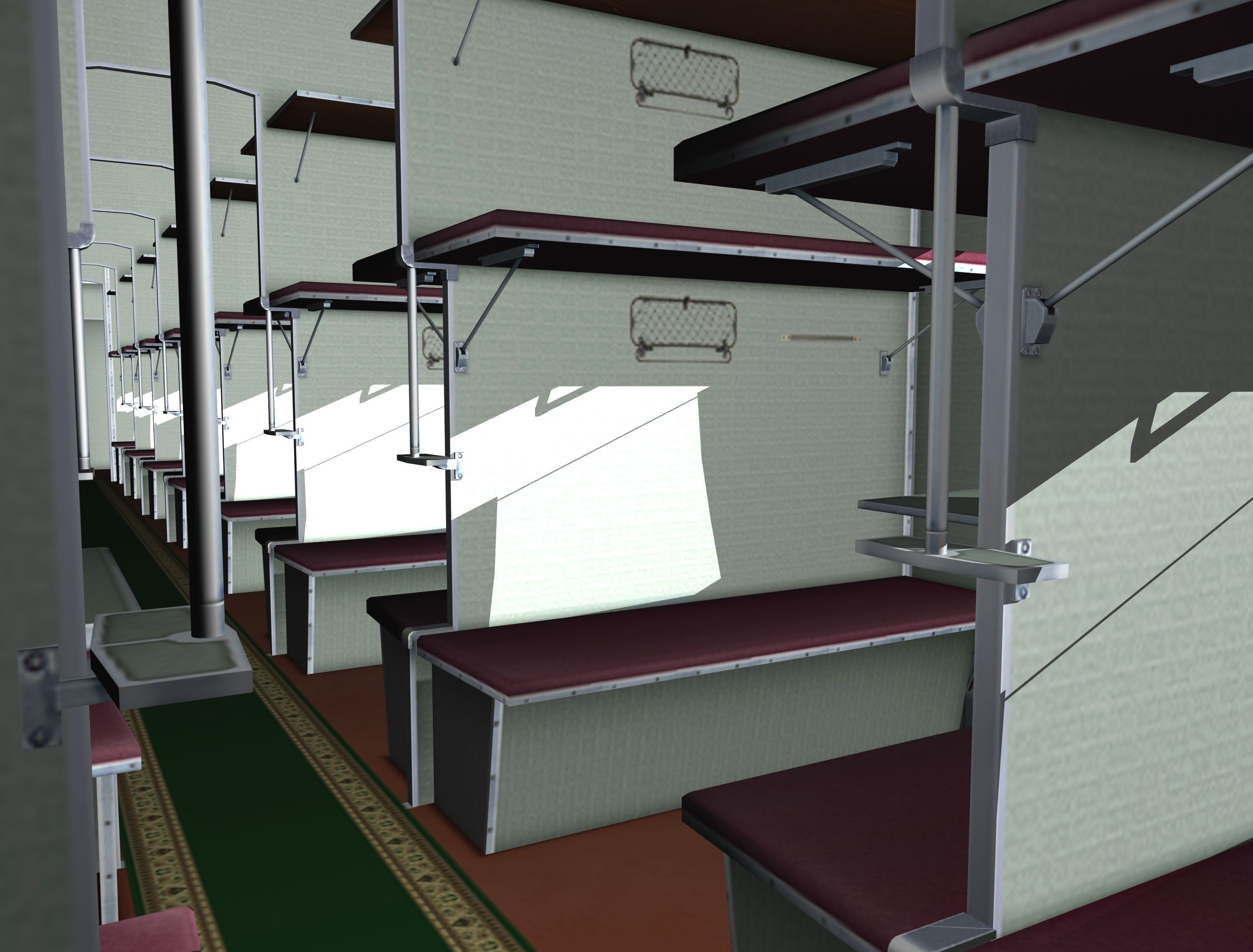

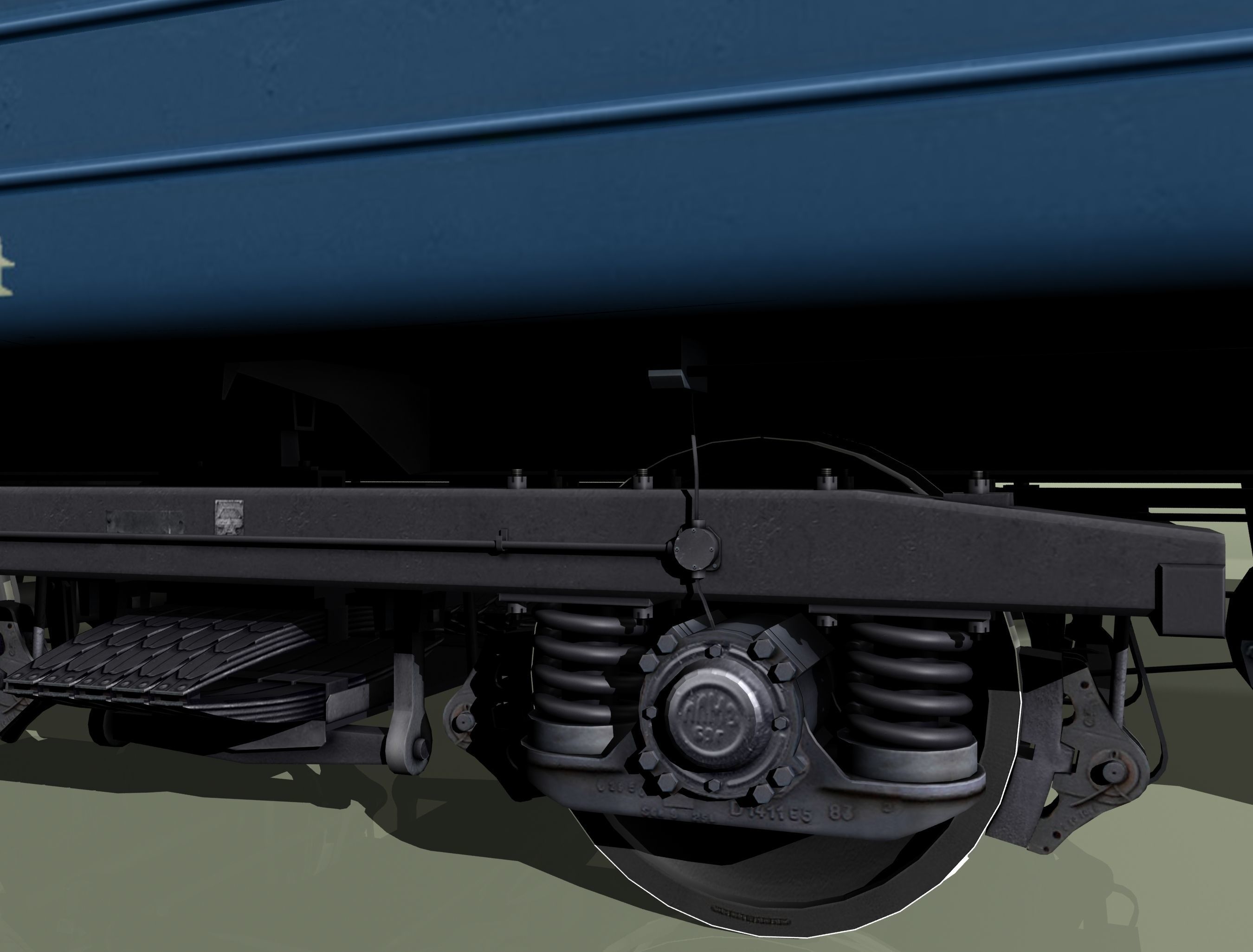

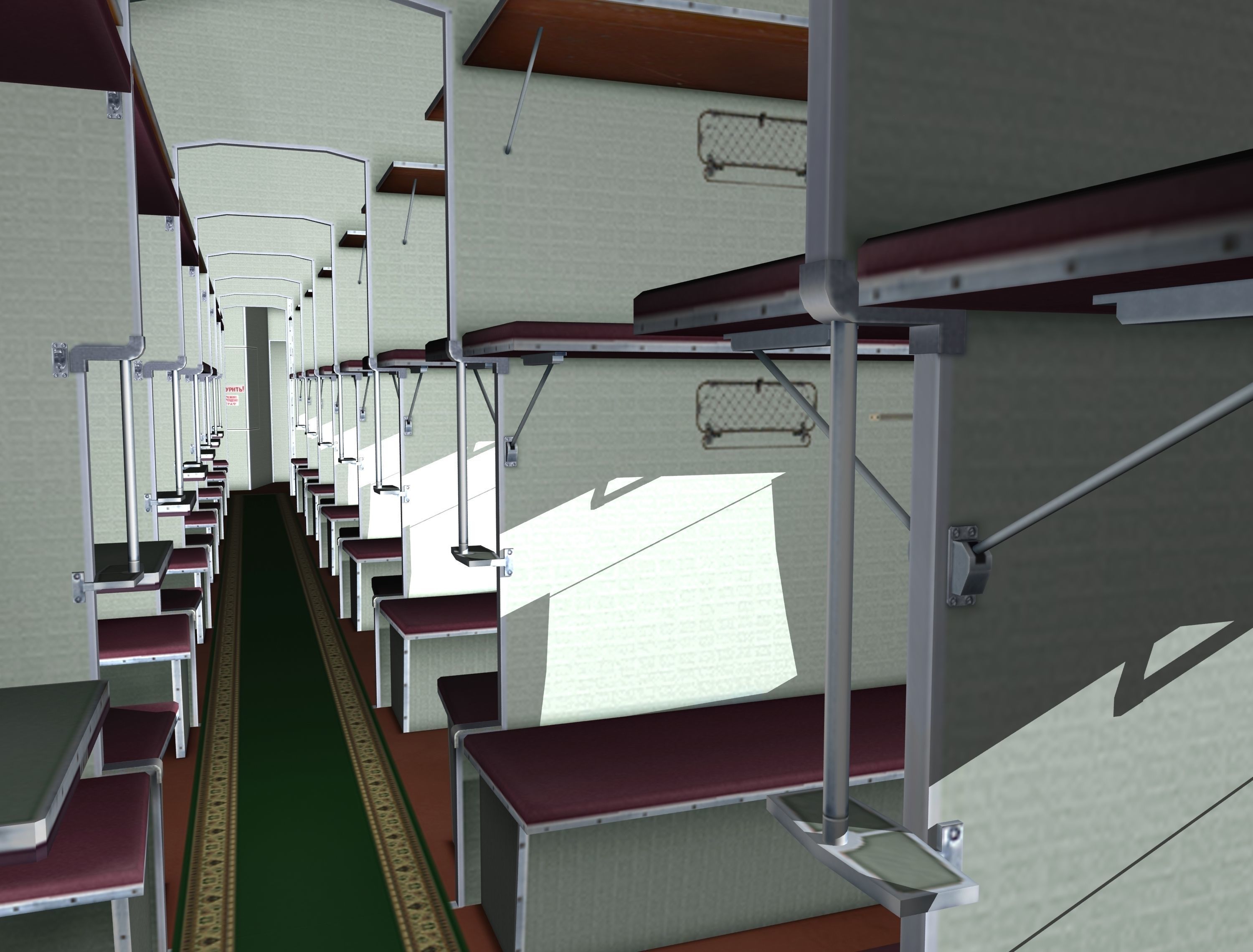

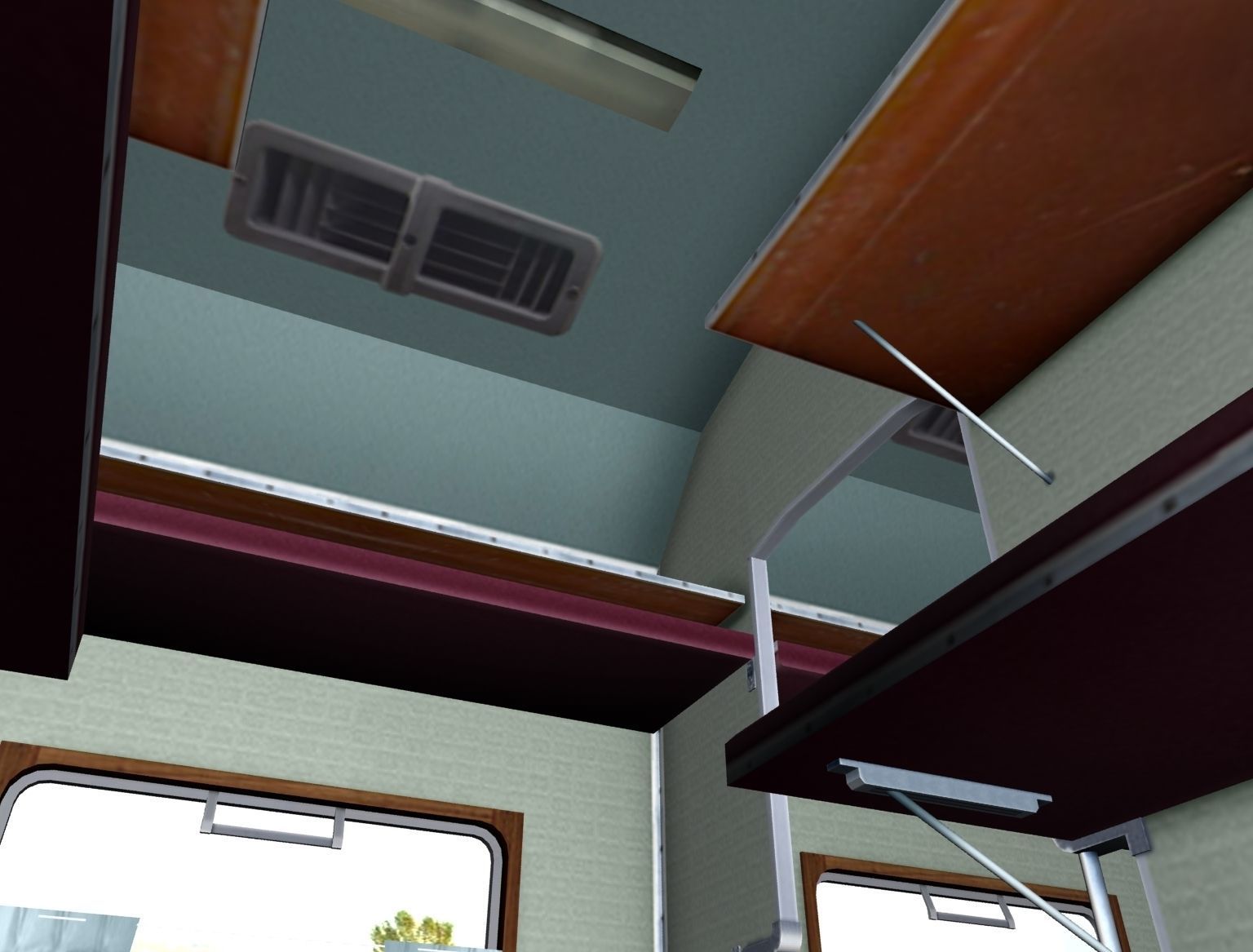

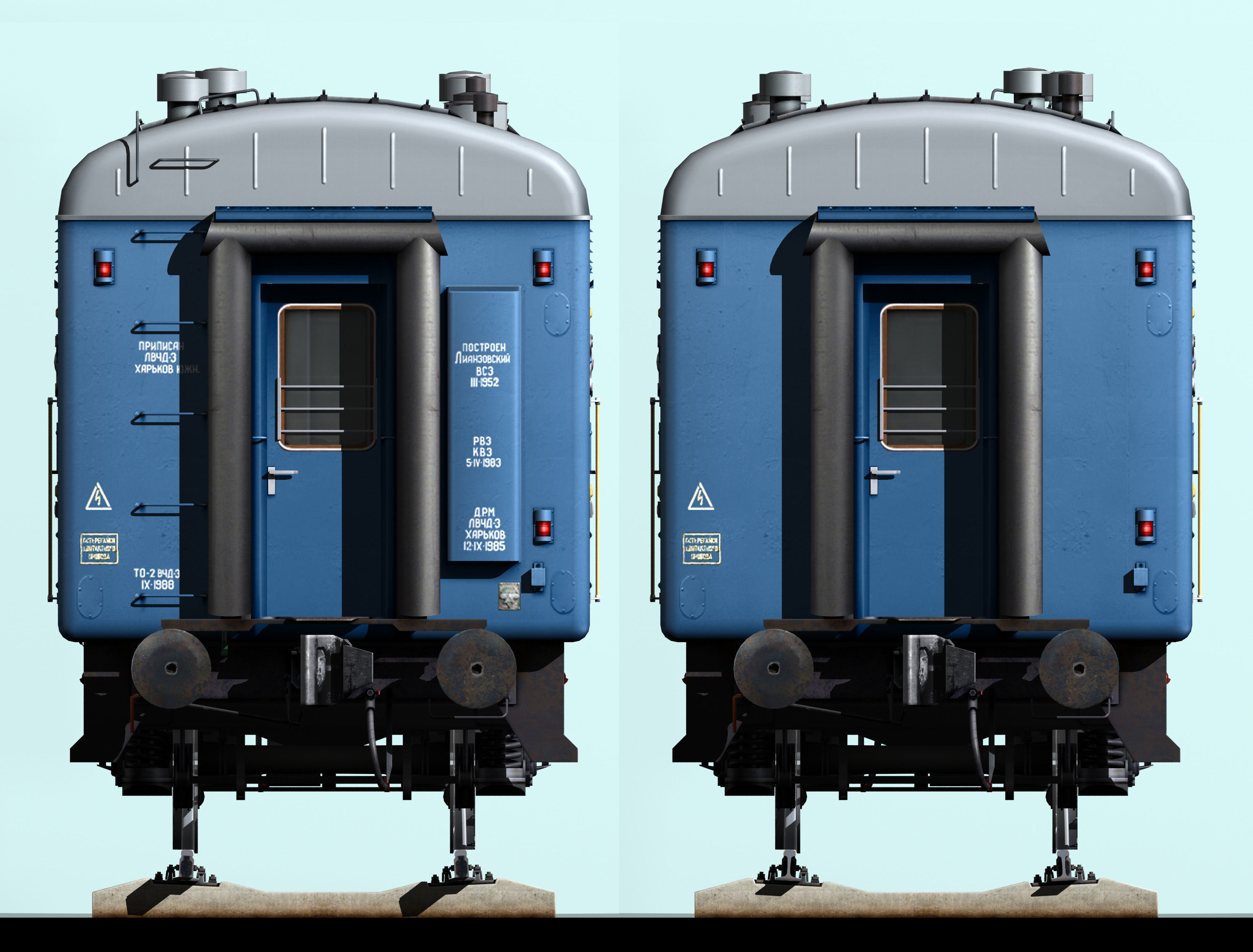

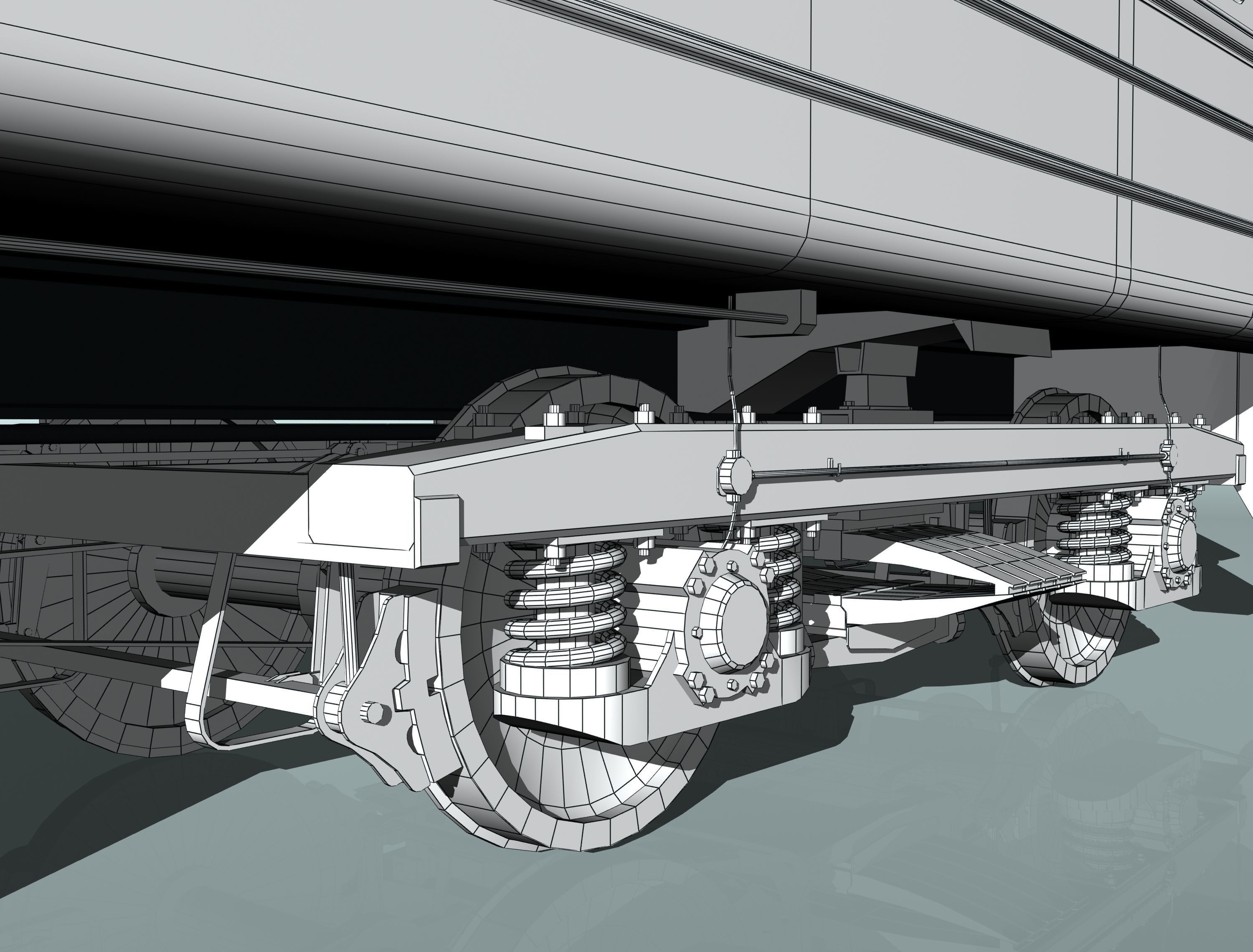

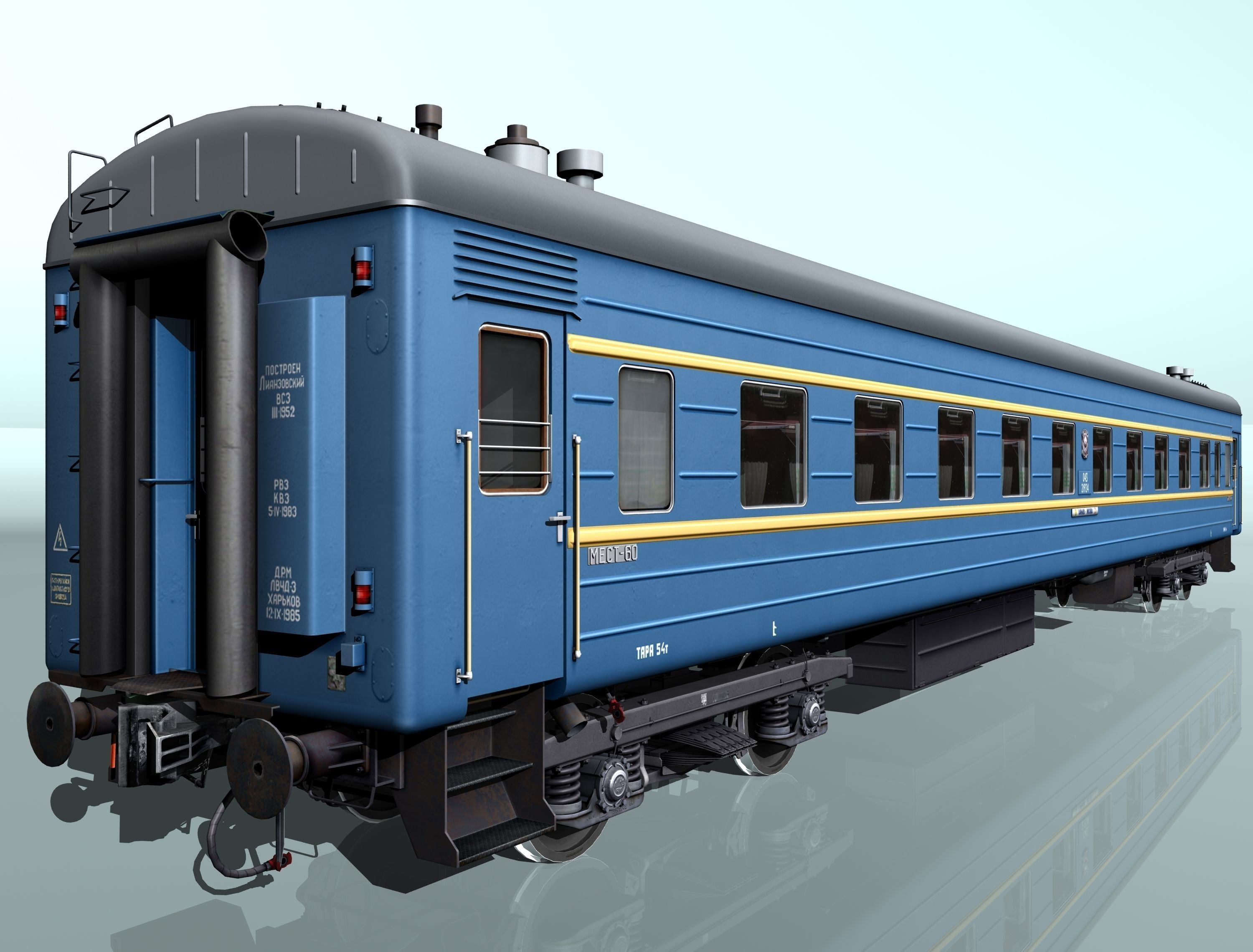

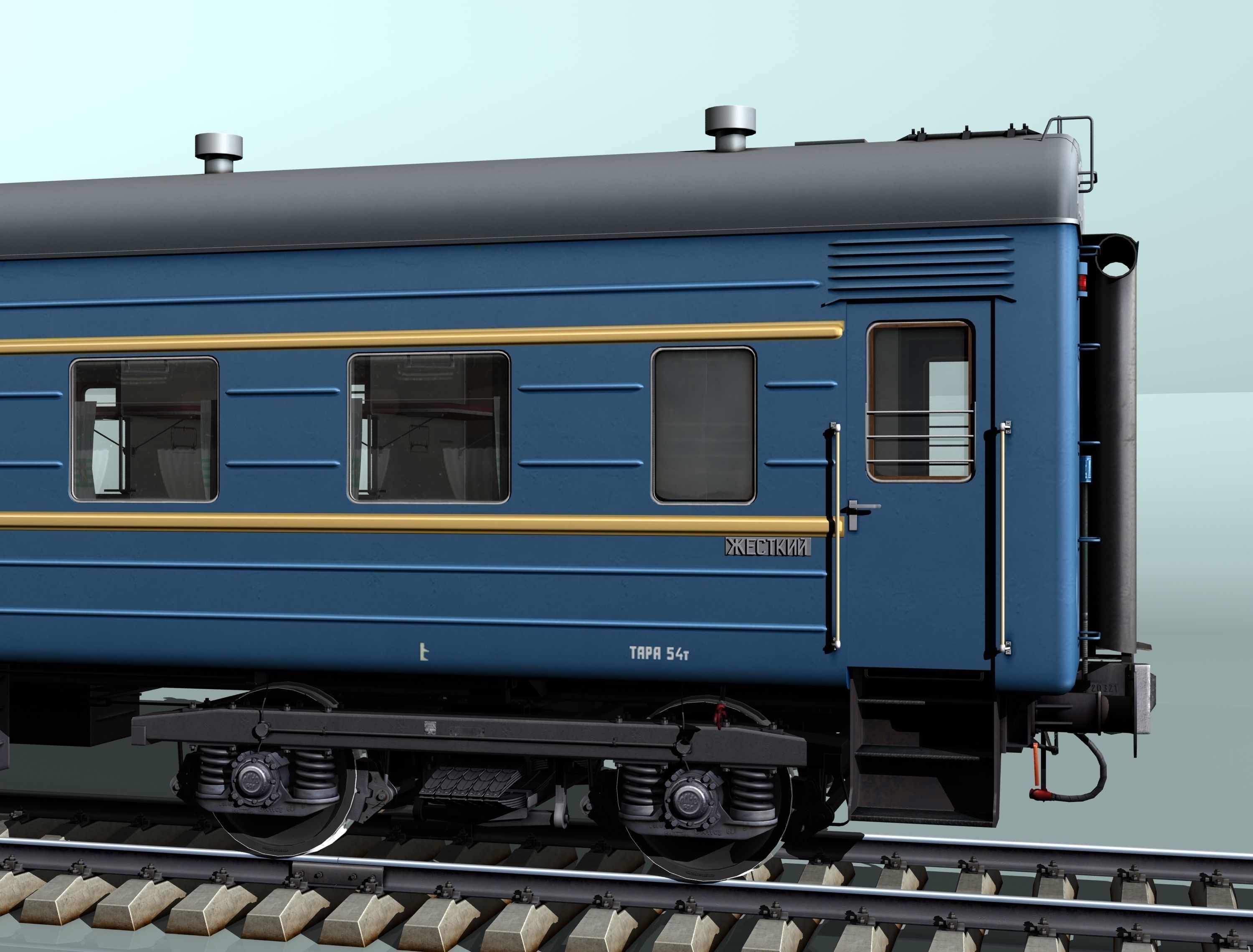

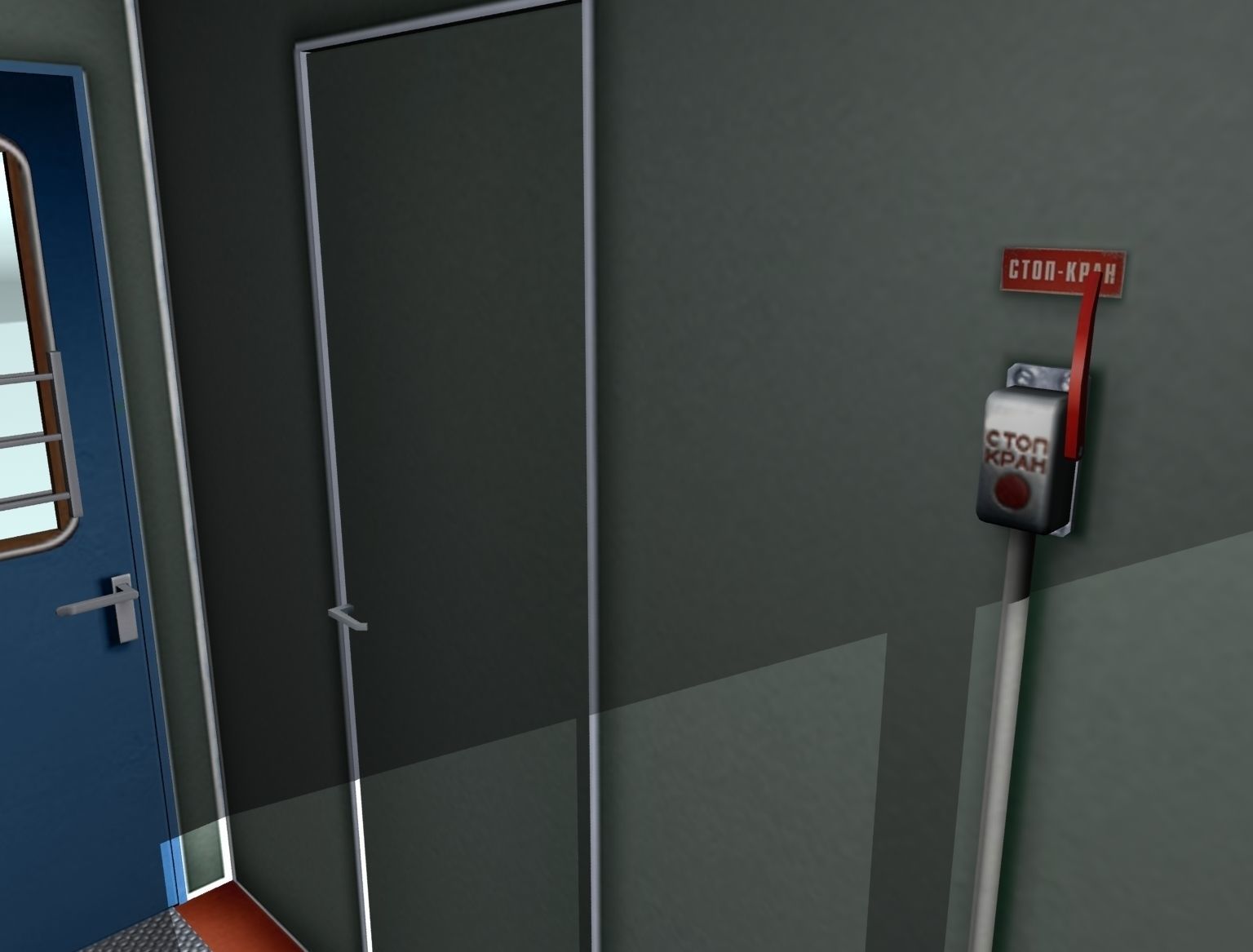

The model includes the main parts of the carriage and the base part. The model has interior, all elements and detail of brake system. Has all details suspension. The model is designed for installation in visualizing the scene, integration into scenes and performances, video production and more, as well as for use in games and simulators. Textures in form .JPG (2048x2048 and 1024x1024 pix). Applied materials-only standard of max (level version 3dsmax2009).
The total amount of polygons in the model: Base model (full): faces: 131 821 polys: 56 676 verts: 81 859
LOD (34,2%): faces: 45 173 polys: 18 226 verts: 28 151

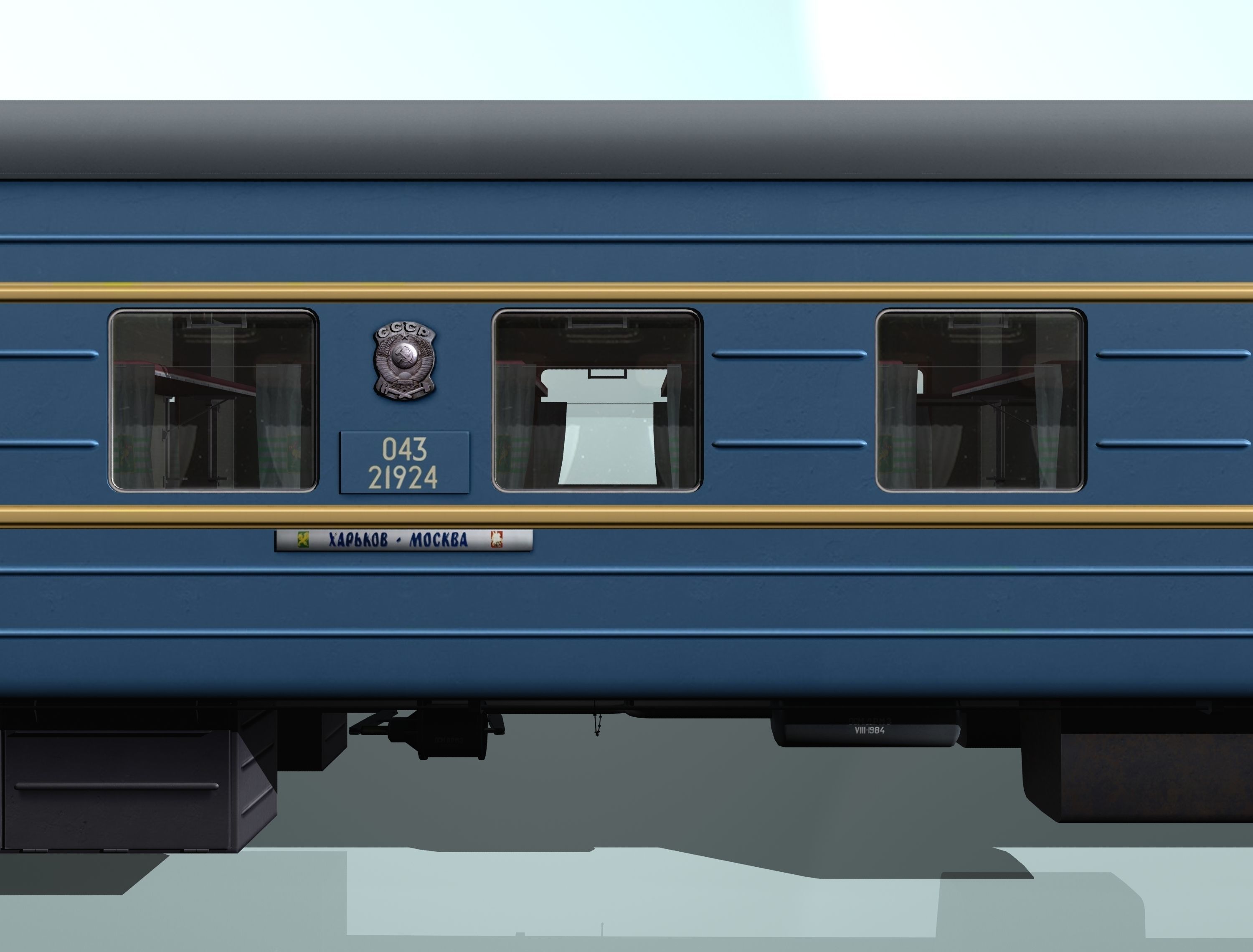

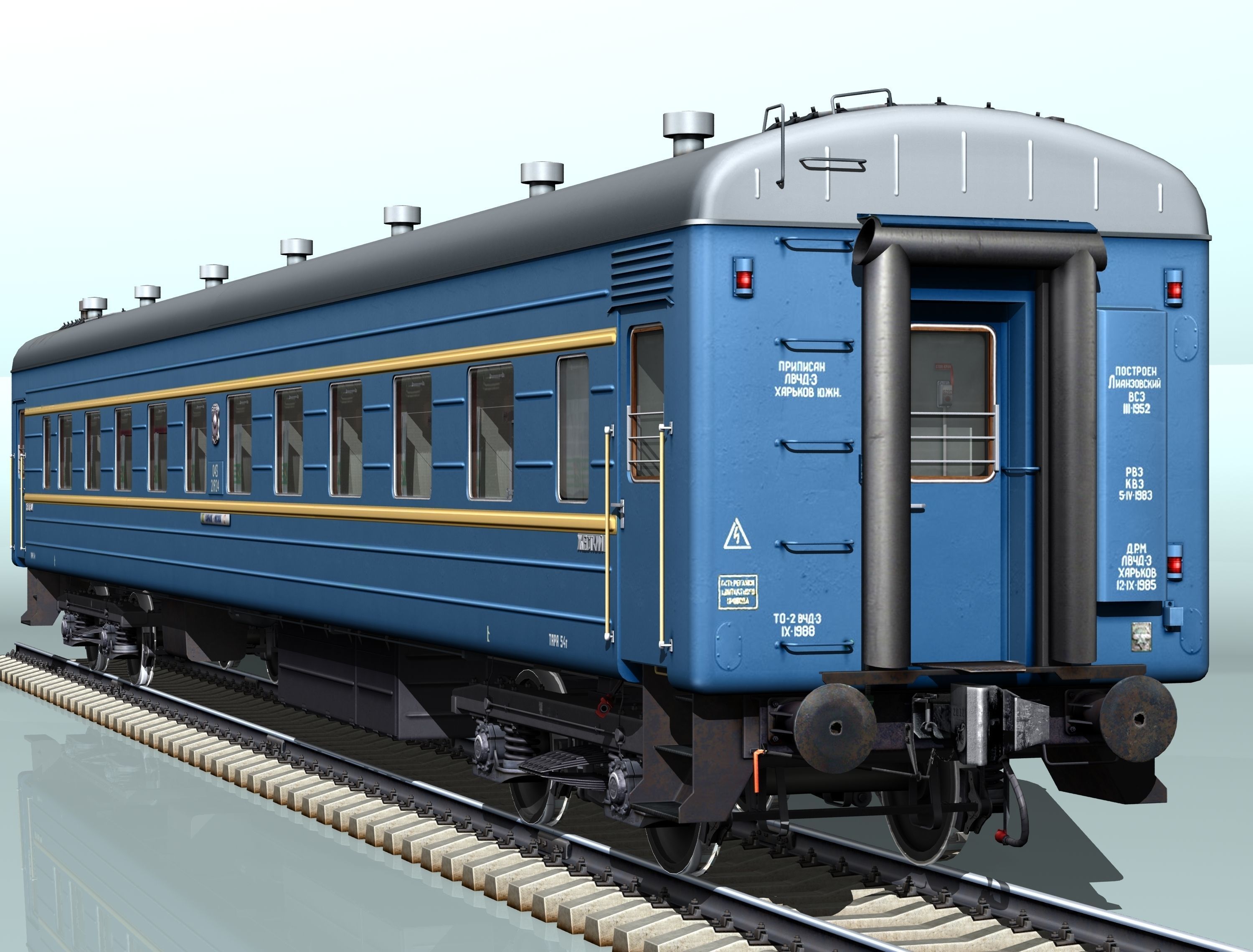

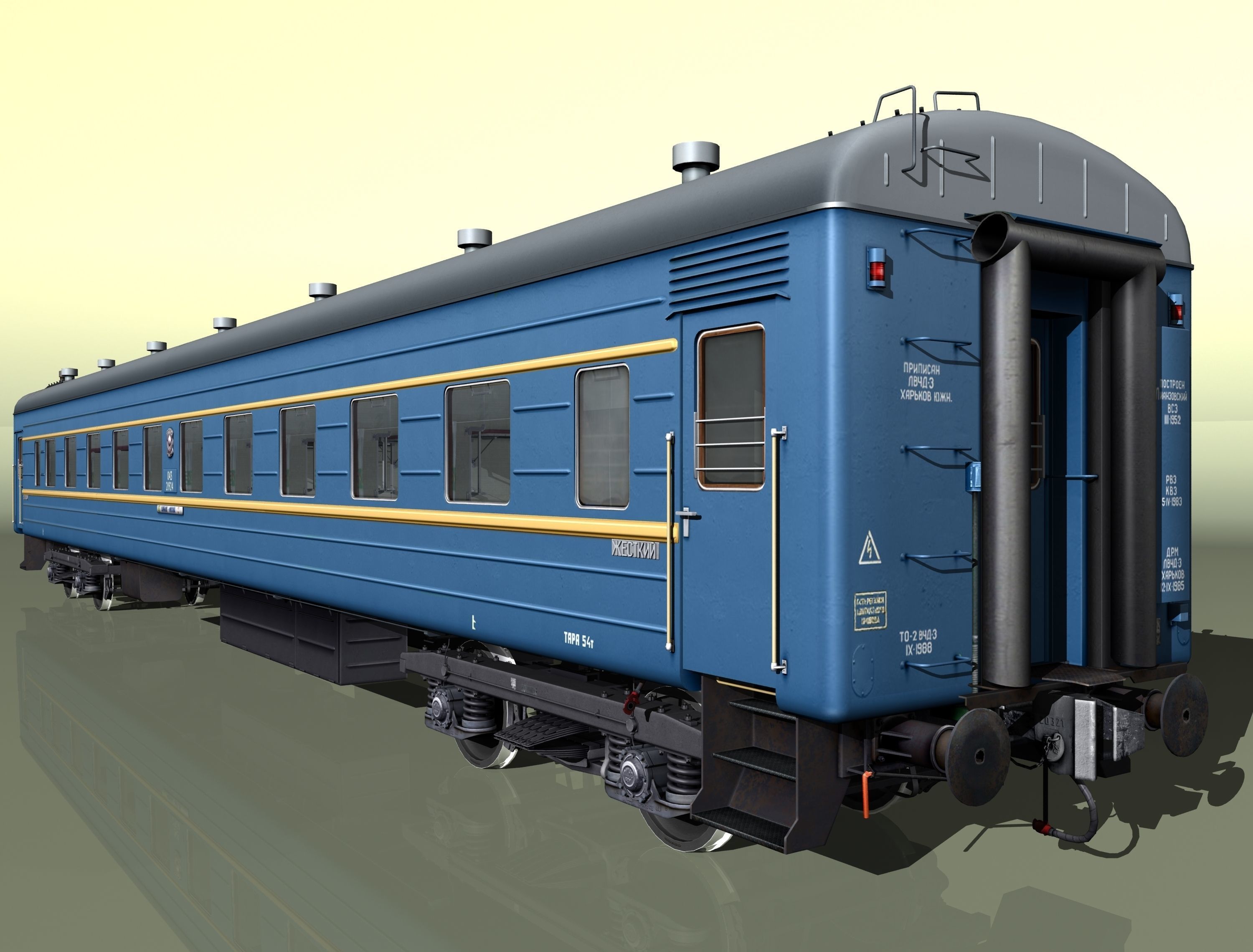

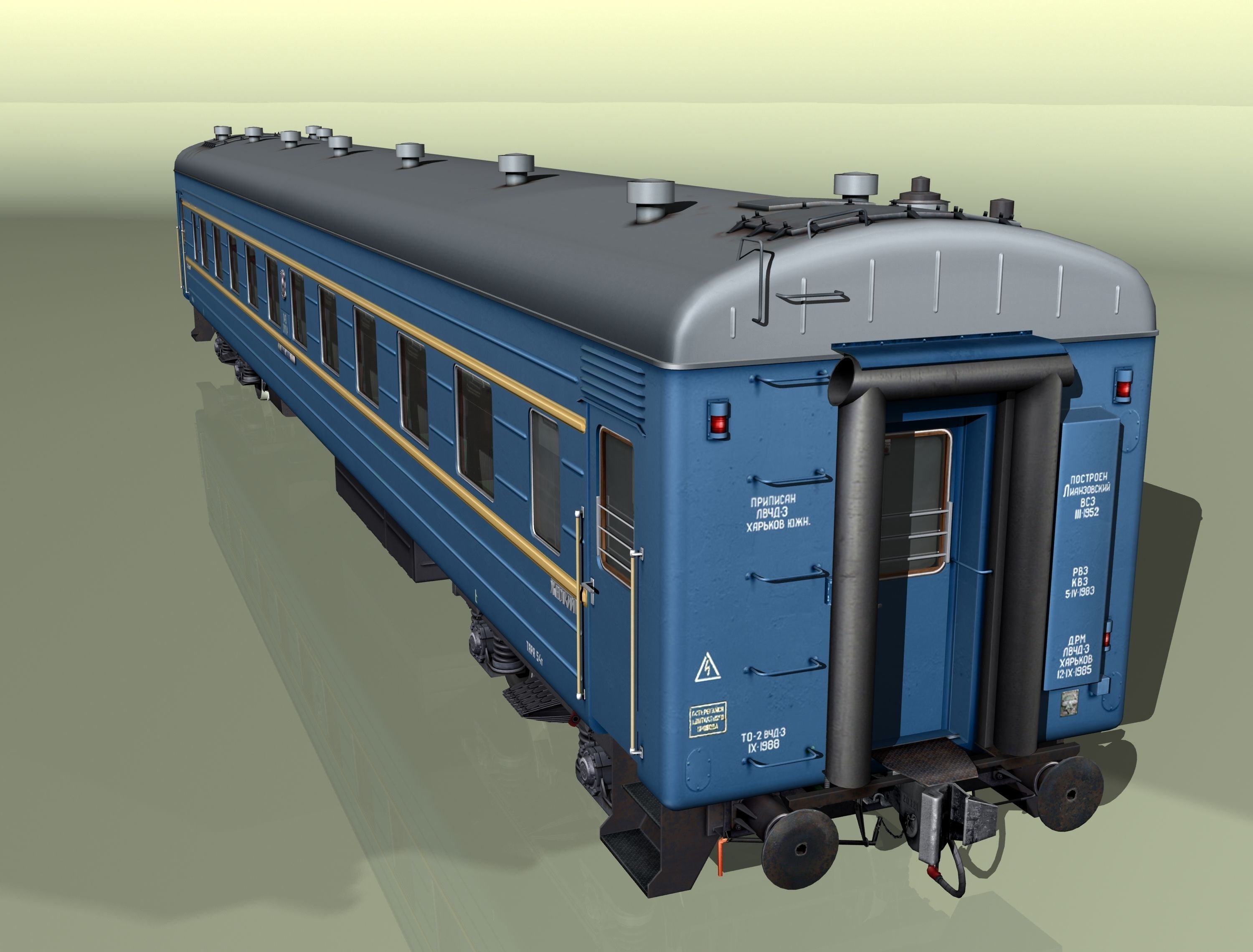

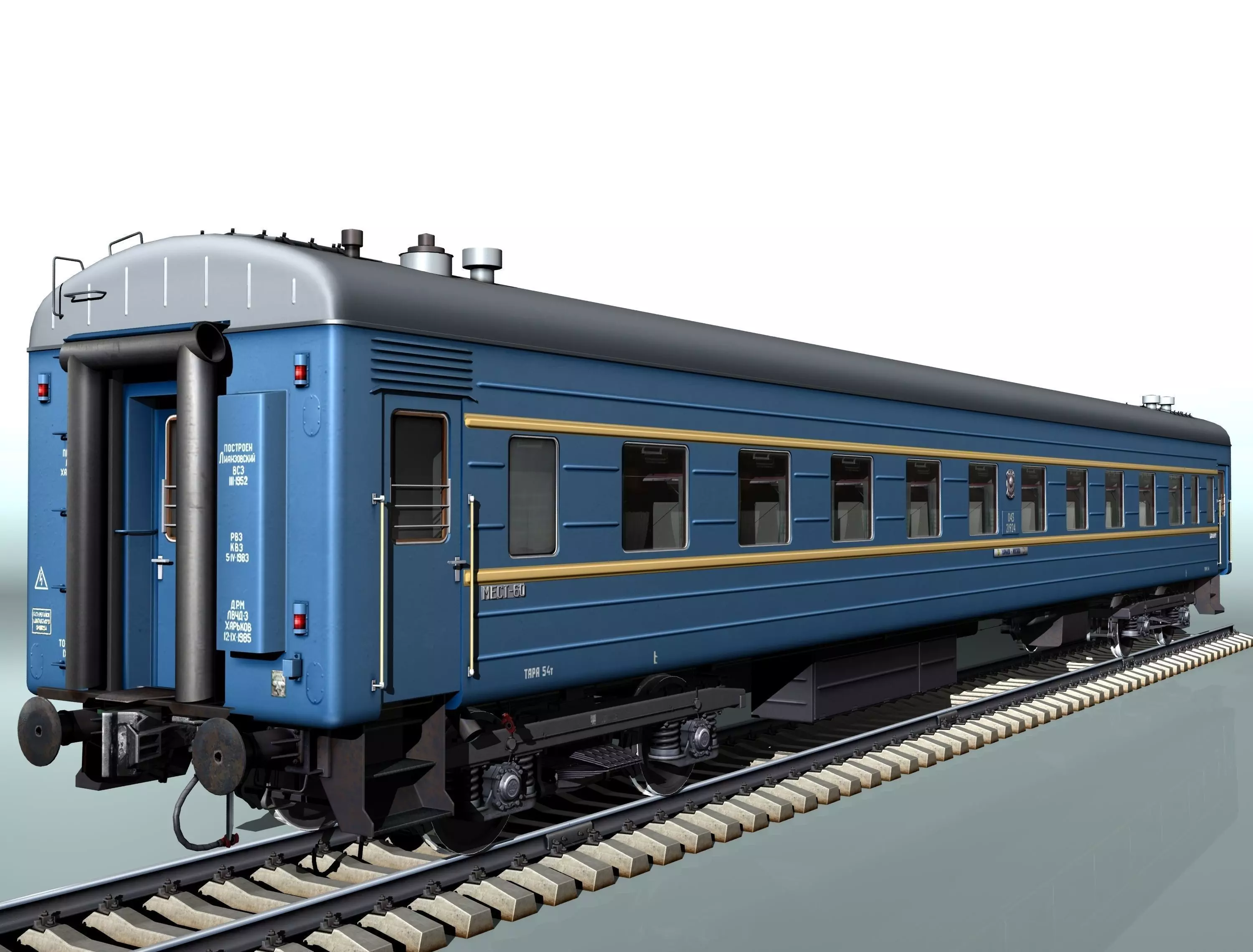

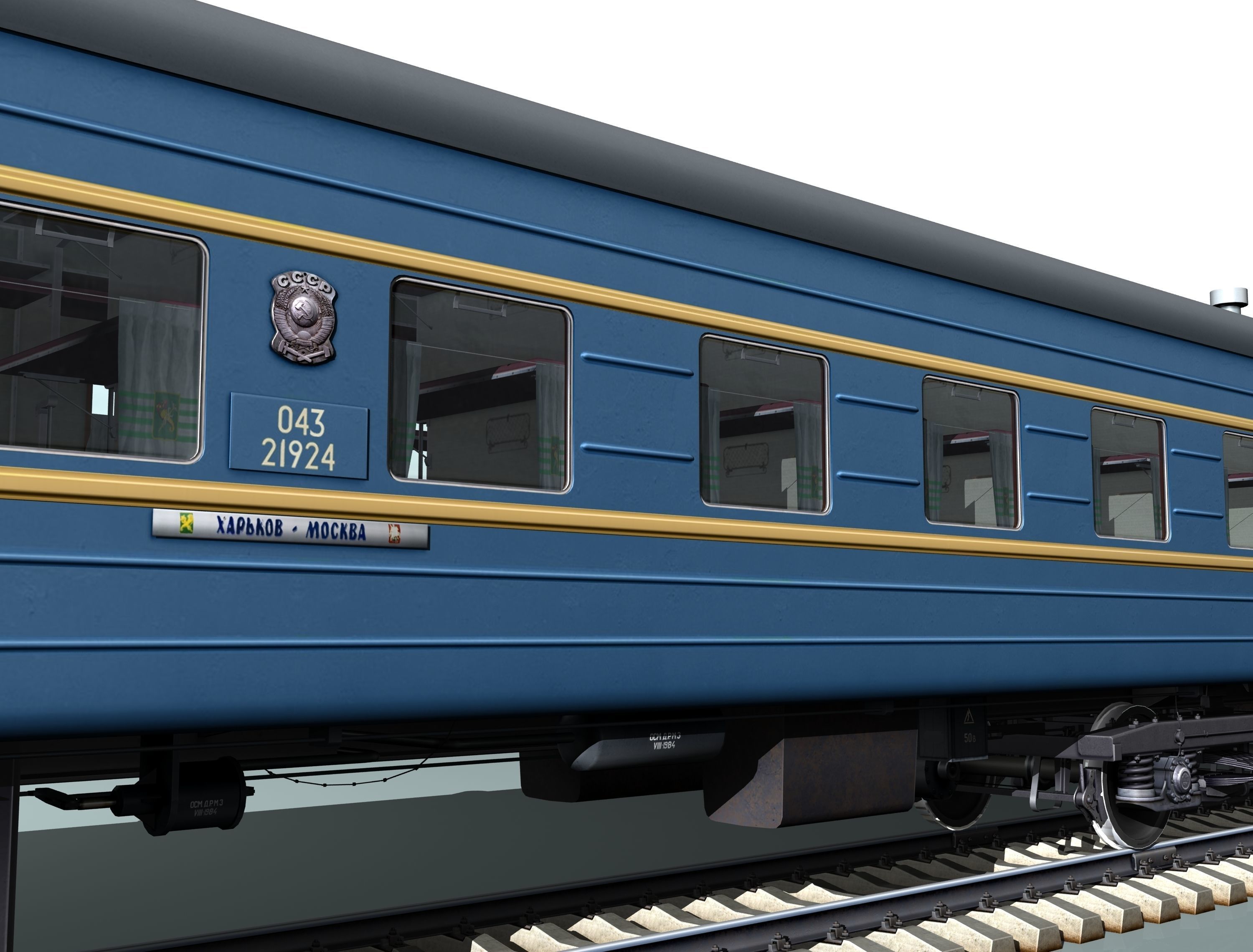

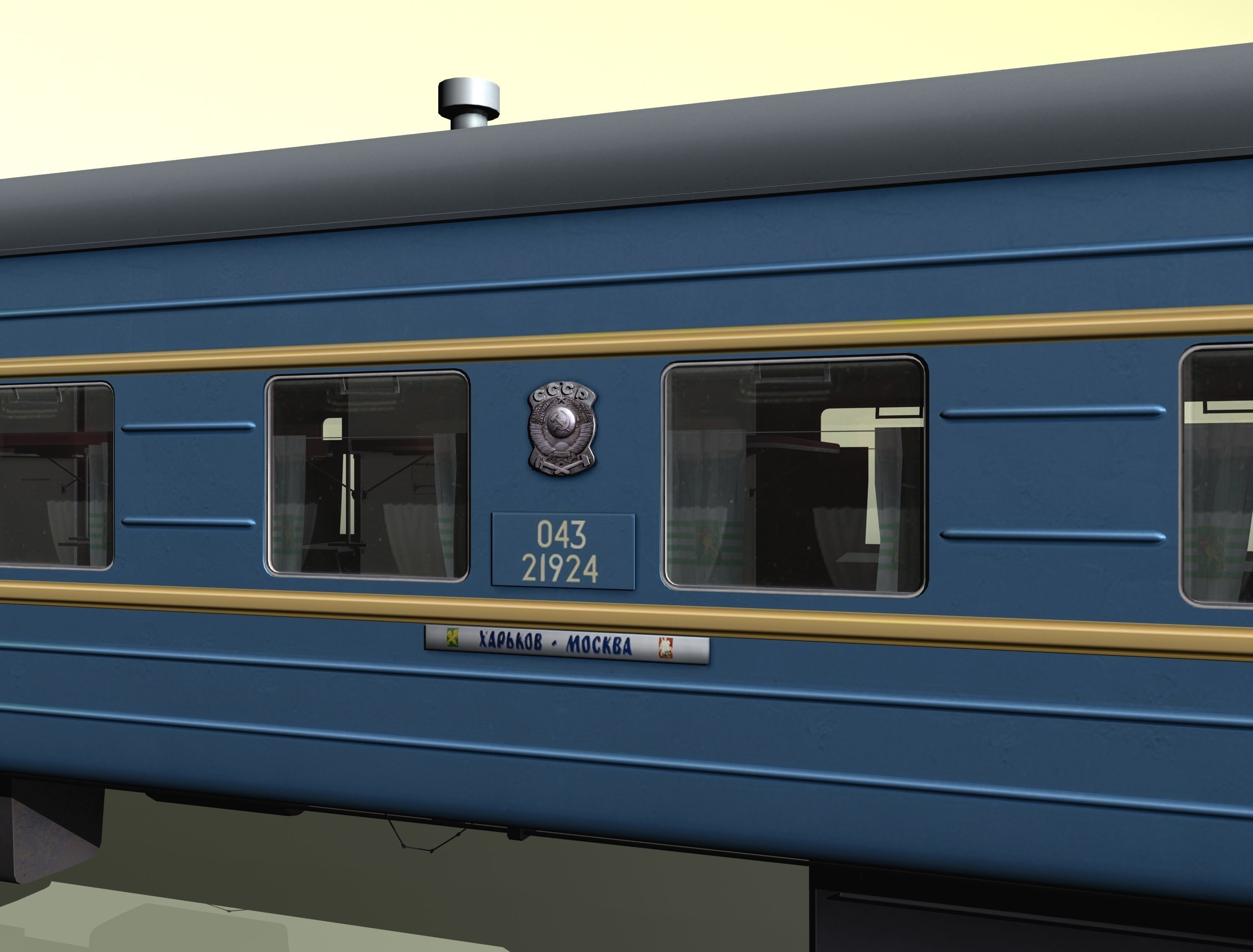

The model is presented in the livery of the Southern Railway. Registration number 21924. The name on the label of the route Kharkov - Moscow The railcar assigned to the station Kharkov, LVCHD-3 Southern Railway (code 043).
On this website, CGTrader, I have provided you with railroad track (options with concrete and wooden sleepers). To find and download them for free here: Idustrial / Part
