DESCRIPTION

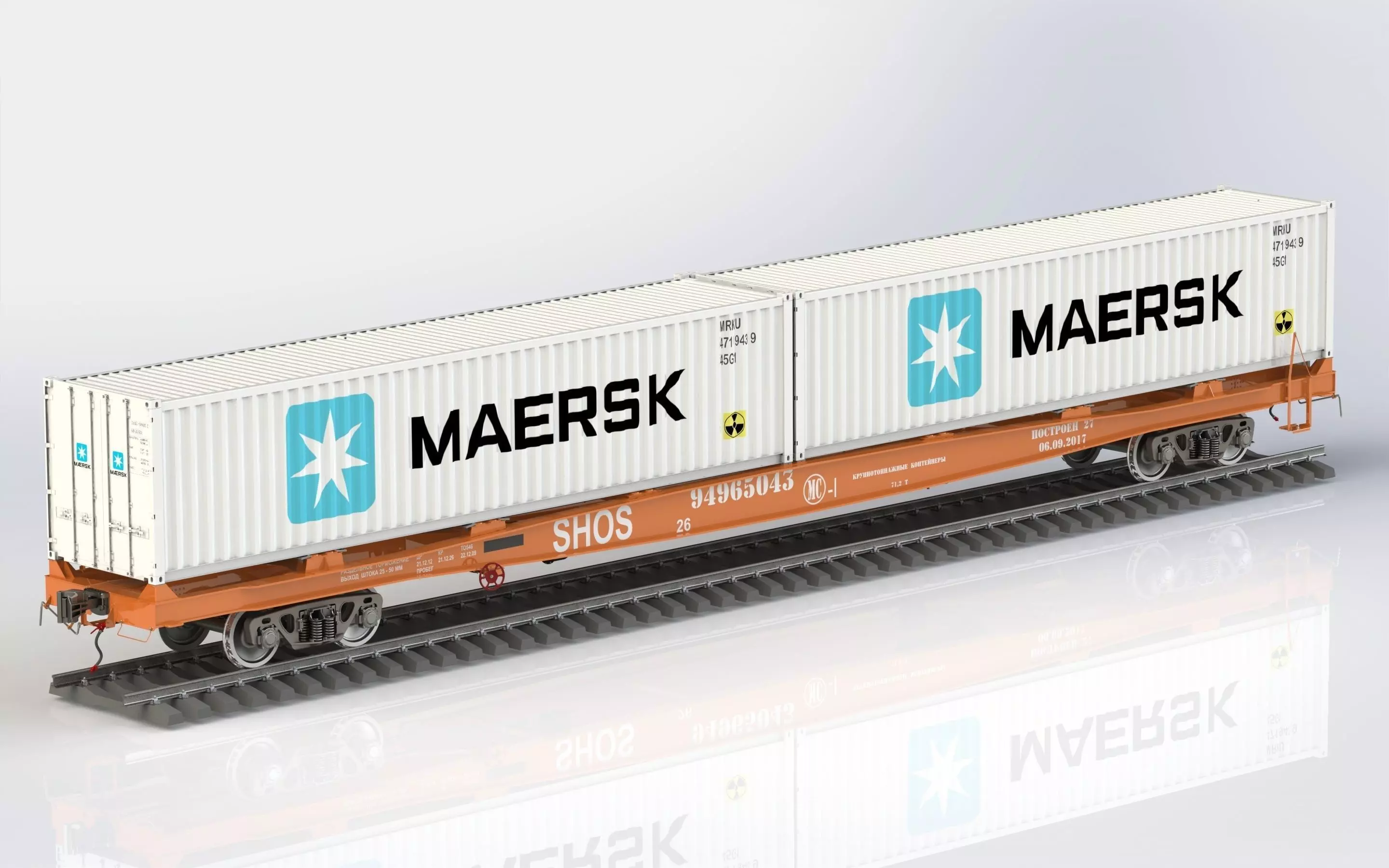

Fitting platform for large-capacity containers, 13-7024 model

Purpose: transportation of universal large-capacity containers of 1AA, 1A, 1AX; 1CC, 1C, 1CX sizes of 18477 State Standard.Brake - automatic pneumatic with separate braking of carts, manual parking. Running gear: car platform of fashions. 13-7024 - two two-axis carts of fashions. 18-7055 state standard specifications 9246 types 2 or two two-axis carts of fashions. 18-100 state standard specification 9246 type 2; car platform of fashions. 13-7024-01 - two two-axis carts of fashions. 18-7020 state standard specification 9246 type 2. SA-3 automatic coupling. The absorbing class T1 device

TECHNICAL CHARACTERISTICSLoading capacity, no more, than a t - 71,2Mass of a container, no more, than a t - 22,8Car length on axes of coupling of automatic couplings, mm - 25 620Base of the car, mm - 18 500Dimension in accordance with GOST 9238 - 03-BMHeight to a coupling axis from the level of heads a rail, mm - 1060±20Settlement static load from wheel couple of rails, kN (hardware) - 230,5 (23,5)Between-repairs run, years (one thousand km) - 4 (500)Constructional speed, km/h - 120Service life, years - 32

Developed by Solid Works 2016
