DESCRIPTION

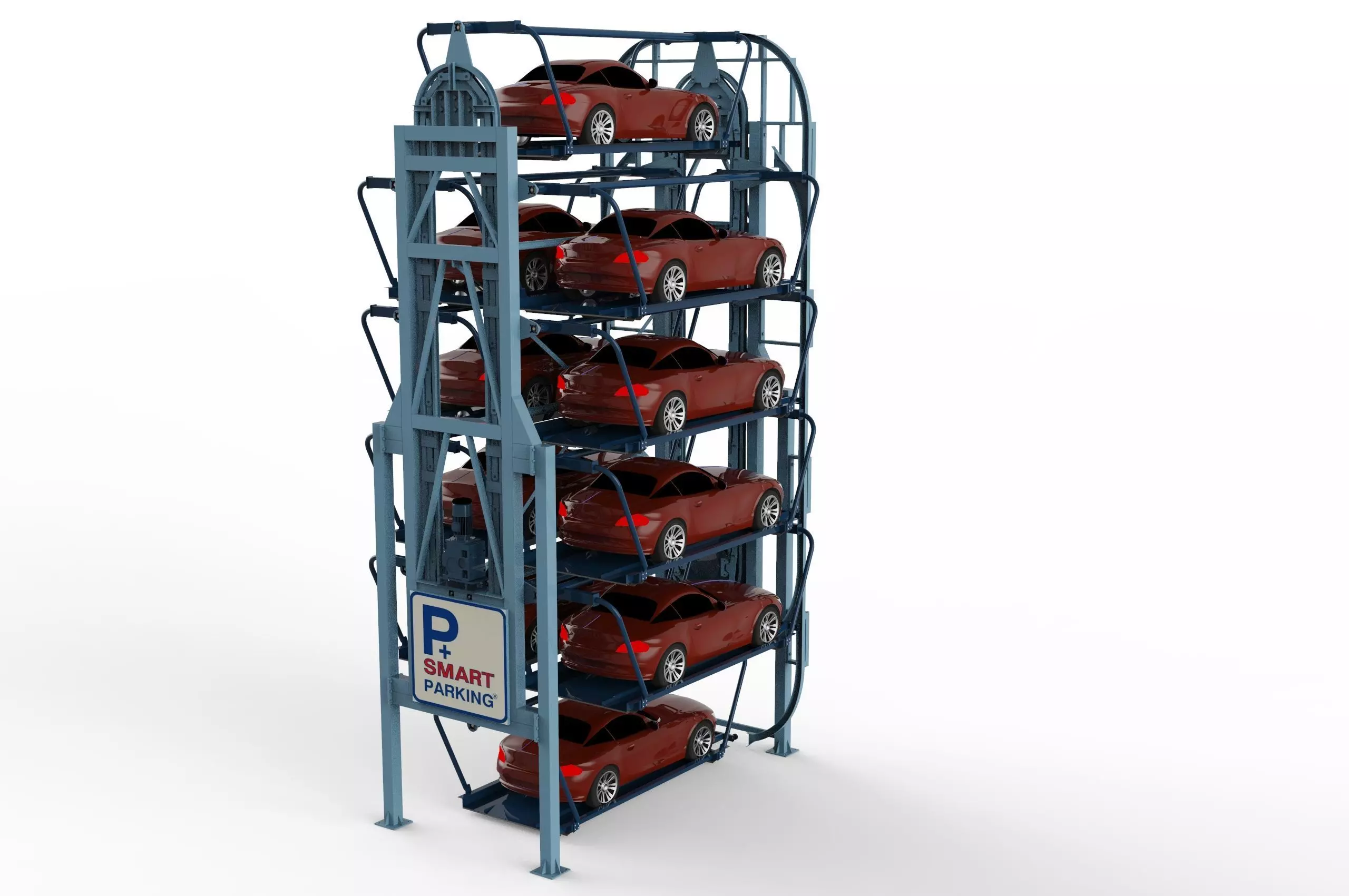

Rotary Parking System 10 sedan. Can be used for manufacturing.The scale of the model is 1: 1.This Unique Automated Mechanical Parking is designed to permit up to a maximum of 10 cars, on the surface area required to park 2 cars. It is made of standard profile (GOST, ISO).

Specification:System dimension: Length(mm)- 6370 (REQUIRED LENGTH), Width (mm)- 4850 (REQUIRED LENGTH), Height (mm)- 11680Available car: Length(mm)- 5200, Width (mm)- 2100, Height (mm)- 1600, Weight (Kgf)- 2150Geared motor (KW)-7,5 x 4p Speed (m/min)- 4,0It is quite successful when installed in busy areas which are well established and are suffering with shortage of area for parking.Developed by Solid Works 2018

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
addmesh-3d
addmesh-3dCommunity member
This user is part of the CGTrader community
Cool!
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.

Rotary Parking System 10 sedan 3D model

Royalty Free License
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
Native file format
DWG
Size: 79.2 MB
2018
Exchange formats
IGE
IGES<br />File Size: 114 MB
SLDPRT
SolidWorks<br />File Size: 79.2 MB
PDF
PDF<br />File Size: 79.2 MB
STP
STEP<br />File Size: 68.2 MB
Provided by designer
Information and details shared directly by the model's designer.
