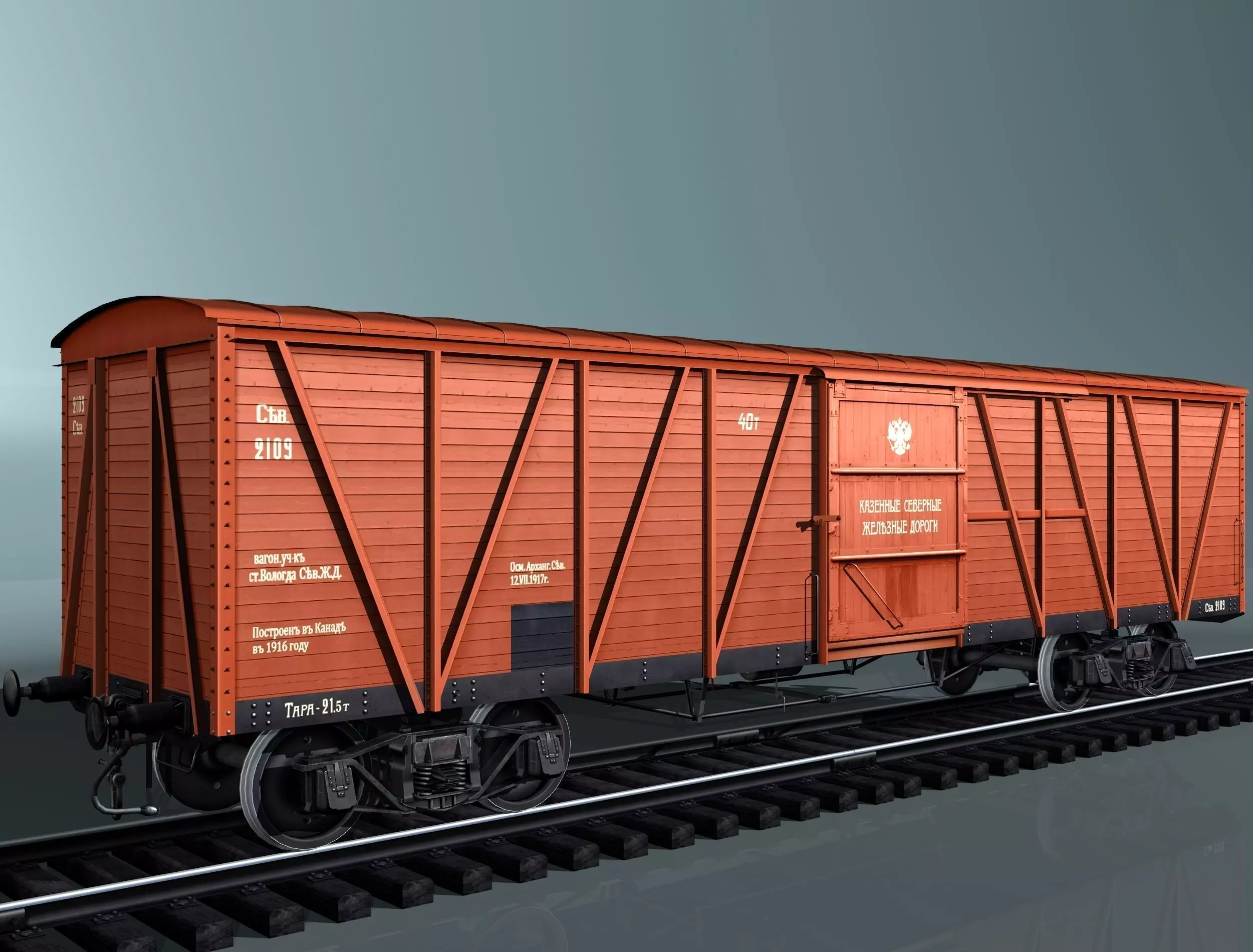

covered cargo boxcar Low-poly 3D model
4-axles Indoor cargo boxcar canadian type. The model corresponds to a prototype at the moment, 1917 year. Wagons of this type were ordered in the United States and Canada. From 1915 to 1916, Russia bought about 8000 of these wagons for the Russian Railways. Basically they had spread on the Northern and Eastern Railways. These wagons had carrying capacity of 40 tons and Tare weight 21,5 tons. Bogie belts-type of russian production was use for these canadian boxcar type.
MODEL DESCRIPTION: A model in 3ds Max (2009). The project made according to the archived drawings and photographs. This package has original files of model (3dsmax-2009) and files of export of these model in formats: .FBX .3DS and .OBJ. The model includes all main parts of the railcar: housing, base part, elements of coupling (auto-coupling and buffers), all details of brake system, suspension and has the interior part (of the load compartment).
The model is designed for installation in visualizing the scene, integration into scenes and performances, video production and more, as well as for use in games and simulators. The model has a LOD (26% of the main model), LOD has effective distance review ranging from 20 meters and then. Textures in form .JPG (2048x2048 and 1024x1024 pix). Applied materials-only standard of max (level version 3dsmax2009).
The total amount of polygons in the model Base model: Faces: 93749 Polys: 58434 Verts: 61446 LOD: Faces: 24432 Polys: 9921 Verts: 15584
If you want the original texture Format and Format PSD (Photoshop), I'll give them to you for free. You can change rooms, stickers or repaint the model or other suggestions. You have to write this in the comments for me.
Rail track which are present in the images, they are on this website. Free Look here: Industrial/Part/ File name: Railway track sleepers woody
PROTOTYPE DESCRIPTION: 4-axles indoor cargo boxcar. Category: heavy cargo railroad transport. Wagons of this type were used on long-haul routes. The body is made of a metal frame and has wood paneling. In the period from 1920 to 1940 years railcars of this type were often re-equipped in the railcars of special purpose. Registration number 2109 and livery State-Owned Northerns Railways. The boxcar built in Canada for Russian Railways in 1916 year. Boxcar assigned to the station Vologda Northern railway (at the time of 1917).
TECHNICAL CHARACTERISTICS: Full length of corpus: 13,26m; Length on axes of coupling: 14,3m; Width (full gabarit): 9,372m ; Height (from rail head): 3,86m; Base of the railcar: 9,372m ; Tara of railcar: 21,5t ; The axis type - III; Coupling system: up to modernisation - screw coupling; Wheelbase: 4-axis, two bogies of dual suspension; Rail track 1524mm; Wheels: forged steel with bandages. Diameter 950mm.
