Engine Motor single piston

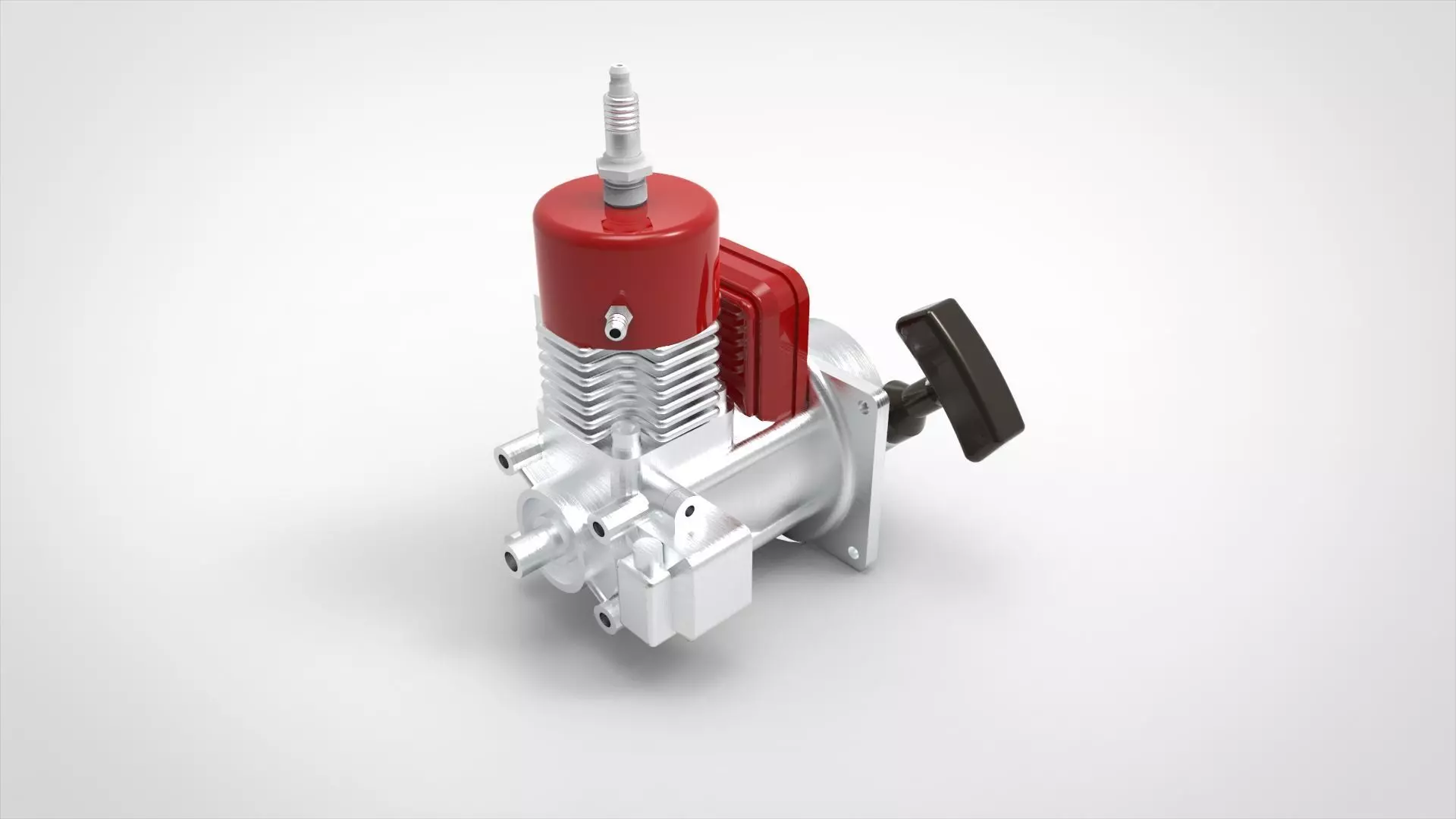

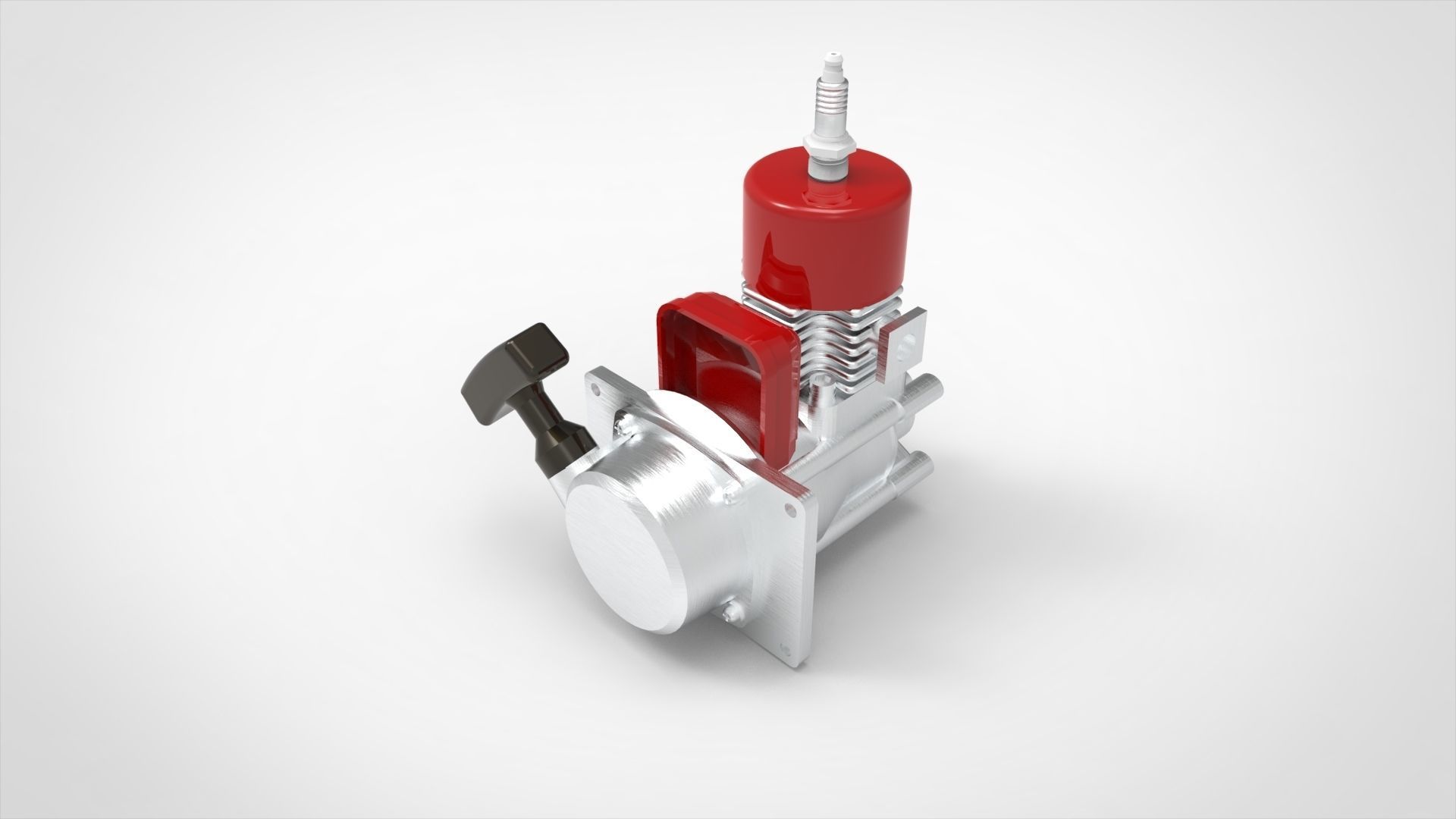

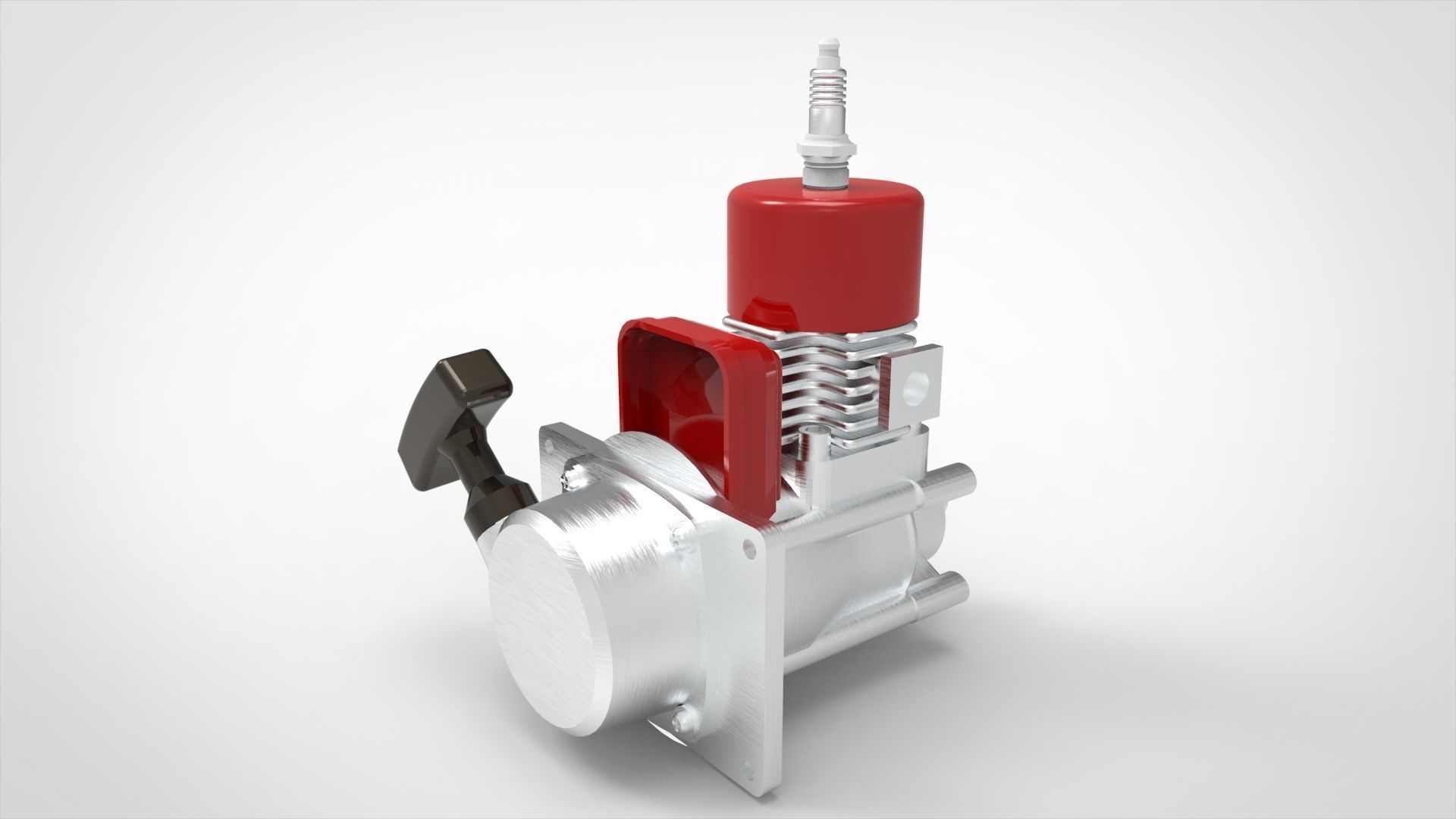

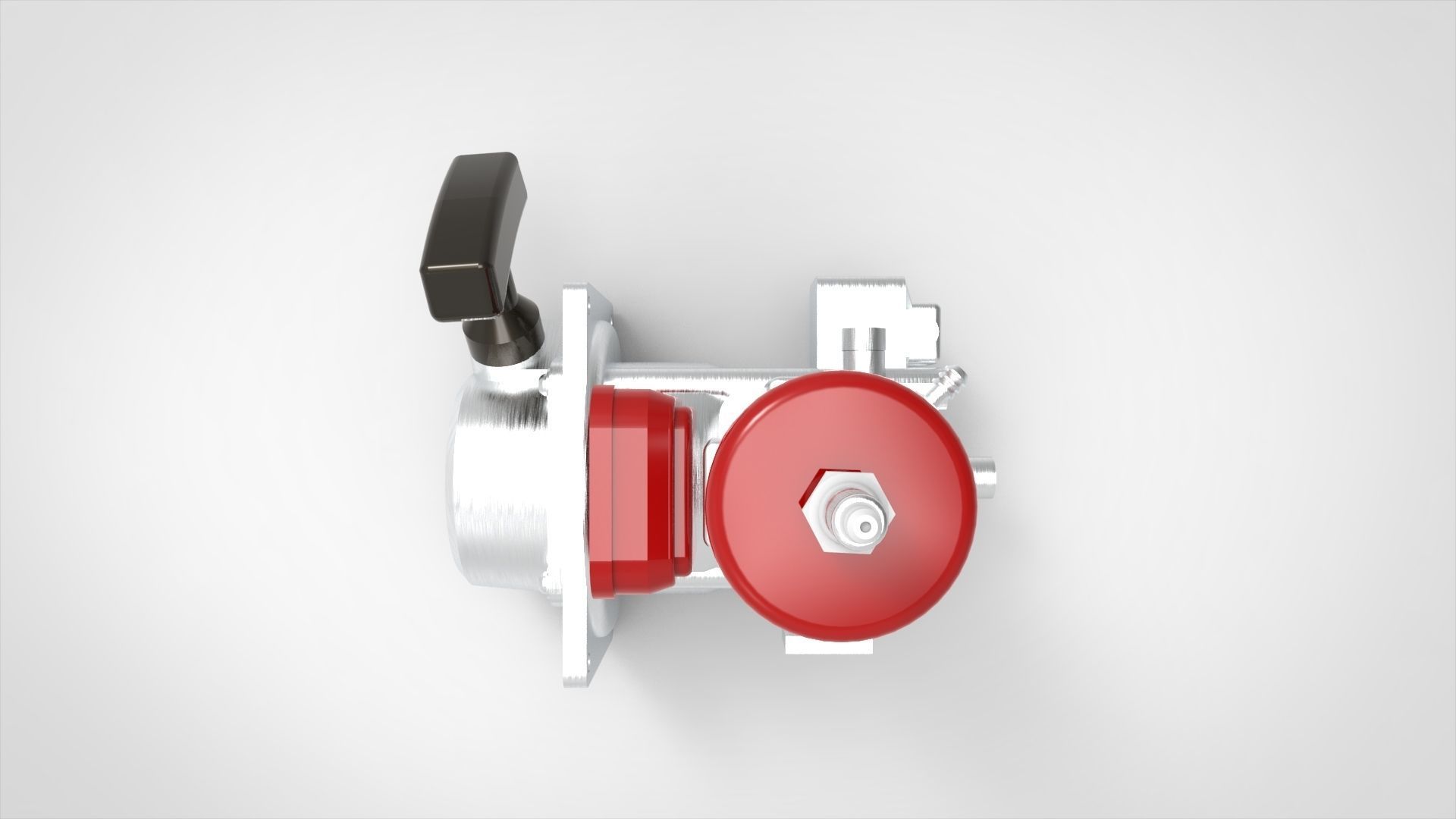

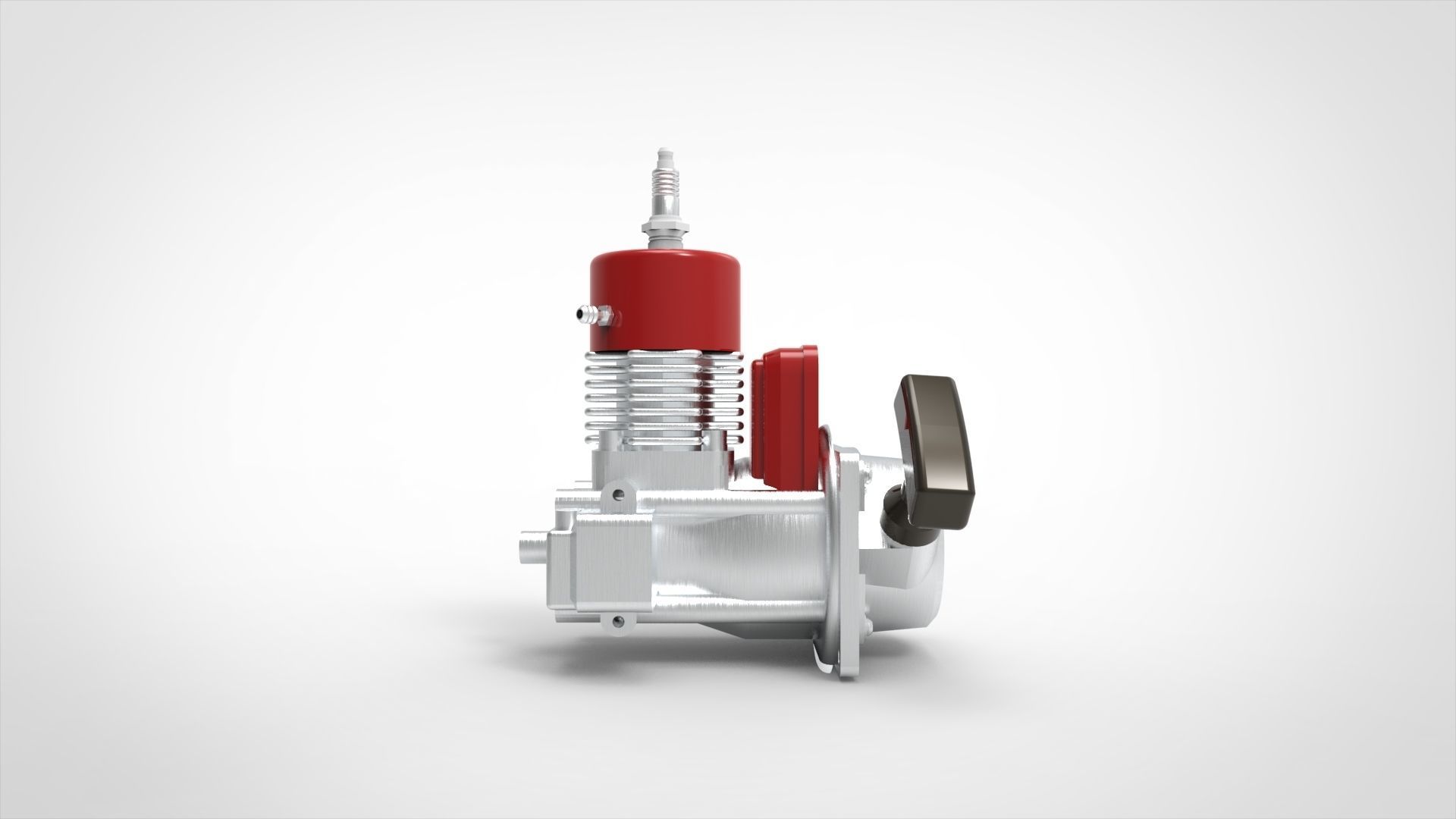

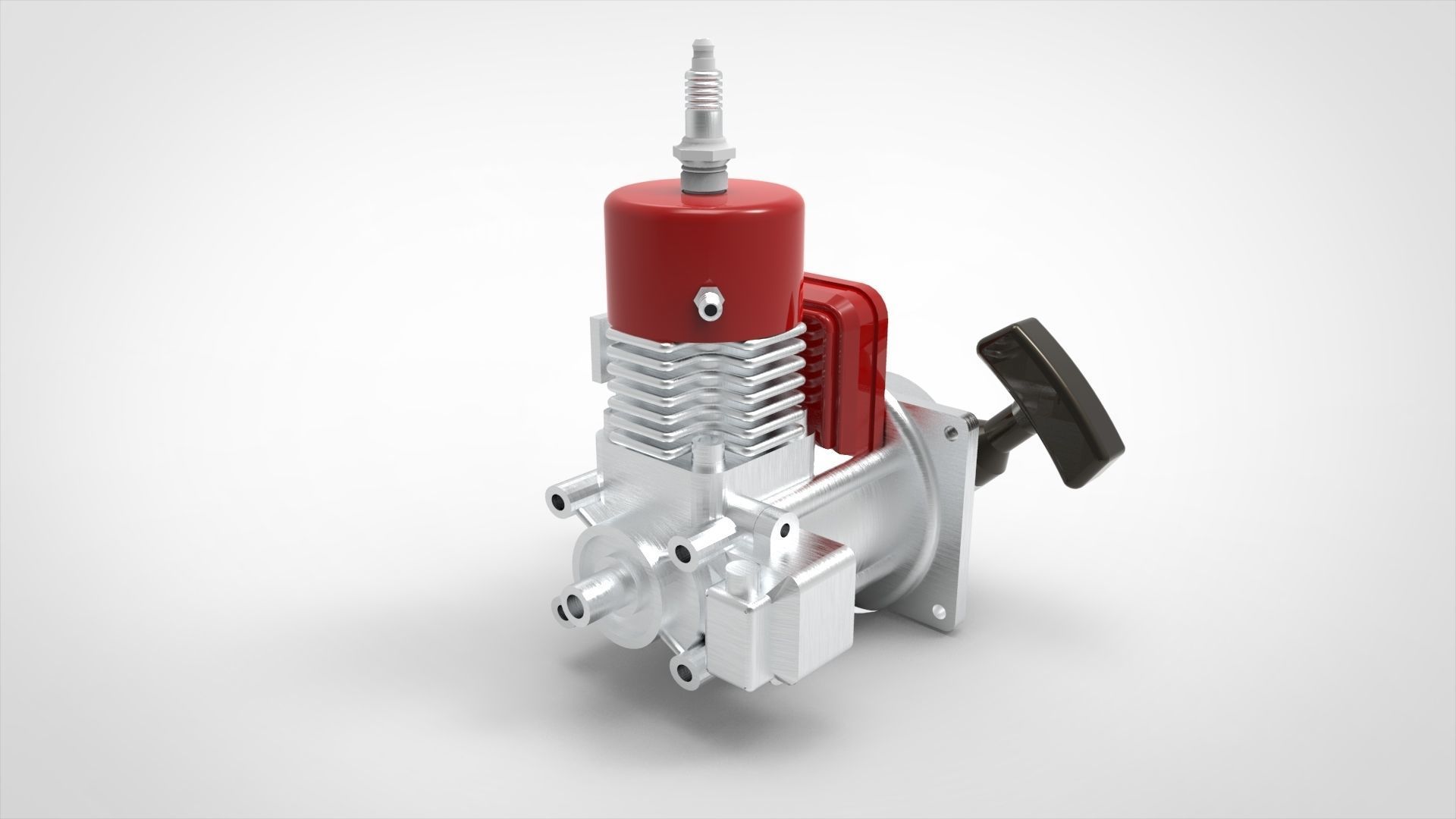

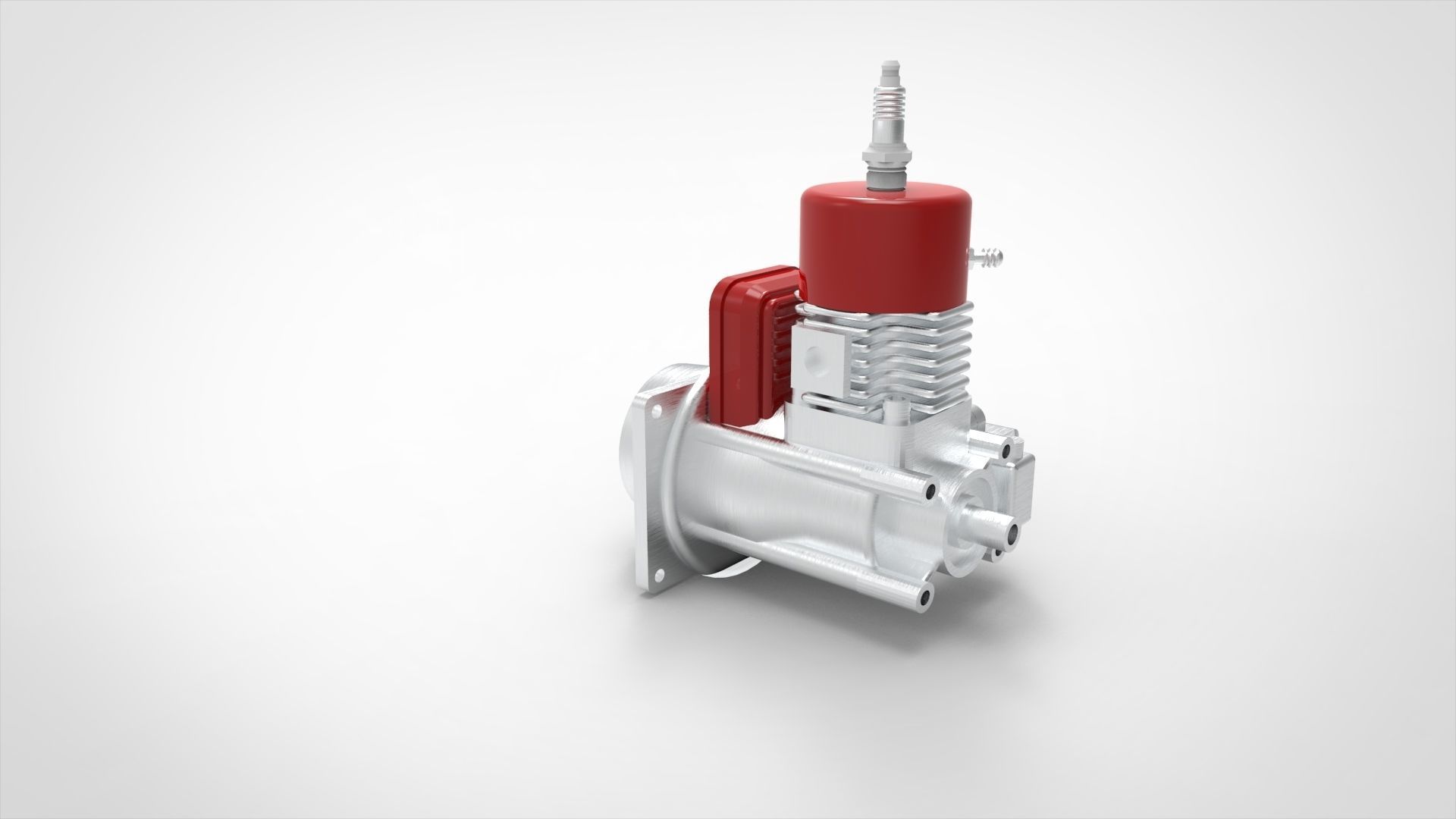

Engine Motor single piston 3D model

Description

The Otto engine was a large stationary single-cylinder internal combustion four-stroke engine designed by the German Nicolaus Otto. It was a low-RPM machine, and only fired every other stroke due to the Otto cycle, also designed by Otto.

An Otto cycle is an idealized thermodynamic cycle that describes the functioning of a typical spark ignition piston engine. It is the thermodynamic cycle most commonly found in automobile engines.[1]

The Otto cycle is a description of what happens to a mass of gas as it is subjected to changes of pressure, temperature, volume, addition of heat, and removal of heat. The mass of gas that is subjected to those changes is called the system. The system, in this case, is defined to be the fluid (gas) within the cylinder. By describing the changes that take place within the system, it will also describe in inverse, the system's effect on the environment. In the case of the Otto cycle, the effect will be to produce enough net work from the system so as to propel an automobile and its occupants in the environment.

jd94
jd94 2021-07-31 02:03:29 UTC
awesome work!
Item rating
0 0
Engine Motor single piston
$11.00

Royalty Free License
Engine Motor single piston
$11.00

Royalty Free License
Response 62% in 19.0h

3D Model formats

Format limitations
  • 3D Studio (.3ds)7.88 MB
  • Autodesk FBX (.fbx)7.88 MB
  • OBJ (.obj, .mtl)7.88 MB
  • Sketchup (.skp)7.88 MB
  • Stereolithography (.stl)7.88 MB
  • KeyShot (.bip, .ksp)7.88 MB
  • glTF (.gltf, .glb)7.88 MB
  • Marvelous Designer (.zpac, .avt, .pos, .ZPrj)7.88 MB
  • AutoCAD (.dwg)7.88 MB
  • DXF (.dxf)7.88 MB
  • Collada (.dae)7.88 MB

3D Model details

  • Publish date2021-02-23
  • Model ID#2888870
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
