Volkswagen type 166 Schwimmwagen

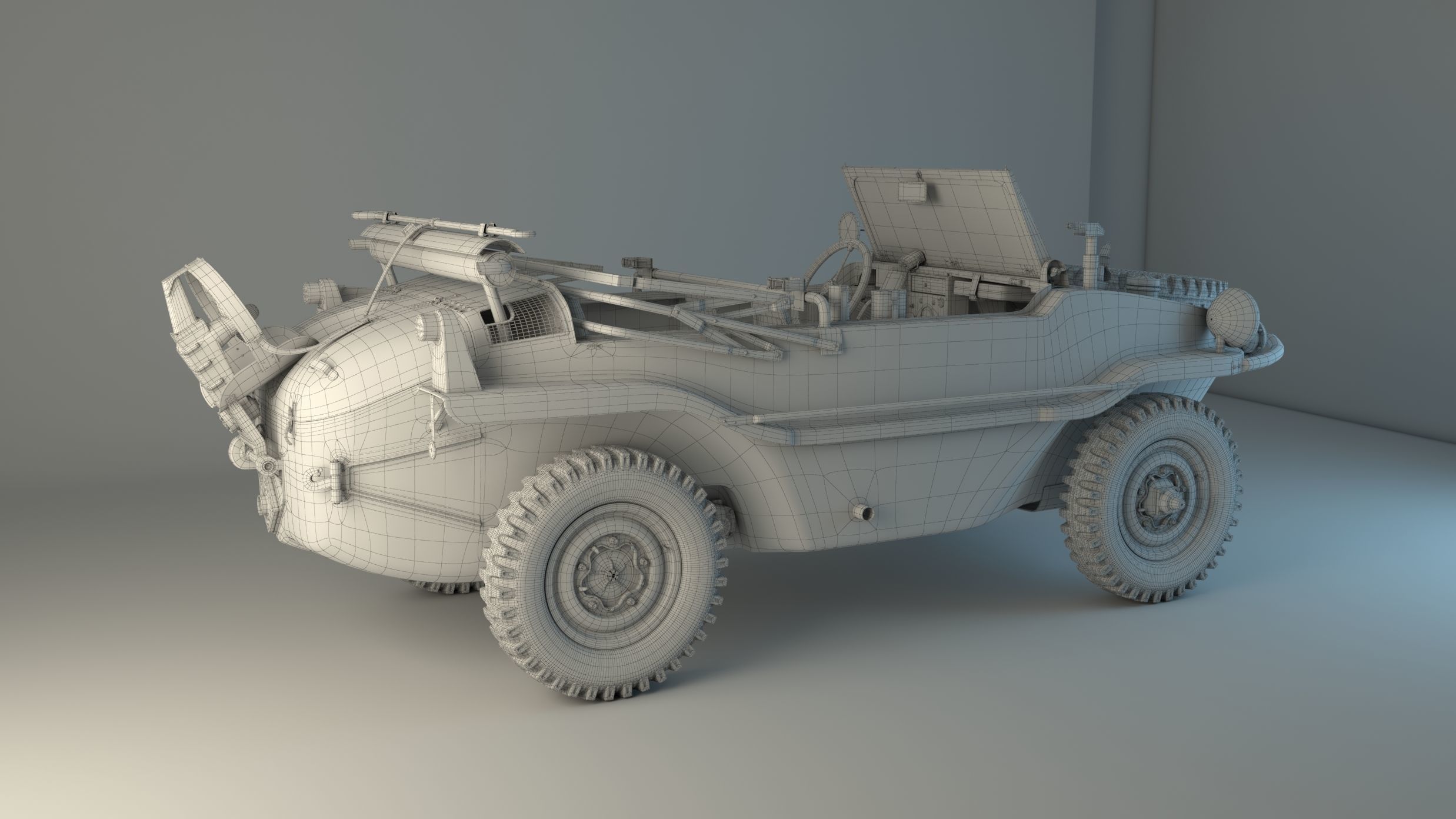

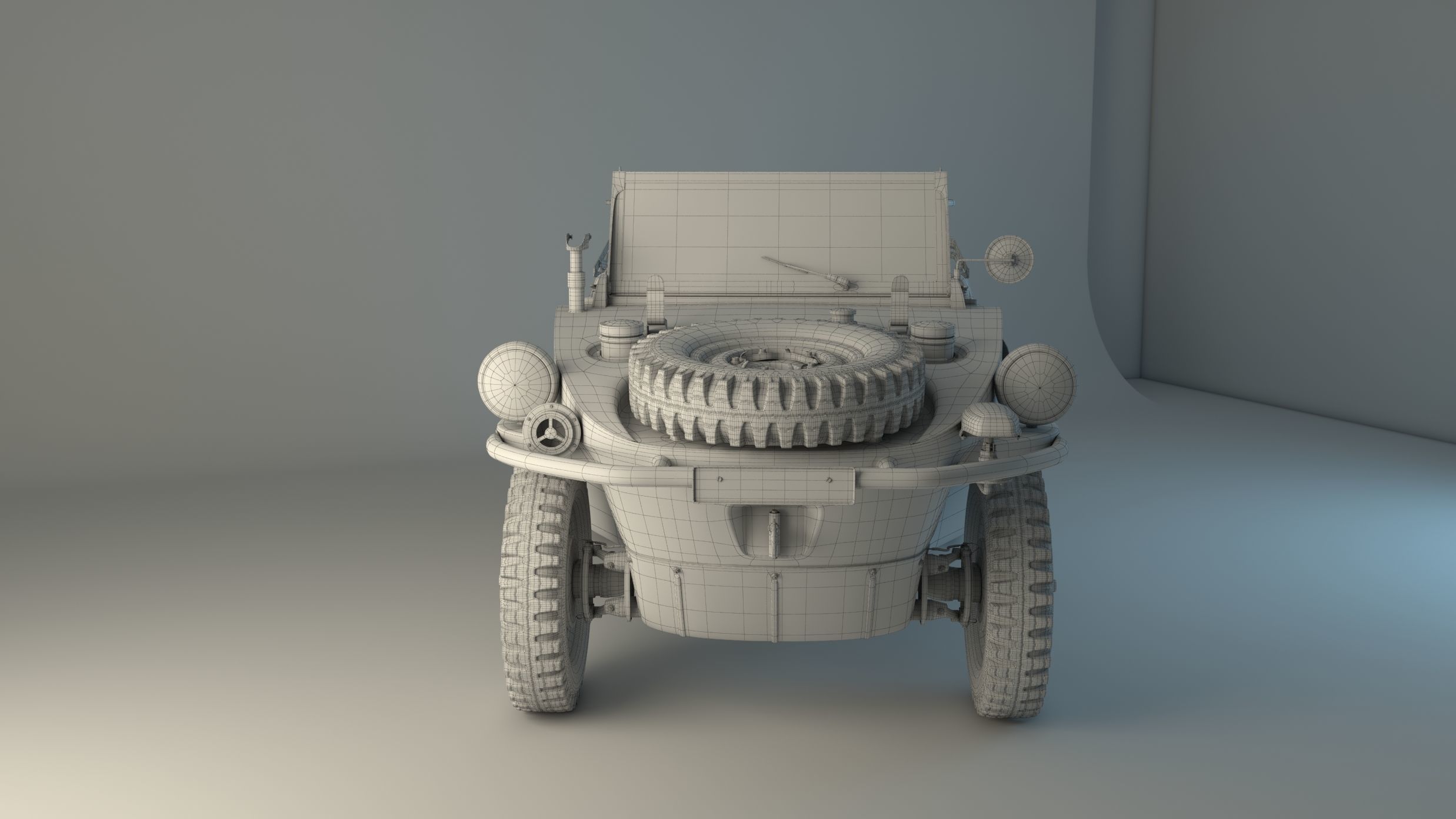

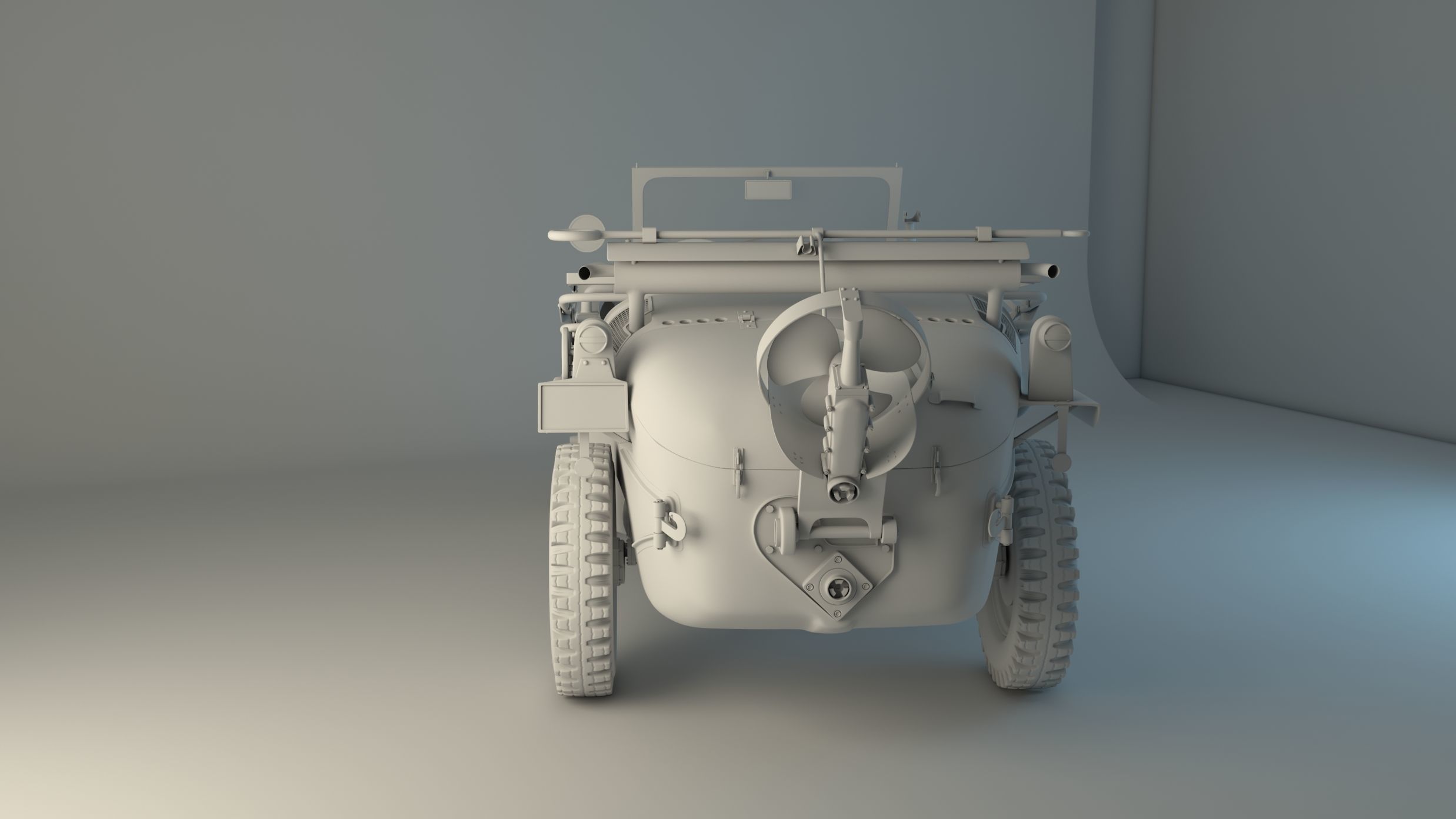

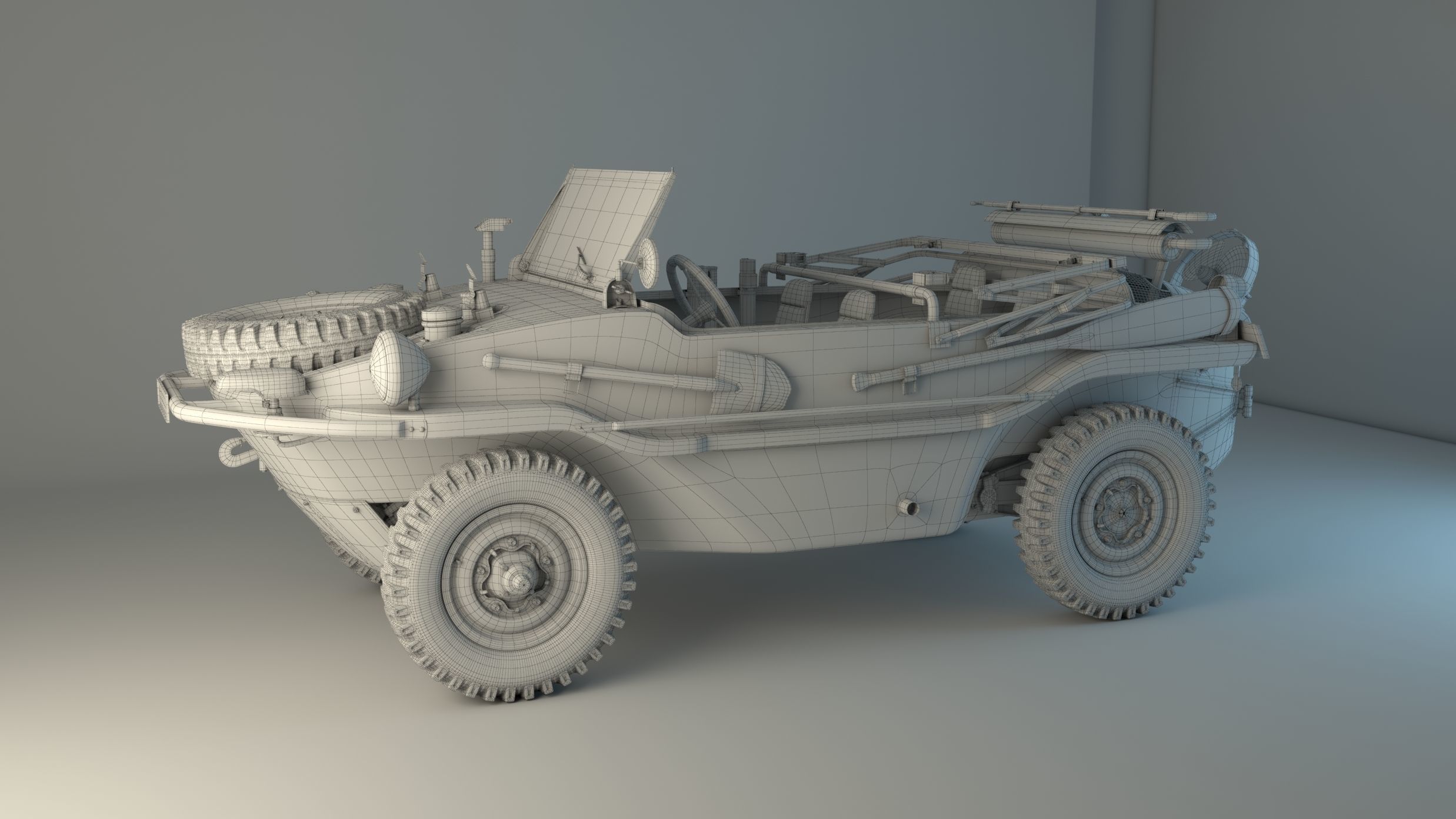

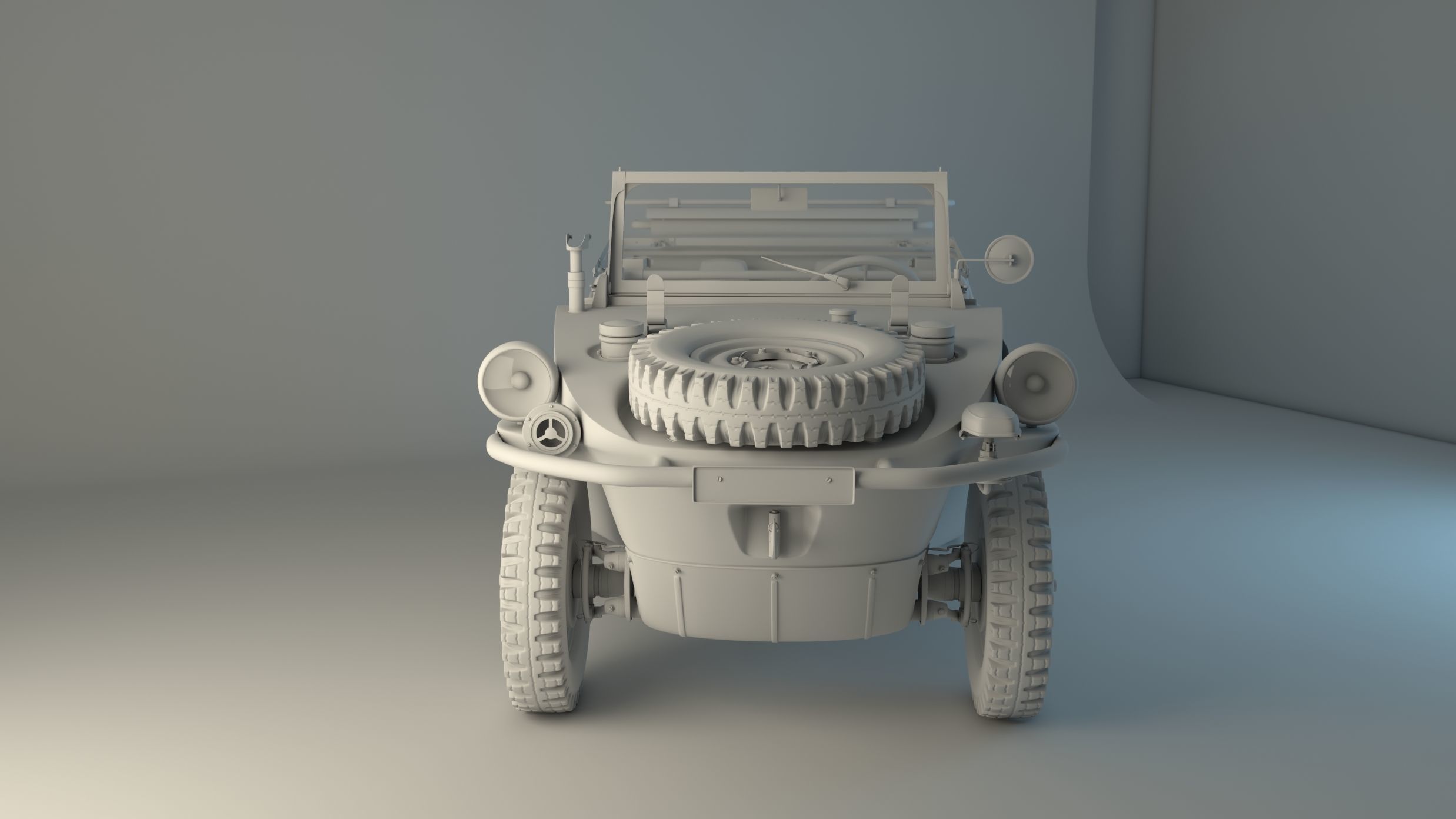

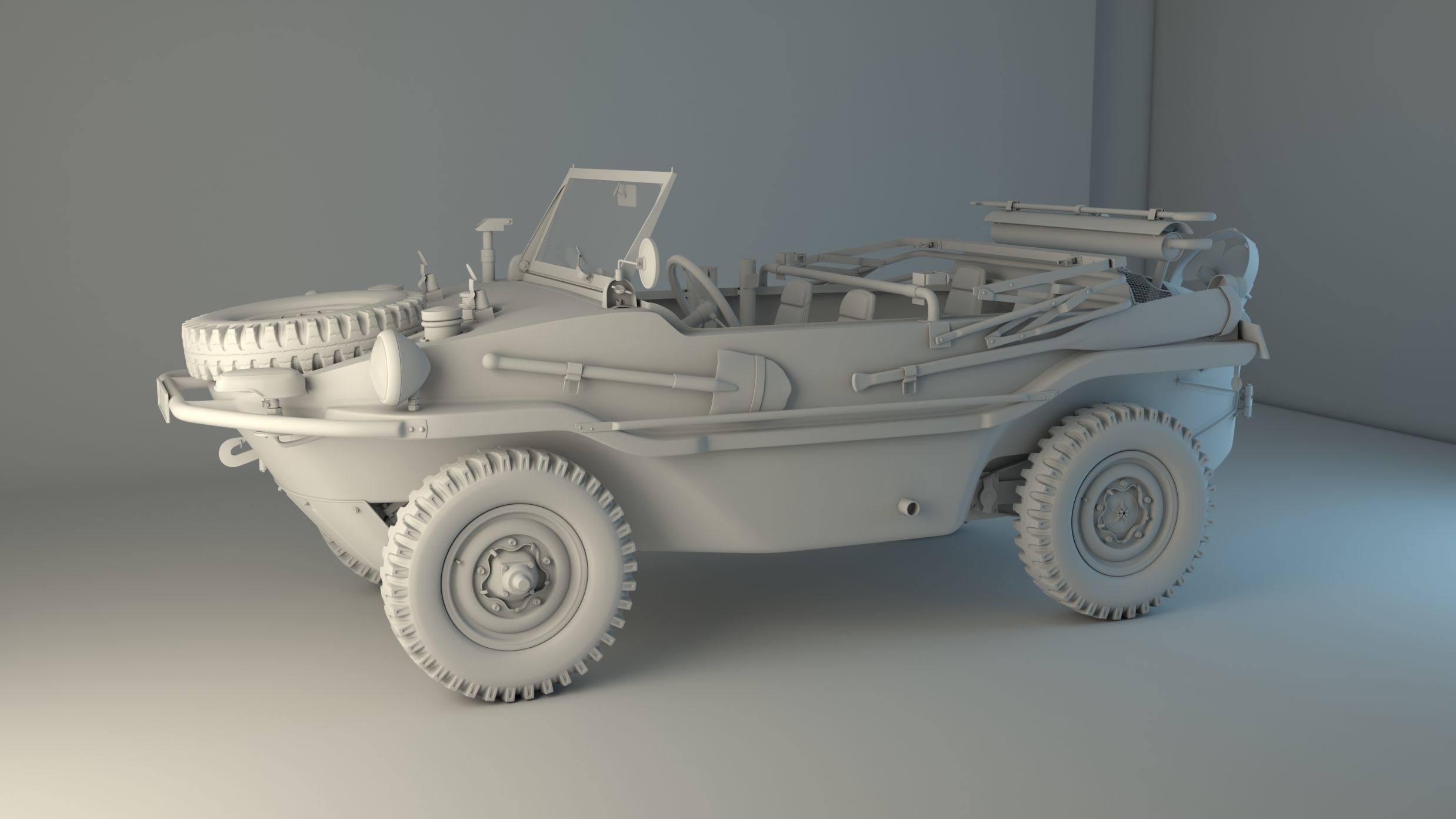

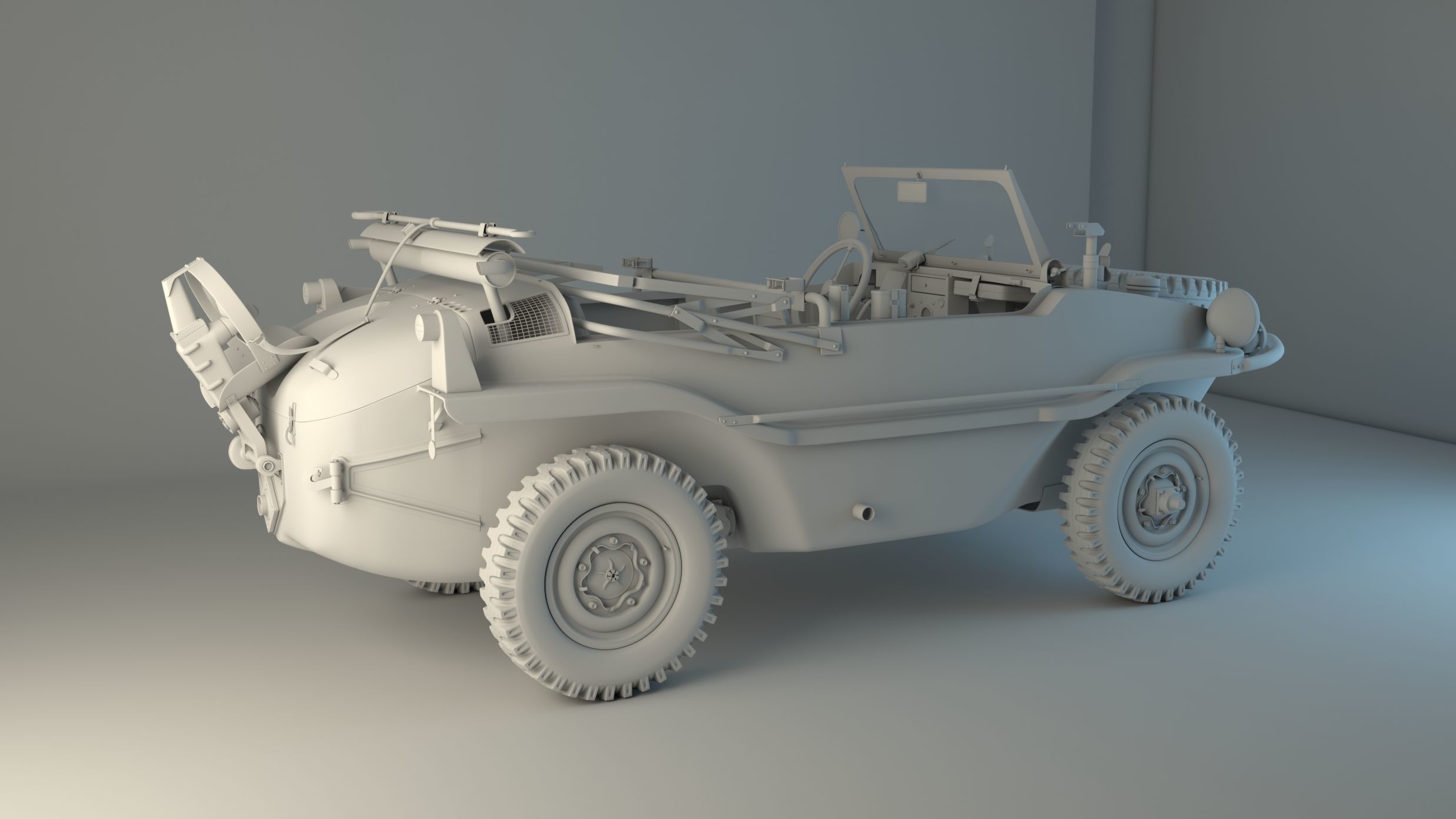

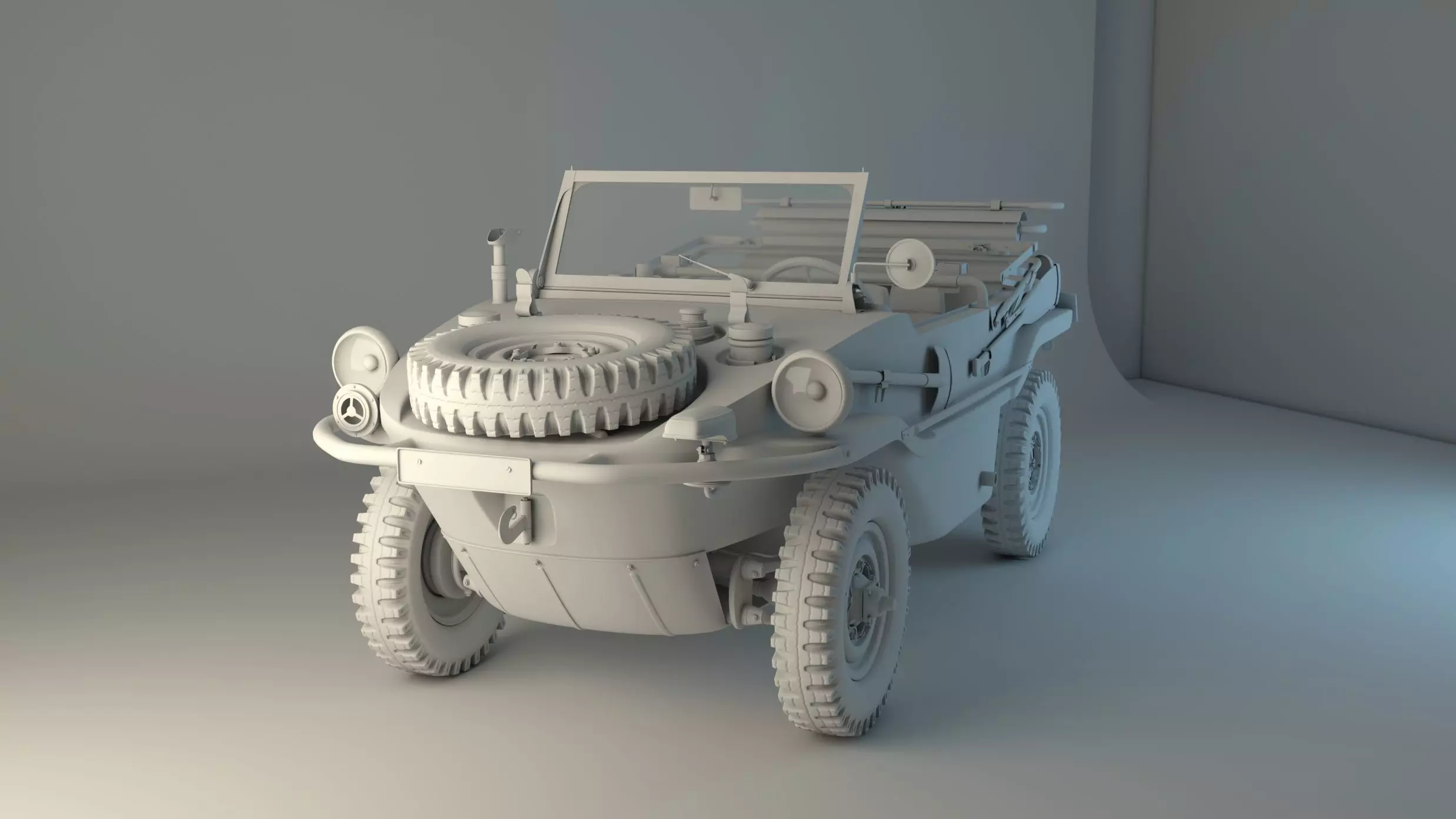

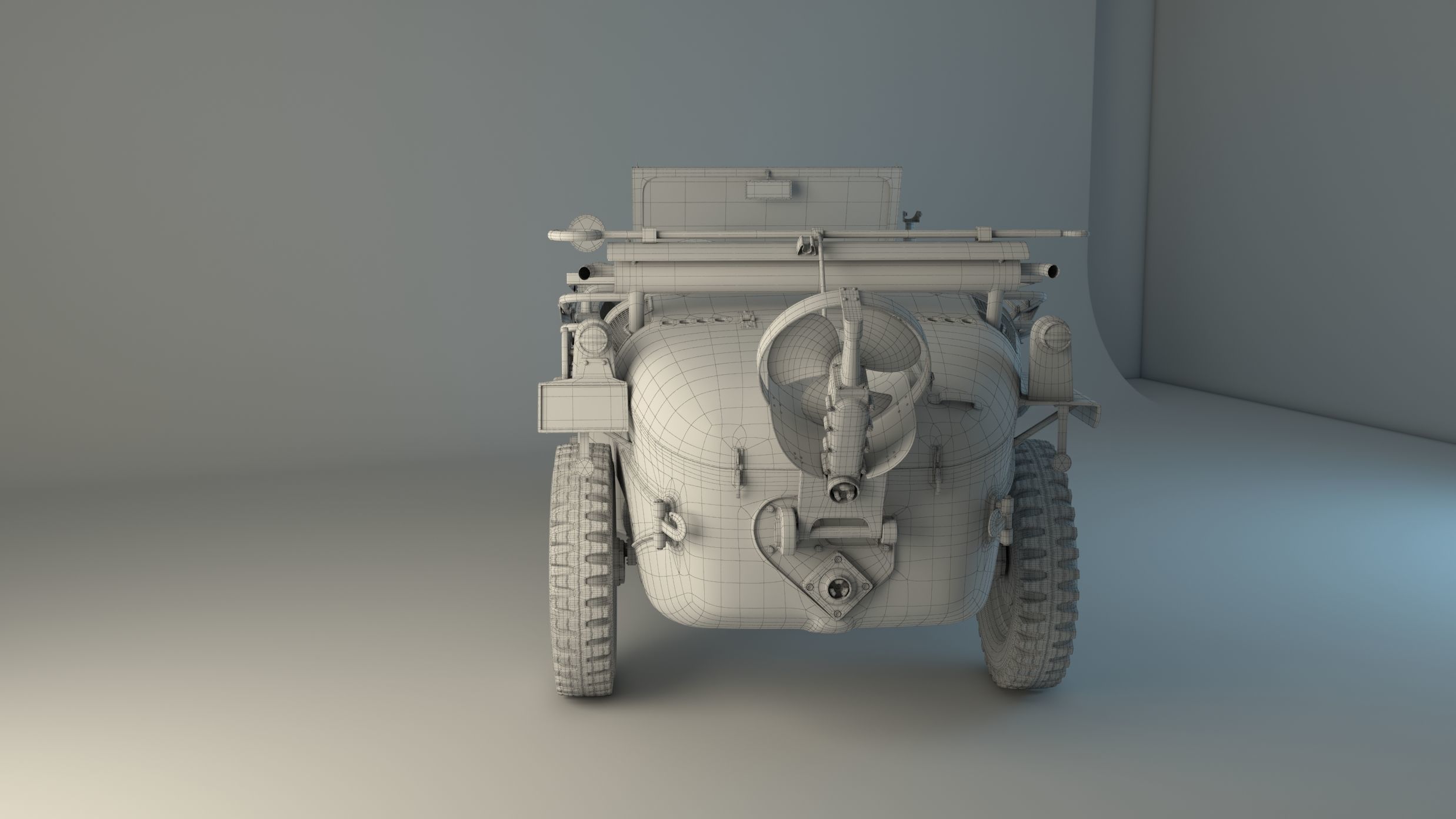

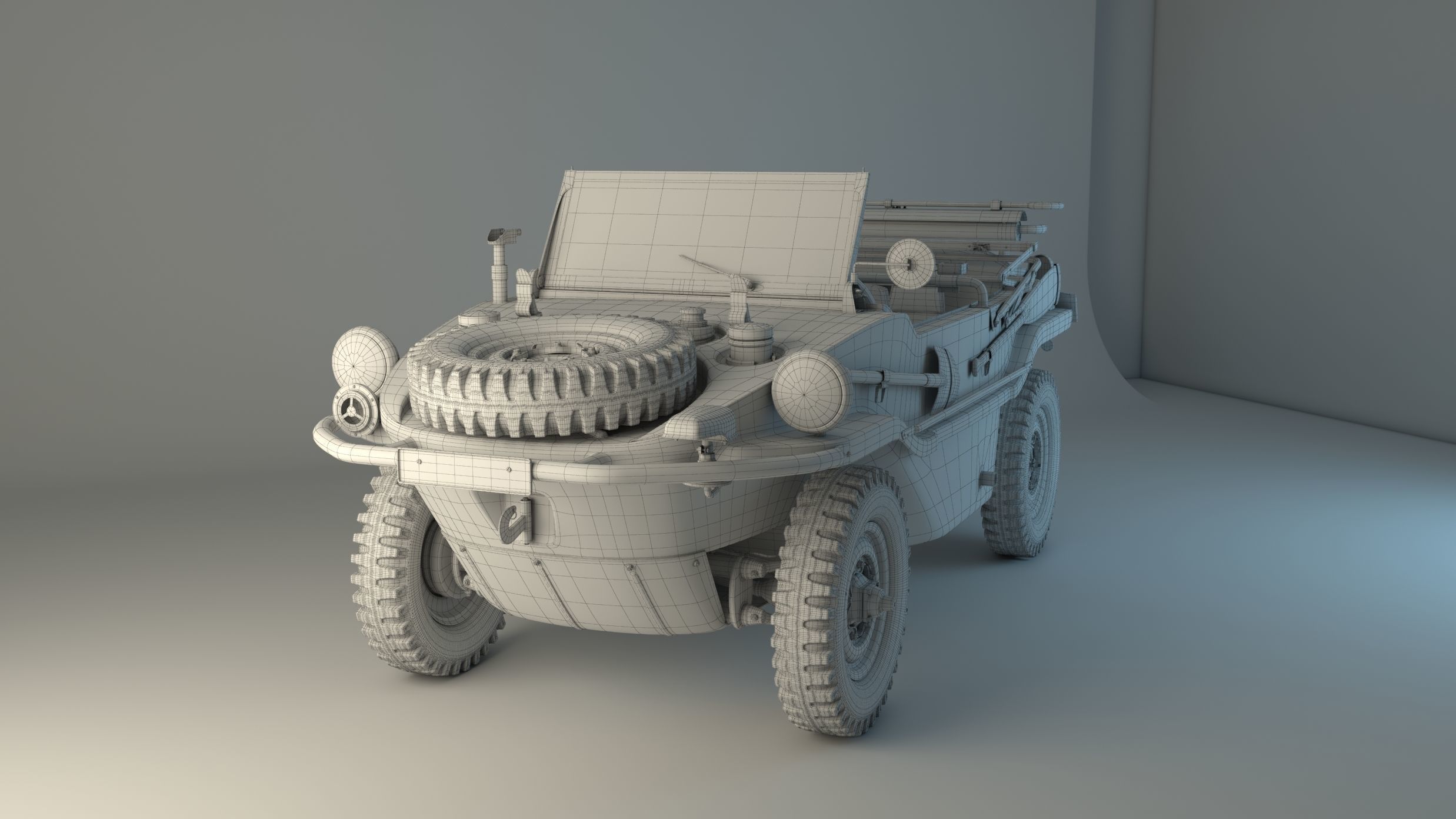

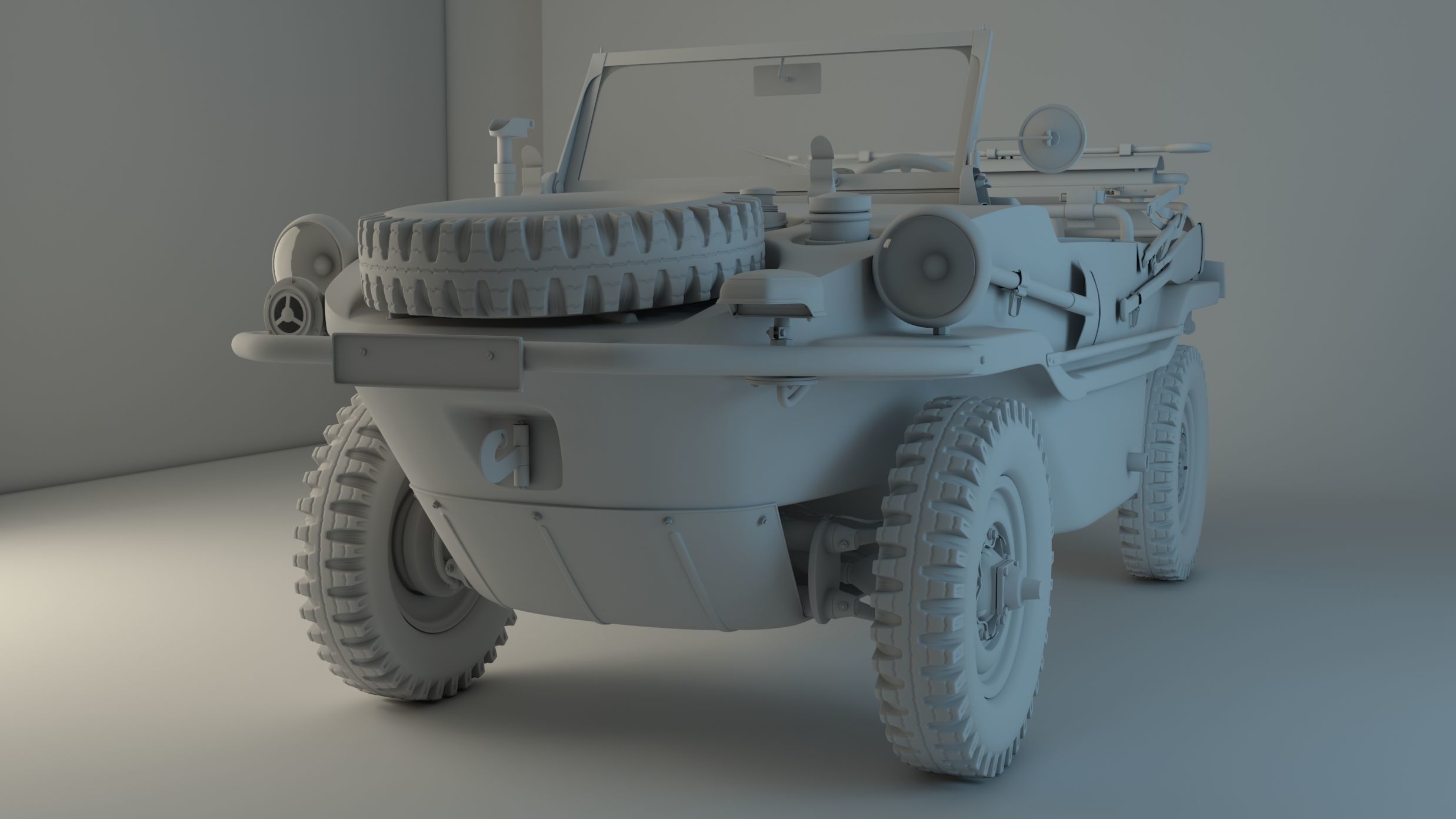

Volkswagen type 166 Schwimmwagen 3D model

  • Info:

    • Polycount is: 383 696
    • Triangles: 763 383
    • Ready for subdivision

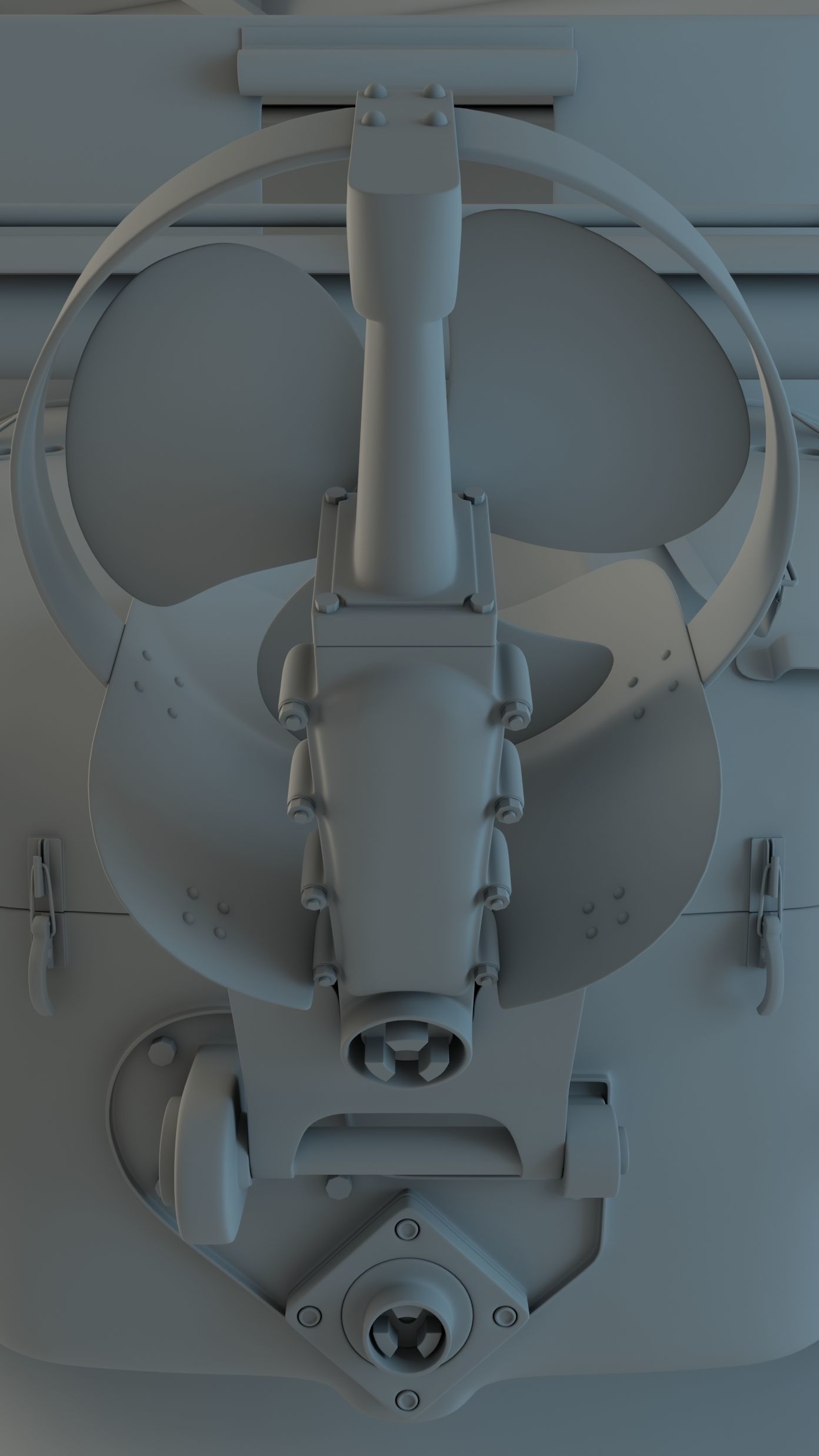

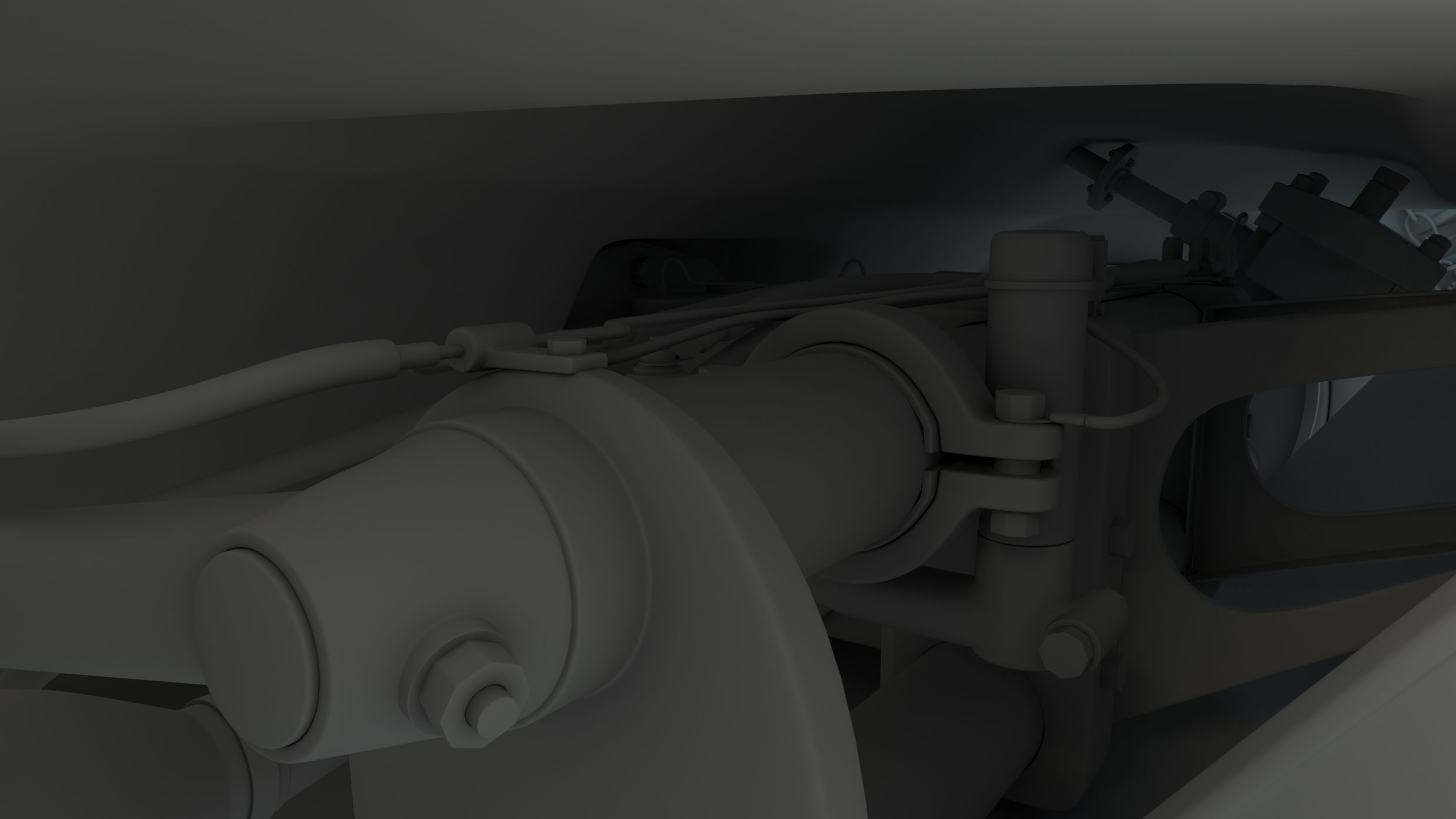

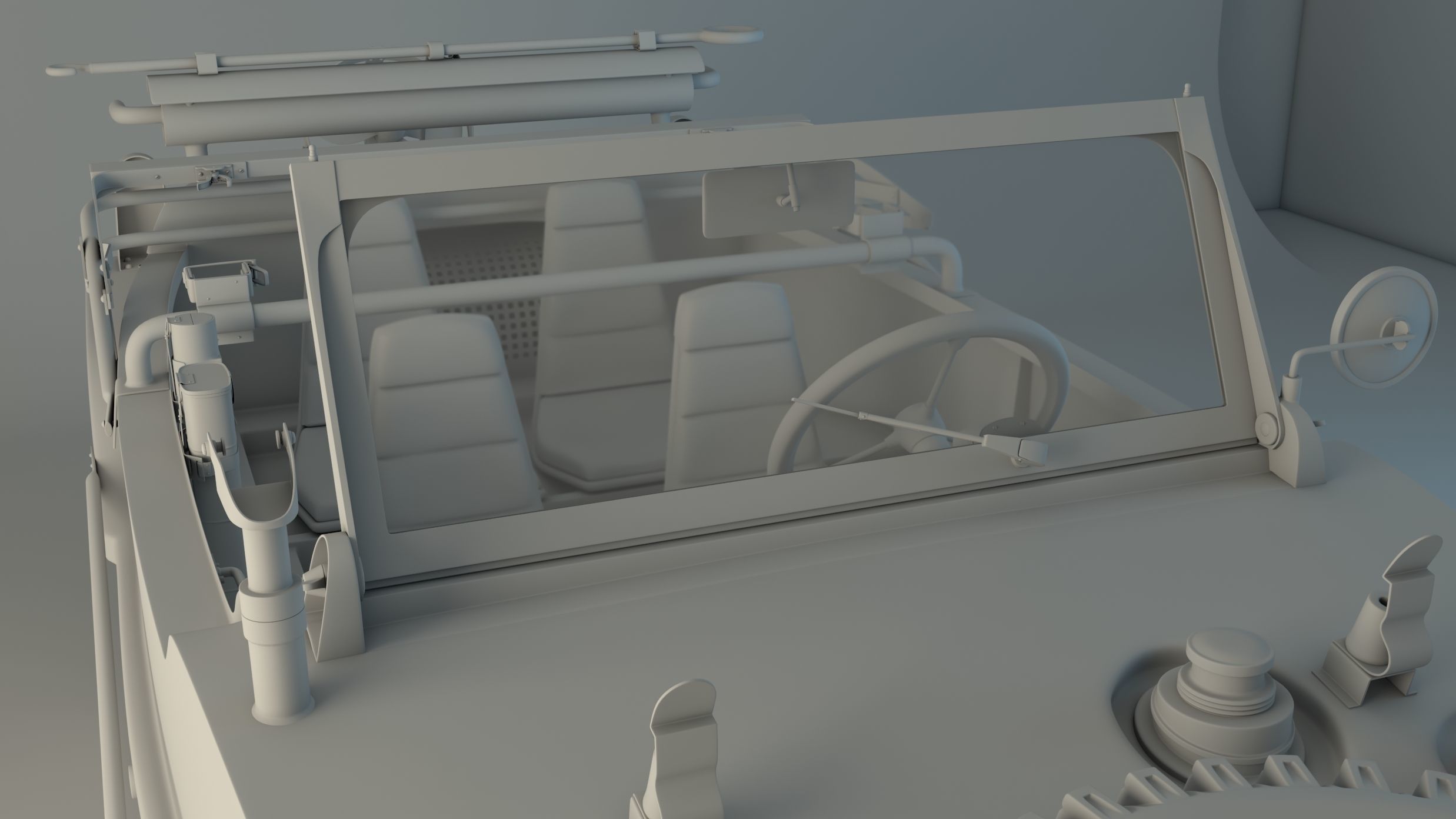

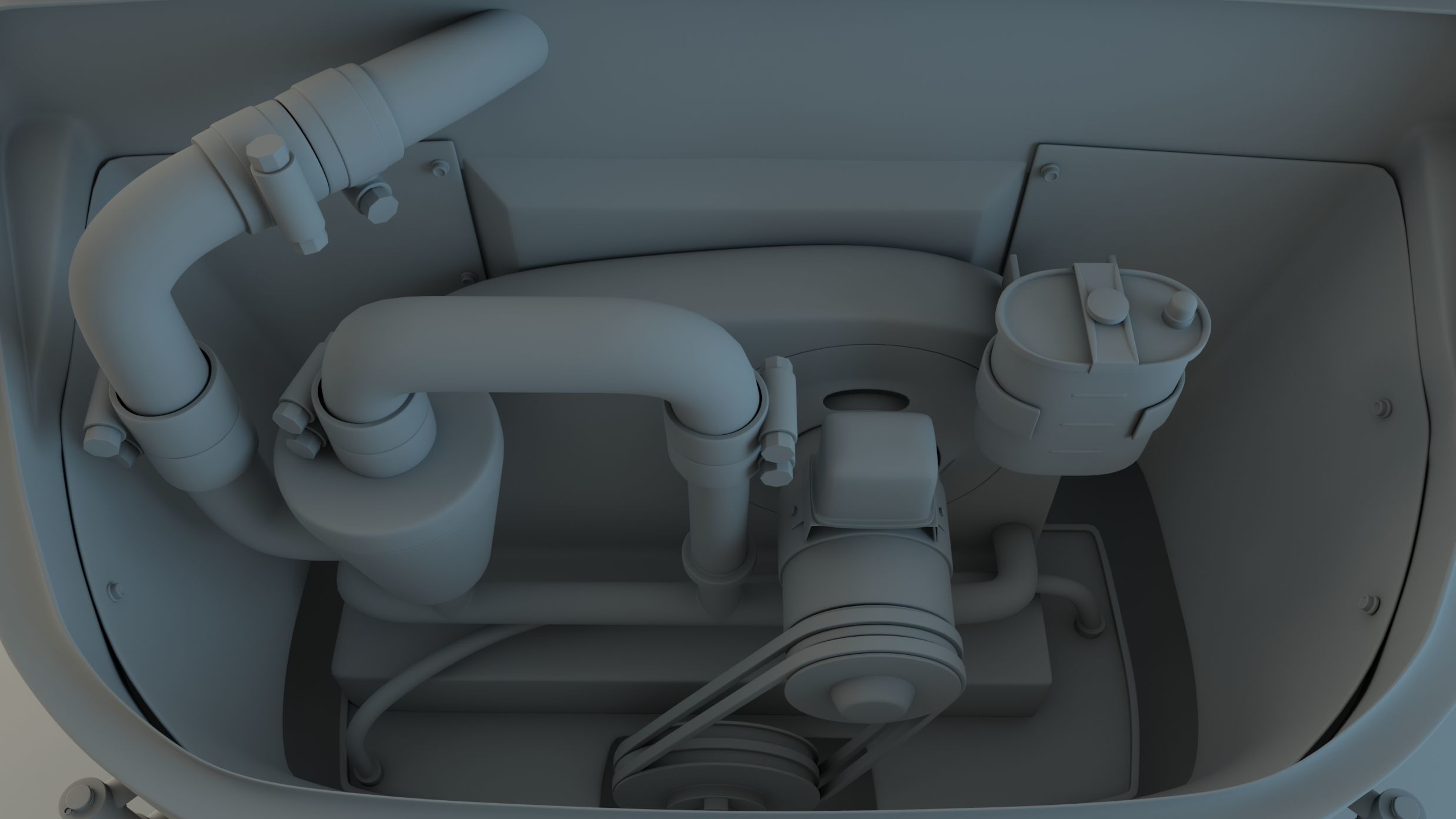

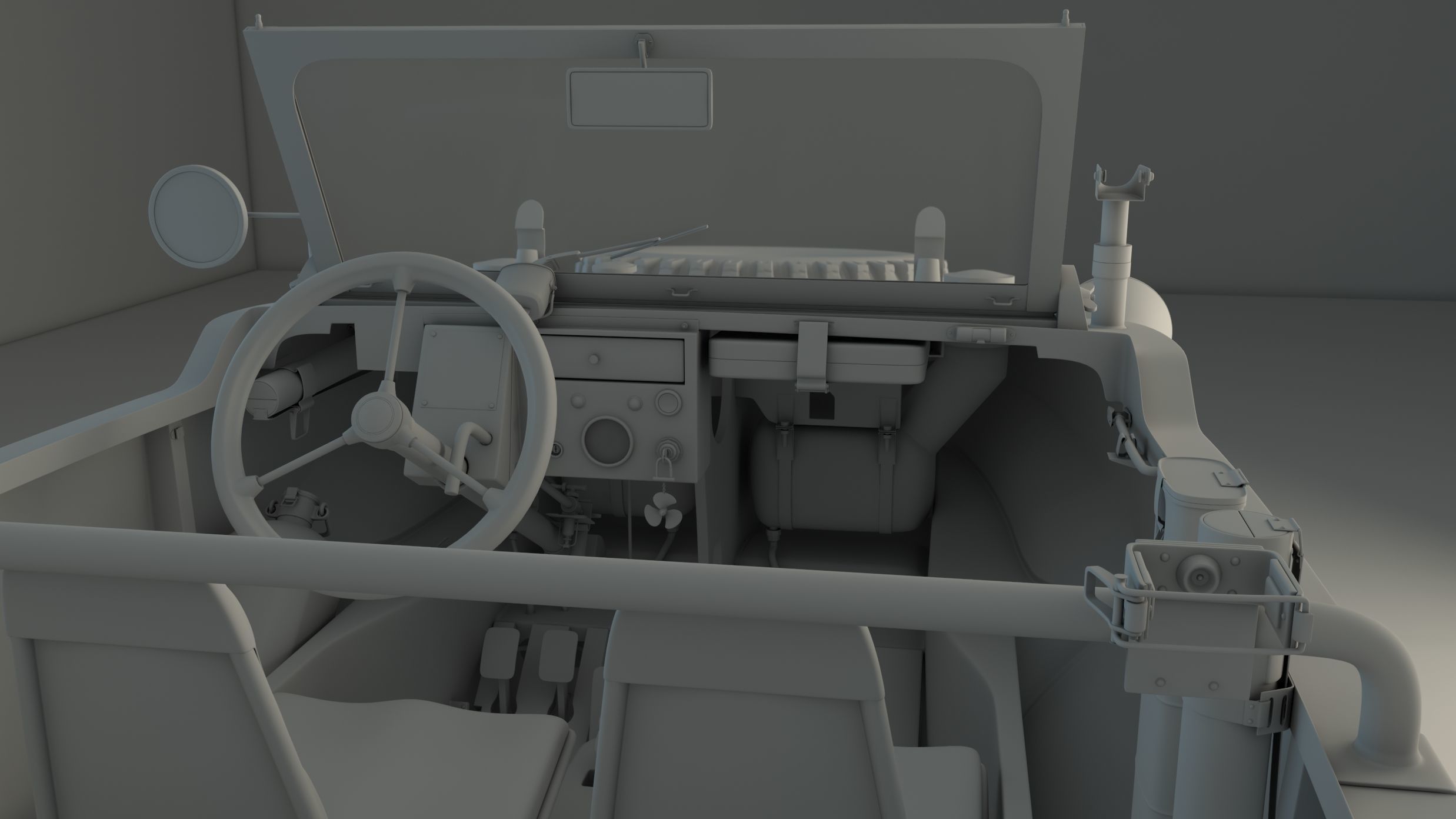

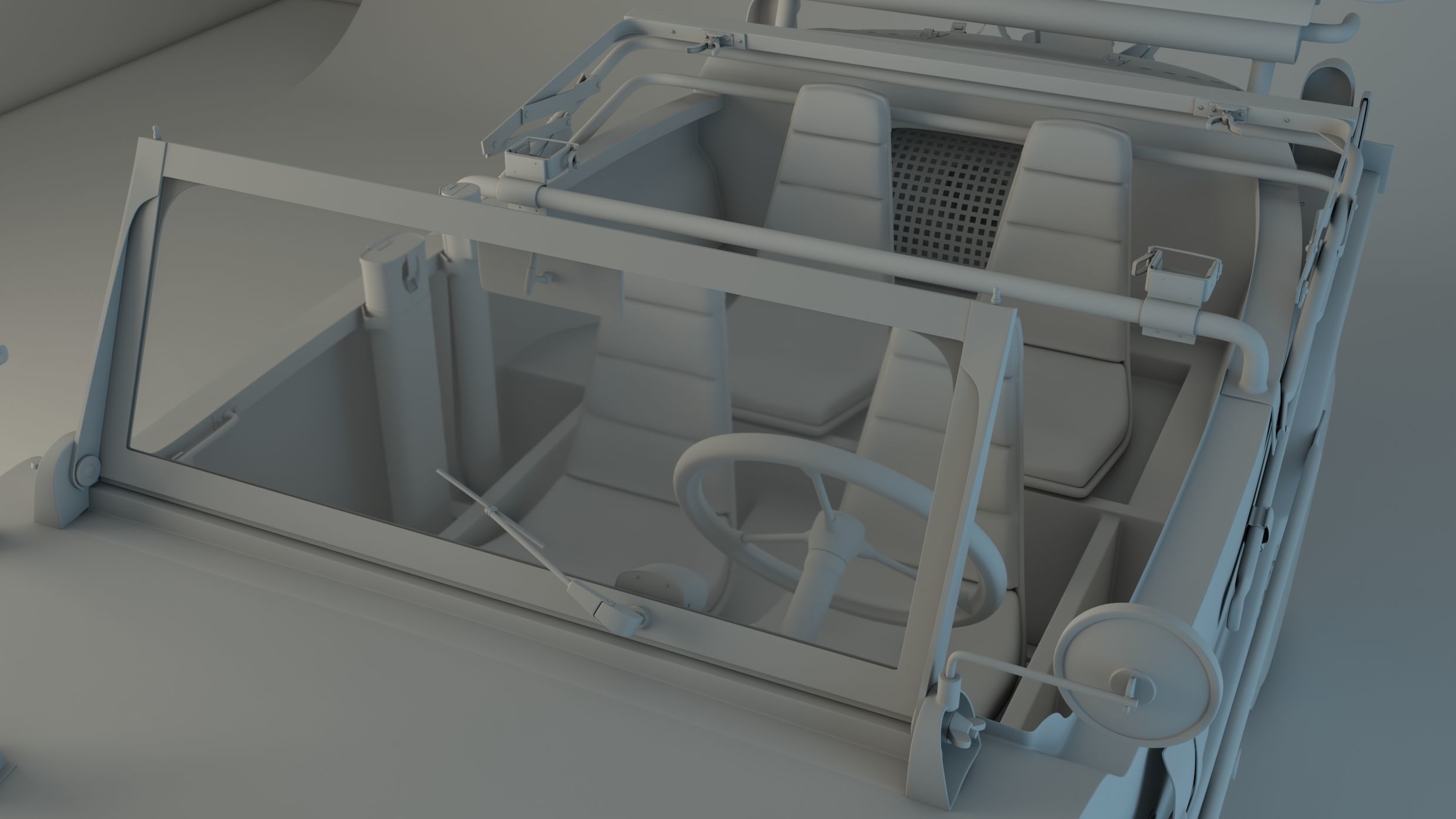

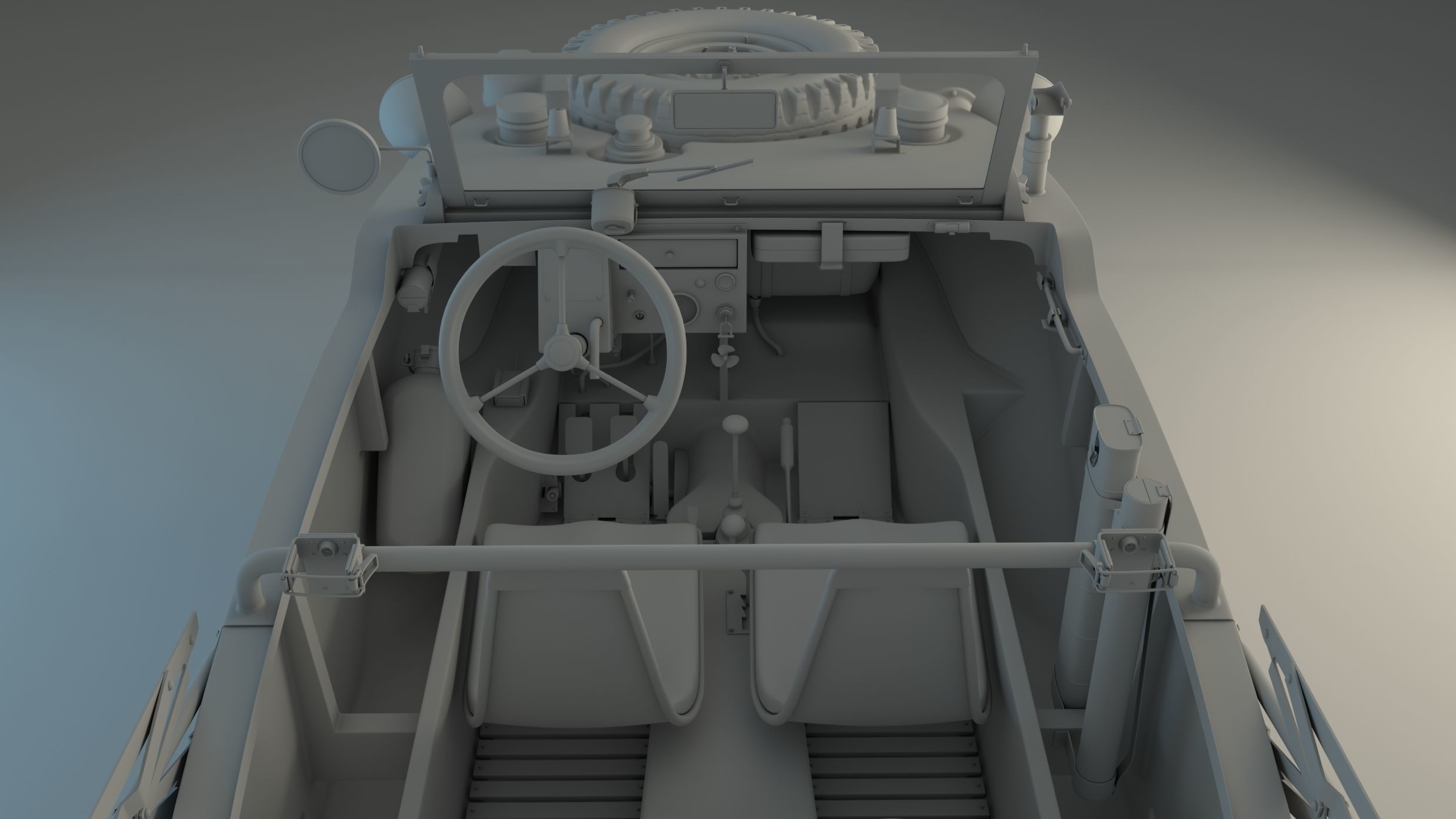

    • Highly detailed exterior, interior, engine room and suspensions
    • no UV and no rig
  • The pack contains:

    • 3 formats of the vehicle - Alembic - FBX - OBJ

If you satisfied with my works, please leave feedback. Thank you :)

  • Little story about the car:

The VW Type 128 and 166 Schwimmwagen (literally Swimming Car) were amphibious four-wheel drive off-roaders, used extensively by German ground forces during the Second World War. The Type 166 is the most numerous mass-produced amphibious car in history.

Volkswagen Schwimmwagens used the engine and mechanicals of the VW Type 86 four-wheel drive prototype of the Kübelwagen and the Type 87 four-wheel drive 'Kübel/Beetle' Command Car, which in turn were based on the platform of the civilian Volkswagen Beetle. Erwin Komenda, Ferdinand Porsche's first car body designer, was forced to develop an all-new unitized bodytub structure since the flat floorpan chassis of the existing VW vehicles was unsuited to smooth movement through water. Komenda patented his ideas for the swimming car at the German Patent office.

The earliest Type 128 prototype was based on the full-length Kübelwagen chassis with a 240 cm (7.9 ft) wheelbase. Pre-production units of the 128, fitted with custom welded bodytubs, demonstrated that this construction was too weak for tough off-roading, had insufficient torsional rigidity, and easily suffered hull-ruptures at the front cross-member, as well as in the wheel-wells. This was unacceptable for an amphibious vehicle. The large-scale production models (Type 166) were therefore made smaller, and had a wheel-base of only 200 cm (6.6 ft).

VW Schwimmwagens were produced by the Volkswagen factory at Fallersleben / Wolfsburg and Porsche's facilities in Stuttgart; with the bodies (or rather hulls) produced by Ambi Budd in Berlin. 15,584 Type 166 Schwimmwagen cars were produced from 1941 through 1944; 14,276 at Fallersleben and 1,308 by Porsche. Given these numbers, the VW 166 is the most mass-produced amphibious car in history.

Item rating
0 0
Volkswagen type 166 Schwimmwagen
$100.00

Editorial License
Response 70% in 46.8h

3D Model formats

  • OBJ (.obj, .mtl)73.2 MB
  • Alembic (.abc)29.3 MB
  • Autodesk FBX (.fbx)14.5 MB

3D Model details

  • Publish date2020-06-26
  • Model ID#2487202
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 383,696
  • Vertices 393,394
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
