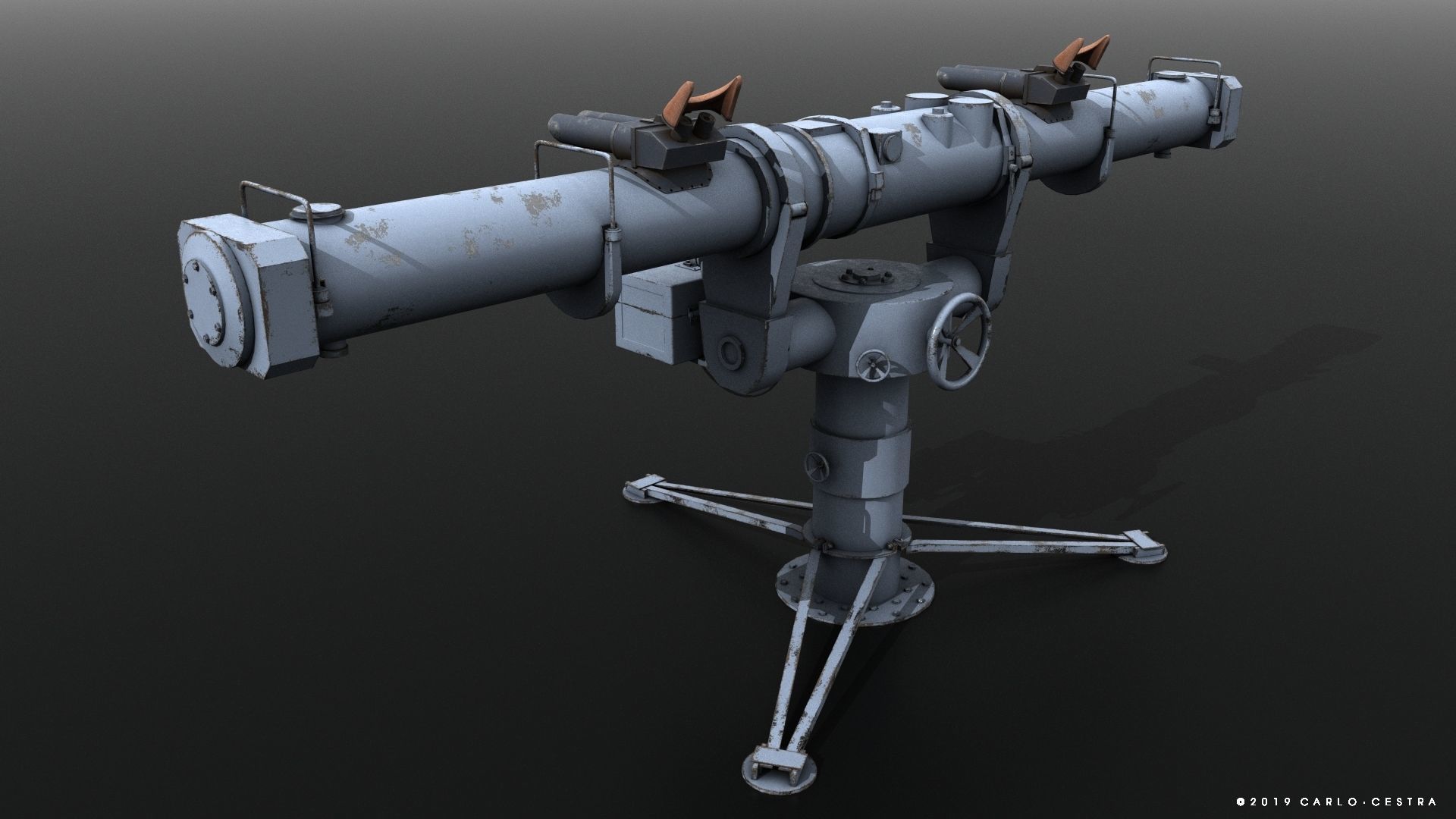

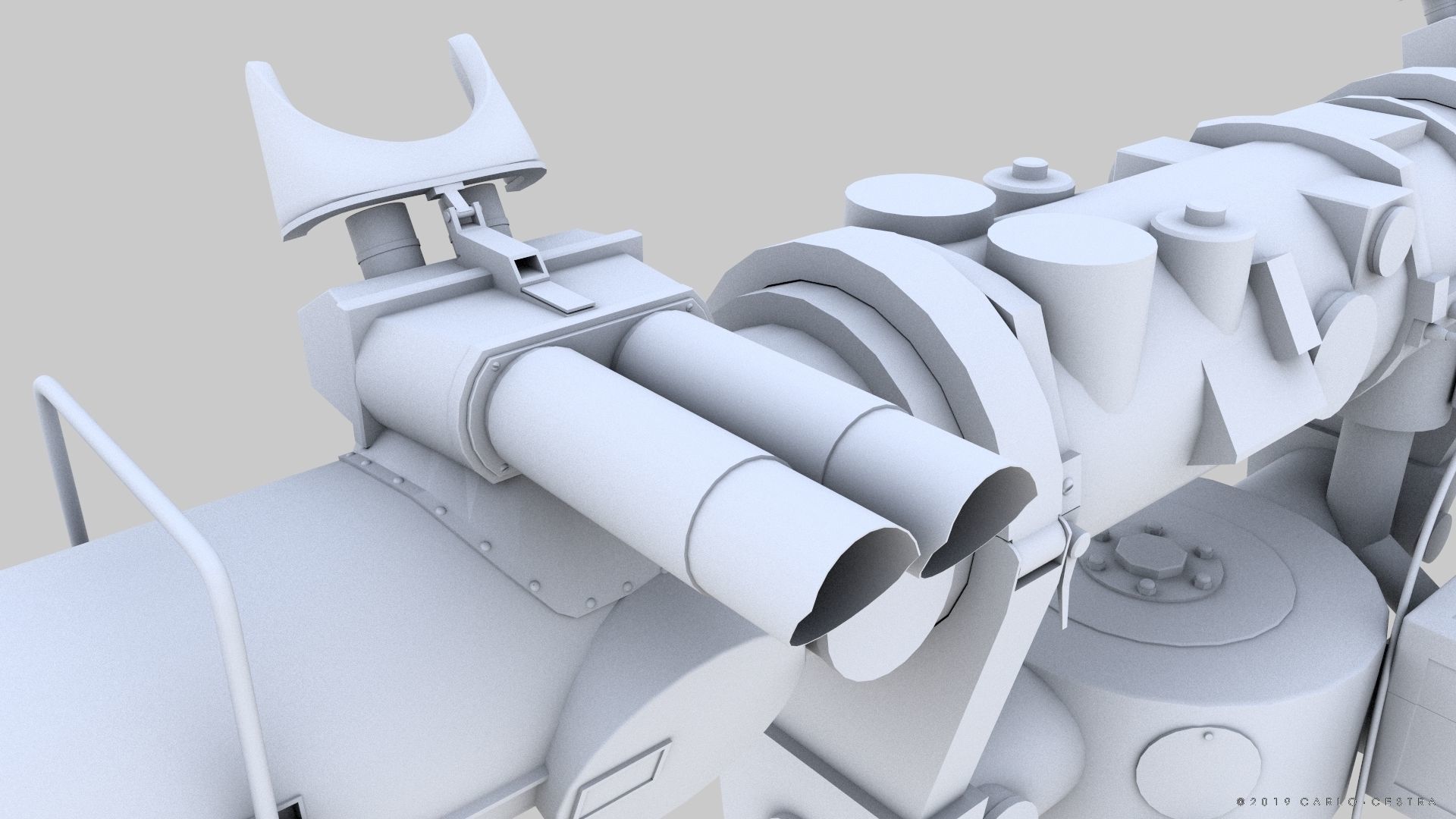

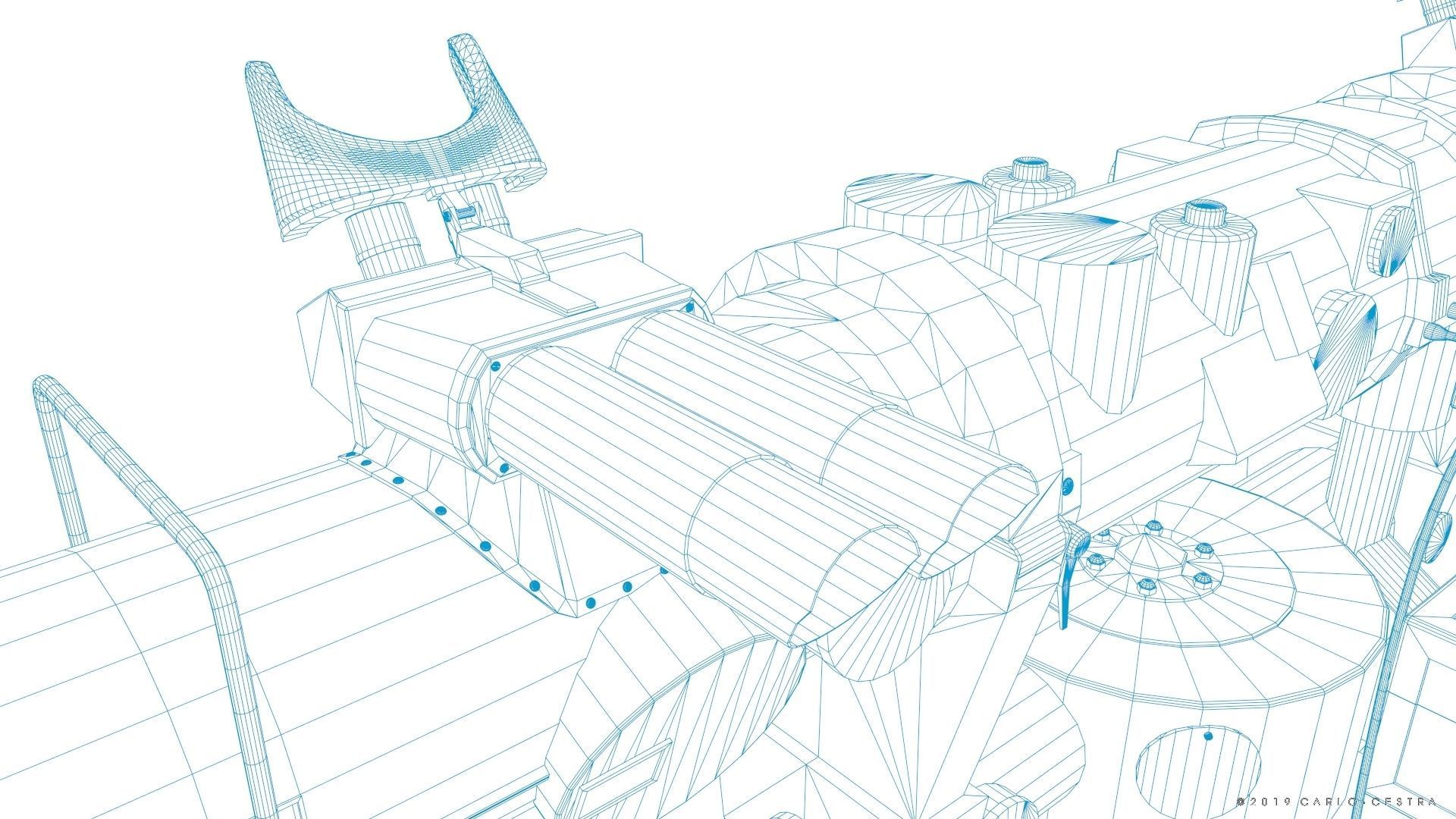

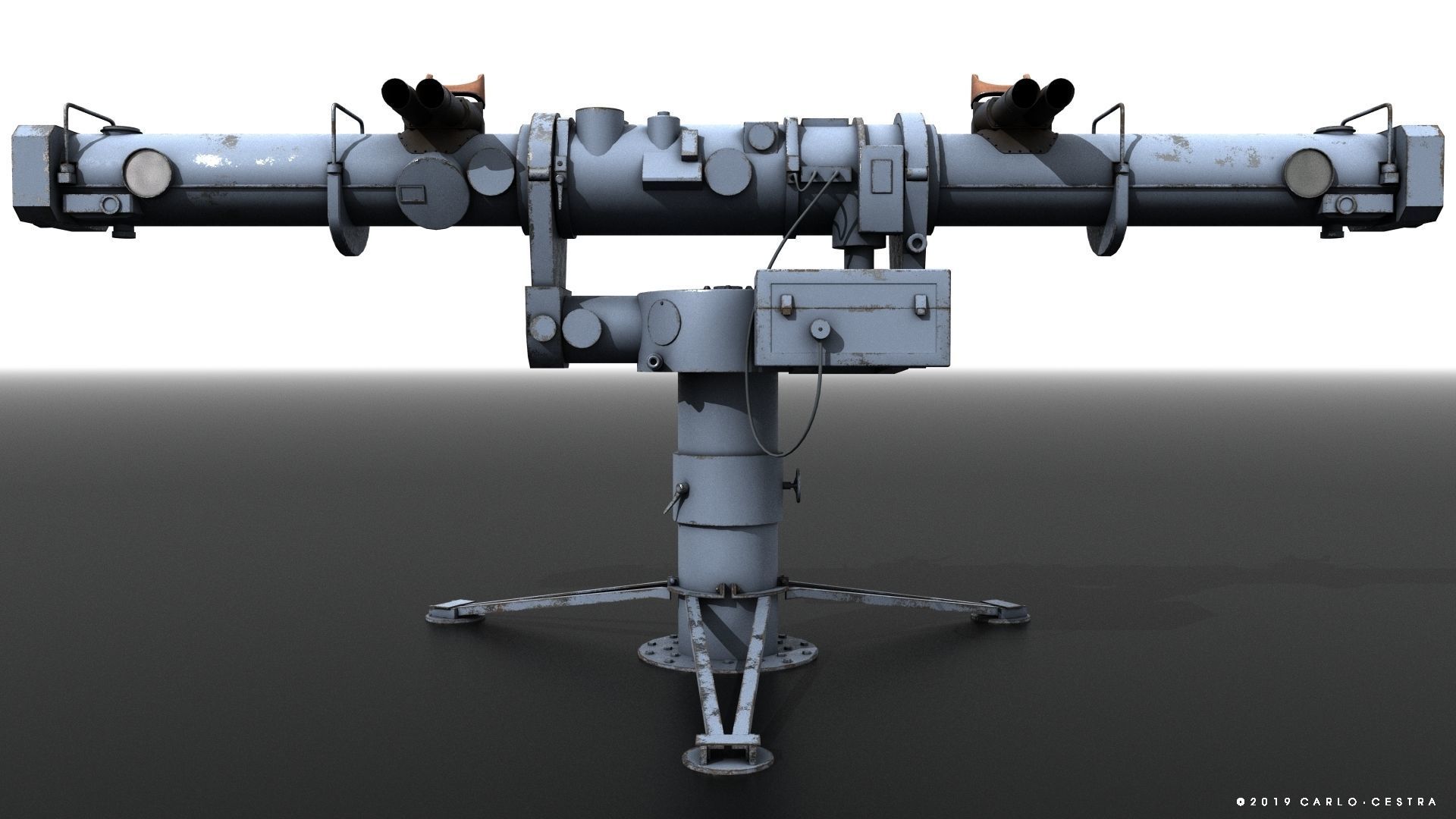

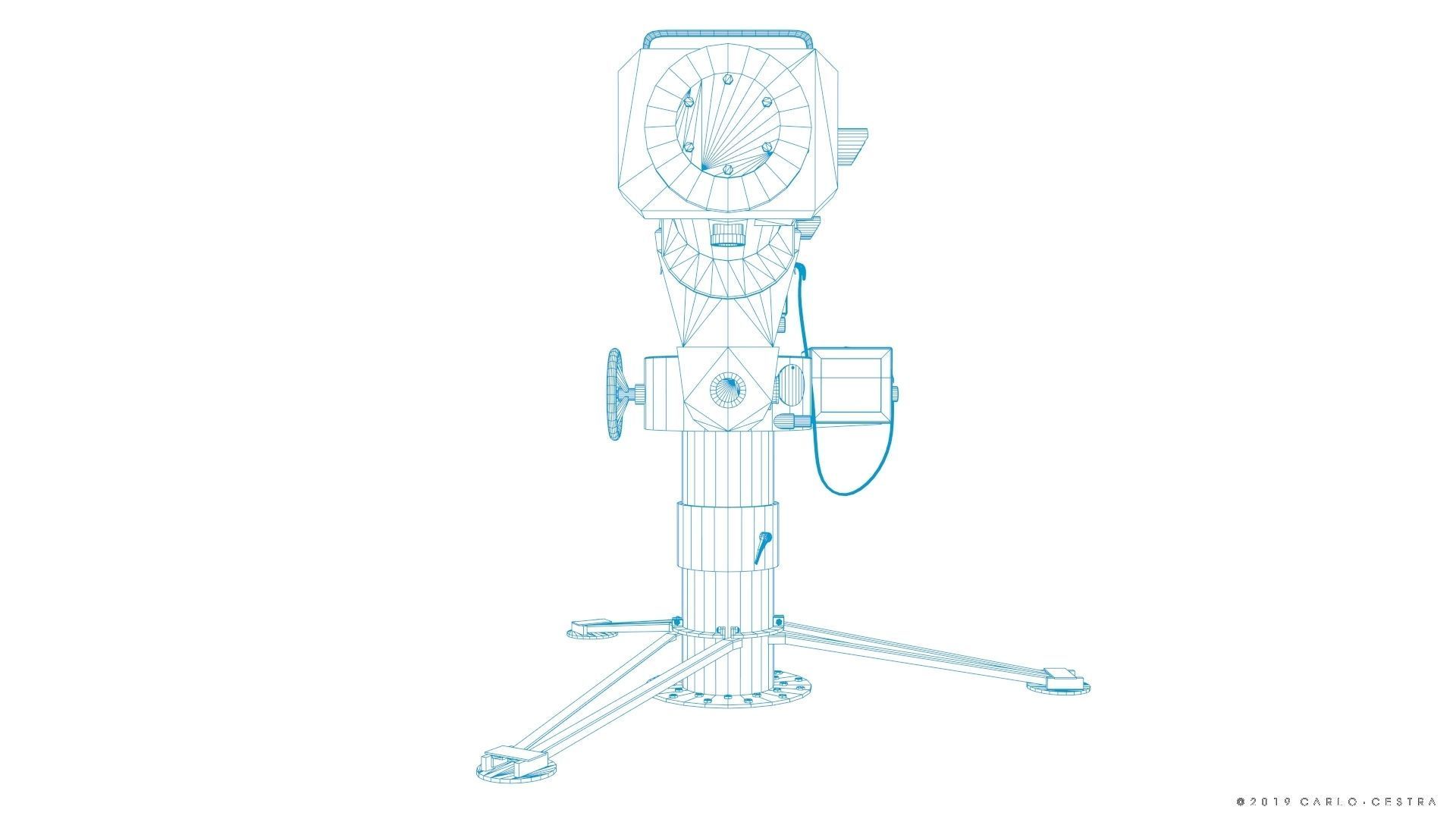

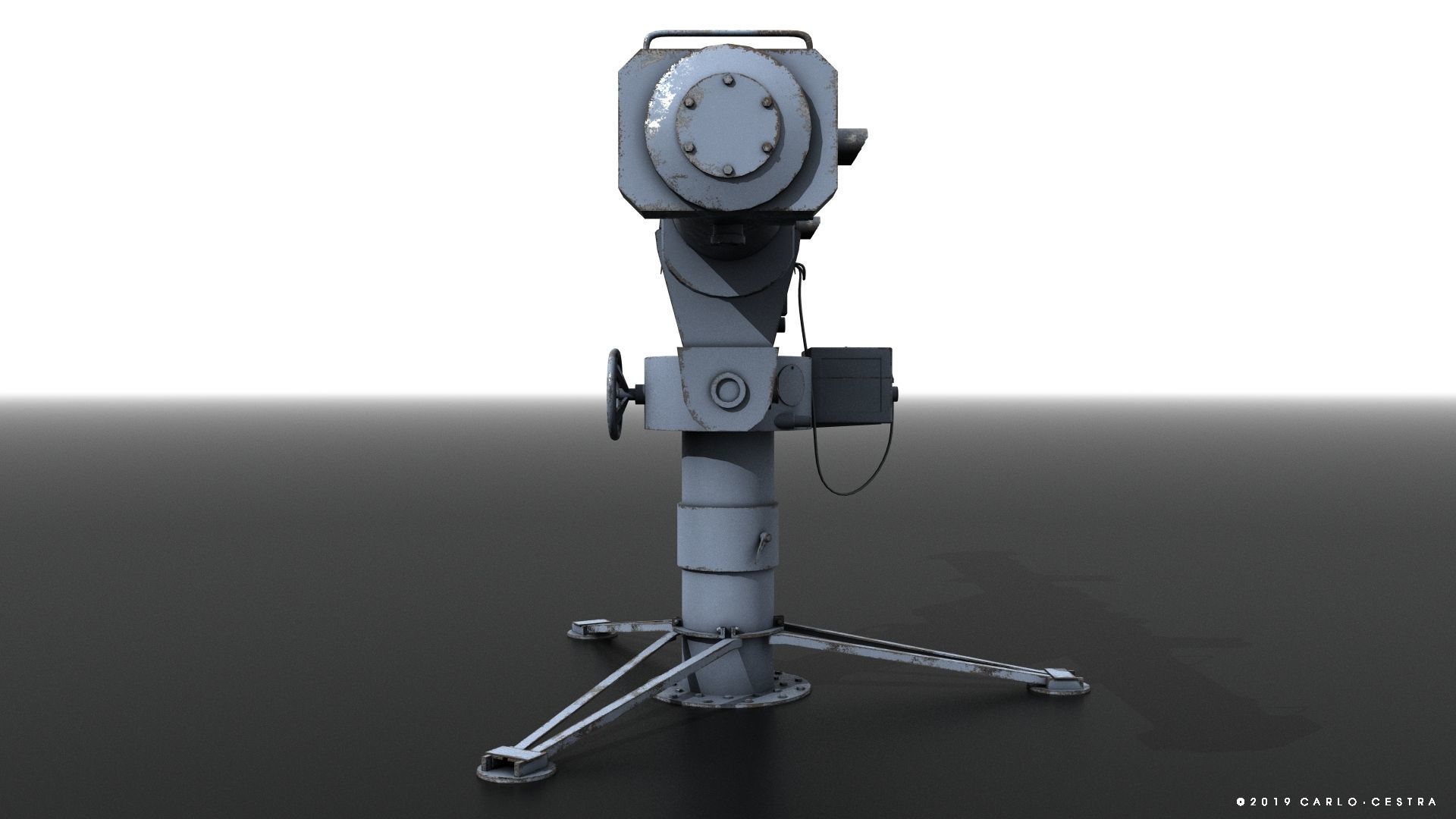

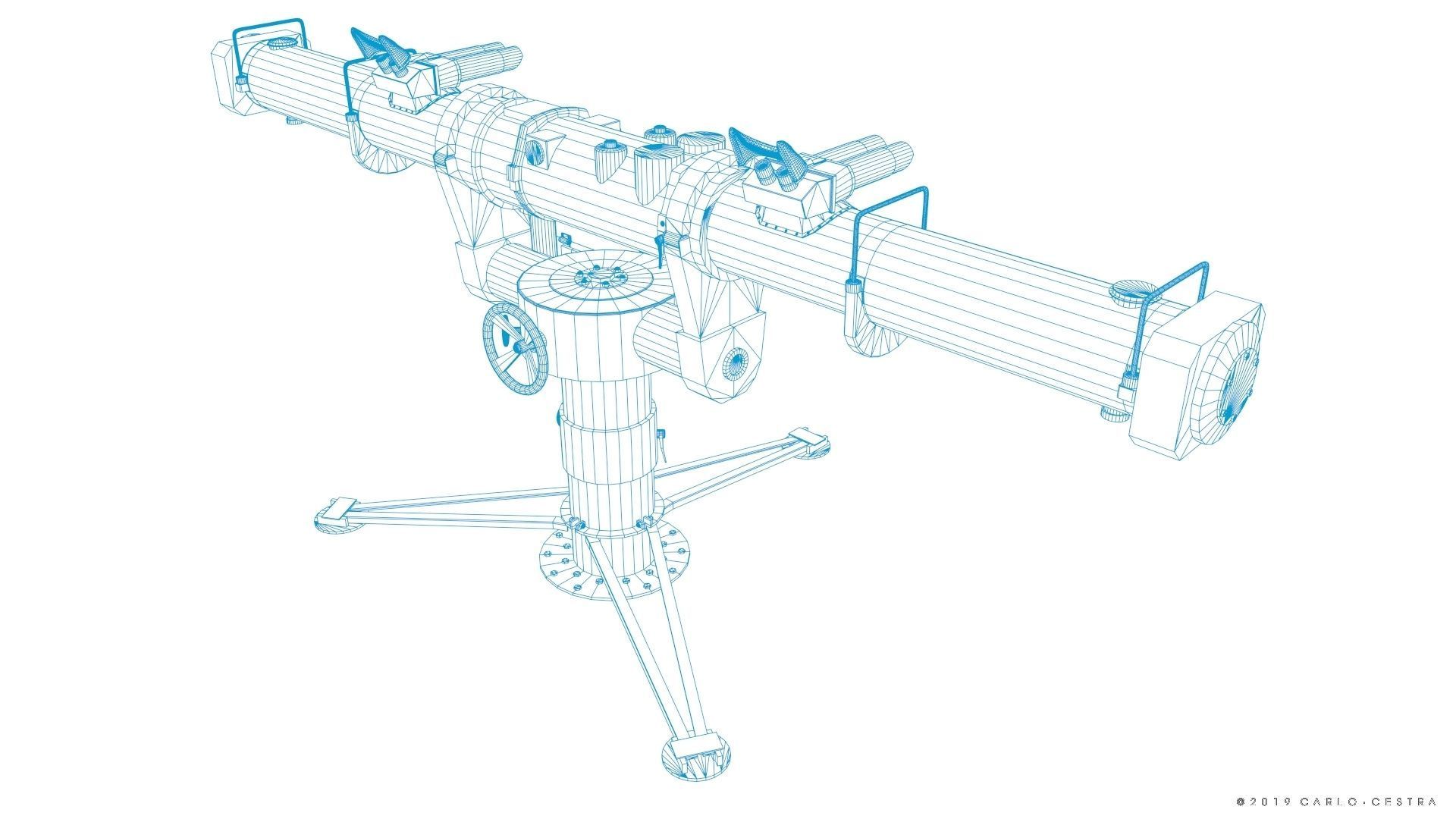

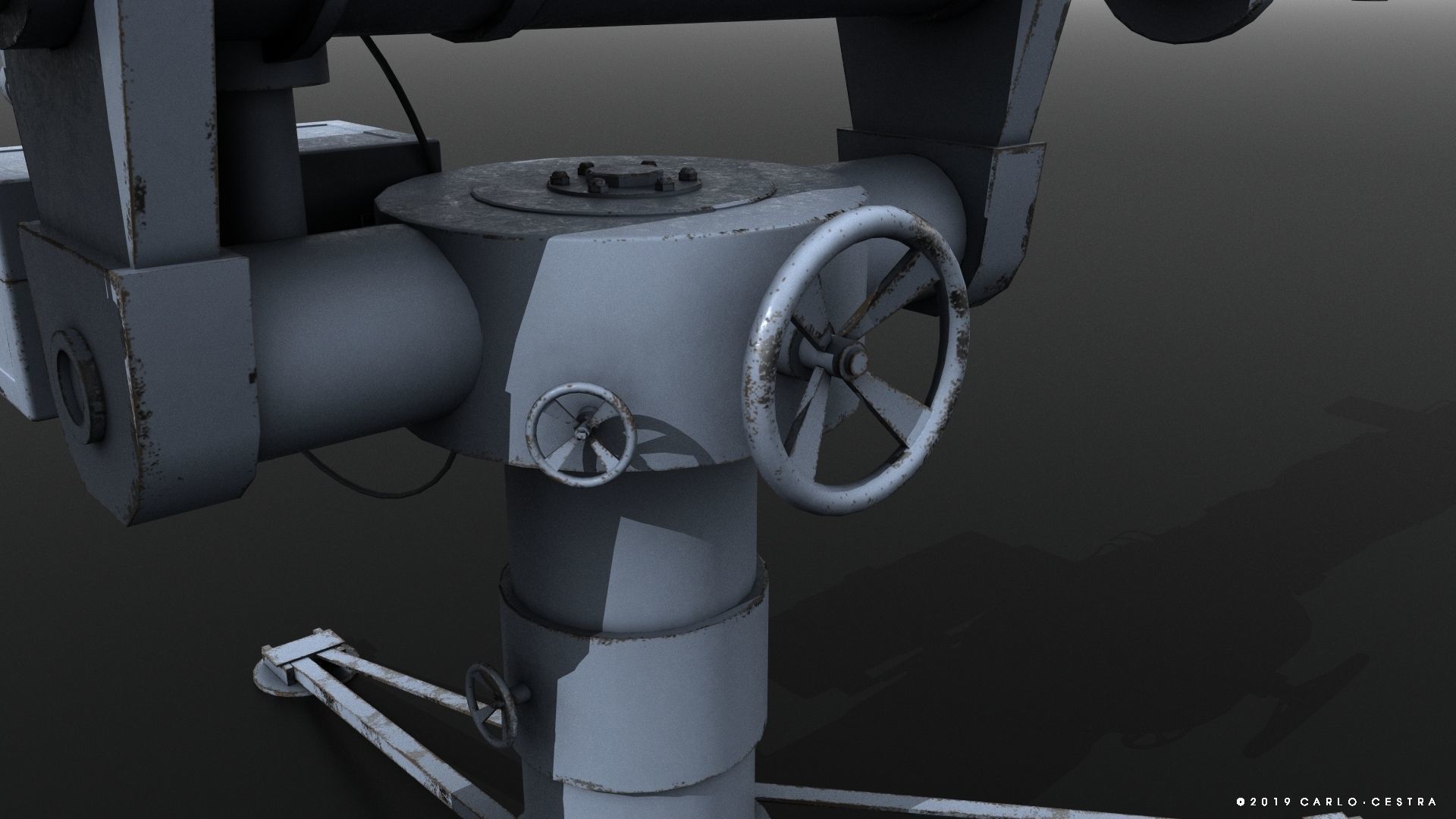

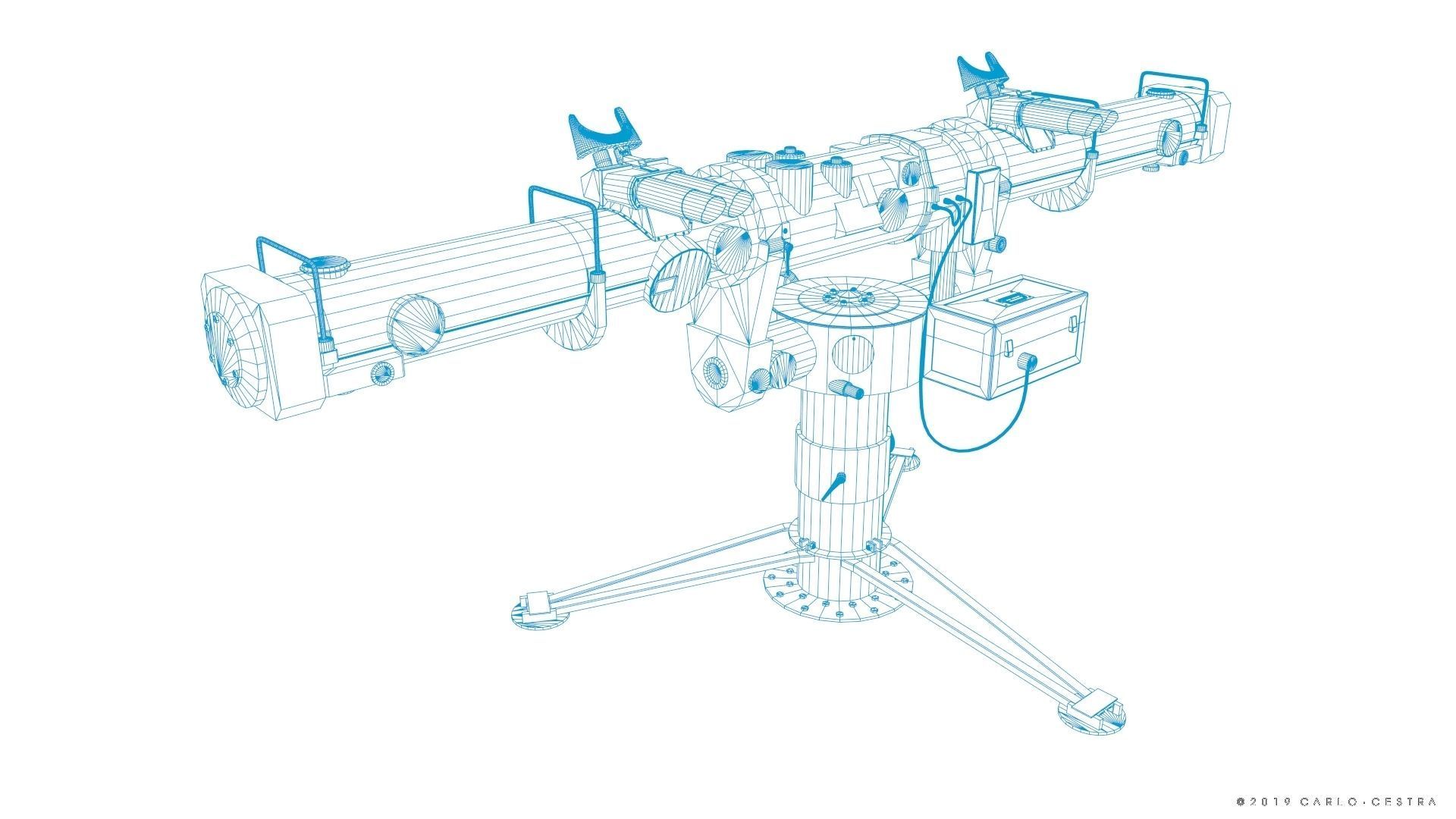

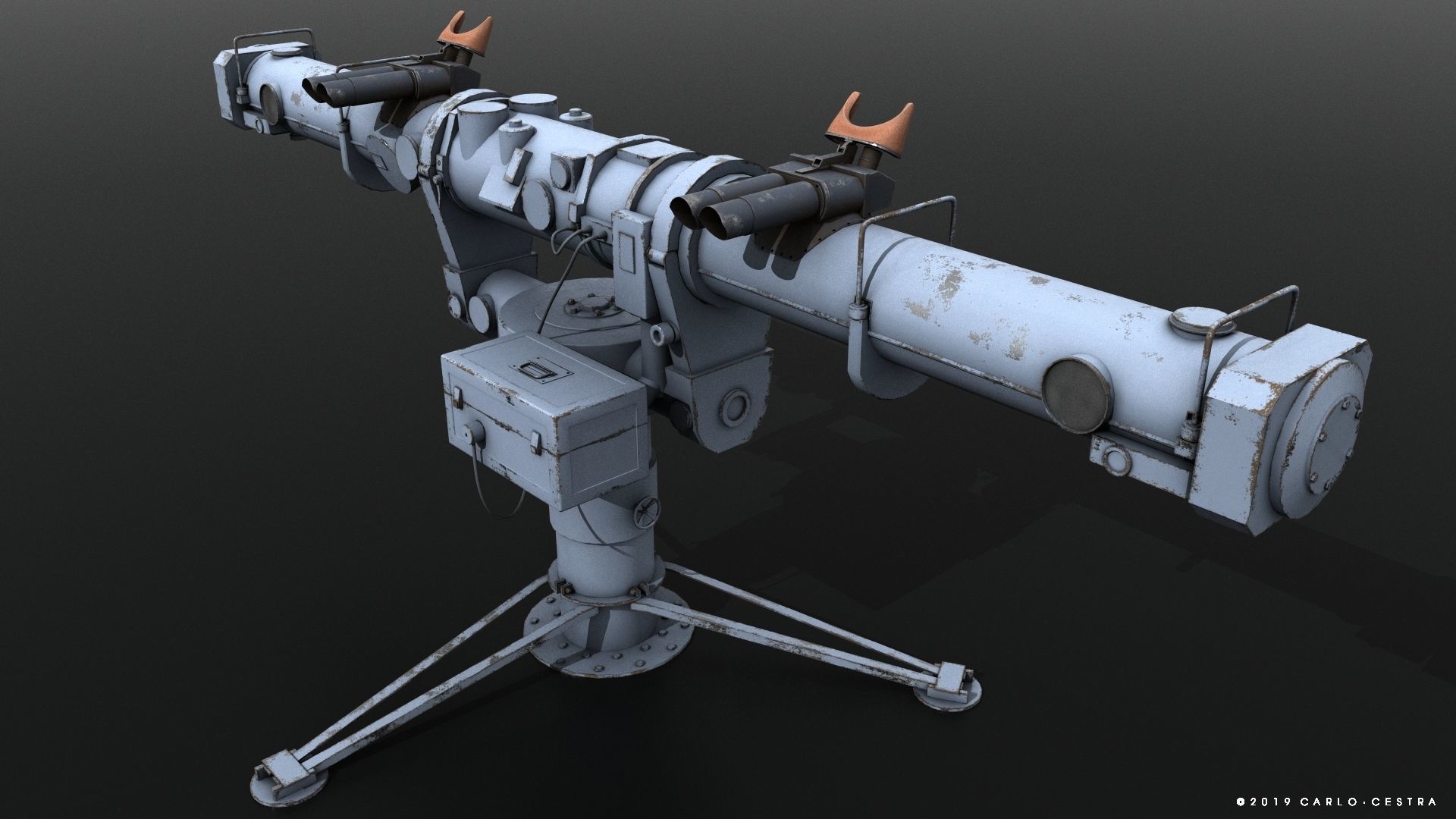

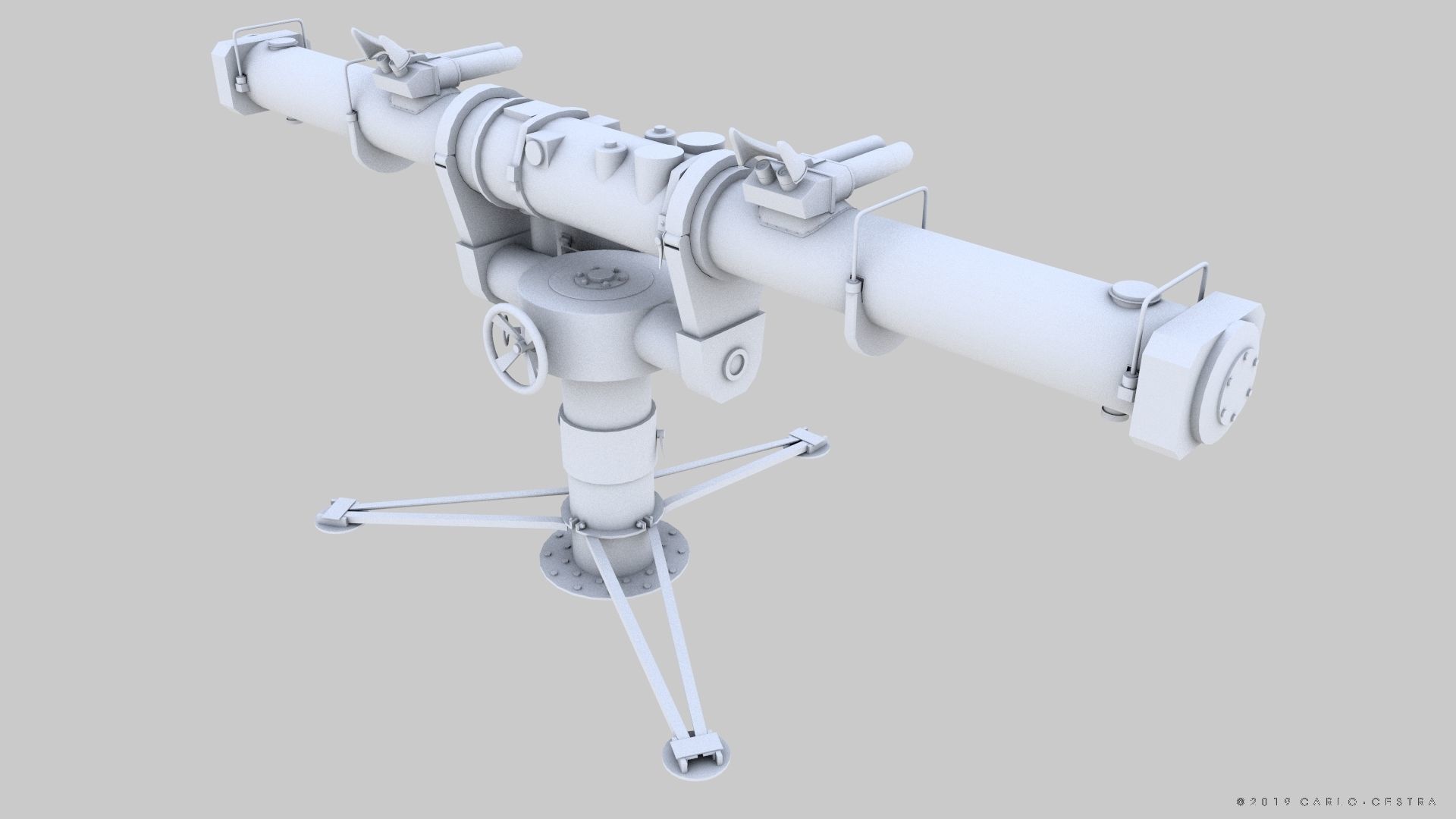

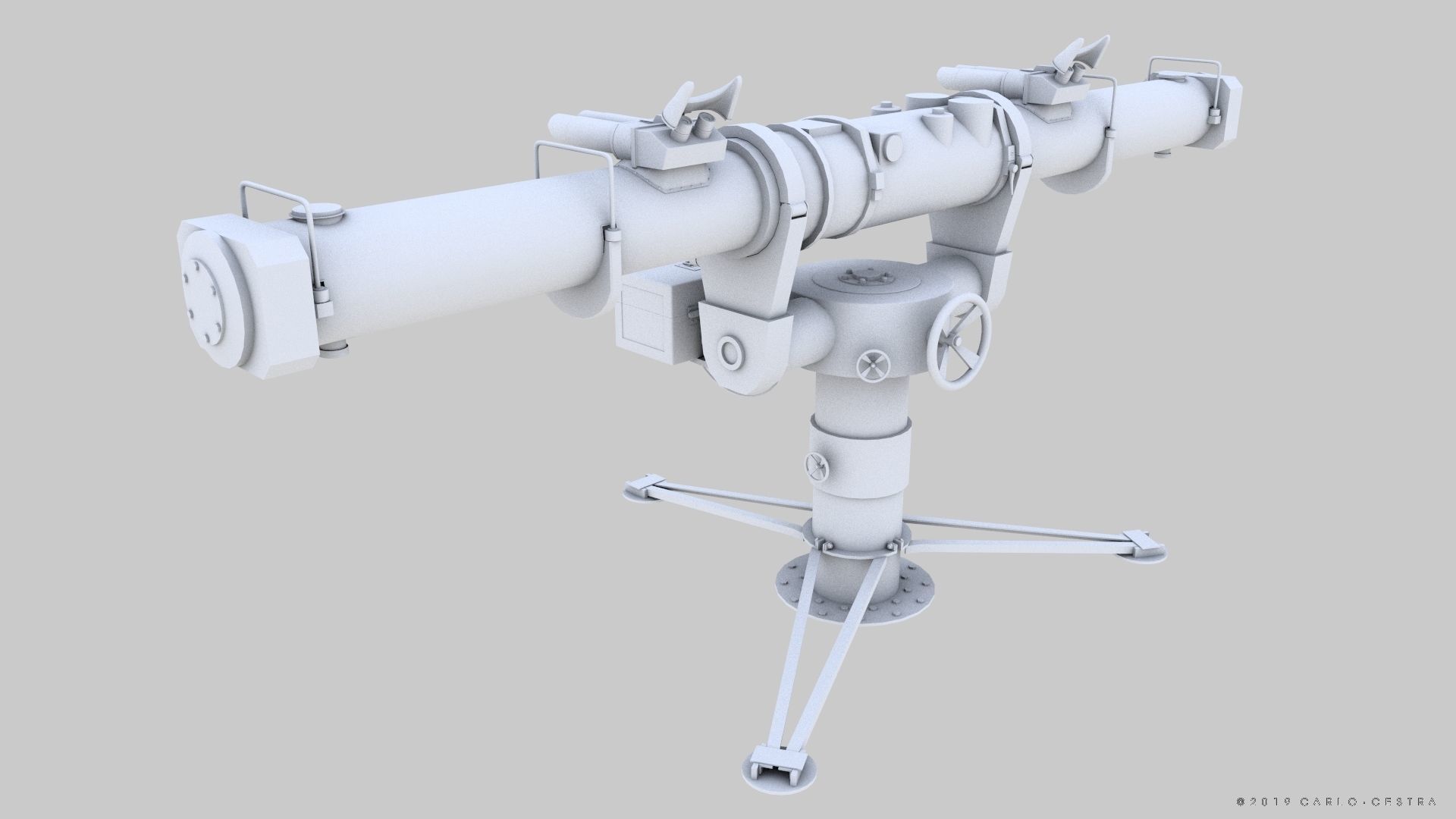

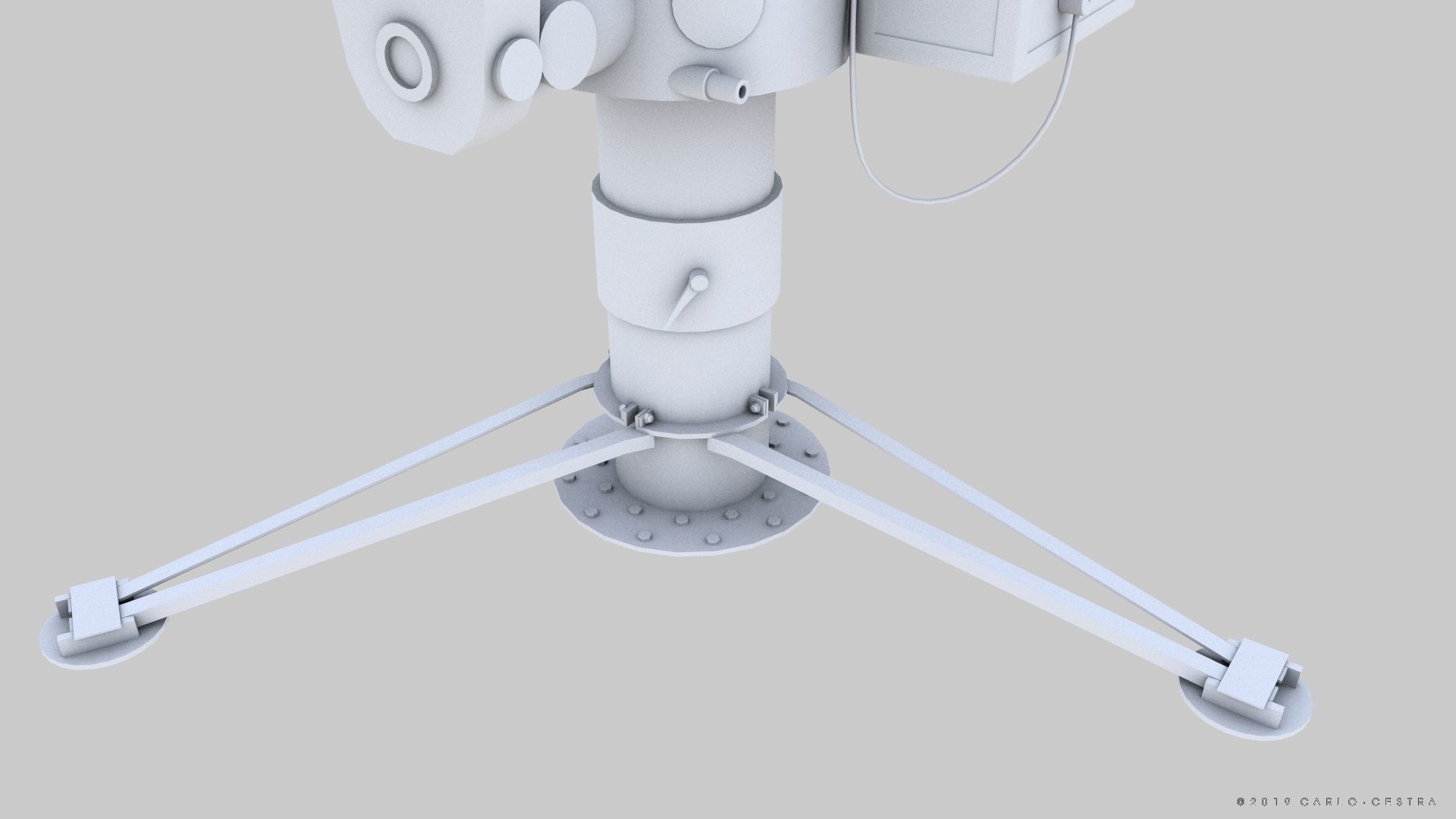

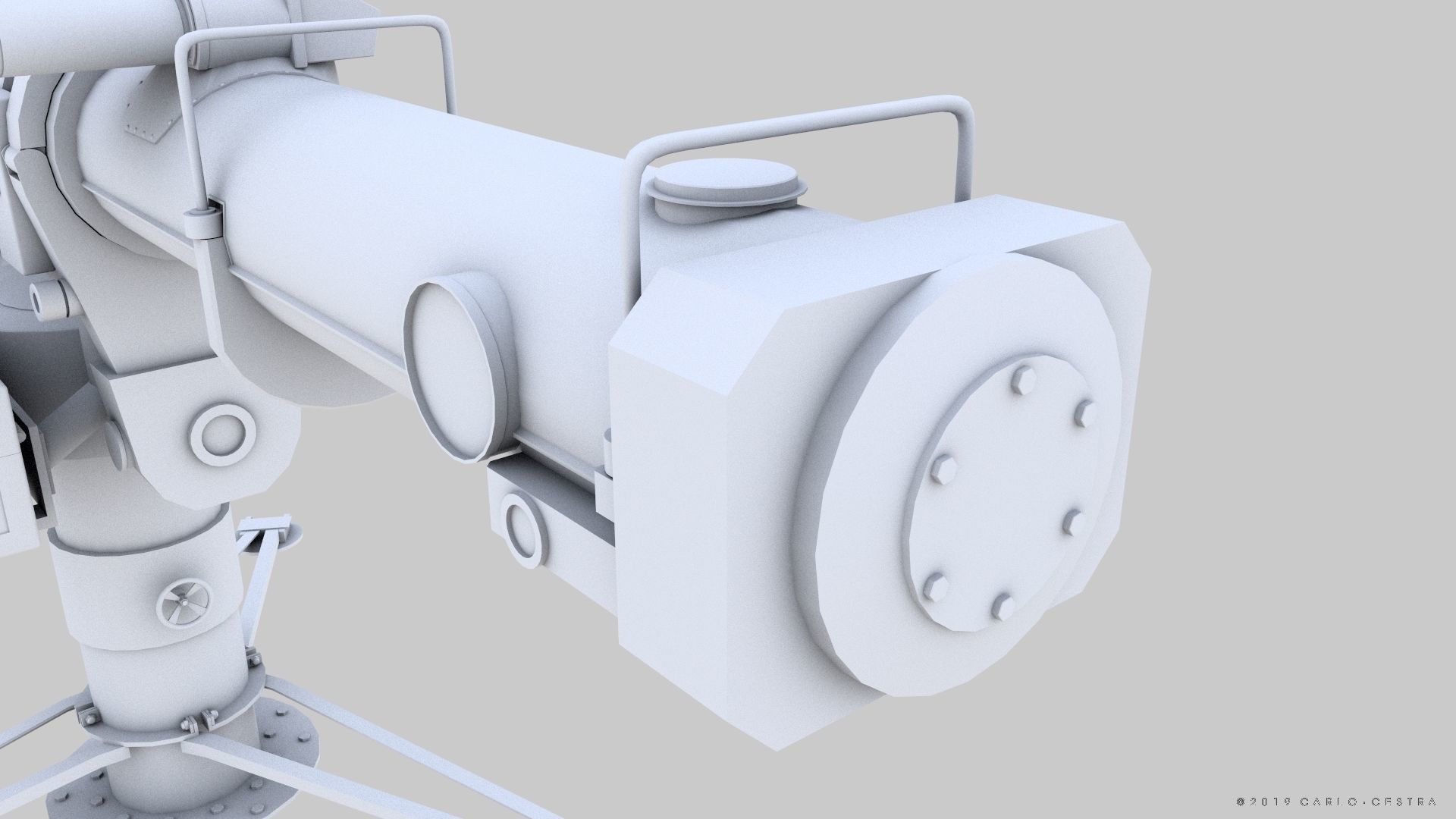

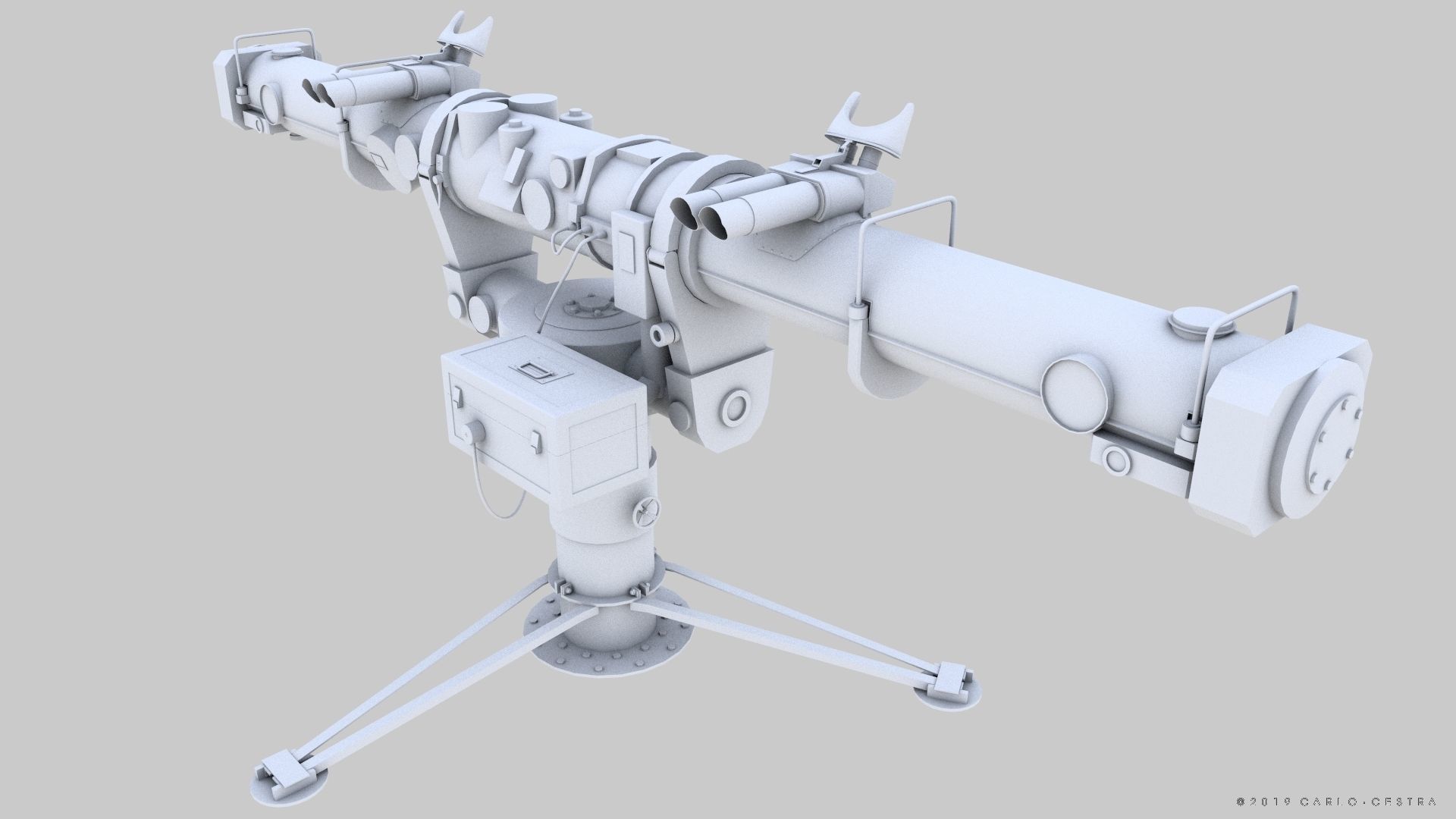

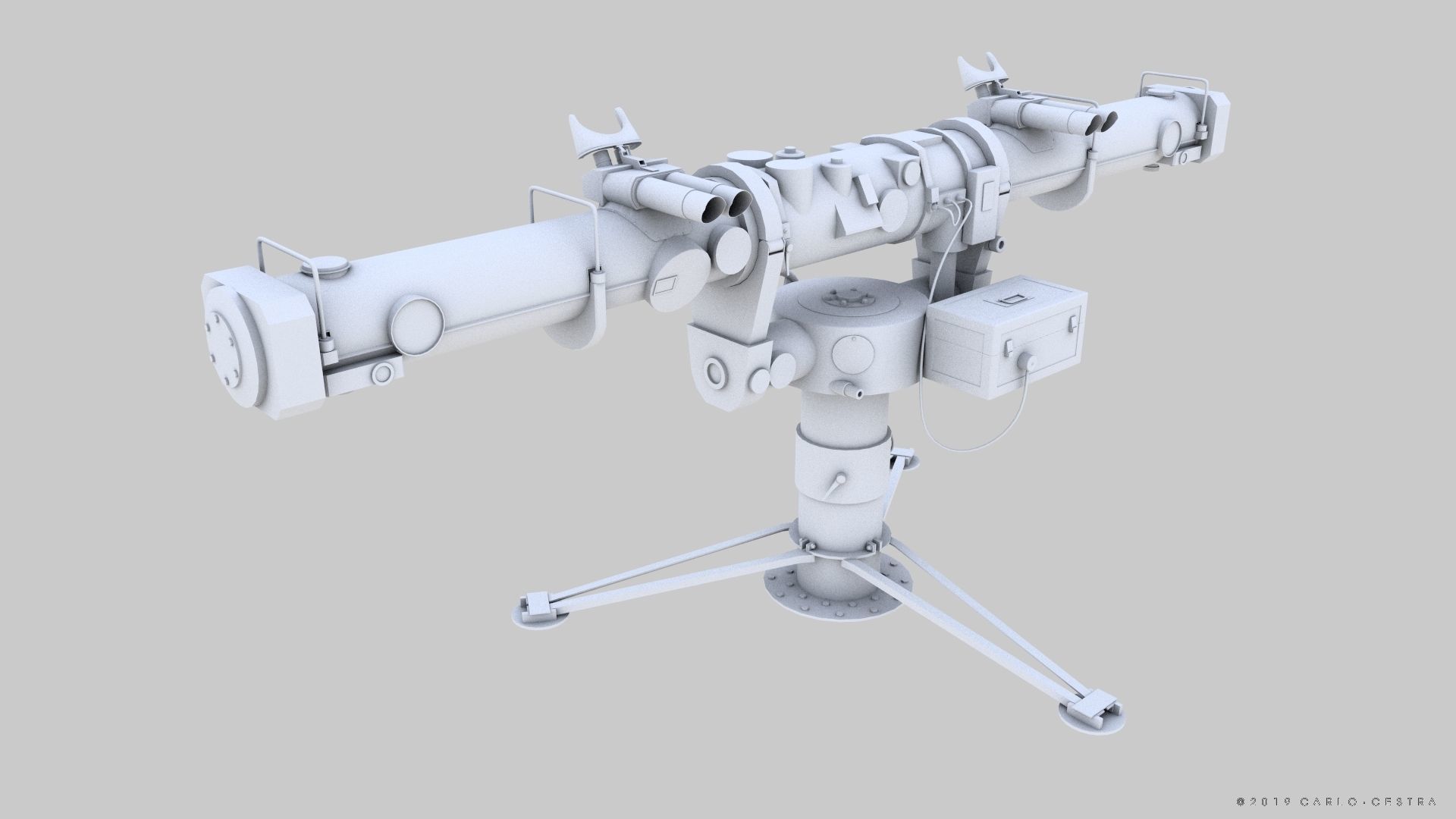

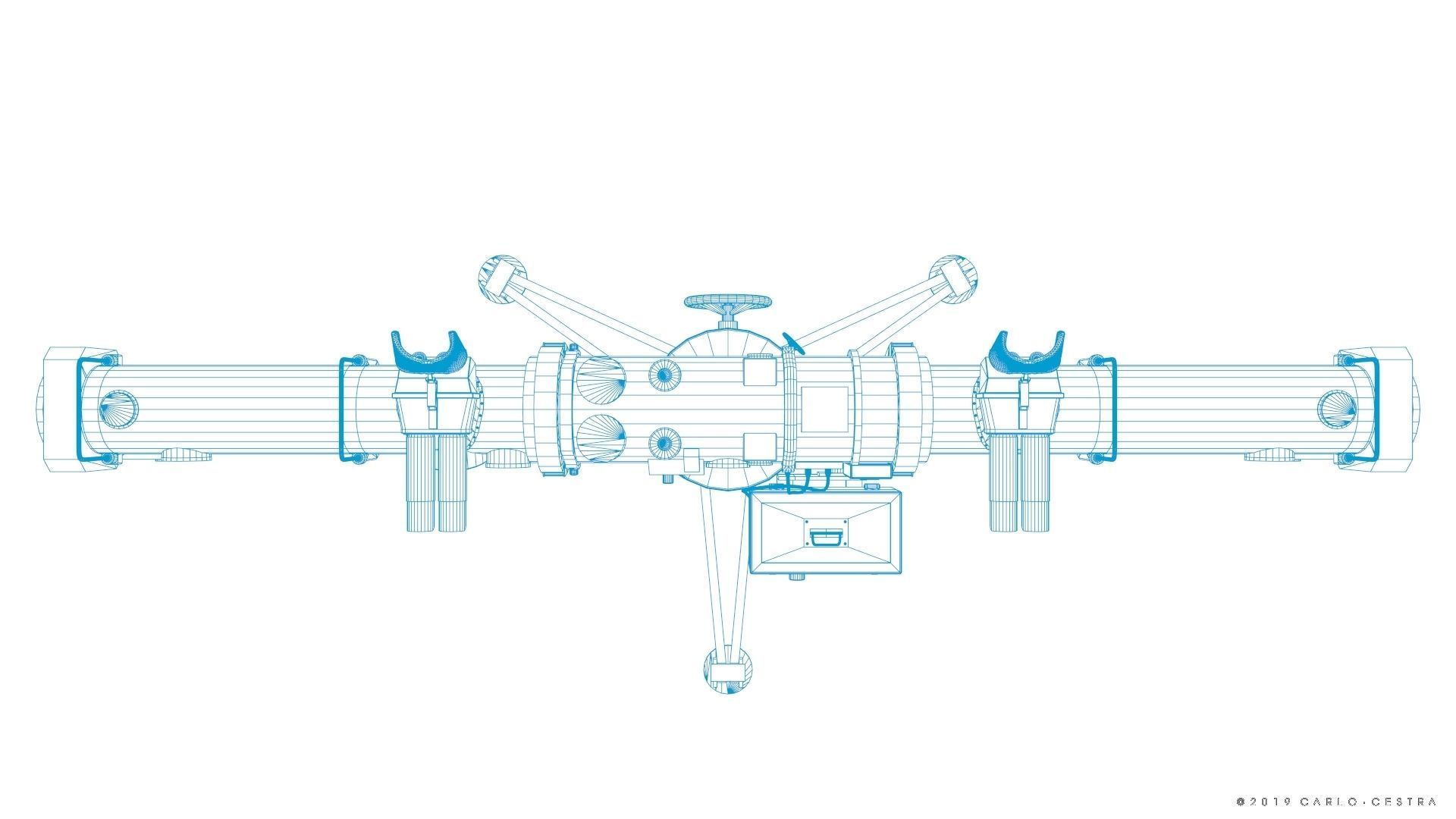

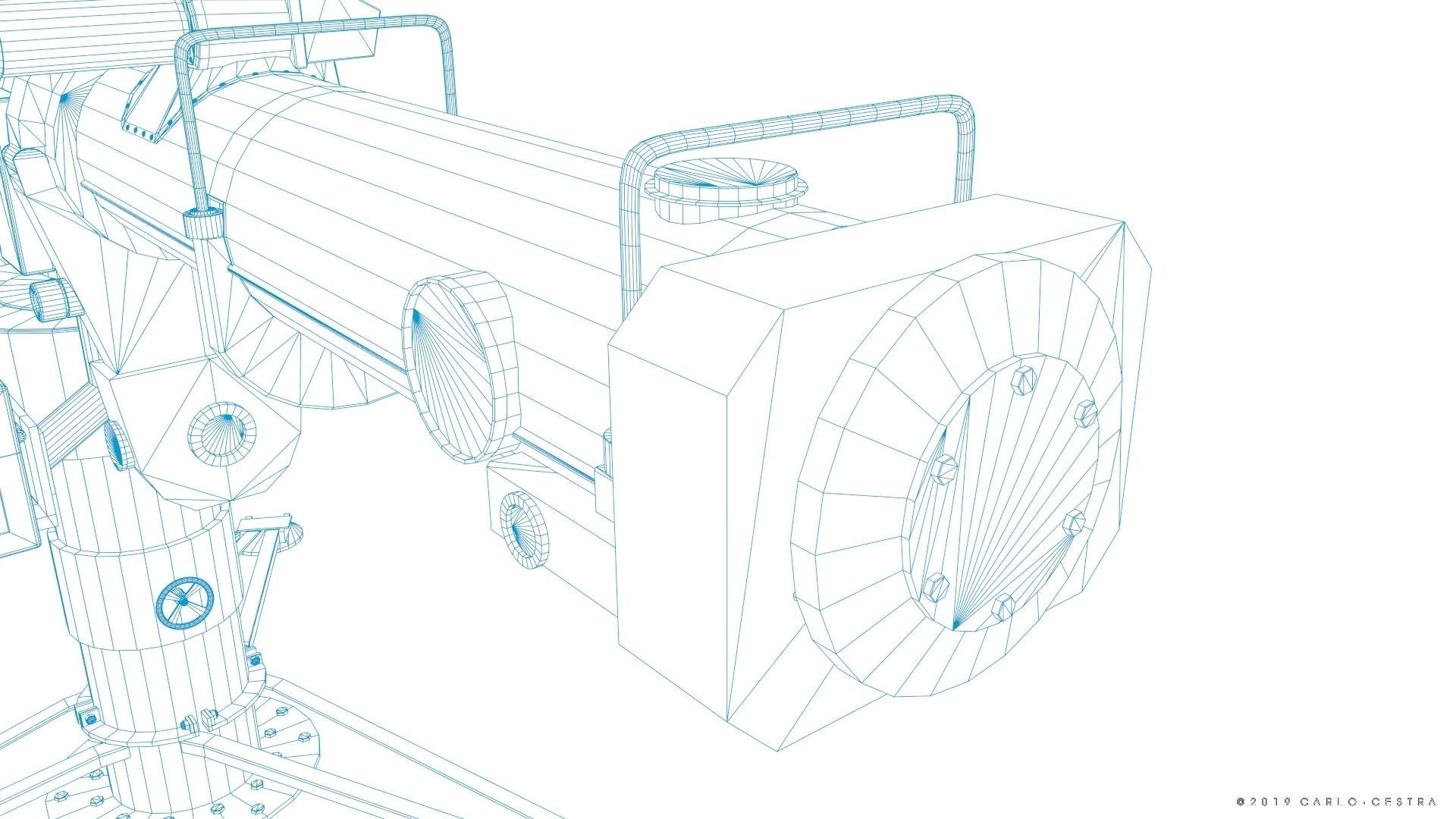

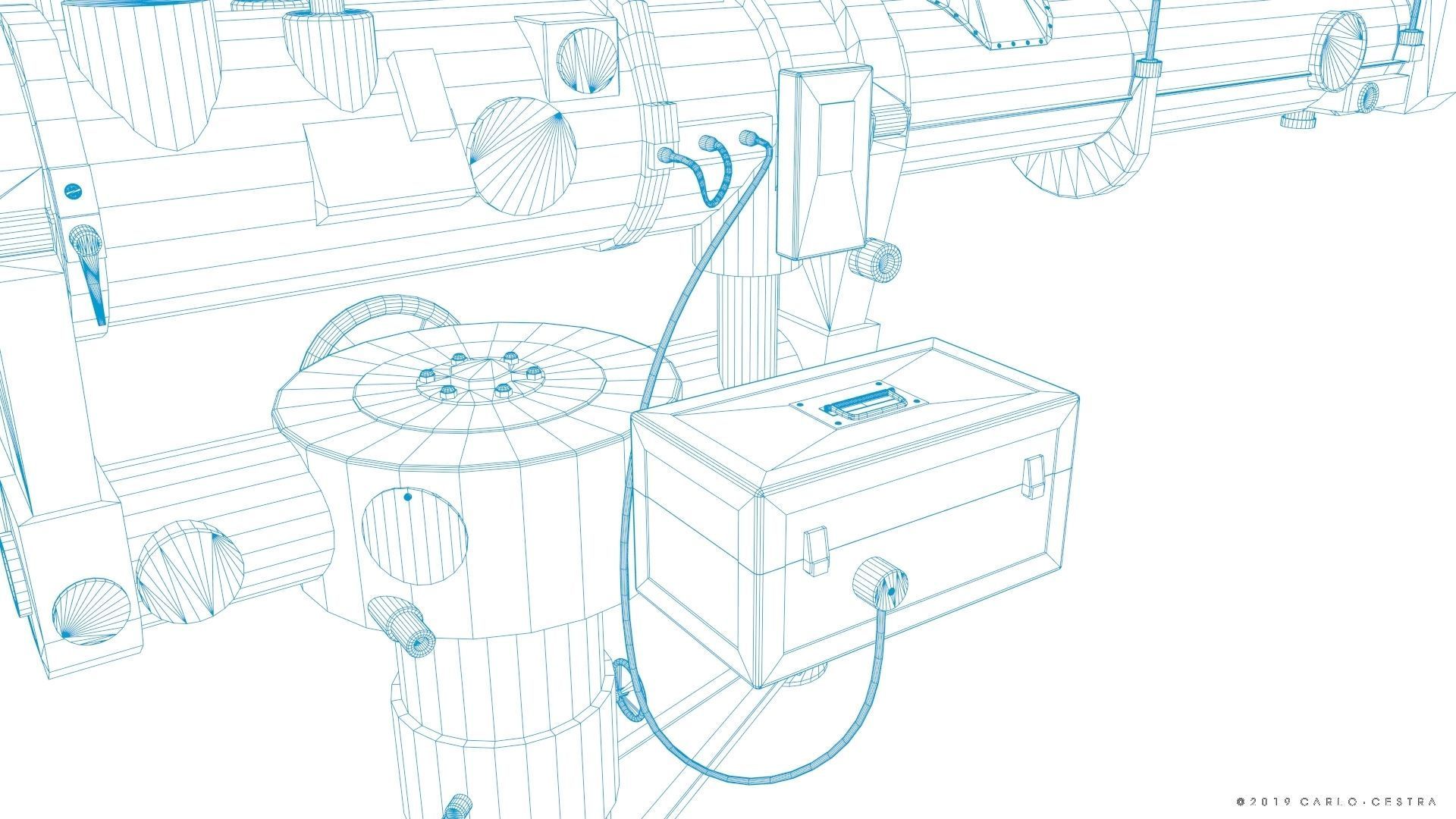

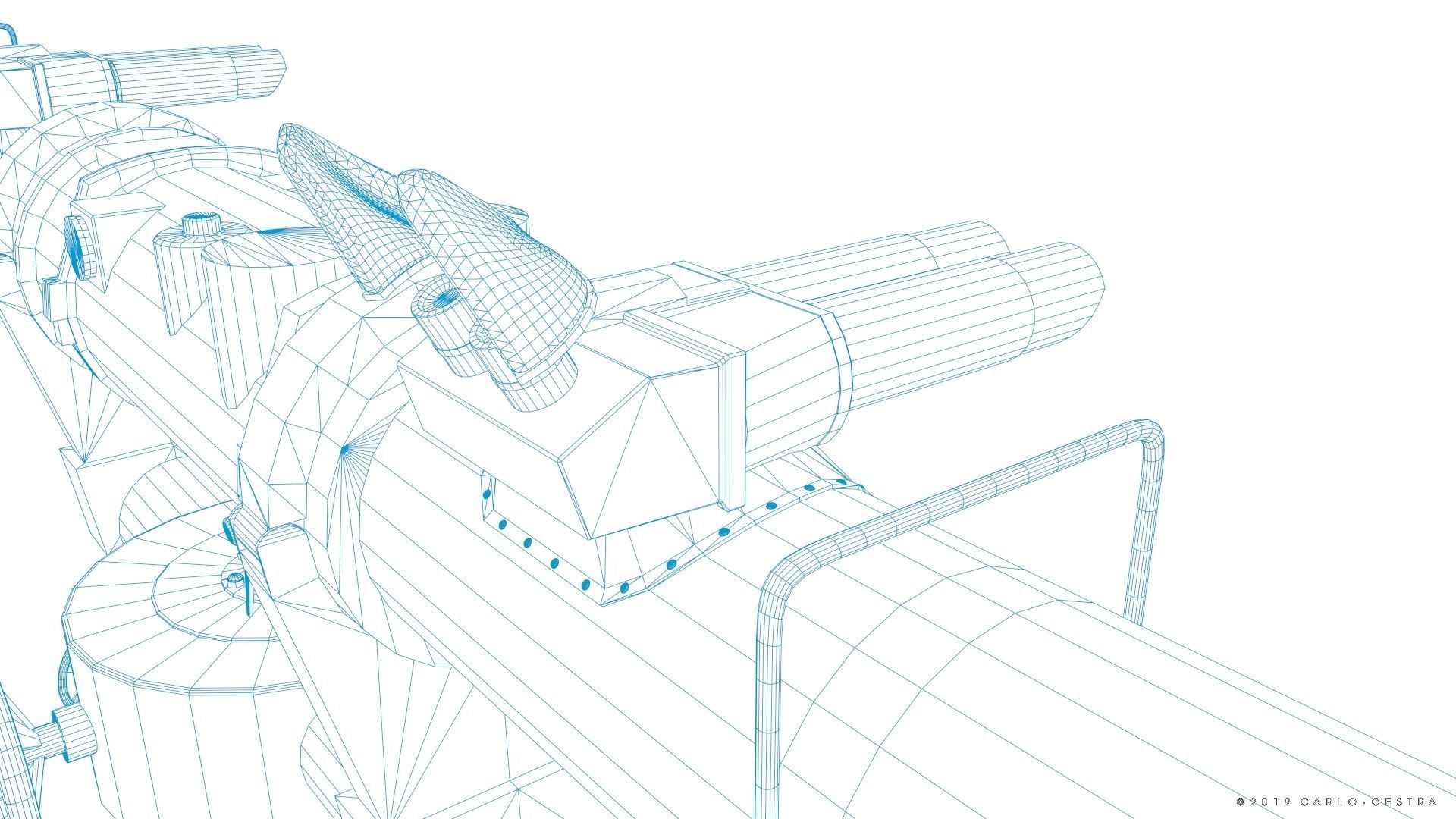

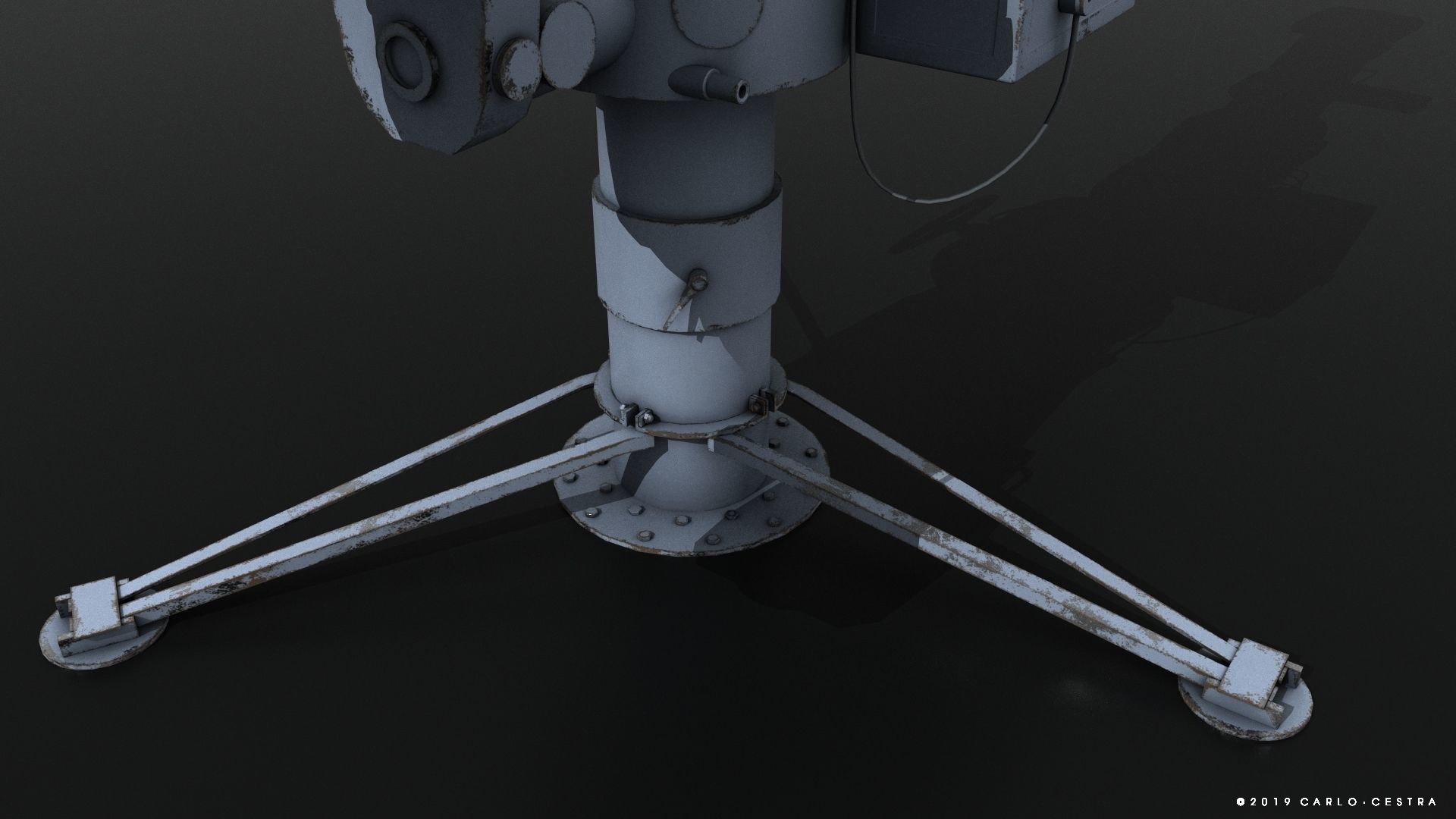

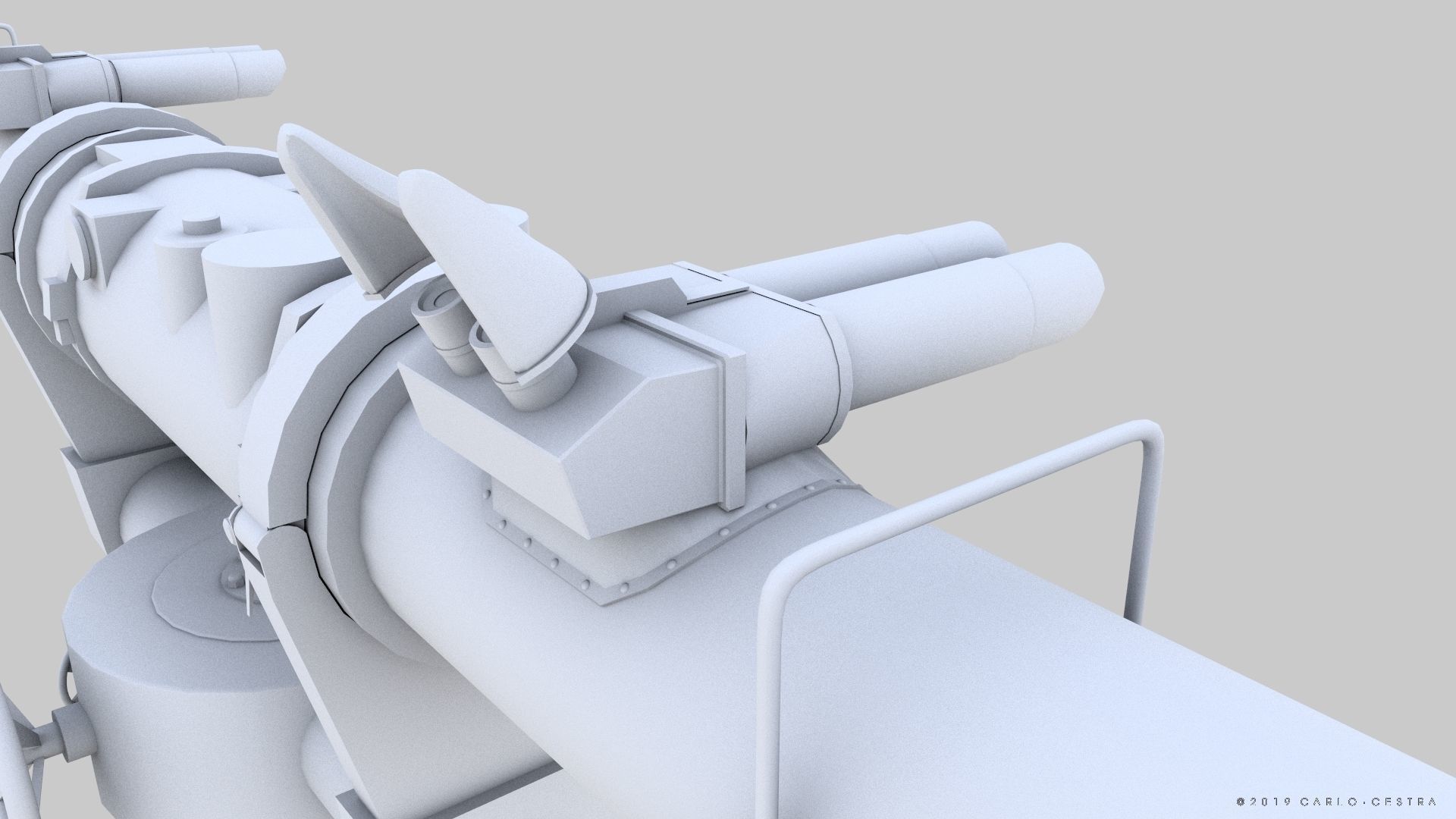

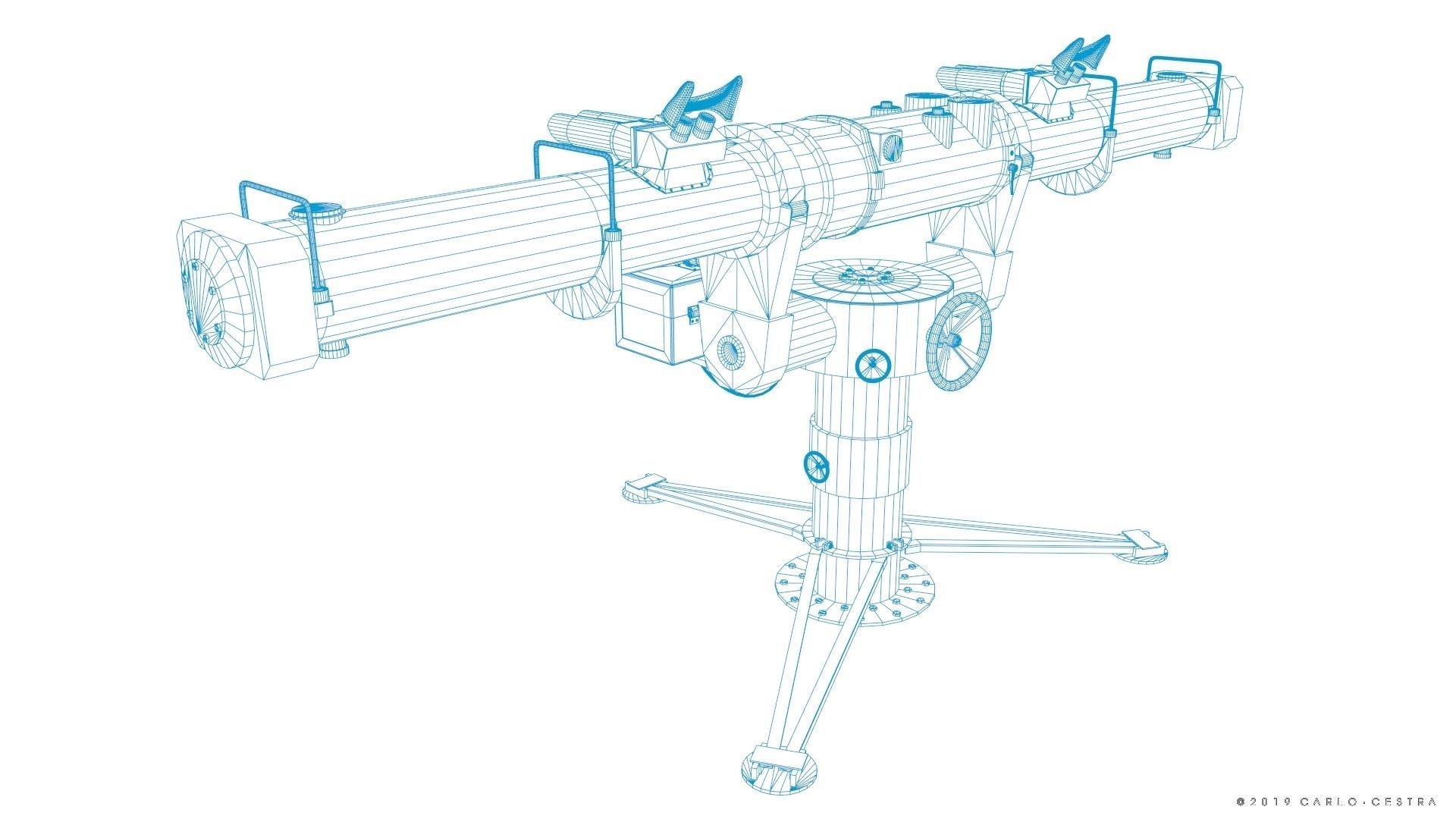

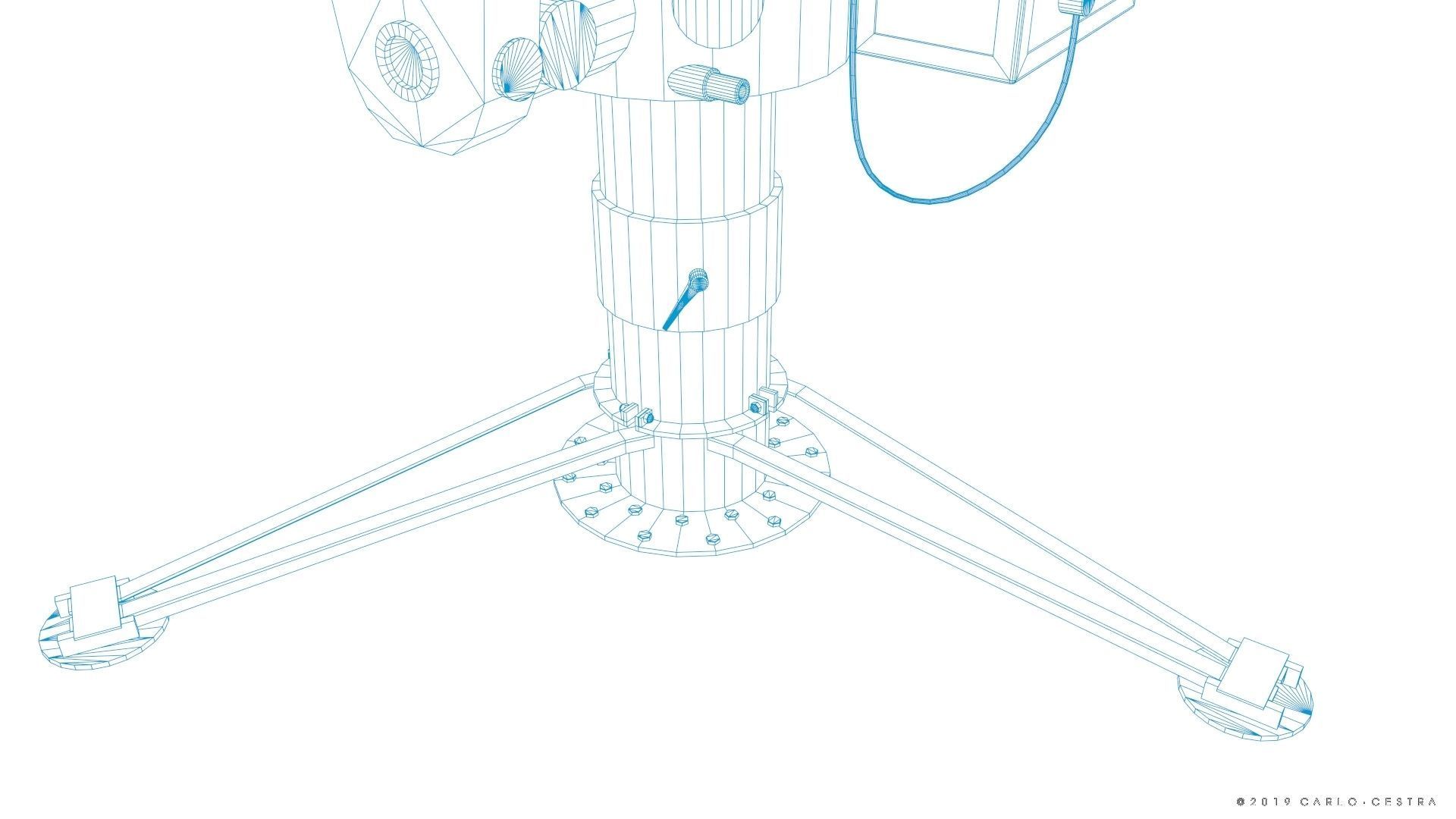

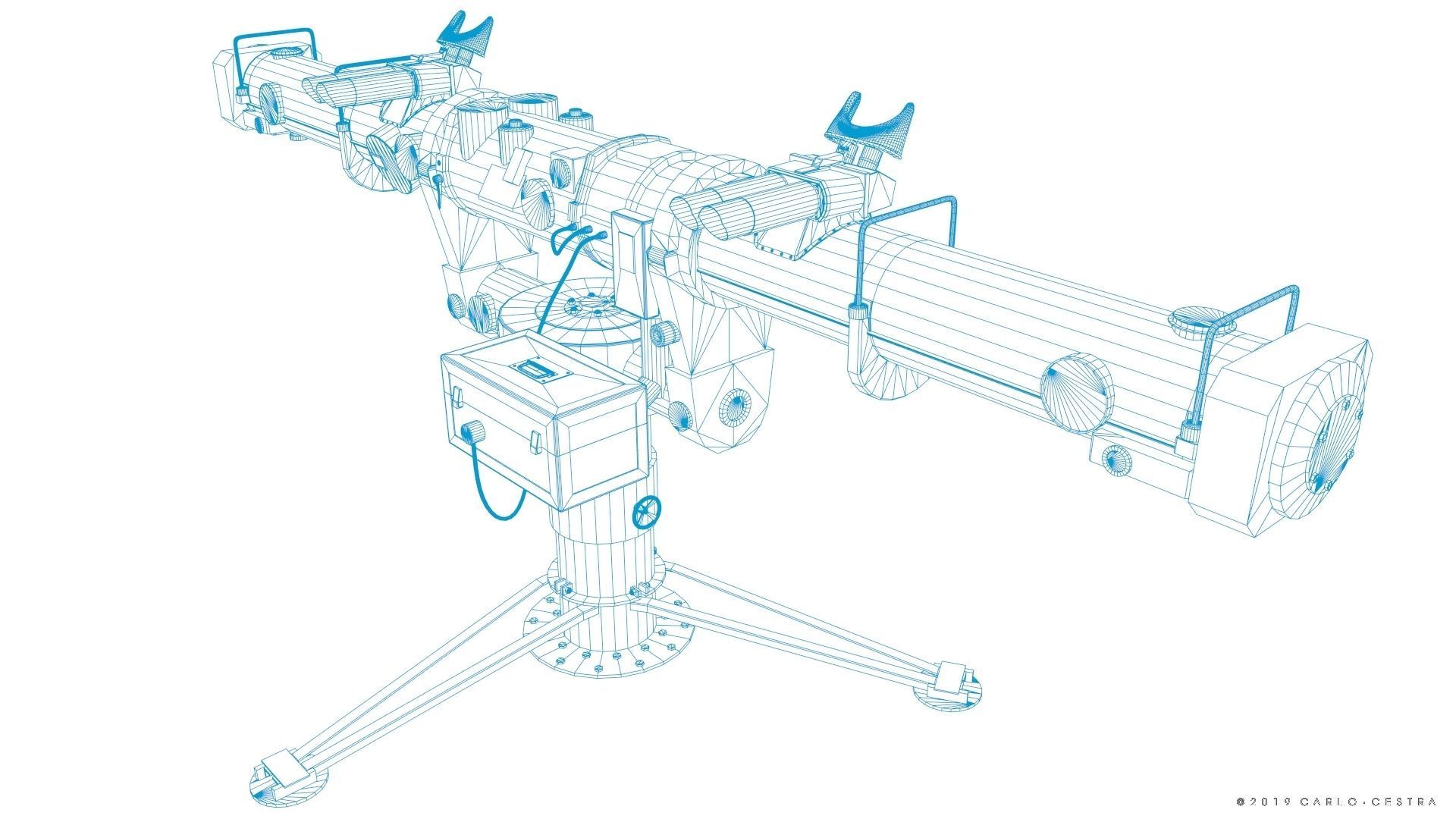

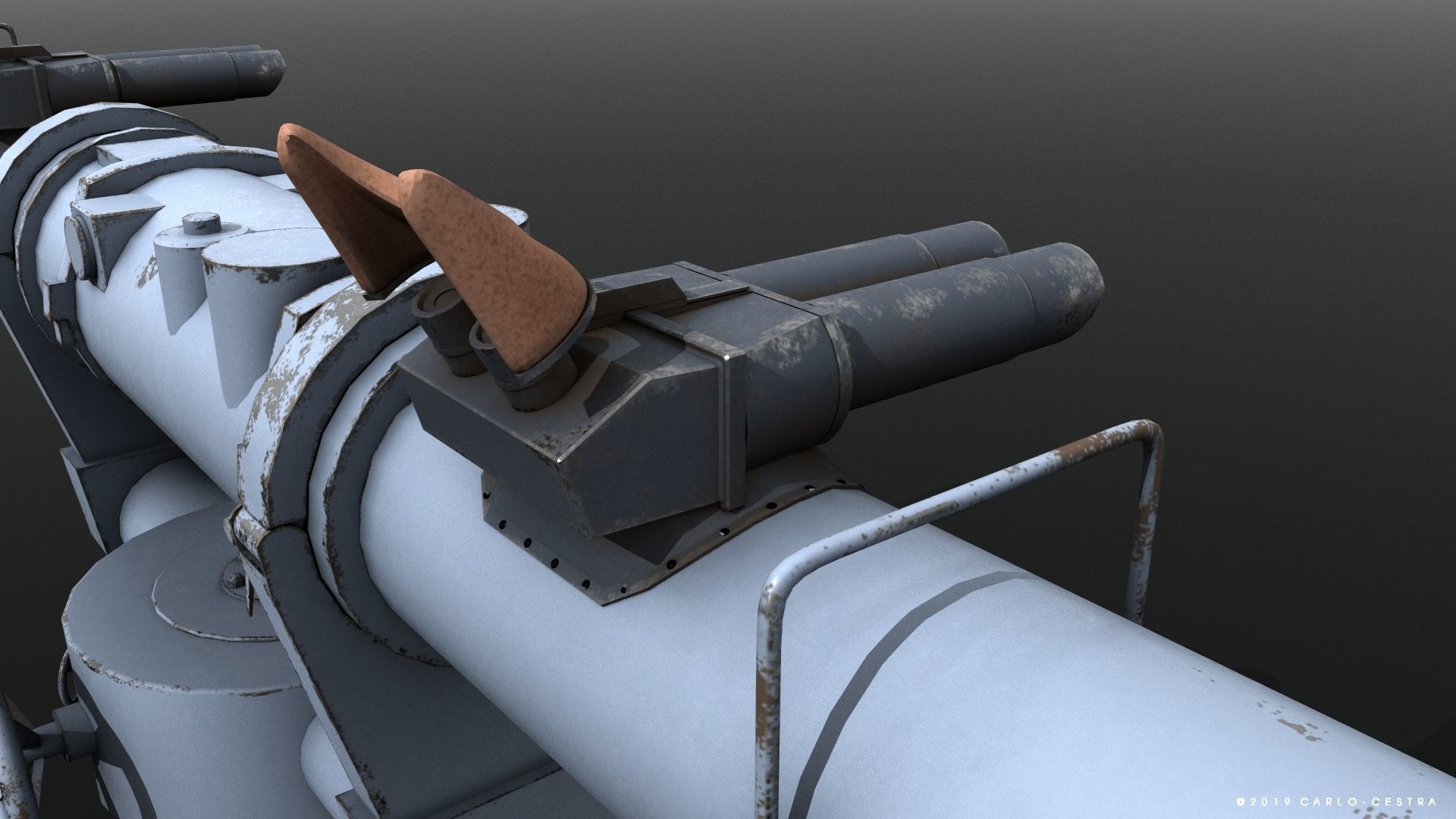

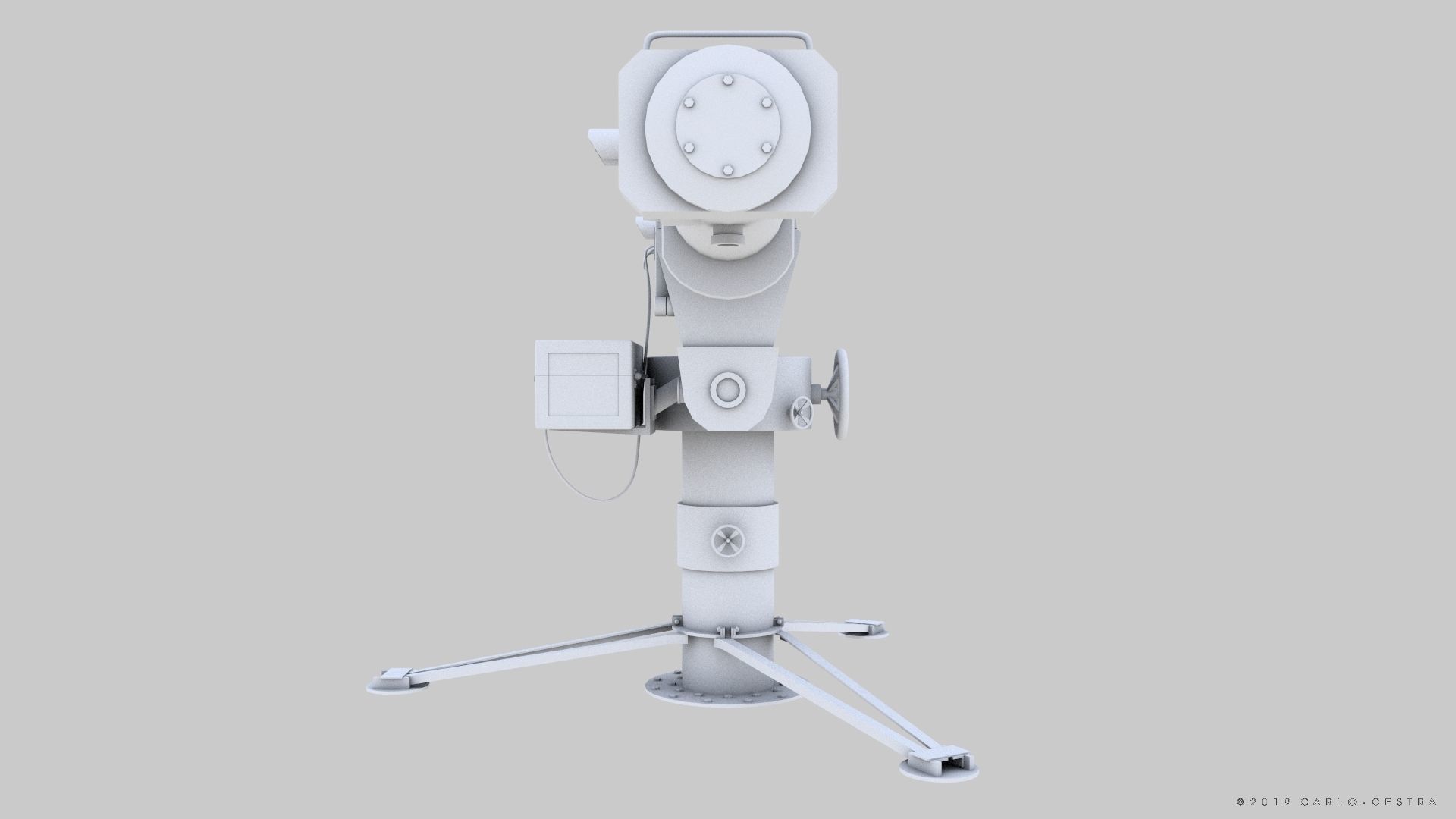

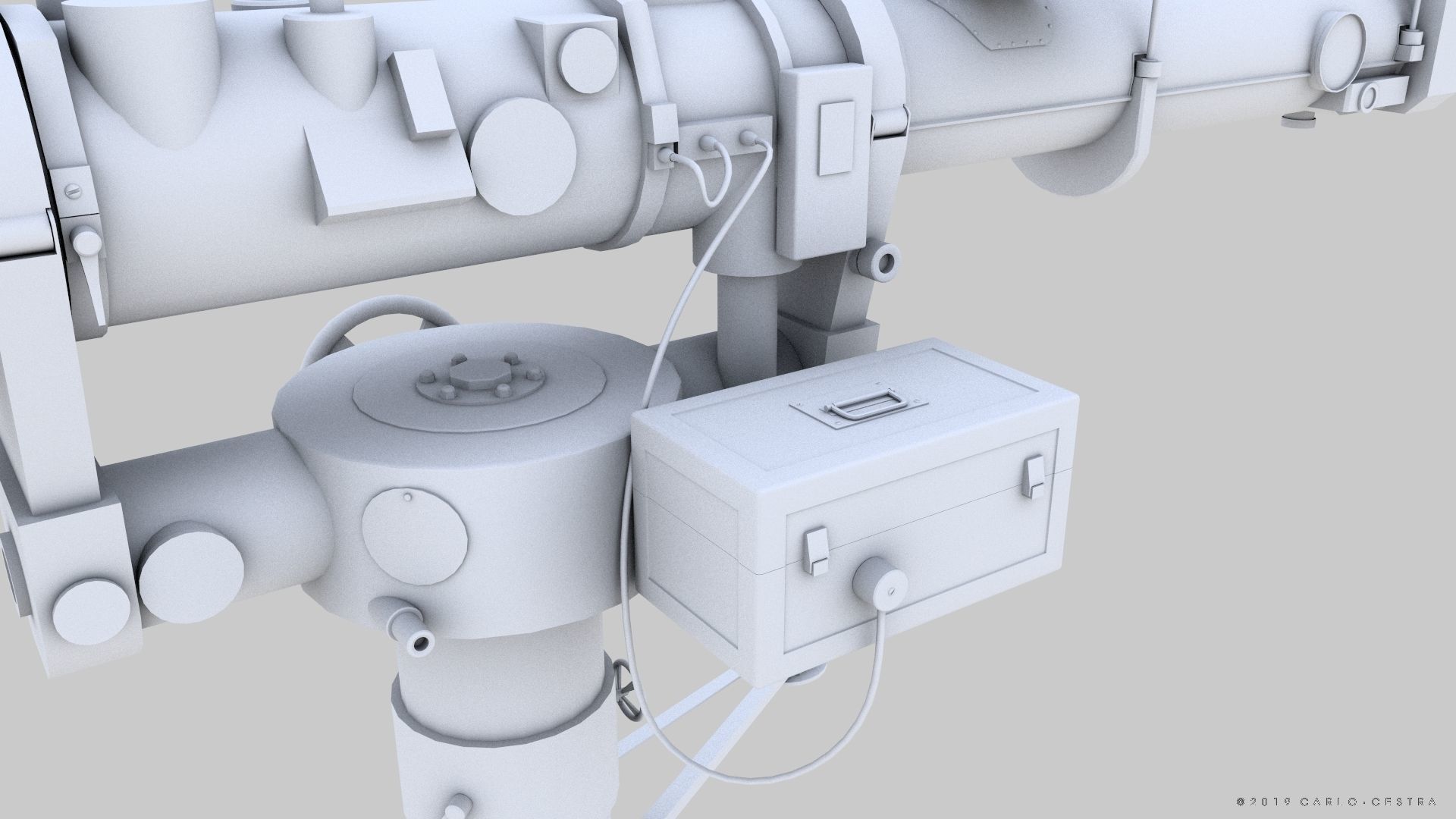

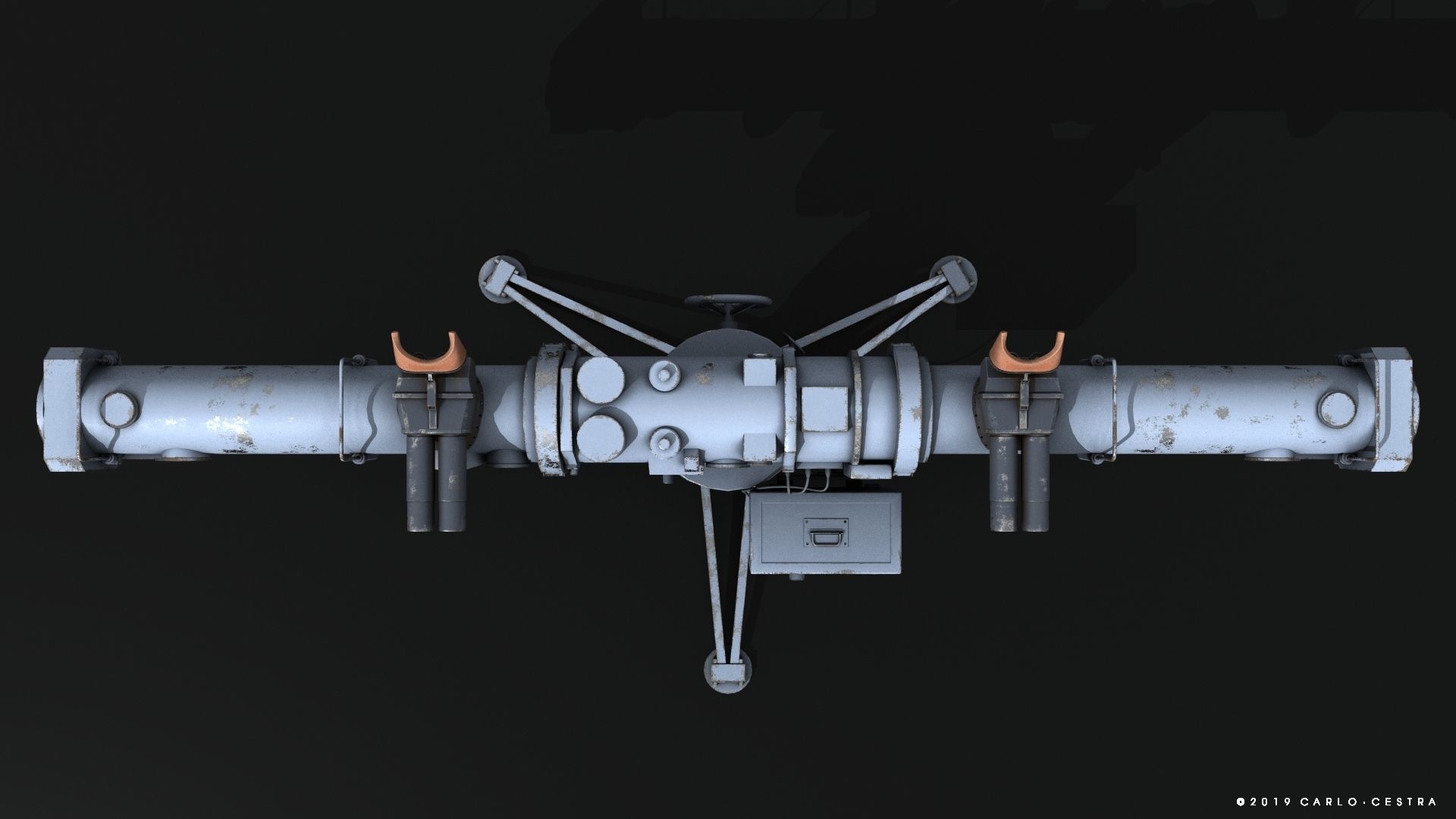

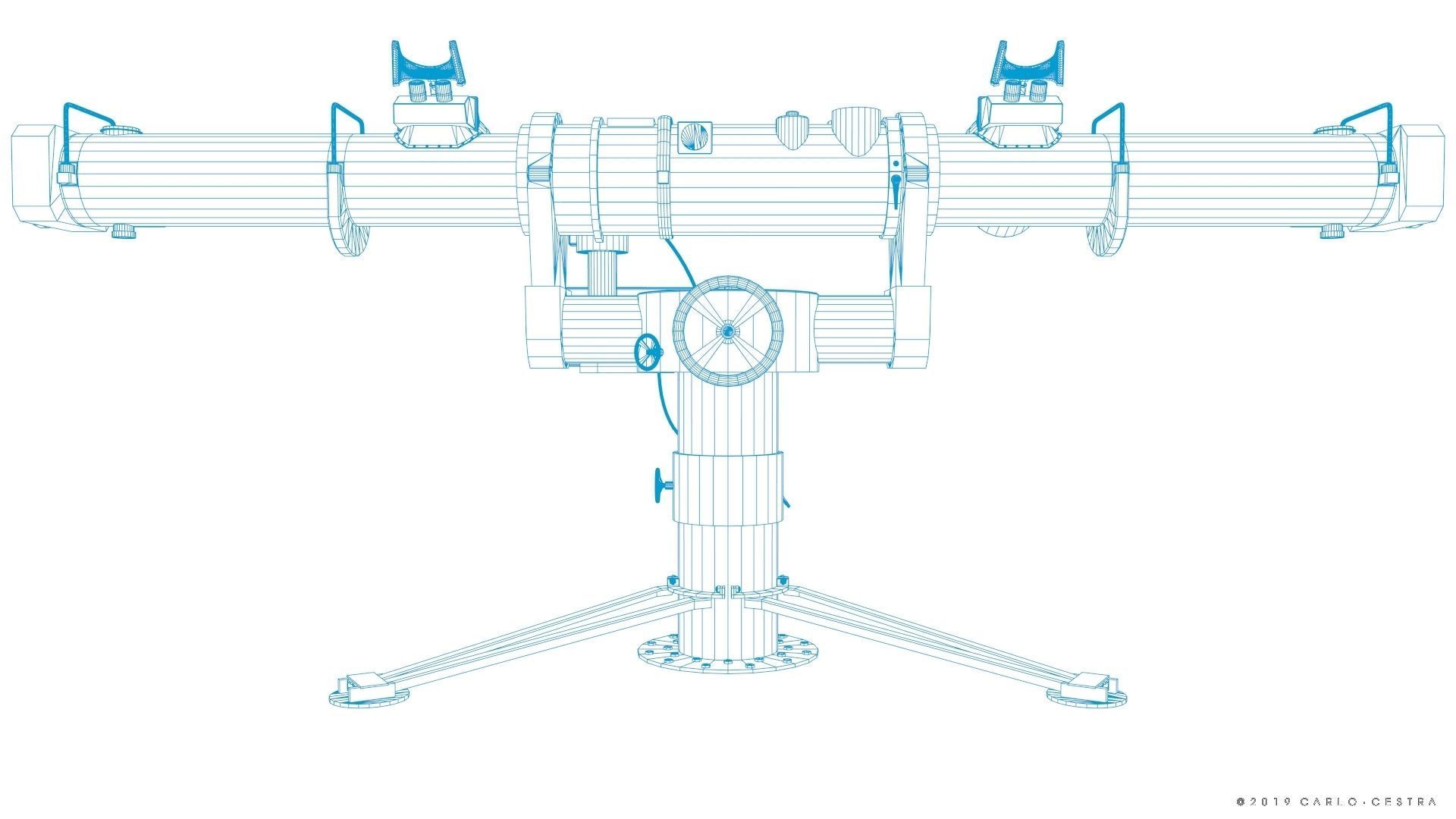

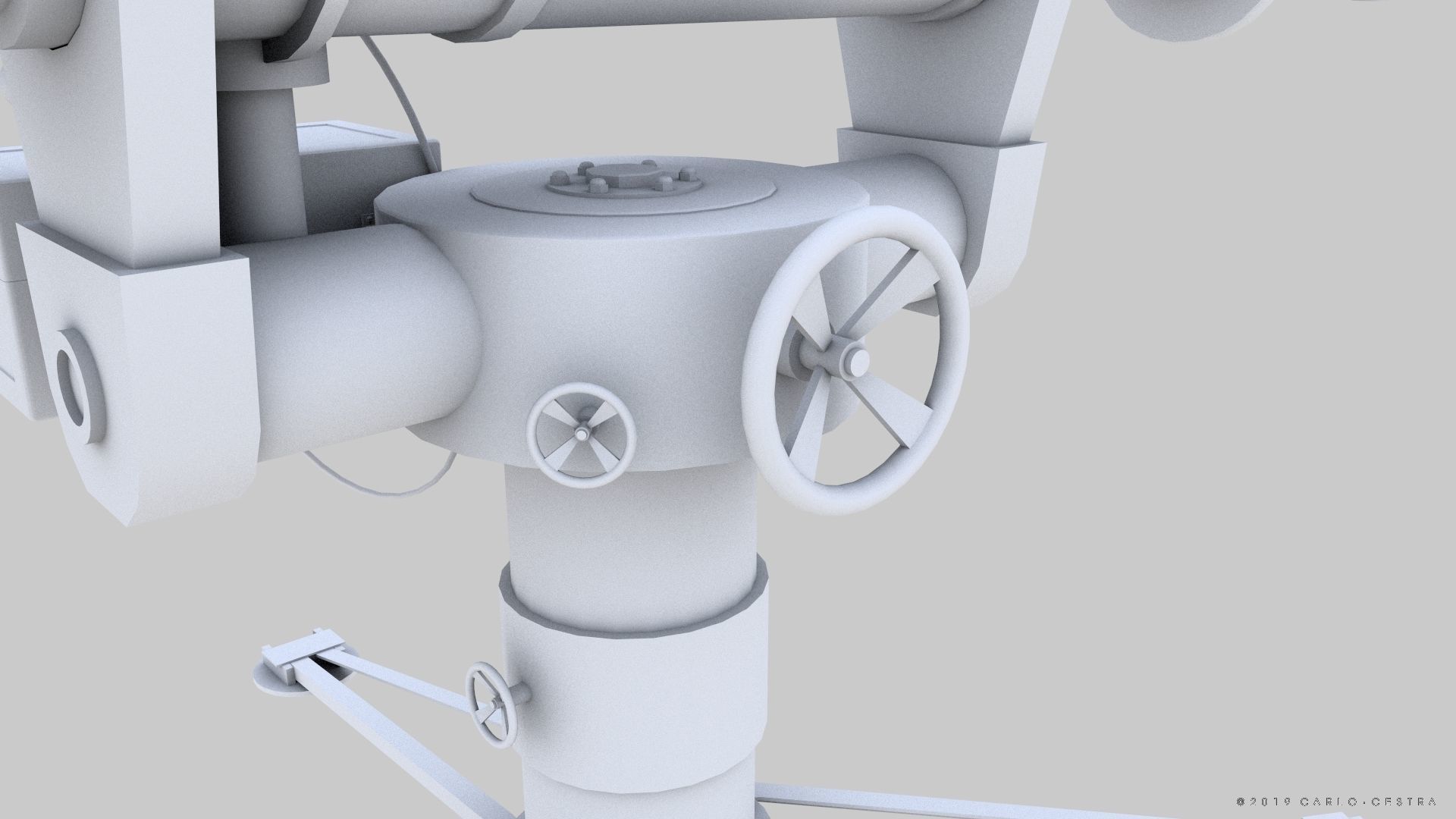

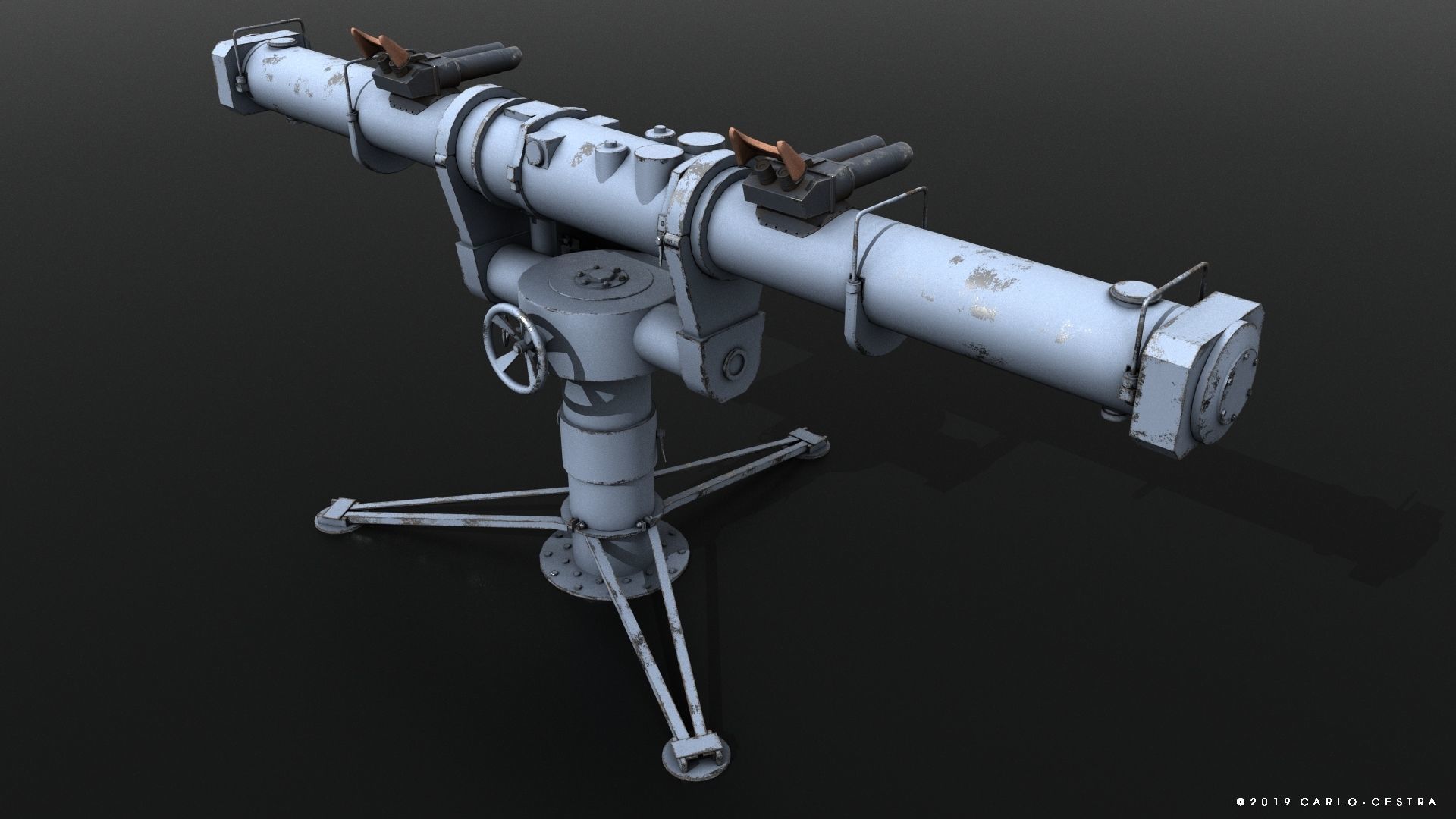

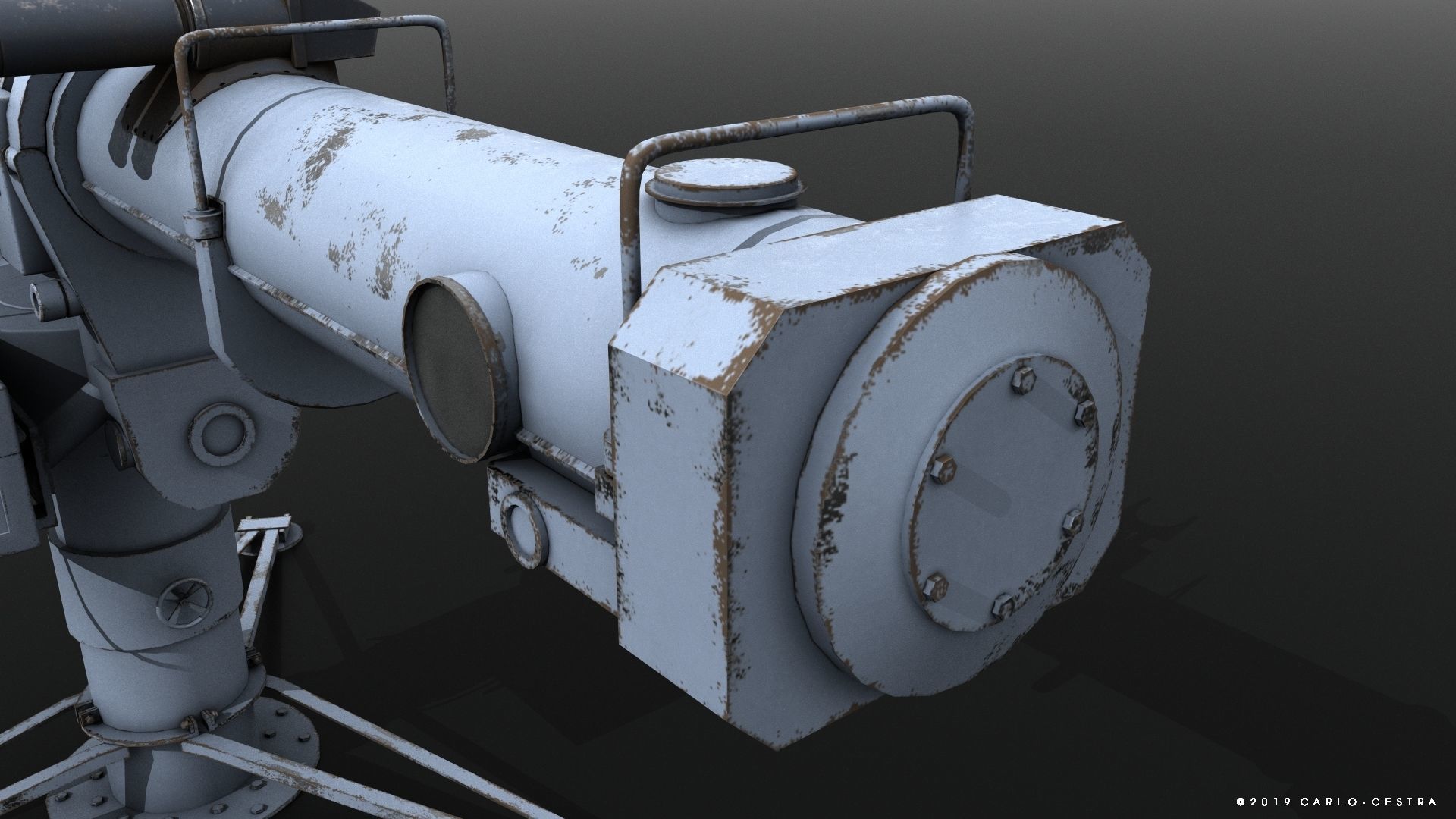

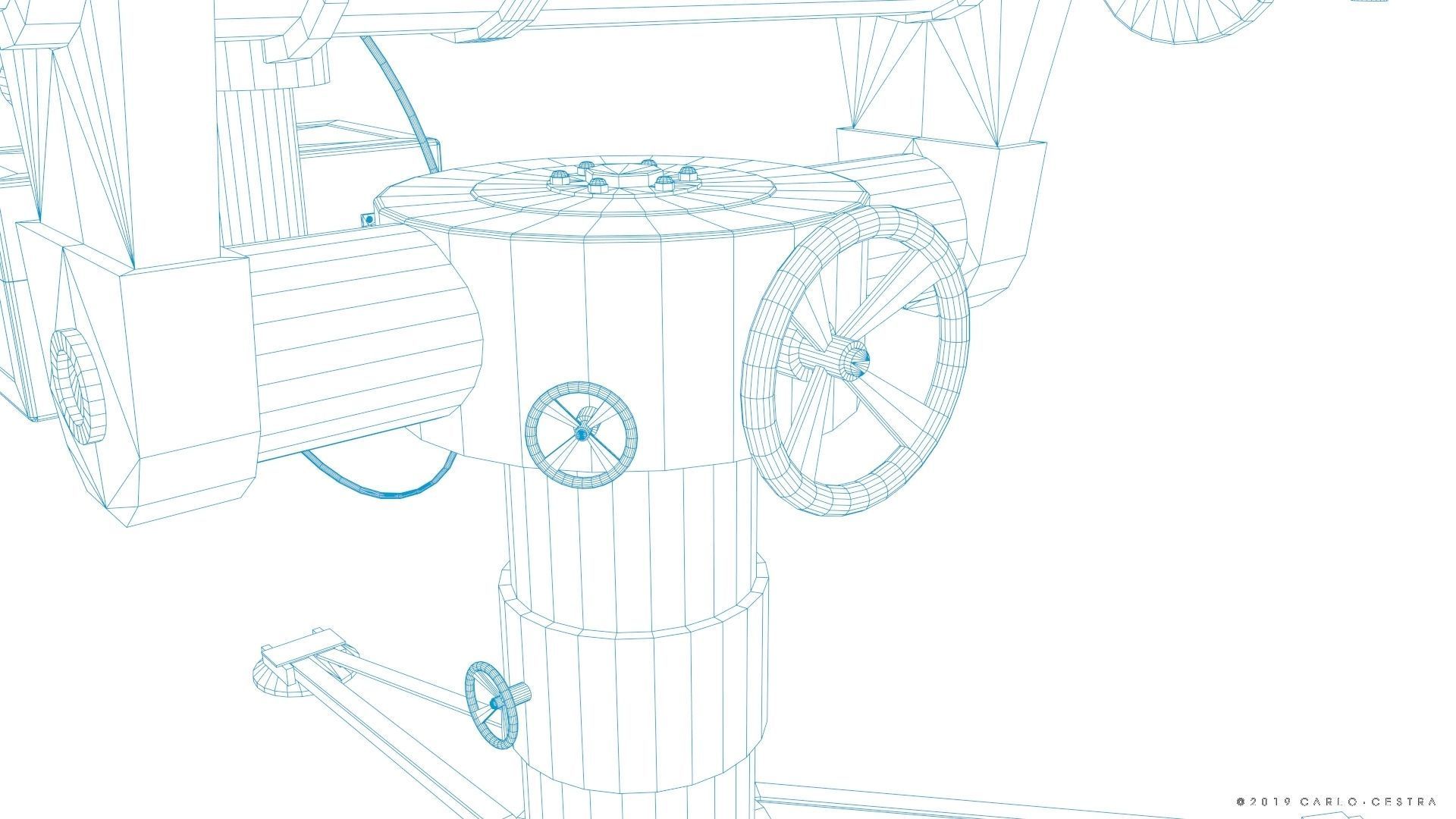

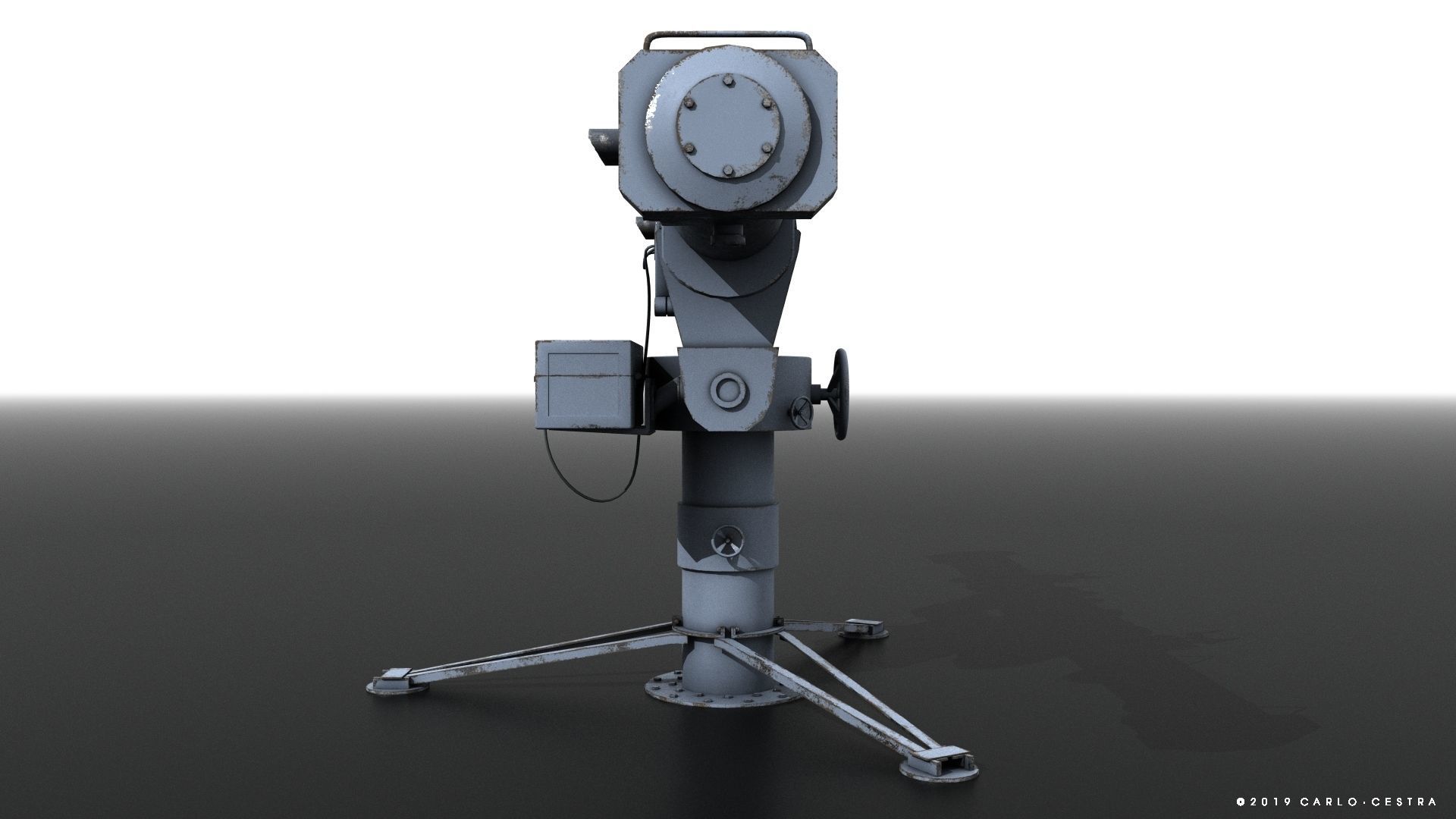

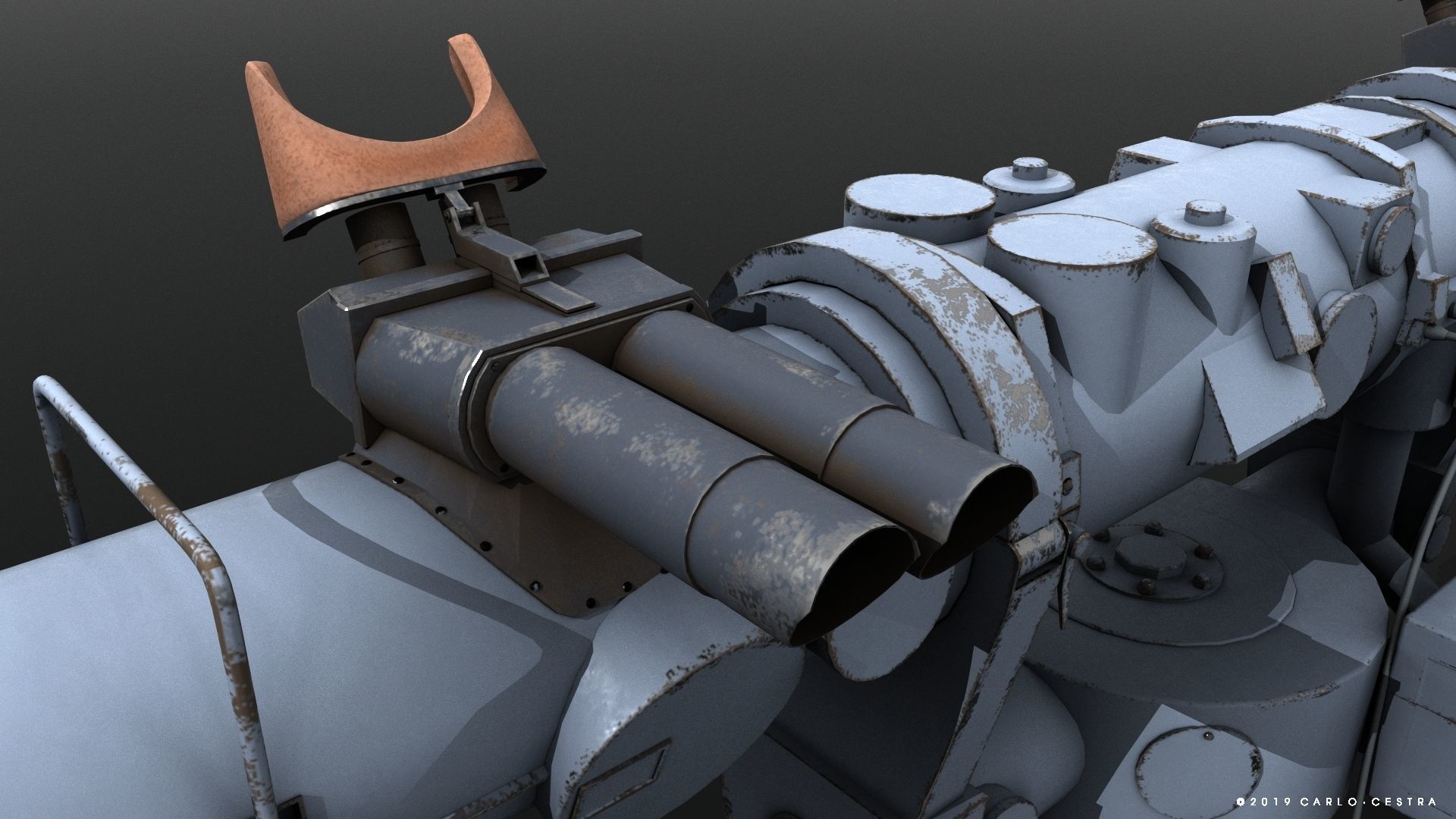

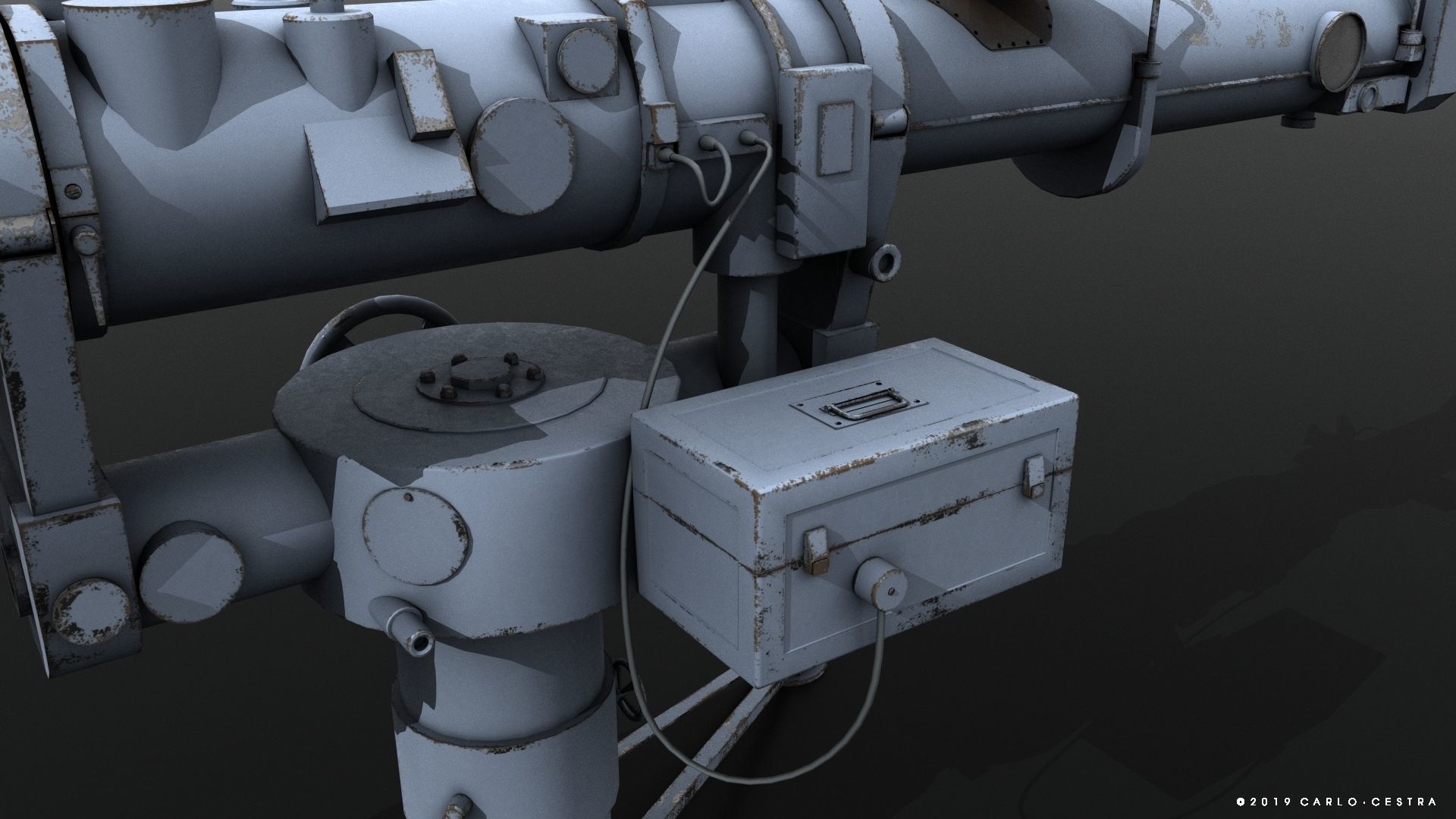

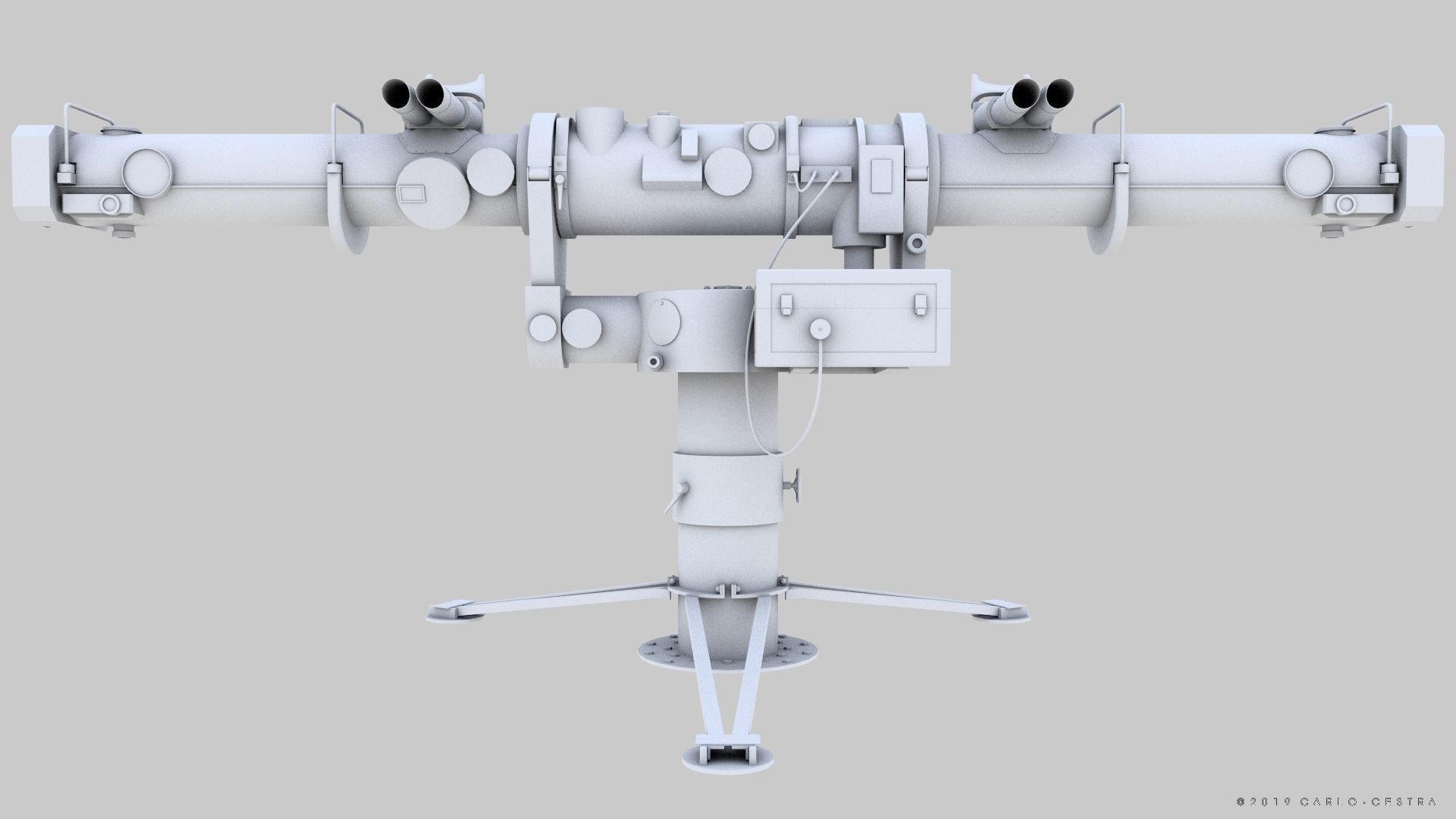

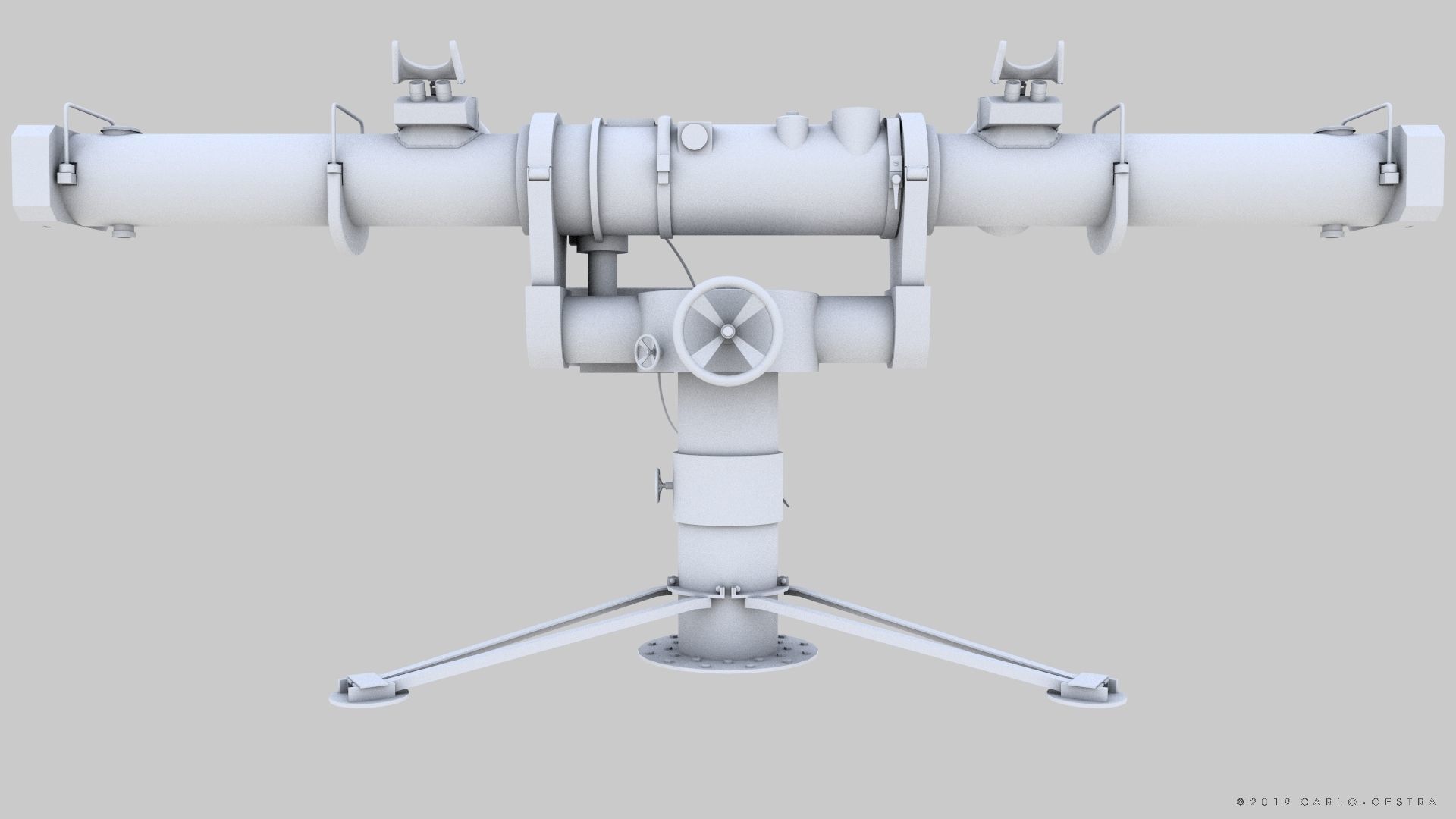

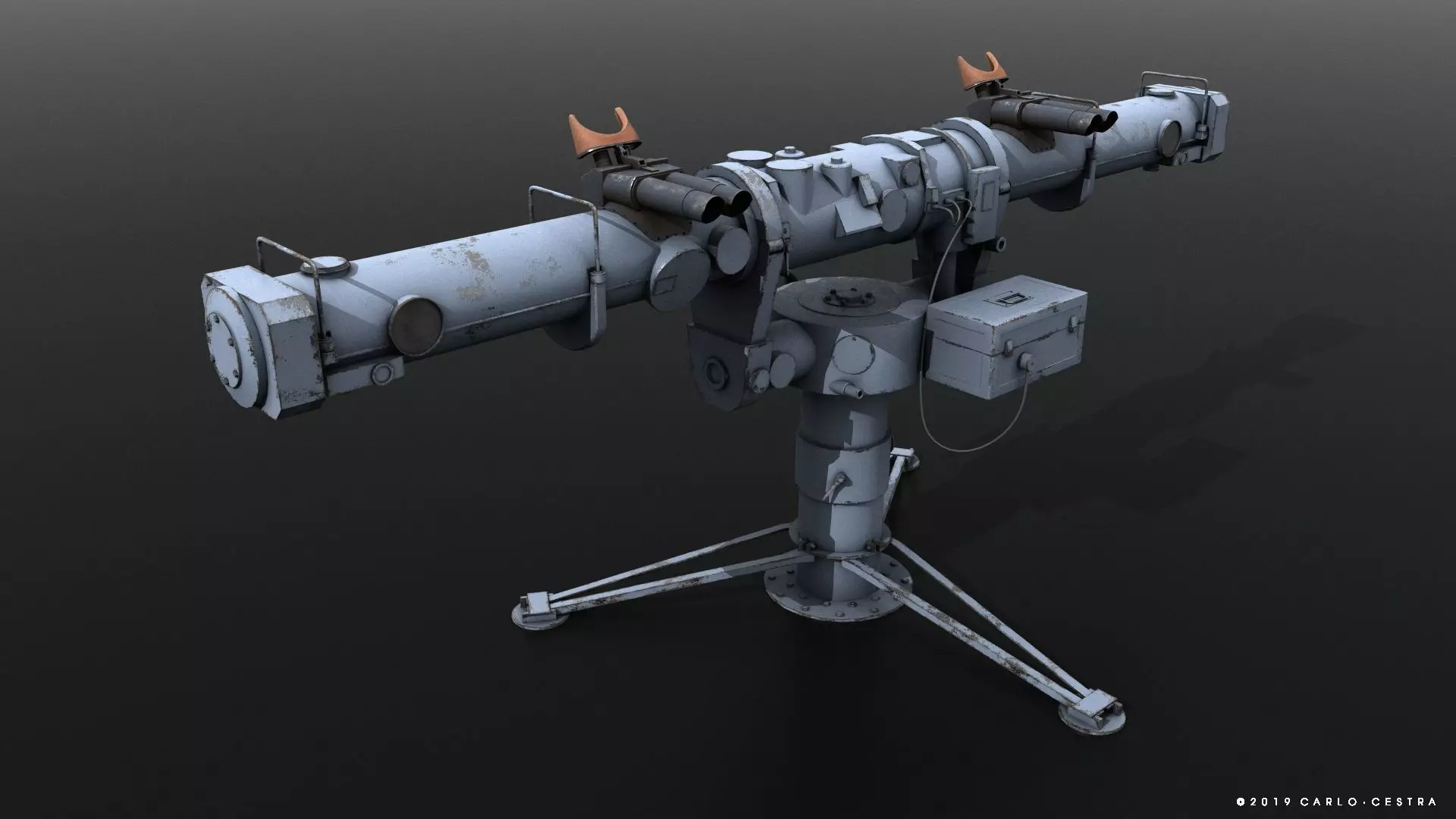

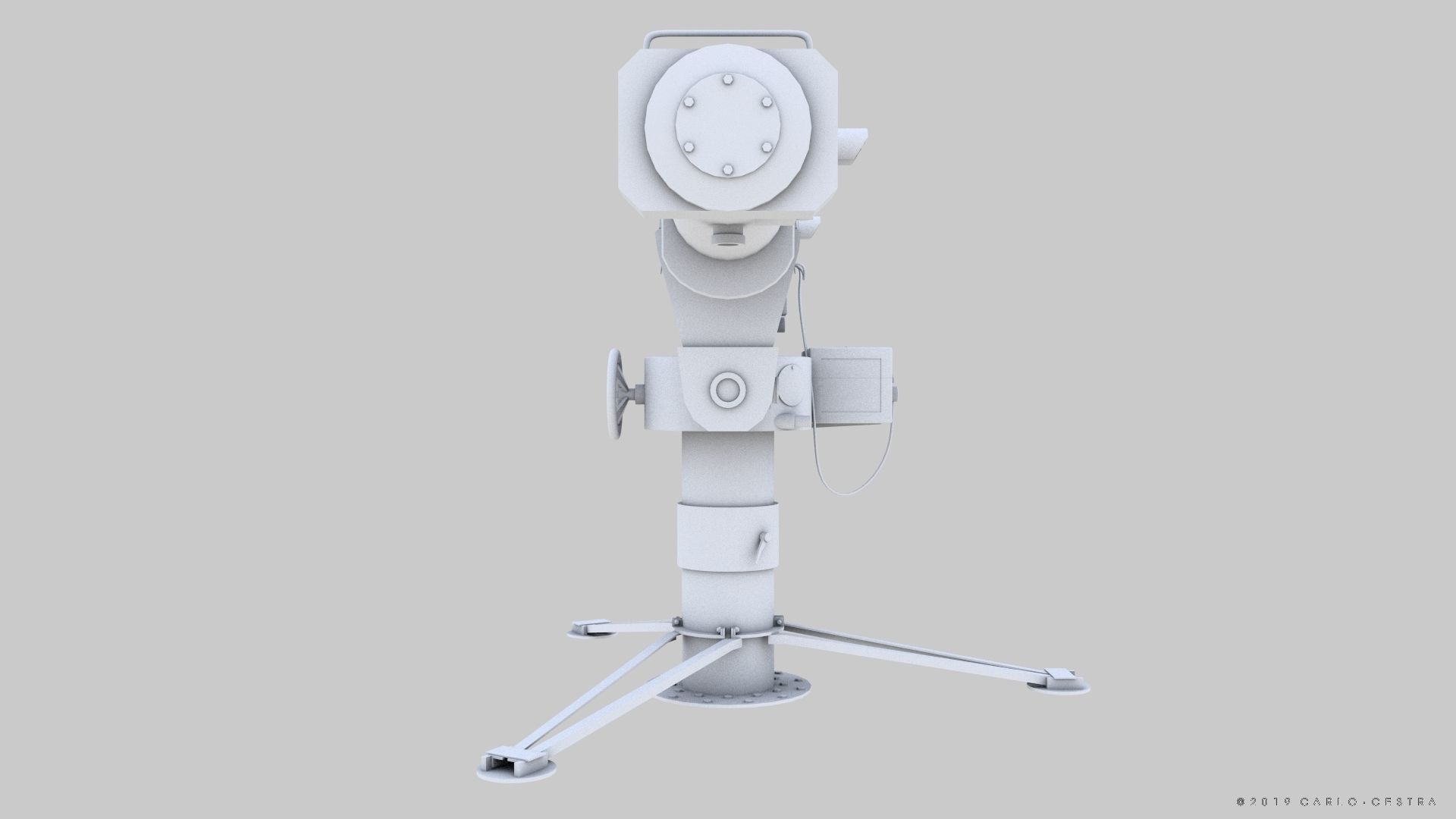

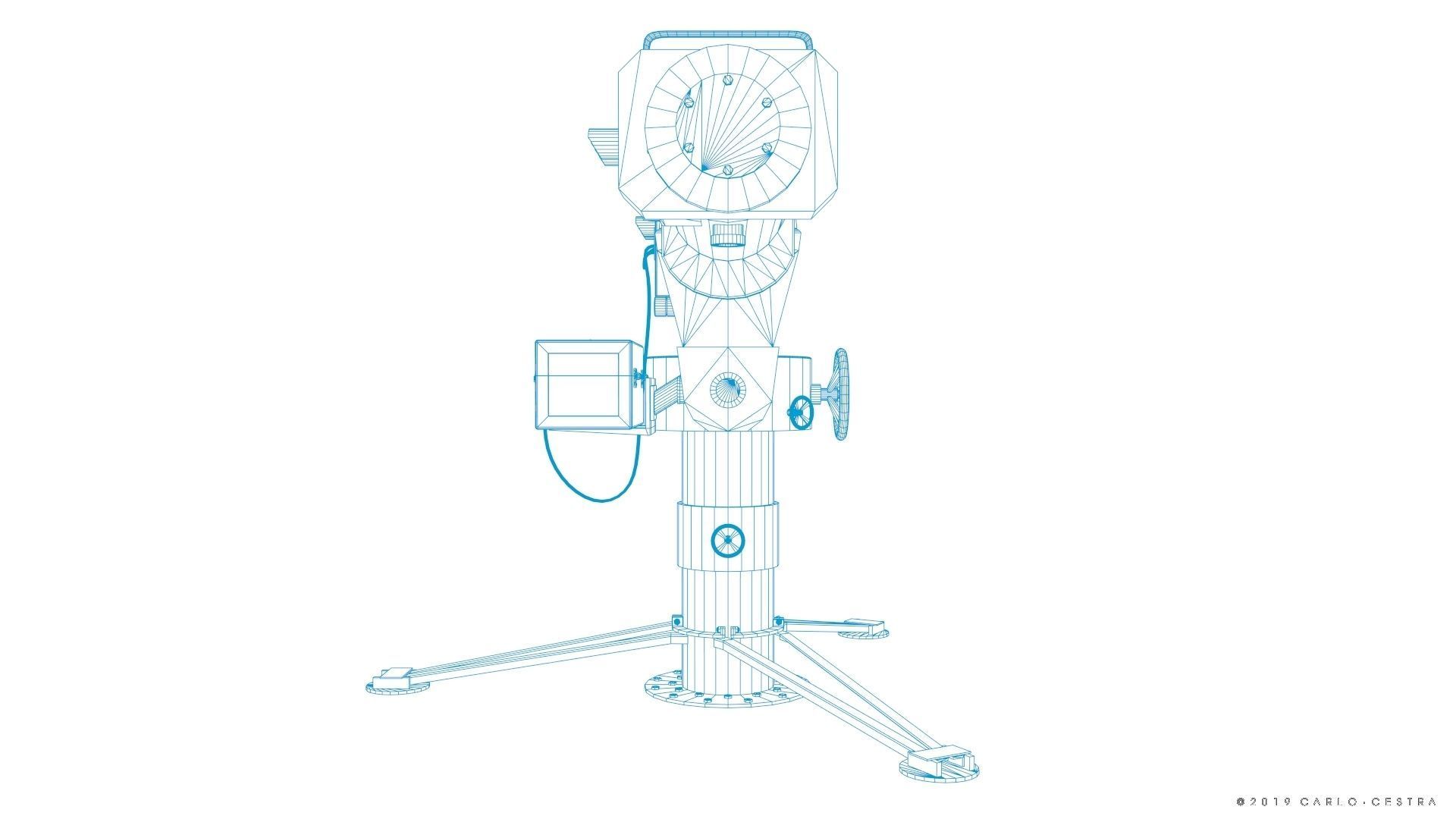

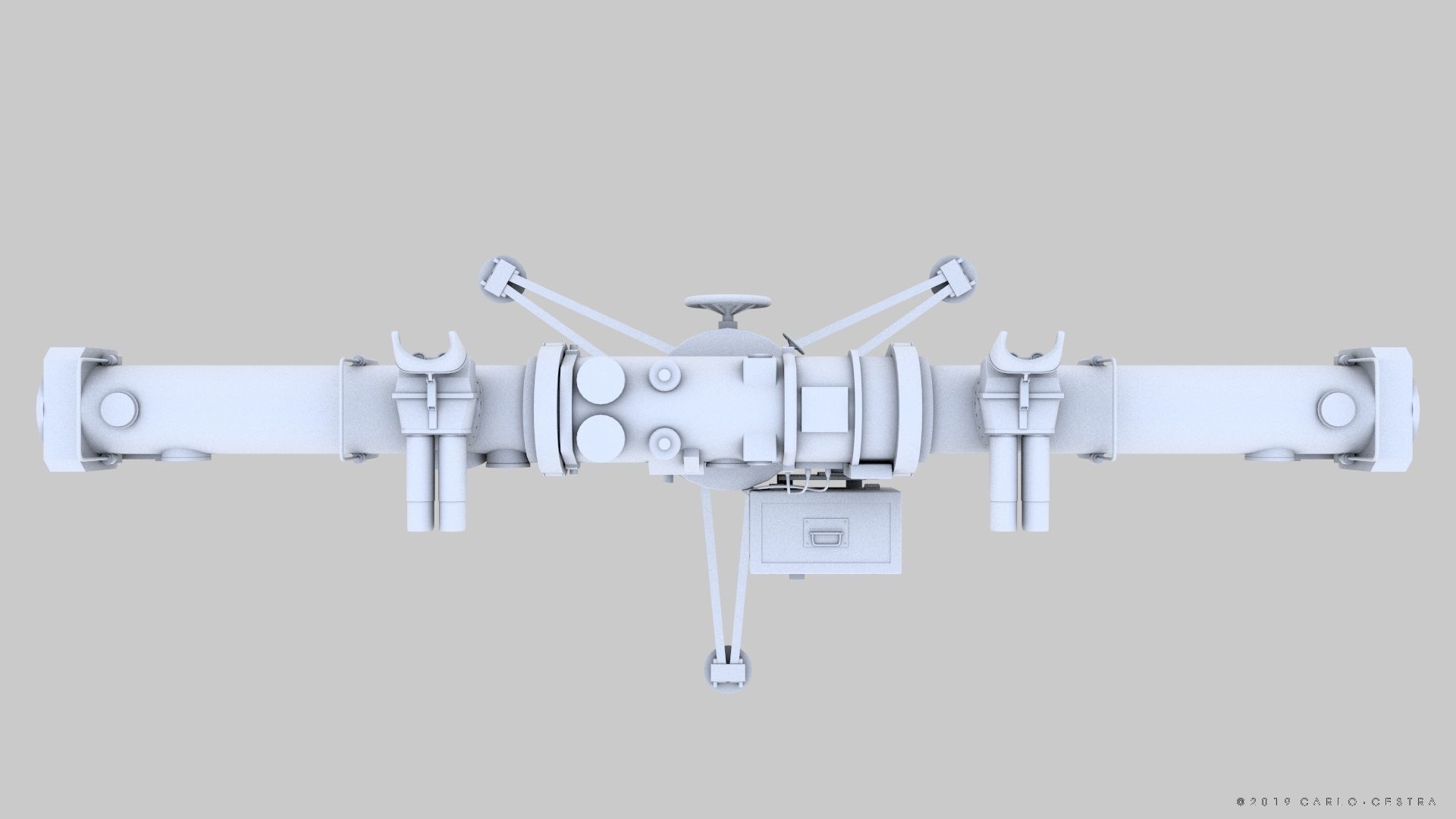

Coincidence rangefinder 3D model

A coincidence rangefinder was a type of rangefinder that used mechanical and optical principles to allow an operator to determine the distance to a visible object. Coincidence rangefinders were important elements of fire control systems for long-range naval guns, land-based coastal artillery, and anti-aircraft guns during the World War Two The device consists of a long tube, with two lenses facing forwards at each end, and an operator eyepiece in the center. Two prism wedges which, when aligned result in no deviation of the light, are inserted into the light path of one of the two lenses. By rotating the prisms in opposite directions using a differential gear, a degree of horizontal displacement of the image can be achieved.

3D MODEL GENERAL INFO The model was created based on blueprints, photos and historical documentation. It was created with precision in detail and in real units of measurement to be a faithful digital reproduction of the original. The object has been modeled in Lightwave and finished and texturized in 3DCoat.

LIGHTWAVE 2018 and BLENDER 2.79 - UV model with uv material assigned

OBJ and FBX - model with UV maps. You may need to reassign textures when open the files with different software.

The object has one UV map assigned. 4K color, normal, roughness, metalness, specular and occlusion textures included

For any difficult or question I am always available to give you assistance.

I would be very grateful if any of my models could help you to do a great job.

    This product has no reviews yet
    Coincidence rangefinder
    $39.00
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 92% in 7.4h
    3D Modeling
    Lighting
    Rendering
    UV mapping
    Texturing
    PBR modeling
    Hire me
    3D model formats
    Native
    • Lightwave 2018 (.lwo, .lw, .lws)5.63 MBVersion: 2018Renderer: Default
    Exchange
    • Blender 2.79 (.blend)6.41 MBVersion: 2.79Renderer: Cycles
    • Autodesk FBX (.fbx)2.15 MB
    • OBJ (.obj, .mtl)823 KB
    • 3D Studio (.3ds) -
    • Stereolithography (.stl) -
    3D model details
    • Publish date2019-07-19
    • Model ID#2040806
    • Animated
    • Rigged
    • VR / AR / Low-poly
    • PBR approved
    • Geometry Polygon mesh
    • Polygons 45,252
    • Vertices 36,287
    • Textures
    • Materials
    • UV Mapping
    • Unwrapped UVs Non-overlapping
    • Plugins used
