AO OAB 2 5 PTof USSR and Russian Submunition cluster avia bomb

AO OAB 2 5 PTof USSR and Russian Submunition cluster avia bomb 3D model

Verification details of the FBX file
Files
Binary FBX
Scene
No unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare texturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

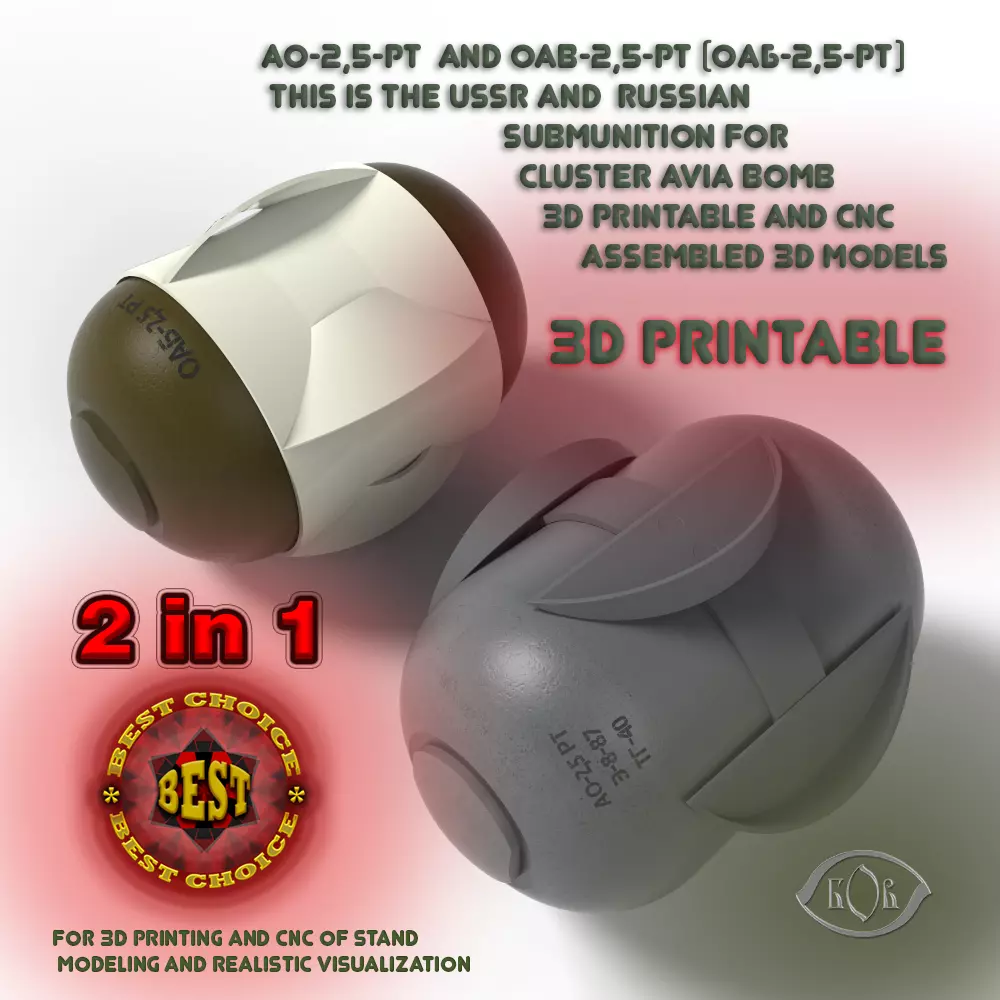

This is the USSR (AO-2,5-PT) and its modern version - Russian OAB-2,5-PT (ОАБ-2,5-РТ)
This bomb is intended to engage easily vulnerable materiel as well as entrenched and
unsheltered manpower,with submunitions exploding in the air.
I'm the submunition of a cluster bomb- RBK-500U (РБК-500У).
Upon impact, the submunition splits into two separate detonating parts.
Because of the fact that often found on the ground unexploded these bombs
in the form of two halves - made 3D models with the possibility of splitting
into two halves and rotating stabilizer between them.
This munition of mass destruction is actively used by Russia in all wars it has
fought since the collapse of the USSR, including the Russian-Ukrainian war.

Dimensions of the assembled model 147(150max)x90(118max) mm. - original size.
The models are made in SolidWorks program. They are intended primarily for 3D printing
or CNC manufacturing of bench model - training model, for use as a visual aid.
The models are adapted for the possibility of manufacturing and subsequent assembly of the product layout.
The models are assembly models, contain files of all conditional parts (STL)
in high-polygonal version to obtain qualitatively smooth forms. Additionally, the set contains
all files for obtaining qualitative realistic close-up visualization (smooth lines, selected,
prepared surfaces for applying materials or textures),
additional texture file - texture inscriptions (markings) for applying on surfaces (see rendering examples).
In addition to solid model file formats, converted highly detailed polygonal file formats are additionally provided.

Mesh:
Vertices 92313
Faces 184638
(A0.obj)
Please rate and write a review about this model.
If you have any questions, please message me.
Thank you.

O
ollgg 2024-10-16 09:21:17 UTC
Cool
Item rating
0 0
AO OAB 2 5 PTof USSR and Russian Submunition cluster avia bomb
$12.00

Royalty Free License
AO OAB 2 5 PTof USSR and Russian Submunition cluster avia bomb
$12.00

Royalty Free License
Response 88% in 2.2h
3D Modeling
3D Print Modeling
Rendering
Texturing
Post Production
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • SolidWorks 2012 (.sldprt, .sldasm, .slddrw)3.39 MB
Exchange
  • IGES (.ige, .igs, .iges)330 KB
  • Autodesk 3ds Max 2017 (.max)3.62 MB
  • STEP (.stp)405 KB
  • OBJ (.obj, .mtl)4.45 MB
  • Stereolithography (.stl)11 MB
  • Textures 32.4 KB
  • Autodesk FBX (.fbx)5.44 MB
  • Parasolid (.x_t, .x_b)205 KB

3D Model details

  • Publish date2024-06-05
  • Model ID#5326371
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 184,638
  • Vertices 92,313
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
