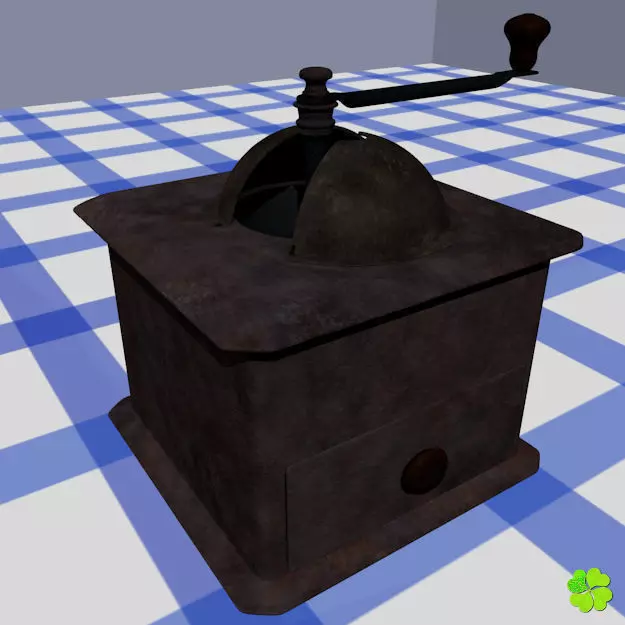

Coffee grinder rigged low poly Low-poly 3D model

• Classic manual grinder model, very popular in the mid-twentieth century.
• With moving parts on separate meshes for easy animation.
• Model designed for close-up.
• With original hand-painted textures.
• Rig and animation included.

• Also available without rig.

• Units of file: centimeters.

• Size in centimeters: 45 (X axis), 35.5 (Y axis), 40.5 (Z axis).

• Real world scale. (1,1,1).

• Focused on the origin.

TOPOLOGY

• An object with 6 meshes manifold.
• 100% quads (7,206 quads).
• 7,208 vertex and 14,412 edges.
• Subdividable topology.
• Clean edge flow.
• No isolated vertices.
• No coincident vertices.
• No coincident/coplanar faces.
• No faces intersected.
• No faces distorted more than 45 degrees.
• No loss geometry.
• No poles with more than 5 edges.

RIG

• Armature with 6 animable bones.
• With intuitive shapes to replace bones.
• The shape and color of the shapes indicates the action that can make the bone (move, rotate or scale) and the axis he does.
• Auxiliary objects for shapes are hidden in another layer.
• The actions and its range of allowable values are controlled by constraint on each bone.
• Instructions for use of the rig.
• With rig and animation included.

UVMAP AND TEXTURES

• Normal outward.
• UV without overlapping.
• Grinder textures of 4096x4096 px.
• Tablecloth texture of 2048x2048 px.

Image textures included:

• grinder_diffuse.png
• grinder_specular.png
• grinder_bump.png
• grinder_normal.png (OPTIONAL)
• tablecloth_diffuse.png

PREVIEWS

• The images of the mesh in orthographic view.
• Renders with the Blender internal engine. All without post production.

The FBX file is exported from Blender 2.78 (-Z Forward, Y Up) and may need some adjustment (textures, shapes).
