High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

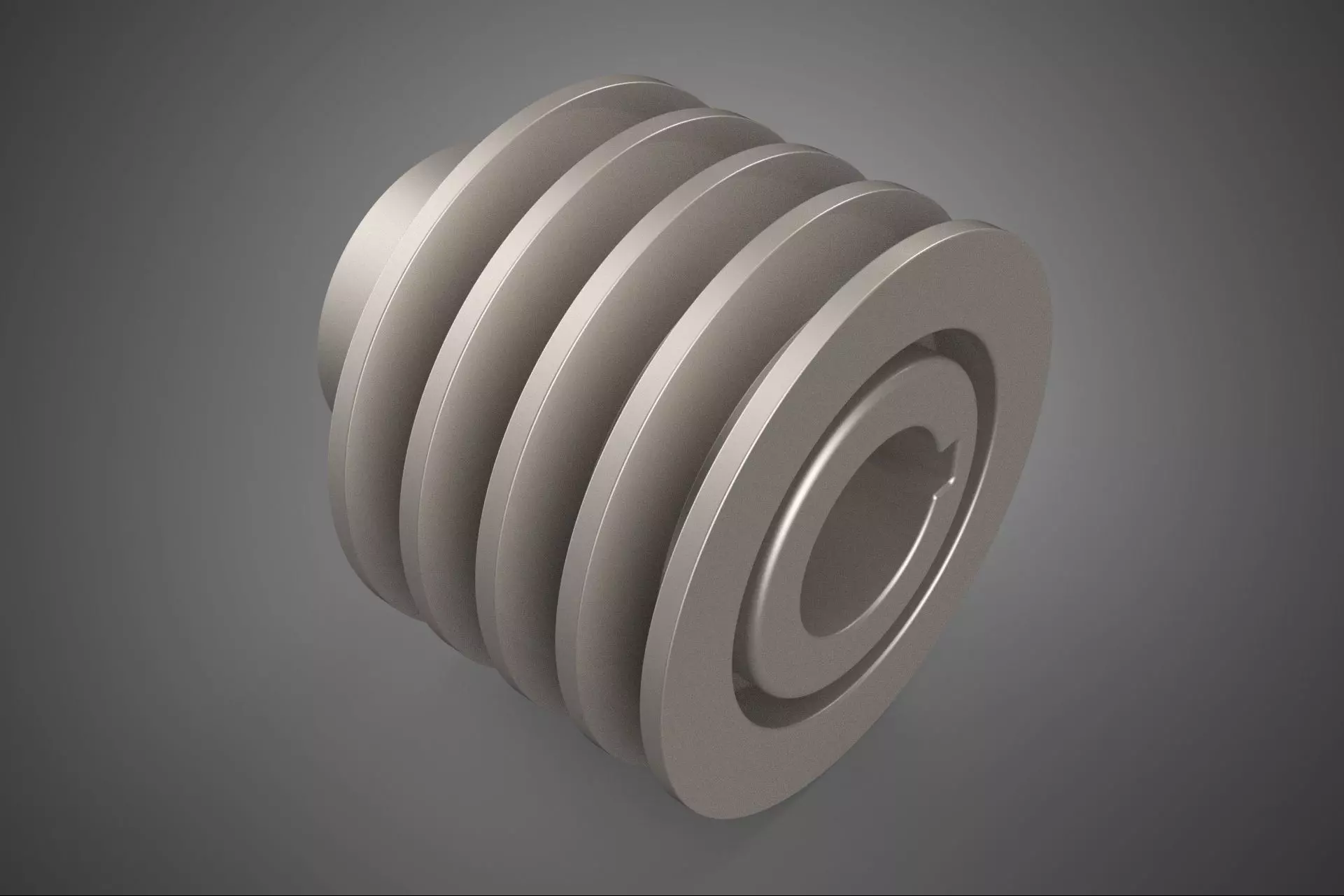

The Standard Four-Groove Track Pulley Sheave Wheel (also known as a quadruple-groove sheave or multi-V sheave) is a highly standardized mechanical component designed for the efficient transmission of rotational power within belt drive systems. This apparatus functions as the primary driver or driven element, transmitting torque via four parallel, circumferential traction grooves engineered to interface simultaneously with four corresponding endless belts, typically V-belts or sometimes synchronous belts.
Design and Nomenclature
The component is structurally defined by its integration of four distinct, contiguous tracks into a single, rotating hub. This quadruple configuration significantly increases the effective power capacity and torque transmission potential compared to single- or dual-groove systems, distributing the mechanical load across multiple friction elements.
Sheave Geometry:
The central mechanical feature is the precise geometry of the grooves. For standard V-belt applications, the grooves are machined with angled walls (typically between 34 and 40 degrees, depending on the belt profile standard, e.g., Classical or Narrow Metric) to leverage the wedging action principle. This friction-based engagement ensures high power transfer efficiency with minimal slip, proportional to the tension applied to the belts.
Key dimensional parameters include:
- Pitch Diameter ($D_p$): The theoretical diameter at which the pitch line (or neutral axis) of the belts rests. This is the crucial dimension for calculating speed ratios and peripheral velocity.
- Outside Diameter ($D_{od}$): The maximum diameter of the sheave face.
- Groove Spacing: The precise distance between the centerline of adjacent grooves, critical for ensuring uniform belt tension and accurate system alignment.
- Bore: The central aperture sized to accommodate the drive shaft, often featuring keyways or taper bushing systems (such as Taper-Lock or QD style) for positive locking and ease of installation.
### Standardization and Classification
The designation Standard emphasizes adherence to international and national specifications governing dimensional tolerances, material composition, and performance characteristics. Global standardization ensures interoperability between components from various manufacturers.
Common standards bodies and relevant specifications include:
- ISO (International Organization for Standardization): Standards like ISO 9982 define groove geometry for V-belts.
- DIN (Deutsches Institut für Normung): Standards such as DIN 2211 (V-belt drives) define profiles (e.g., SPZ, SPA, SPB, SPC for metric narrow-section belts).
- ANSI/RMA (American National Standards Institute / Rubber Manufacturers Association): Defines dimensions for classical profiles (e.g., A, B, C, D) commonly used in North America.
Selection is generally dictated by the required torque, rotational speed (RPM), and the established belt profile (e.g., a 4-Groove SPB Sheave).
### Materials and Manufacturing
Due to the stresses associated with multi-belt power transmission, material selection prioritizes high tensile strength, wear resistance, and vibrational stability.
- Cast Iron: The predominant material (e.g., ASTM A48 Class 30 or 35 gray cast iron) offering excellent damping characteristics and machinability, suitable for most industrial applications.
- Steel: Used in applications requiring maximum strength, high rotational speeds, or extreme shock loads, often involving fabricated and welded construction.
- Aluminum Alloys: Utilized when weight reduction is critical, though typically limited to lower-torque, higher-speed applications.
Manufacturing involves casting or forging, followed by precision machining of the grooves and bore. Critical processes include dynamic balancing (often to quality grades like ISO 1940 G6.3 or finer) to mitigate vibration and premature bearing wear, especially at elevated peripheral velocities. A protective surface finish, such as phosphating or anti-corrosion coating, is frequently applied.
### Applications and Operational Benefits
Quadruple-groove sheaves are essential components in heavy-duty industrial power trains where continuous, high-load operation is required. Typical applications include large air compressors, industrial pumps, machine tools, crushers, centralized HVAC systems, and heavy fabrication machinery.
The primary operational benefits of the four-groove configuration are:
- High Power Density: Allowing a compact drive footprint to handle significant horsepower.
- Redundancy and Reliability: The load is shared; minor failure or wear on one belt does not immediately compromise system operation.
- Vibration Damping: The combined mass and inherent material properties of the sheave contribute to the stability of the power train.
- Load Balance: Distributing tangential forces across four contact points ensures balanced stress on the sheave bearings and shaft.
