DESCRIPTION

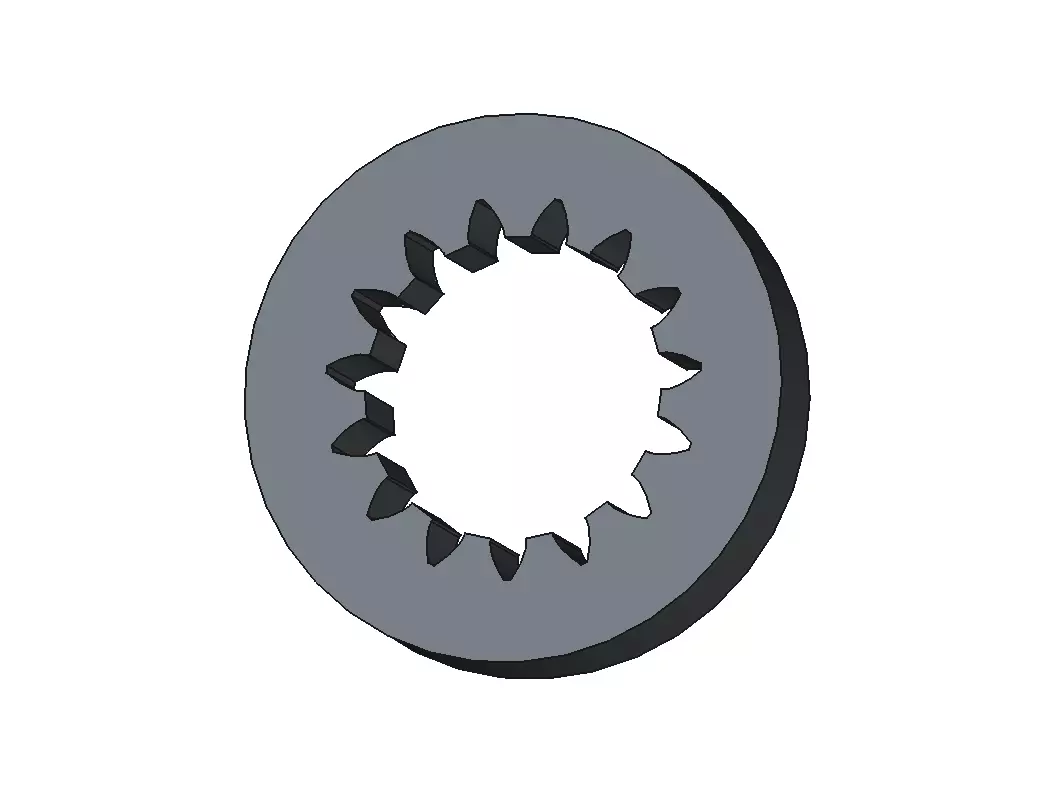

High-quality internal involute gear 3D model designed for compact and efficient power transmission in mechanical systems. Featuring internal teeth geometry, this gear is ideal for applications such as planetary gear systems, gearboxes, and precision machinery.

Built using accurate engineering parameters including module 1 and 20° pressure angle, the model ensures smooth meshing with external spur gears. Clean topology and optimized geometry make it perfect for CAD assemblies, simulations, rendering, and 3D printing.

Technical Details

SpecificationsType: Internal Involute GearModule (m): 1Number of Teeth (Z): 15Pressure Angle: 20°Transverse Pitch: 3.14 mmPitch Diameter: 15 mmOuter Diameter: 25 mmRoot Diameter: 17.5 mmHeight: 5 mmThickness: 5 mm

3D Model InfoScale: Real-world (millimeters)Units: mmGeometry: Polygonal meshTopology: Clean and optimizedAccuracy: Based on standard involute gear design

Related Tagsinternalgearinvoluteringspurplanetarymechanismmodulemechanicalgearboxcadstlstepengineeringindustrialmachineelementprinting
