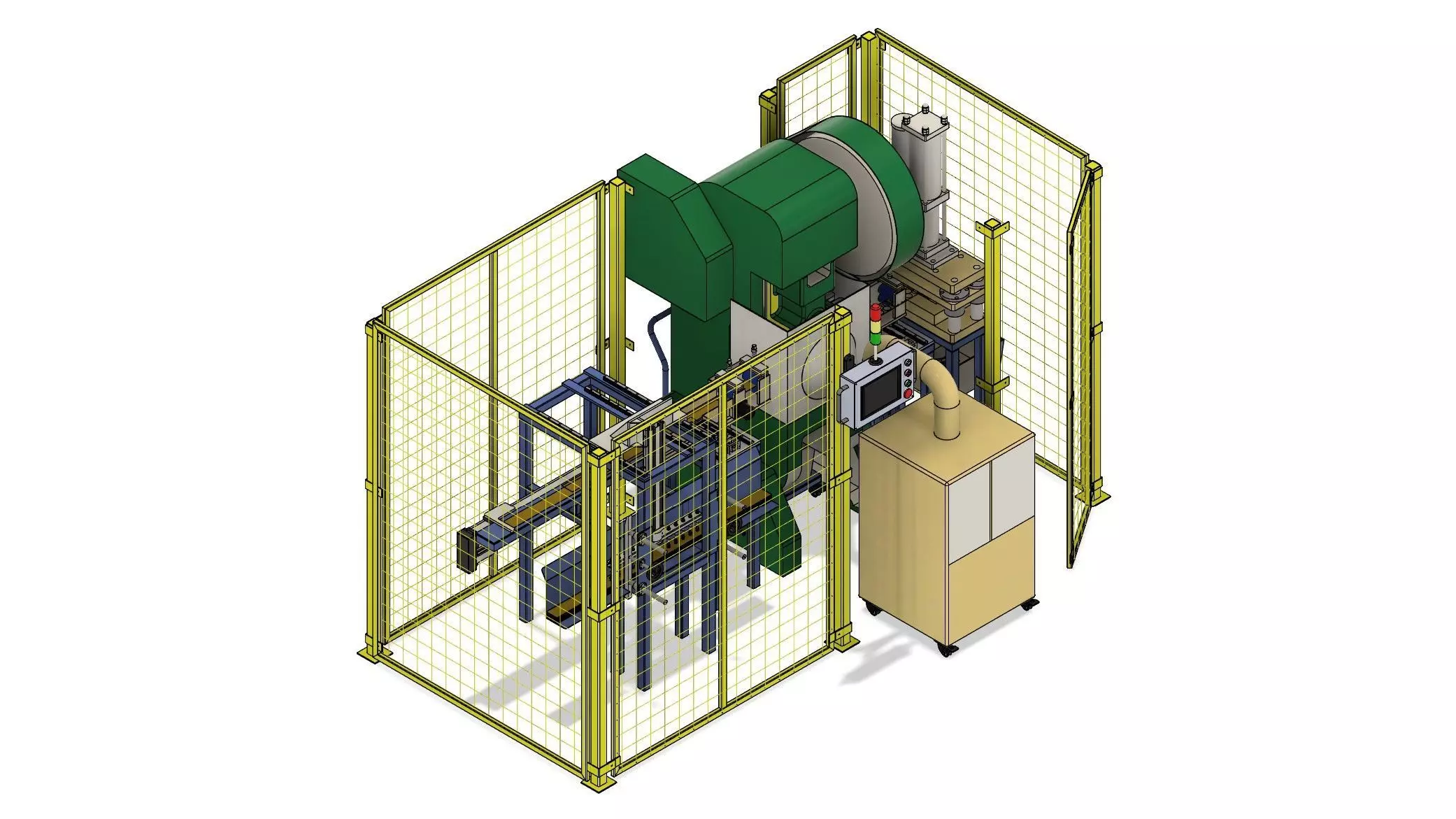

This 3D digital model of stamping feeder is fully designed and developed based on SolidWorks 2020, serving as a core technical asset for stamping production line R&D and manufacturing. The model comprehensively reproduces the full structure of the feeder, including the automatic material conveying mechanism, precision positioning assembly, servo drive system, safety protection components, and material storage hopper, with all parts’ dimensions and assembly relationships strictly aligned with actual production standards.

Supporting full parametric editing, the model allows engineers to flexibly adjust parameters such as feeding speed, material width, and lifting height to match different stamping equipment and workpiece specifications. It is compatible with SolidWorks’ built-in simulation modules for motion trajectory verification and structural stress analysis, effectively reducing physical prototyping costs. Ideal for team collaborative design, production process planning, and on-site installation guidance, this model provides a reliable digital foundation for optimizing stamping line automation and improving production efficiency.
