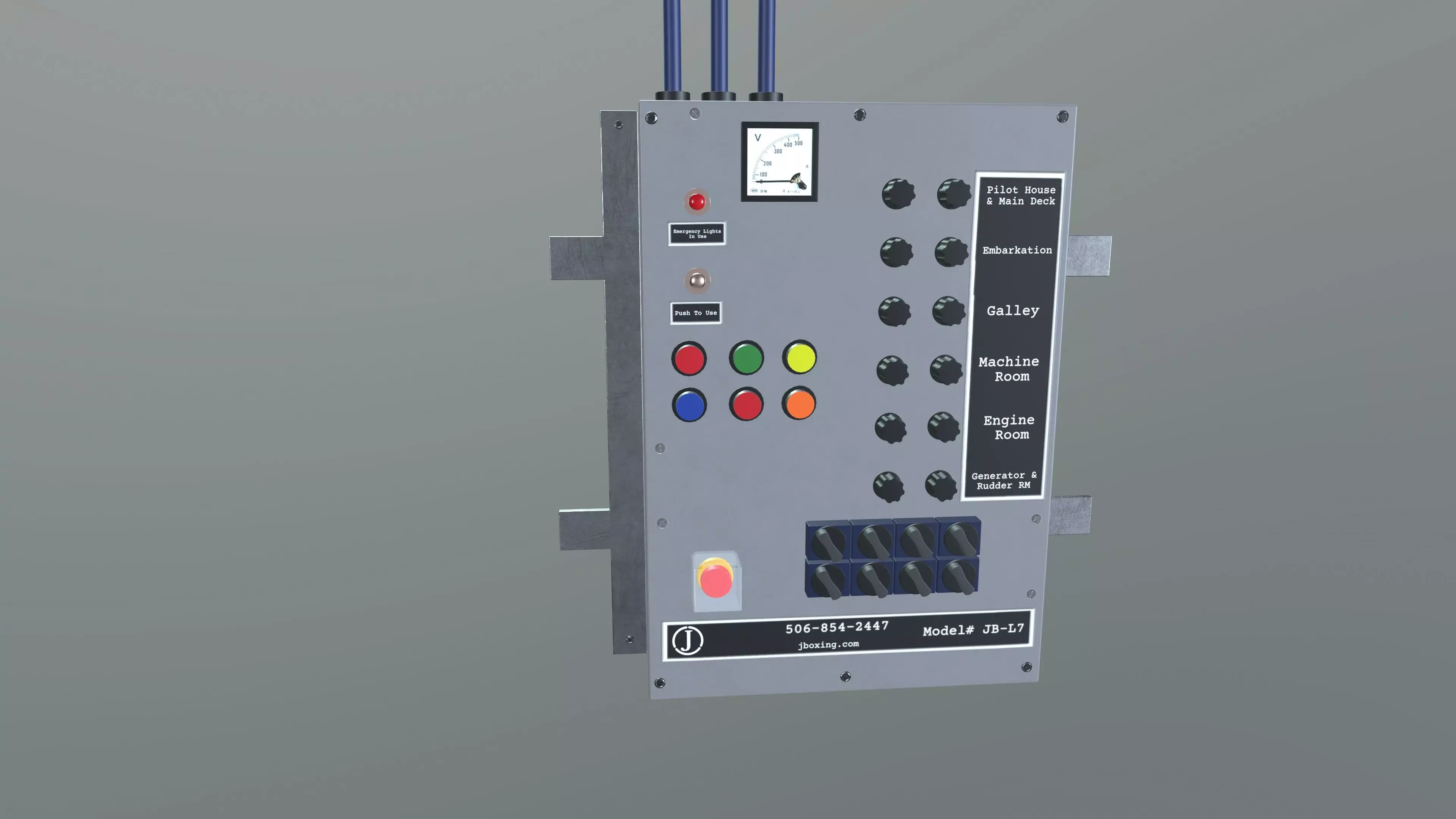

Emergency Switch Panel 3D model
Verification details of the FBX file
Files
Binary FBX
Scene
No unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare texturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description
- In general, emergency stop switches are activated in case of emergency, and so when the button is pressed, the NC contact opens to interrupt the current, and at the same time, a latching mechanism is activated to hold the button in the pressed-down position.
- An emergency stop push button switch is used as a safety measure to stop hazardous parts (loads).
- An Emergency Stop Switch must be highly visible in color and shape, and must be easy to operate in emergency situations.
- Emergency stop buttons, also known as E-Stops or kill switches, are used to reduce the risk of injury by stopping machinery quickly. Emergency stop buttons are fitted for easy access in any emergency.
- E-Stops are red and must feature a yellow background, bezel, or housing for attention.
- There are three common types of pushbutton style E-Stops.
- To operate the contact, the actuator is pushed in and locked into position. To reset the E-Stop, pull the actuator back to its original position. To operate the contact, the actuator is pushed in and locked into position.
- Emergency switchboard – A switchboard which, in the event of failure of the main electrical power supply system is directly supplied by the emergency source of electrical power or the transitional source of emergency power and is intended to distribute electrical energy to the emergency services, (SOLAS).
- Number of Polygons:19374.
- Number of Vertices:18957.
- Number of Tris:36896.
- File Type :MA,MB,FBX.
- Texture Format PNG.
- Texture Resolution 4k.
Emergency Switch Panel
Royalty Free License
Emergency Switch Panel
Royalty Free License
3D Modeling
Animating
Grooming
Lighting
Low-poly Modeling
Particles
PBR modeling
Post Production
Rendering
Rigging
Shaders
Skinning
Texturing
UV mapping
3D Model formats
Format limitations
- Autodesk Maya (.ma, .mb) (4 files)8.38 MBVersion: 2023Version: 2023Version: 2023Renderer: Arnold 2023Version: 2023Renderer: Arnold 2023
- Autodesk FBX (.fbx) (3 files)5.28 MBVersion: 2023Version: 2023Version: 2023
- OBJ 2023 (.obj, .mtl)2.85 MB
- Textures 202323.4 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR approved
- Geometry Polygon mesh
- Polygons 19,374
- Vertices 18,957
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Non-overlapping
- Plugins used
- Publish date2024-06-04
- Model ID#5323805
