DESCRIPTION

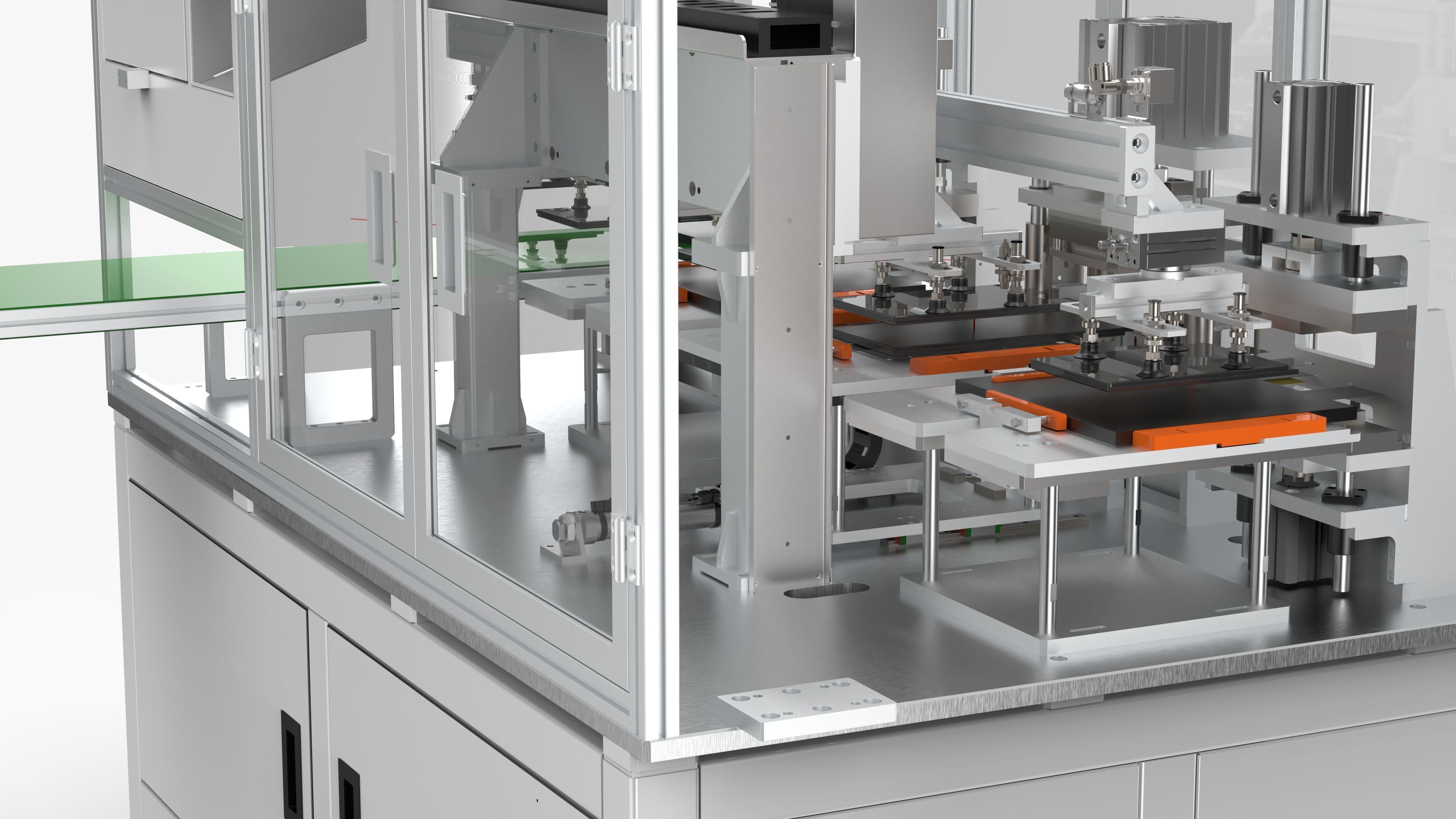

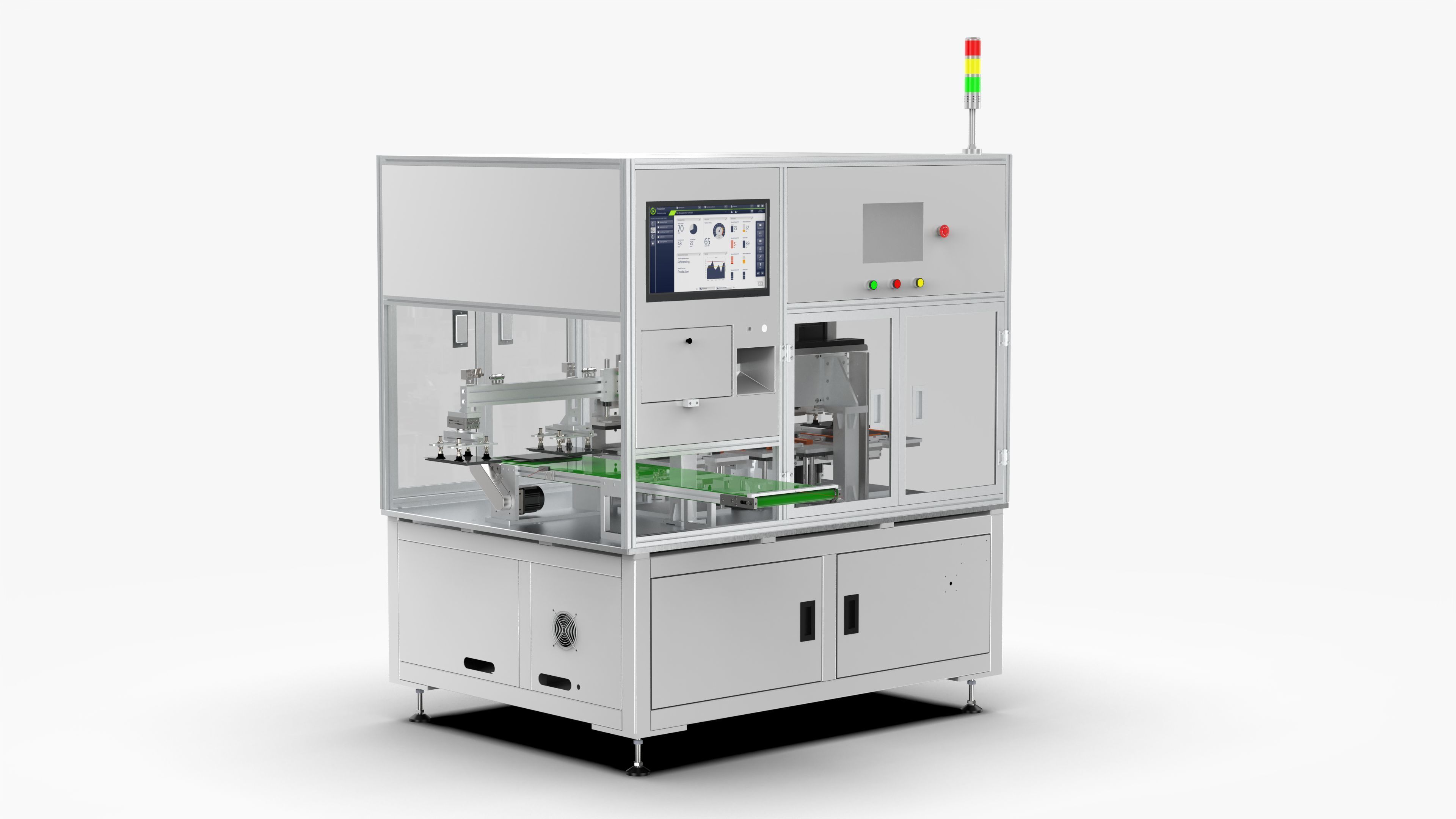

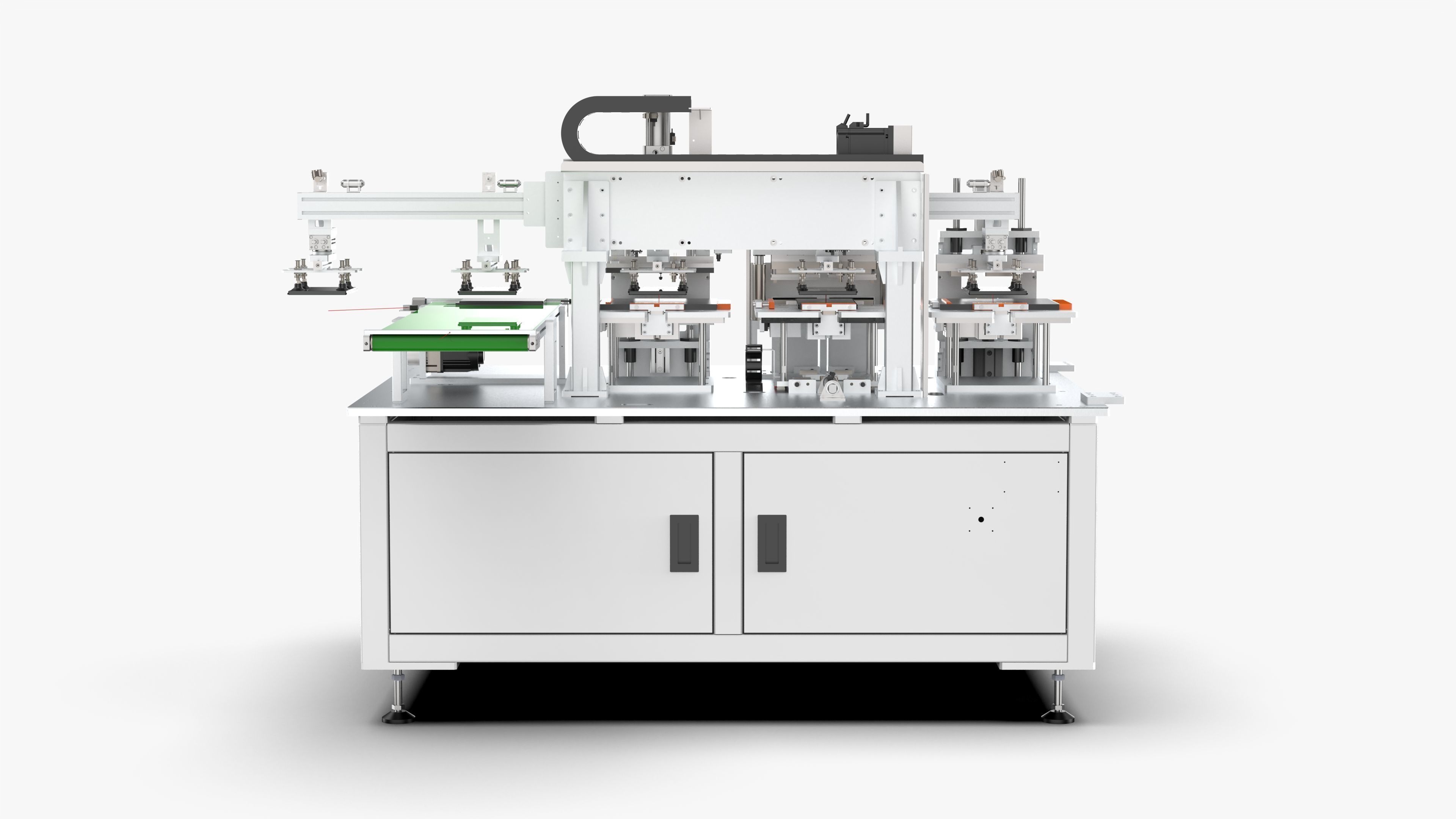

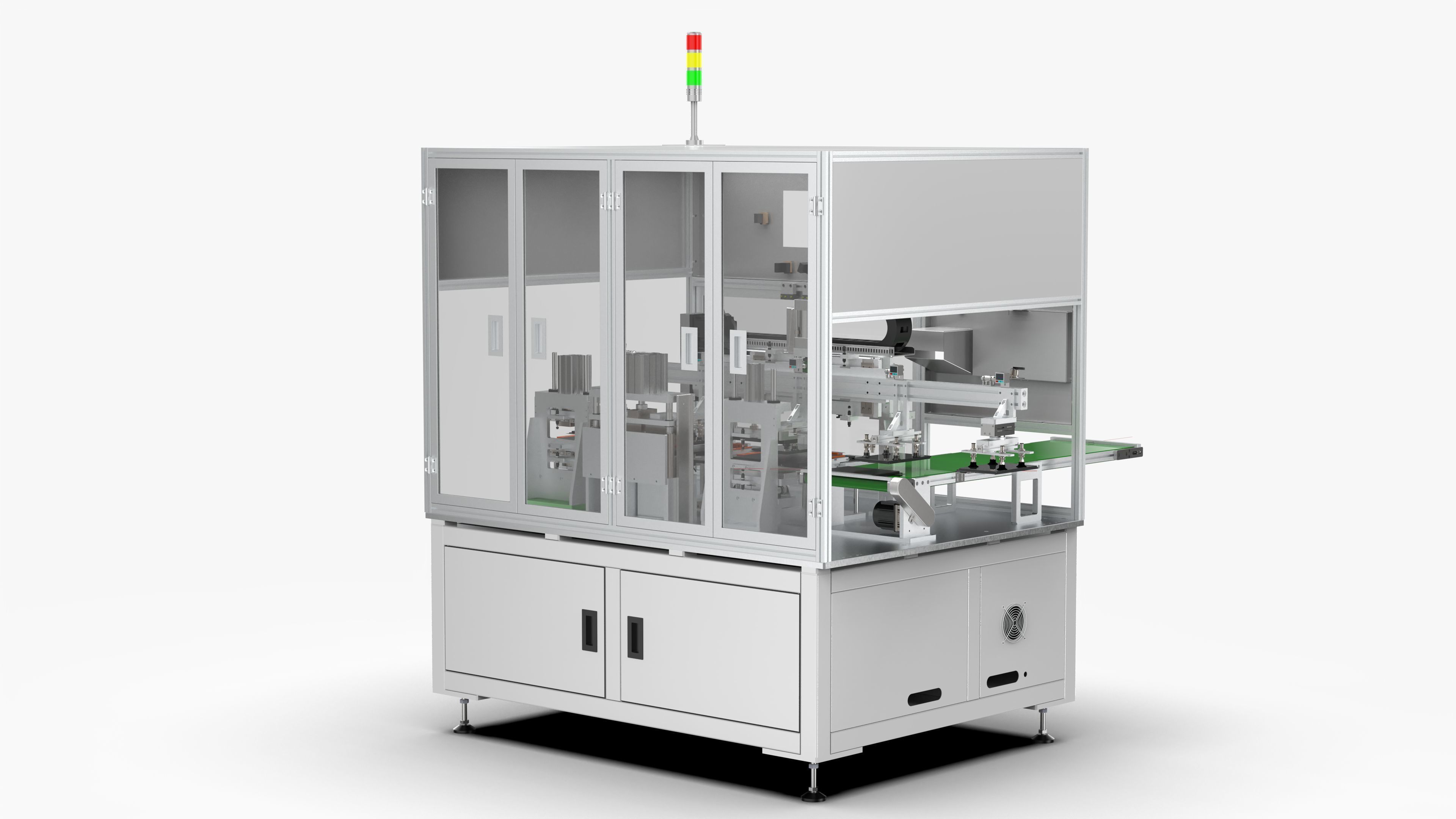

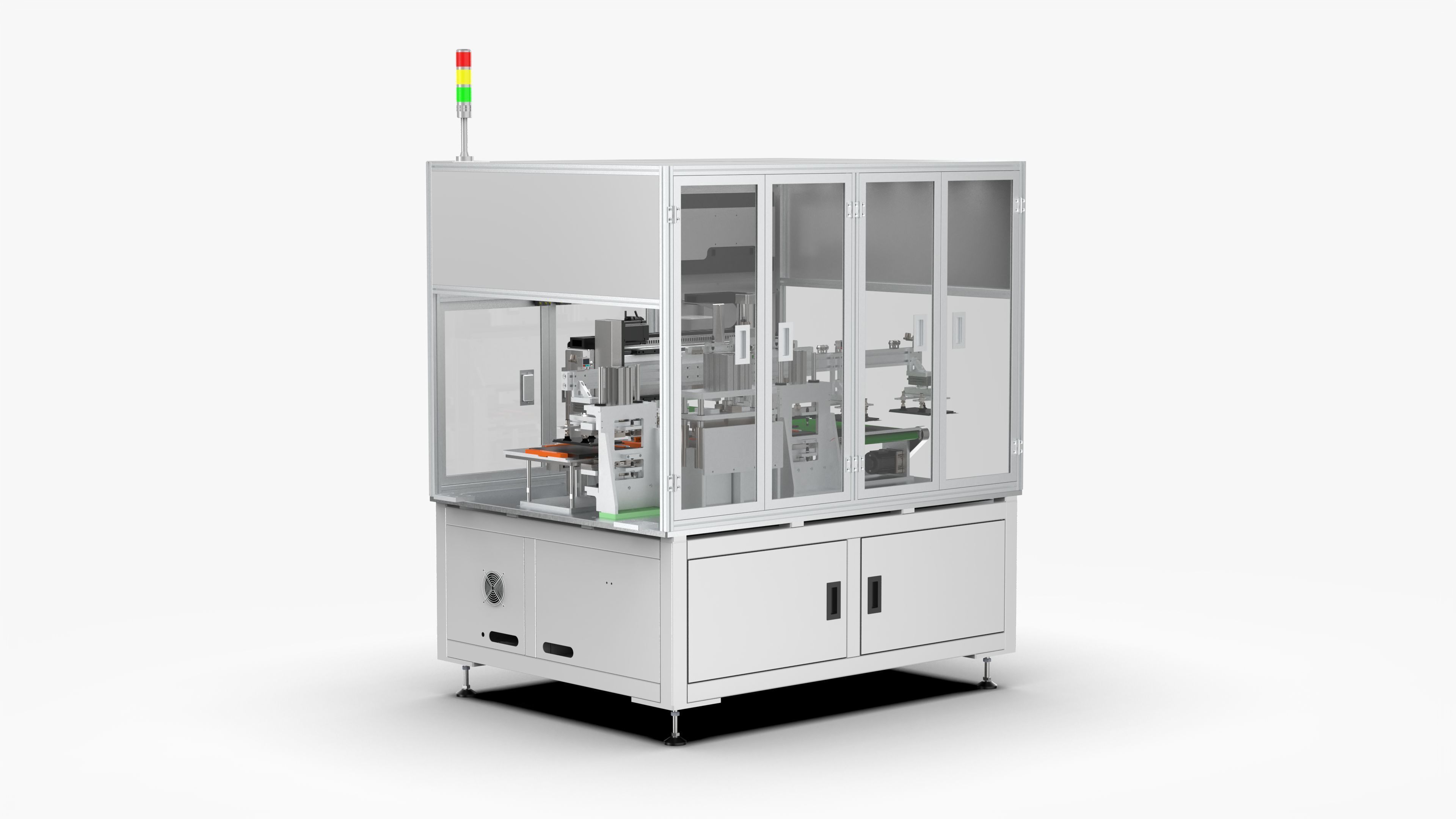

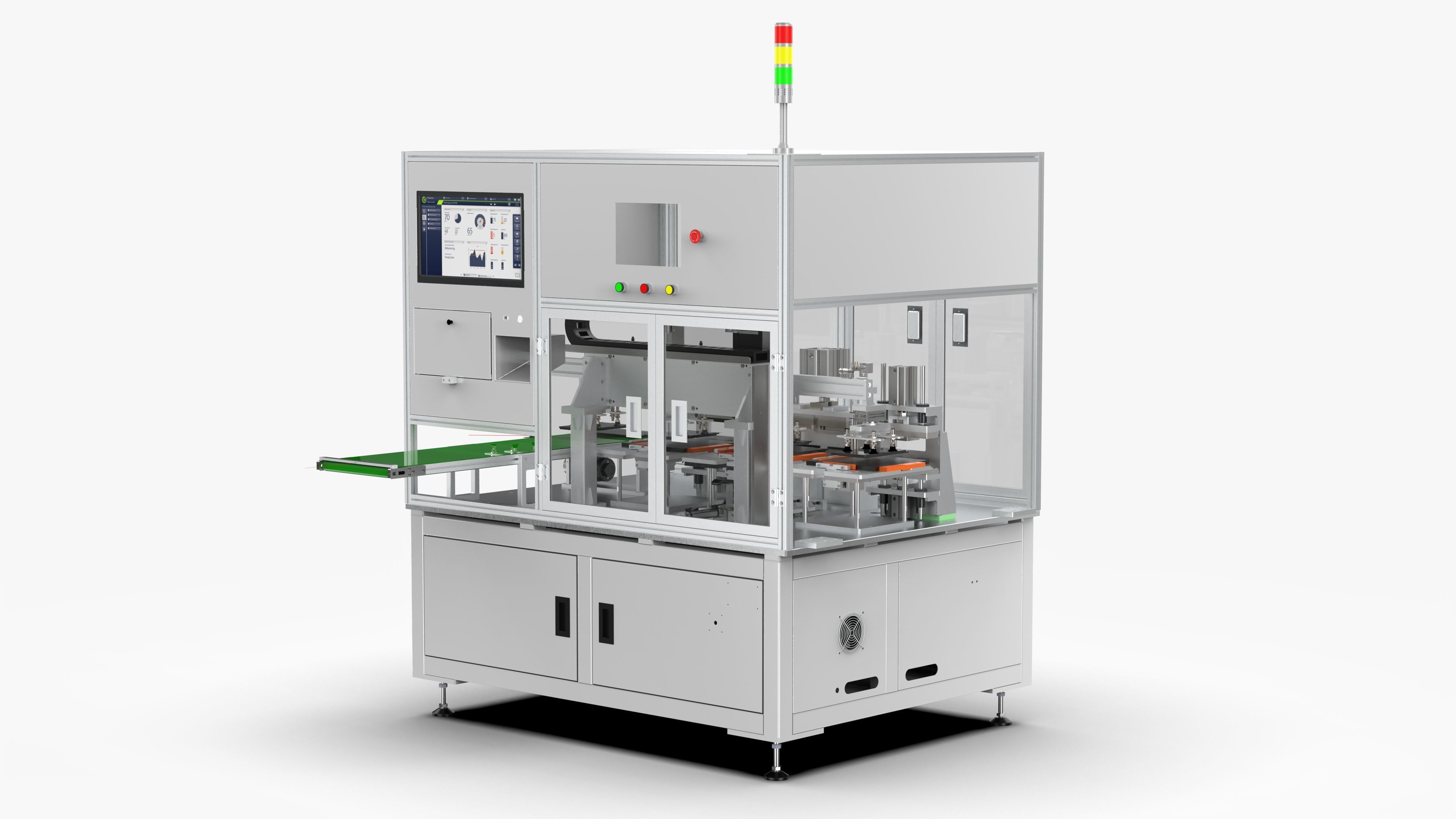

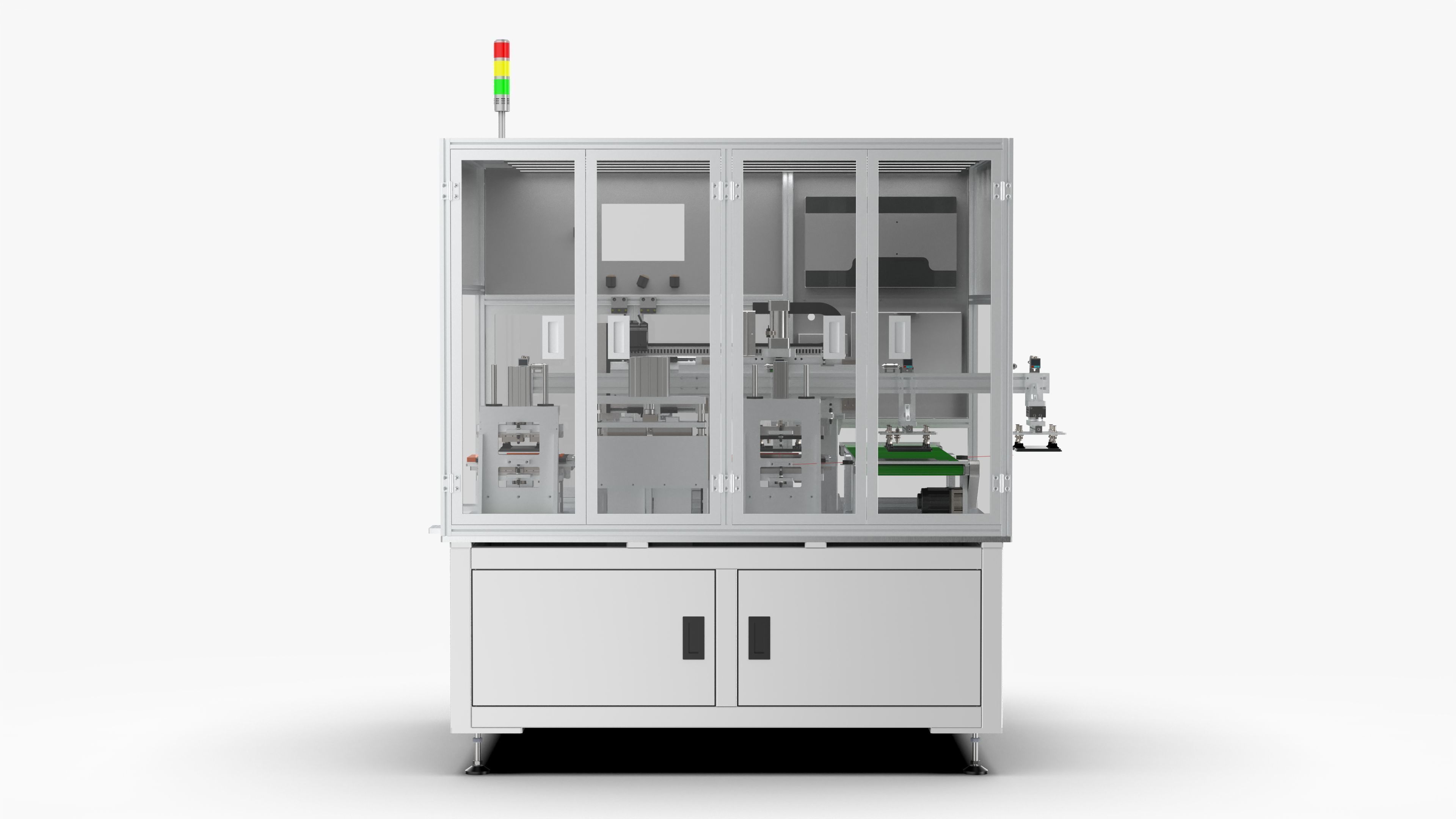

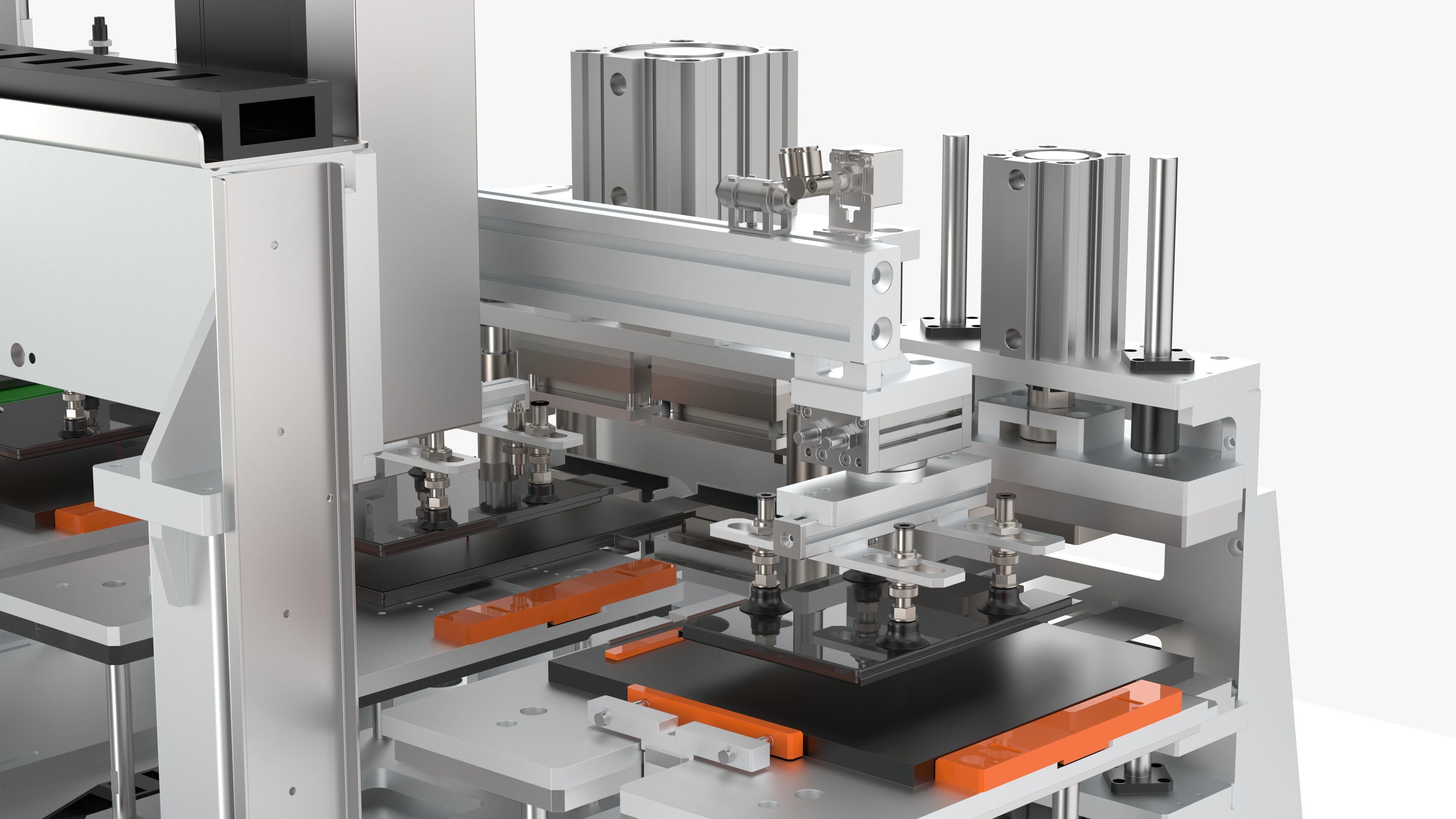

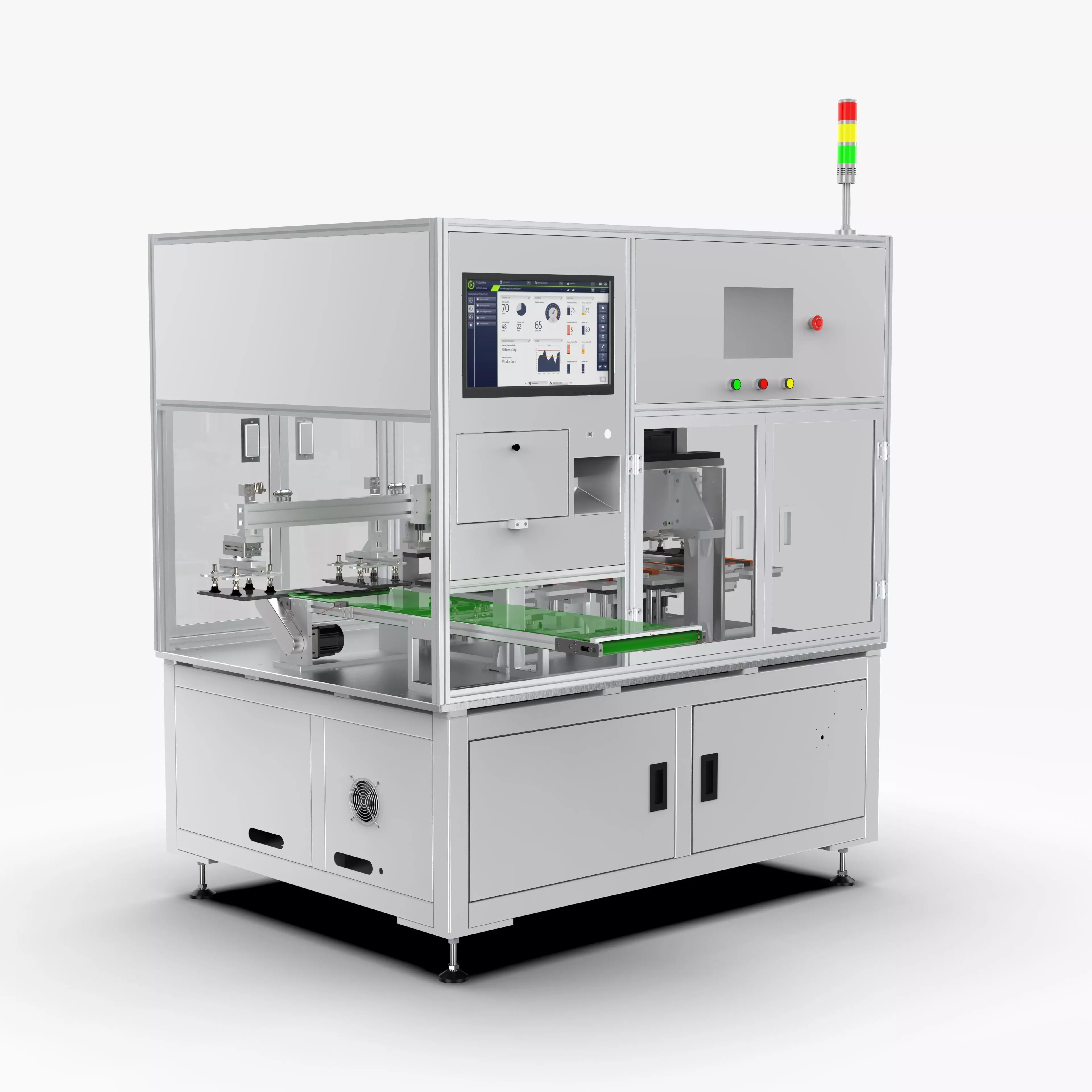

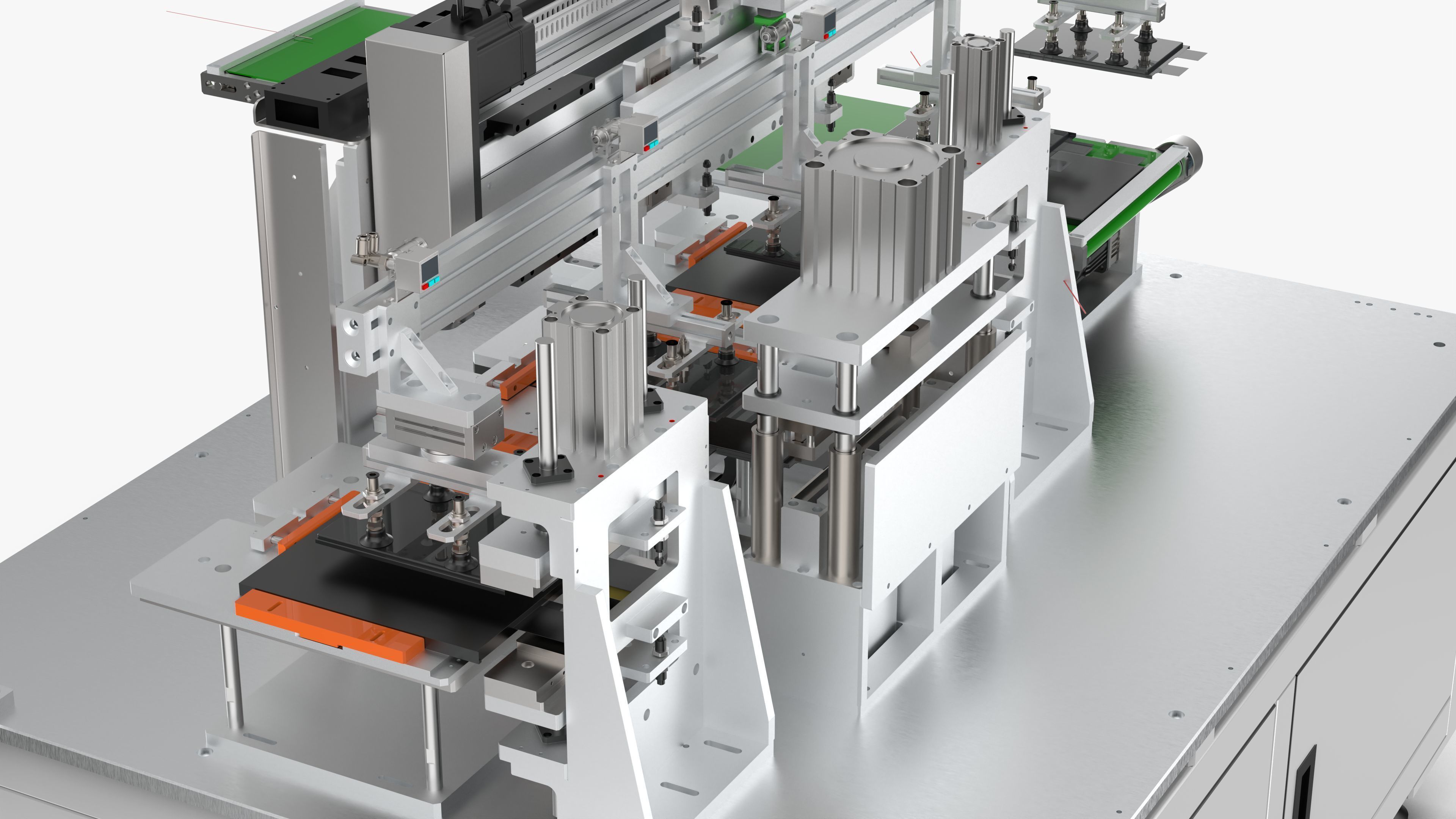

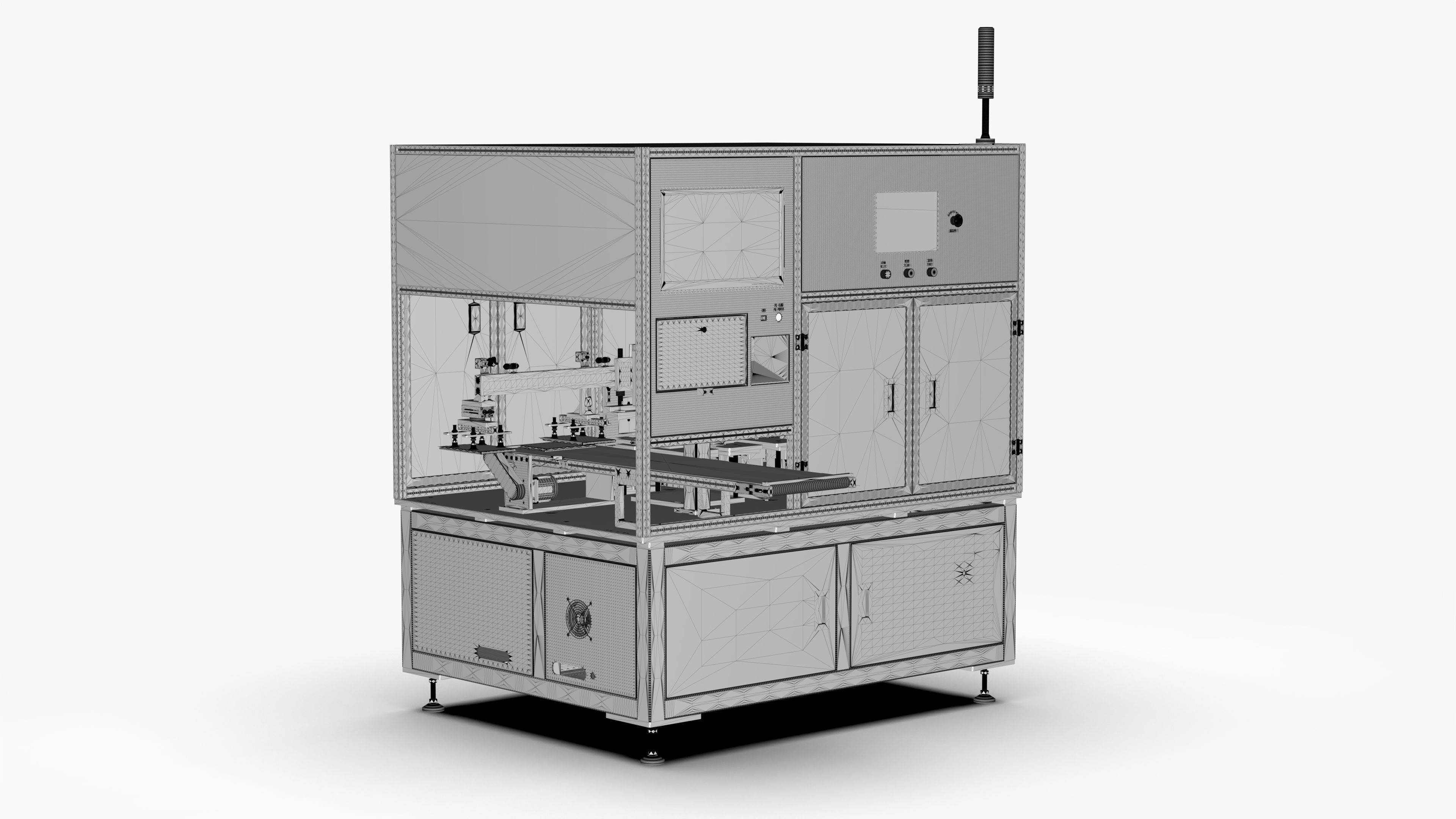

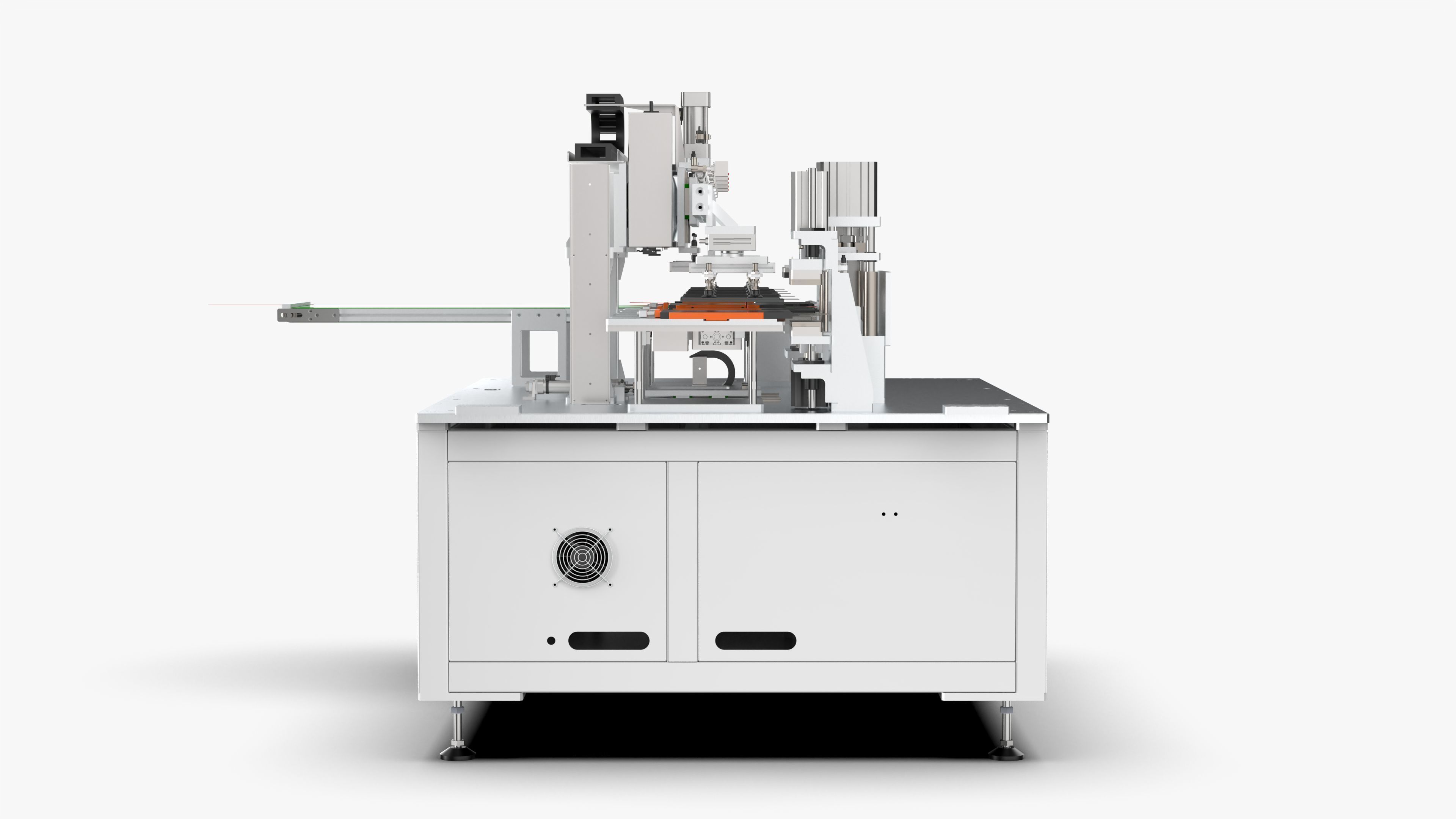

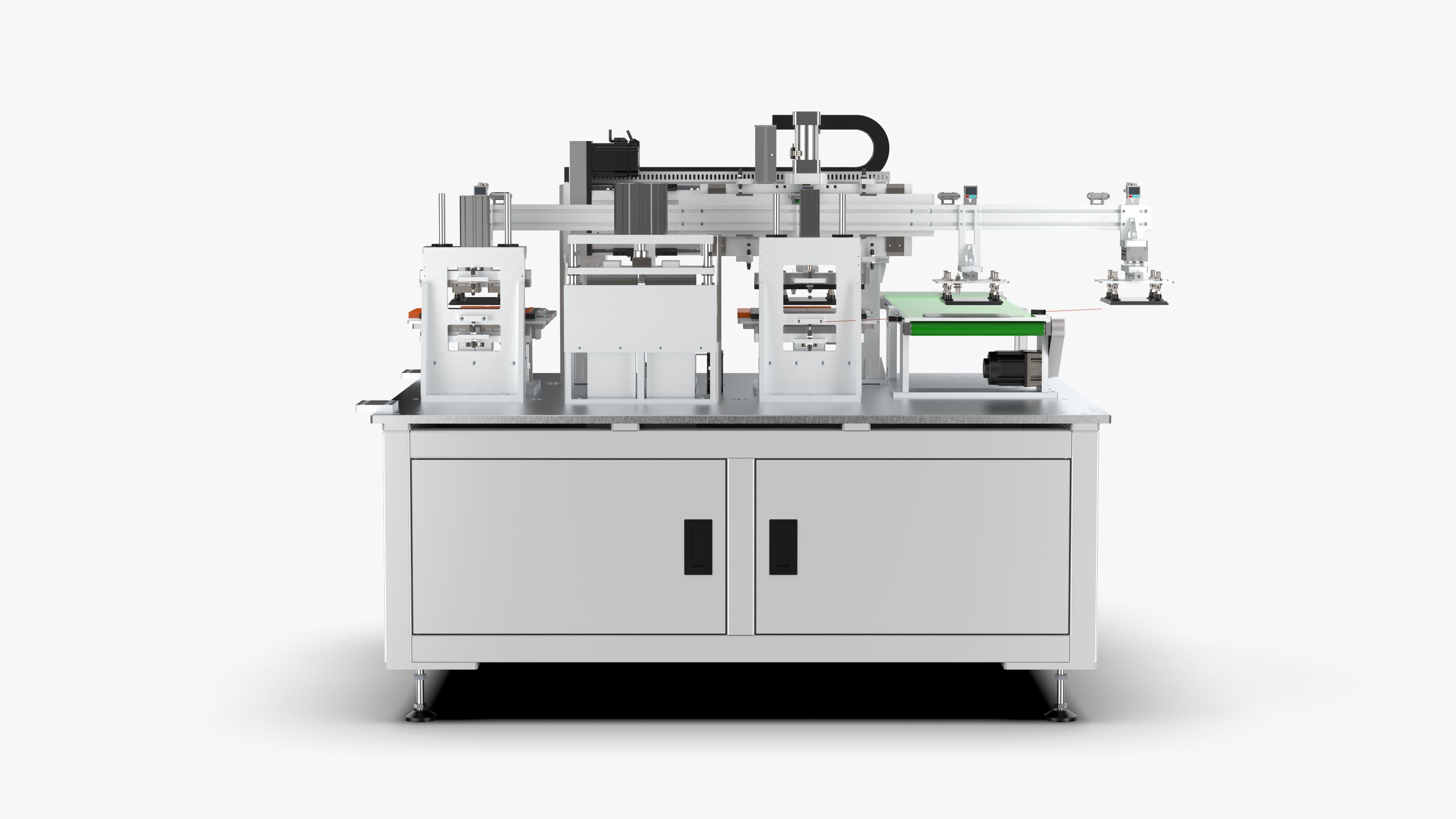

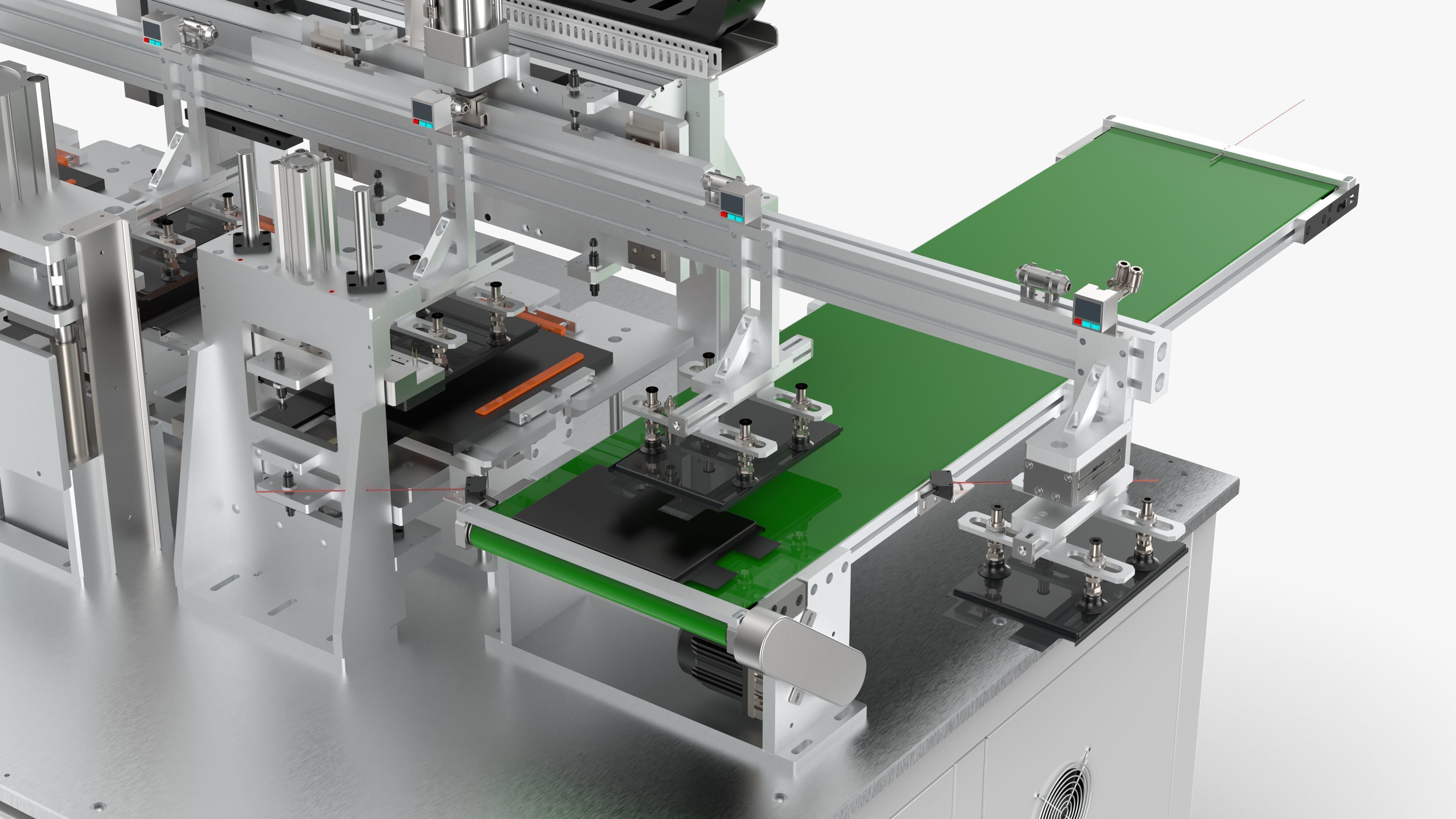

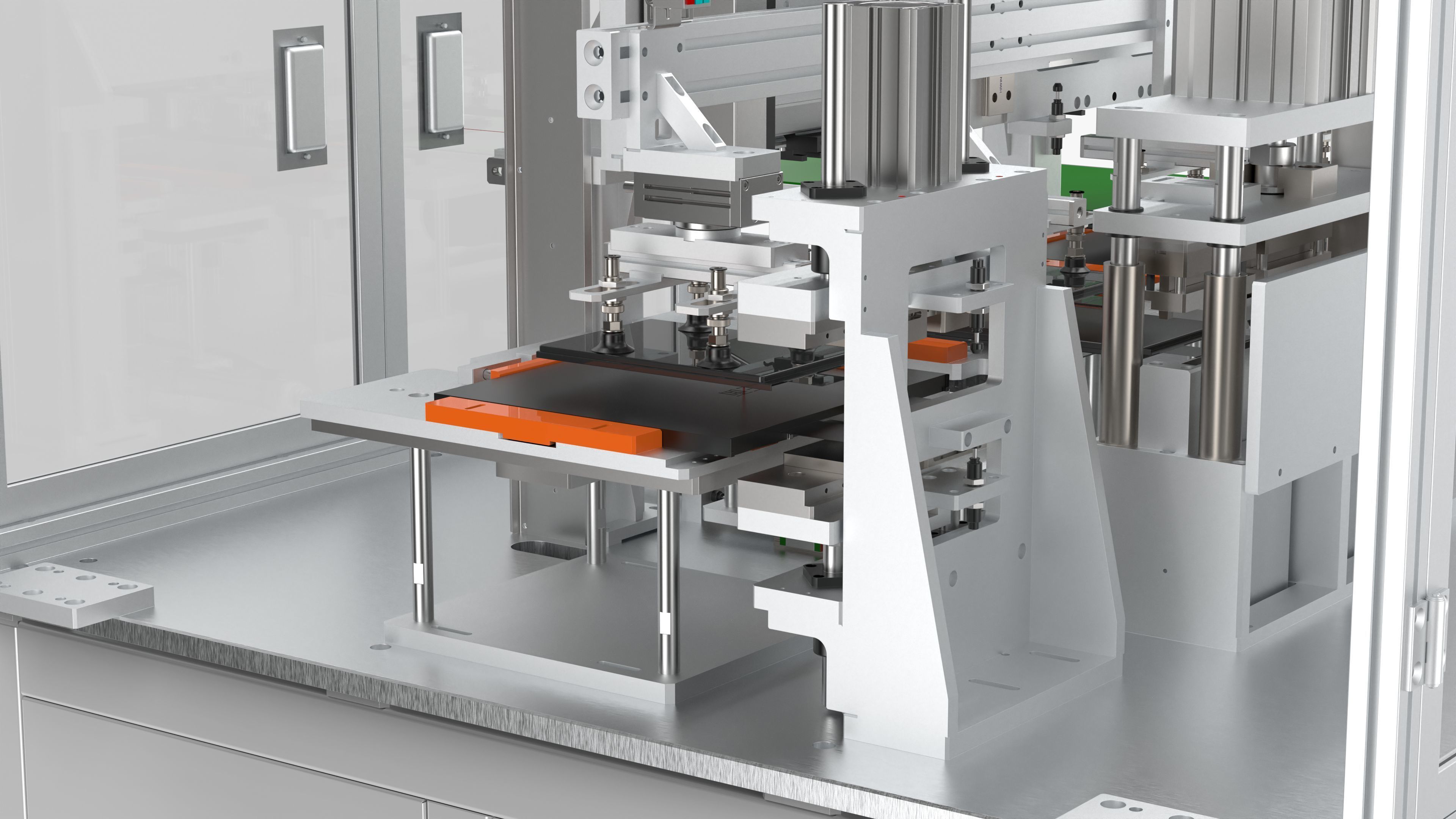

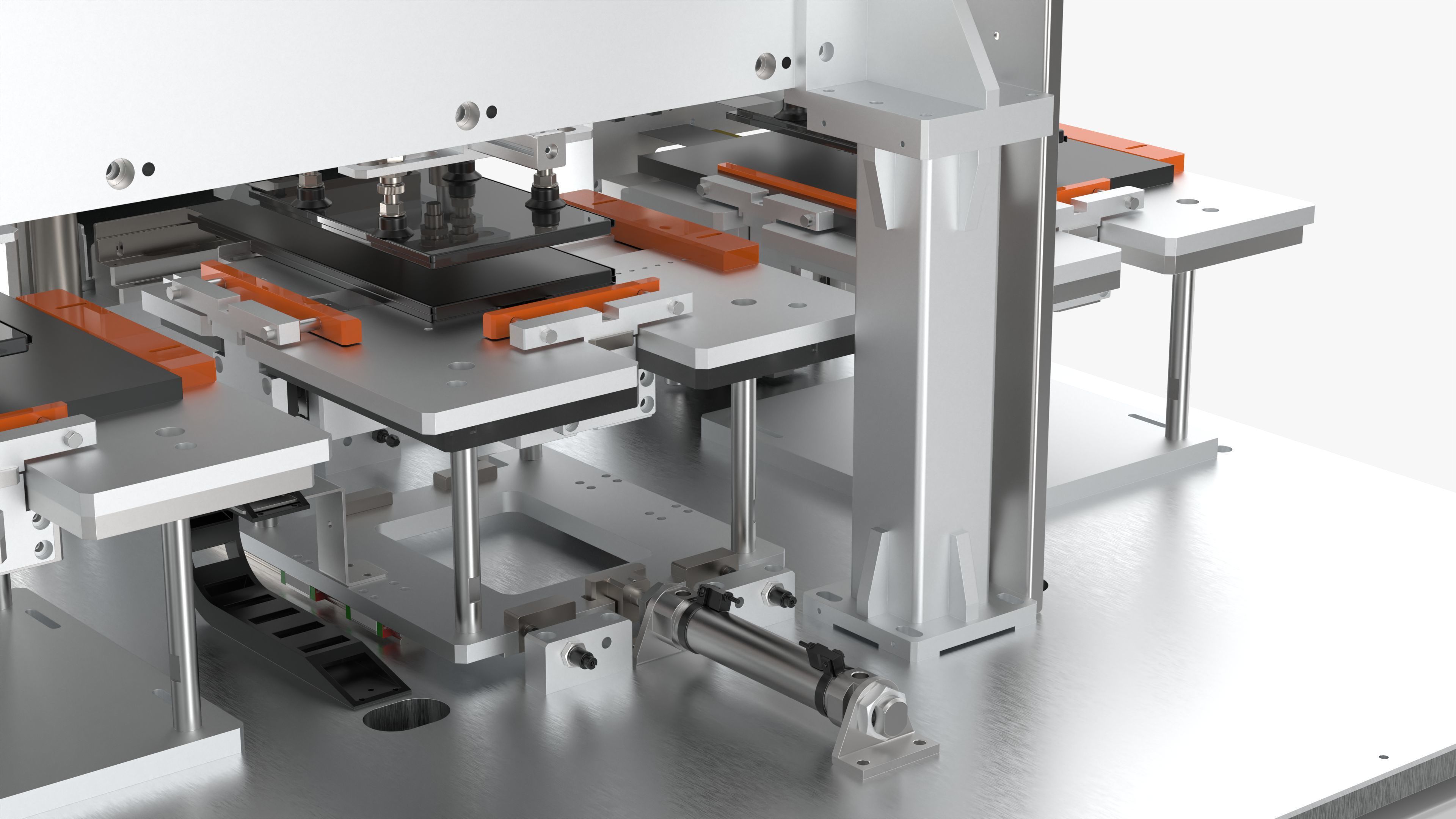

New Energy Battery Tab Cutting Machine

Introduction

Technical features of the tab cutting machine:

  1. Complete the cutting of the positive and negative tabs in one action, which doubles the efficiency.
  2. The positive electrode cutter and the negative electrode cutter are separated by insulating material, which can prevent the short circuit between the positive electrode ear and the negative electrode ear of the battery when cutting.

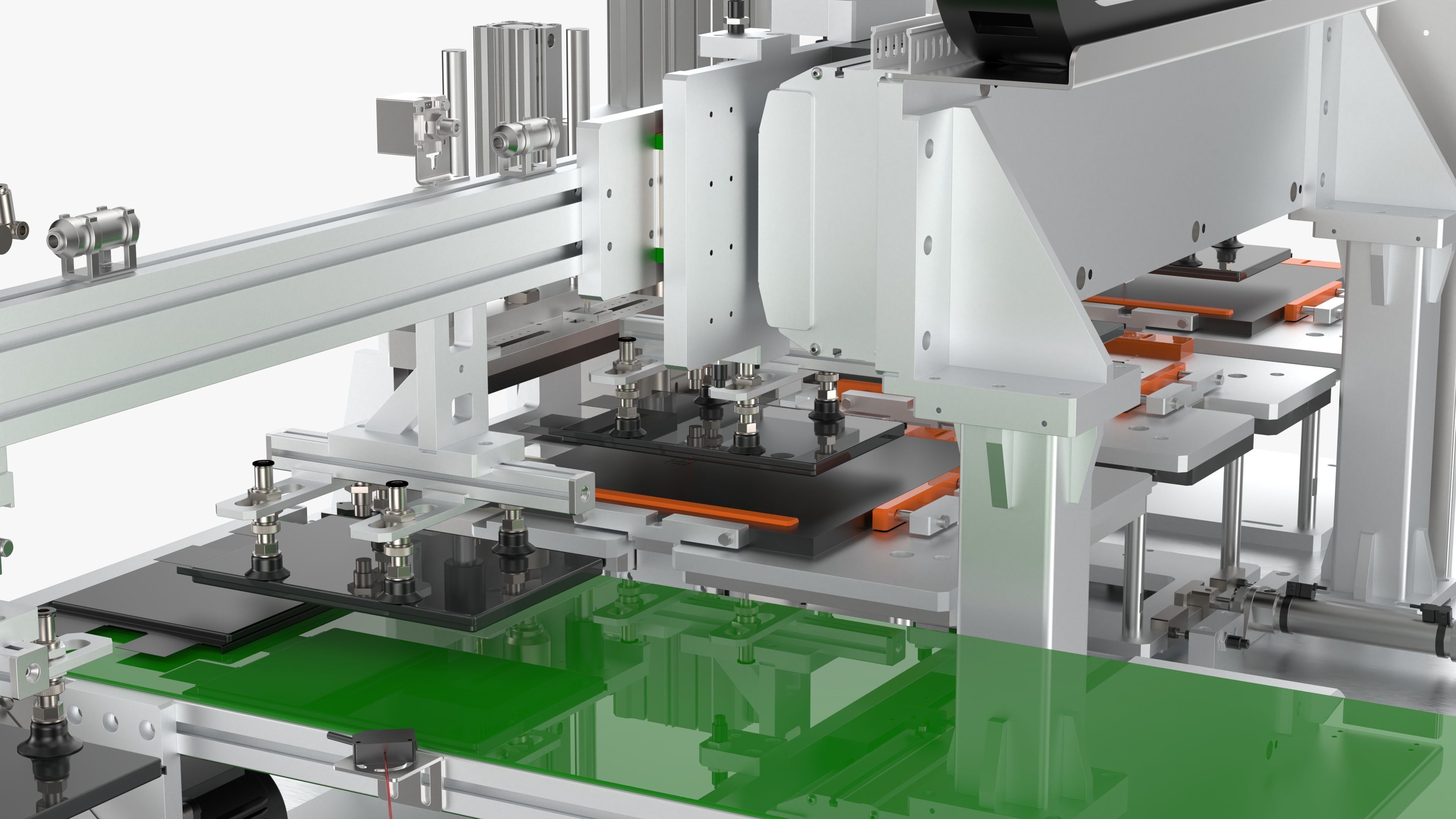

  3. The pole-cutting earphone has a battery positioning fixture to position the battery, and the fixture is flexible and convenient to adjust.
  4. The remaining length of the battery tab can be positioned and adjusted.
  5. The machine controls the cylinder to cut through the battery magnetic valve.

File Formats

  • SolidWorks 2021 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 1,896,522
  • Vertice: 5,689,566
