DESCRIPTION

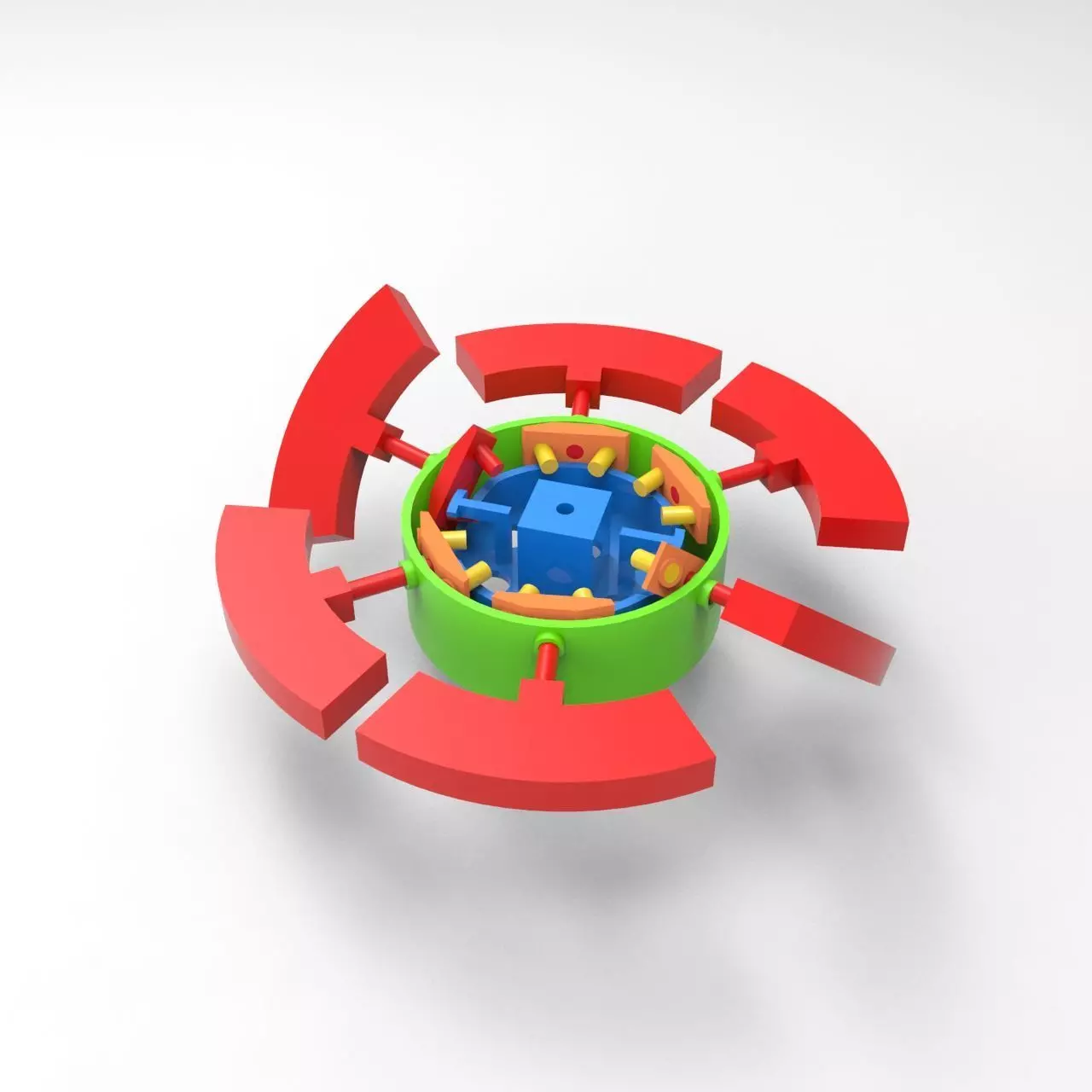

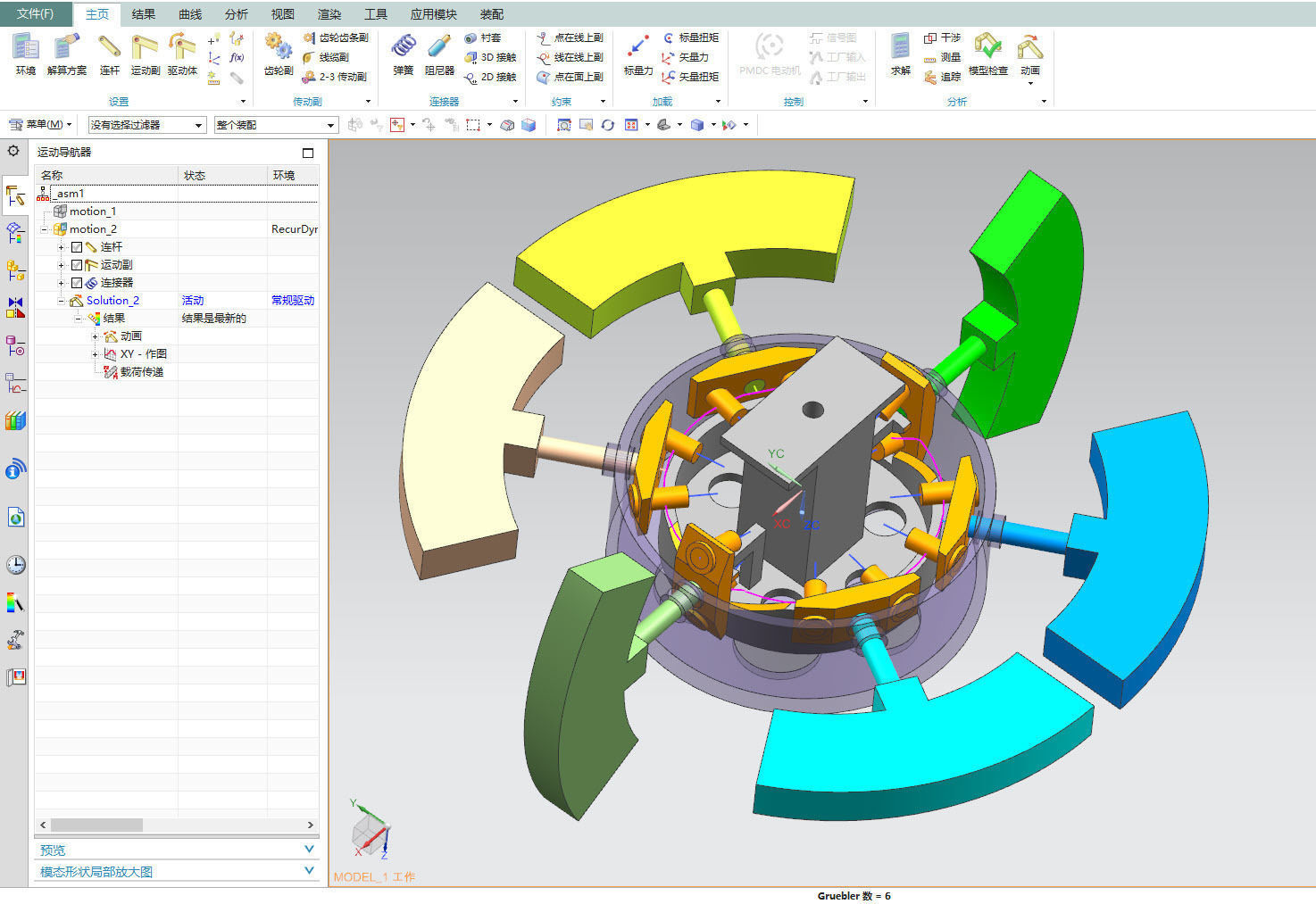

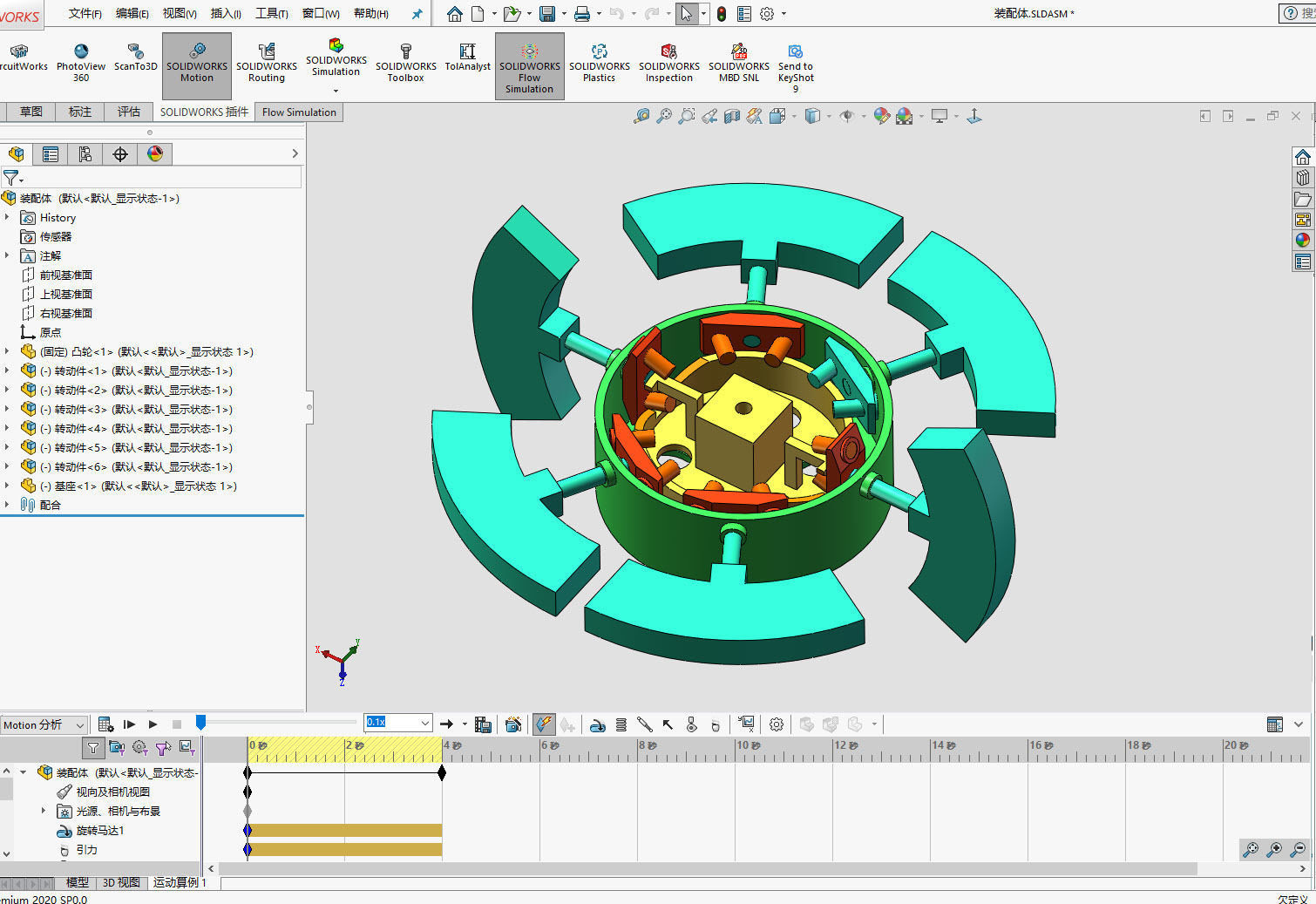

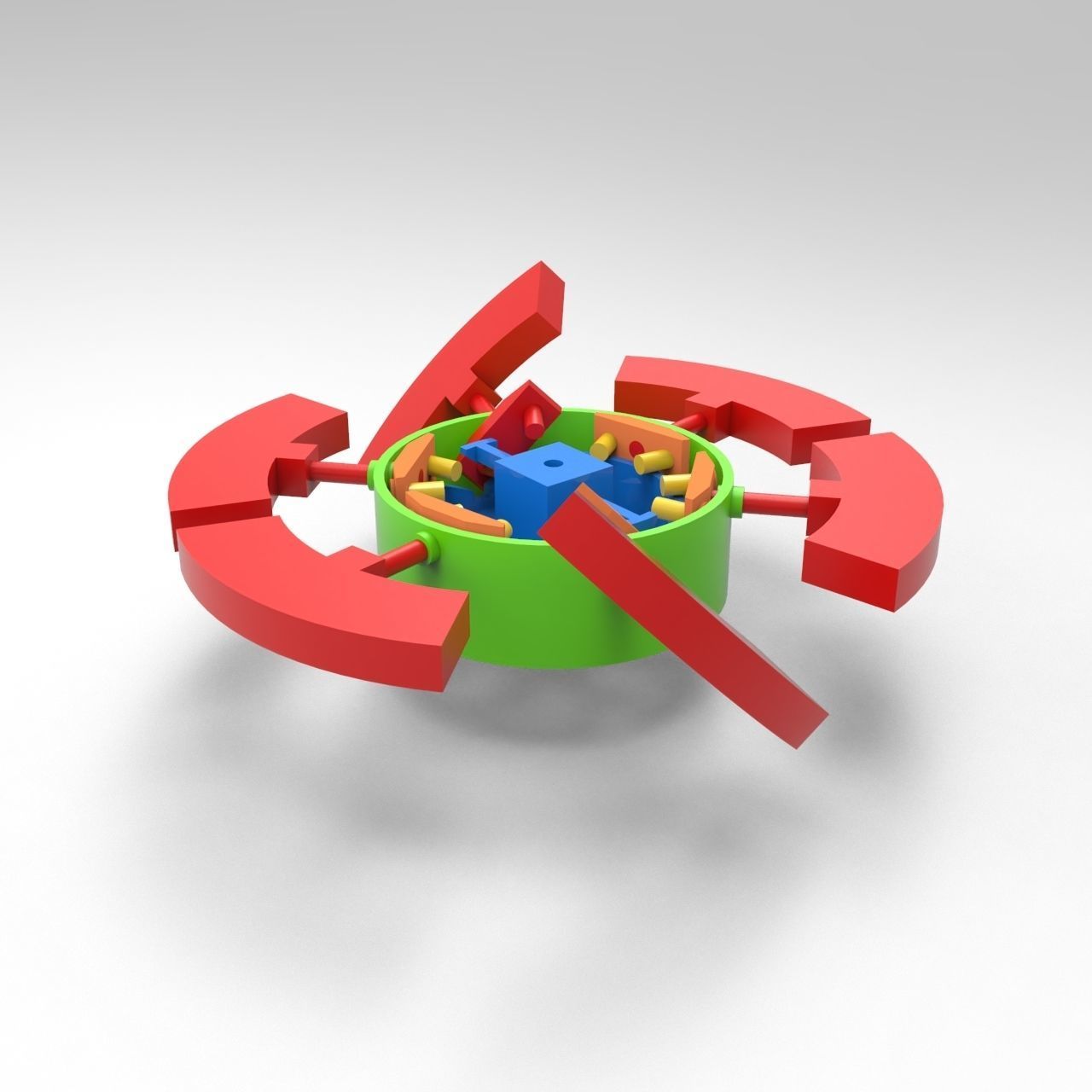

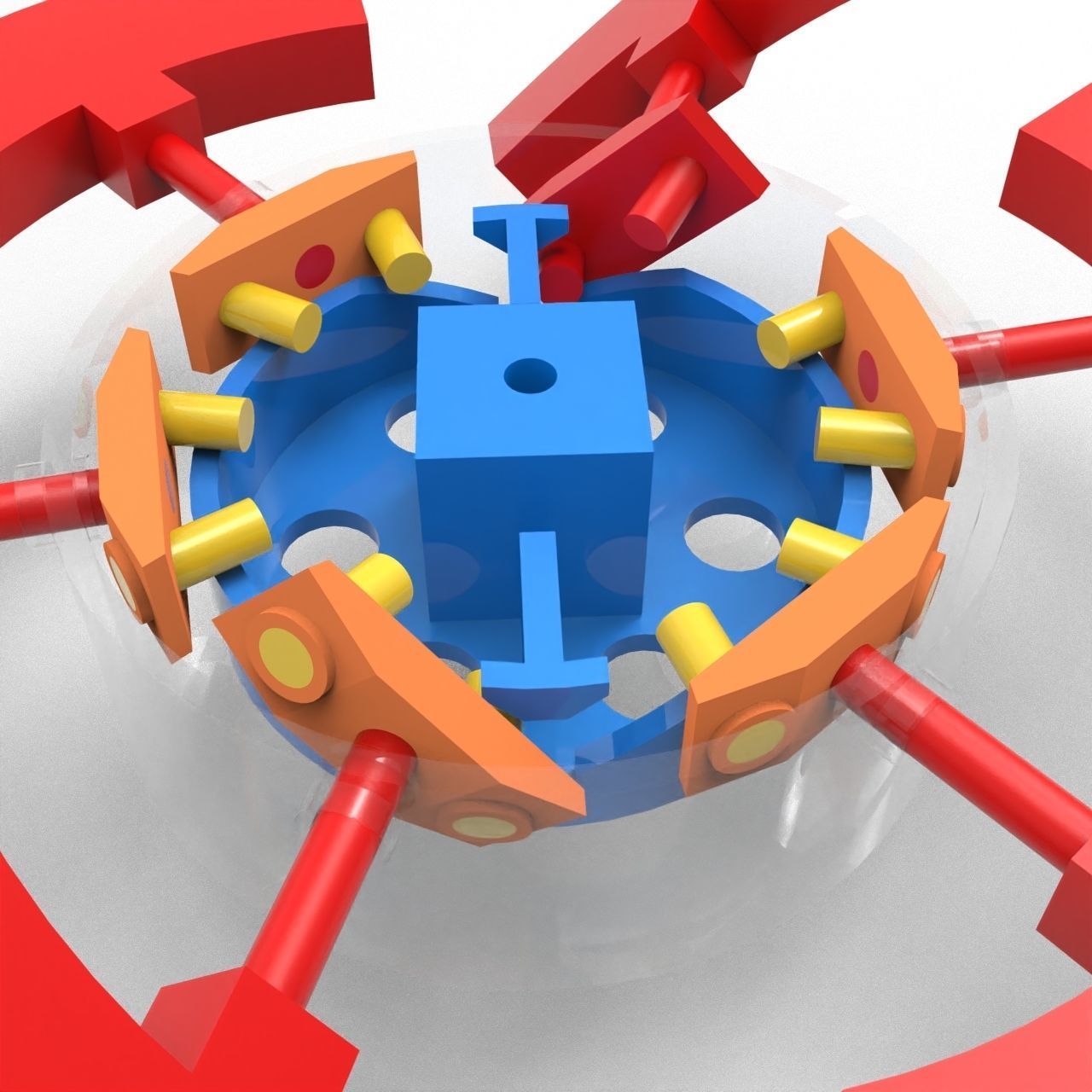

This is a rotating and flipping structure. During the movement of this mechanical structure, the driving wheel rotates once, and the surrounding flipping plates will flip 180 degrees. Here, I used SolidWorks and UGnx10 to create motion simulation simulations.

SolidWorks version: 2020

UGNX version: 10.0
