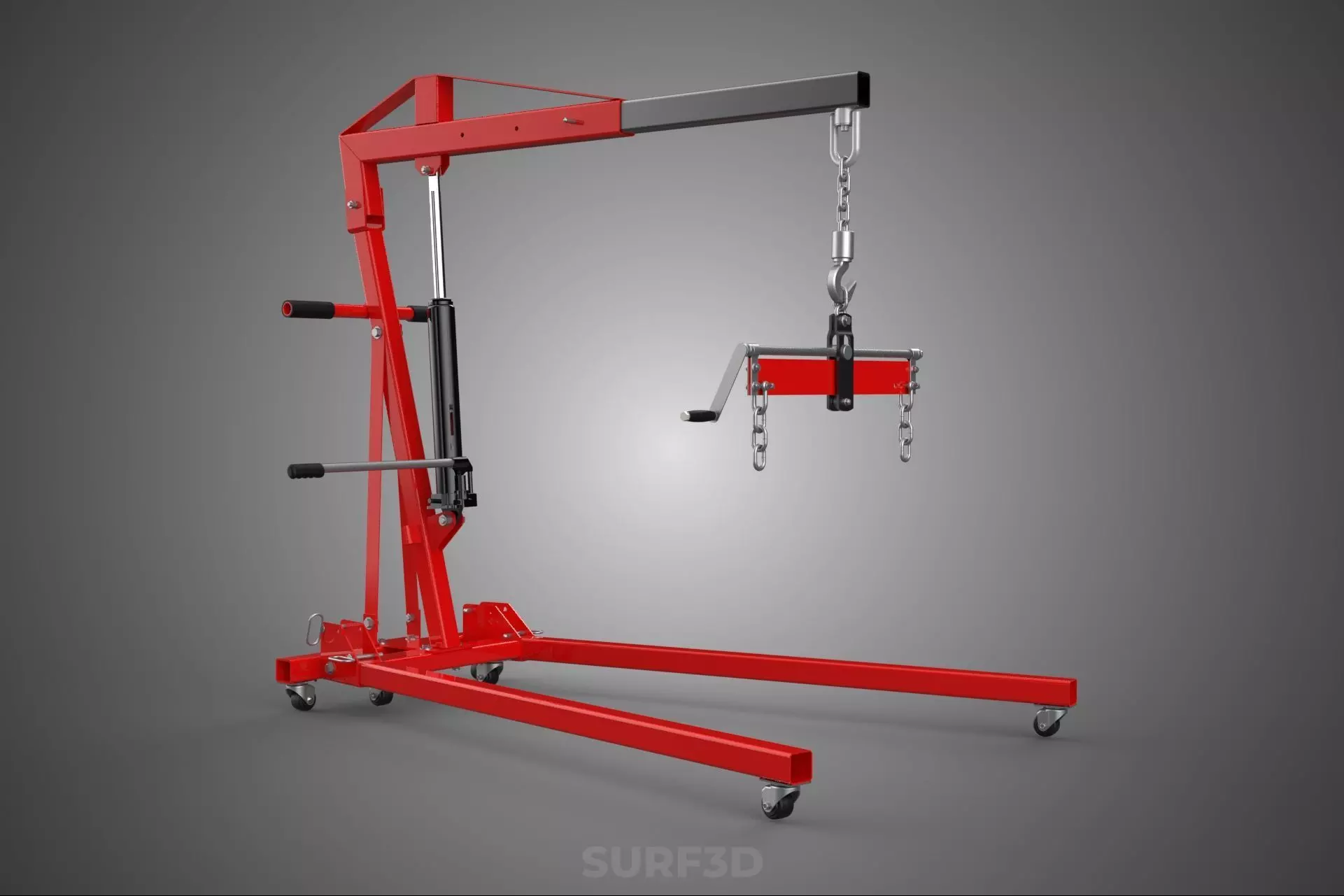

JACK ENGINE CRANE HOIST LIFTING LEVELER BALANCER STABILIZER LOAD 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
Jack Engine Crane Hoist Lifting Leveler Balancer Stabilizer Load

This title describes a system comprising an engine crane used in conjunction with a specialized load leveling device to facilitate the safe and precise lifting, balancing, and positioning of heavy, asymmetrical loads, most commonly internal combustion engines or transmissions, within a workshop or industrial environment. The phrase encapsulates the primary components and functions involved in such an operation.

Components and Functionality:

1. Engine Crane: The core piece of equipment, typically a portable, wheeled hydraulic crane with a prominent boom (jib). It utilizes a hydraulic pump (manual or powered) to extend a ram, raising the boom and the attached load. Engine cranes are specifically designed for the weight and form factor of automotive engines, offering the necessary reach and lifting capacity for removal from or installation into a vehicle chassis. Common designs include folding frames for easier storage and varied weight capacities.

2. Hoist: The lifting mechanism integrated with or attached to the crane's boom. This usually consists of a chain or steel cable terminated with a heavy-duty hook. The hoist facilitates the direct connection to the load or, as described by the title, to an intermediate leveling device.

3. Load Leveler / Balancer / Stabilizer: This is a critical accessory that distinguishes this system. It is a device suspended from the crane's hoist hook, acting as an interface between the single lifting point of the hoist and the multiple attachment points (typically 2 to 4) on the engine or load. Its primary feature is an adjustable mechanism, often a screw handle or crank, that allows the operator to shift the balance point of the suspended load relative to the hoist hook.

* Leveling/Balancing: By turning the adjustment handle, the points at which the leveler attaches to the engine move, effectively tilting the engine forward or backward. This ability to fine-tune the pitch or angle of the load is essential for aligning bolt patterns (e.g., engine to transmission, engine mounts) or maneuvering the load through restricted spaces (like engine bays).
* Stabilizing: The use of multiple attachment points distributed across the load, controlled by the leveling mechanism, provides inherent stability compared to lifting a heavy, irregularly shaped object from a single fixed point. This prevents uncontrolled swinging or tilting, which is crucial for safety and precision during installation or removal.

Purpose and Application:

The combination of an engine crane, hoist, and load leveler is indispensable in tasks requiring the removal or installation of vehicle engines or other substantial mechanical components. Engines are notoriously heavy and often have their center of gravity offset from any convenient single lifting point. Attempting to lift an engine with just a crane and hook typically results in the engine hanging at an awkward, unpredictable angle, making alignment with the vehicle's drivetrain or mounting points extremely difficult and hazardous. The load leveler mitigates this issue by allowing the operator to precisely control the tilt and balance of the engine throughout the lifting and maneuvering process, enabling smooth and safe insertion or extraction.

This system is widely used in:
* Automotive repair shops and garages.
* Vehicle restoration and modification projects.
* Engine building facilities.
* Industrial settings handling heavy, asymmetrical loads requiring precise positioning.

Safety Considerations:

Proper use of this equipment requires strict adherence to safety protocols, including:
* Ensuring the combined weight of the load and leveler does not exceed the stated capacity of the engine crane and the leveler itself.
* Verifying that the load is securely attached to the leveler at appropriate, robust lifting points on the engine.
* Confirming the leveler is correctly attached to the crane's hoist hook.
* Maintaining stability of the crane base on a level, solid surface.
* Controlling movements smoothly and slowly, keeping clear of the suspended load.

In summary, the phrase JACK ENGINE CRANE HOIST LIFTING LEVELER BALANCER STABILIZER LOAD refers to a specialized lifting system centered around an engine crane and incorporating a load leveling device to achieve controlled, balanced, and stable lifting and positioning of heavy engine-like loads.

KEYWORDS: Engine crane, engine hoist, load leveler, engine tilter, lifting equipment, automotive tools, garage equipment, heavy lifting, mechanical lifting, hydraulic crane, shop crane, automotive repair, engine removal, engine installation, weight balancing, load balancing, load stabilization, lifting accessory, manual lifting, precision lifting, workshop equipment, lifting mechanism, material handling, vehicle maintenance, engine mechanics, repair shop tools, lifting device, stability, balancing mechanism, asymmetrical load.
