Hydraulic Rack and Pinion Rotary Actuator 3D model

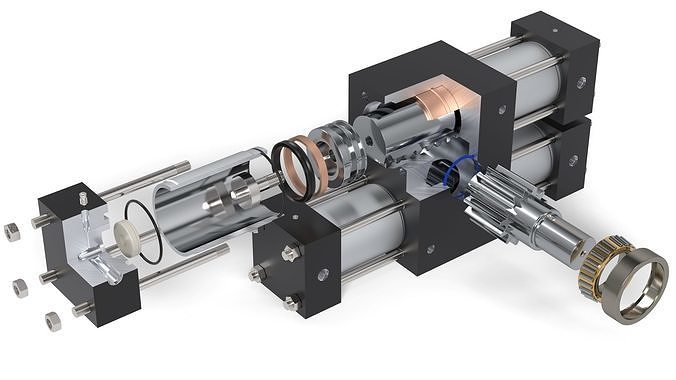

3D Model replica of a Hydraulic Rack and Pinion Rotary Actuator (Parker) created in Solidworks as multibody part for illustration and educational purposes (detail and parts is what you see in the rendering images).
This is a very complete package with several file formats included for your convenience.
Included is the SolidWorks Visualize 2022 .svpj file used for the renderings.
I am confident this can be 3D printed, but I haven't tested my self.
Model dimensions are proportional but not accurate to the actual equipment (Use only for educational and Instructional purposes).Solidworks Model dimensions:17.375L x 5.5 D x 8.25H OverallRacks: 4x4Cylinder Diameter OD 3.25"
*Model detail is what you see in the renderings.
Please like if you do, and let me know if you have any questions . . . Thanks!
