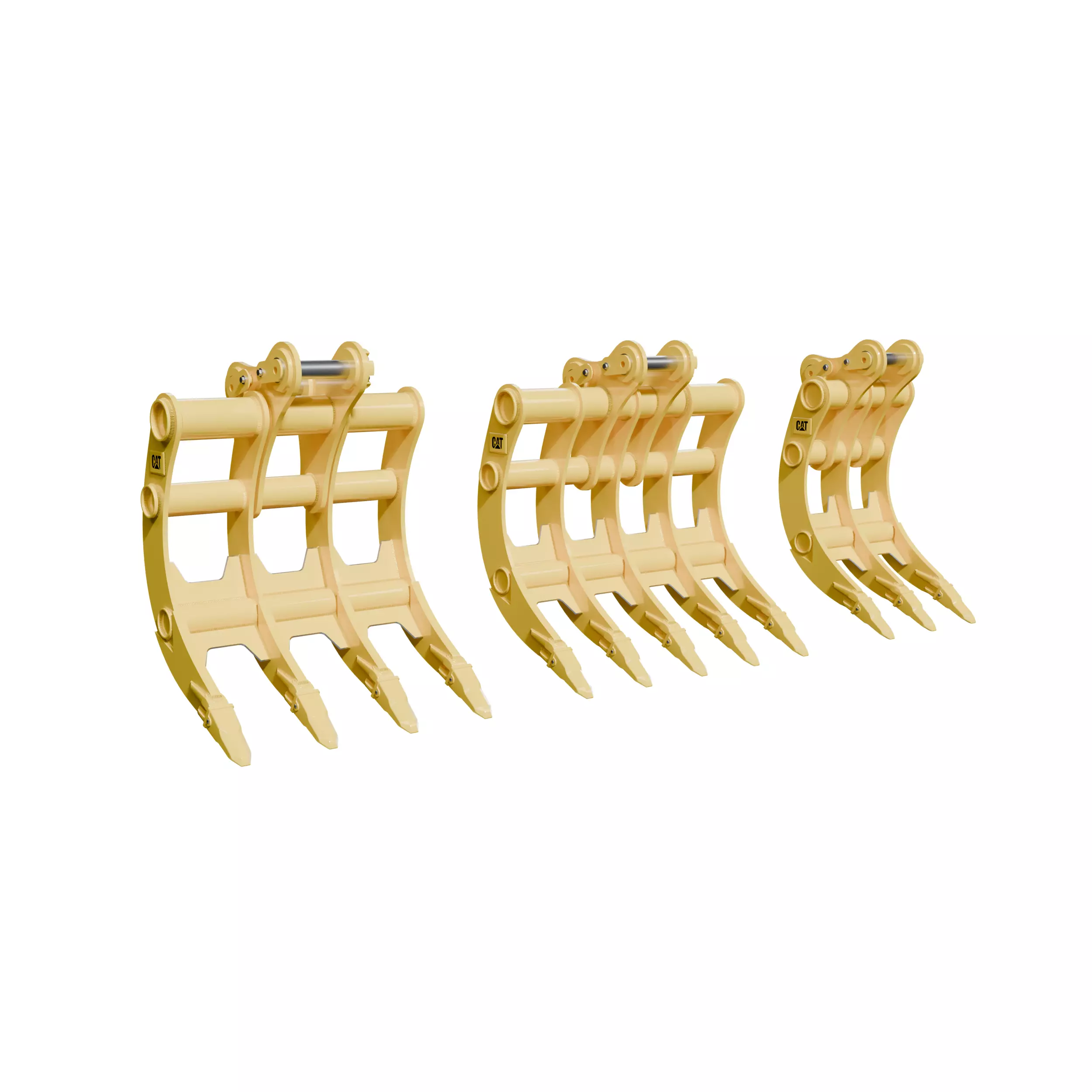

CAT Excavator Rake 3 - 4 and 5 tines 3D MODEL Low-poly 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION
  • This 3D model features applied materials with non-overlapping UVs separated by material. It includes a weld Normal Map, properly unwrapped and provided in 2K resolution.
  • comes with 3 types of rake 3,4 and 5 tines with 0,45cm(0.17 in ) tine space.
  • removable and replaceable Bucket Teeth.

  • works with the Bucket Teeth pack https://www.cgtrader.com/3d-models/vehicle/industrial-vehicle/bucket-teeth-pack-universal-excavator-loader-attachments

  • ╔ [ Coupler Dimensions – you can resize to fit your excavator)

  • ╞ Coupler width

  • │ ├ Internal opening (inside to inside): 350 mm | 35.0 cm | 13.8 in

  • ╞ Pins

  • ╚ └ Pin diameter: Ø 95 mm | 9.5 cm | 3.7 in

  • .........................................................................................................................................................

  • ╔ [ File Formats ]

  • ╞ BLENDER .BLEND

  • ╞ .FBX

  • ╞ COLLADA .DAE

  • ╞ .OBJ

  • ╞ glTF 2.0 .glb / .gltf

  • ╚ .STL

  • .........................................................................................................................................................

  • ╔ [ Mesh ]

  • ╞ 51,324 verts.( all 3 models )

  • ╞ 51,144 faces.( all 3 models )

  • ╞ 89,904 triangles.( all 3 models )

  • ╞ 19,483 verts.( each )

  • ╞ 19,454 faces.( each )

  • ╞ 34,028 triangles.( each )

  • ╞ Real-world scale object

  • ╞ .blend file with normals, seams, and weighted normals

  • ╞ .blend file with collections and pivot placed

  • ╞ This model is not rigged or animated

  • ╚ Game-optimized topology (not strictly quad-based)

  • .........................................................................................................................................................

  • ╔ [ Materials and Texturing ]

  • ╞ Model includes materials and texture maps for welds.

  • ╞ Metal-Roughness workflow texture set separated by label and weld maps

  • ╚ Texture maps included: 512, 1K, and 2K

  • .........................................................................................................................................................

  • ╔ [ UV Mapping ]

  • ╞ Materials-only version: single UV unwrap per material, non-overlapping

  • ╞ Textured version: single UV unwrap per material, non-overlapping

  • ╞ Fully unwrapped UVs

  • ╚ 0–1 UV space

  • .........................................................................................................................................................

  • ╔ [ Disclaimer ]

  • ╞ This model is not designed for CAD use or 3D printing

  • ╞ Created based solely on image references, not official files, assets, or scans

  • ╞ The model may not include all real-world details

  • ╞ The model may not follow exact real-world measurements

  • ╞ Intended for visualization, educational, or gaming purposes only

  • ╞ I do not own any rights to the real-world product, its brand, trademarks, or related patents

  • ╚ This is a fan-made digital product and is not affiliated with or endorsed by the original brand

  • .........................................................................................................................................................

  • ╔ Thank you!! Hope you like it! I hope you enjoy this model. Feel free to check out my other creations!

  • ╚ For quick support or requests, check the Discord link https://discord.gg/kD7NYxh32e.
