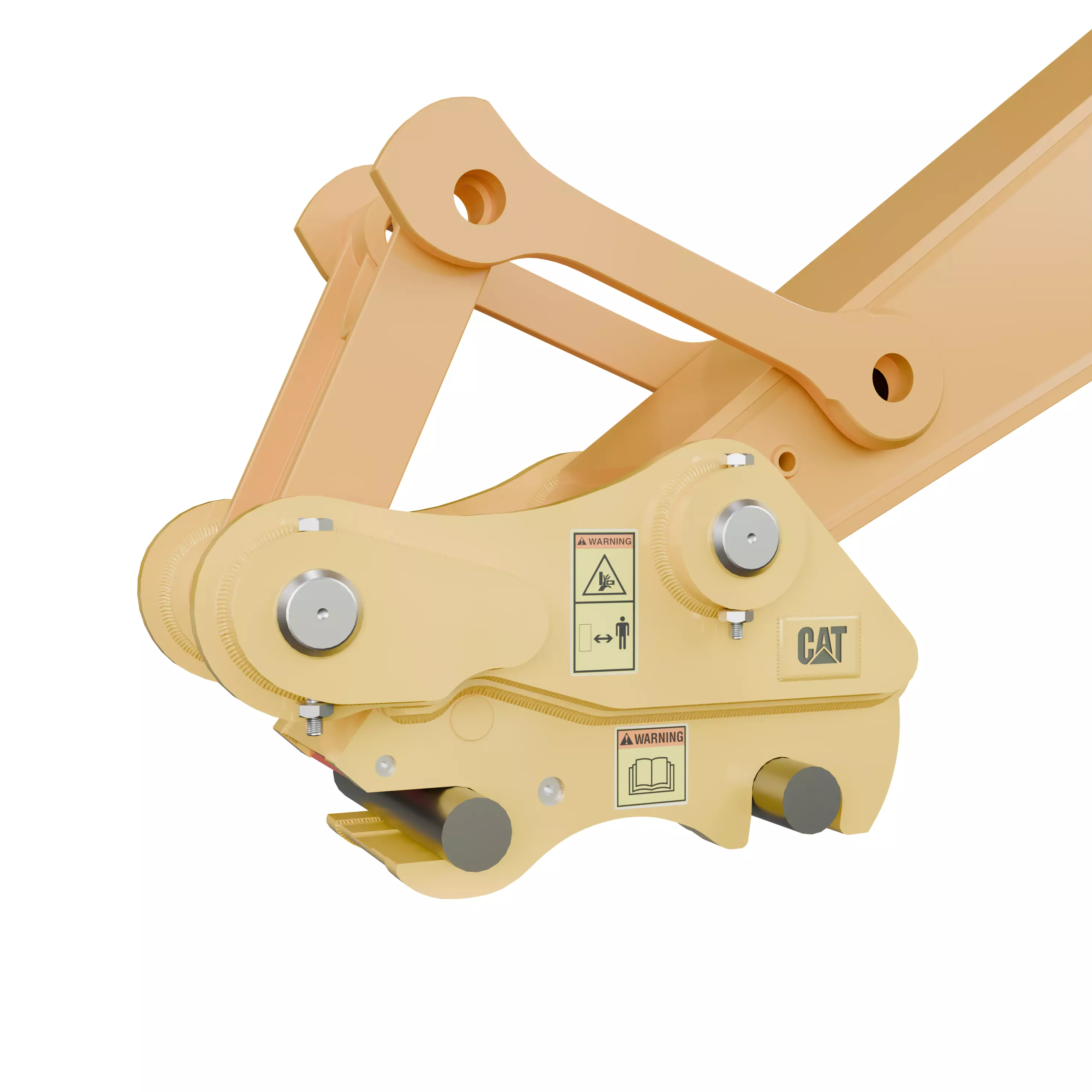

- This 3D model features applied materials with non-overlapping UVs separated by material. It includes a weld Normal Map and decal maps , properly unwrapped and provided in 2K resolution.
- Separated mesh objects by moving parts.
comes with 2 mesh coupler positions locked and unlocked.
╔ [ Coupler Dimensions – you can resize to fit your excavator)
╞ Pin-to-pin distance (center to center)
│ ├ Machine side (stick - link): 544 mm | 54.4 cm | 21.4 in
│ └ Bucket side: 468 mm | 46.8 cm | 18.4 in
╞ Coupler width
│ ├ Internal opening (inside to inside): 340 mm | 34.0 cm | 13.4 in
│ └ Overall external width (outside to outside) : 550 mm | 55.0 cm | 21.7 in
╞ Pins
╚ └ Pin diameter: Ø 90 mm | 9.0 cm | 3.5 in
.........................................................................................................................................................
╔ [ File Formats ]
╞ BLENDER .BLEND
╞ .FBX
╞ COLLADA .DAE
╞ .OBJ
╞ glTF 2.0 .glb / .gltf
╚ .STL
.........................................................................................................................................................
╔ [ Mesh ]
╞ 29.7248 verts.
╞ 31,894 faces.
╞ 56,372 triangles.
╞ Real-world scale object
╞ .blend file with normals, seams, and weighted normals
╞ .blend file with collections and pivot placed
╞ This model is not rigged or animated
╚ Game-optimized topology (not strictly quad-based)
.........................................................................................................................................................
╔ [ Materials and Texturing ]
╞ Model includes materials and texture maps for welds and labels
╞ Metal-Roughness workflow texture set separated by label and weld maps
╚ Texture maps included: 512, 1K, and 2K
.........................................................................................................................................................
╔ [ UV Mapping ]
╞ Materials-only version: single UV unwrap per material, non-overlapping
╞ Textured version: single UV unwrap per material, non-overlapping
╞ Fully unwrapped UVs
╚ 0–1 UV space
.........................................................................................................................................................
╔ [ Disclaimer ]
╞ This model is not designed for CAD use or 3D printing
╞ Created based solely on image references, not official files, assets, or scans
╞ The model may not include all real-world details
╞ The model may not follow exact real-world measurements
╞ Intended for visualization, educational, or gaming purposes only
╞ I do not own any rights to the real-world product, its brand, trademarks, or related patents
╚ This is a fan-made digital product and is not affiliated with or endorsed by the original brand
.........................................................................................................................................................
