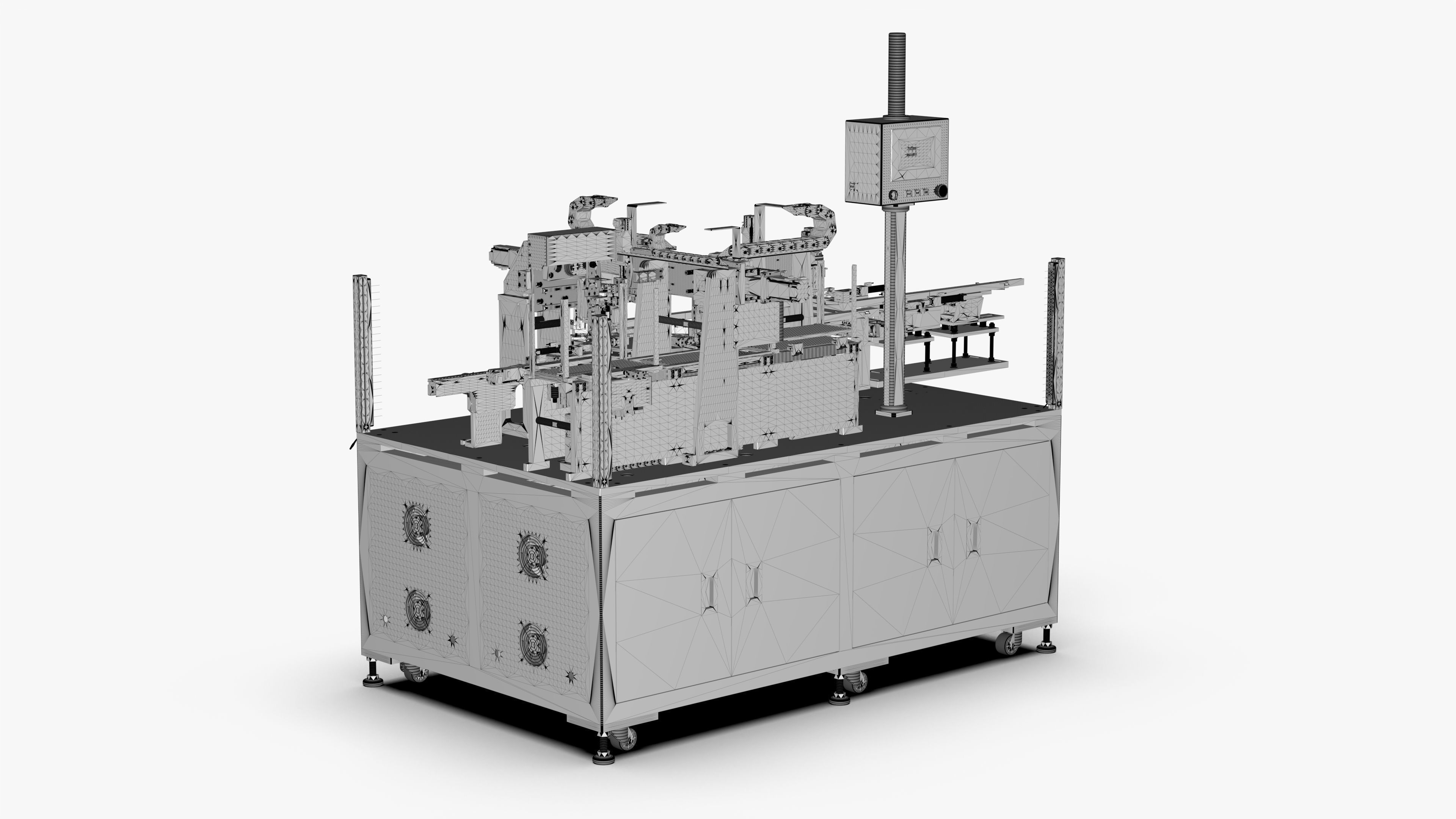

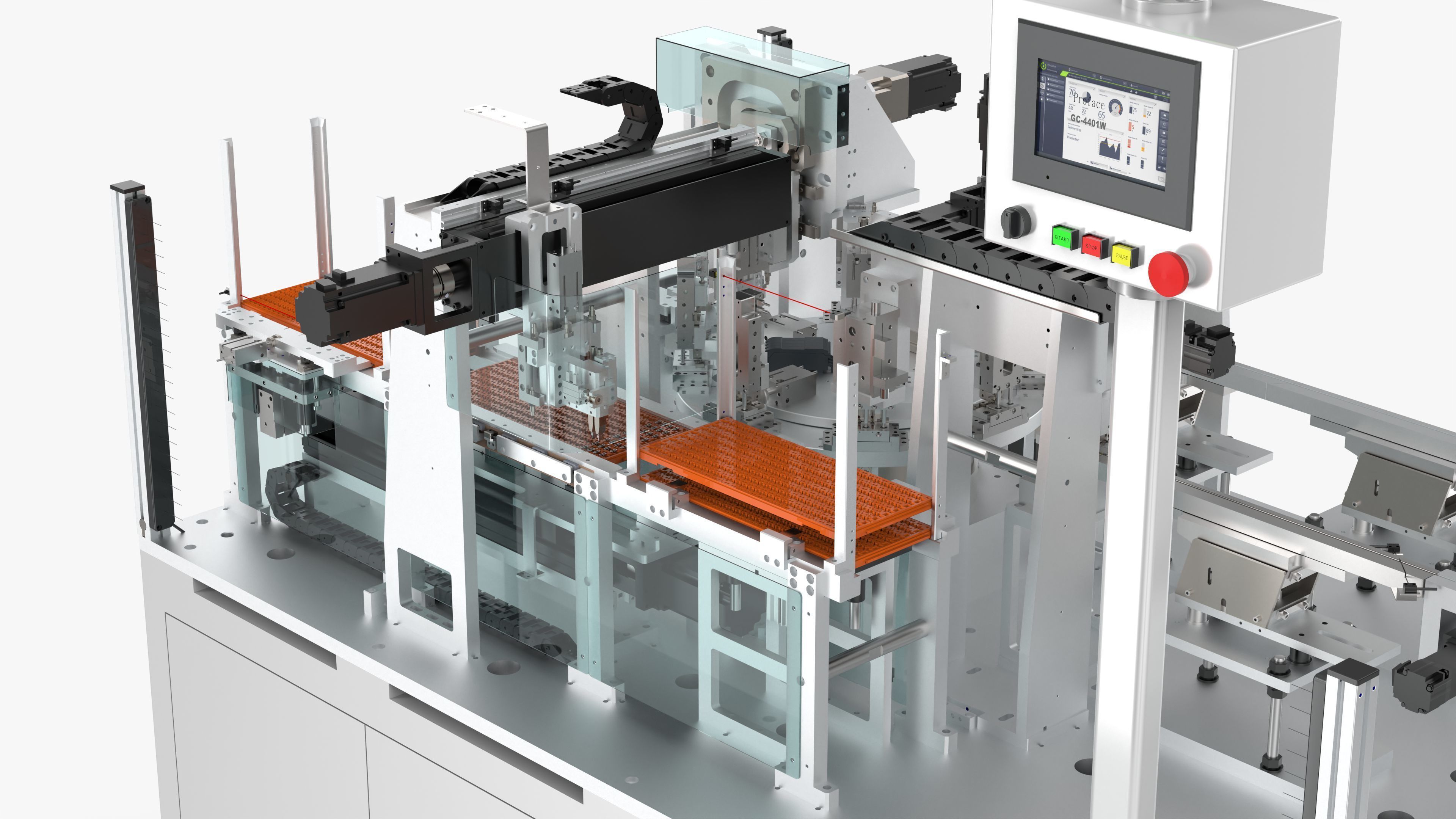

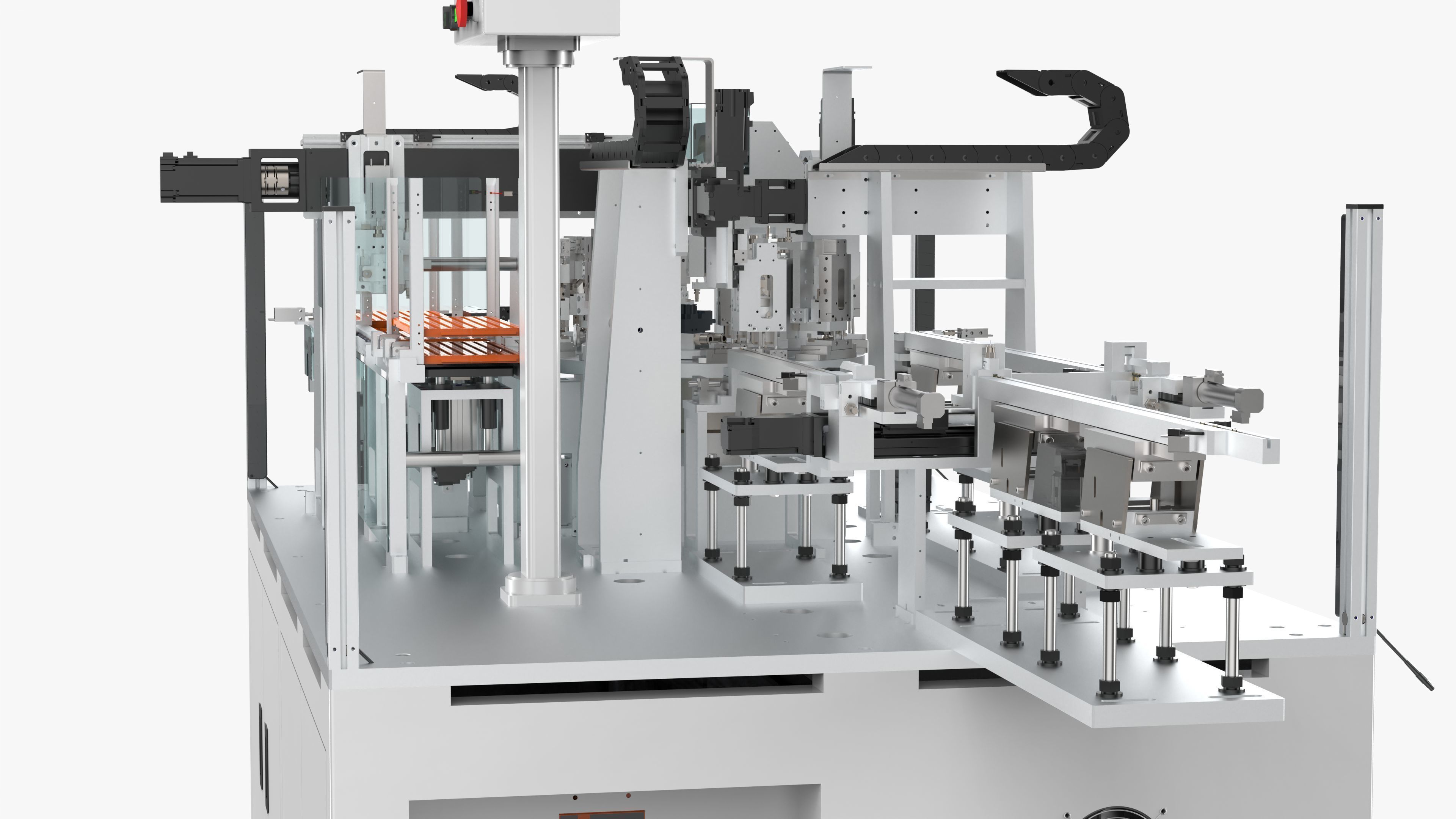

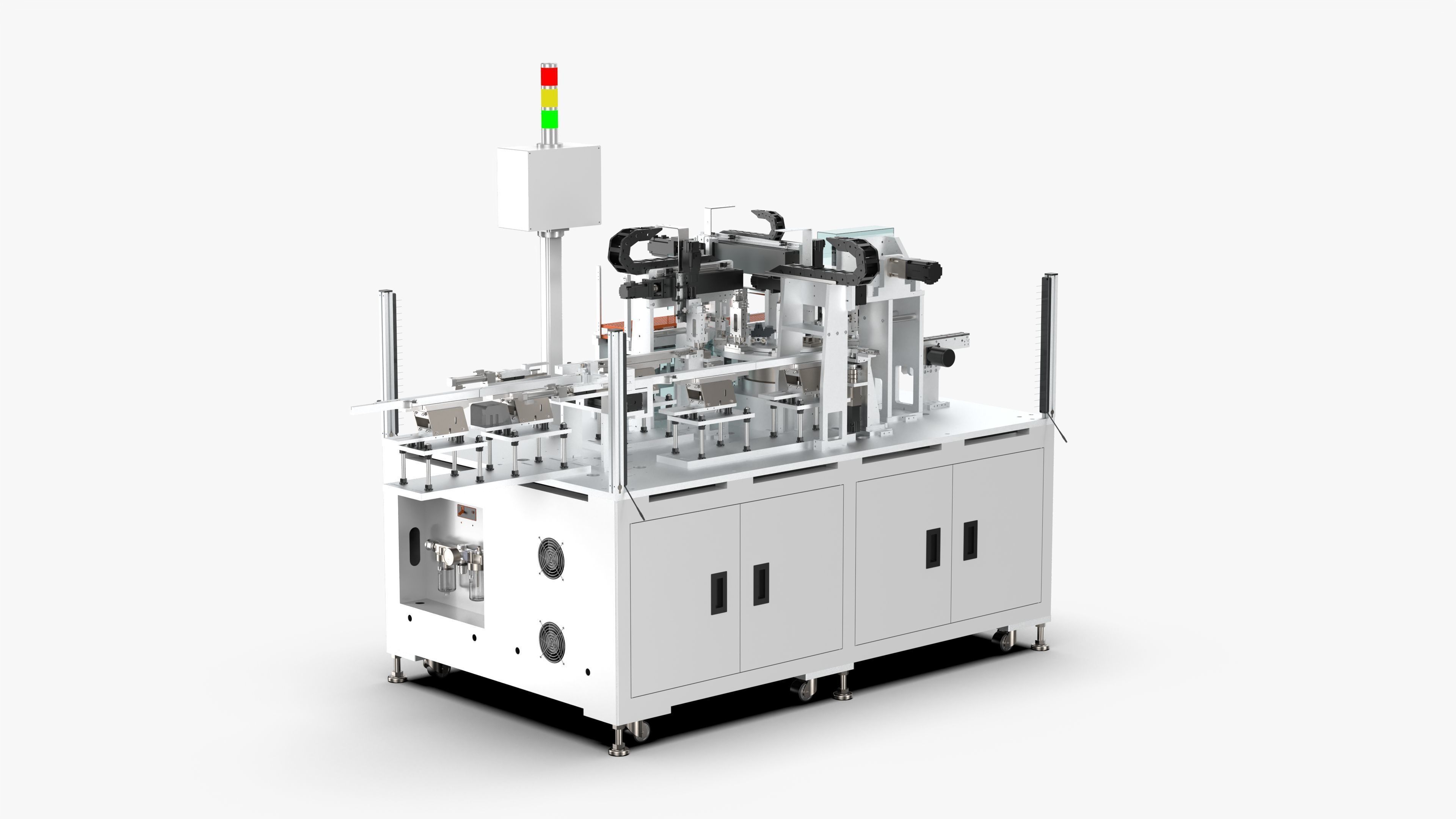

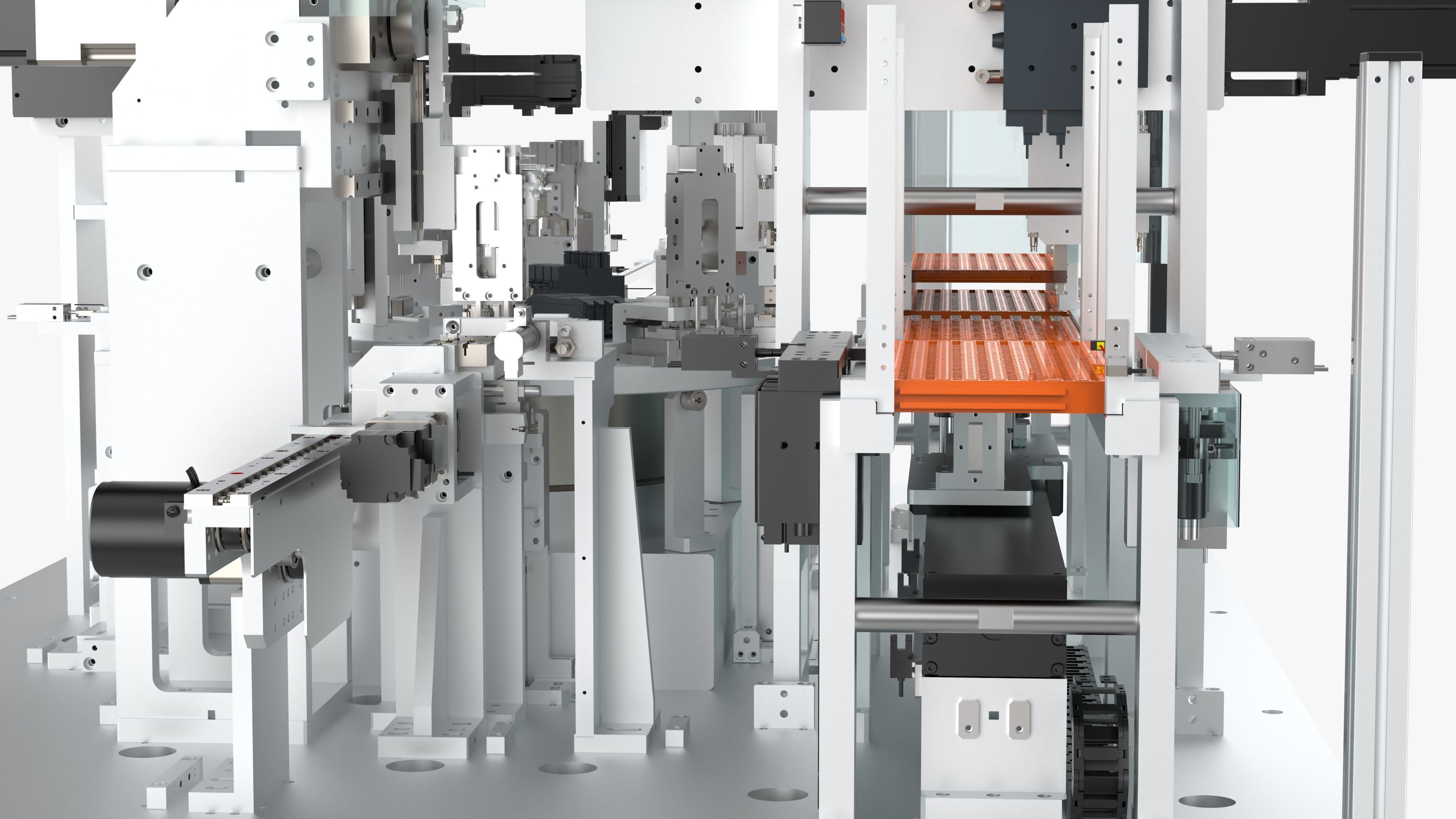

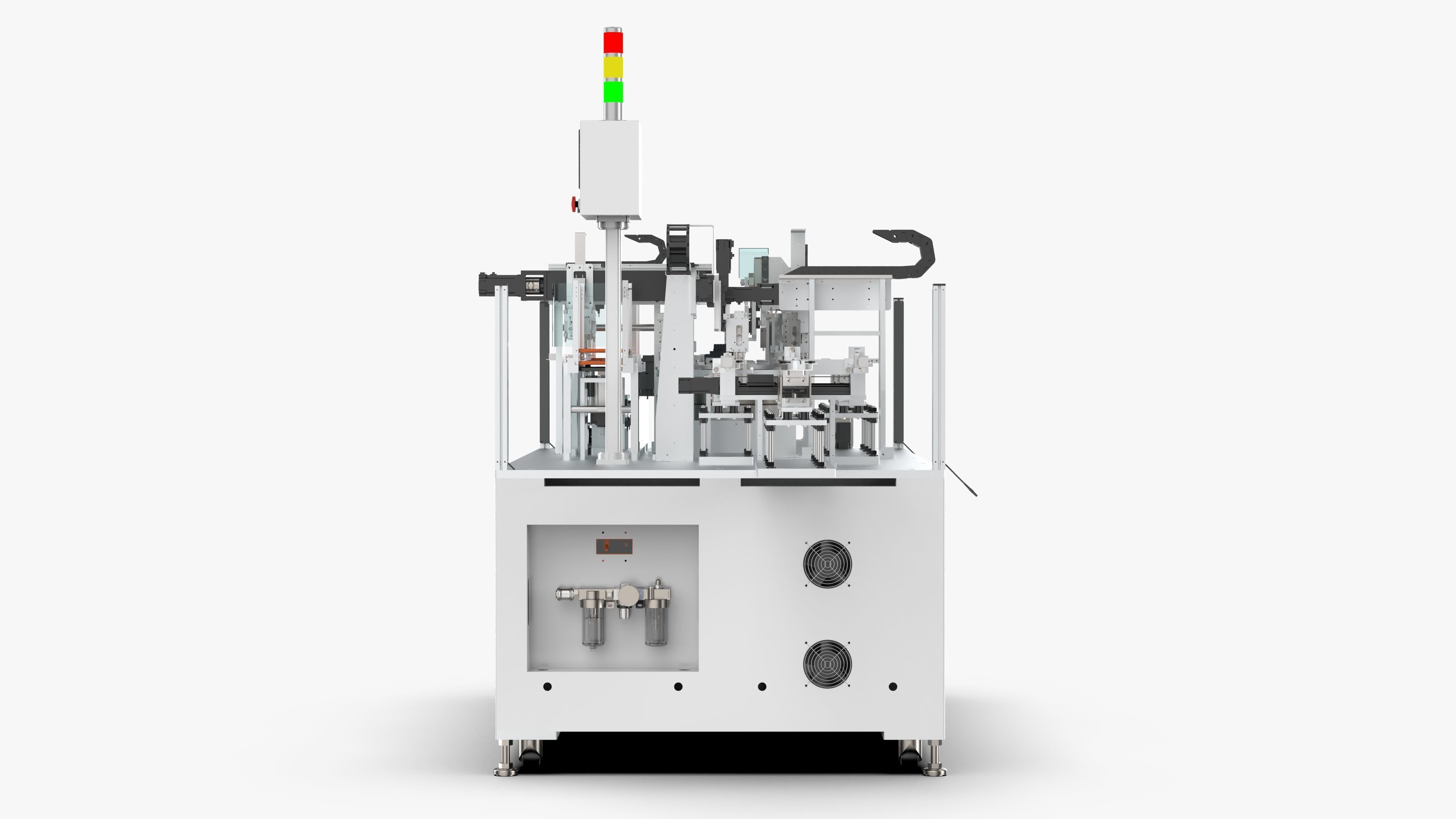

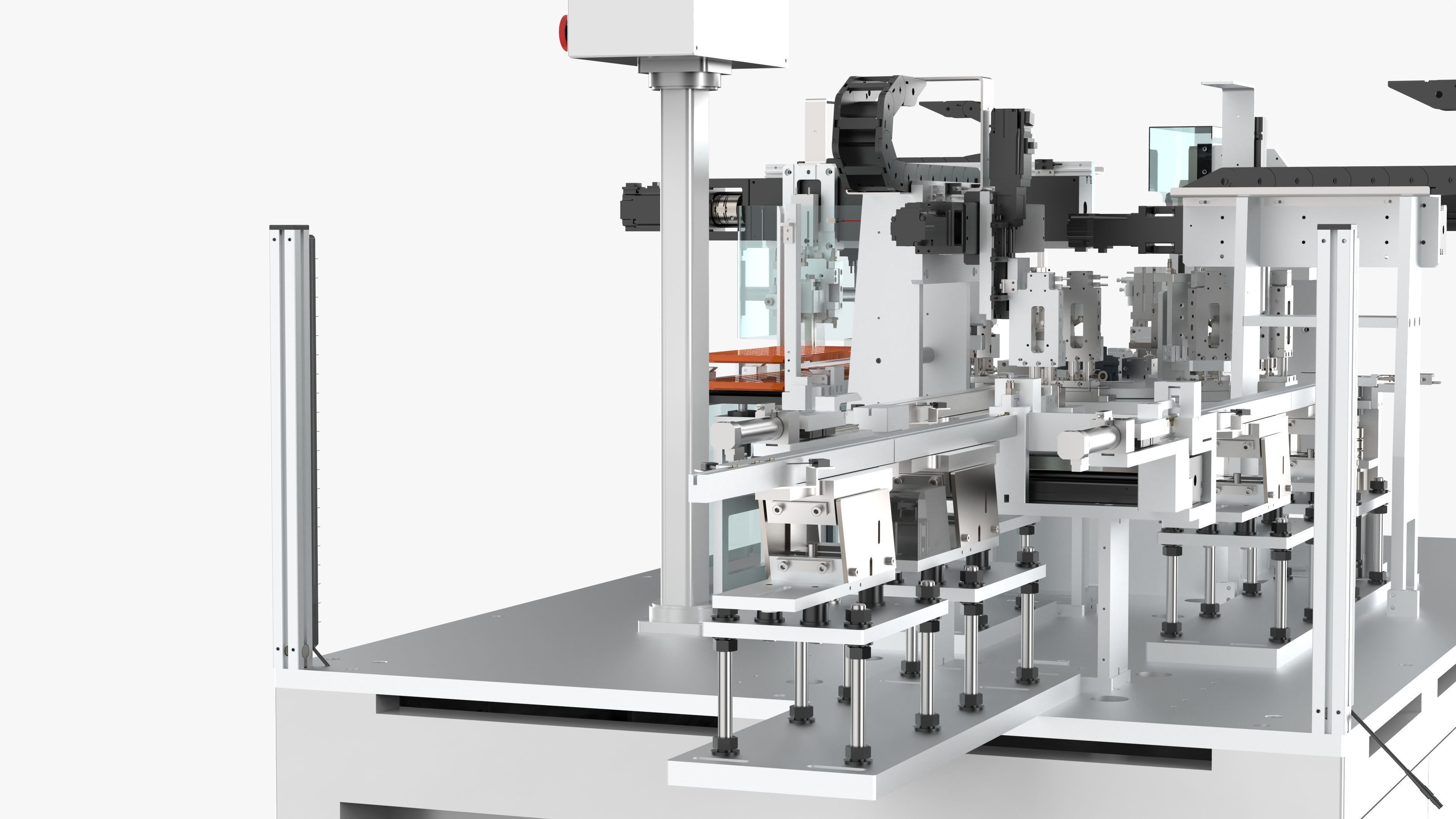

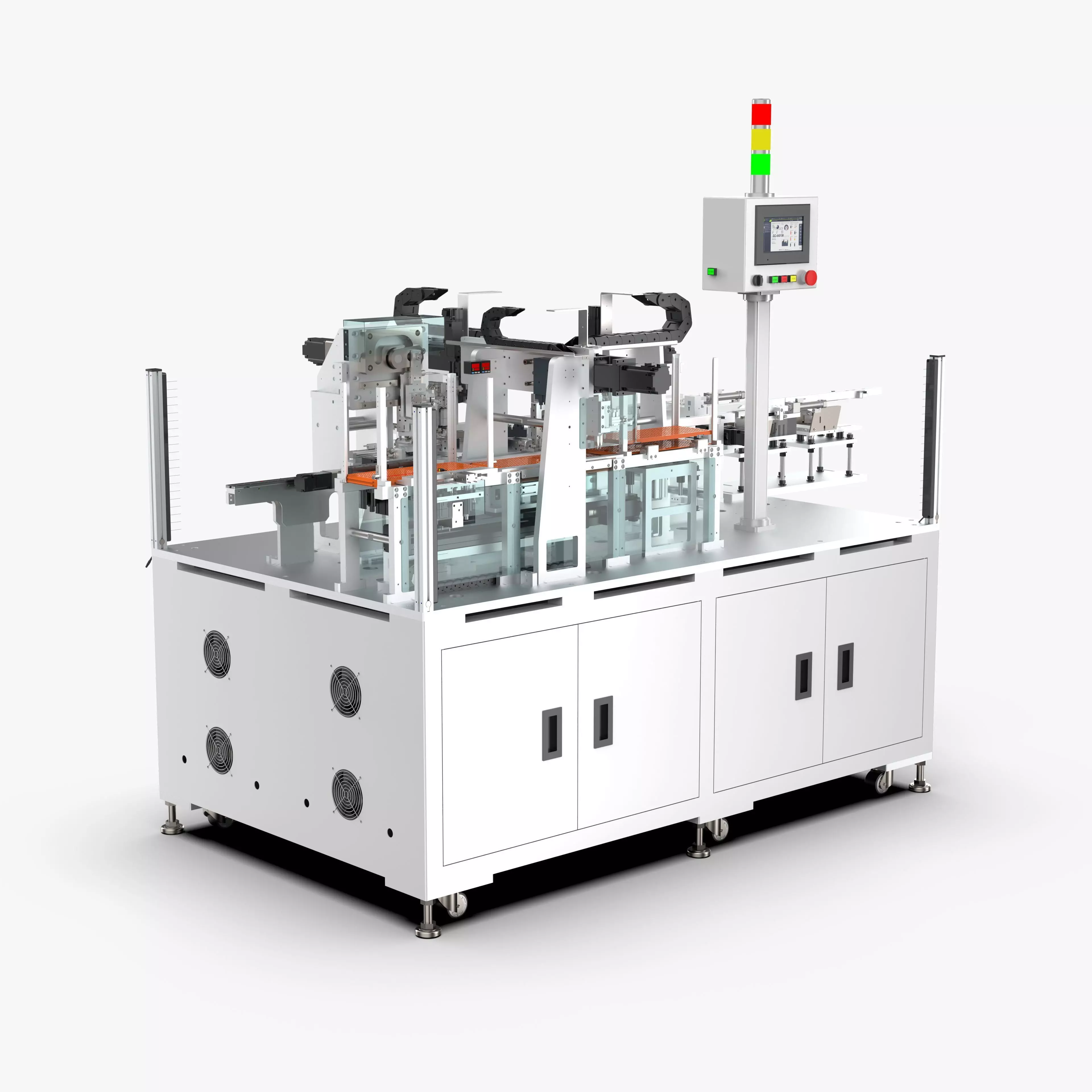

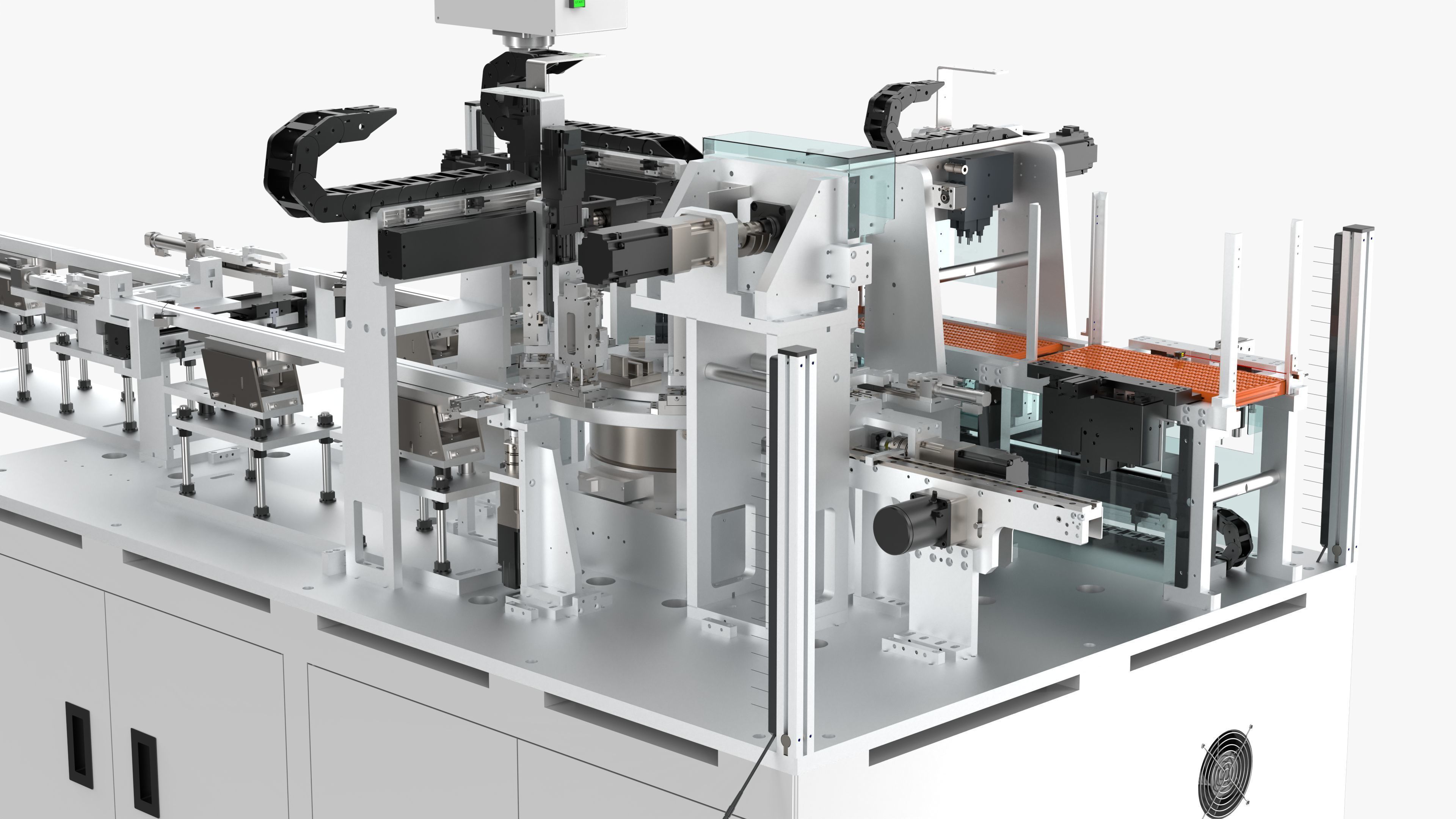

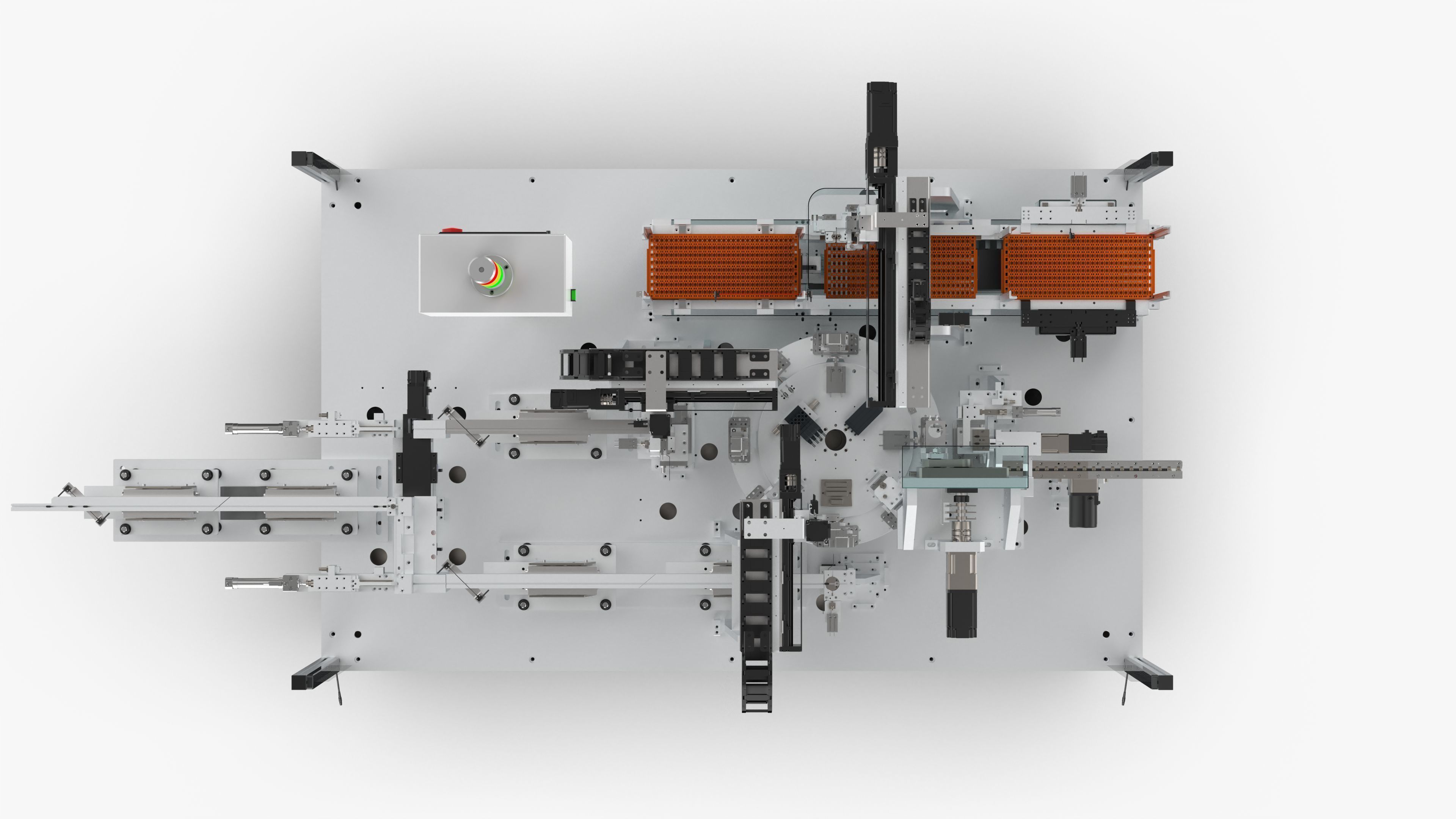

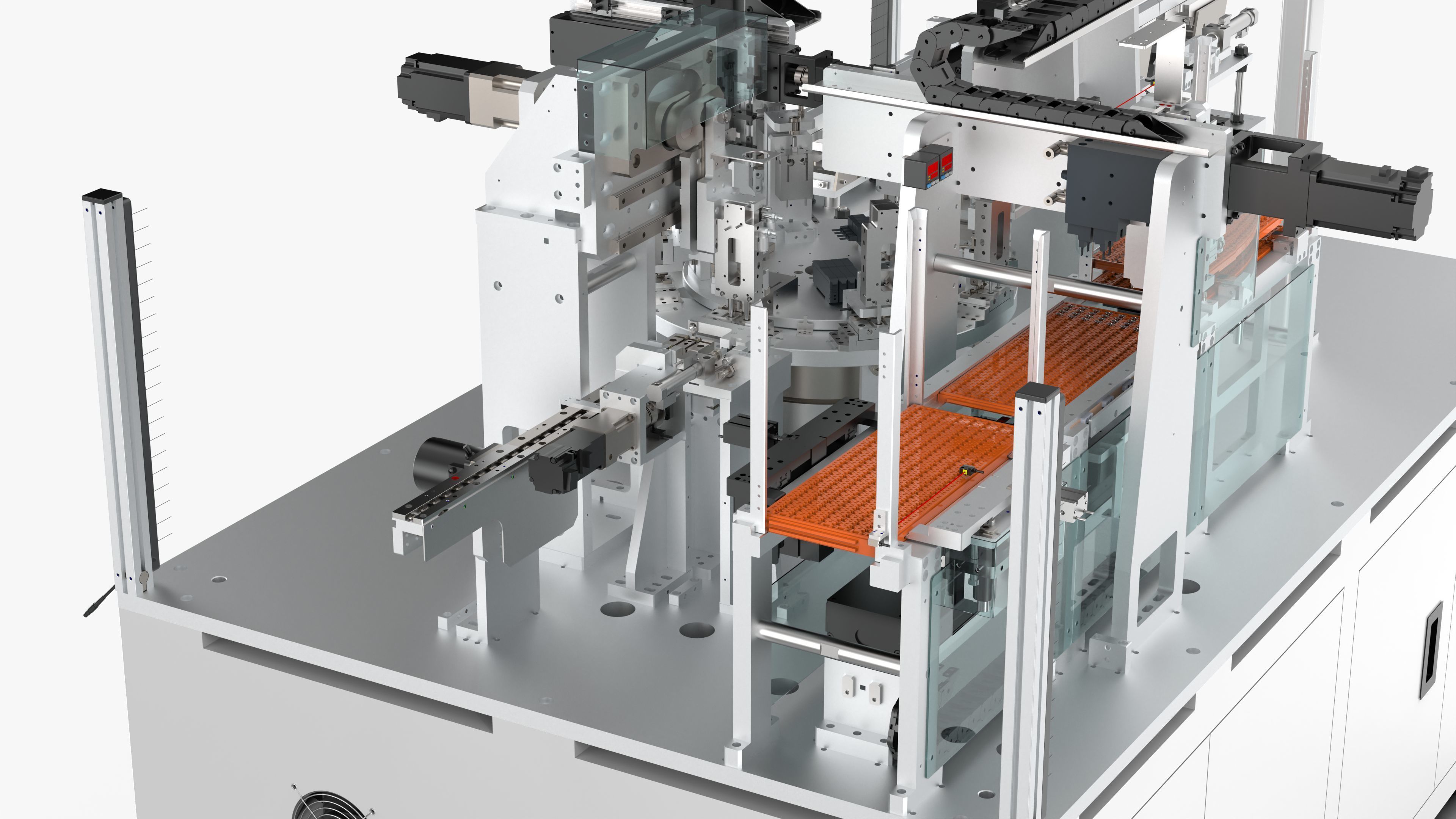

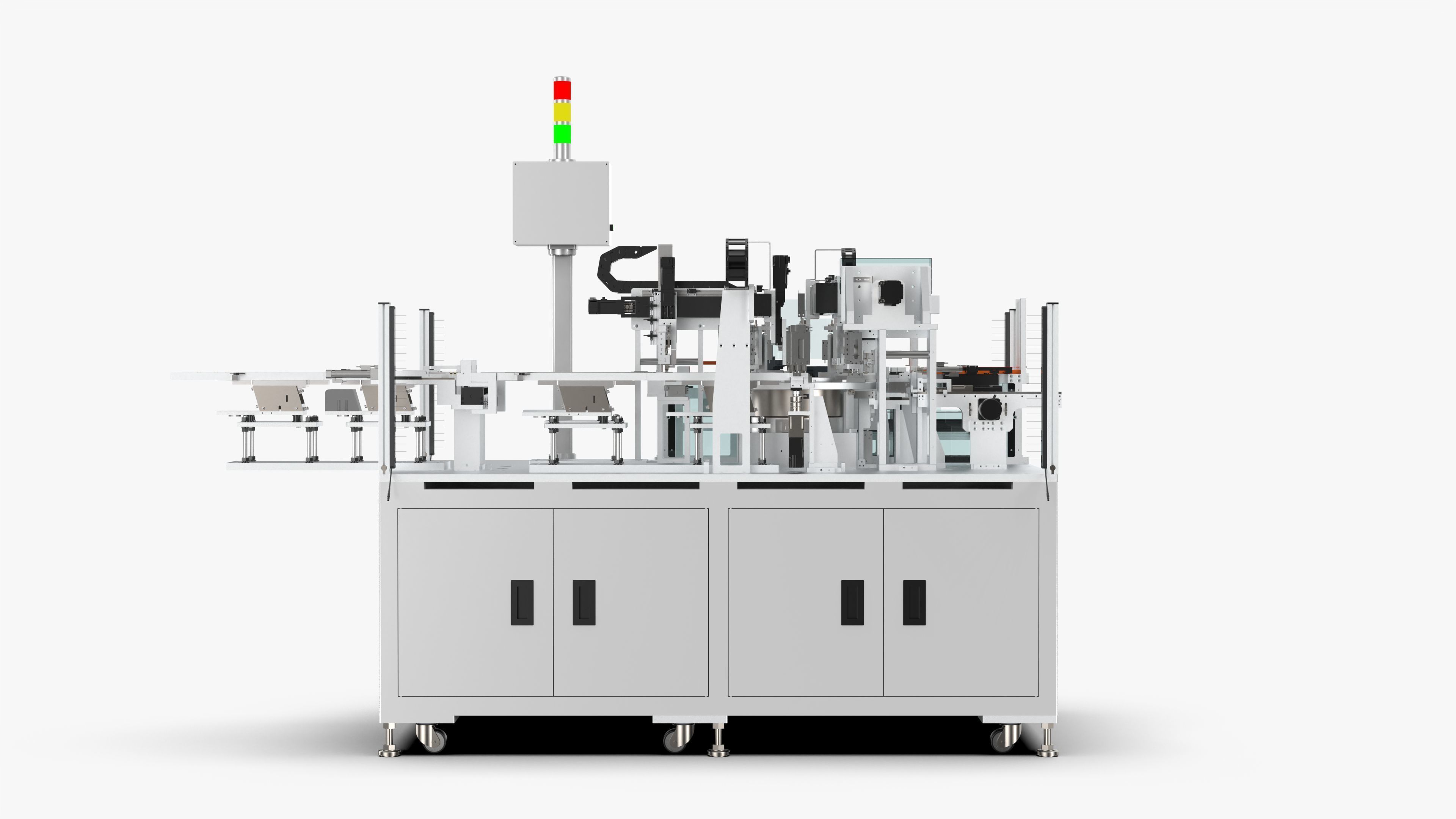

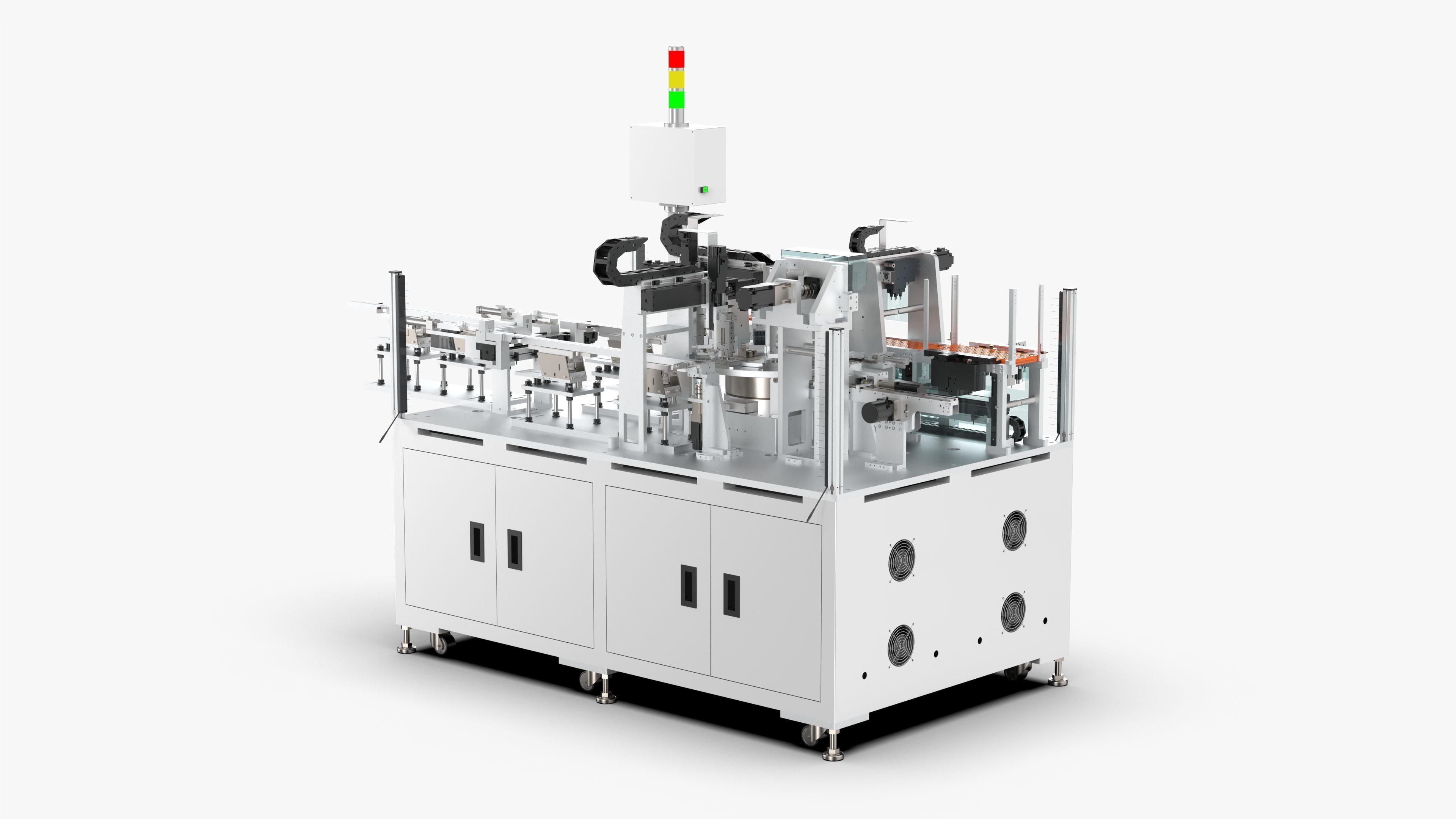

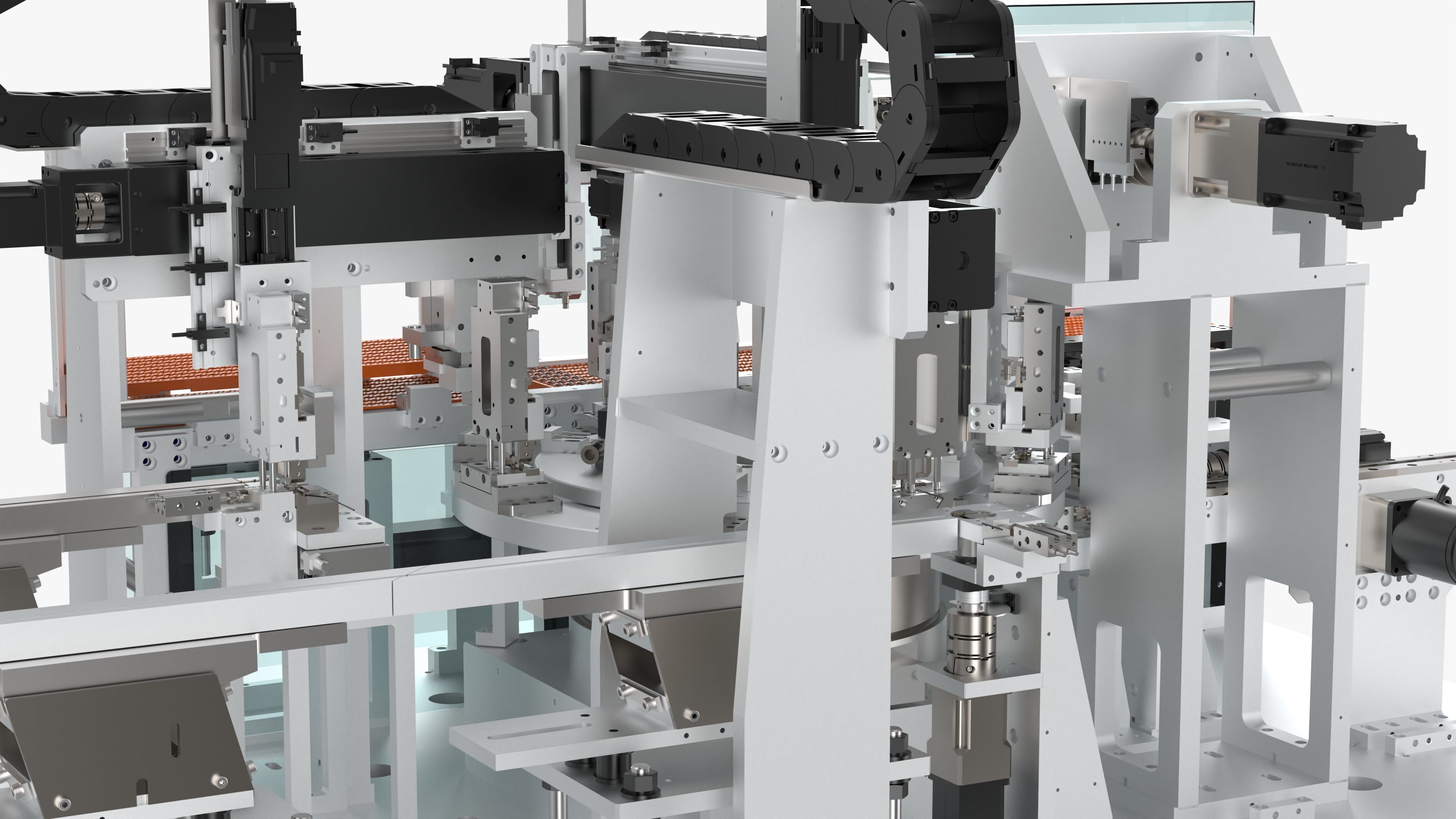

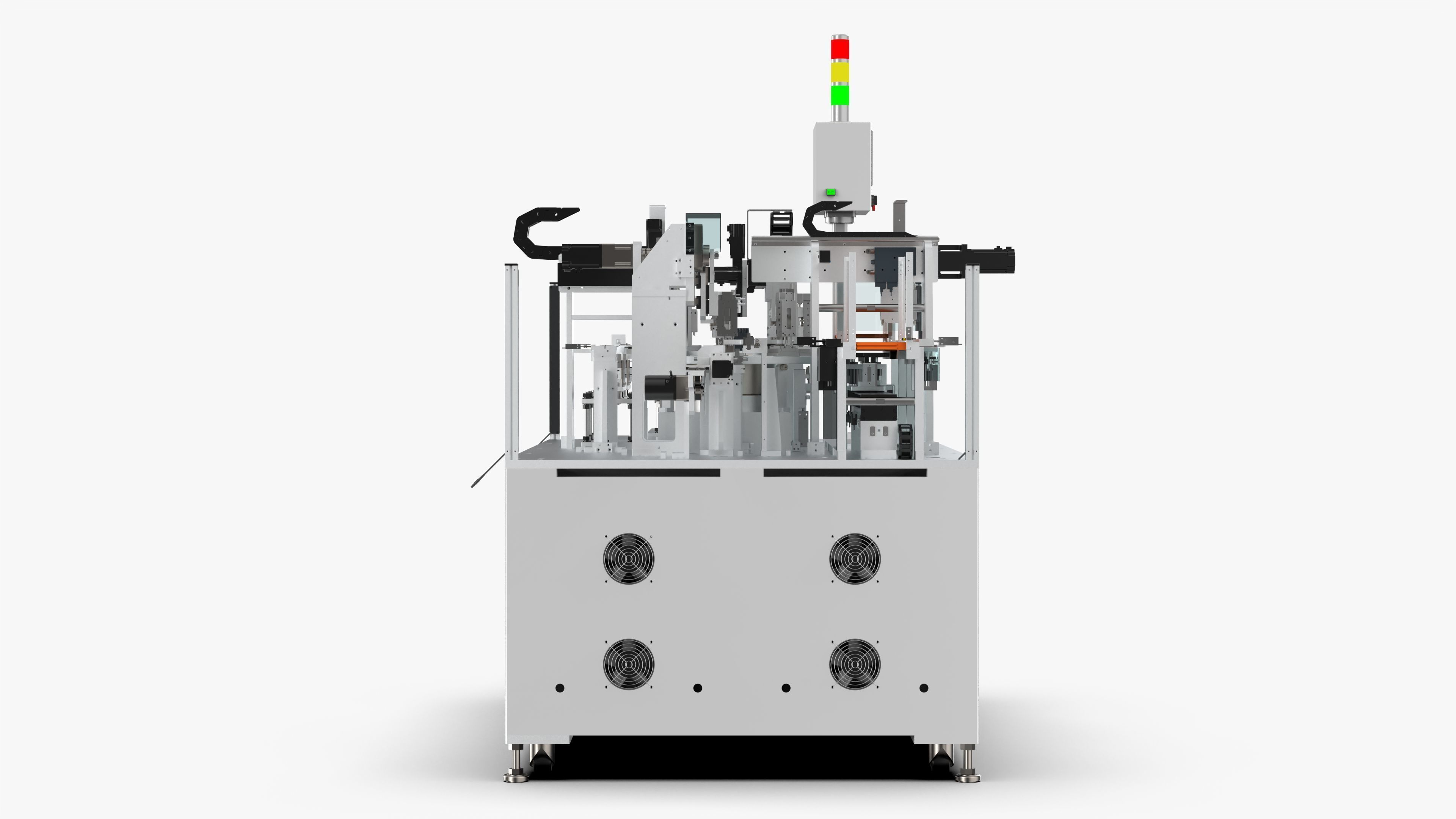

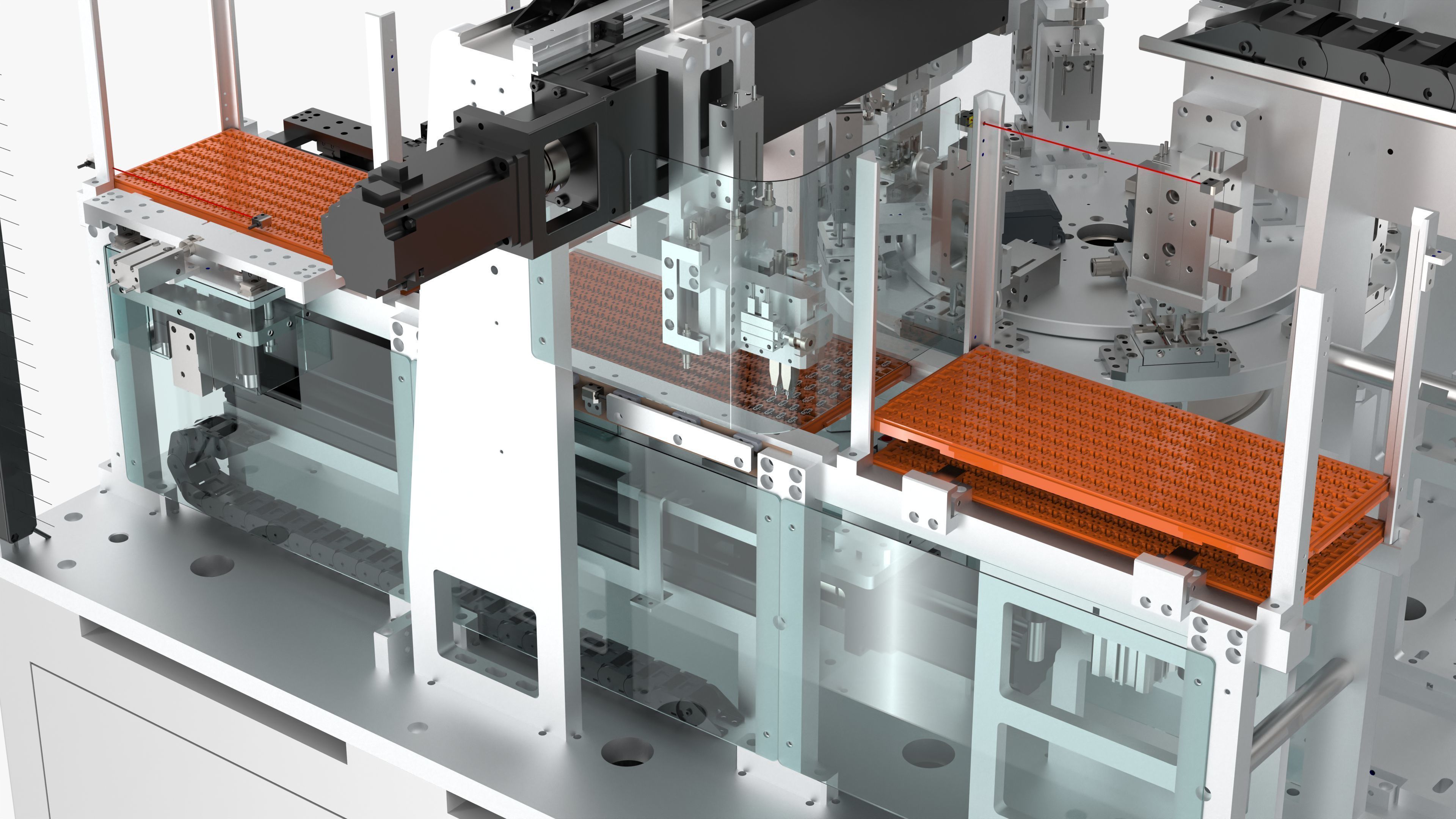

Automatic Electronic IM Terminal Assembly Machine 3D model

Automatic Electronic IM Terminal Assembly Machine

Introduction

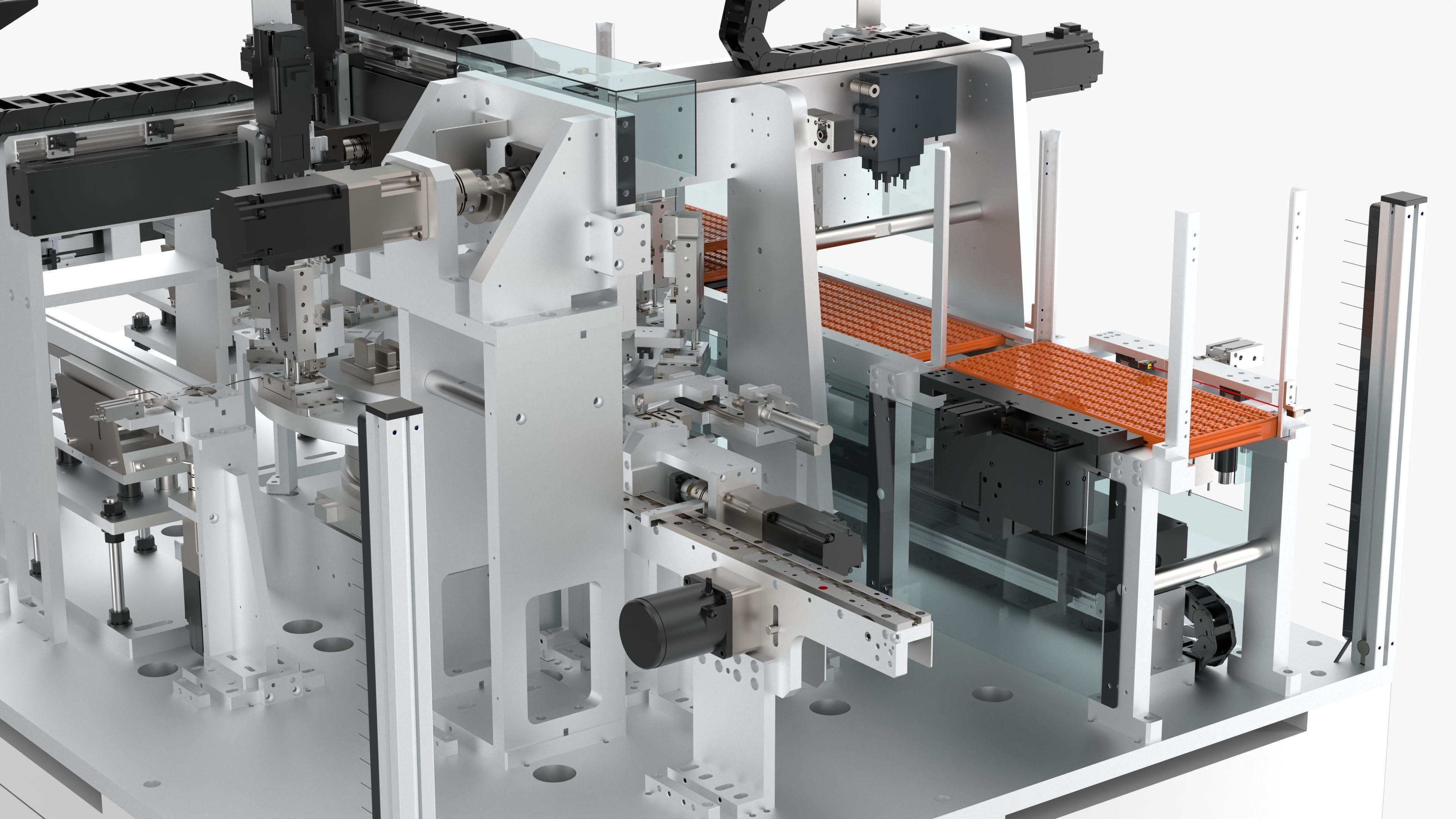

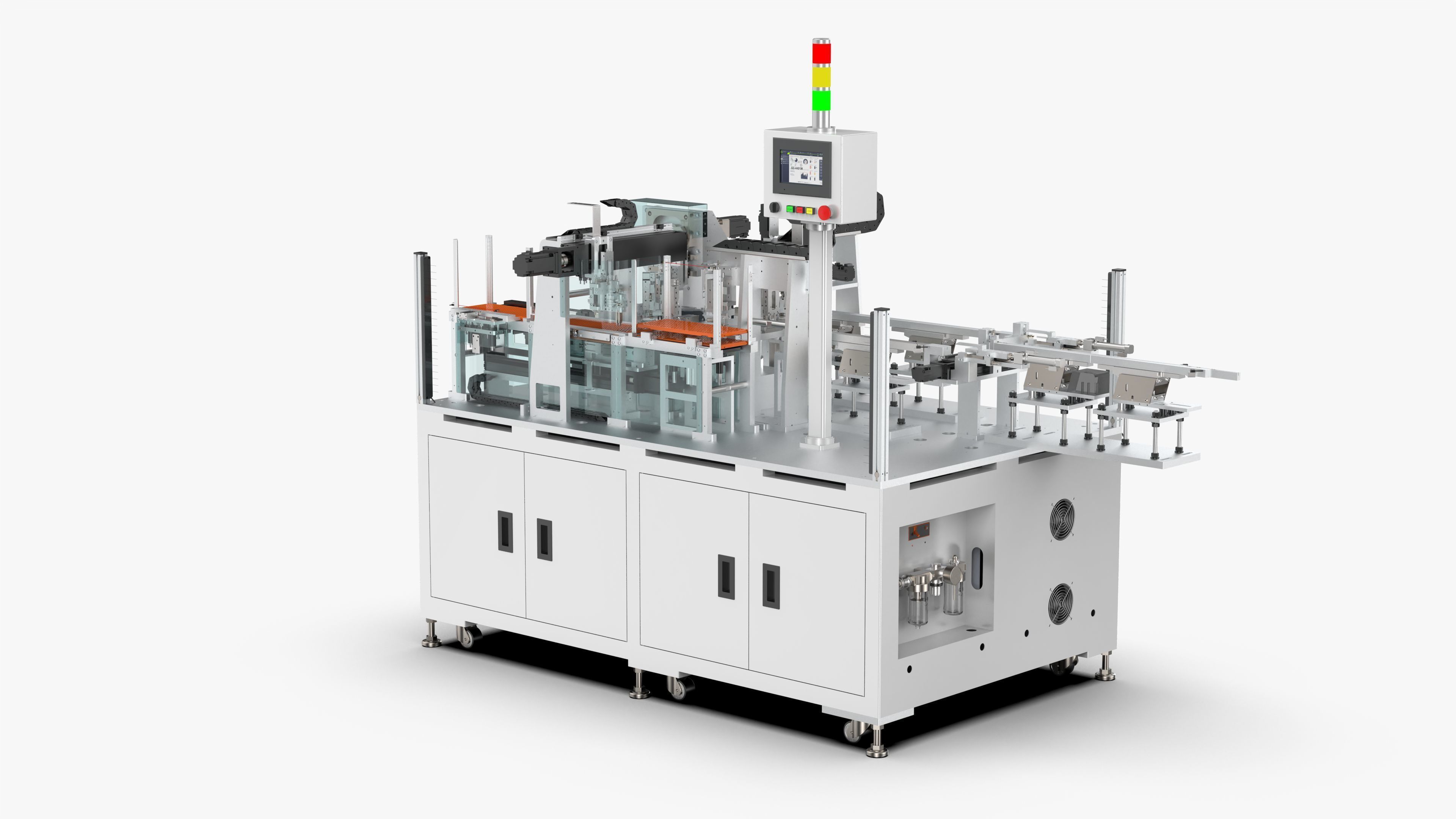

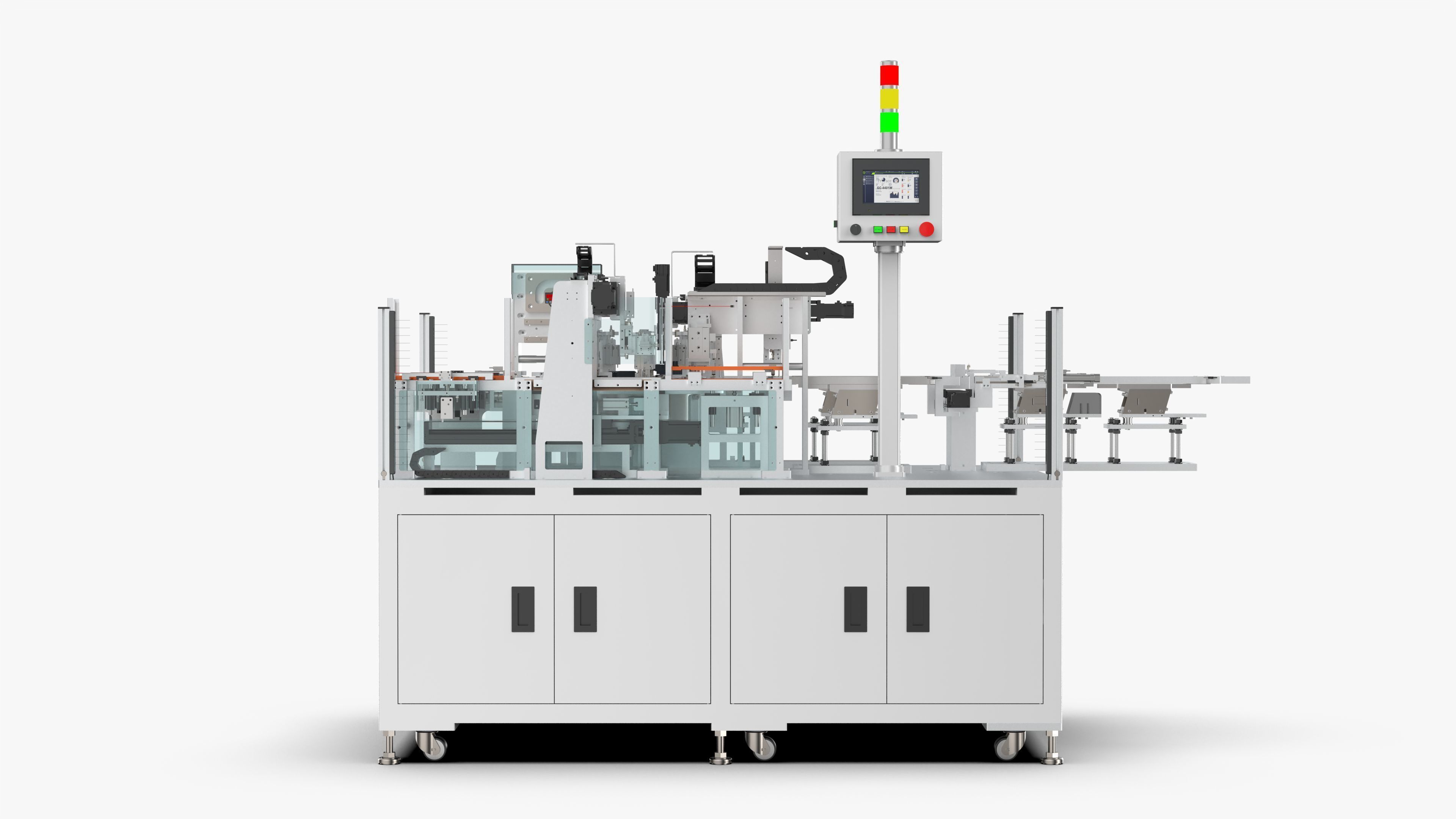

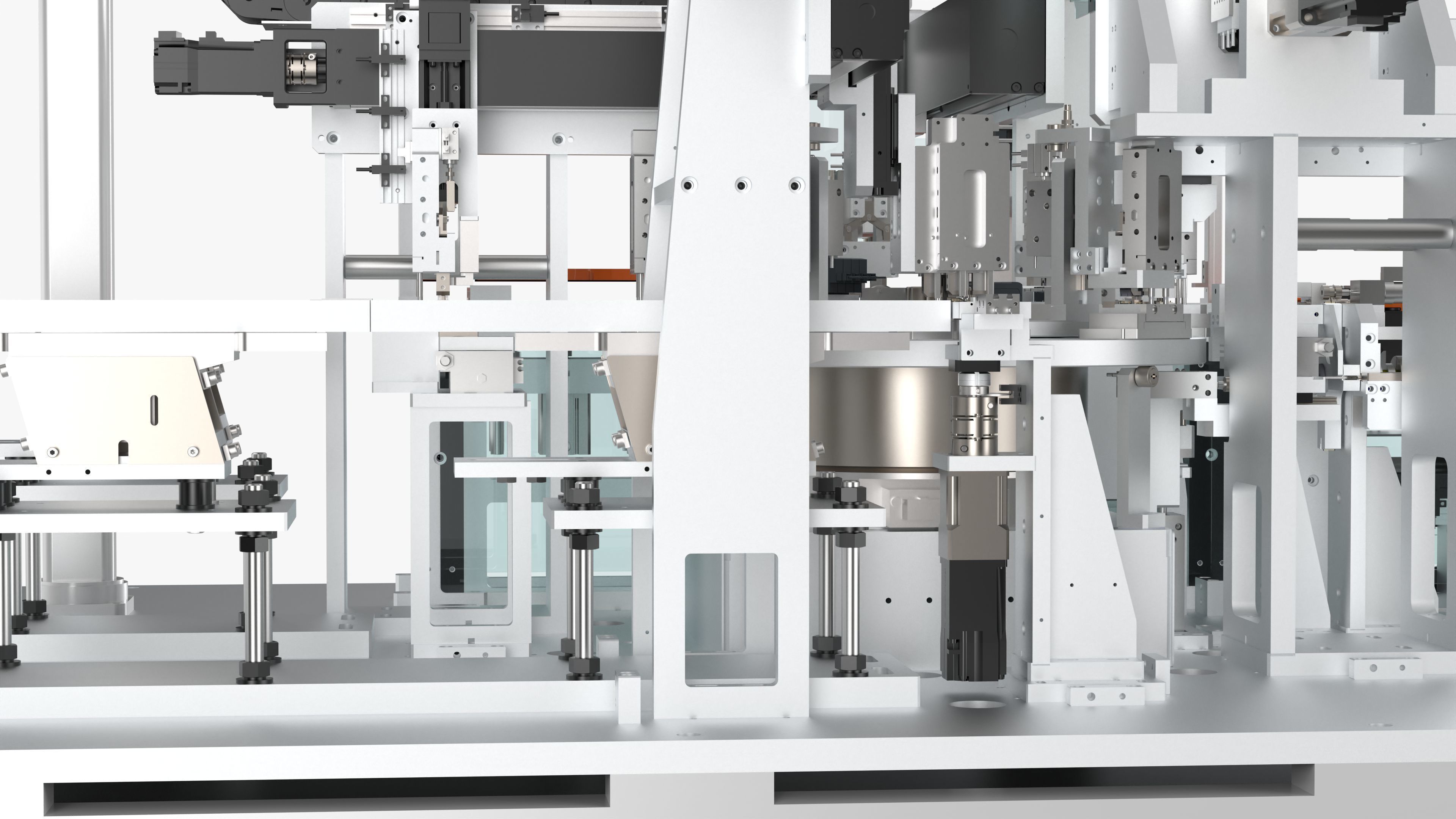

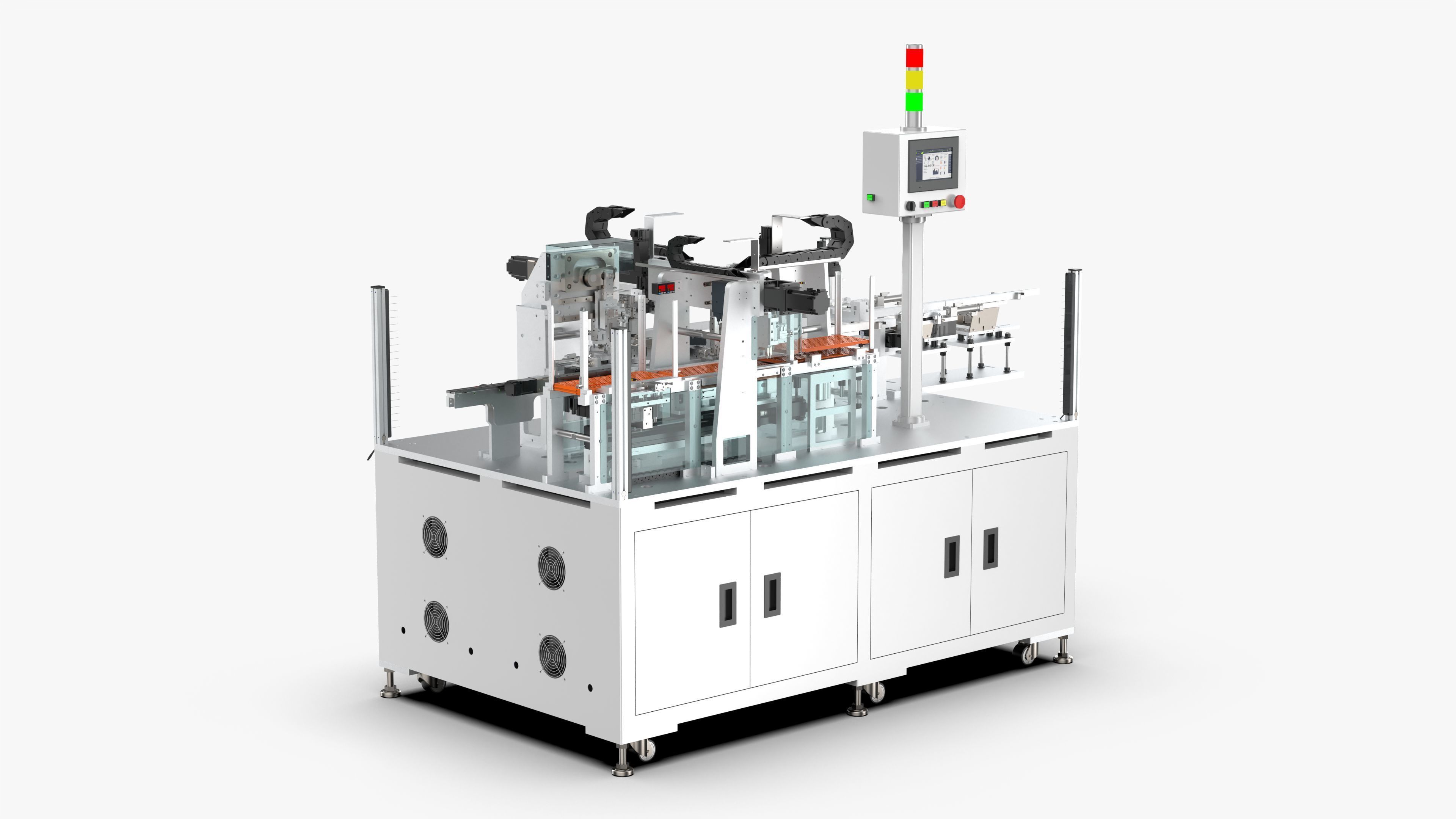

The assembly automatic machine is a non-standard automation equipment for assembling IM components of electronic products, which includes flat vibration feeding module, KK handling module, pp handling module, DD motor (indexing plate) module, carrier module, The discharge channel module is a commonly used mature and stable electronic assembly equipment.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 6,597,313
• Vertice: 19,791,939
