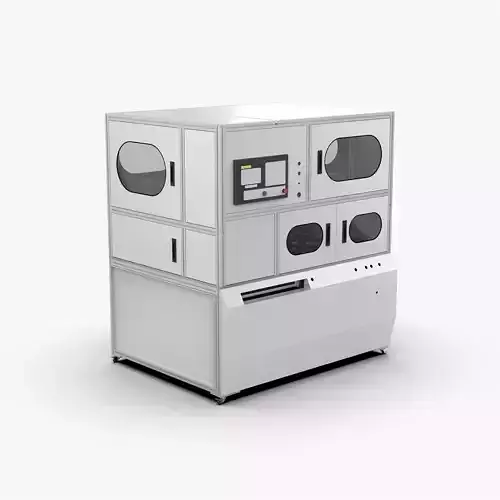

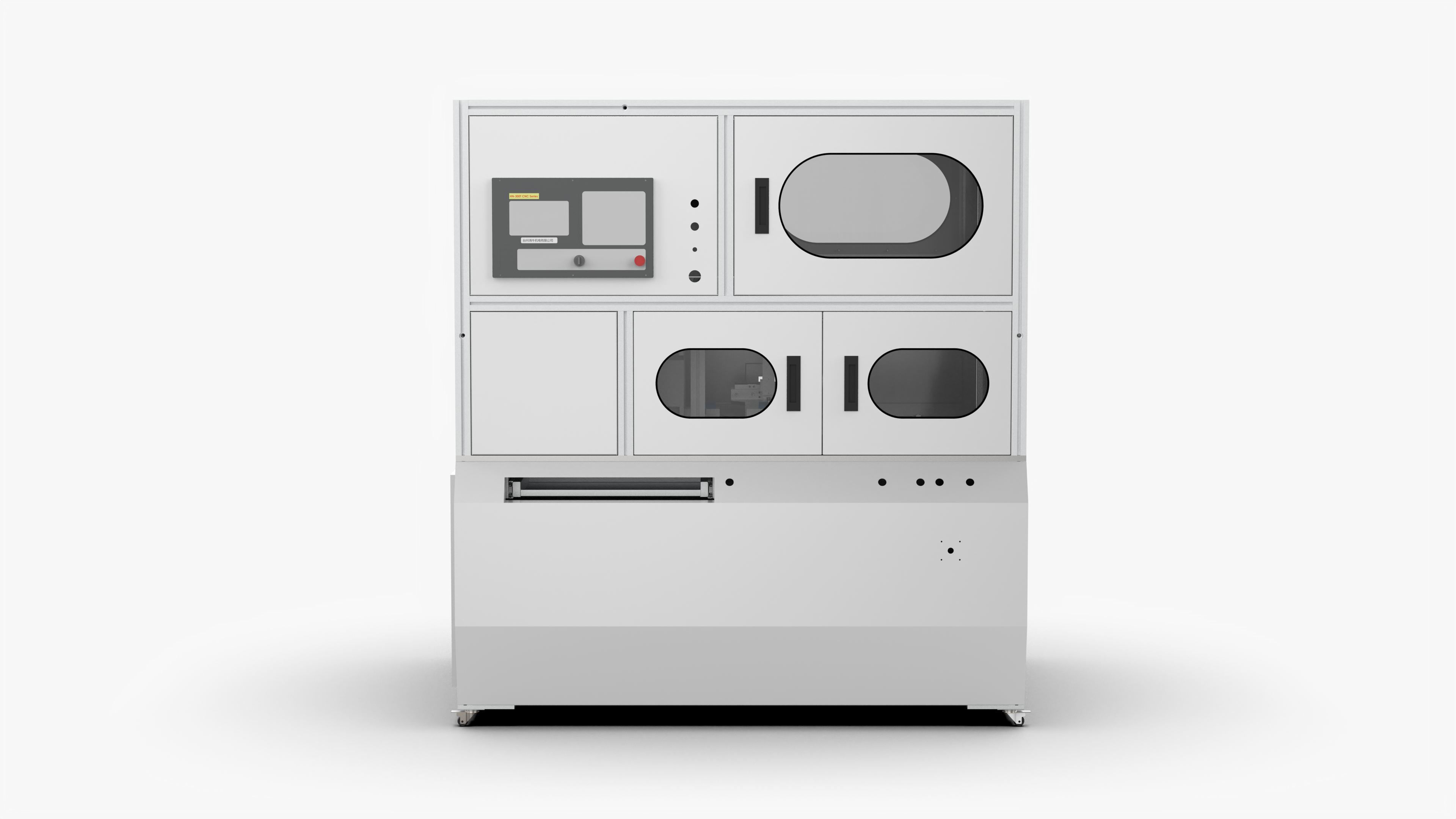

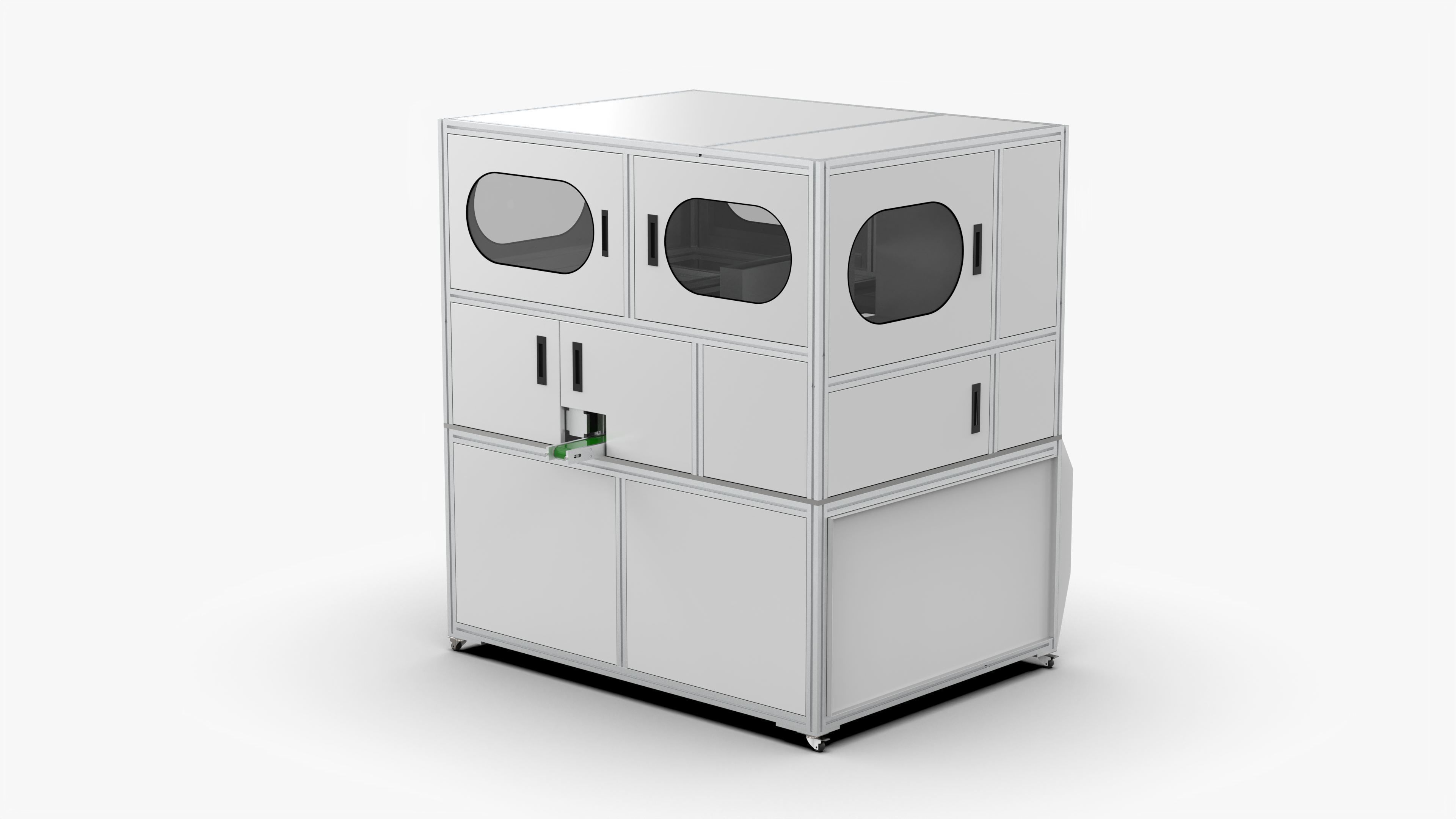

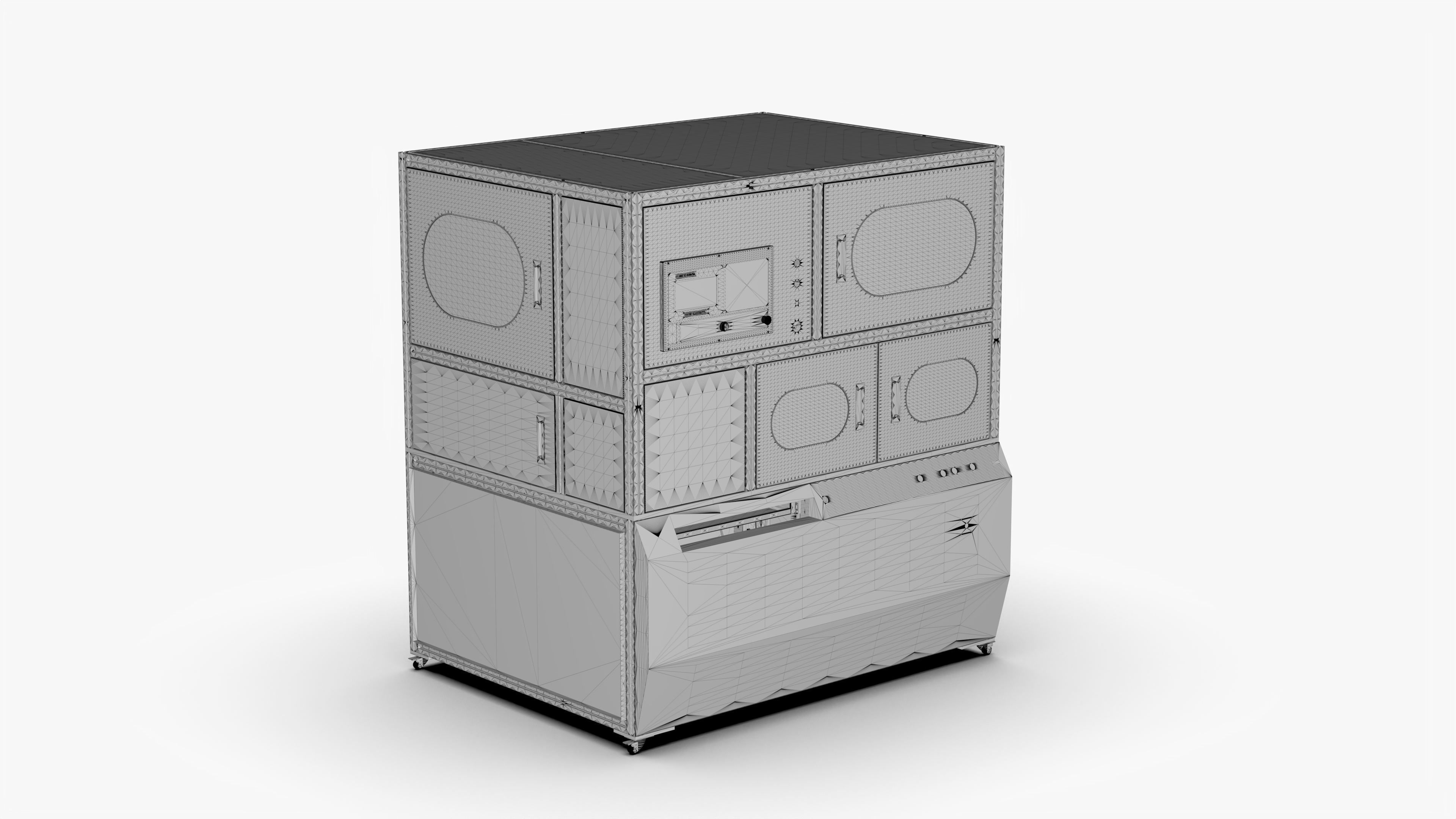

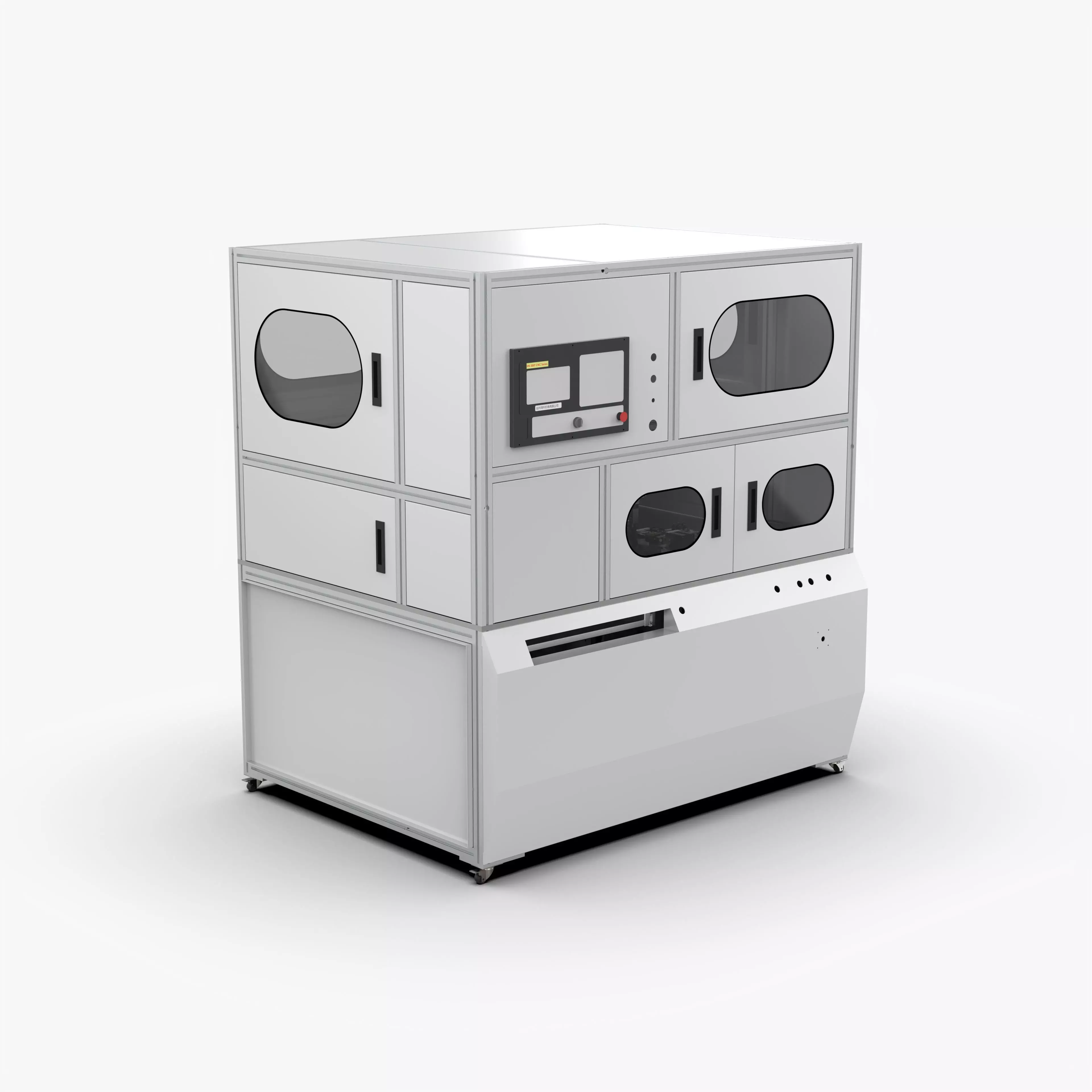

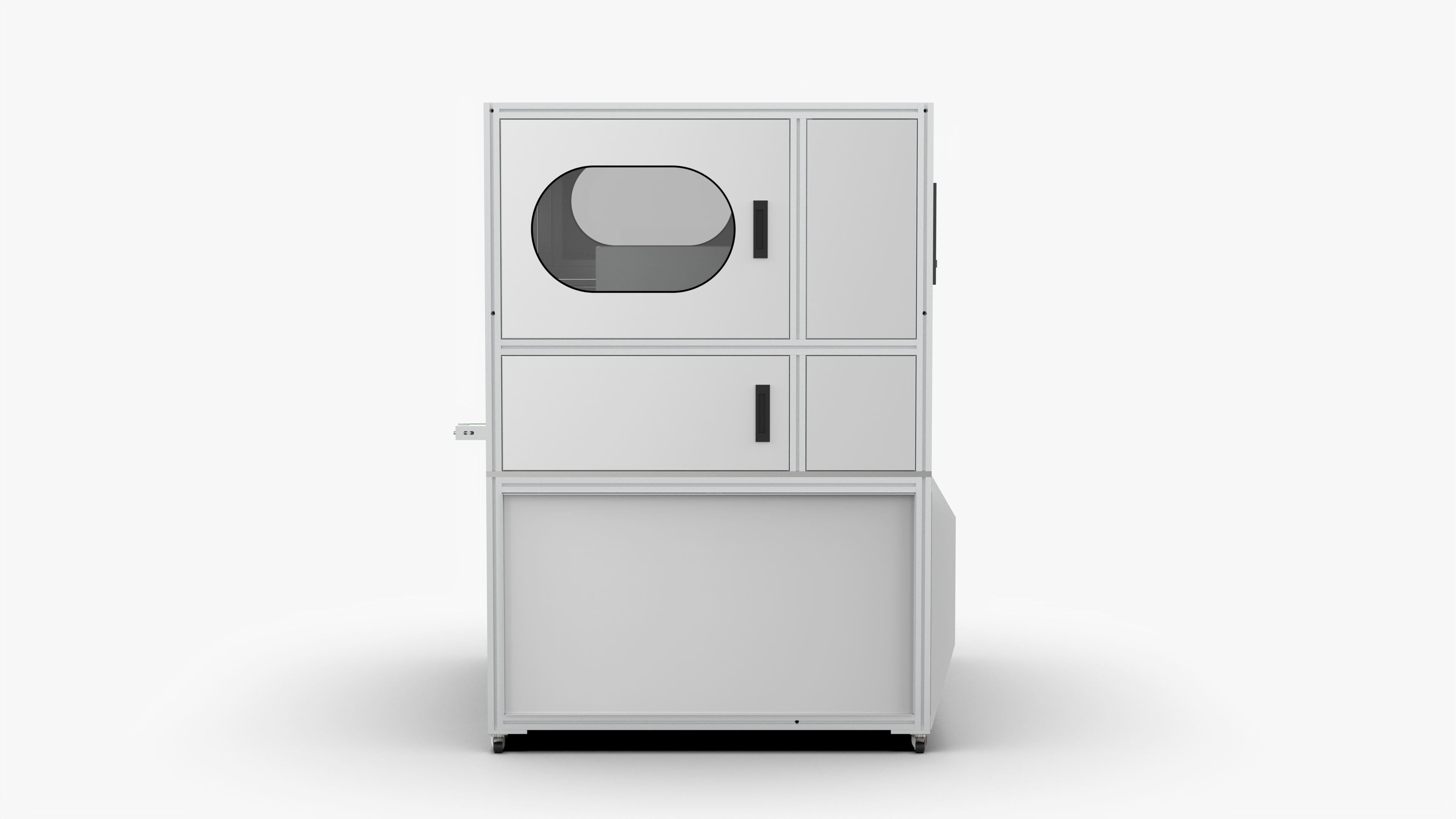

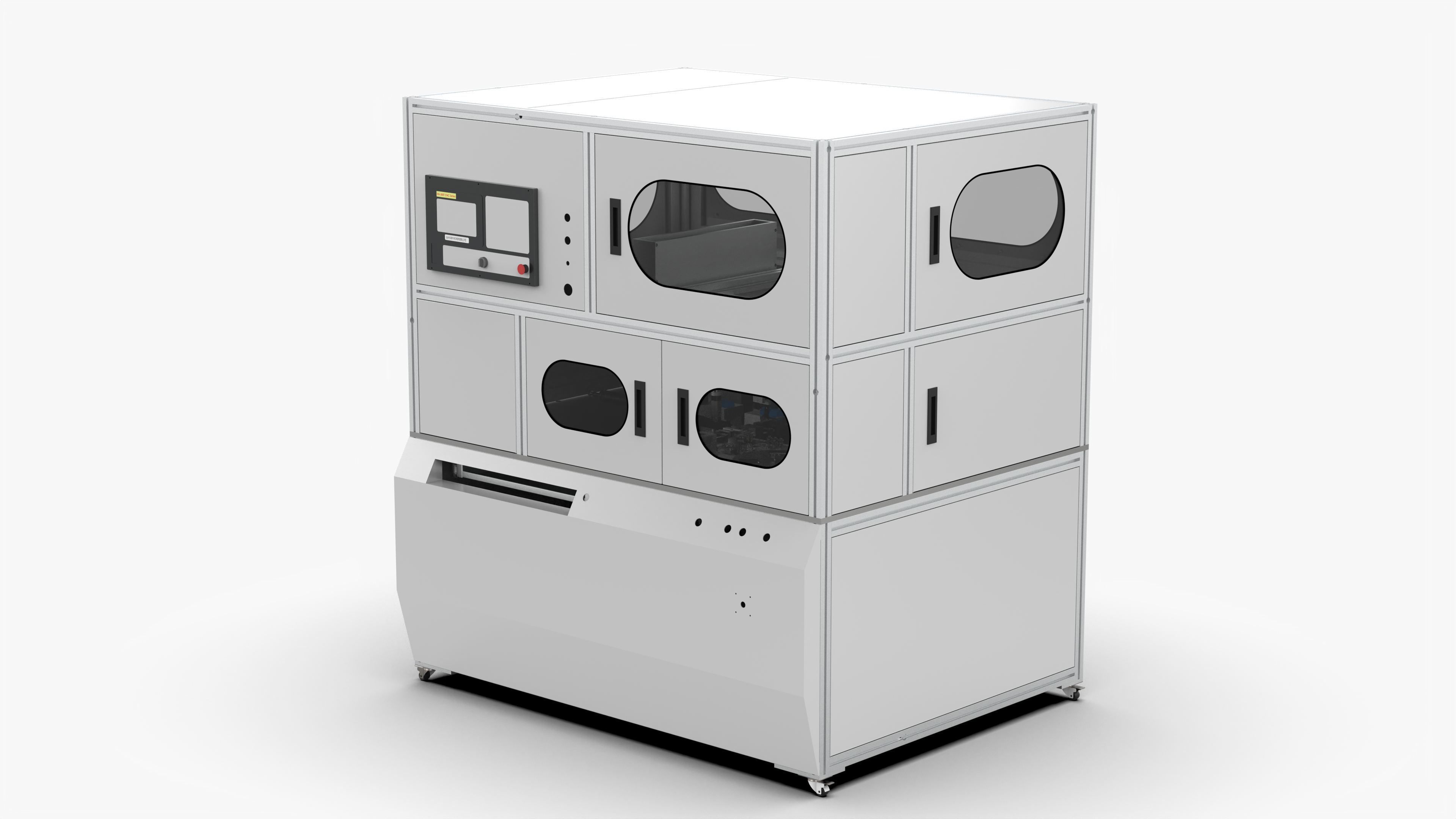

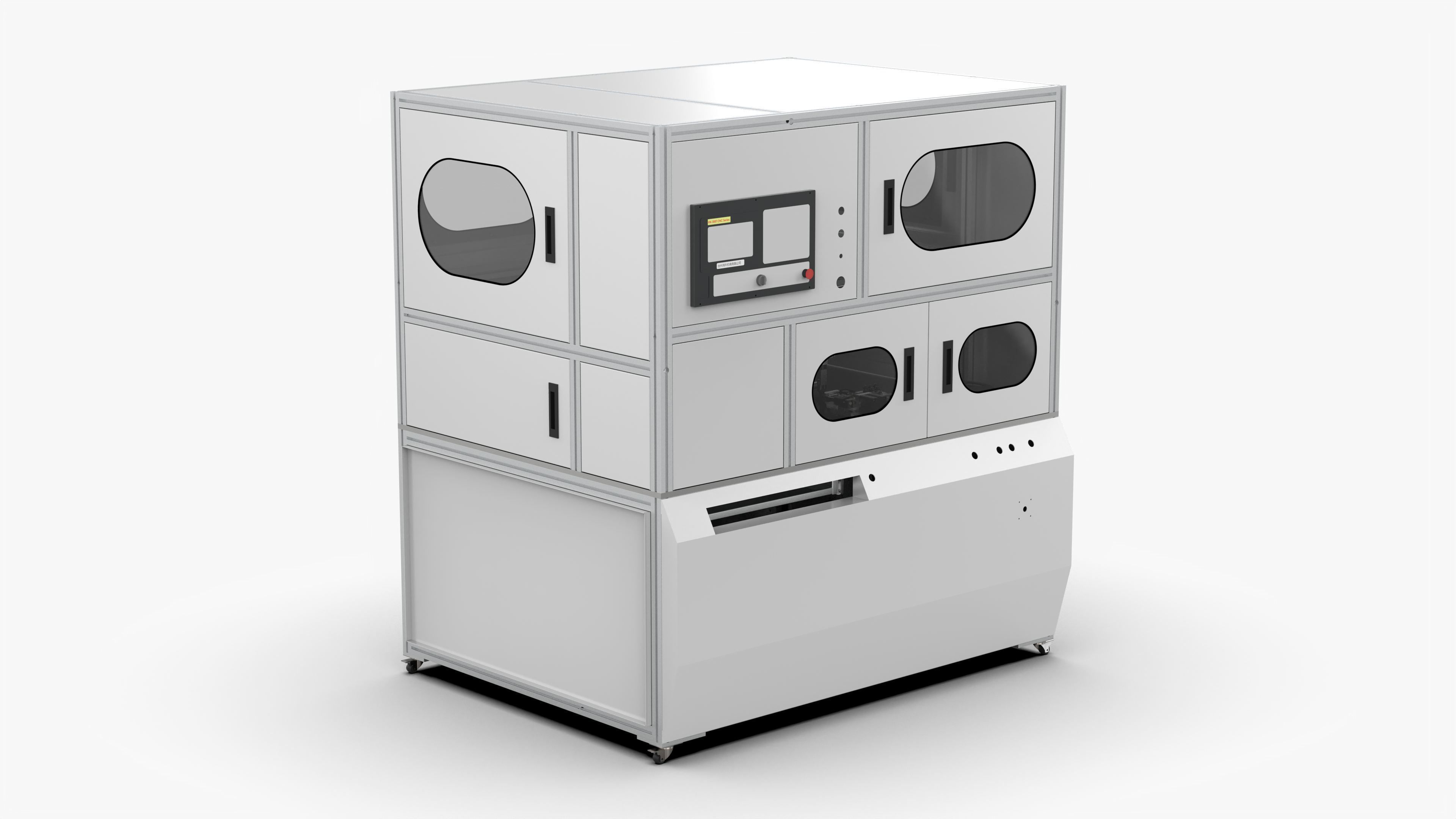

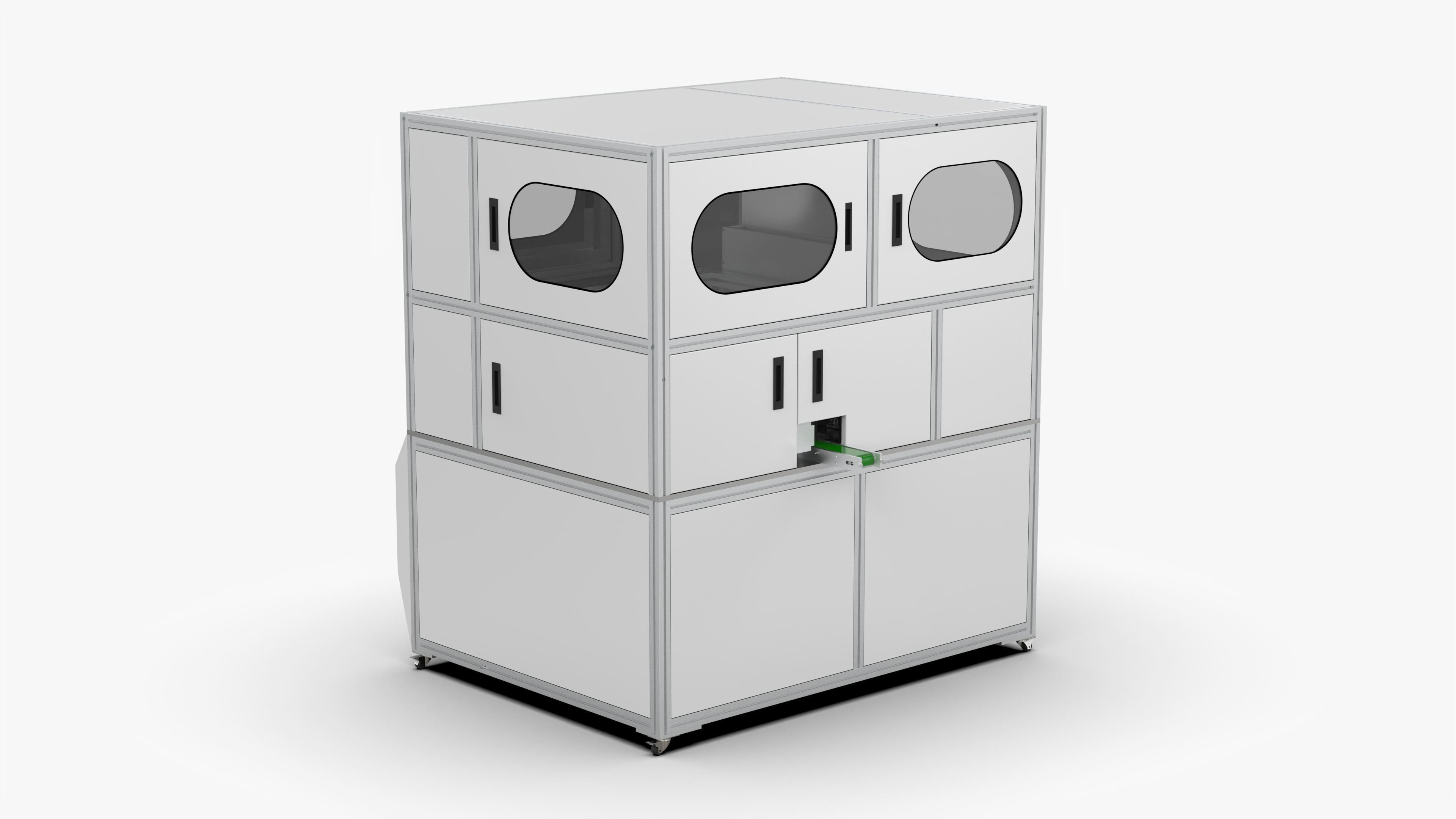

Automatic Cylindrical Battery Cutting and Welding Machine 3D model
Description
Automatic Cylindrical Battery Cutting Folding and Welding Machine
Introduction

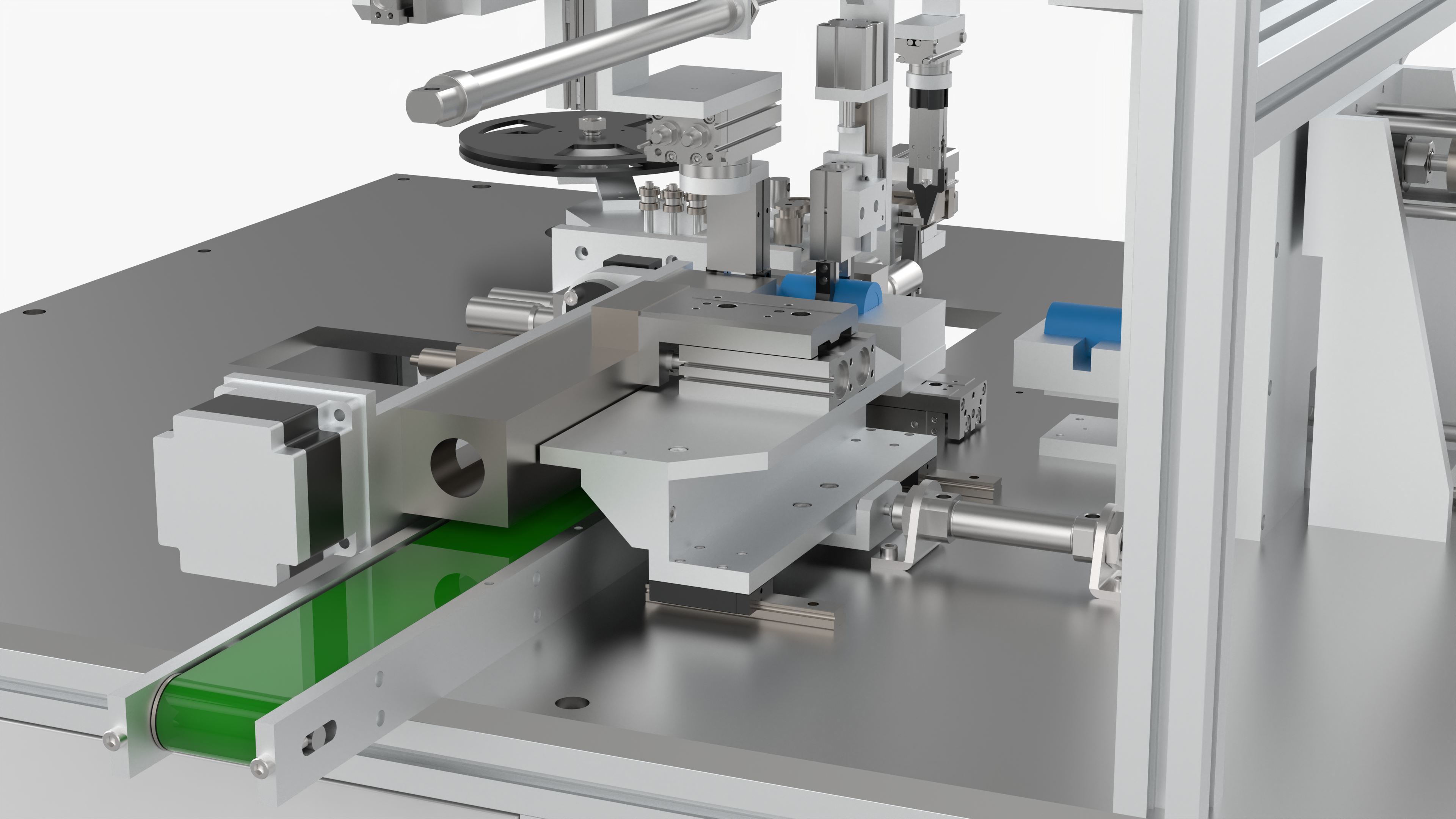

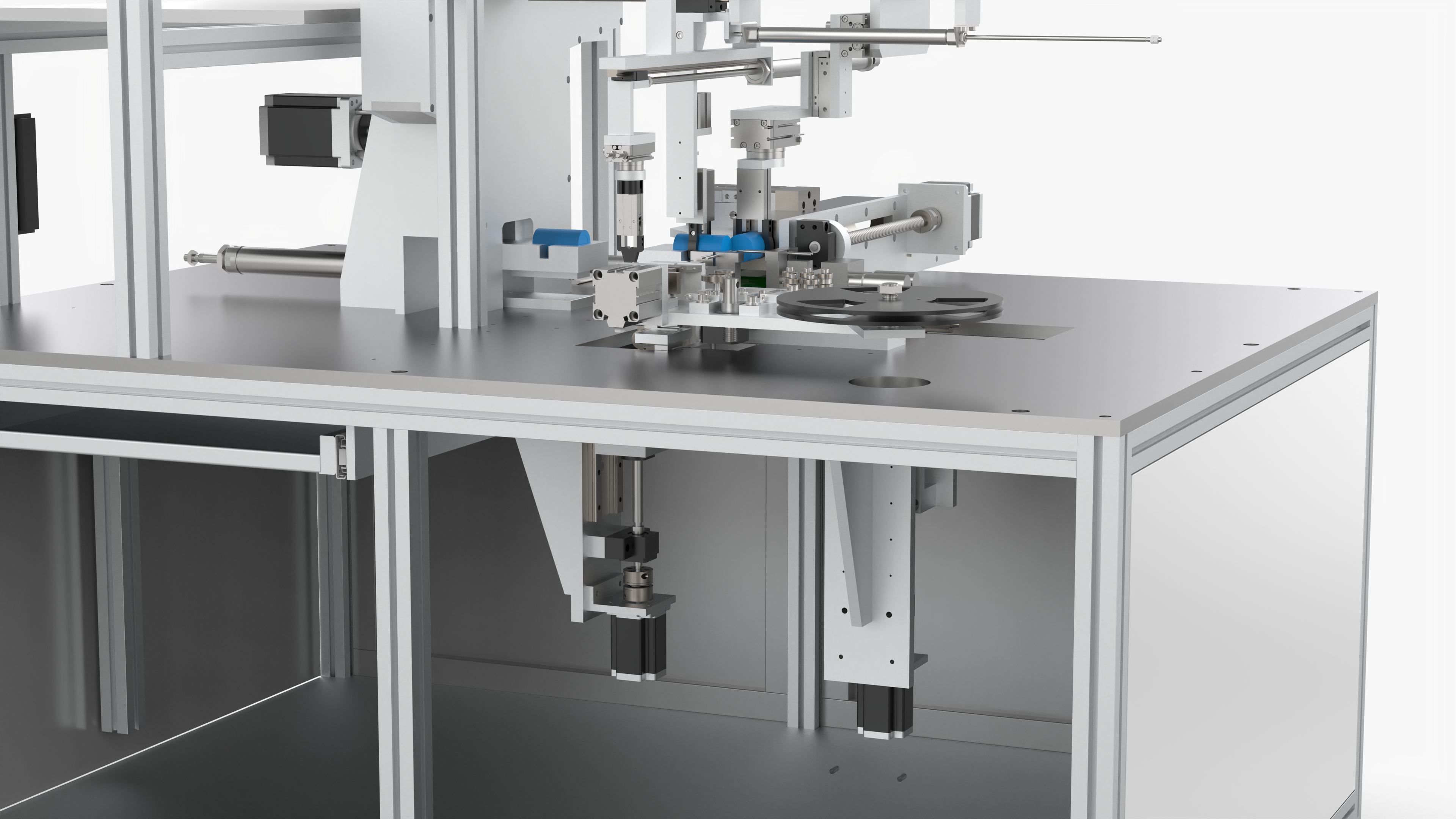

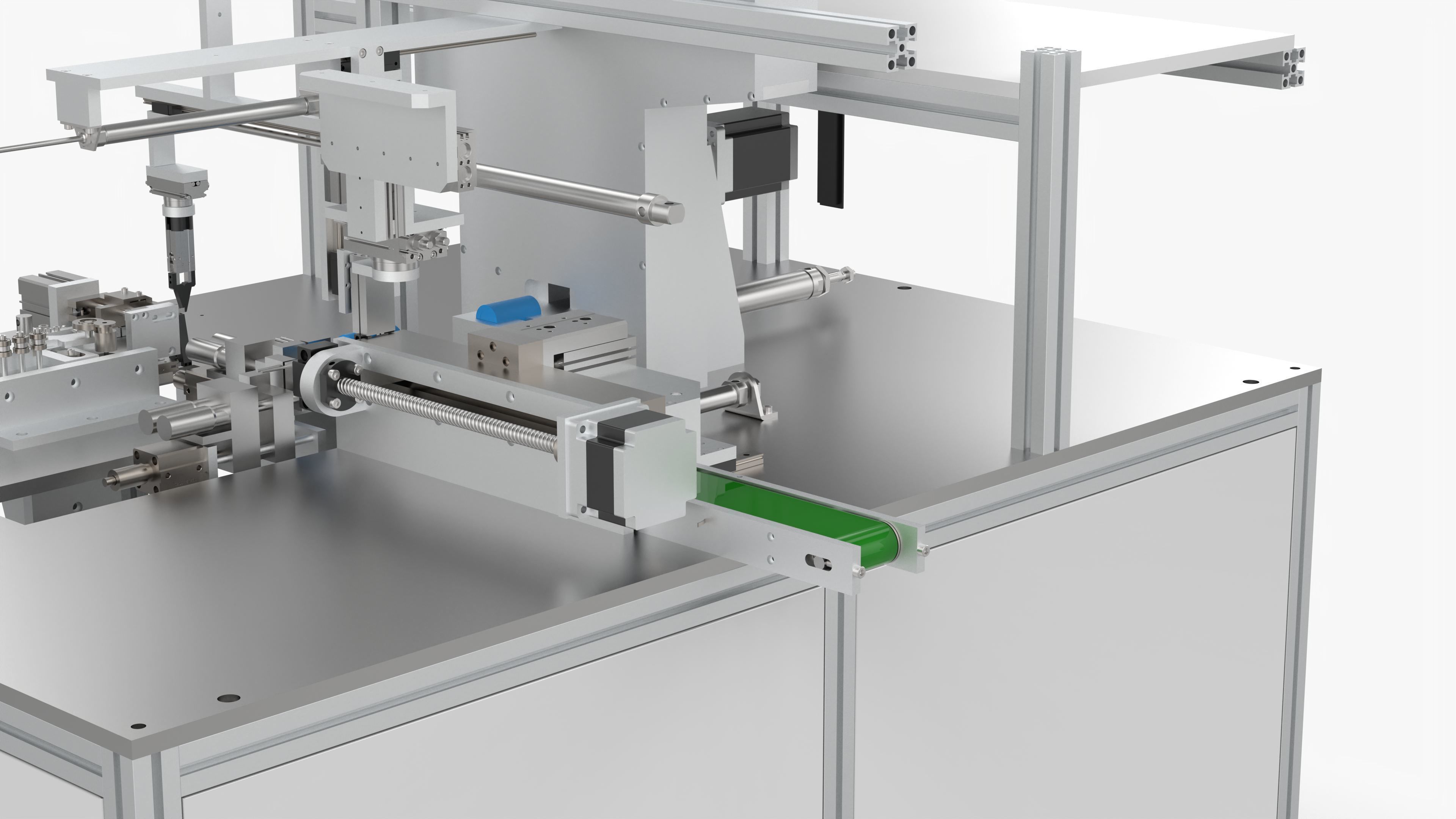

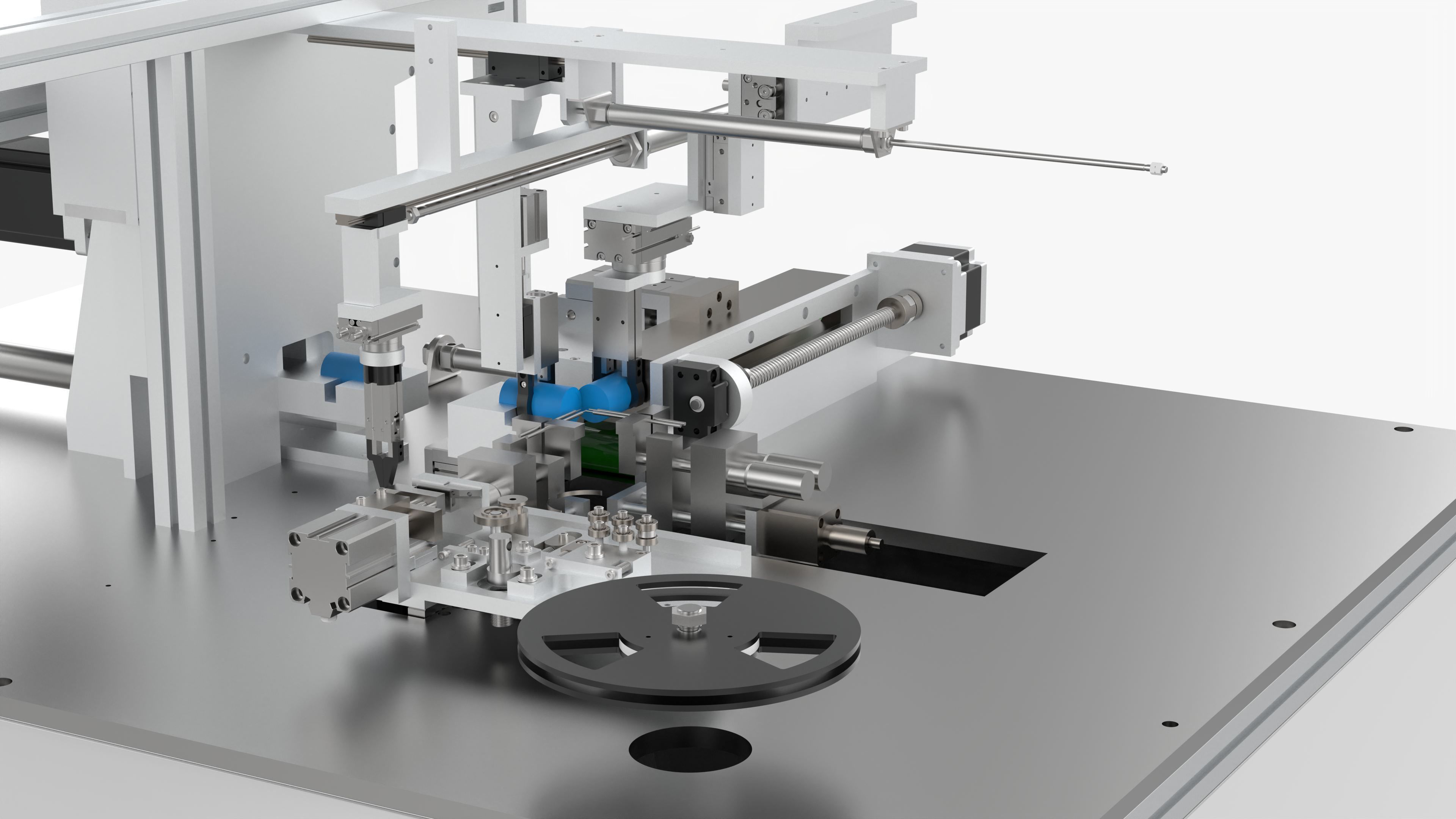

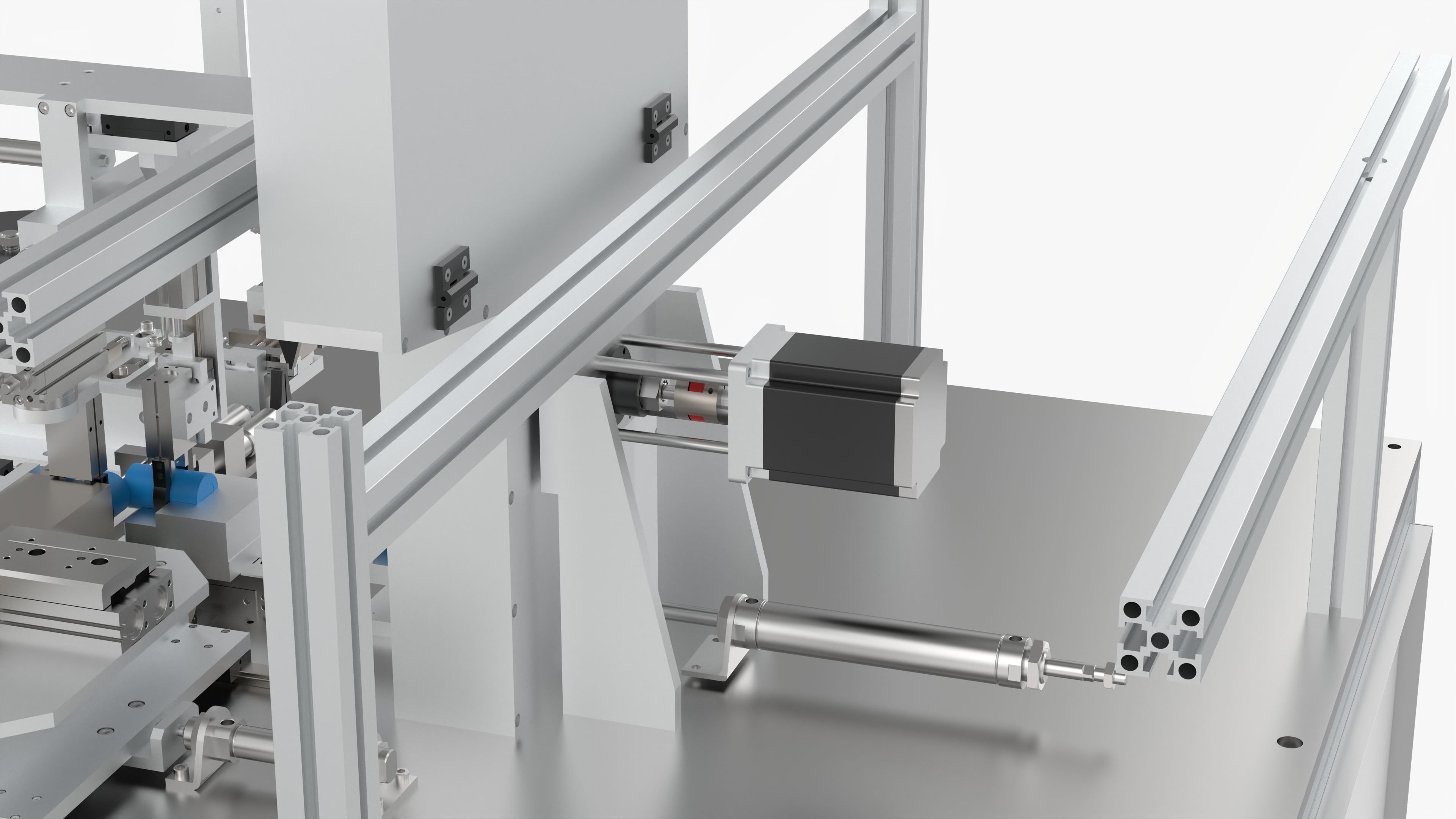

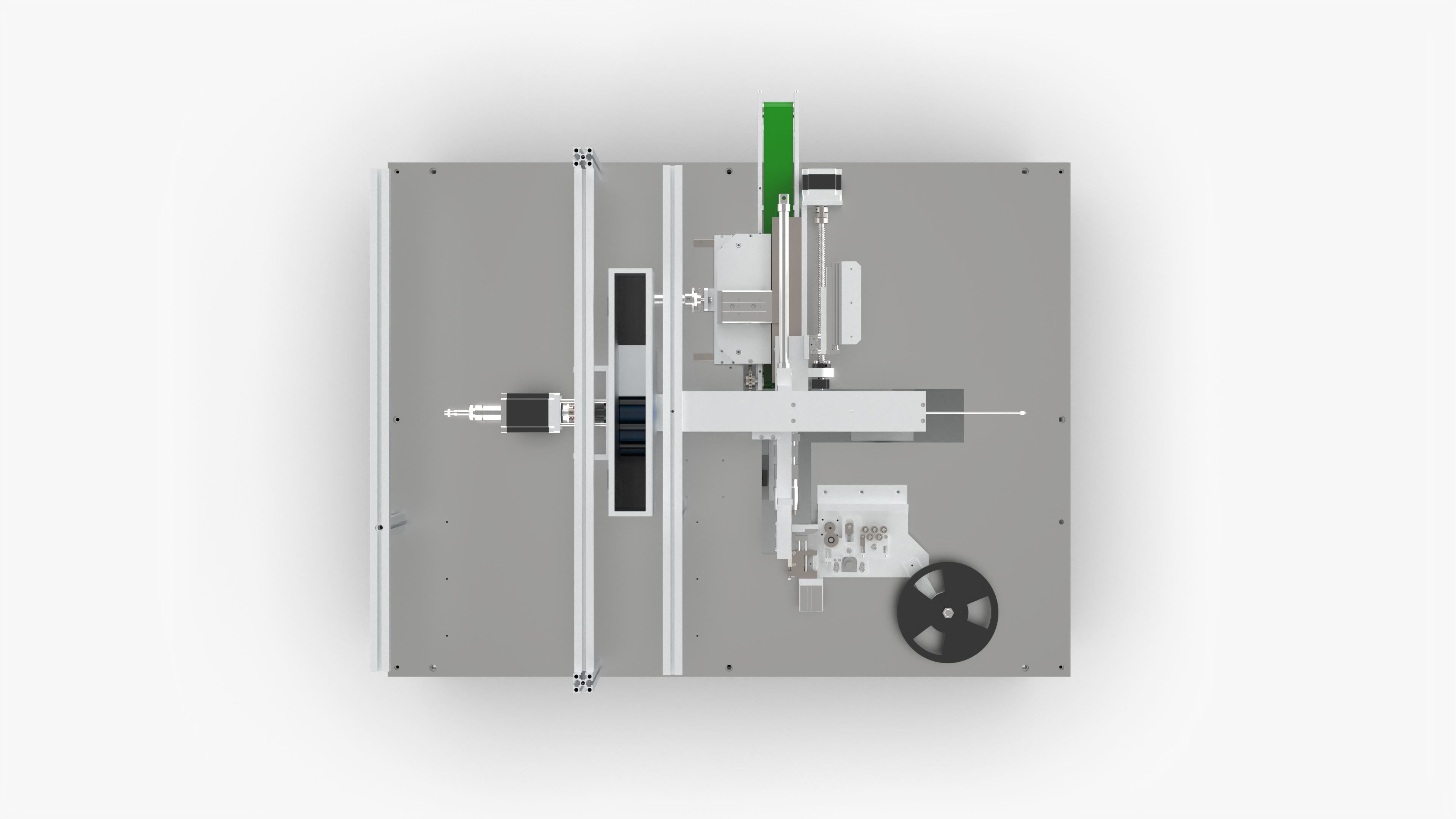

This equipment is an automatic spot welding machine for nickel sheets of cylindrical batteries. After manually placing the battery and nickel sheet on the jig, put it on the feeding pull wire, and automatically flow to the appropriate position and push it to the spot welding position by the manipulator. Push it to the next spot welding platform to complete the spot welding on the other side, and then use the manipulator to push the wire.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 2,697,529
- Vertice: 8,092,587
Automatic Cylindrical Battery Cutting and Welding Machine
Royalty Free License
Automatic Cylindrical Battery Cutting and Welding Machine
Royalty Free License
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)117 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
- Parasolid (.x_t, .x_b)65.7 MB
- OBJ (.obj, .mtl)218 MB
- IGES (.ige, .igs, .iges)189 MB
- STEP (.stp)65 MB
- Stereolithography (.stl)129 MB
- Autodesk FBX (.fbx)164 MB
3D Model details
- Publish date2023-03-10
- Model ID#4351292
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 2,697,529
- Vertices 8,092,587
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
