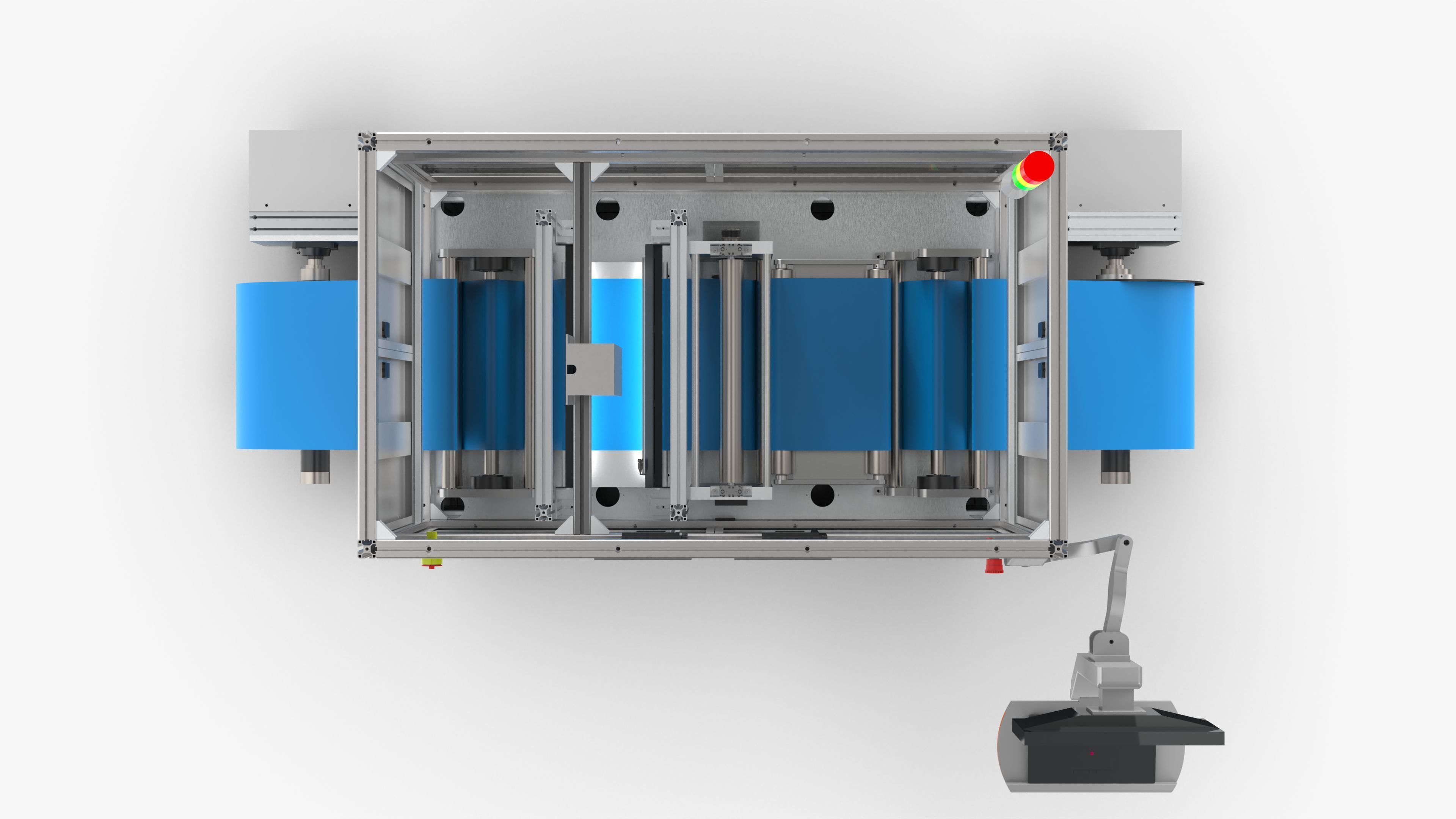

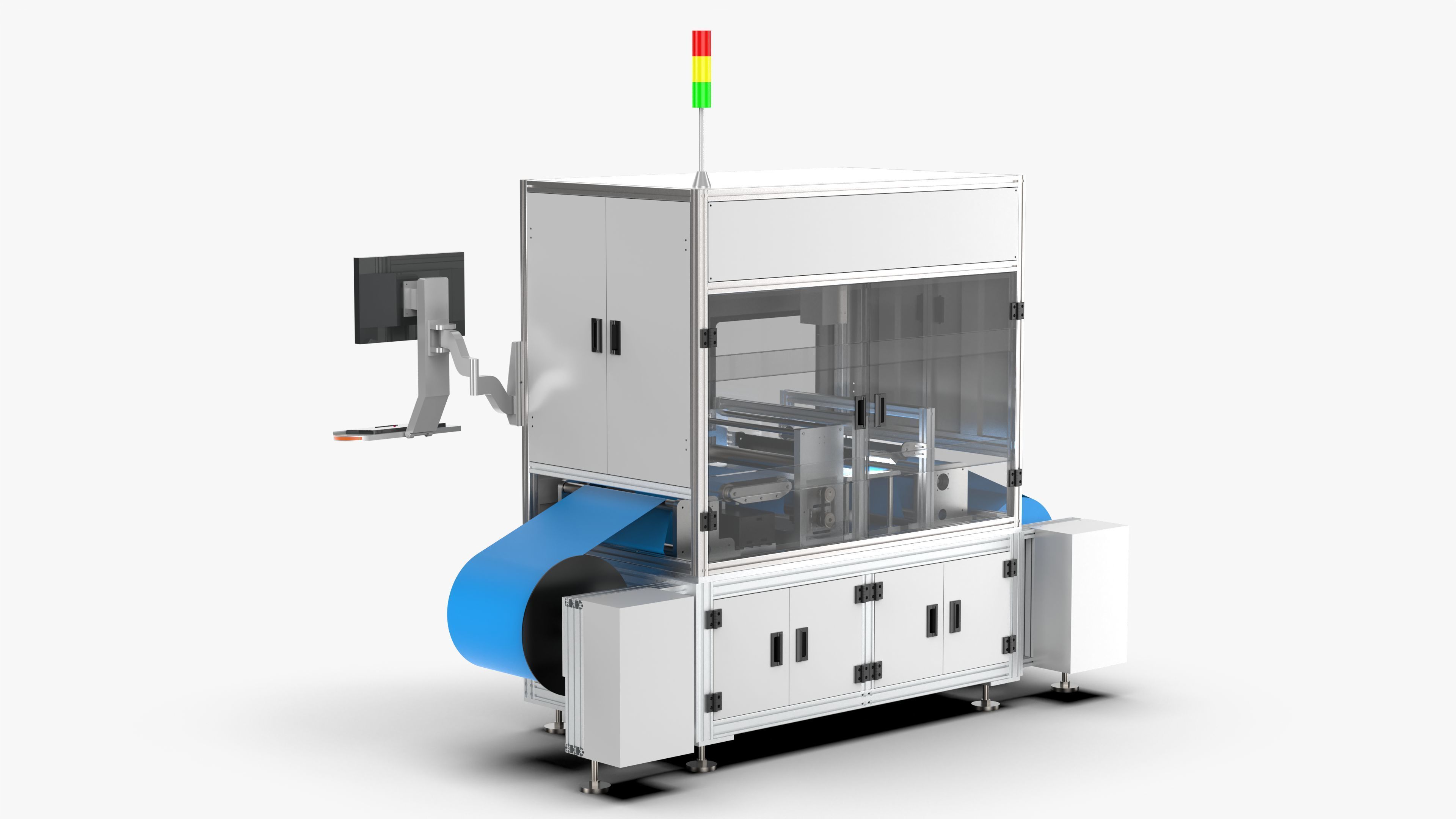

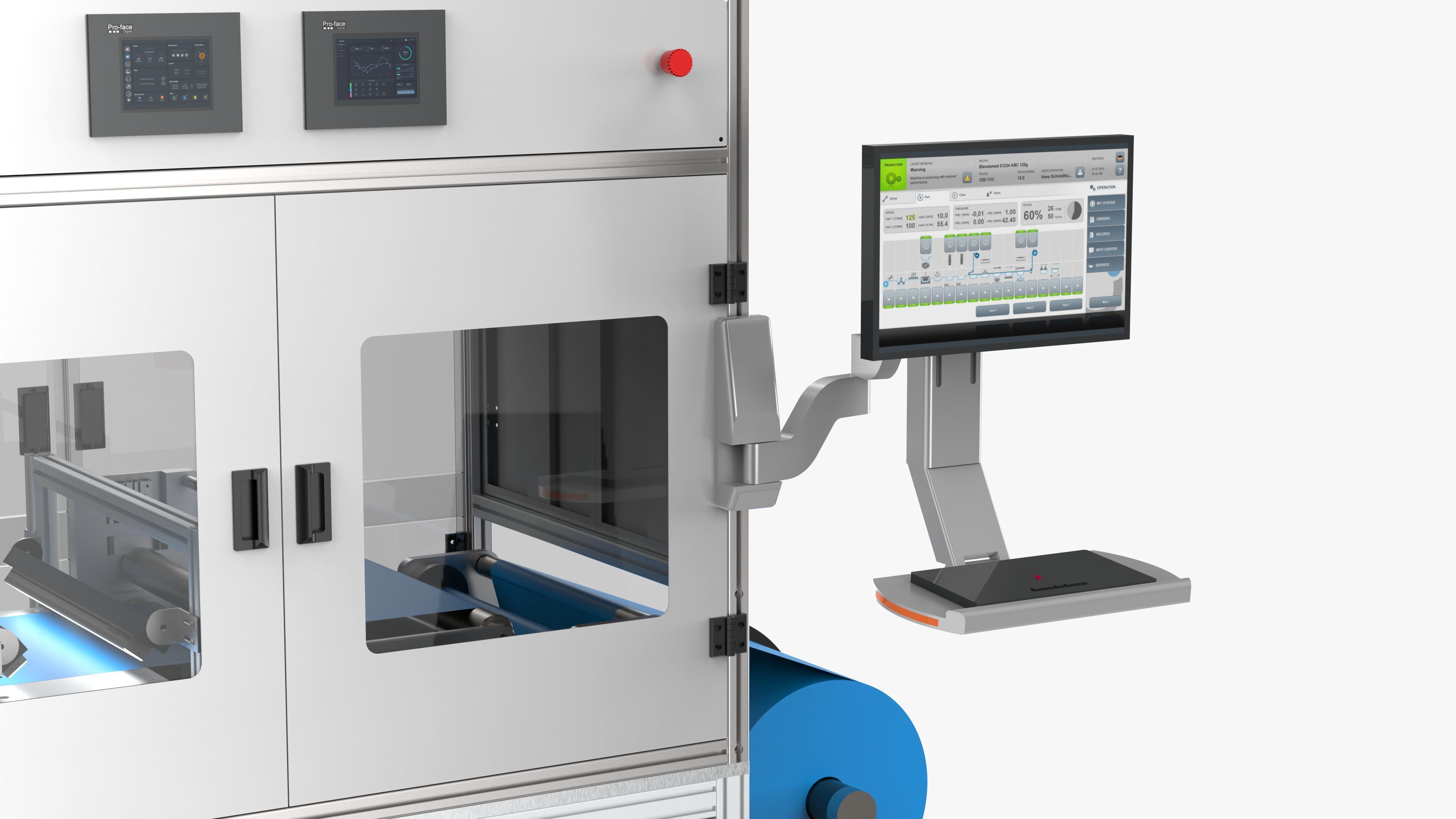

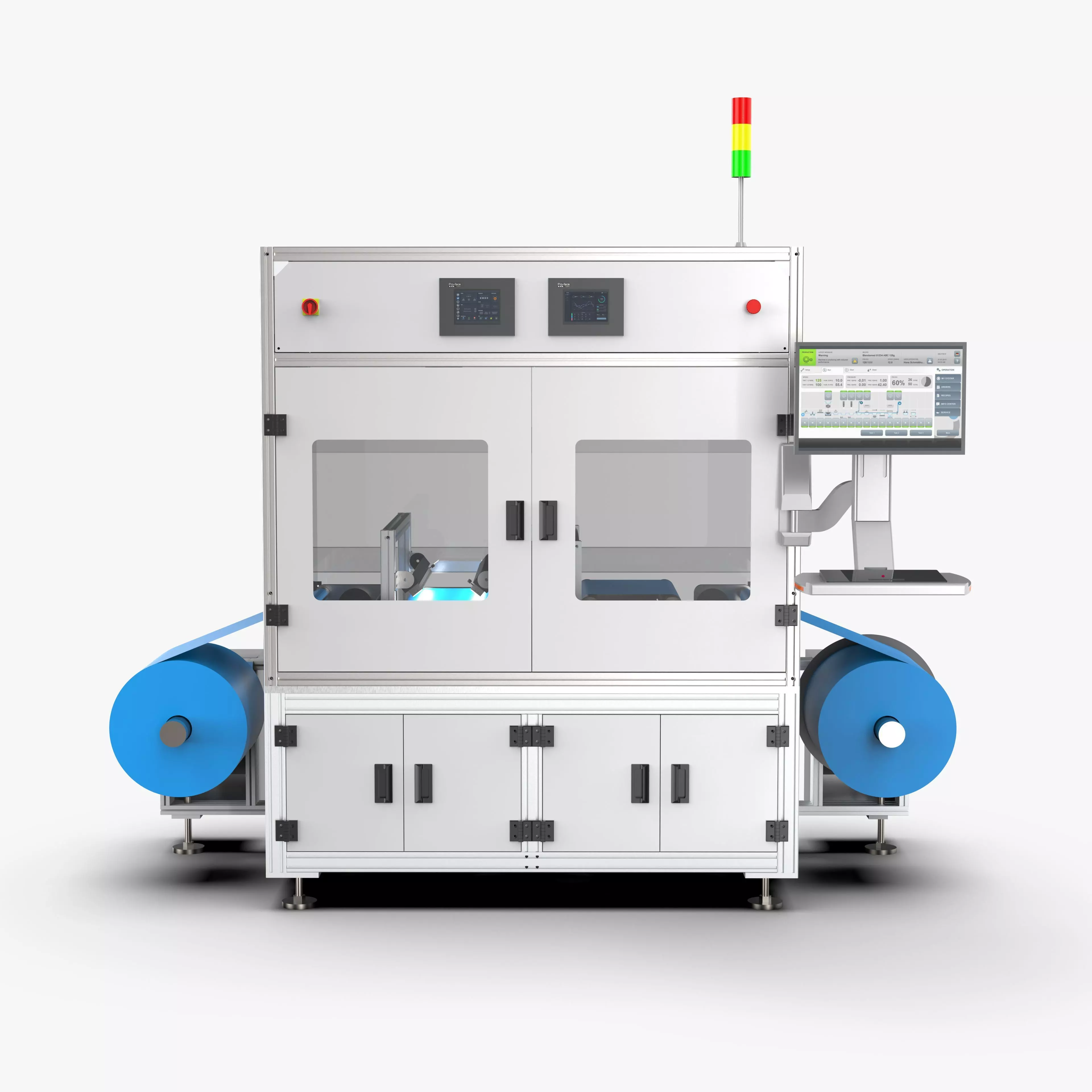

Automatic CCD Winding Inspection Machine 3D model

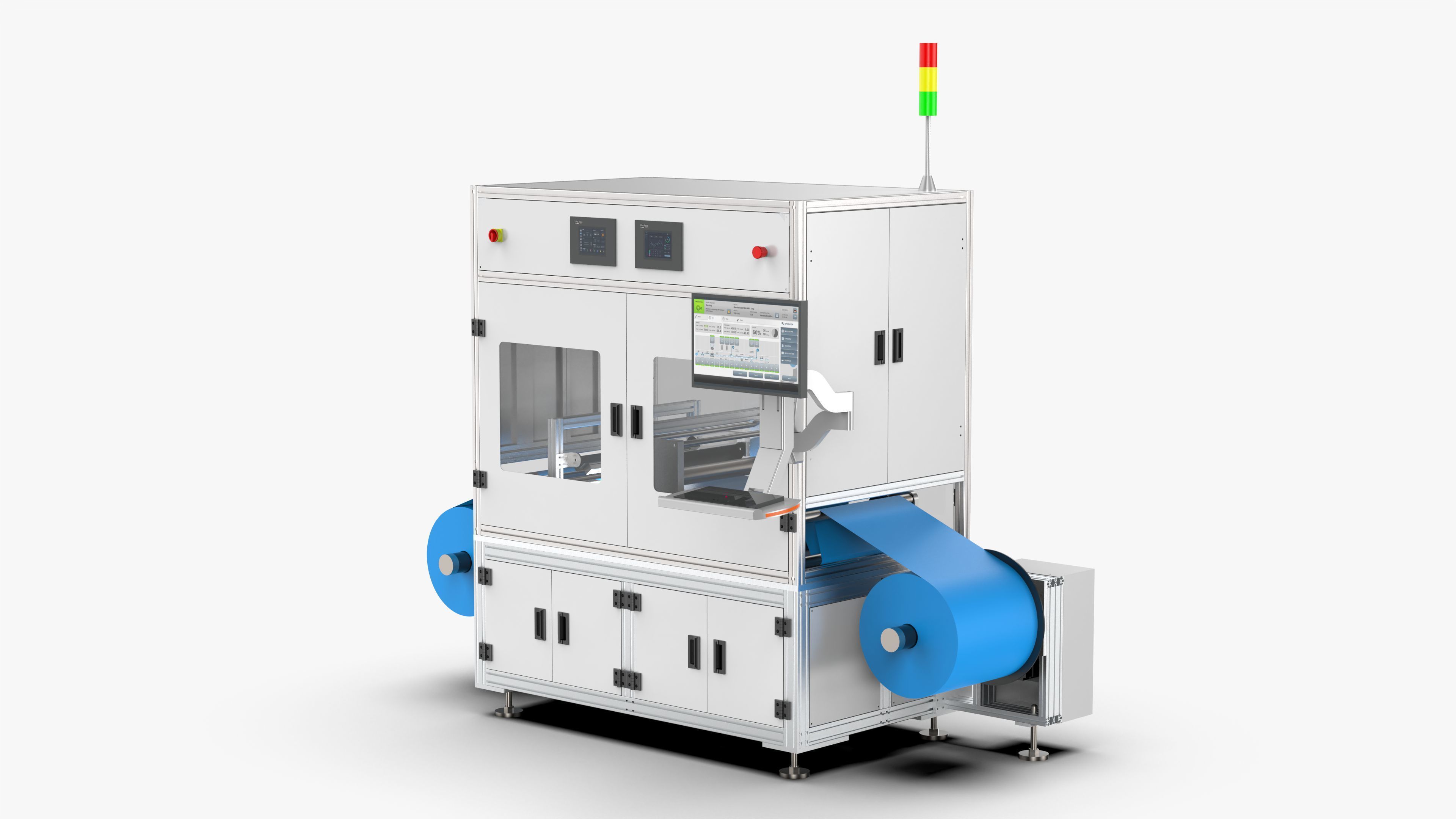

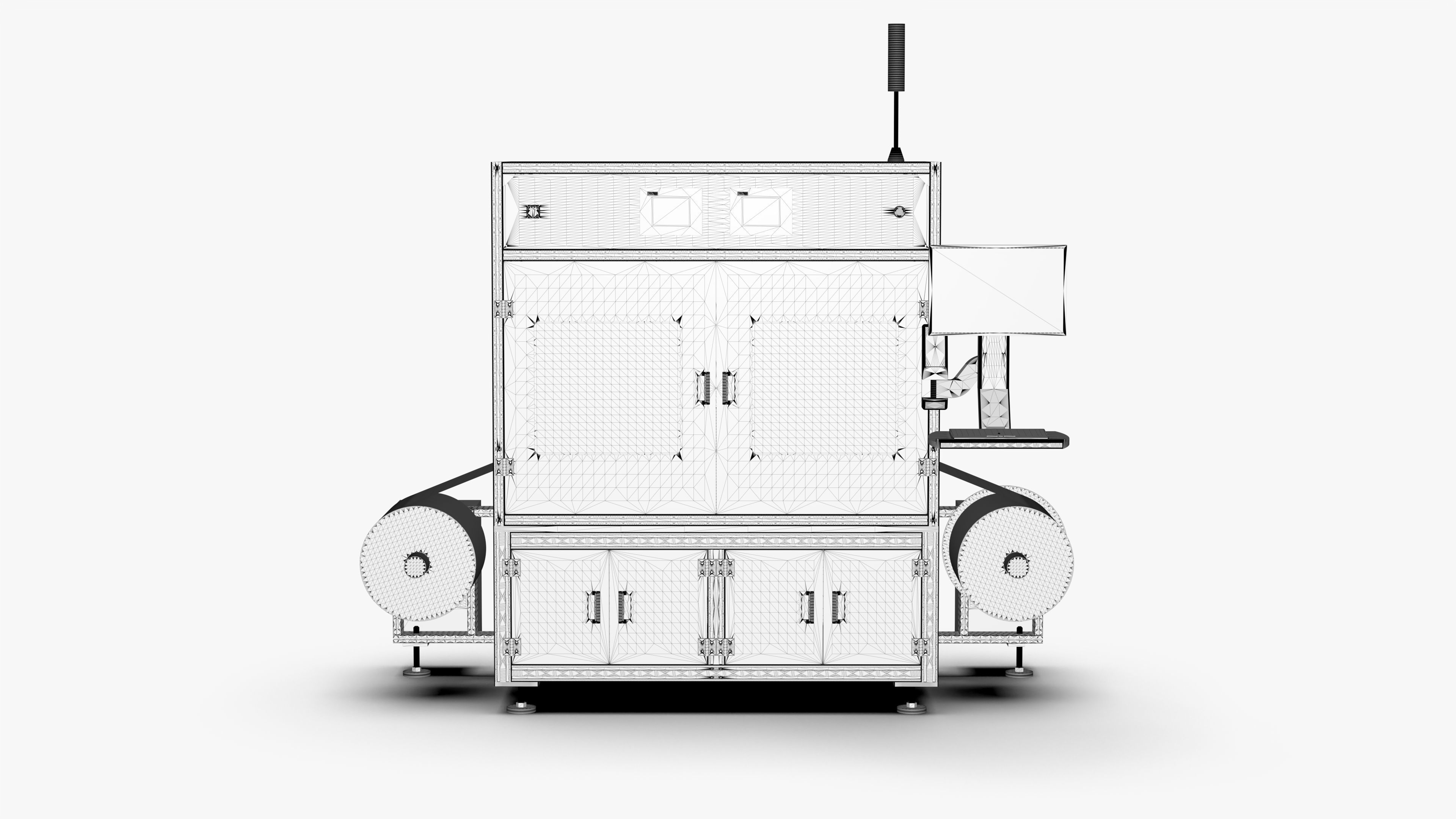

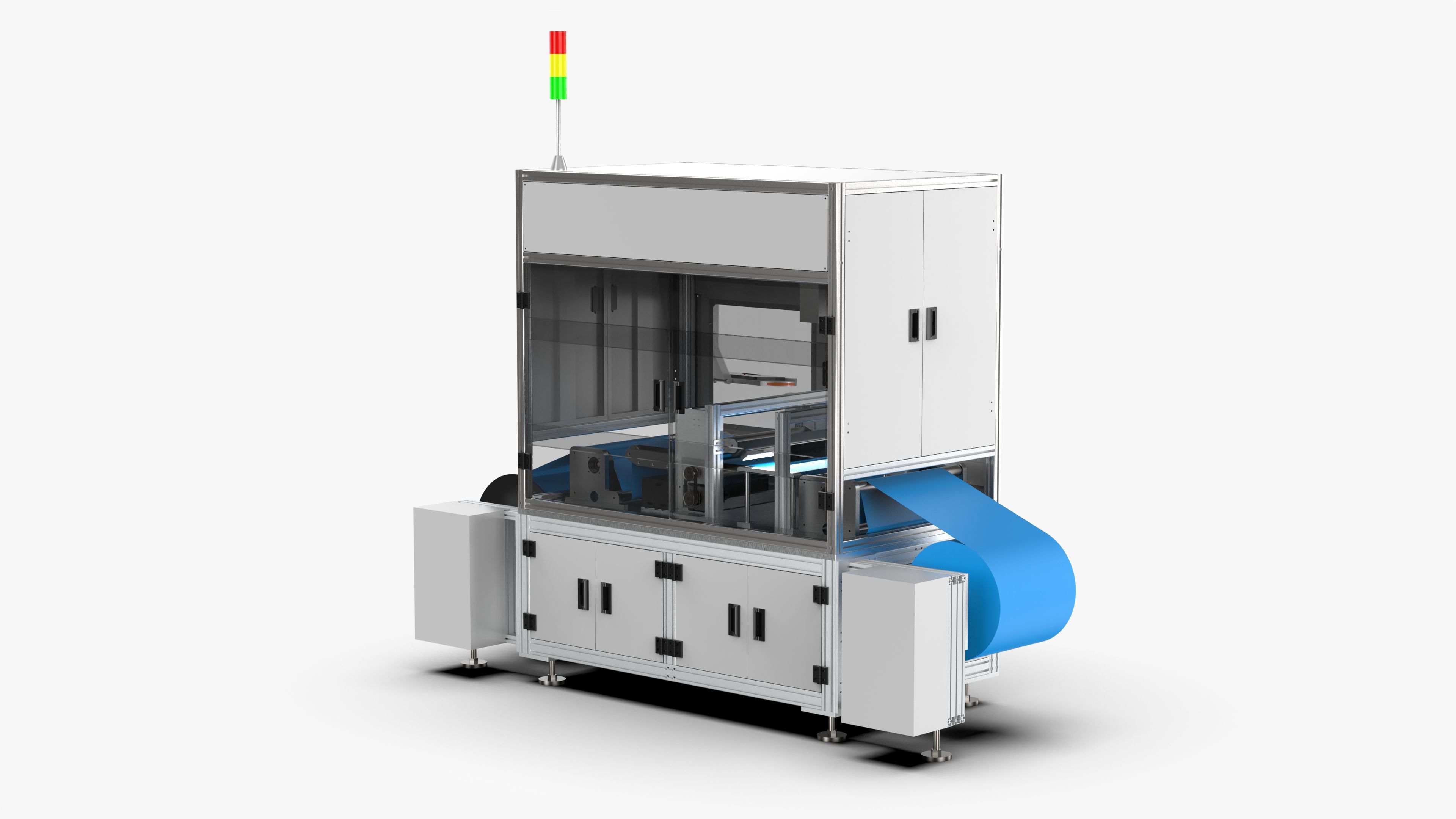

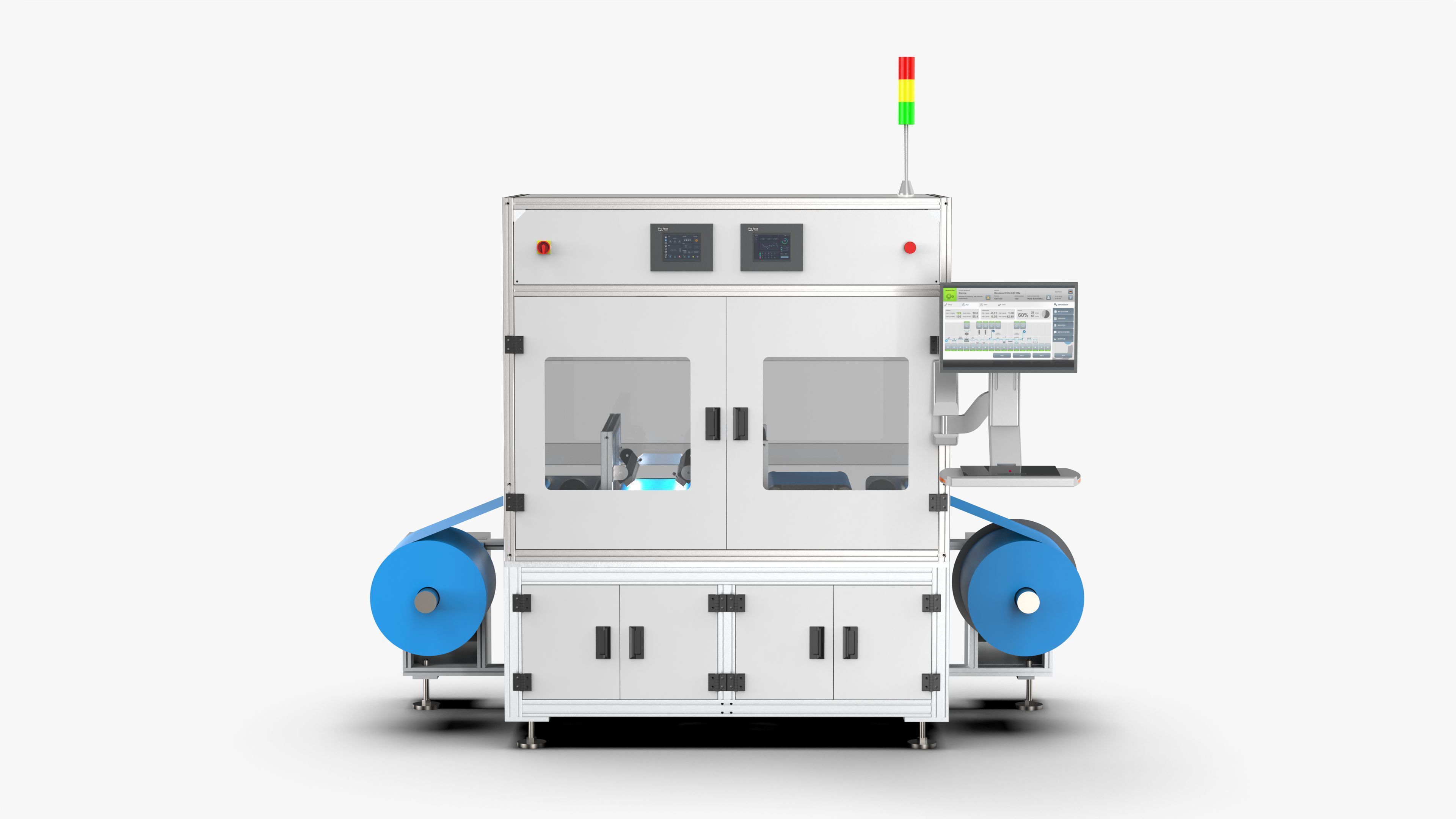

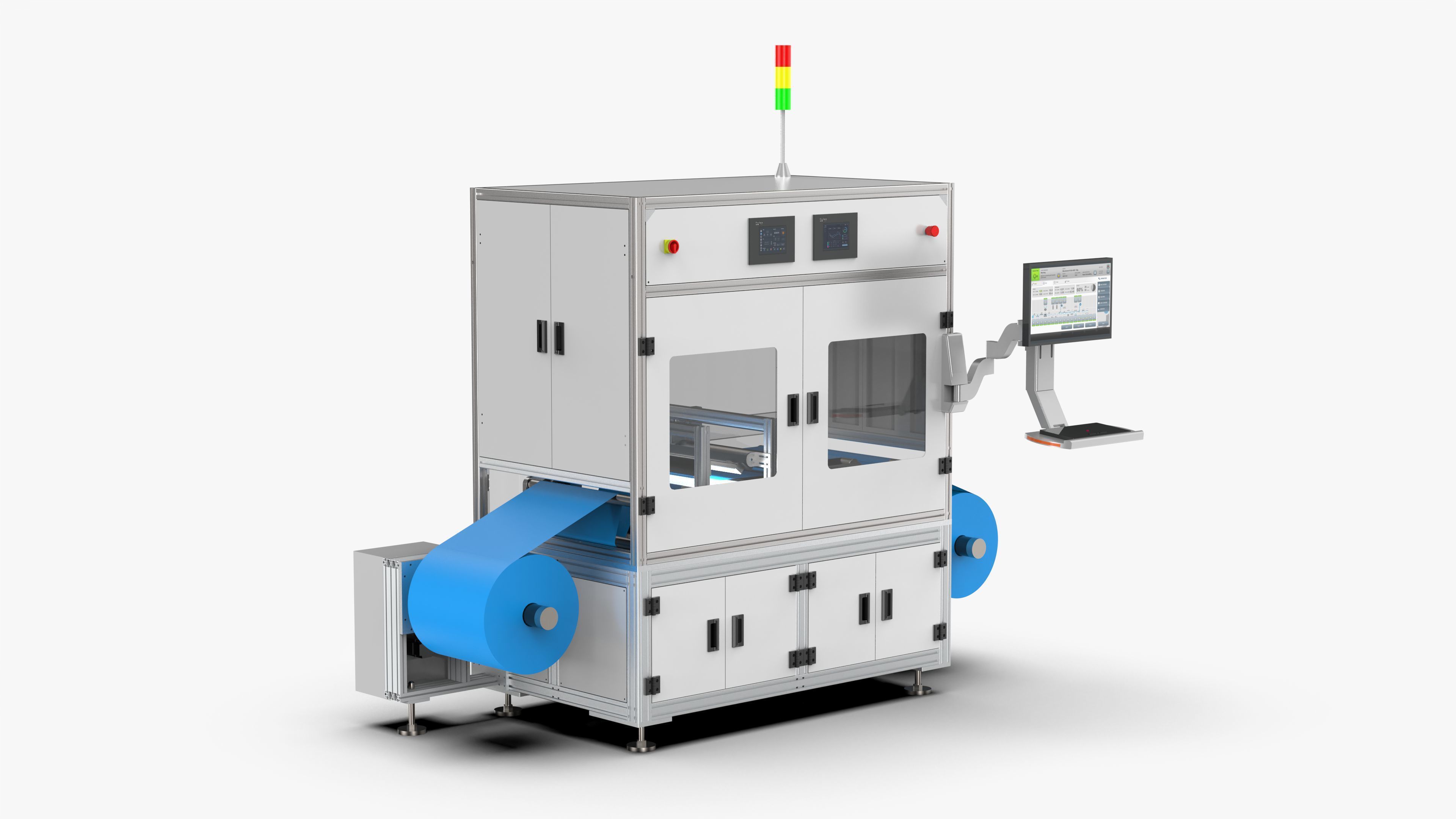

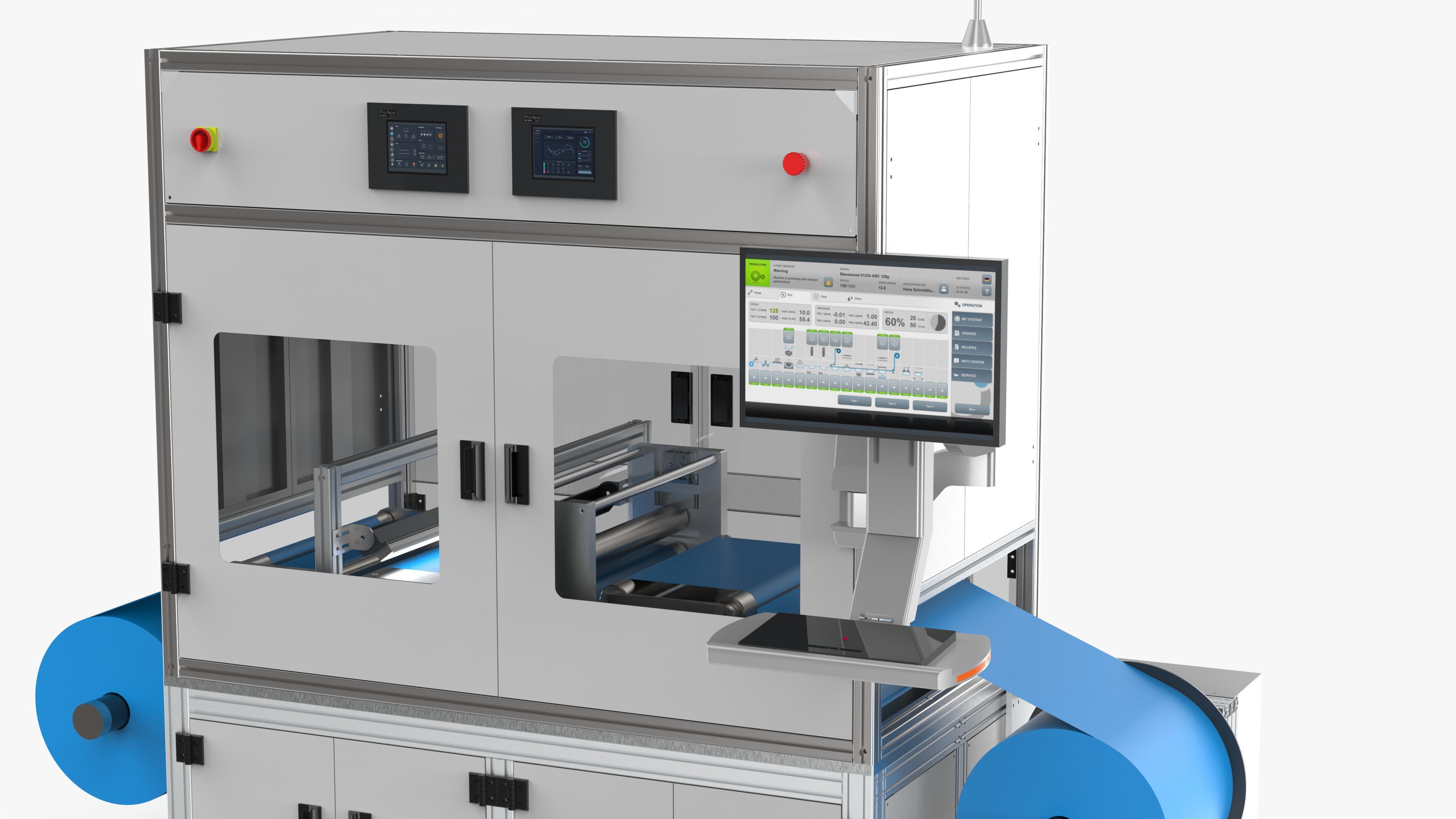

Automatic CCD Winding Inspection Machine

Introduction

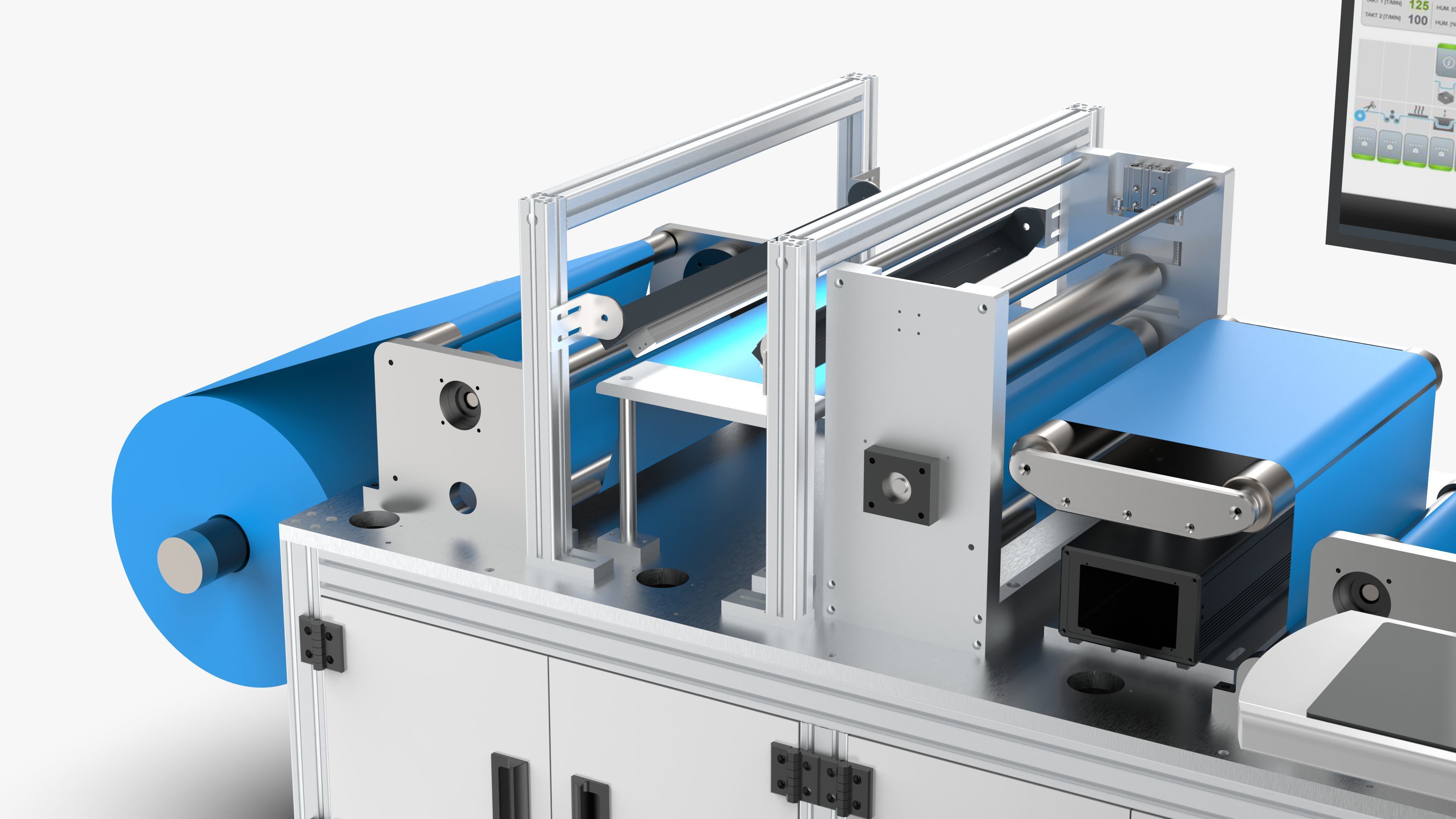

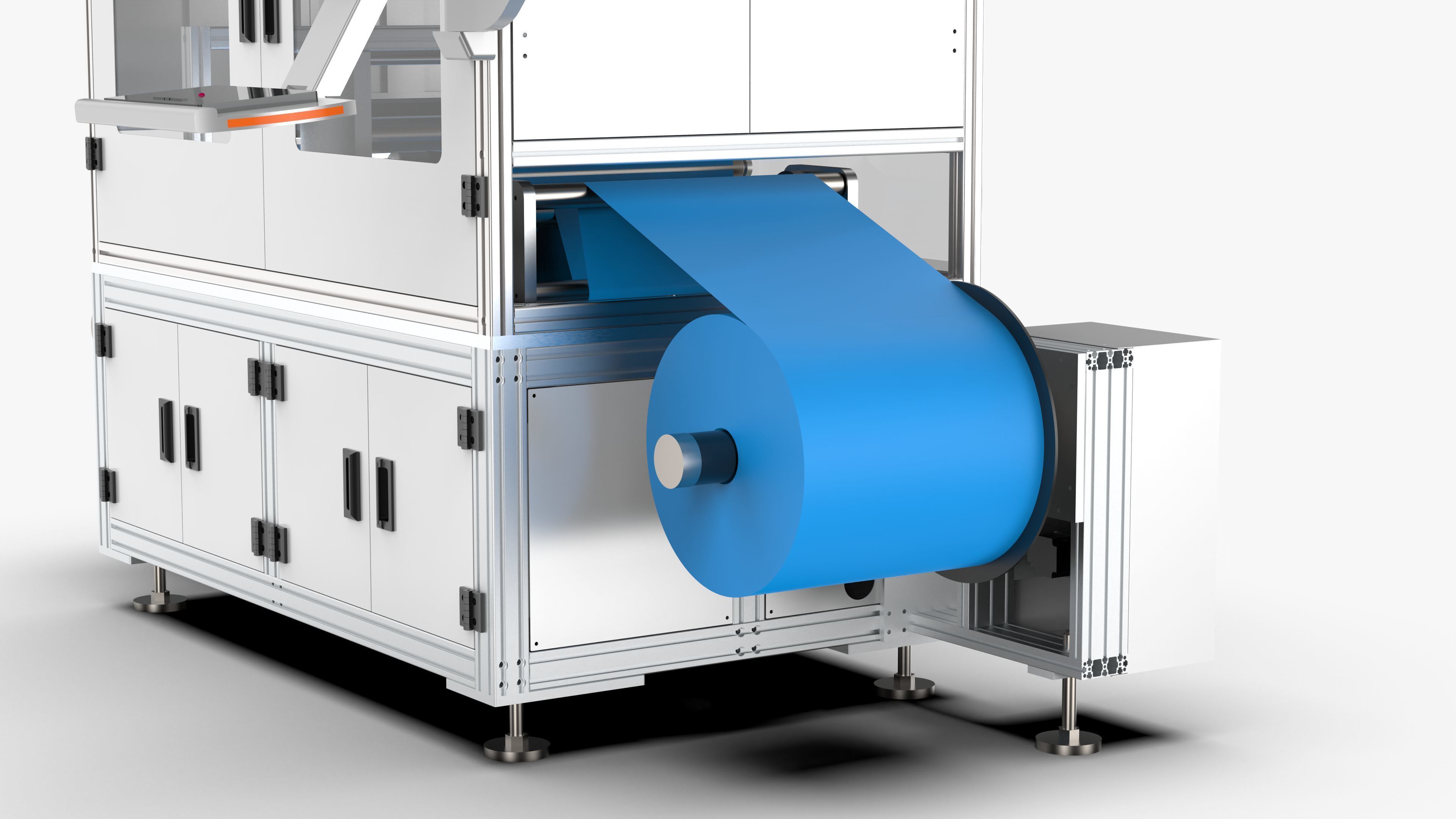

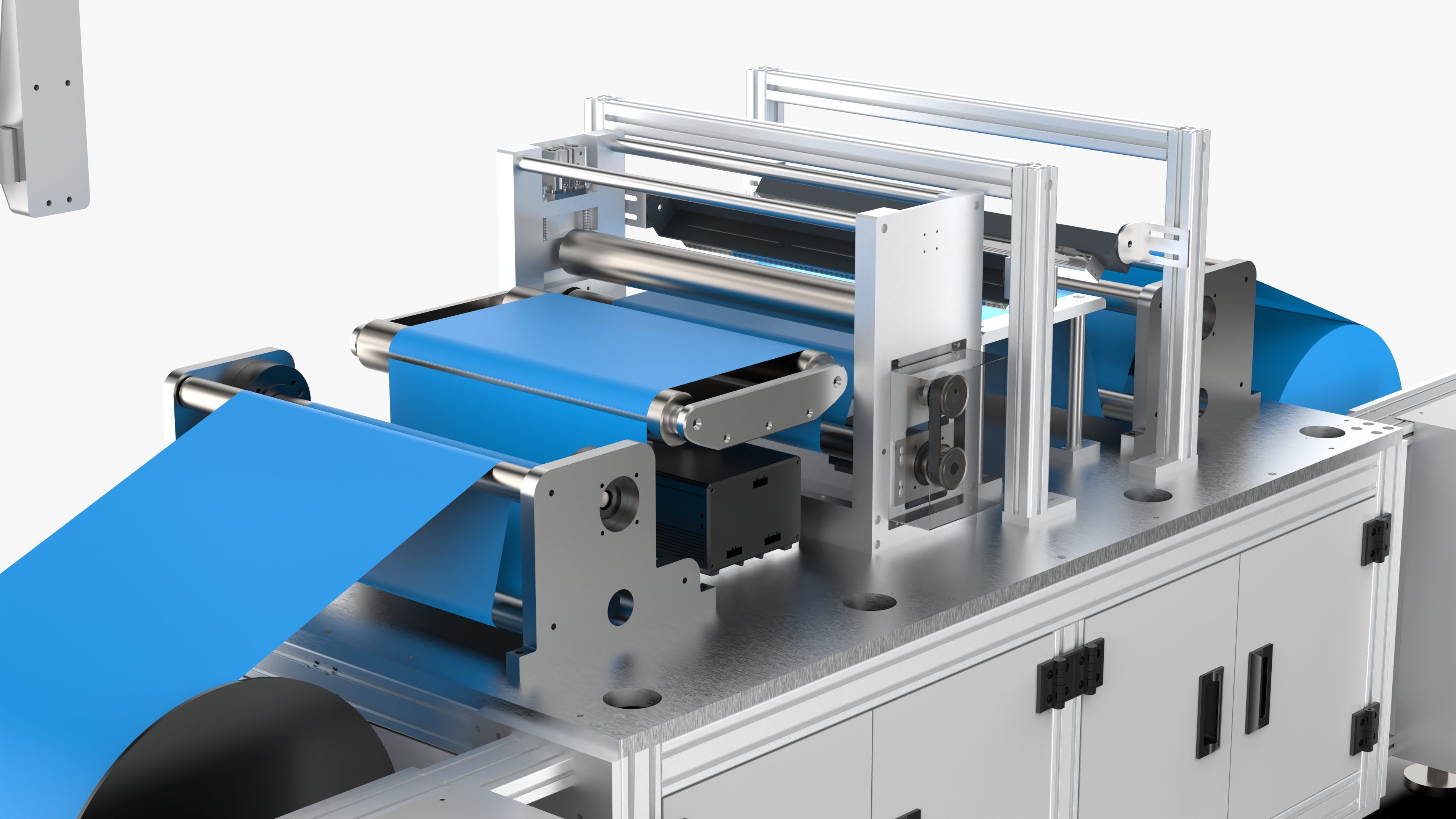

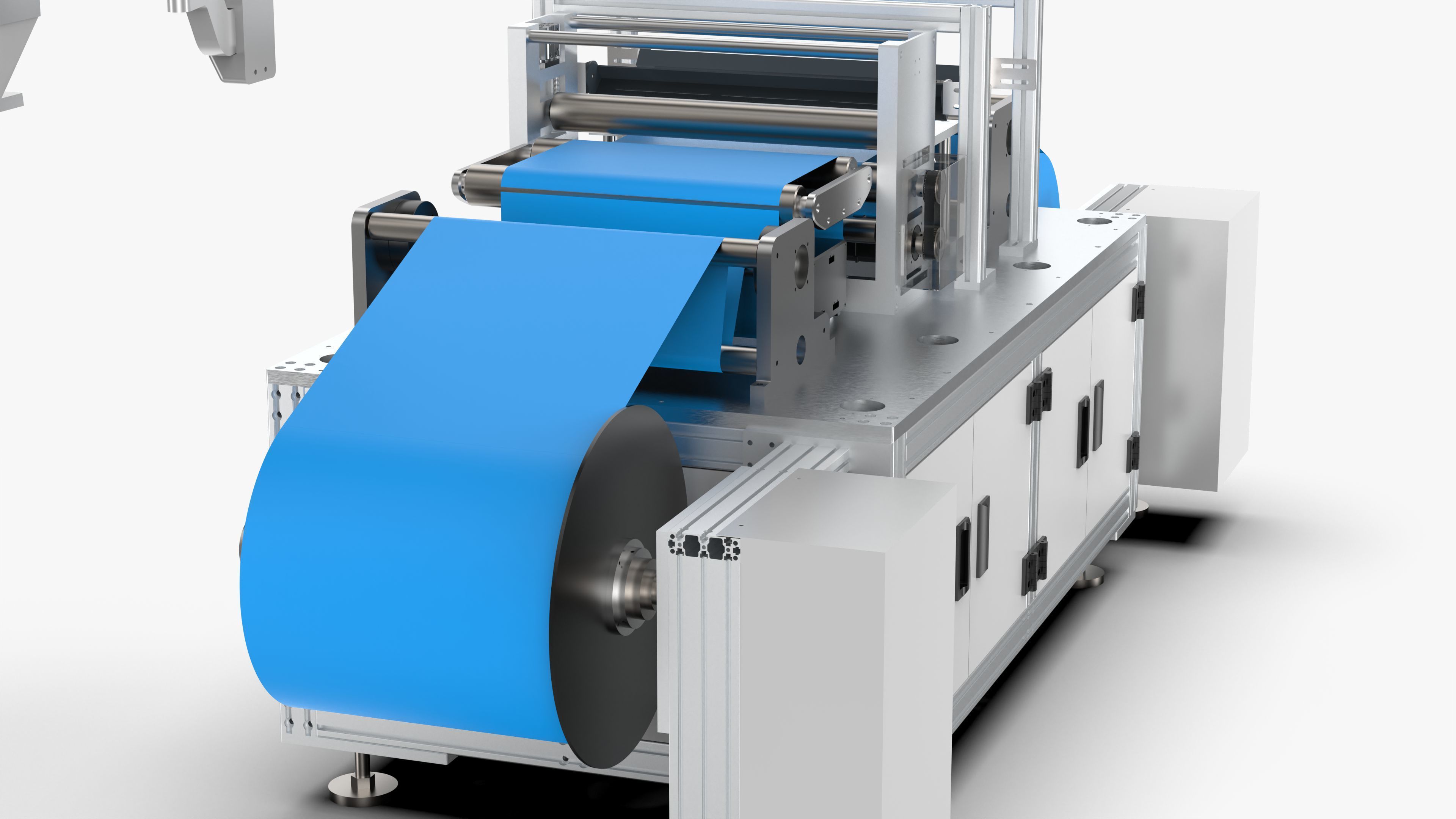

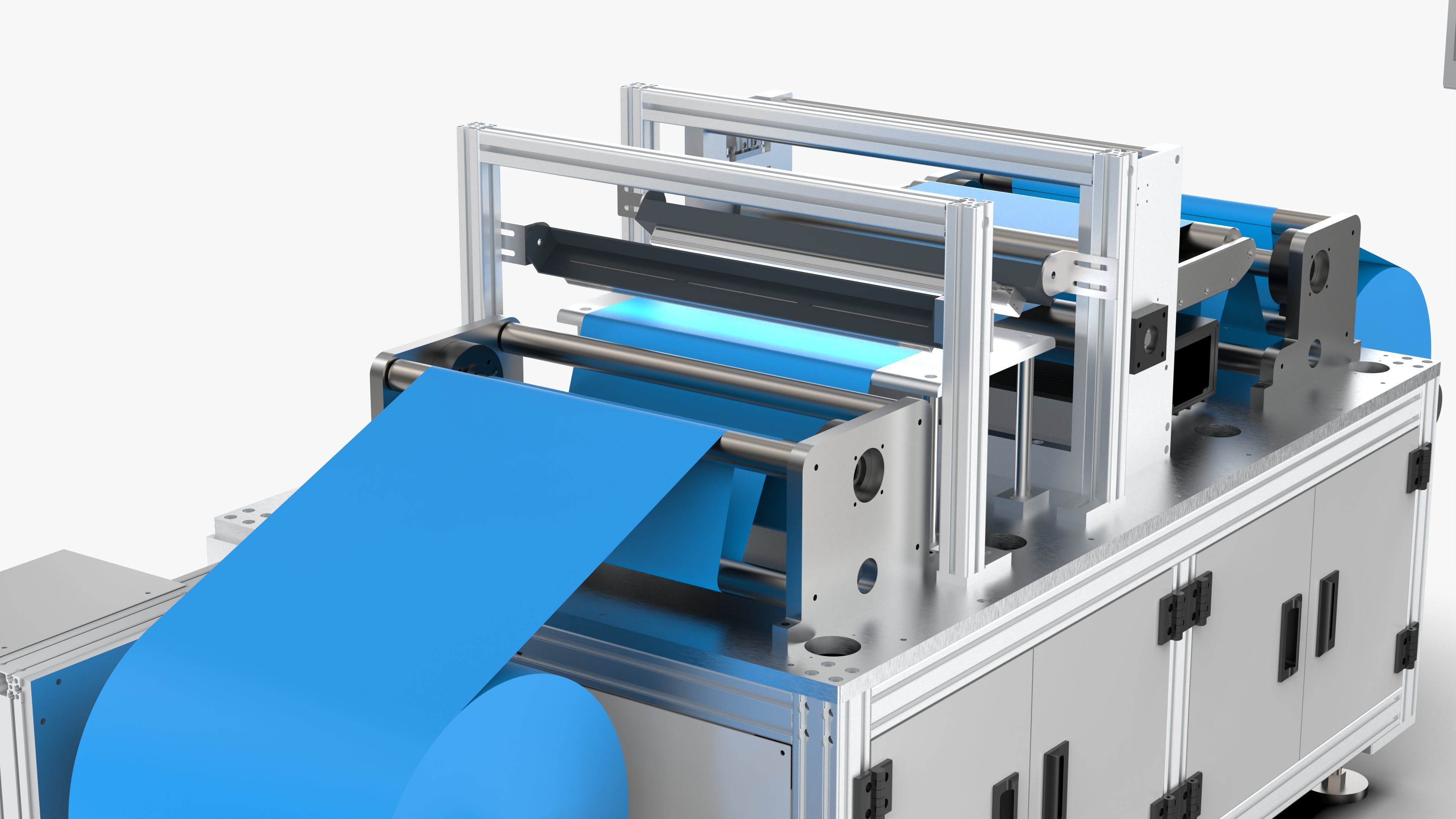

Check the two-dimensional code of the tape and whether there is any defect through the visual CCD. After the whole roll is loaded, it is fixed by the inflatable shaft. There is a deviation correction control system, a light source system at the bottom, and a CCD camera for top inspection. When NG occurs, the system will alarm and process, and the entire roll will be unloaded after inspection.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 983,616
• Vertice: 2,950,848
