Automatic Micro Motor Shaft Surface Marking Machine 3D model
Description

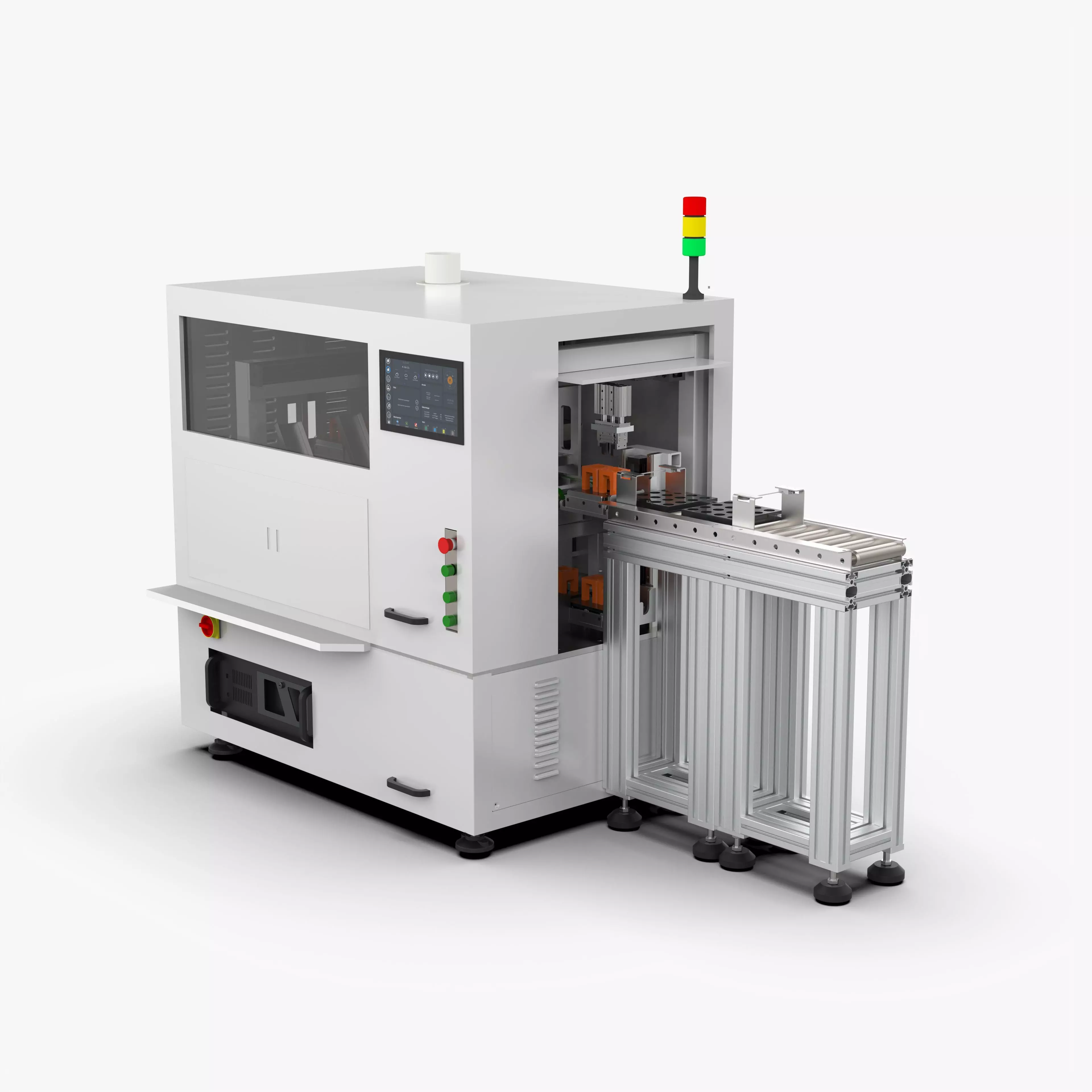

Automatic Micro Motor Shaft Surface Marking Machine
Introduction
Micro-motor axial surface marking machine: The product tray adopts an up-and-down circulation structure, the line body conveys the transplanting tray, and a box of products is filled manually, the manipulator automatically takes the material, automatically unloads the material, each work setting blocks the cylinder + sensor, and the electrical control guarantees Before the pallet of the next station is not flowed away, the top cylinder of this station does not descend to avoid mechanical collision of the pallet.
Automatic grabbing and distributing laser positioning marking, automatic grabbing and unloading.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 1,293,875
- Vertice: 3,881,619
Automatic Micro Motor Shaft Surface Marking Machine
Royalty Free License
Automatic Micro Motor Shaft Surface Marking Machine
Royalty Free License
3D Modeling
Rendering
Post Production
PBR modeling
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)56.3 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
- Stereolithography (.stl)61.7 MB
- STEP (.stp)23.1 MB
- IGES (.ige, .igs, .iges)89.8 MB
- OBJ (.obj, .mtl)90.9 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 1,293,875
- Vertices 3,881,619
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2023-03-10
- Model ID#4351716
