Automatic Feeding and Separating Board Machine

Introduction

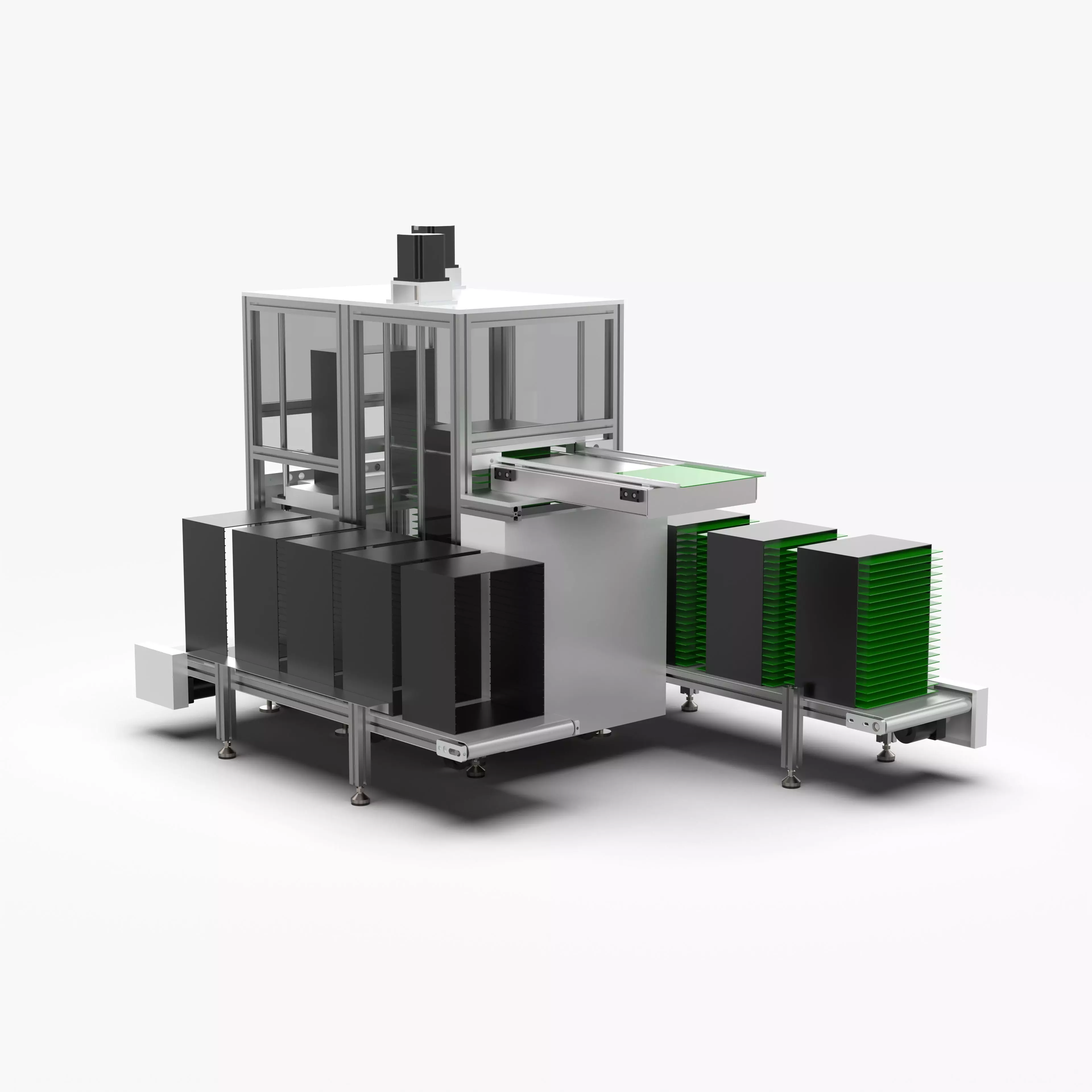

All-in-one machine for feeding and depaneling (general assembly - depaneling machine B.SLDASM part of the parts are hidden in the model, and the display can be complete)

  1. Equipment dimensions: 3000*1783*1449 (length*width*height)
  2. Movement Principle:

The upper plate is controlled by PLC+touch screen , and the stepping motor drives the material lifting cylinder to divide the plate. The part of the board is controlled by PLC+touch screen, using the geared motor to feed, divide and discharge, the servo motor+stepping motor rotates the material, vacuum sucks the PCB board, and has a high degree of automation, which saves working time and improves work efficiency.
