DESCRIPTION

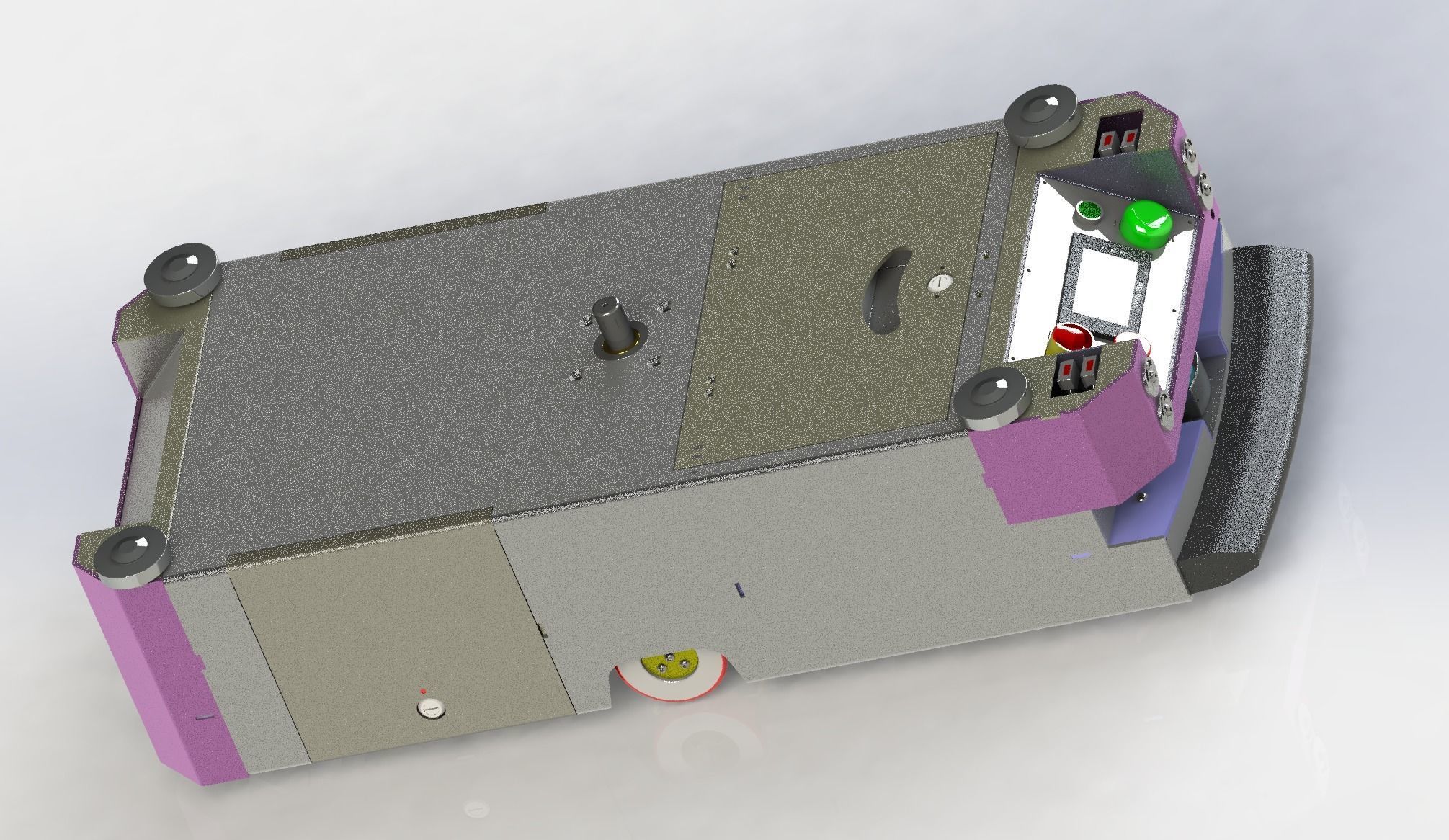

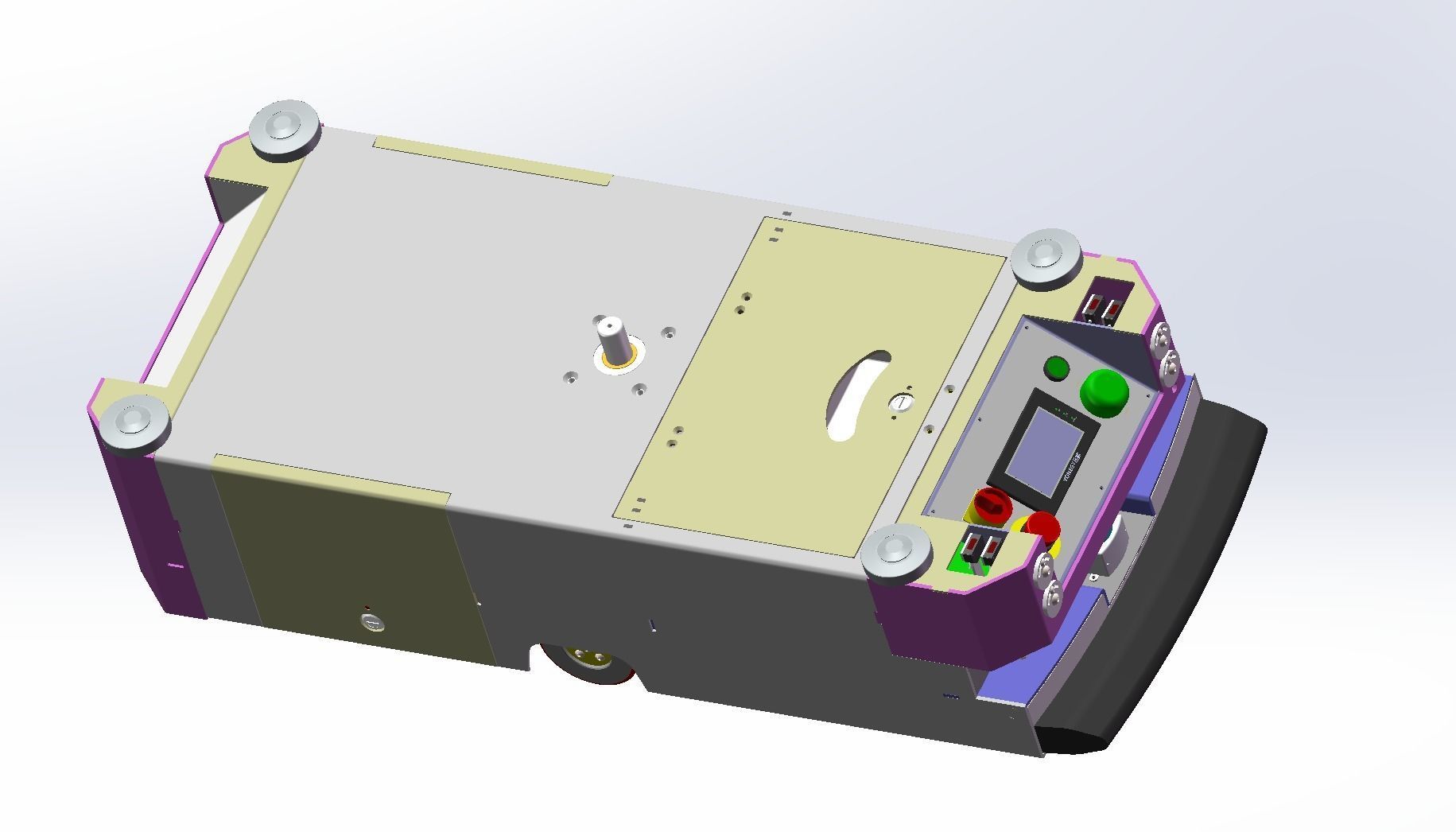

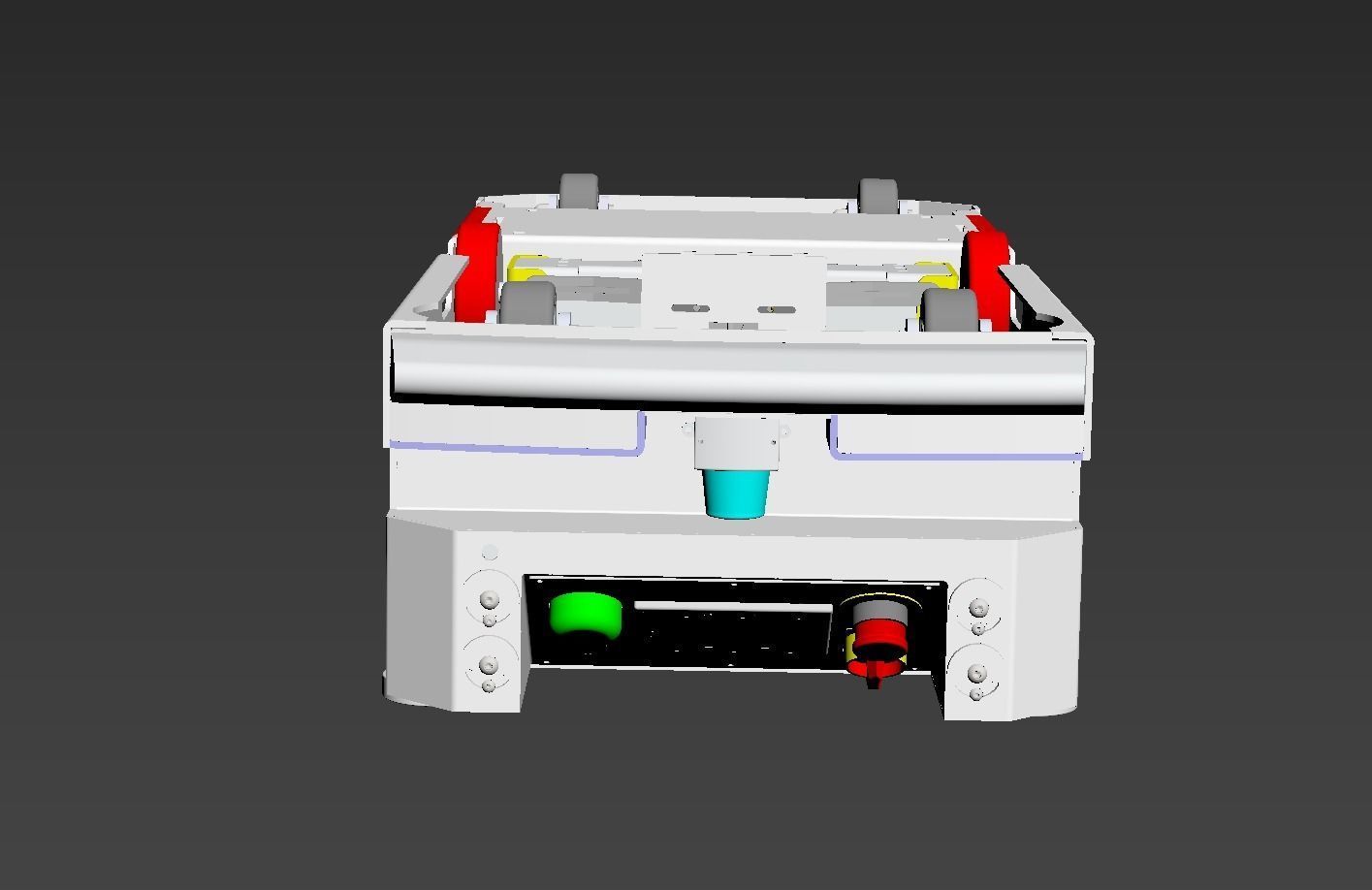

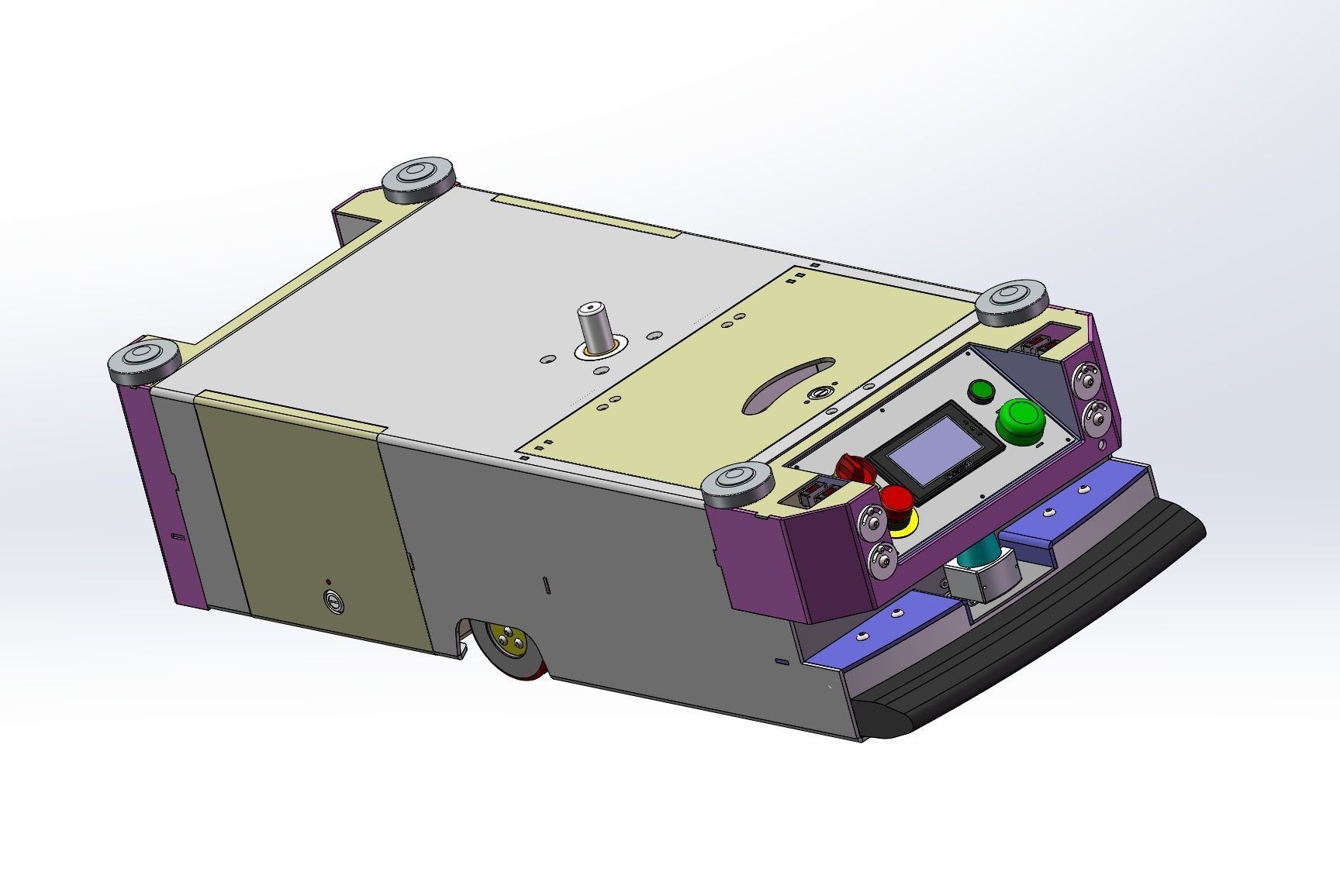

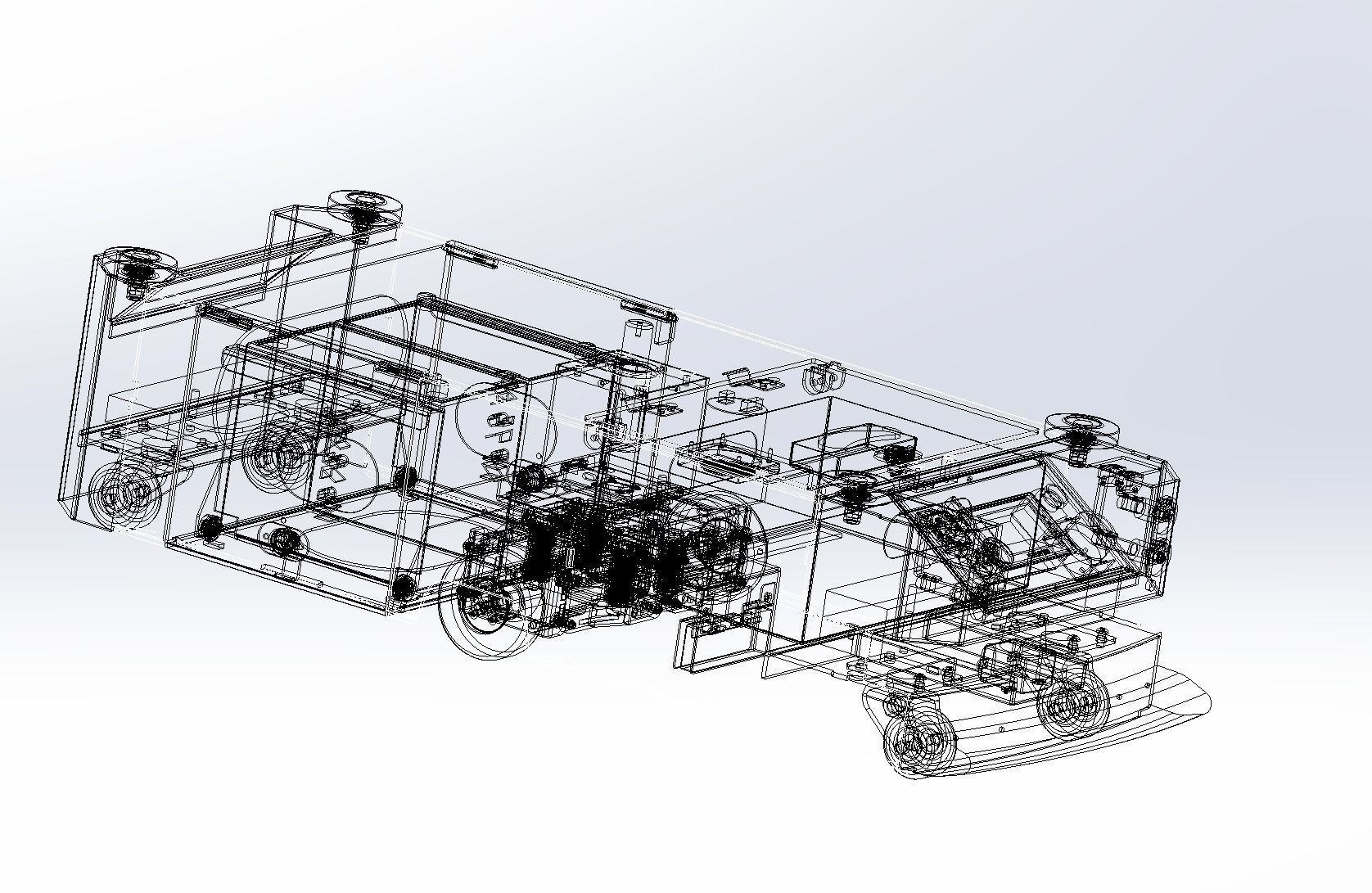

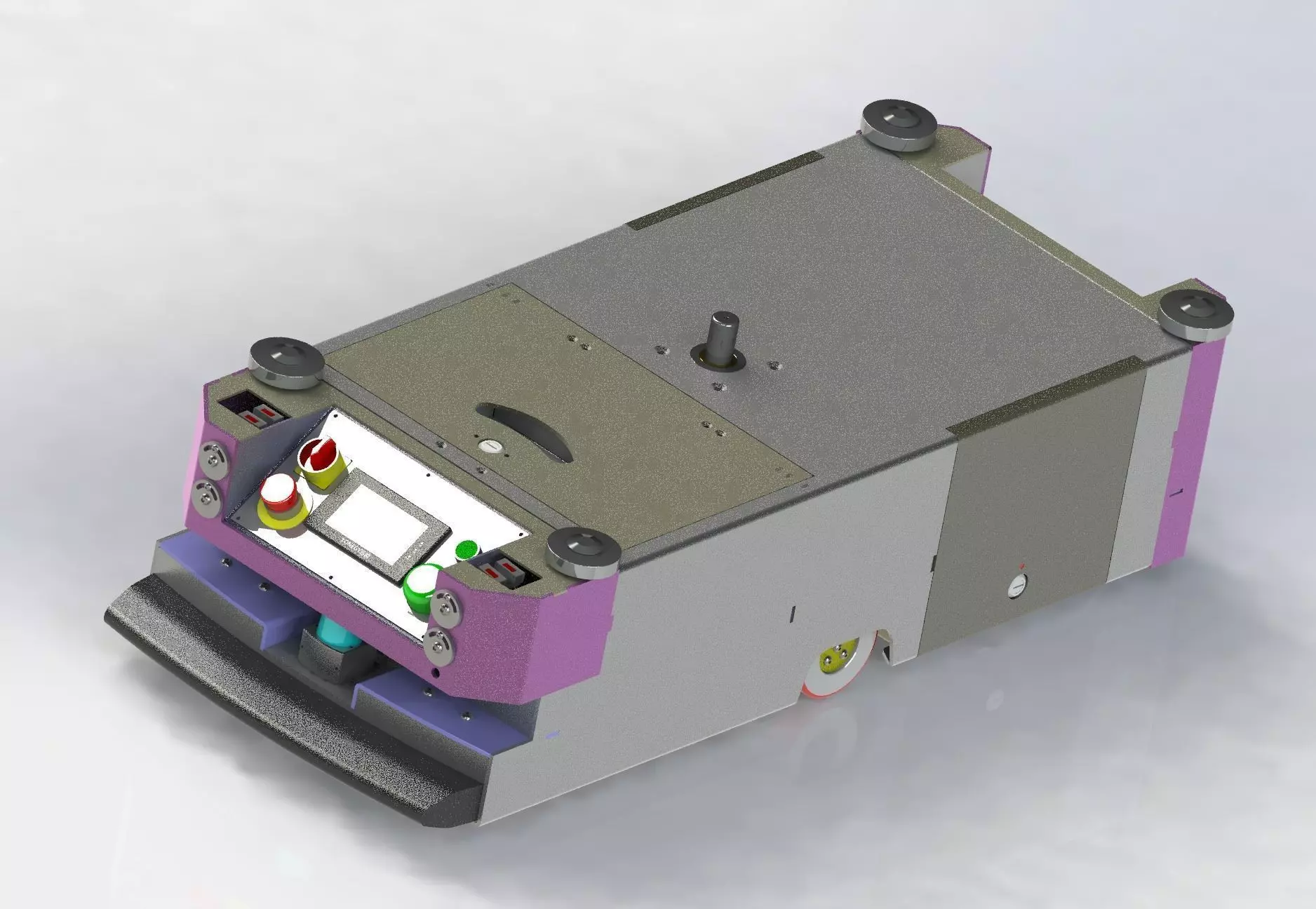

AGV carrier car, which drives two sets of wheels through two sets of stepper motors, has a set of electric cylinders to drive up and down the lifting mechanism in the middle part. Under the control of sensors and control devices such as touch screen-HMI, it can realize the unmanned carrying function

mechanism include

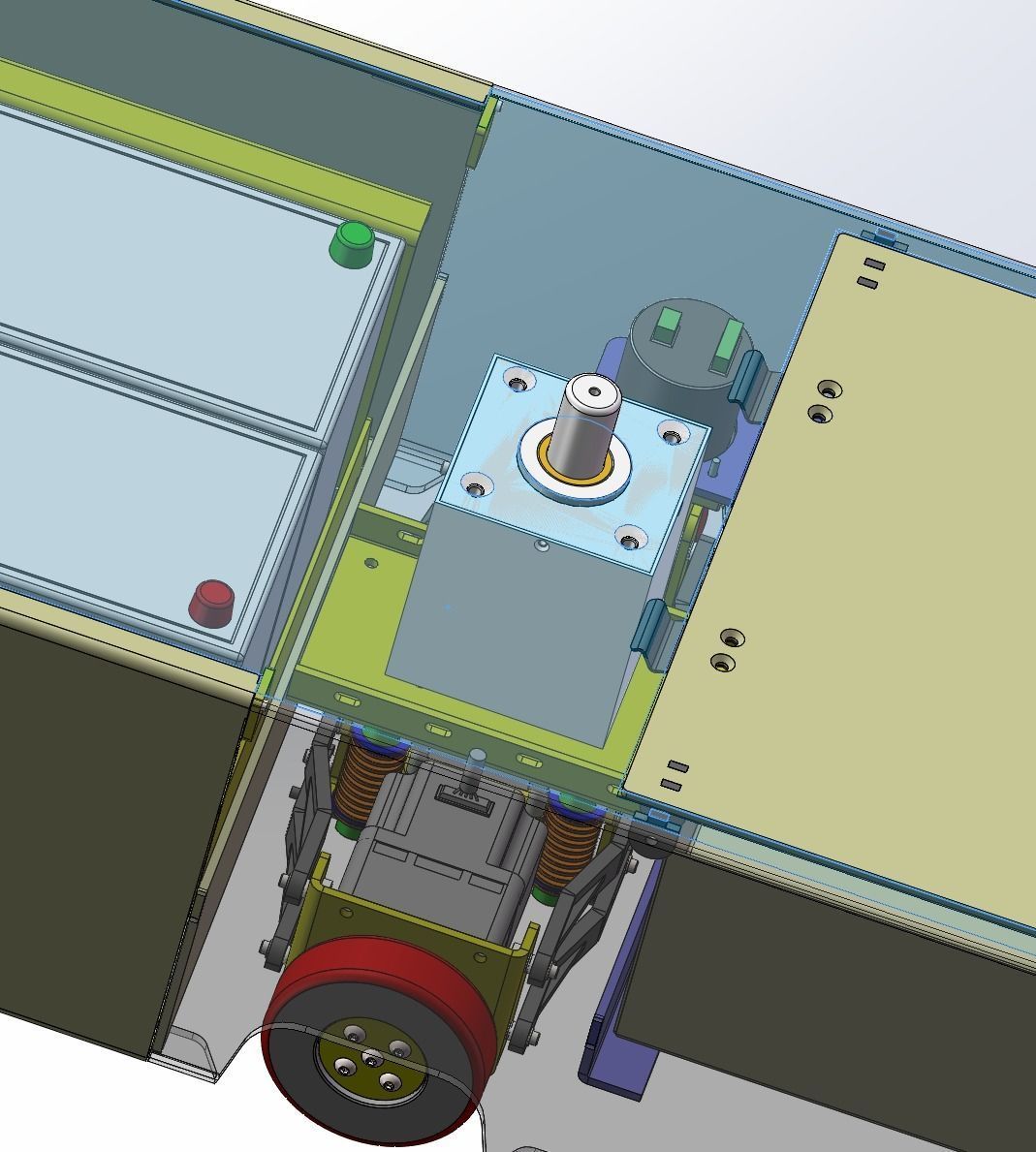

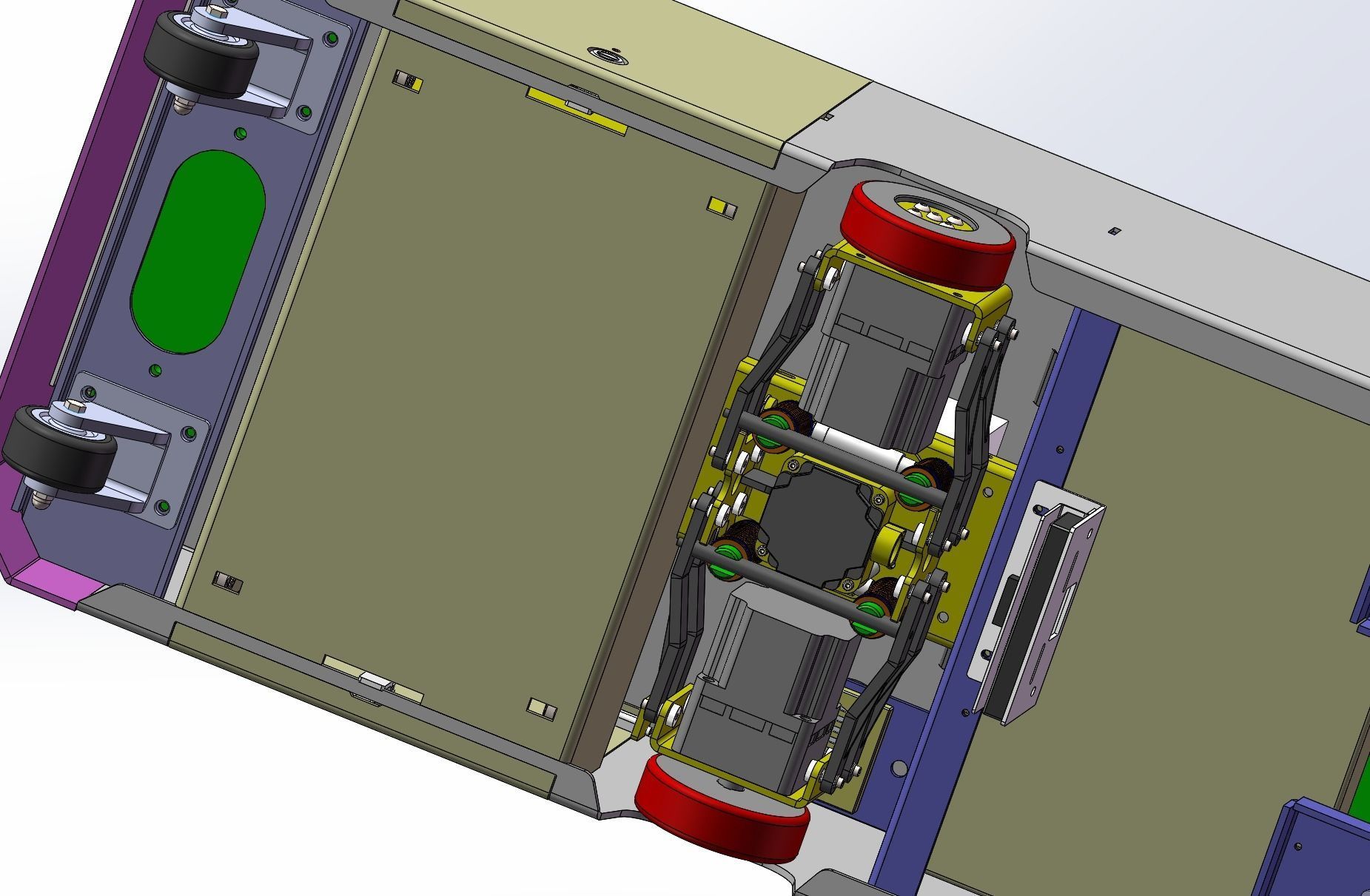

1. Left-right motion motor drive structure

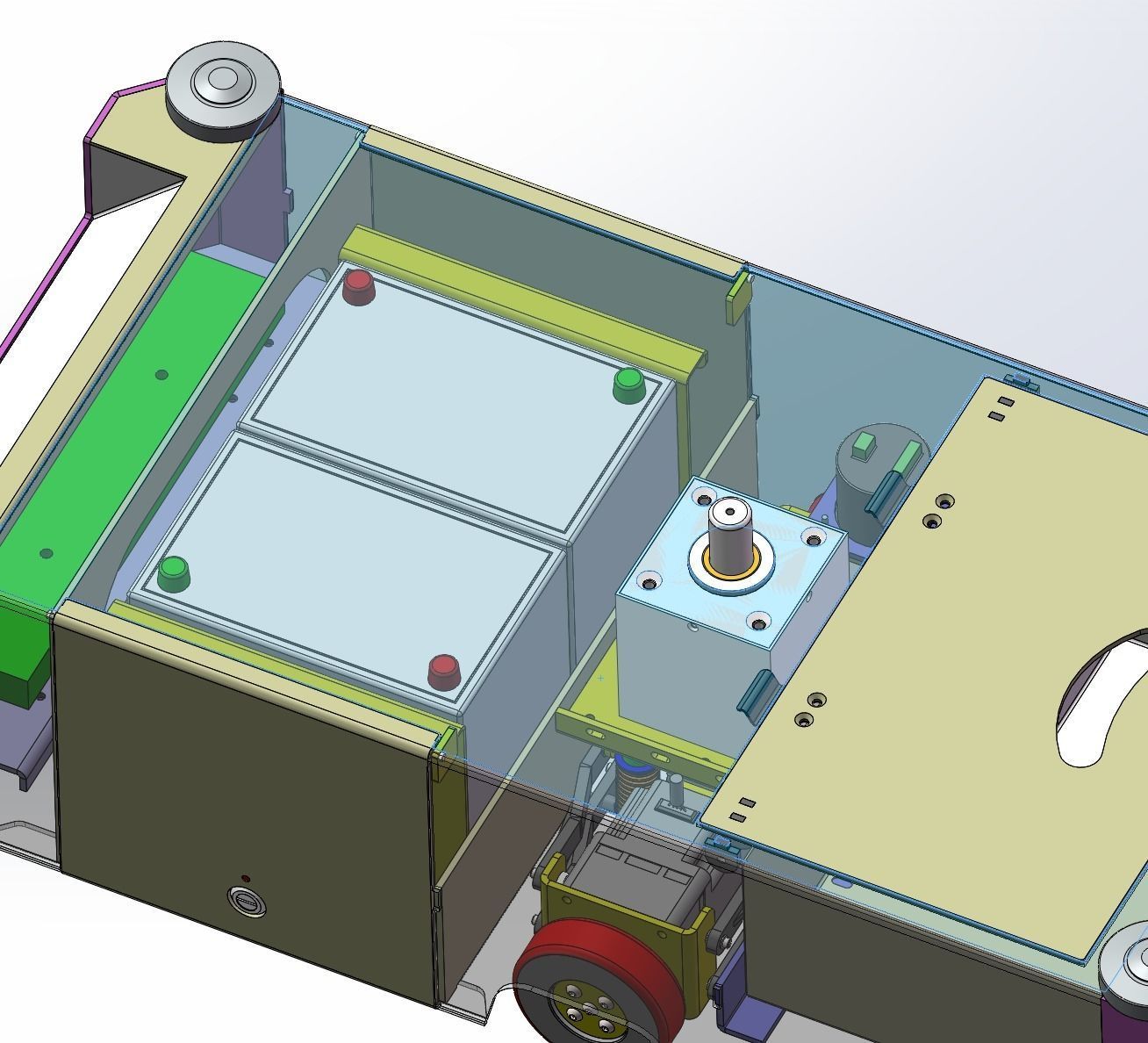

2. Jacking mechanism

3. Induction device mechanism

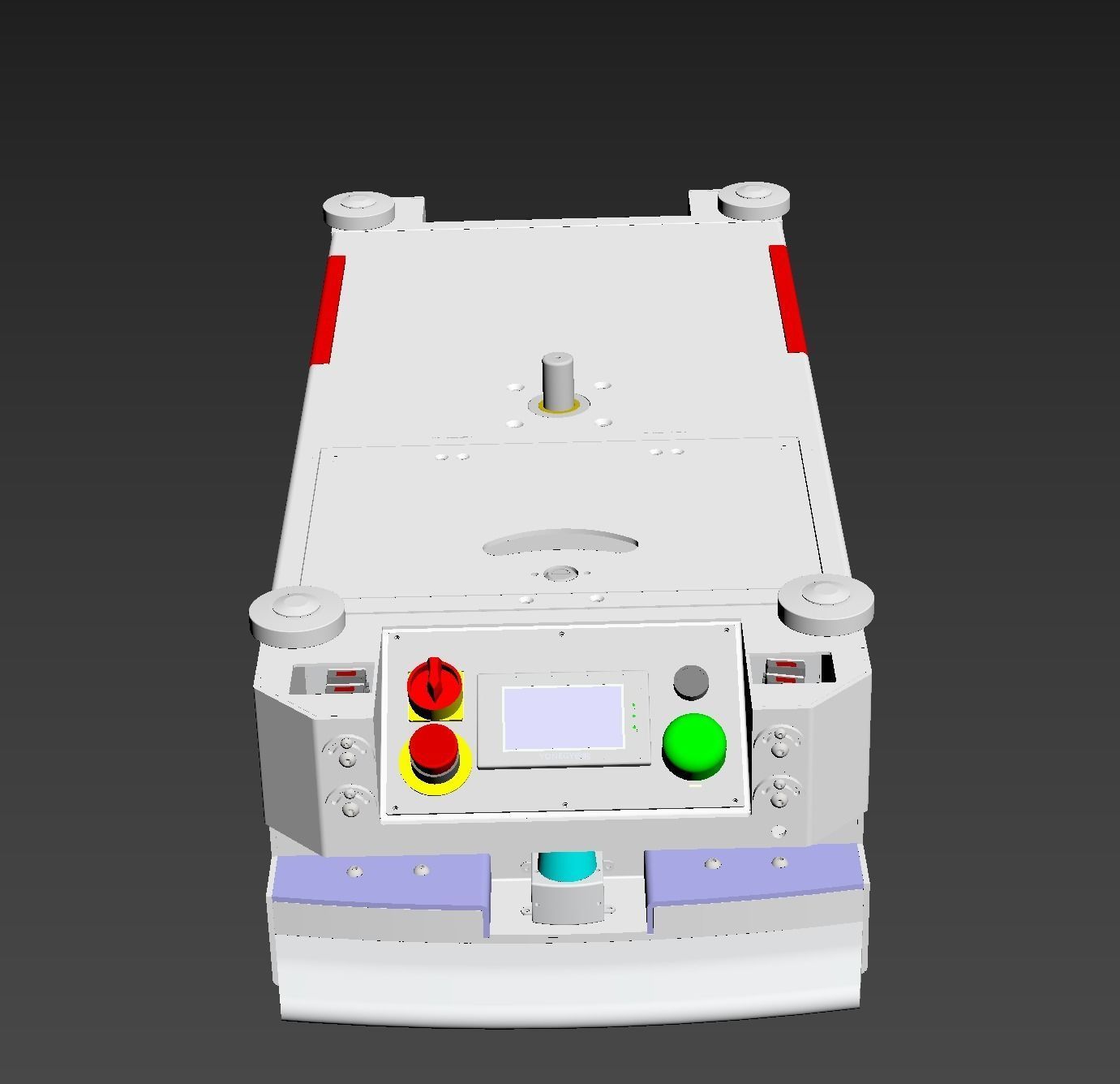

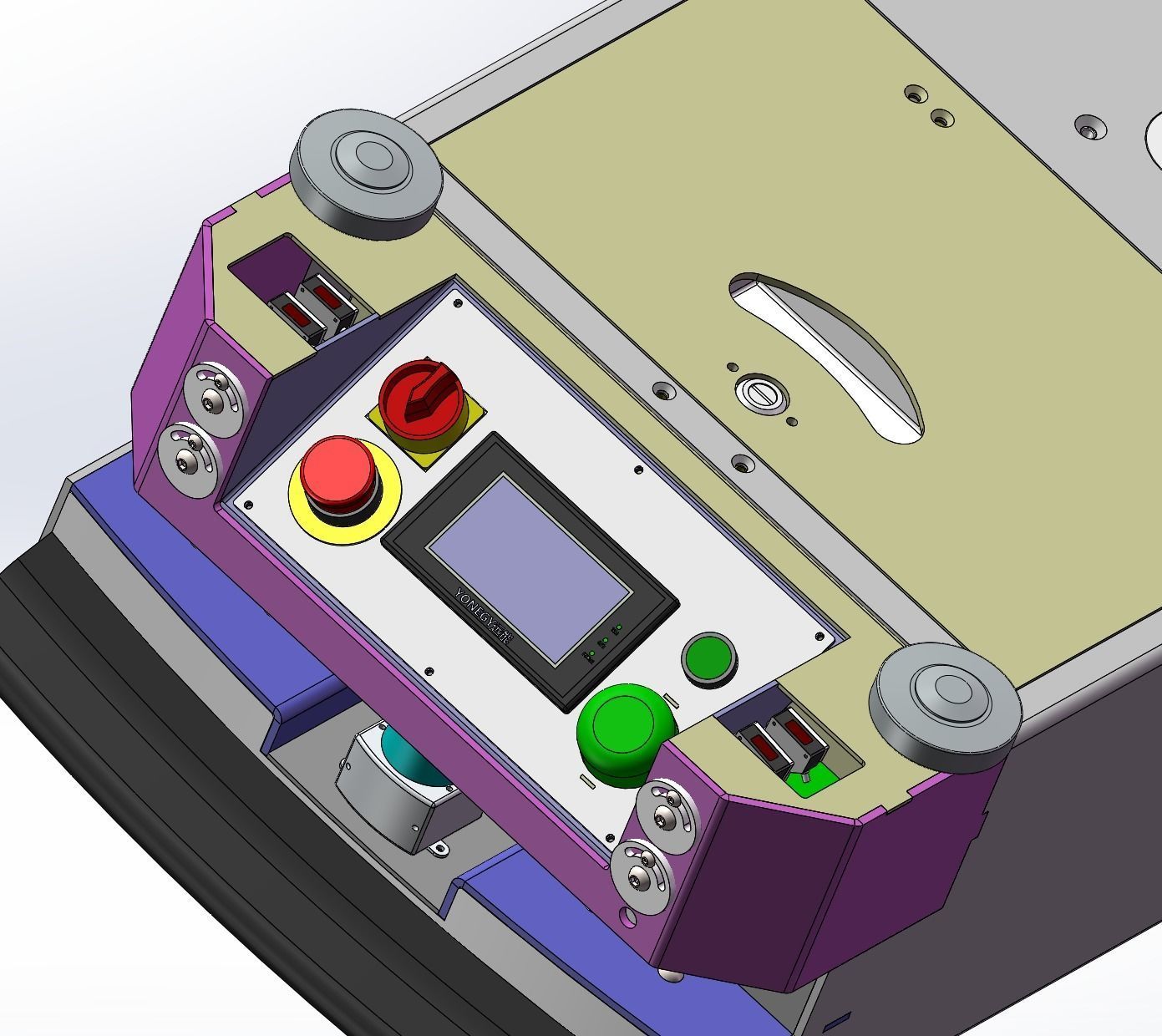

4.HMI human-machine control structure

automatically lift the electric cylinder of the unmanned vehicle

**************************************

Files format contains

-solidworks 2017

-step

-iges

-stl

-obj

-3ds

-Fbx

-3dmax

- and other formats

**************************************

If you like,you can buy for you to get this models or if you have any questions also you can email to me.

Designed with SolidWorks 2017, render with PhotoView 360

**************************************
