15 m³/h Industrial Sand Filter System with Autovalve, Dual Pumps & 440W UV

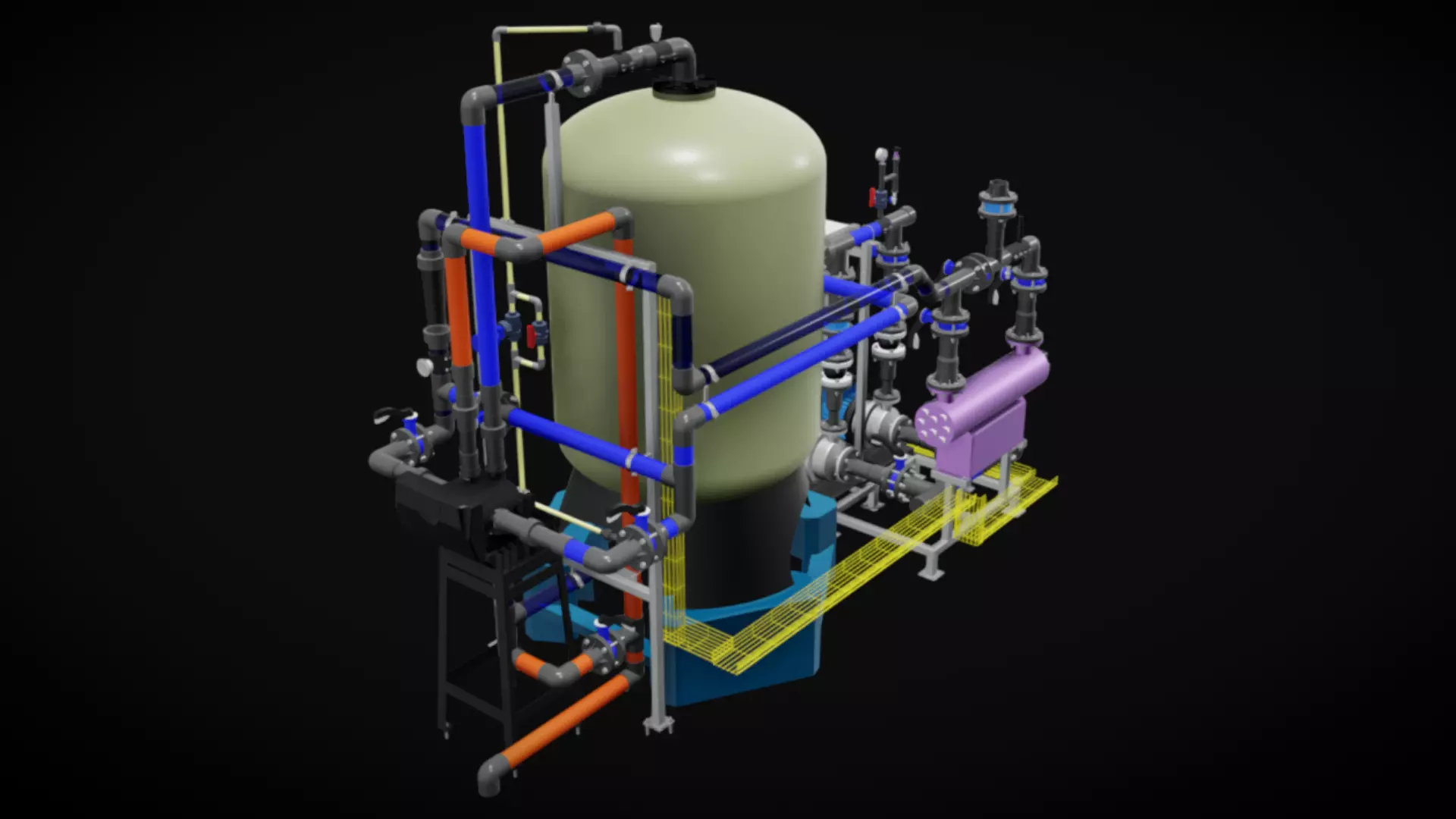

This is a fully modeled industrial water filtration system designed for a flow rate of 15 m³/h, built with a 48×72 inch sand filter vessel, an automatic backwash valve (Runxin autovalve), dual feed/booster pumps, and a 440W UV sterilization unit.The entire assembly is created in Autodesk Inventor, optimized for engineering visualization, mechanical design, and plant layout integration.The model includes a complete piping layout, pump skid structure, sand filter internals, inlet/outlet manifolds, and cable routing placeholders. It is ideal for industrial water treatment design, 3D animation, engineering documentation, VR/AR visualization, and digital twin applications.

FeaturesFlow rate: ~15 m³/hSand Filter: 48×72 inch FRP/Steel tankValve: Runxin automatic backwash autovalvePumping System: Dual booster feed pump configurationSterilization: High-power 440W UV lampLayout: Compact skid-mounted designFully modeled piping, fittings, and support framesRealistic materials, standardized connectors, and structured component hierarchy

3D Model DetailsDesigned in Autodesk InventorHigh-accuracy mechanical proportionsClean mesh, no overlapping geometryOrganized folder structure for easy editingSuitable for FBX/OBJ/STL workflows

Use CasesIndustrial filtration system designWater treatment plant visualizationTechnical documentationEngineering presentationsVR/AR training modules
