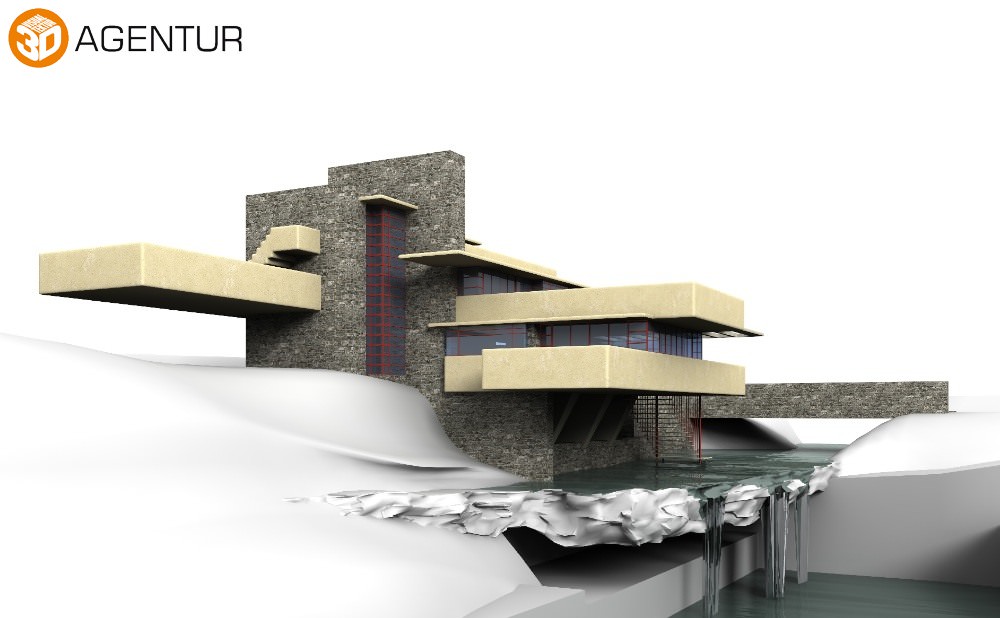

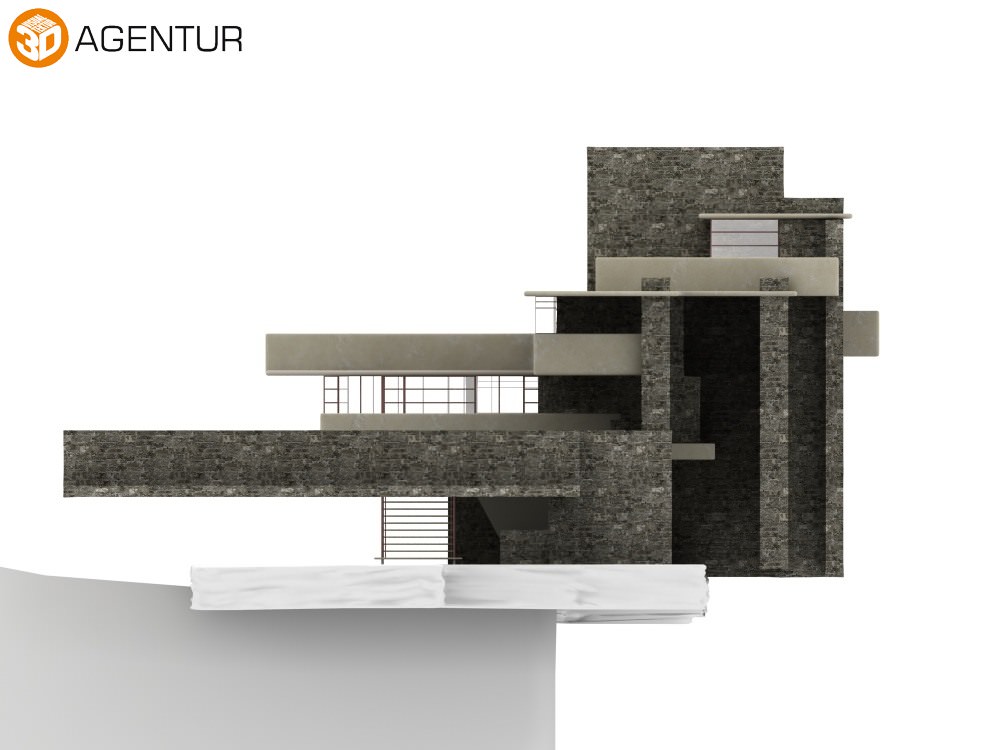

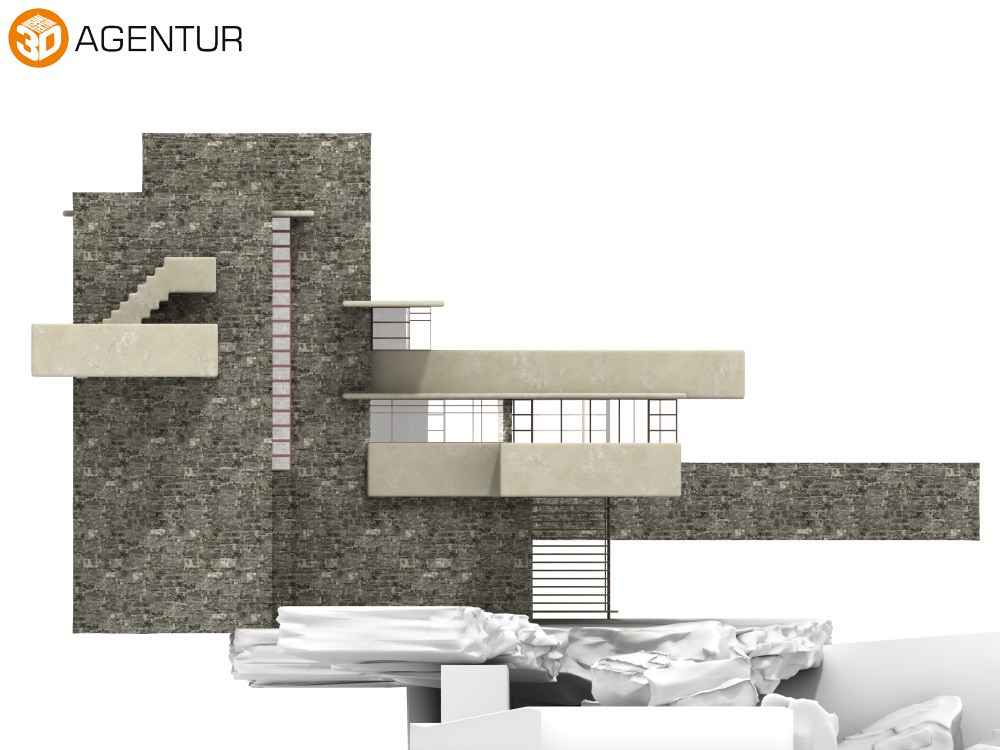

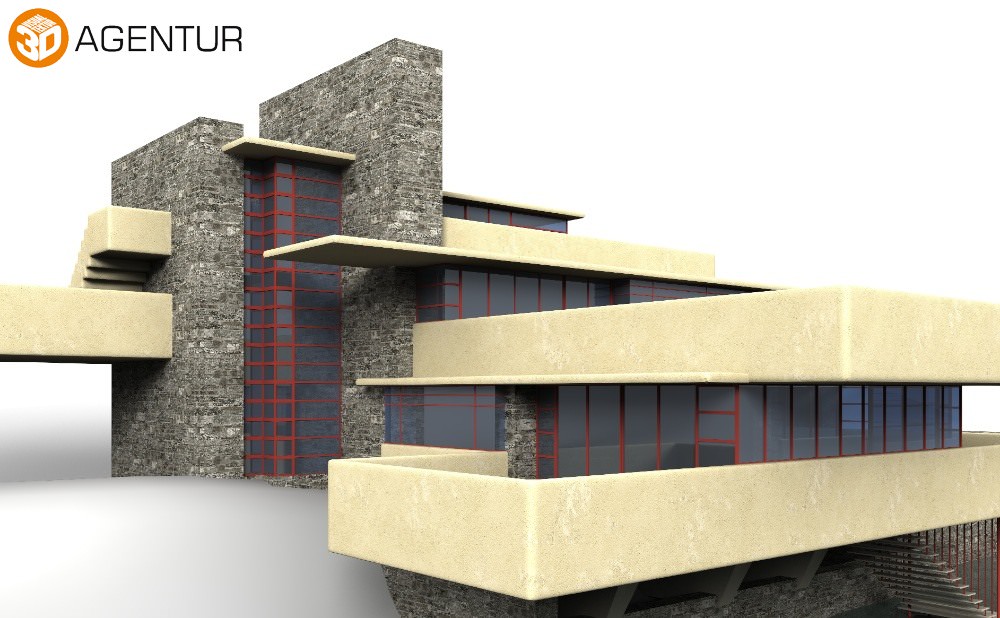

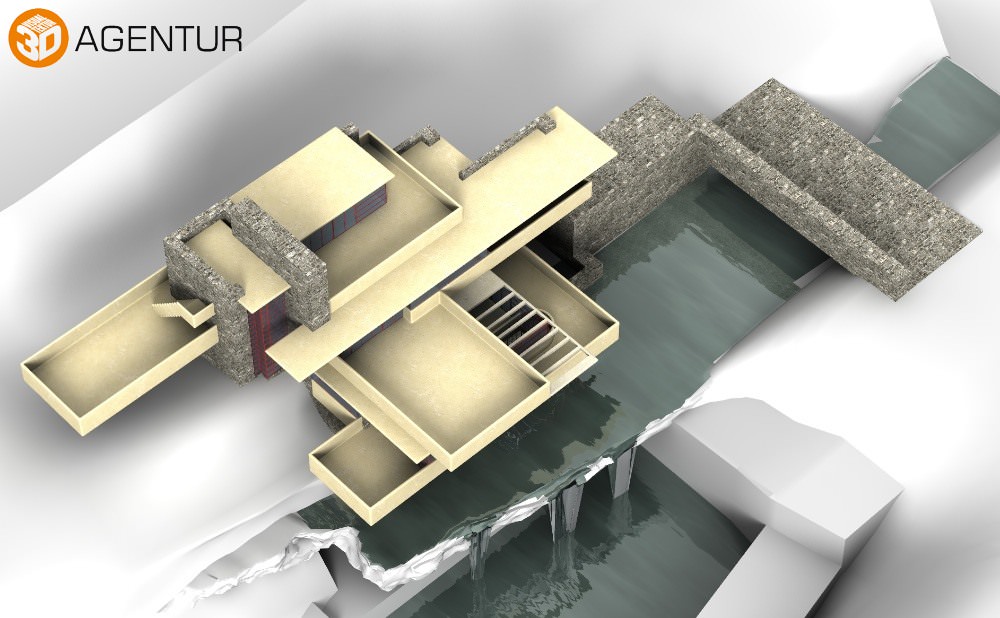

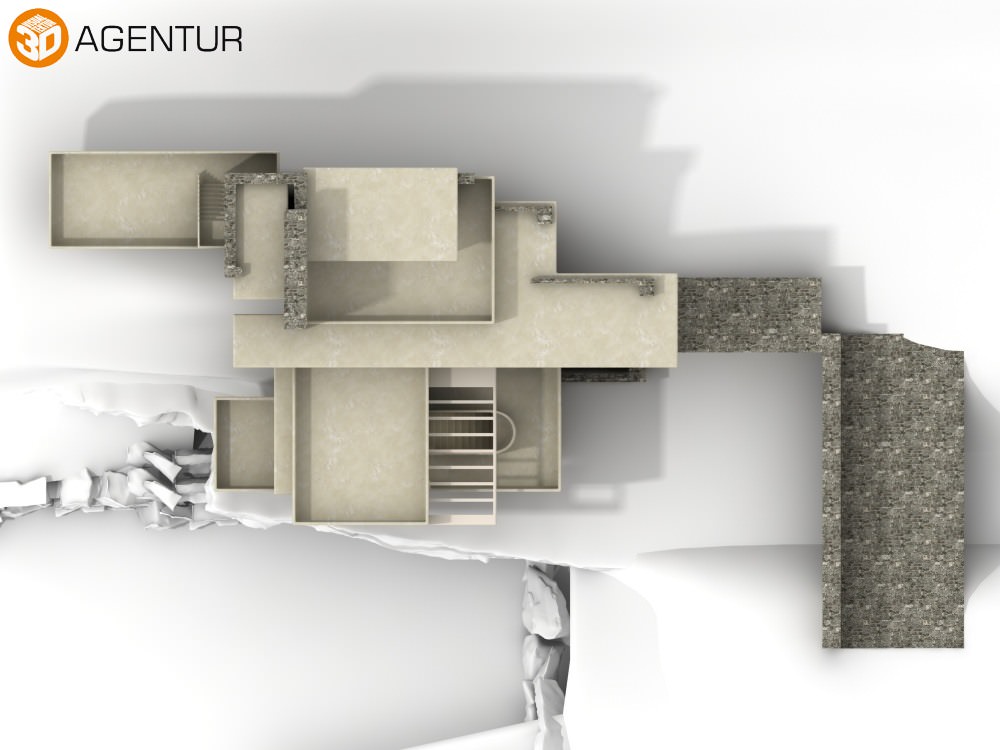

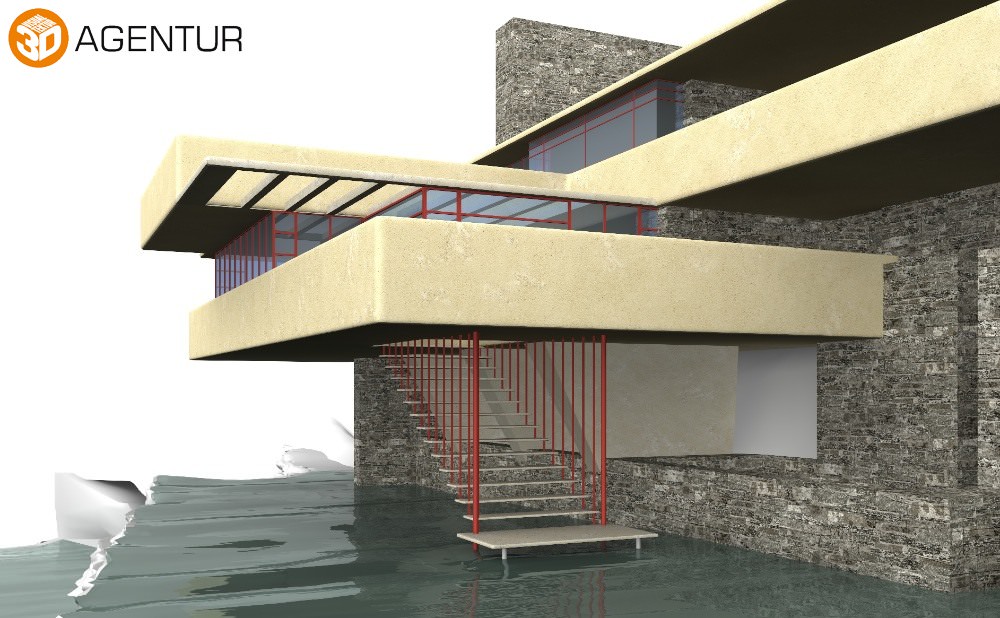

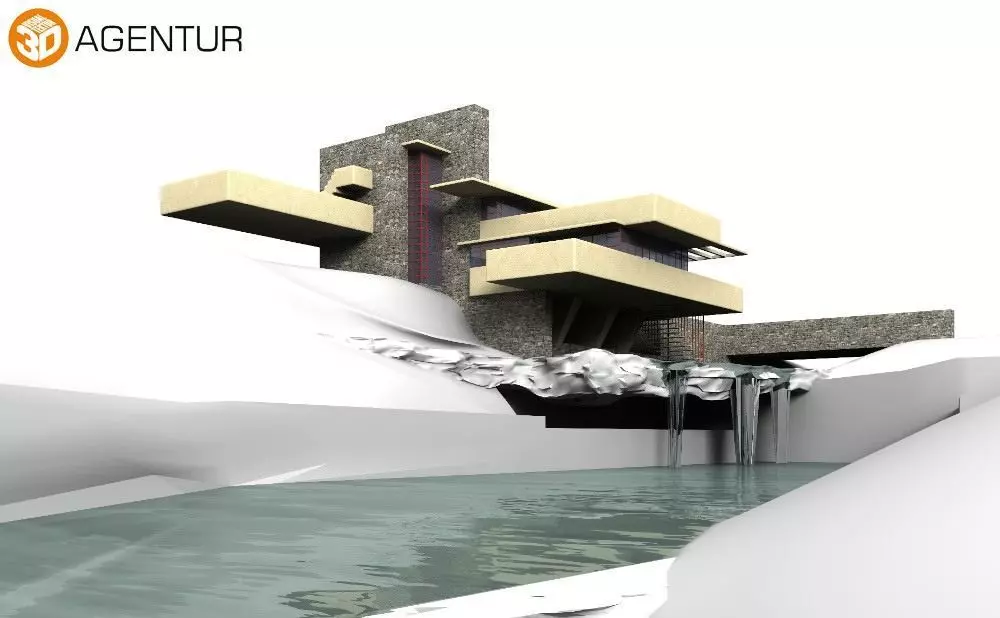

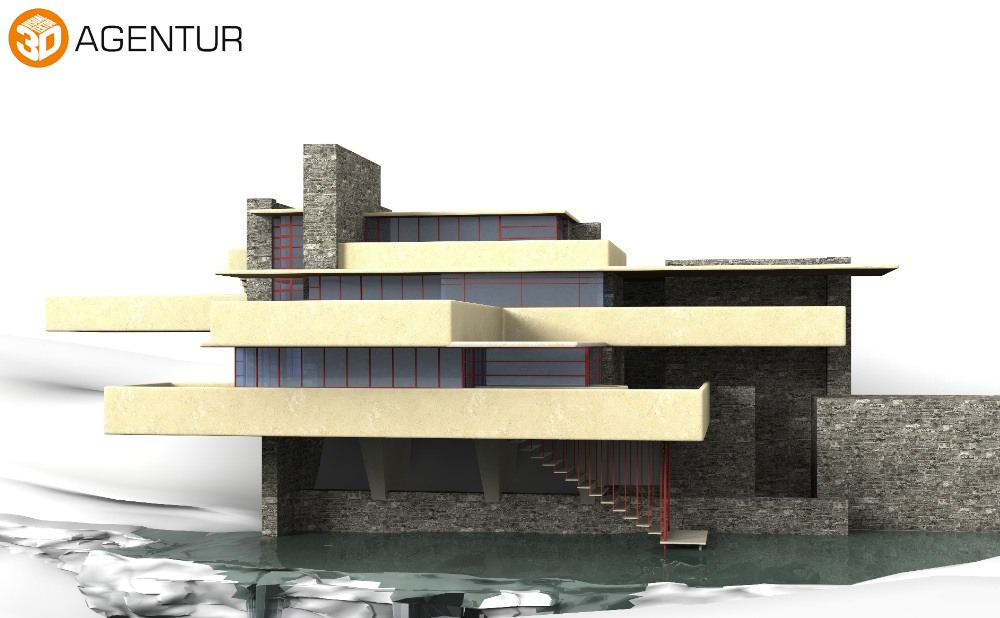

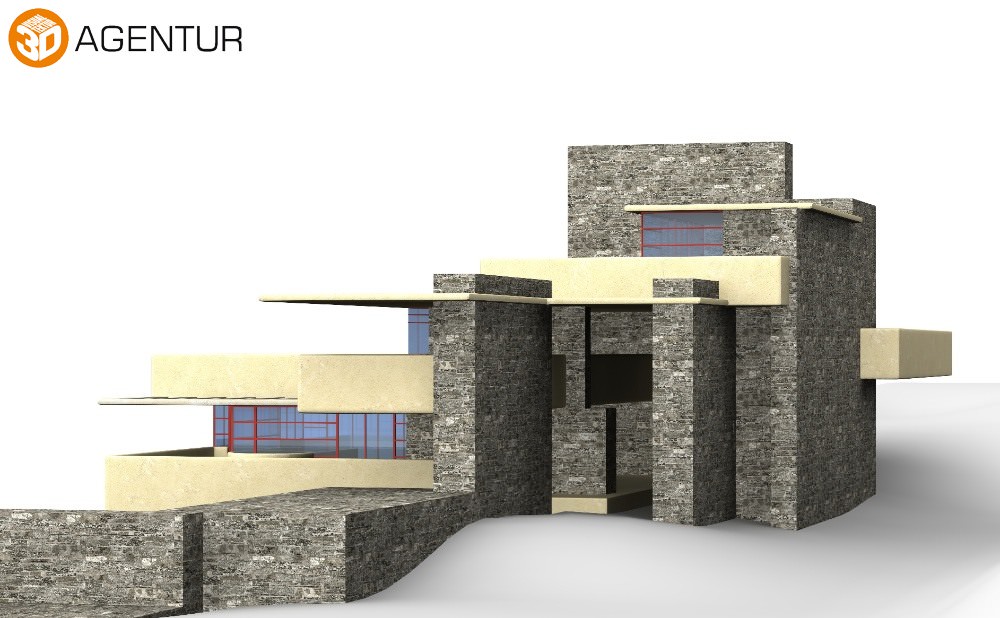

House Fallingwater Frank Lloyd Wright 3D model

With your purchase you receive the 3D building model of the Frank Lloyd Wright’s Fallingwater as DAE, 3DS, C4D and SKP for immediate download. (see details)

Fallingwater is a famous private residence in Pennsylvania, USA. It was constructed between 1935 and 1937 by the American architect Frank Lloyd Wright. Fallingwater is one of the most well-known buildings in the US. The house was commissioned by its owner, the founder of Kaufmann’s Department Store chain, Edgar J. Kaufmann.

Fallingwater is a house designed by architect Frank Lloyd Wright in 1935 in rural southwestern Pennsylvania, 43 miles (69 km) southeast of Pittsburgh. The house was built partly over a waterfall on Bear Run in the Mill Run section of Stewart Township, Fayette County, Pennsylvania, located in the Laurel Highlands of the Allegheny Mountains. The house was designed as a weekend home for the family of Liliane Kaufmann and her husband, Edgar J. Kaufmann, Sr., owner of Kaufmann's Department Store.

After its completion, Time called Fallingwater Wright's most beautiful job,[5] and it is listed among Smithsonian's Life List of 28 places to visit before you die.[6] The house was designated a National Historic Landmark in 1966.[3] In 1991, members of the American Institute of Architects named Fallingwater the best all-time work of American architecture and in 2007, it was ranked 29th on the list of America's Favorite Architecture according to the AIA.

Fallingwater, as seen from Bear Run At age 67, Frank Lloyd Wright was given the opportunity to design and construct three buildings. With his three works of the late 1930s—Fallingwater; the Johnson Wax Building in Racine, Wisconsin; and the Herbert Jacobs house in Madison, Wisconsin—Wright regained his prominence in the architectural community

The Kaufmanns Edgar J. Kaufmann, Sr. was a Pittsburgh businessman and president of Kaufmann's Department Store. Edgar and Liliane's only child, Edgar Kaufmann Jr., eventually became the catalyst for his father’s relationship with Frank Lloyd Wright

In the summer of 1934, Edgar Jr. read Frank Lloyd Wright’s An Autobiography (1932), and traveled to meet Wright at his home in Wisconsin in late September. Within three weeks, Edgar Jr. began an apprenticeship at the Taliesin Fellowship, a communal architecture program established in 1932 by Wright and his wife, Olgivanna. It was during a visit with Edgar Jr. at Taliesin in November 1934 that Edgar and Liliane Kaufmann first met Frank Lloyd Wright.

The Kaufmanns lived in La Tourelle, a French Norman estate in Fox Chapel designed in 1923 for Edgar J. Kaufmann by Pittsburgh architect Benno Janssen. However, the family also owned a remote property outside Pittsburgh — a small cabin near a waterfall — which was used as a summer retreat. When these cabins deteriorated, Mr. Kaufmann contacted Wright.

On December 18, 1934, Wright visited Bear Run and asked for a survey of the area around the waterfall.[11] One was prepared by Fayette Engineering Company of Uniontown, Pennsylvania, including all the site's boulders, trees, and topography, and forwarded to Wright in March 1935.

Construction As reported by Frank Lloyd Wright's apprentices at Taliesin, Edgar Kaufmann Sr. was in Milwaukee on September 22, nine months after their initial meeting, and called Wright at home early Sunday morning to surprise him with the news that he would be visiting Wright that day. Kaufmann could not wait to see Wright's plans. Wright had told Kaufmann in earlier communication that he had been working on the plans, but had not actually drawn anything. After breakfast that morning, amid a group of very nervous apprentices, Wright calmly drew the plans in the two hours in which it took Kaufmann to drive to Taliesin.

Wright designed the home above the waterfall, rather than below to afford a view of the cascades as Kaufmann had expected. It has been said that Kaufmann was initially very upset that Wright had designed the house to sit atop the falls. Kaufmann had wanted the house located on the southern bank of Bear Run, directly facing the falls. He told Wright that they were his favorite aspect of the property.

The Kaufmanns planned to entertain large groups of people, so the house needed to be larger than the original plot allowed. Also, Mr. and Mrs. Kaufmann requested separate bedrooms, as well as a bedroom for their adult son, and an additional guest room, for a total of four bedrooms.

A cantilevered structure was used to address these requests. The structural design for Fallingwater was undertaken by Wright in association with staff engineers Mendel Glickman and William Wesley Peters, who had been responsible for the columns featured in Wright’s revolutionary design for the Johnson Wax Headquarters.

Preliminary plans were issued to Kaufmann for approval on October 15, 1935, after which Wright made an additional visit to the site and provided a cost estimate for the job. In December 1935, an old rock quarry was reopened to the west of the site to provide the stones needed for the house’s walls. Wright visited only periodically during construction, assigning his apprentice Robert Mosher as his permanent on-site representative. The final working drawings were issued by Wright in March 1936, with work beginning on the bridge and main house in April.

The strong horizontal and vertical lines are a distinctive feature of Fallingwater The construction was plagued by conflicts between Wright, Kaufmann and the construction contractor. Uncomfortable with what he saw as Wright's insufficient experience using reinforced concrete, Kaufmann had the architect's daring cantilever design reviewed by a firm of consulting engineers. Upon receiving their report, Wright took offense, immediately requesting that Kaufmann return his drawings and indicating that he was withdrawing from the project. Kaufmann relented to Wright's gambit, and the engineer’s report was subsequently buried within a stone wall of the house.

For the cantilevered floors, Wright and his team used upside-down T-shaped beams integrated into a monolithic concrete slab which formed both the ceiling of the space below and provided resistance against compression. The contractor, Walter Hall, also an engineer, produced independent computations and argued for increasing the reinforcing steel in the first floor’s slab. Wright refused the suggestion. While some sources state that the contractor quietly doubled the amount of reinforcement, others say that Kaufmann's consulting engineers – at Kaufman's request – redrew Wright's reinforcing drawings and doubled the amount of steel specified by Wright.

In addition, the contractor did not build in a slight upward incline in the formwork for the cantilever to compensate for the settling and deflection of the cantilever. Once the concrete formwork was removed, the cantilever developed a noticeable sag. Upon learning of the unapproved steel addition, Wright recalled Mosher.

With Kaufmann’s approval, the consulting engineers arranged for the contractor to install a supporting wall under the main supporting beam for the west terrace. When Wright discovered it on a site visit, he had Mosher discreetly remove the top course of stones. When Kaufmann later confessed to what had been done, Wright showed him what Mosher had done and pointed out that the cantilever had held up for the past month under test loads without the wall’s support.

The main house was completed in 1938, and the guest house was completed the following year.

Cost The original estimated cost for building Fallingwater was $35,000. The final cost for the home and guest house was $155,000,[21][22][23] which included $75,000 for the house; $22,000 for finishings and furnishings; $50,000 for the guest house, garage and servants' quarters; and an $8,000 architect's fee. From 1938 through 1941, more than $22,000 was spent on additional details and for changes in the hardware and lighting.

The total cost of $155,000, adjusted for inflation, is equivalent to about $2.7 million in 2017. The cost of the house's restoration in 2001 was estimated to be $11.5 million (approximately $15.9 million in 2017).[25]

Usage Fallingwater was the family's weekend home from 1937 until 1963, when Edgar Kaufmann Jr. donated the property to the Western Pennsylvania Conservancy. The family retreated at Fallingwater on weekends to escape the heat and smoke of industrial Pittsburgh. Liliane enjoyed swimming in the nude and collecting modern art, especially the works of Diego Rivera, who was a guest at the country house.

Kaufmann Jr. said, "[Wright] understood that people were creatures of nature, hence an architecture which conformed to nature would conform to what was basic in people. For example, although all of Falling Water [sic] is opened by broad bands of windows, people inside are sheltered as in a deep cave, secure in the sense of the hill behind them.

    This product has no reviews yet
    House Fallingwater Frank Lloyd Wright
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Send your price offer to the author if you want to buy it at lower price.
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 77% in 16.7h
    3D Modeling
    Hire me
    3D model formats
    • 3D Studio 9 (.3ds)528 Bytes
    • Collada (.dae)15.9 MB
    • Cinema 4D 12 (.c4d)17 MBVersion: 12Renderer: Advanced Renderer
    • Sketchup (.skp)31.9 MB
    • OBJ (.obj, .mtl) (2 files)-
    • Autodesk FBX (.fbx) -
    • Stereolithography (.stl) -
    3D model details
    • Publish date2013-06-24
    • Model ID#18372
    • Animated
    • Rigged
    • VR / AR / Low-poly
    • PBR
    • Geometry Polygon mesh
    • Polygons 195,671
    • Vertices 141,860
    • Textures
    • Materials
    • UV Mapping
    • Unwrapped UVs
    • Plugins used
