Audio Mixer 3D model

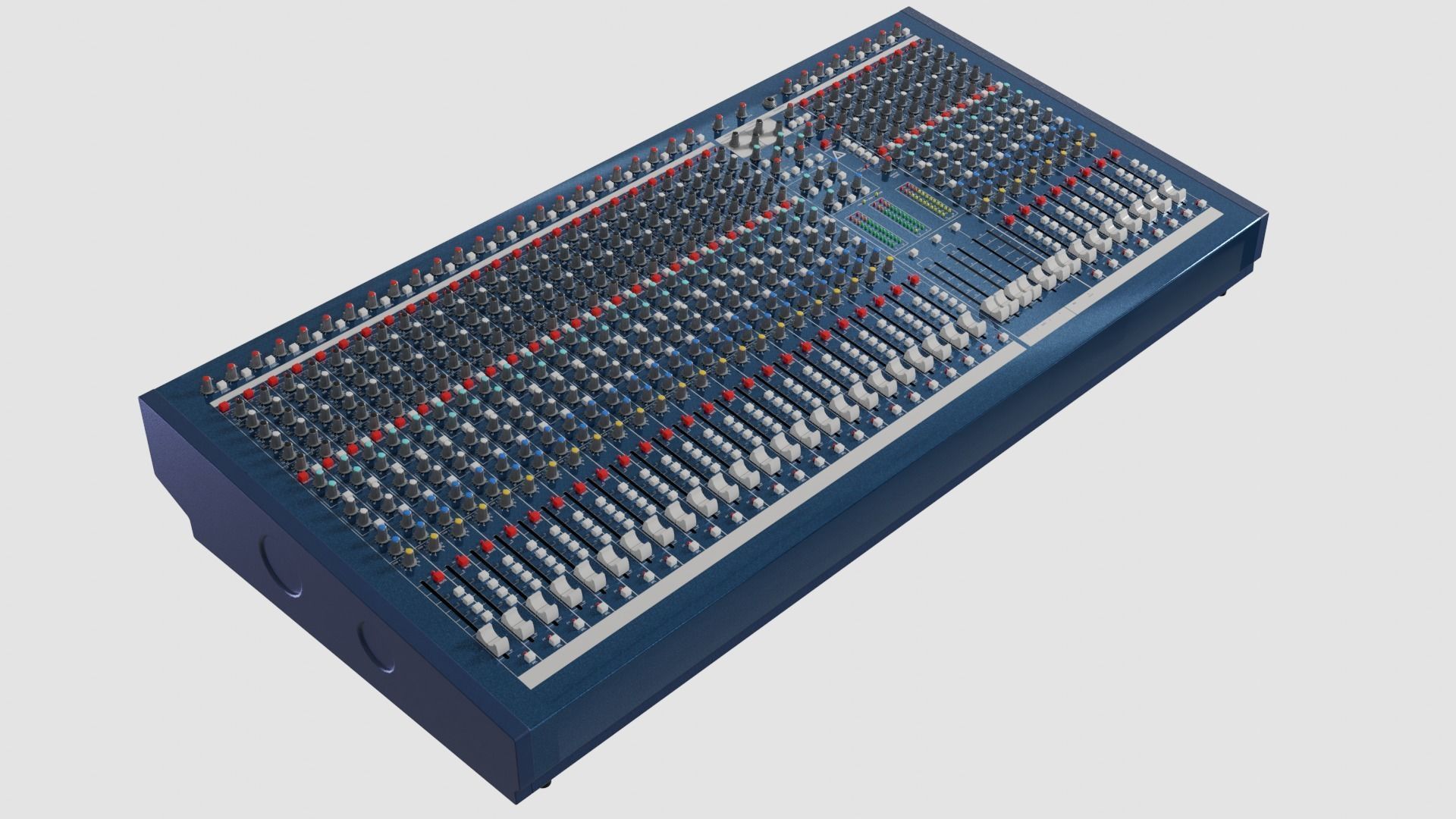

Audio Mixer (LX7ii)

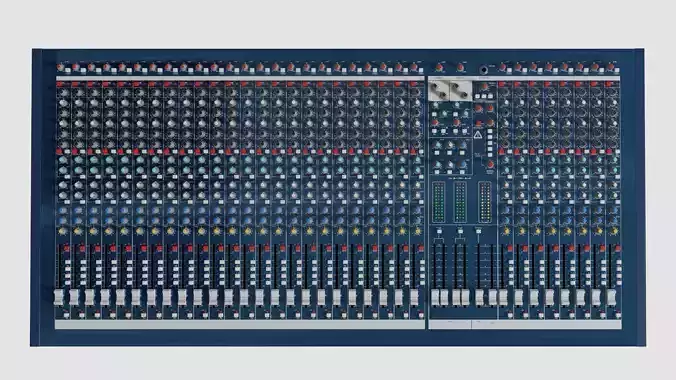

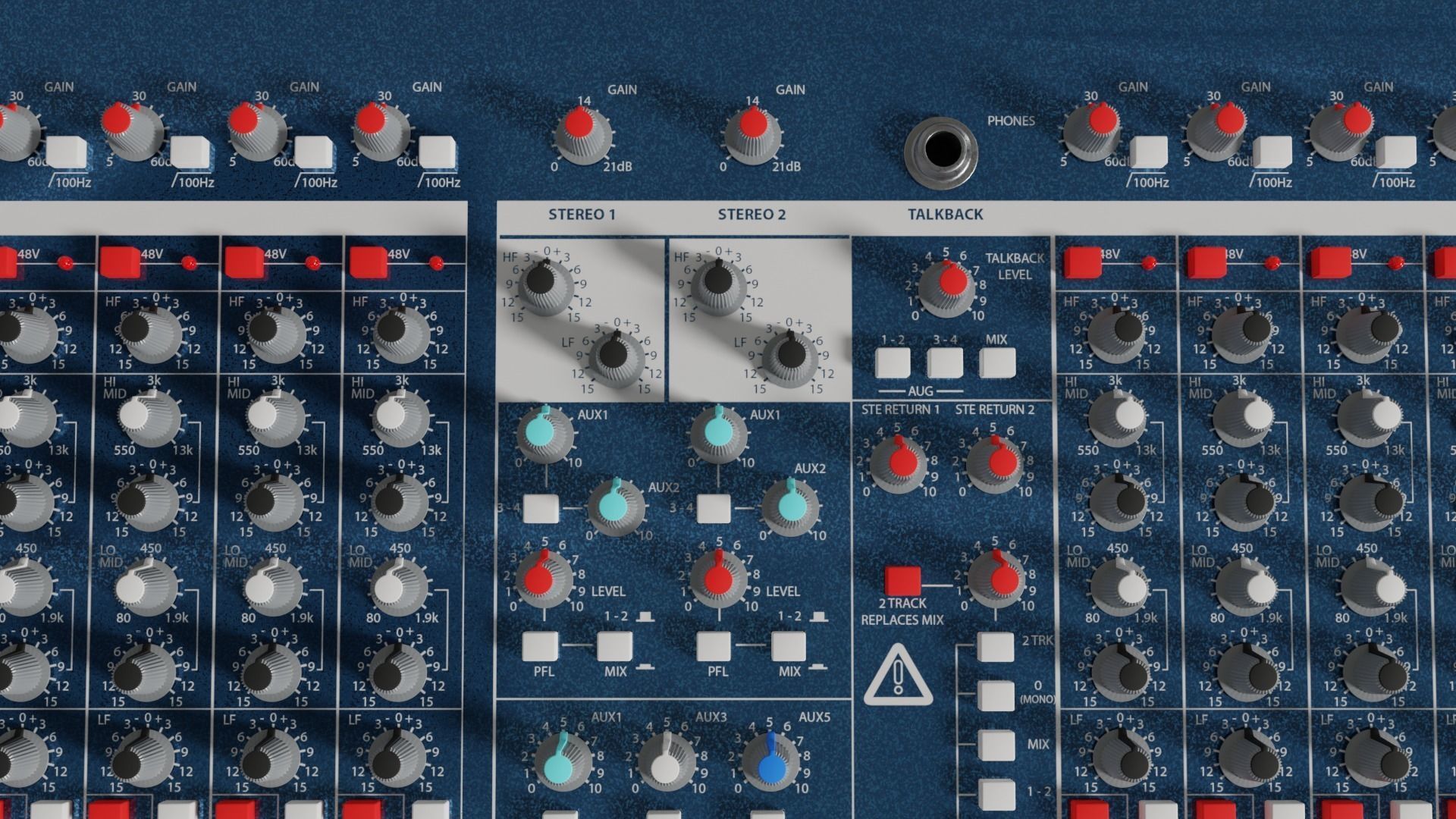

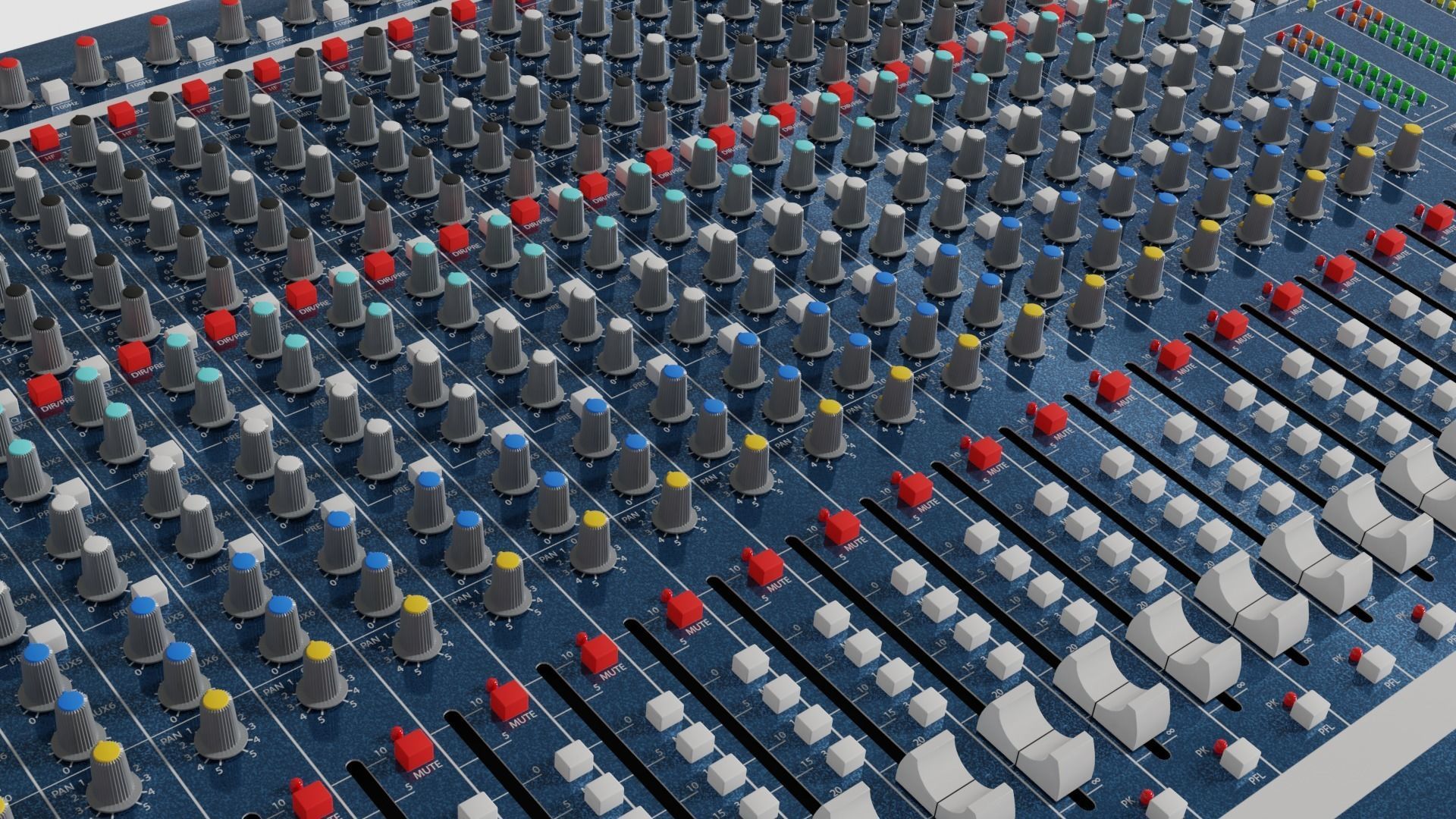

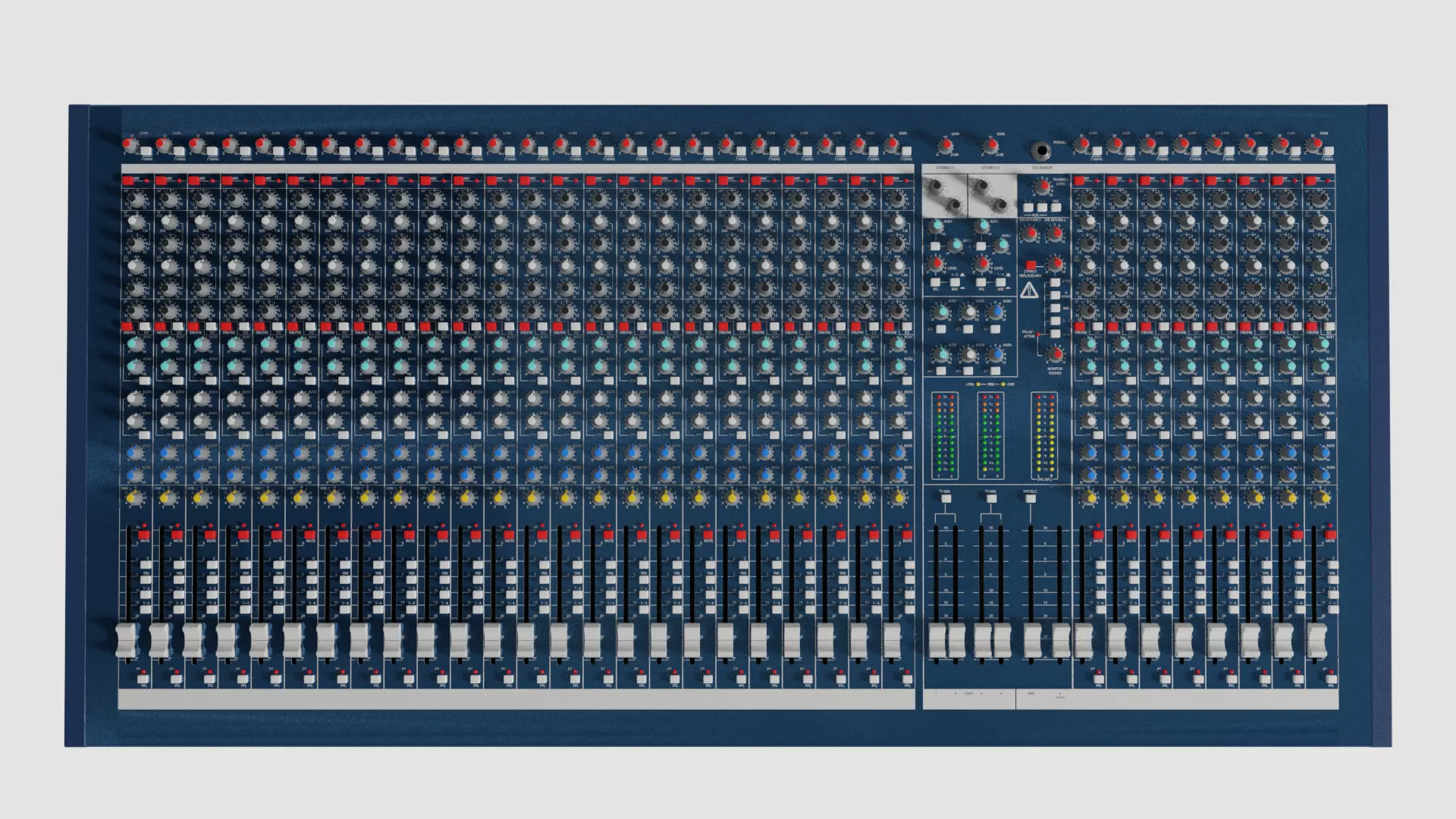

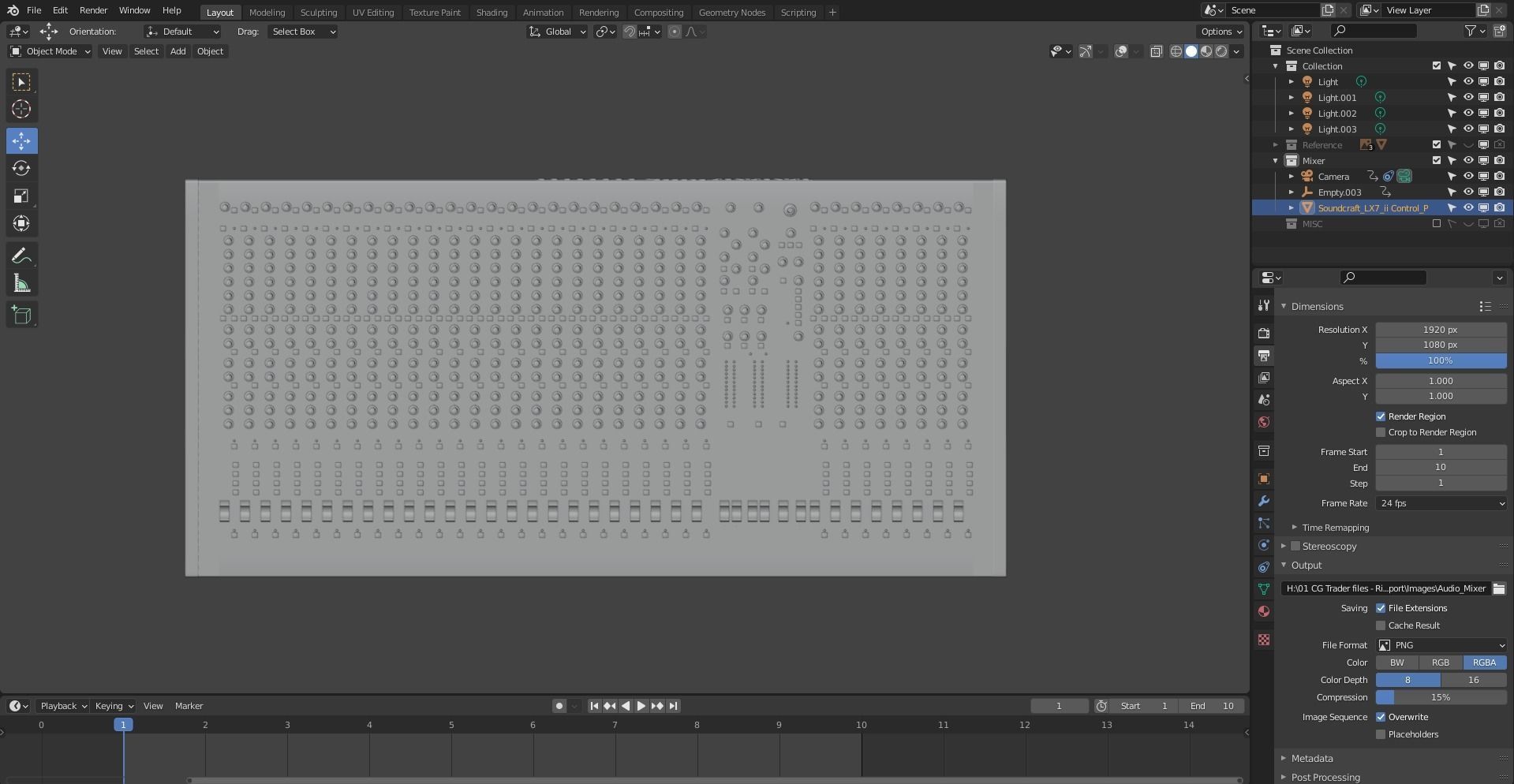

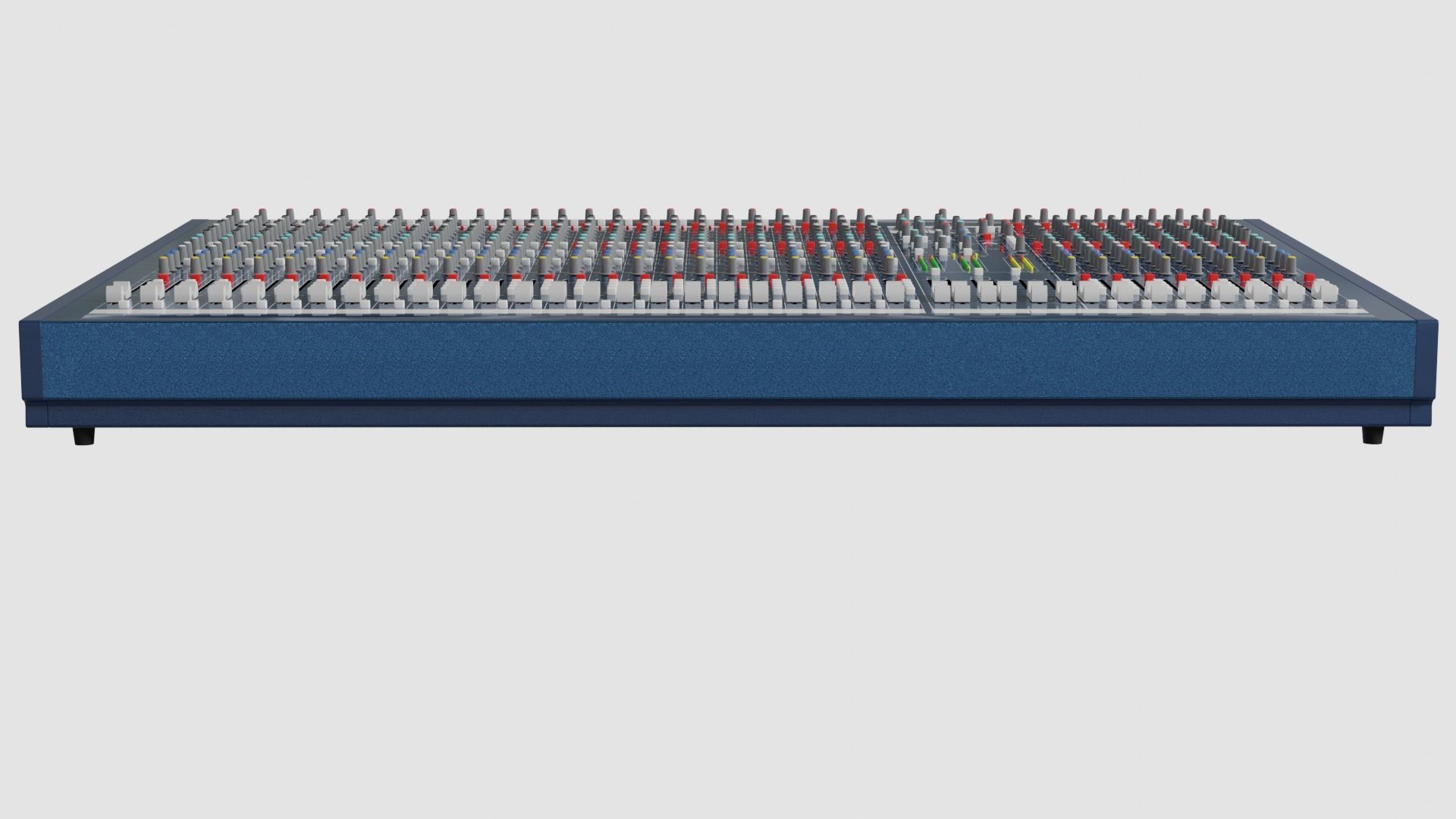

This model of an audio mixer has got 24 channels. Modelling was based on an actual product and accuracy was the aim. There might be a few minor errors, additions or missing elements, but it should be able to fulfil any rendering need. This is a high polygon model. It will not work smoothly in a game engine. There will be a low polygon version available soon. A native Blender file is also included and contains all the textures packed into the file.

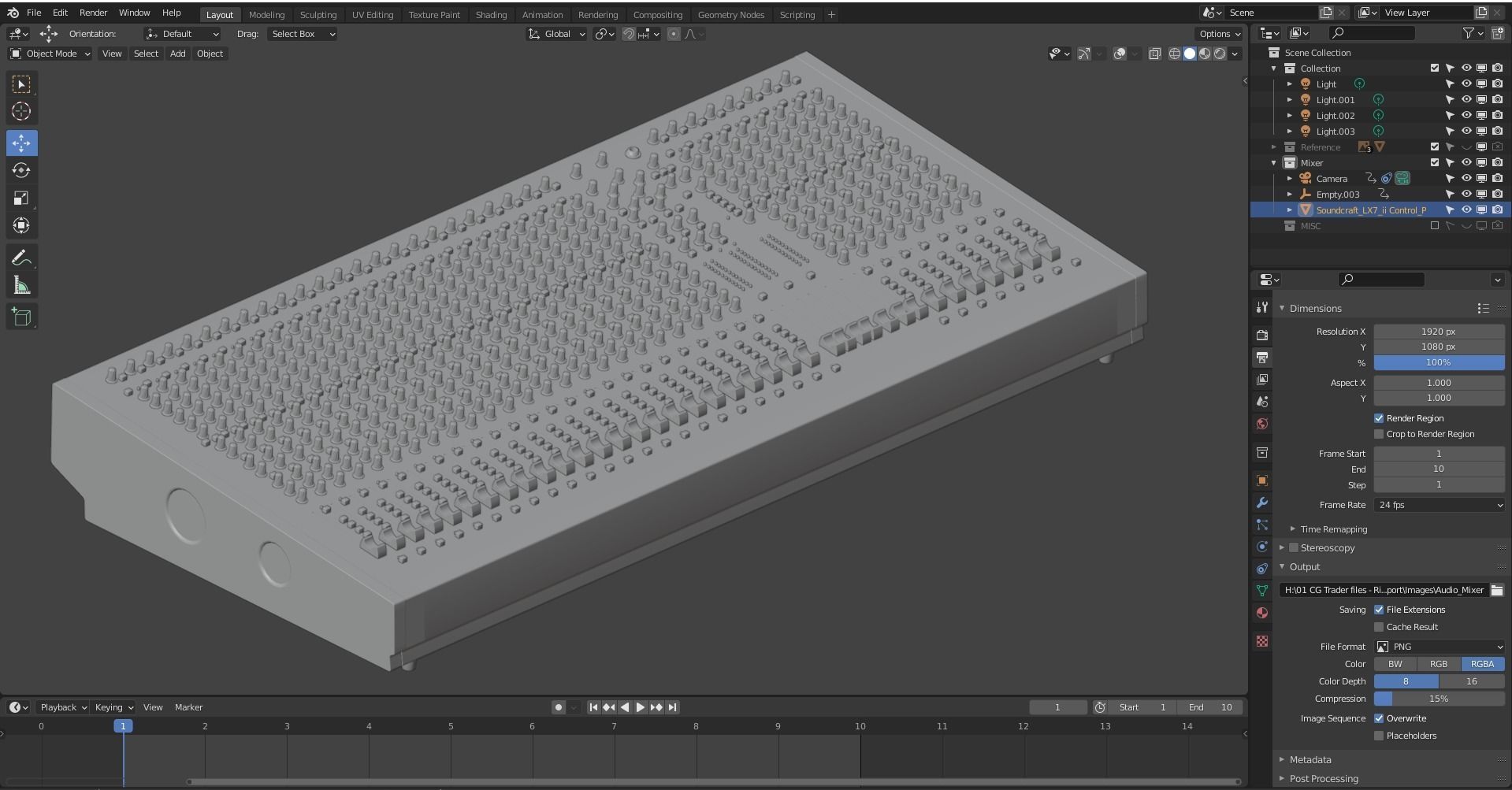

Note: the model has been orientated with the face 90 degrees up. This was done for easy rigging of the control buttons. Once the rig has been set up you can rotate it so that the feet/legs are 90 degrees with the surface the unit will be placed on.

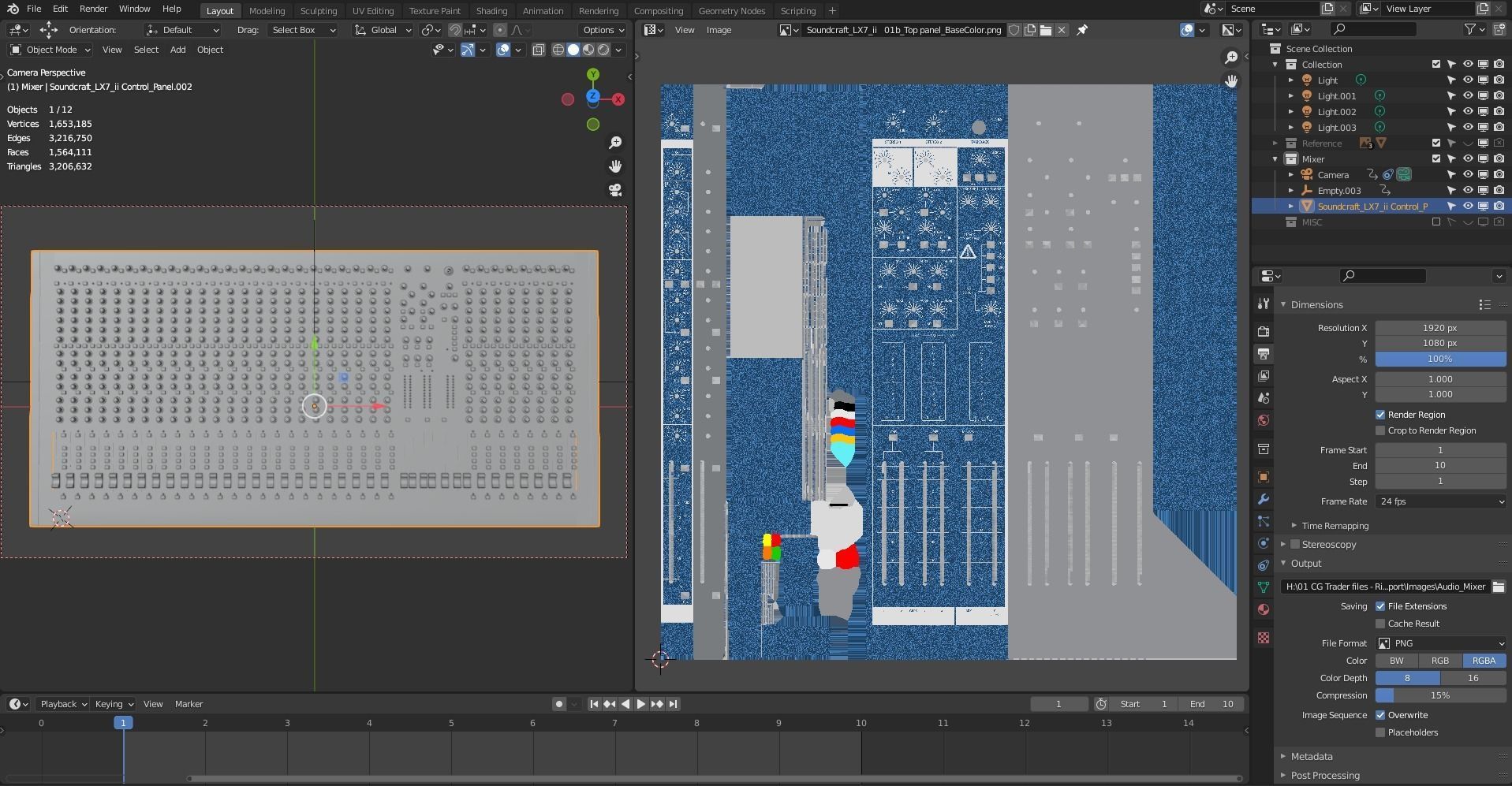

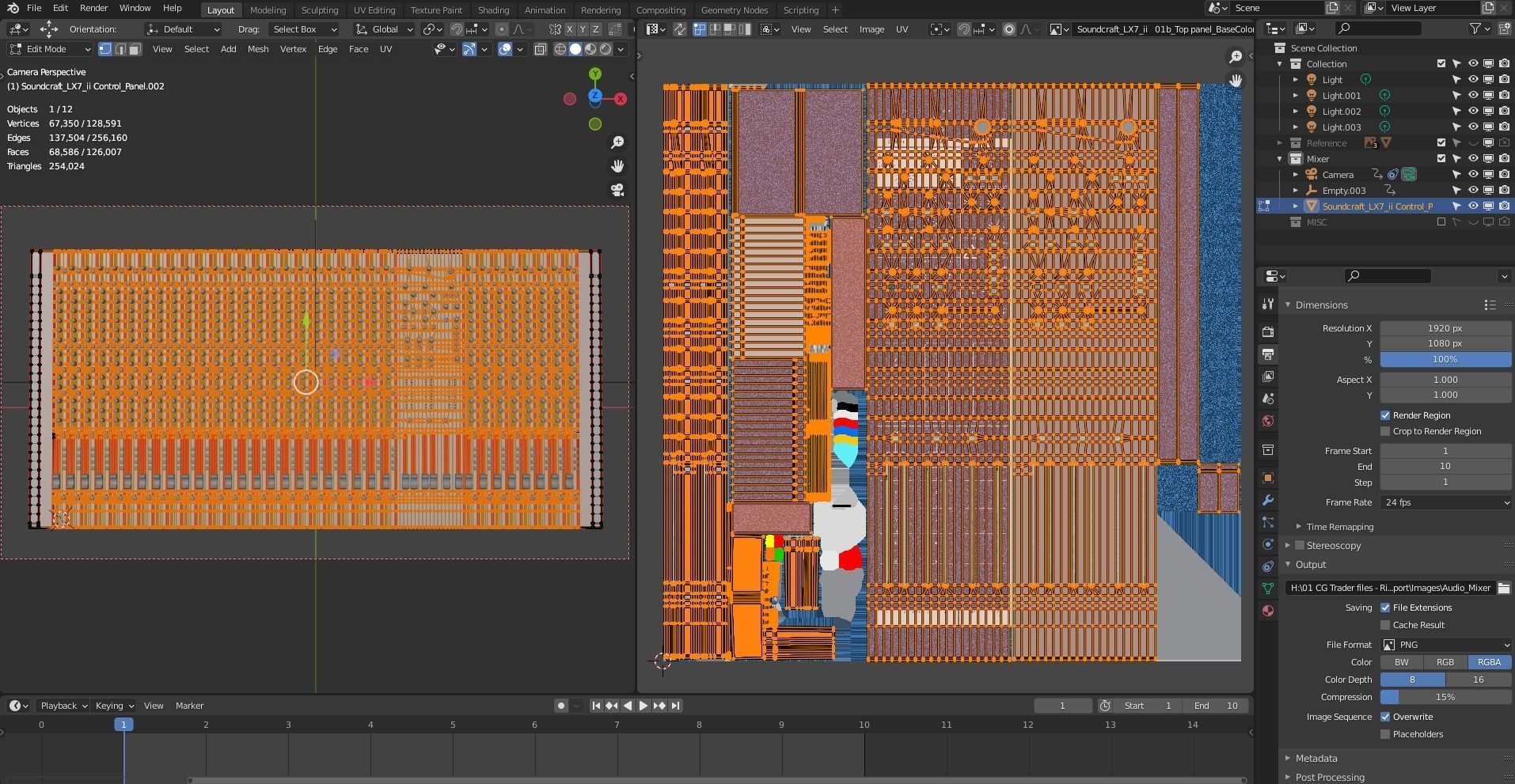

There are 3 material/texture sets:

• Top panel

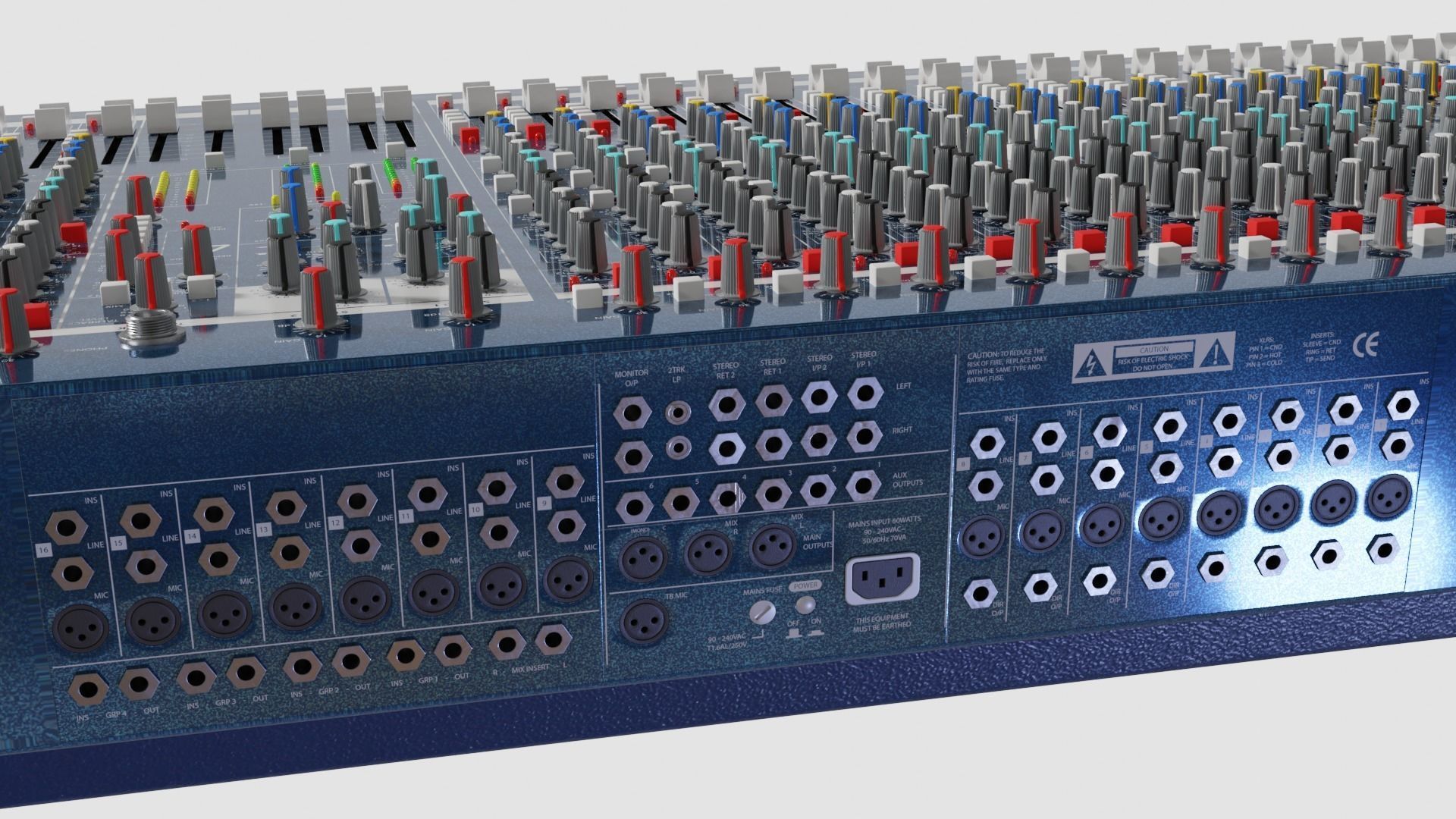

• Back panel

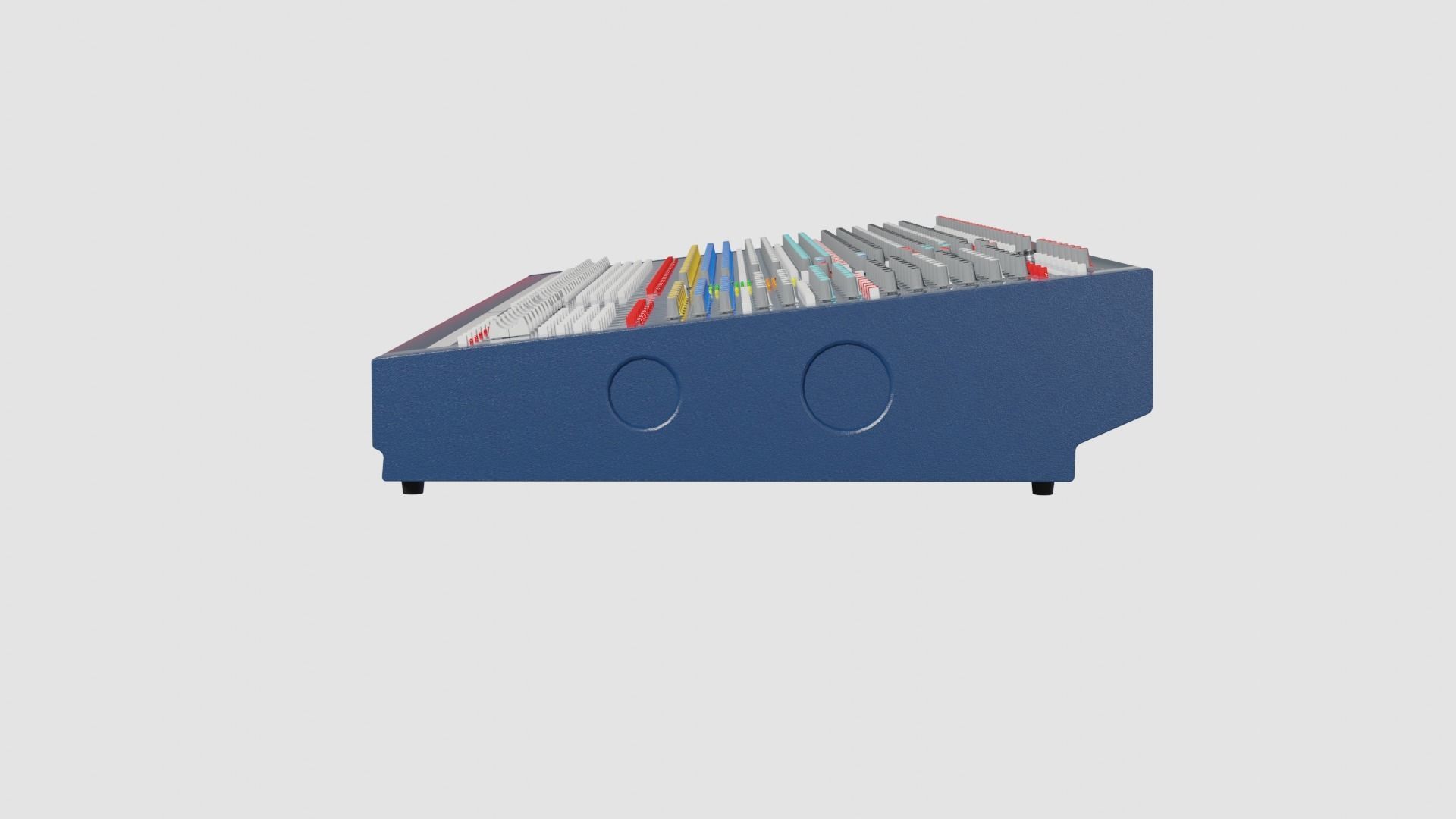

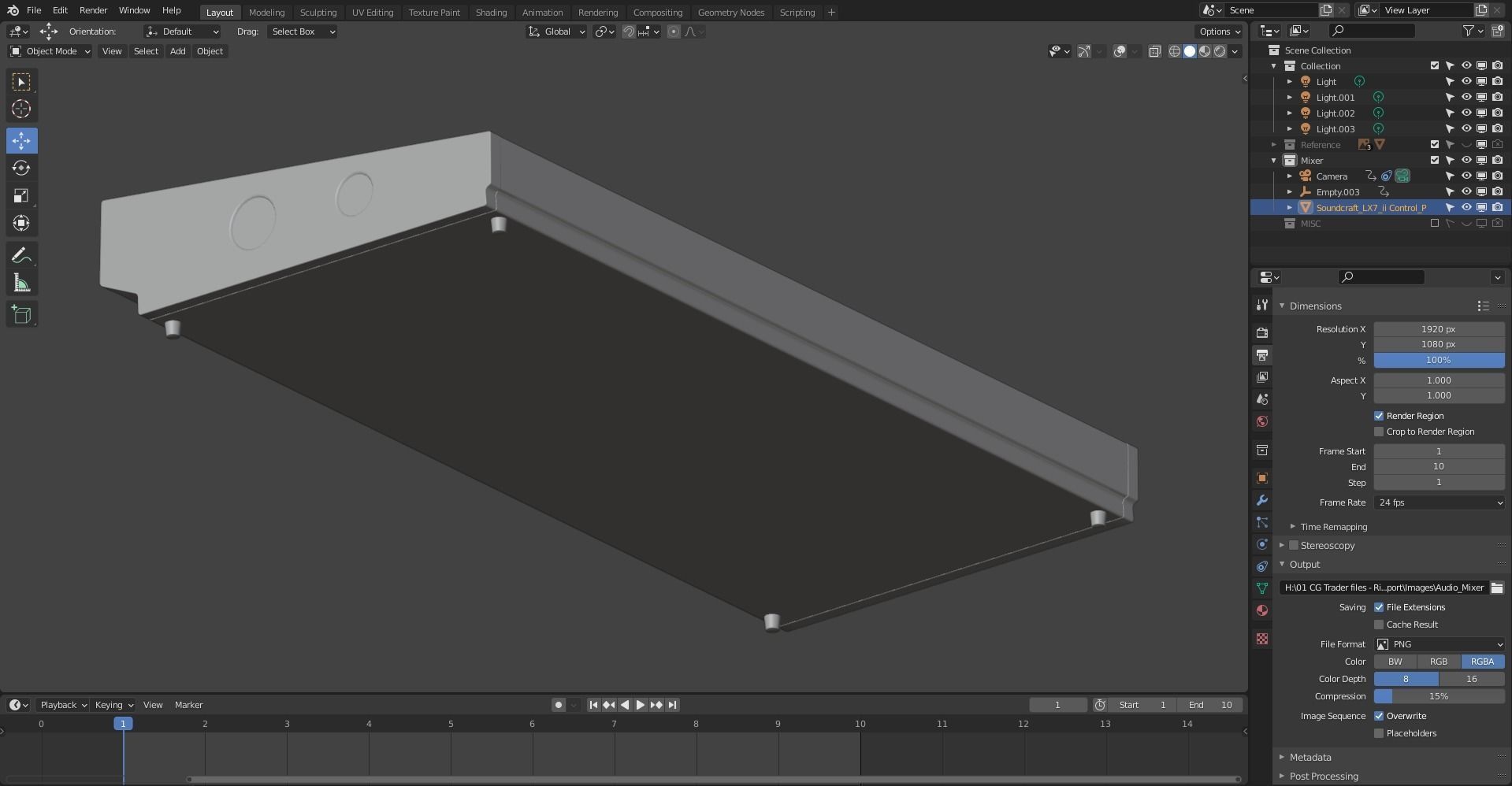

• Side/bottom plastic covers

Materials include:

• Base maps (albedo)
• Metallic maps
• Height maps
• Roughness maps
• Normal maps

Note: This is a high polygon model!

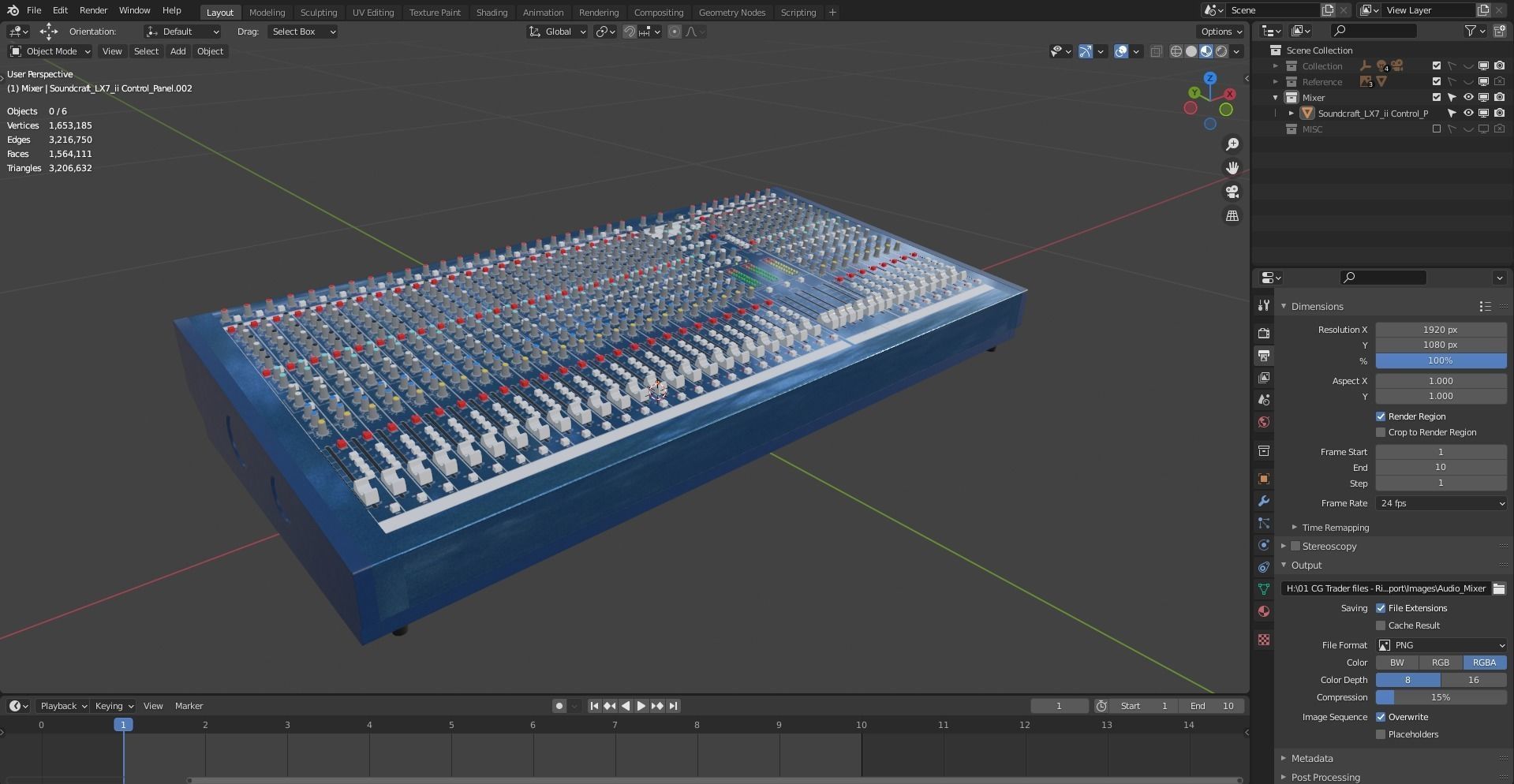

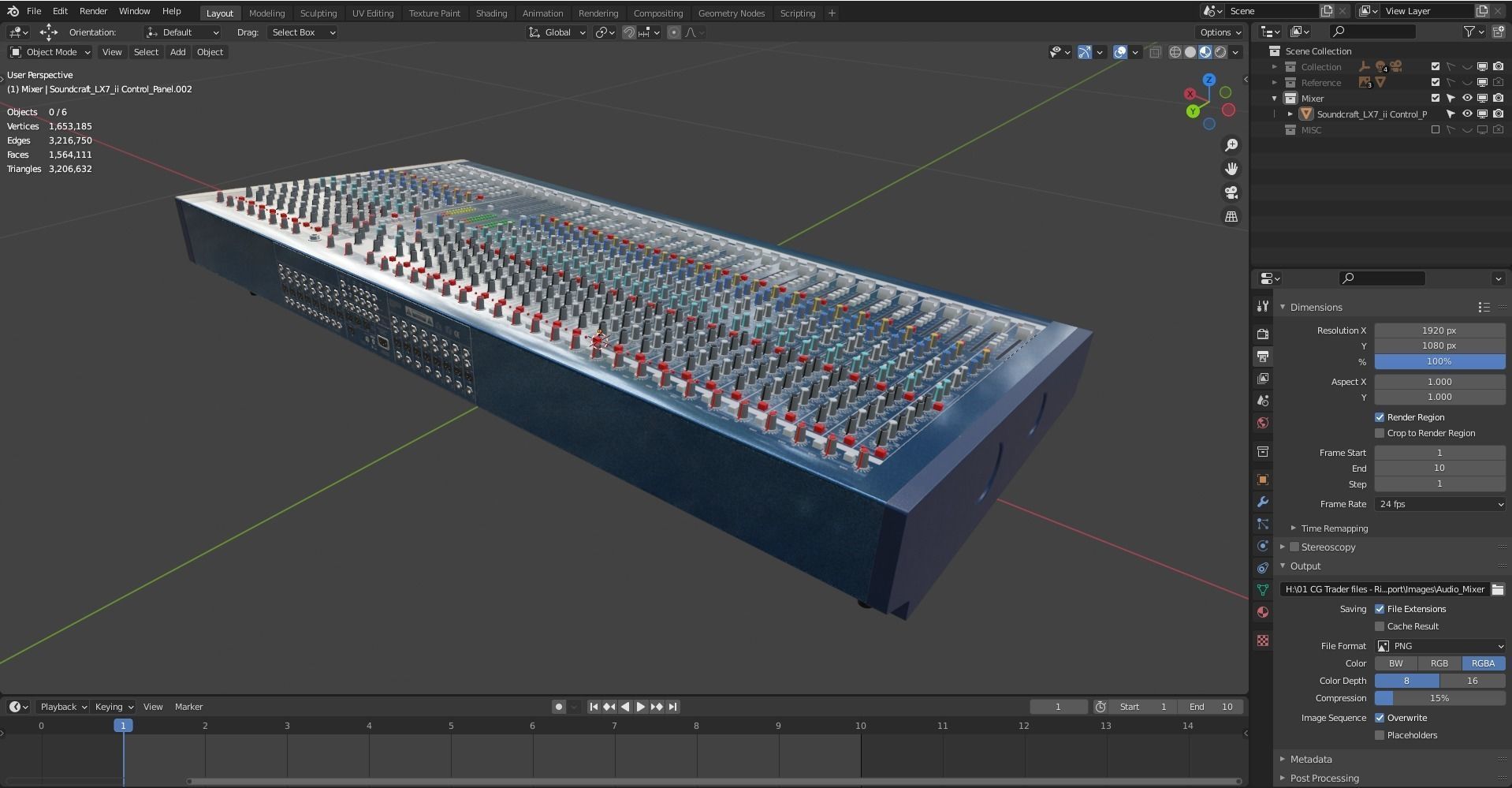

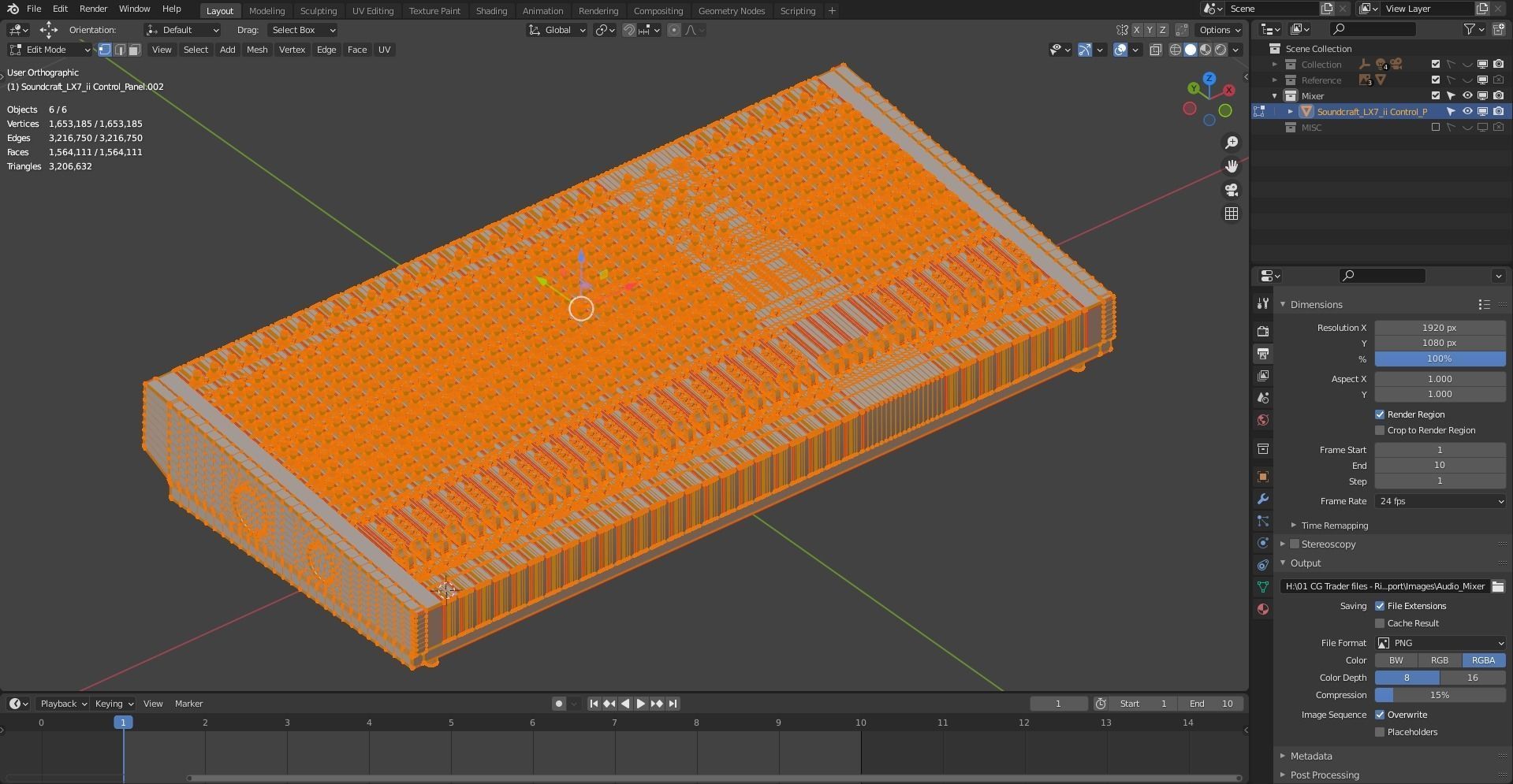

Polygon count:

• Vertices = 1,653,185
• Edges = 3,216,750
• Faces = 1,564,111
• Triangles = 3,206,632

Please let me know if you experience any issue with this model.
