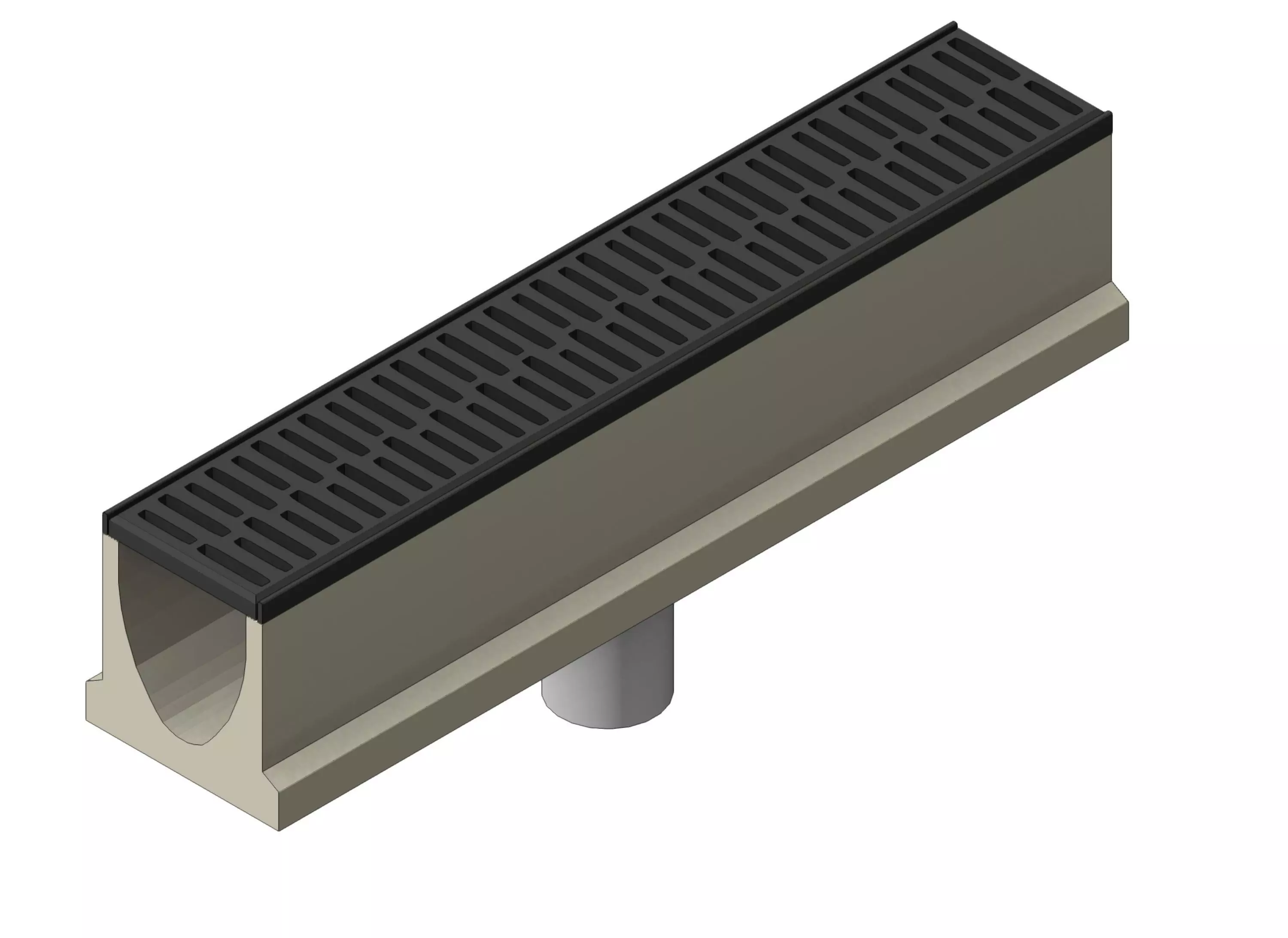

Concrete trench drain outlet module with slotted grate cover and bottom pipe connection.This drainage element is designed as part of a modular trench drain system and allows water to flow from the channel into an underground drainage pipe.

The model represents a realistic concrete drainage channel commonly used in urban environments such as streets, sidewalks, parking areas, industrial zones, and infrastructure projects.The outlet piece includes a pipe connection below the channel and an internal sediment trap element for improved realism.

The slotted grate sits on top of the channel and matches the design of typical modern drainage systems used in civil engineering and landscape architecture.

This asset is suitable for architectural visualization, urban planning scenes, infrastructure projects, construction simulations, and game environments.

Features:• Realistic concrete trench drain outlet• Bottom pipe connection for stormwater drainage• Slotted metal grate cover• Compatible with modular trench drain systems• Clean topology and optimized geometry

Formats included:FBXOBJ

Applications:Architecture visualizationUrban environment scenesInfrastructure and road designGame environmentsCivil engineering presentations
