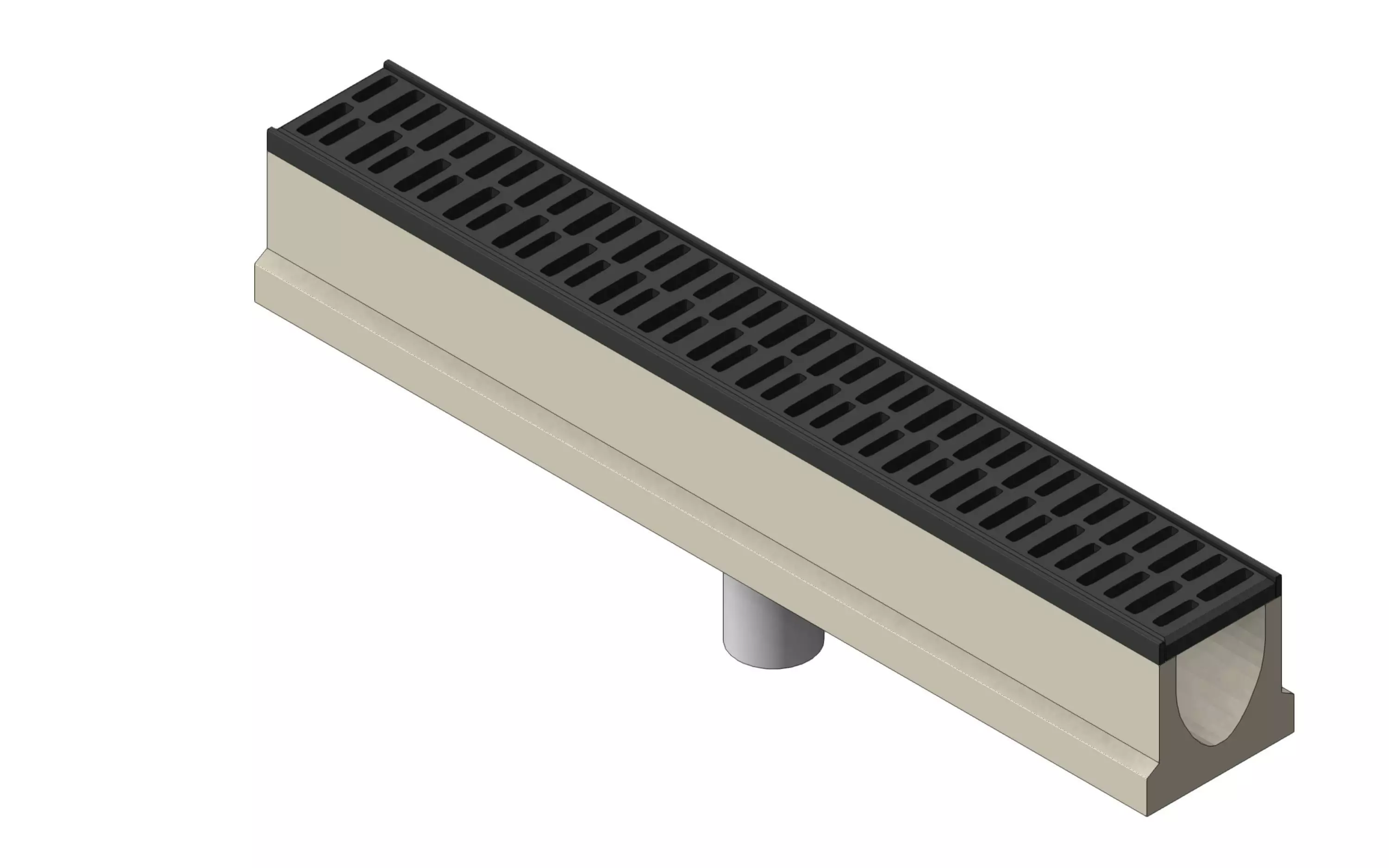

High-quality 3D model of a concrete trench drain outlet V100 (1000mm length) with bottom pipe connection.

This drainage element is designed as part of a modular trench drain system and is suitable for civil engineering, infrastructure visualization, road construction, and urban drainage projects.

The model includes a detailed slotted grate and a vertical pipe outlet connection for realistic stormwater drainage setups.

Features:

• Real-world scale (millimeters)• Clean and optimized topology• Separate elements (grate, channel, pipe)• Accurate proportions based on typical drainage systems• Ready for rendering and engineering visualization

File formats:

• FBX• OBJ (with MTL)

Applications:

• Architectural visualization• Civil engineering projects• Infrastructure scenes• Road and urban environment rendering• BIM / CAD workflows

This model fits perfectly into modular trench drain systems and can be combined with other V100 elements such as straight channels, corners, and end caps.
