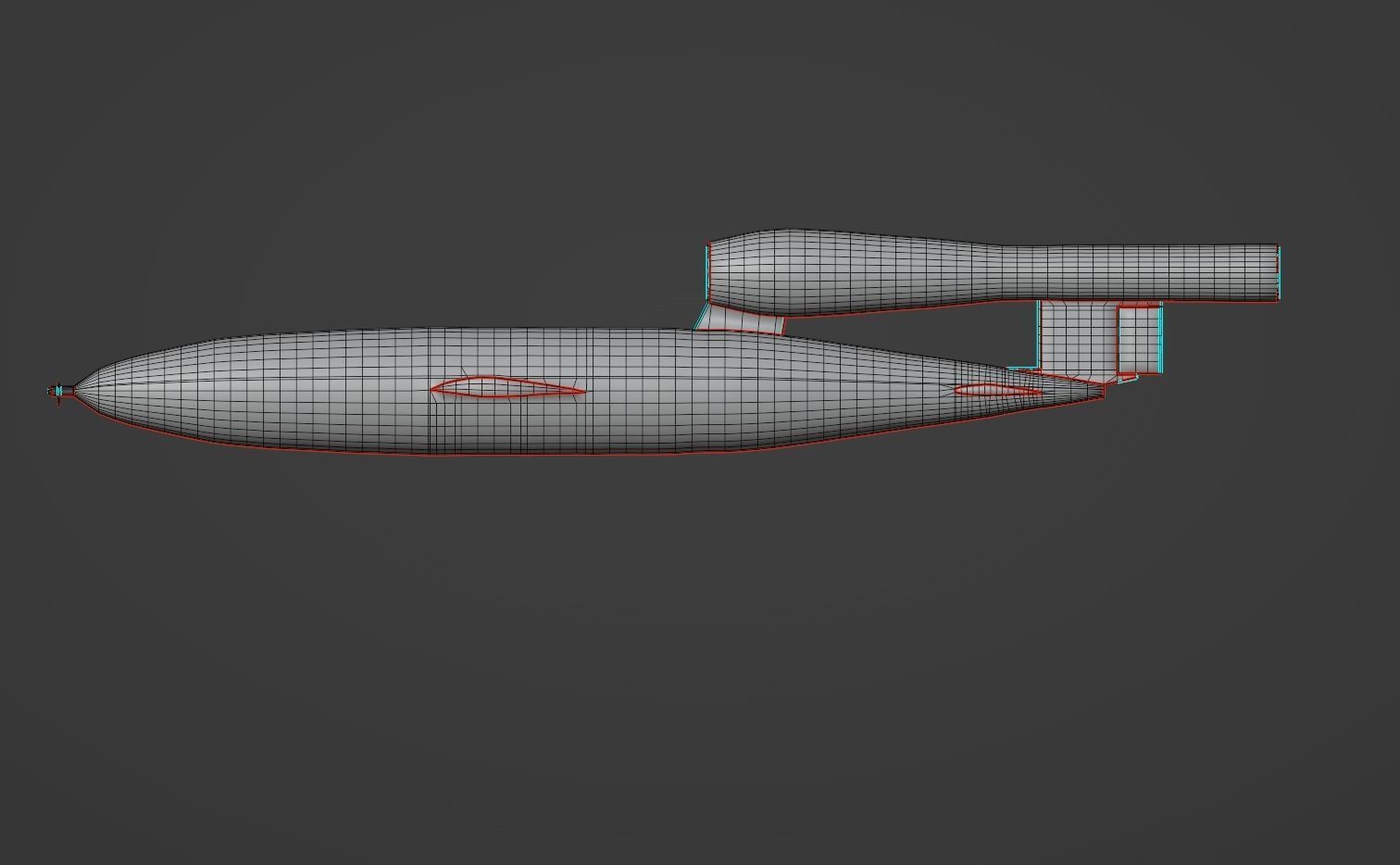

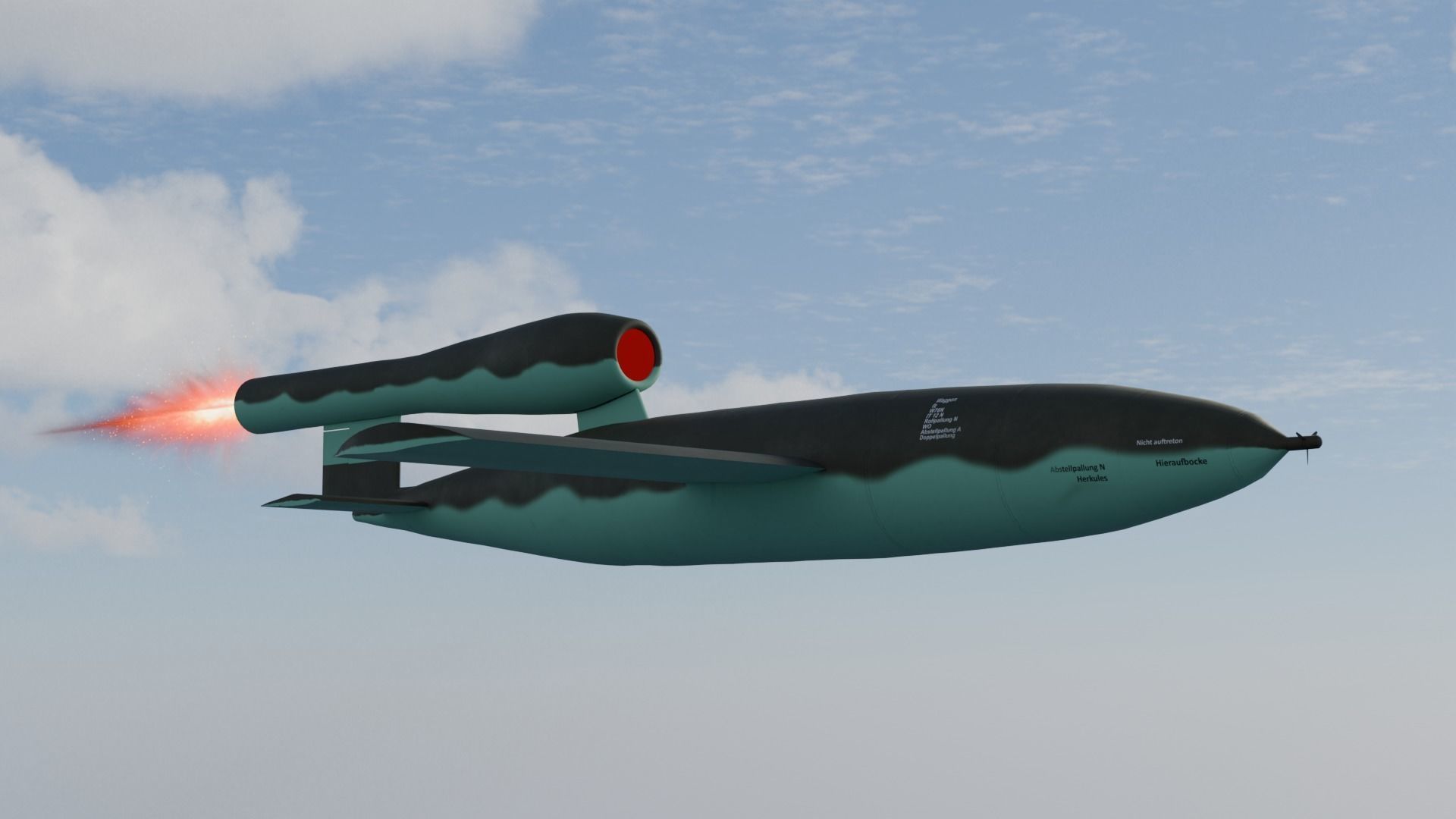

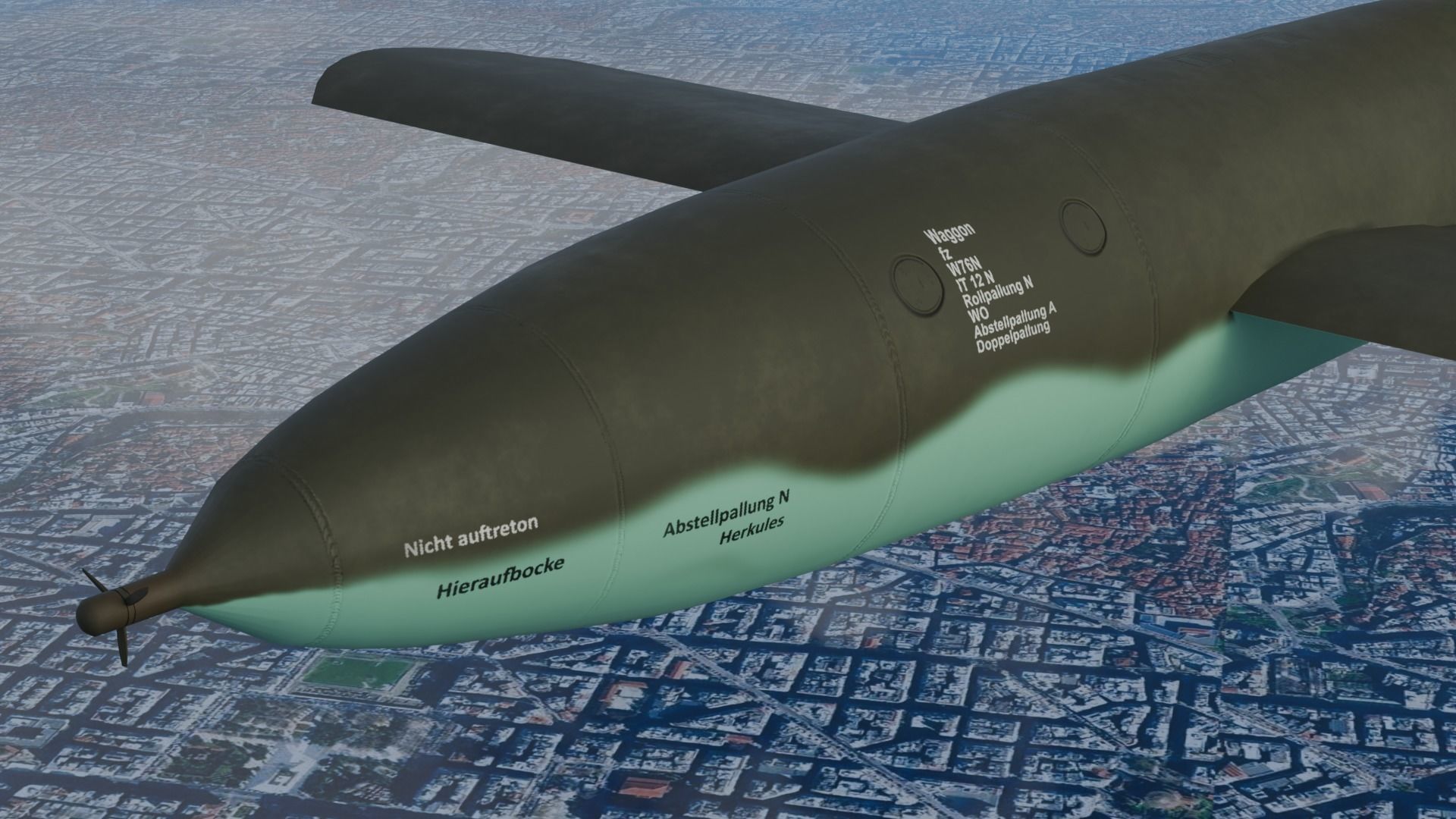

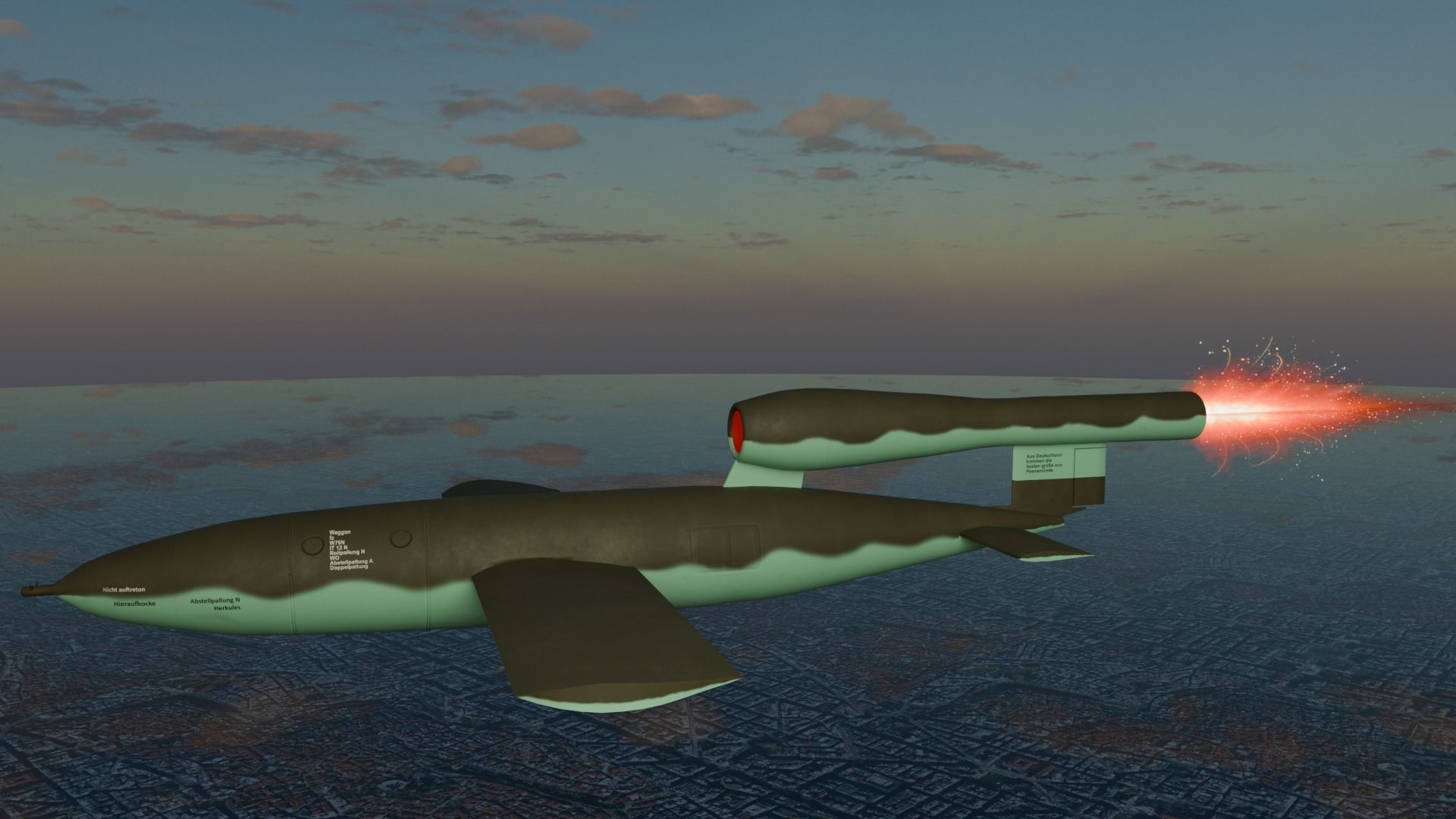

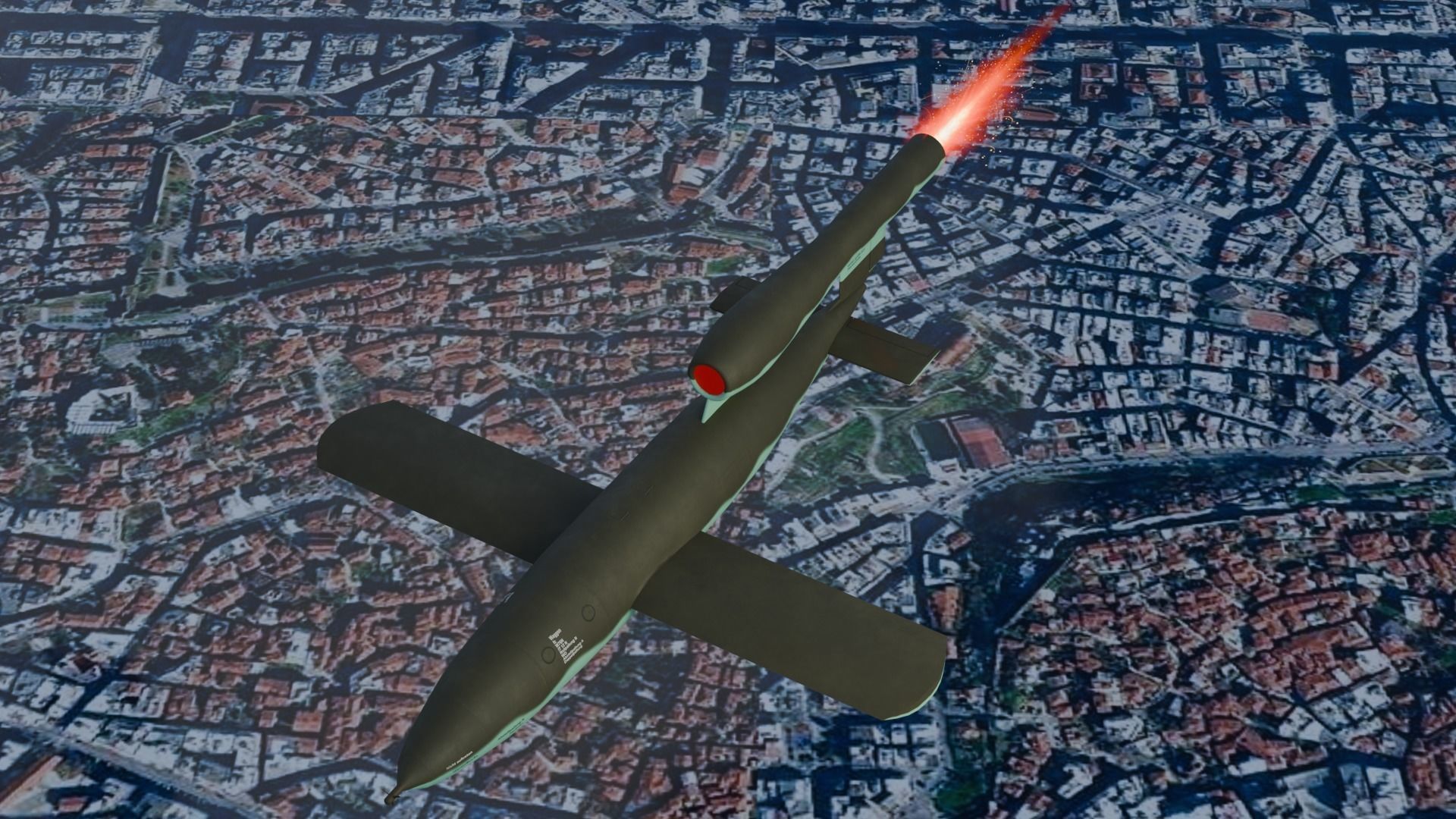

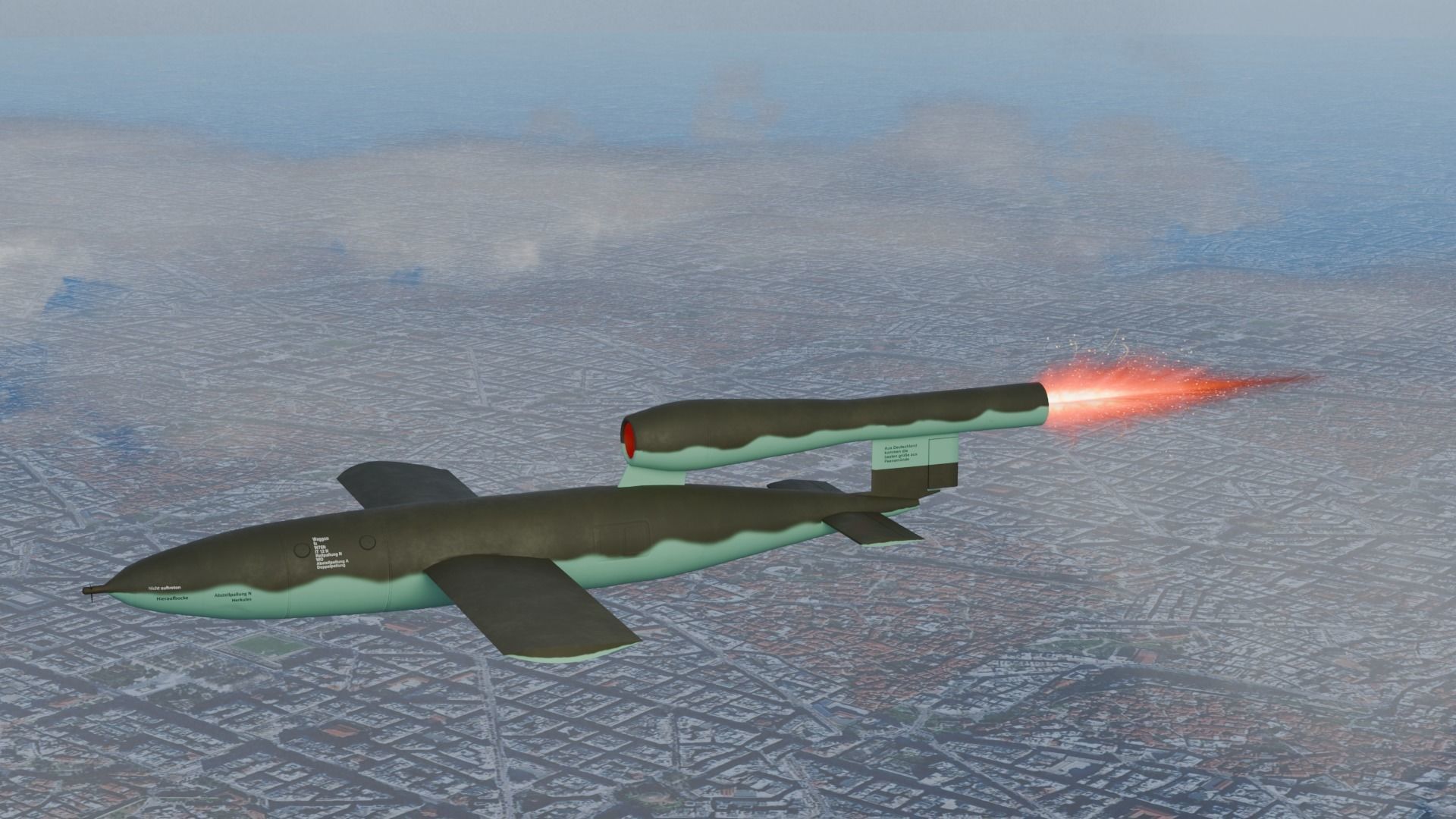

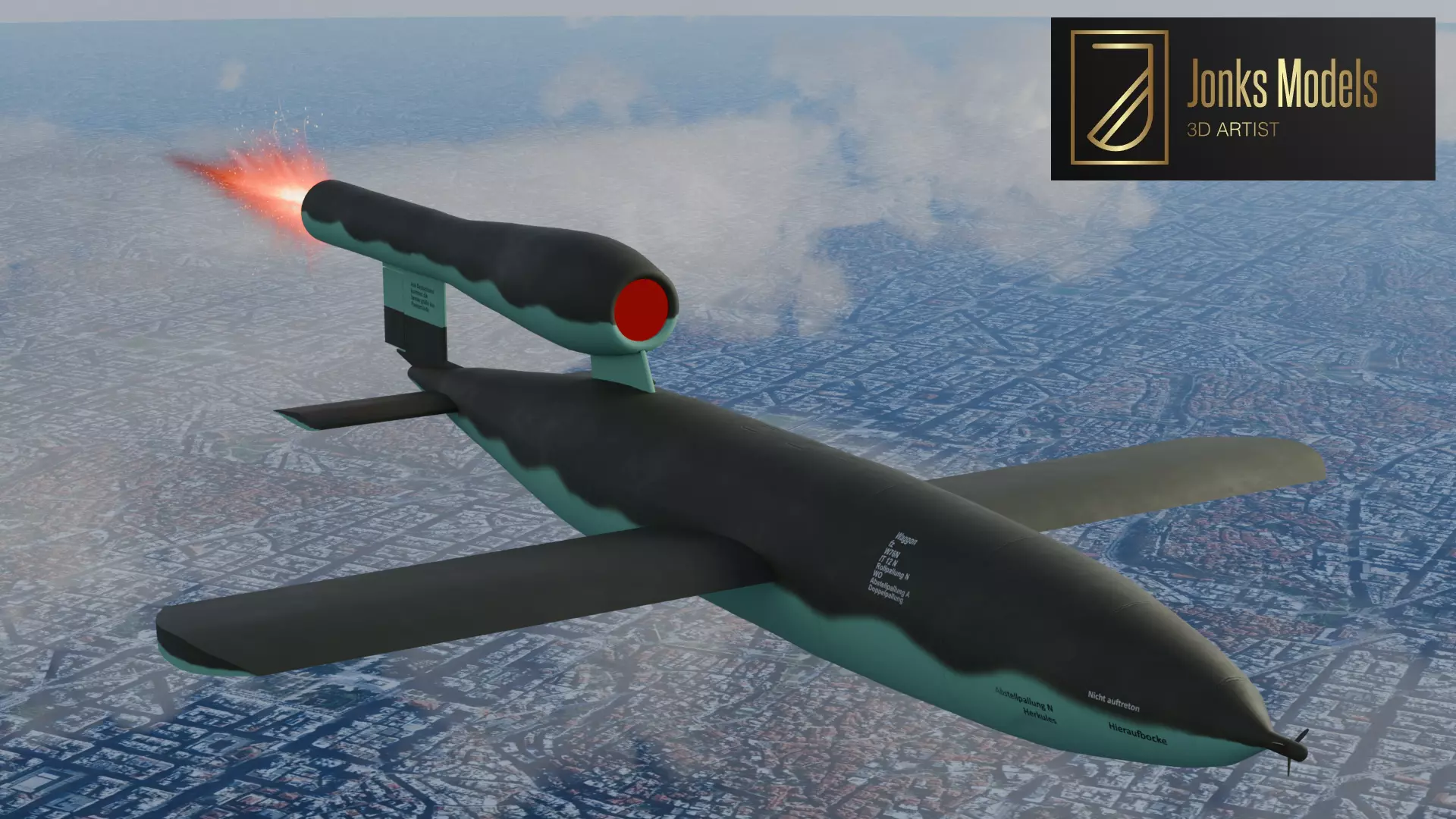

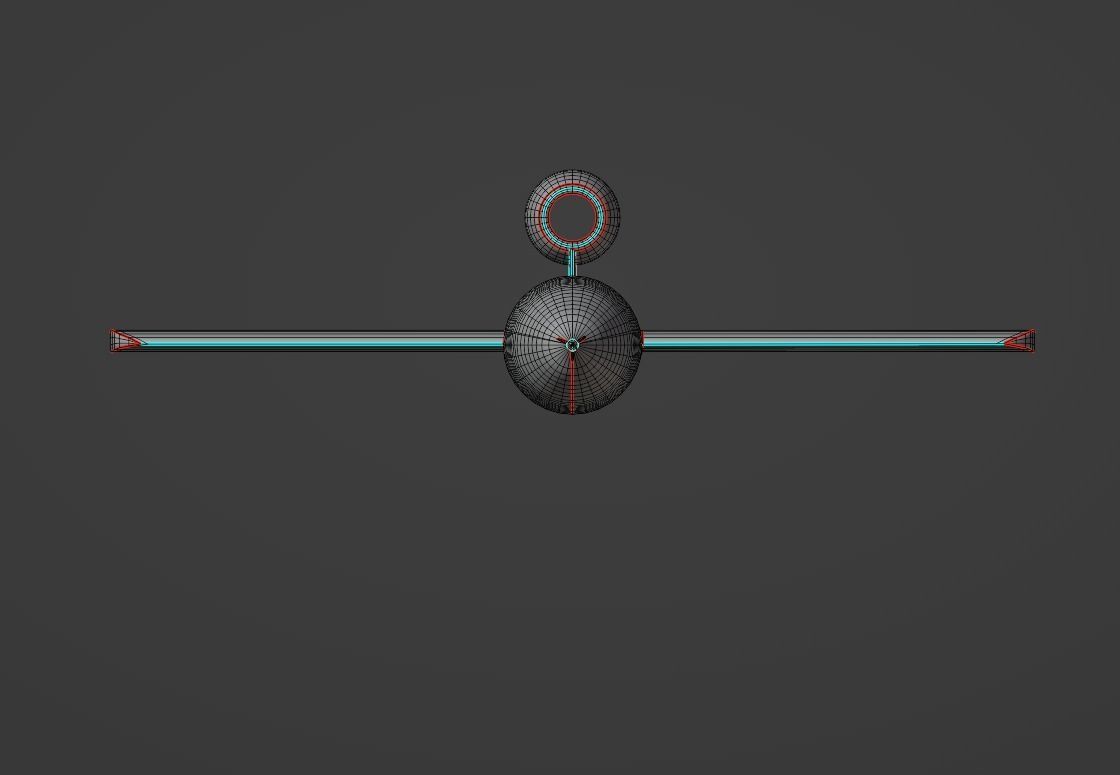

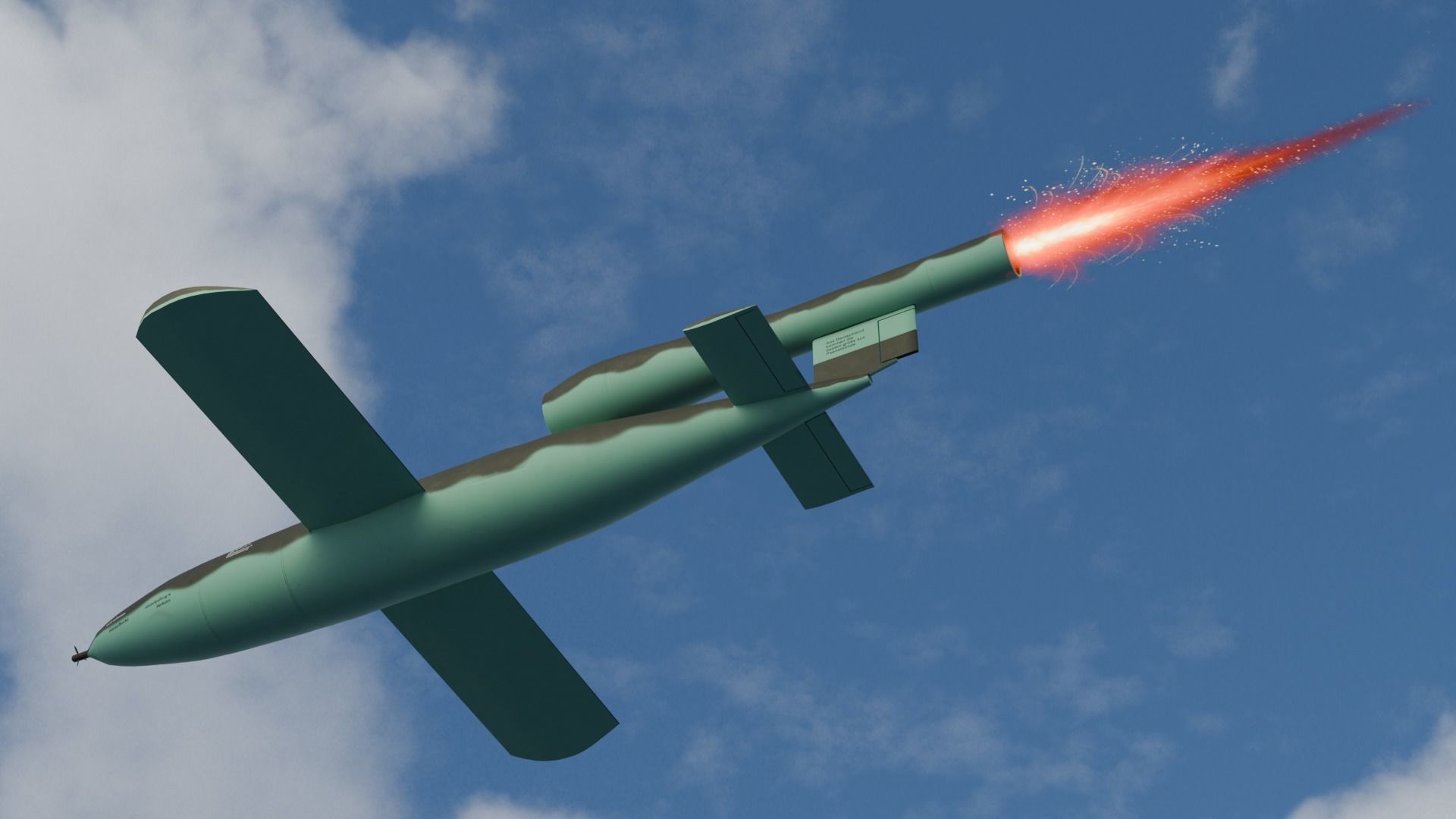

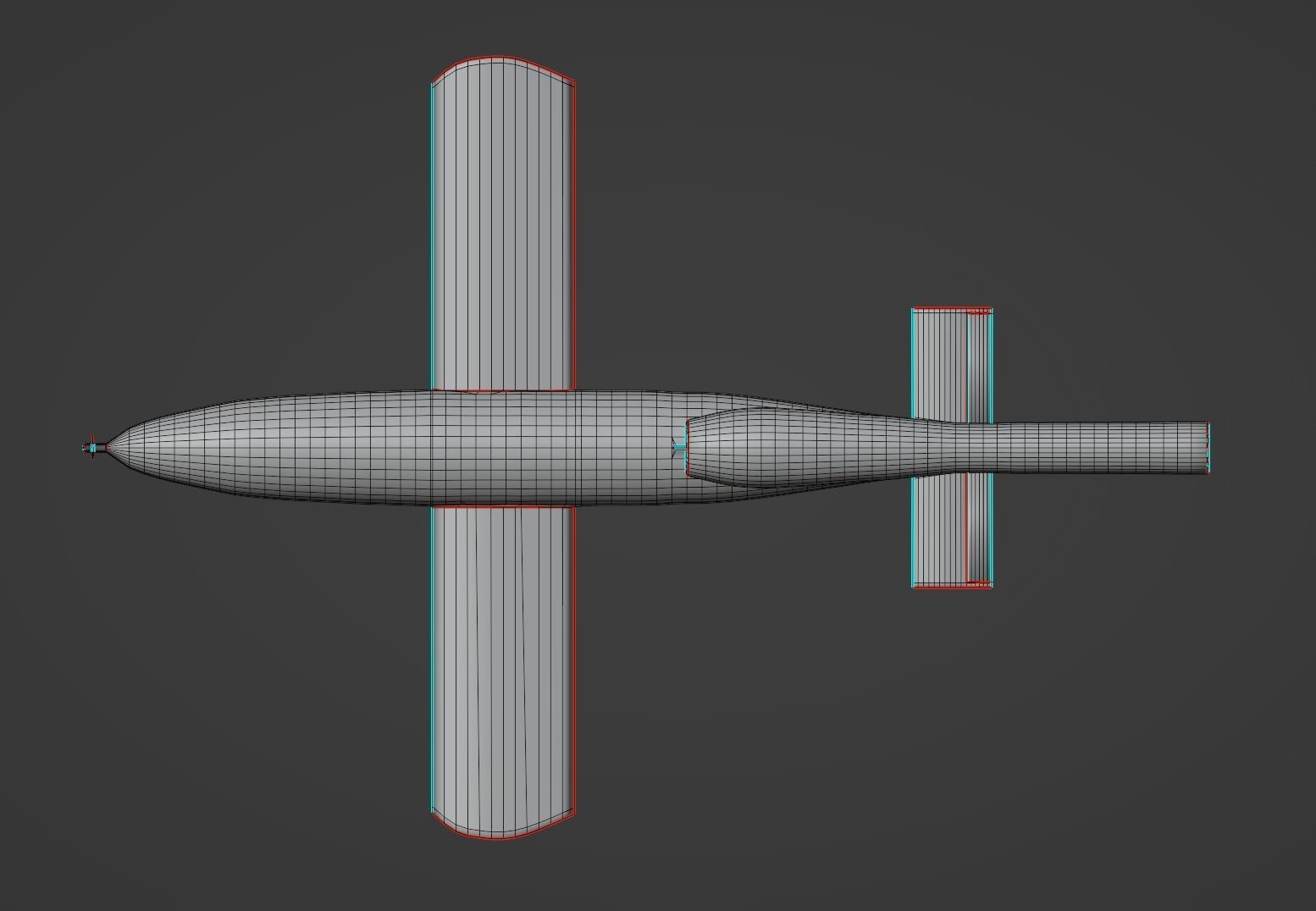

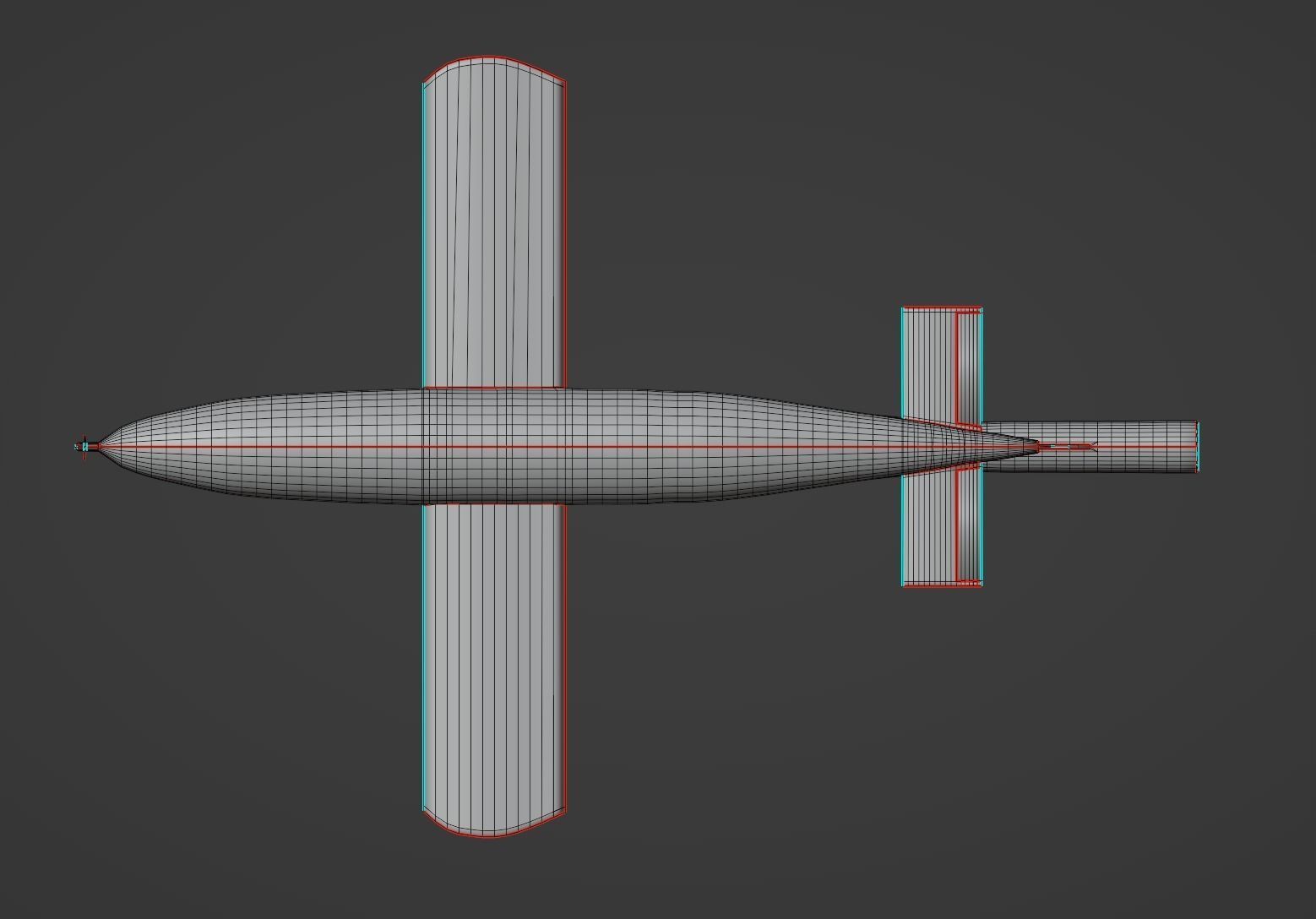

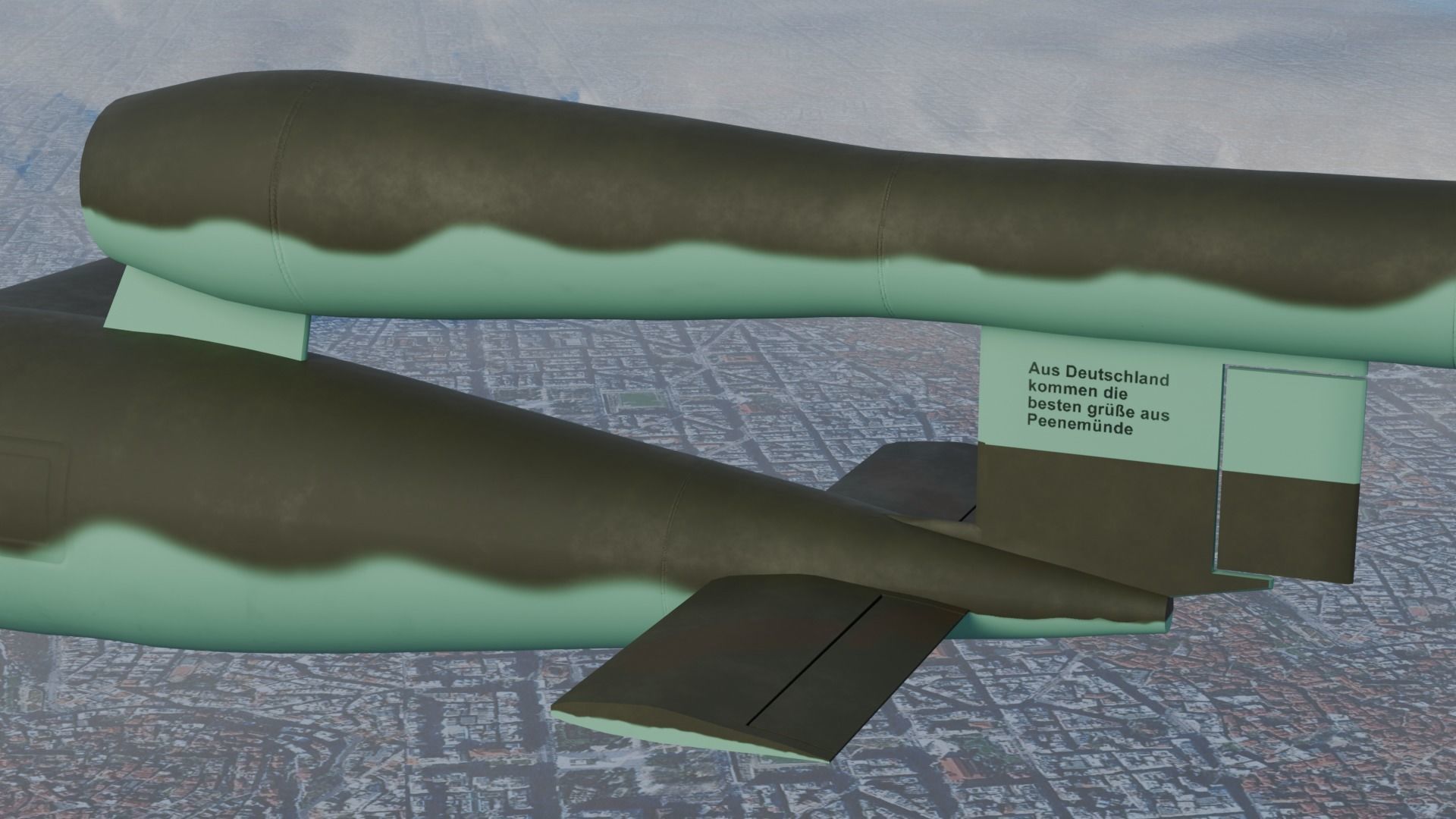

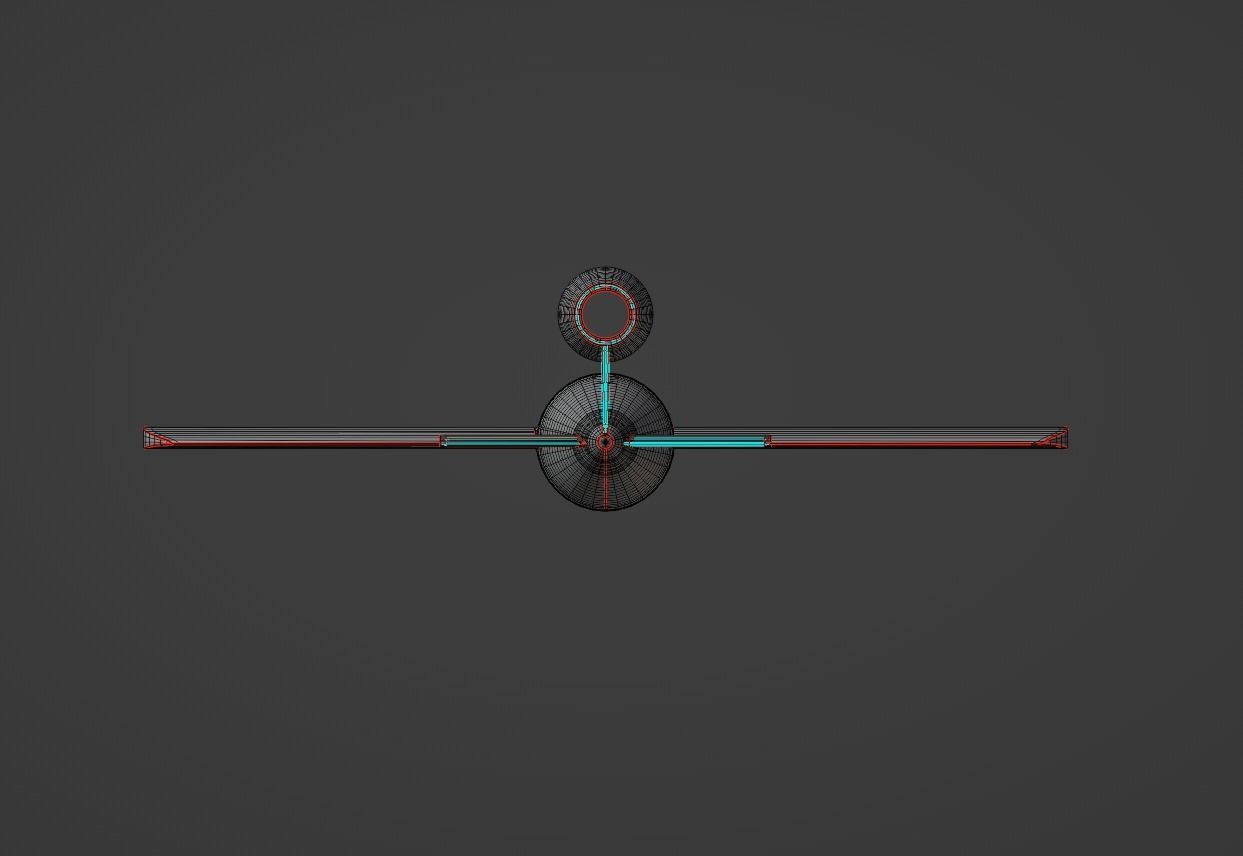

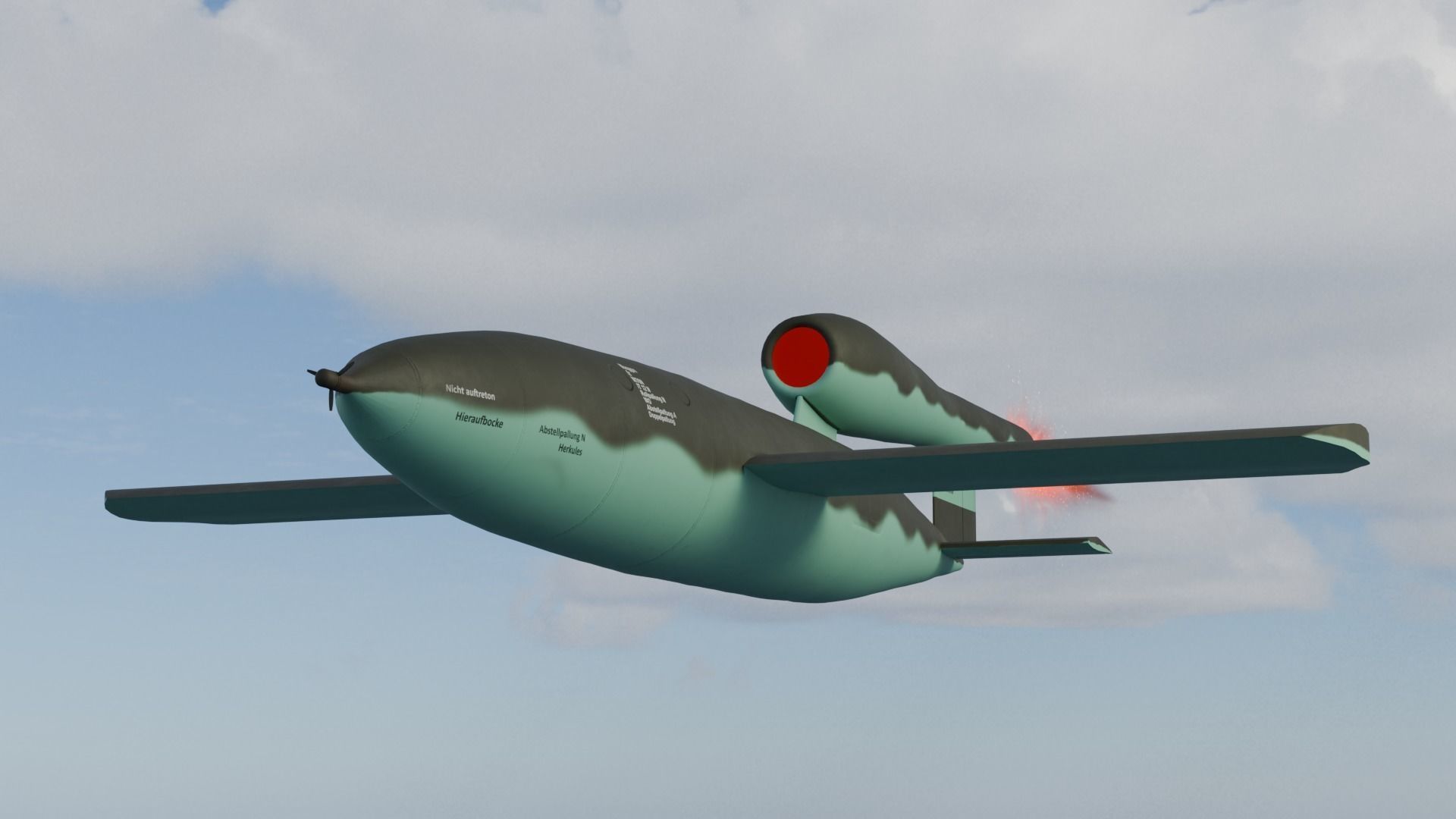

V1 Flying Bomb Low-poly 3D model

The V-1 was the first of the Vergeltungswaffen (V-weapons) deployed for the terror bombing of London. It was developed at Peenemünde Army Research Center in 1939 by the Luftwaffe at the beginning of the Second World War, and during initial development was known by the codename Cherry Stone. Due to its limited range, the thousands of V-1 missiles launched into England were fired from launch facilities along the French (Pas-de-Calais) and Dutch coasts or by modified He 111 aircraft.

The Argus pulsejet's major components included the nacelle, fuel jets, flap valve grid, mixing chamber venturi, tail pipe, and spark plug. Compressed air rather than a fuel pump forced gasoline from the 640 L (140 imp gal; 170 US gal) fuel tank through the fuel jets which consisted of three banks of three atomizers. These nine atomizing nozzles were in front of the air inlet valve system where it mixed with air before entering the chamber. A throttle valve, connected to altitude and ram pressure instruments, controlled fuel flow. Schmidt's spring-controlled flap valve system provided an efficient straight path for incoming air. The flaps momentarily closed after each explosion, the resultant gas compressed in the venturi chamber, and its tapered portion accelerated the exhaust gases creating thrust. The operation proceeded at a rate of 42 cycles per second.
