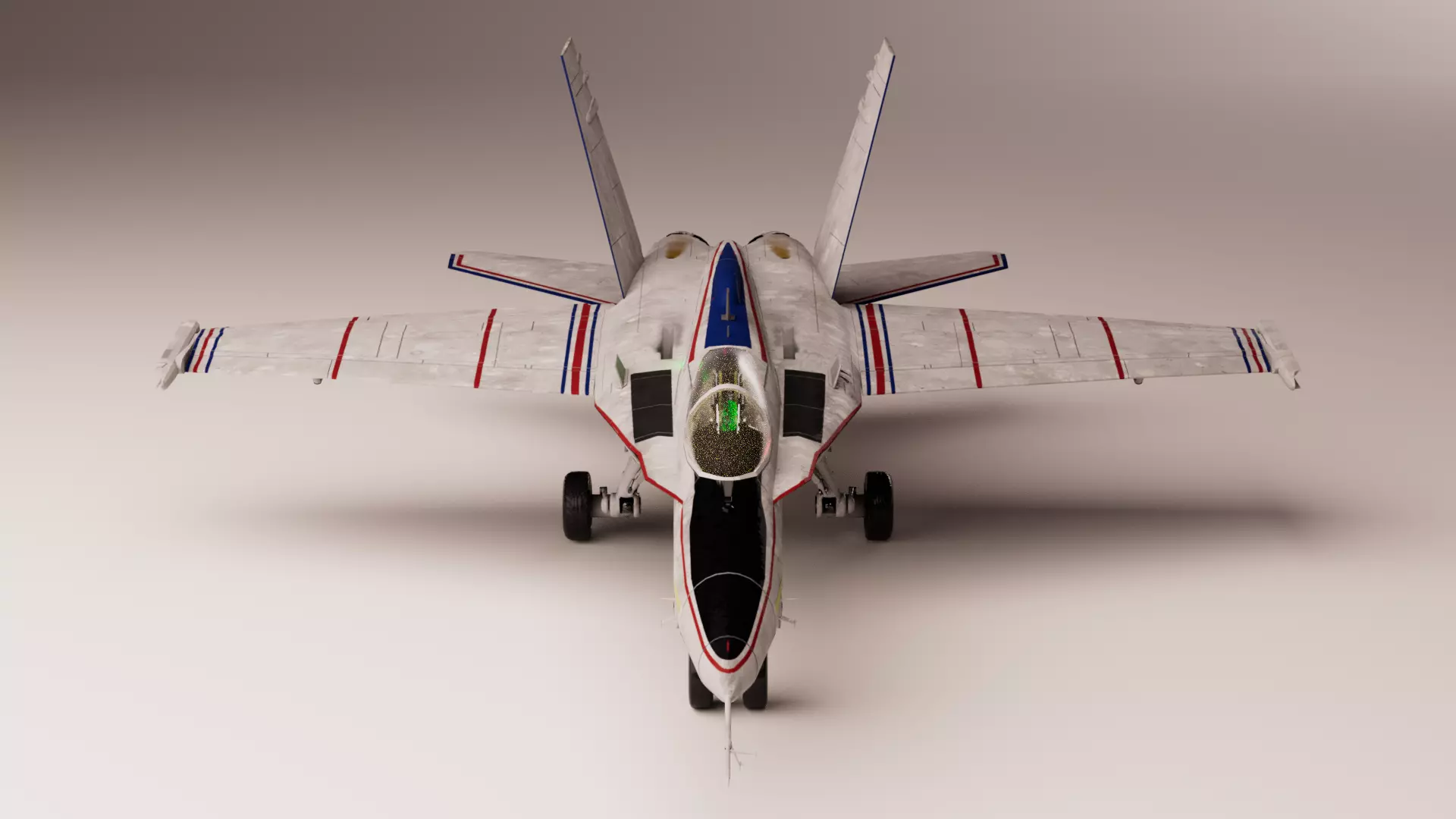

The Boeing X-53 Active Aeroelastic Wing (AAW) is a landmark experimental aircraft project designed to explore and validate a revolutionary approach to aircraft wing design and flight control. Jointly developed by Boeing Phantom Works, NASA Dryden Flight Research Center (now Armstrong Flight Research Center), and the U.S. Air Force Research Laboratory (AFRL), the X-53 is a highly modified McDonnell Douglas F/A-18A Hornet reconfigured specifically for advanced aerodynamic research. The X-53 project was conceived as part of a broader effort to investigate the potential of aeroelasticity—traditionally seen as a challenge in aircraft design—as a beneficial, actively controlled feature of flight dynamics.
Traditionally, wings in modern aircraft are built to be rigid to ensure structural integrity and to minimize aerodynamic deformation during flight. Engineers have long treated aeroelastic effects, such as wing bending and twisting under aerodynamic loads, as problems to be mitigated or eliminated through structural stiffening and reinforced materials. However, this conventional design philosophy comes at a cost, particularly in terms of added structural weight and limited aerodynamic efficiency. The X-53 Active Aeroelastic Wing project set out to turn this paradigm on its head by purposefully leveraging the flexibility of the wing as a tool for enhancing aircraft control and performance.
The central premise of the X-53 was to use real-time, active control of the aircraft’s flexible wing structure to improve roll control and maneuverability without relying exclusively on large, deflecting control surfaces. In this system, the natural flexing and twisting of the wing under aerodynamic forces are not suppressed but are instead integrated into the control logic. This is accomplished through sophisticated modifications to both the airframe and flight control systems.
To implement the active aeroelastic wing concept, the X-53’s outer wing panels were structurally modified to be less stiff, allowing greater controlled flexibility than in a standard F/A-18. These modifications included redesigning the internal rib and spar configurations to achieve specific elastic deformation patterns under load. Additionally, the aircraft was outfitted with a highly advanced flight control system capable of adjusting the ailerons and other control surfaces in response to real-time measurements of wing deflection, twist, and aerodynamic pressure. By precisely managing these control surfaces in harmony with the wing’s elastic behavior, the aircraft was able to generate roll moments with significantly smaller surface deflections, thereby reducing drag and energy expenditure during maneuvers.
Flight tests of the X-53, conducted in the early 2000s, provided compelling data that supported the feasibility and potential advantages of this approach. The aircraft demonstrated that roll control could be maintained or even improved using the aeroelastic behavior of the wing, with greater control authority at higher speeds and altitudes where traditional control surfaces become less effective. The results indicated that such technology could be key in enabling lighter wing structures, lower fuel consumption, fewer mechanical parts, and greater overall efficiency for both military and commercial aircraft.
Moreover, the success of the X-53 program has implications beyond just control efficiency. The research contributes to the development of morphing wing technologies, where wings change shape dynamically during flight to adapt to different aerodynamic conditions. It also opens the door to new structural materials and configurations in future aircraft that can intentionally exploit aeroelastic responses, rather than design around them.
In summary, the Boeing X-53 Active Aeroelastic Wing project represents a pivotal advancement in aeronautical engineering. By reimagining wing flexibility as an asset rather than a liability, it challenges long-standing assumptions in aircraft design and paves the way for the next generation of high-performance, energy-efficient, and more adaptable aircraft. Its legacy continues to influence ongoing research in smart structures, flexible airframes, and aero-servo-elastic integration, all critical components of future aerospace innovation.
