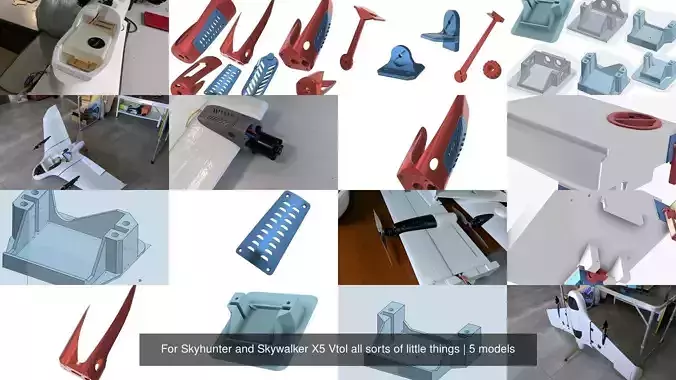

For Skyhunter and Skywalker X5 Vtol all sorts of little things 3D Model Collection

Description

Skyhunter 1800 - Engine mount for twin-engine model aircraft.

  • Two mounting options, size smaller - gray and larger - black (pictured)
  • Provides easy takeoff with max load, And a fairly economical flight, 5 - 7A flight current at an average speed of 57 km / h and a weight of 3.5 kg.
  • Size between screws for motor 34mm. SUNNYSKY X2216.
  • I am attaching a source files for changes for your motor.
  • On request, if suddenly there is not enough, I will give all the sources.

Bunker for Skyhunter 1800 Trichogramma or other bulk material.

  • The Skyhunter 1800 EPO aircraft is used as a carrier for the introduction of substances in agriculture.
  • Hopper - Max height 80mm, width 117mm, length 136mm
  • Printed in its entirety. Serva Emax ES08.
  • The flow is regulated by impulses of opening and closing within wide limits, the time in both positions of the damper is controlled by the AP.
  • There is a version of the product with a continuous controlled supply of substances, if it is interesting, please inform.
  • Upon request, I will post the sources.
  • on request, if suddenly there is not enough, I will give all the sources.

Motor mount Skywalker X5 Vtol and Twin motor. Two options :

  1. Vtol vectored. Serva RDS3115. Weight 60g. Stall Torque (6.0V) 15 kg.cm
  2. Twin. motor mount diagonal between screws 20mm and 25mm.

Servo holders are different options.

  • 1 - For Emax 3104 serv with dimensions 28 x 27 x 12.5.
  • 2 - For Emax ES08 . For thin wing or tail profiles.
  • 3 - Servo drive with V2 cover and bearing for popular serv. For aircraft. Servo MG90. We need a bearing with an outer diameter of 7mm, an elongated screw. The backlash is removed on the rocking chair.
  • 4 - For MG90 with bearing for popular serv.
  • Added a variant with a lid. We need a bearing with an outer diameter of 7mm, an elongated screw. The backlash is removed on the rocking chair. Weight 1.7 grams.
  • 5 - Thin wing servo holder. for a through cut in the wing servo 23.5x23x12.

GPS holders.

  • For large and small cases GPS.
  • Short and long - for greater distance from metal and magnet. Fastening for flat surface and for rib.
  • holder for copter and aircraft with the ability to fold for transportation.
  • Need screw with nut M3.
  • photo example - Skywalker Hunter .

STL, STEP, F3D files. If the site lacks the source file you need, I will upload it to the site. Or I will send it to you personally.
