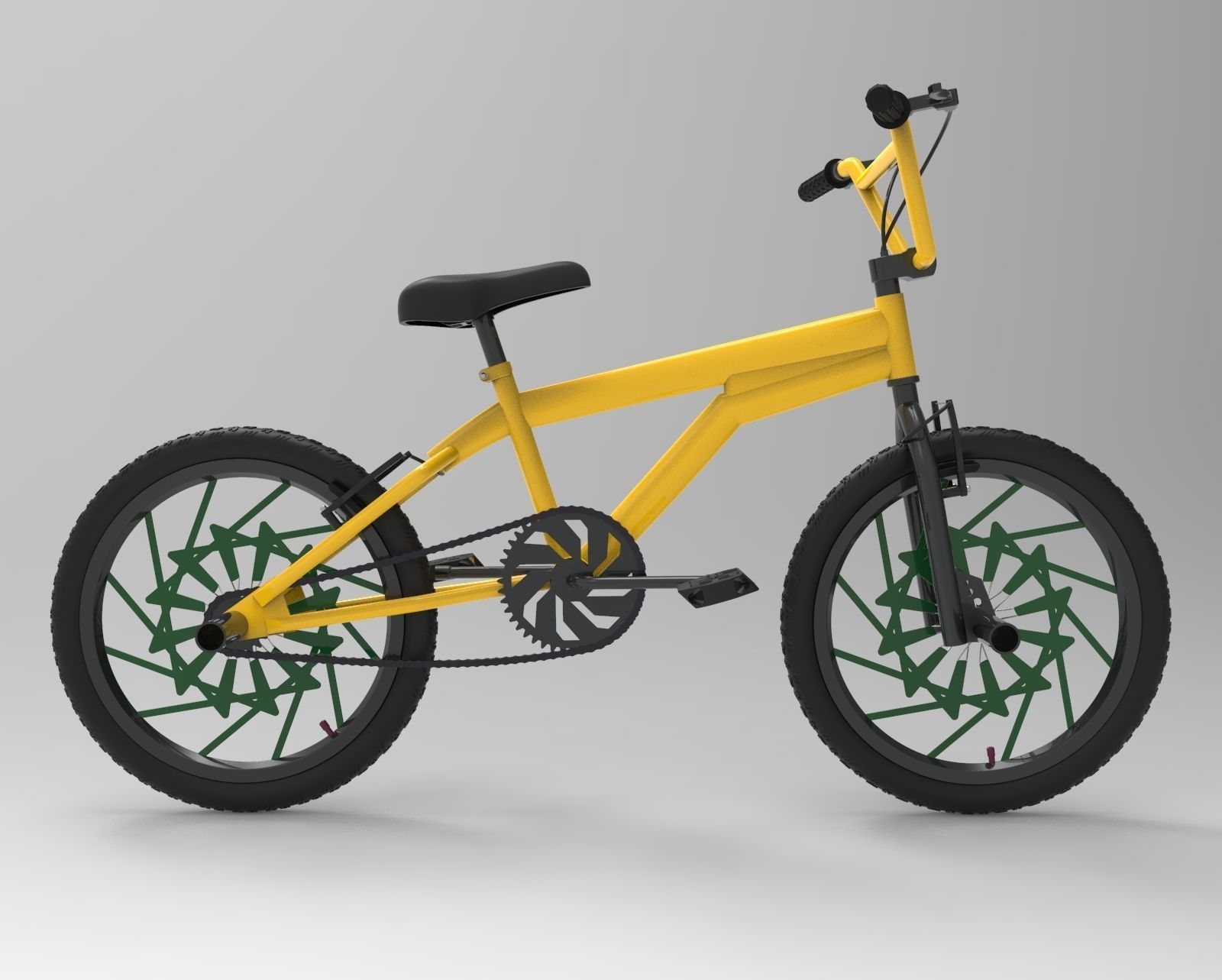

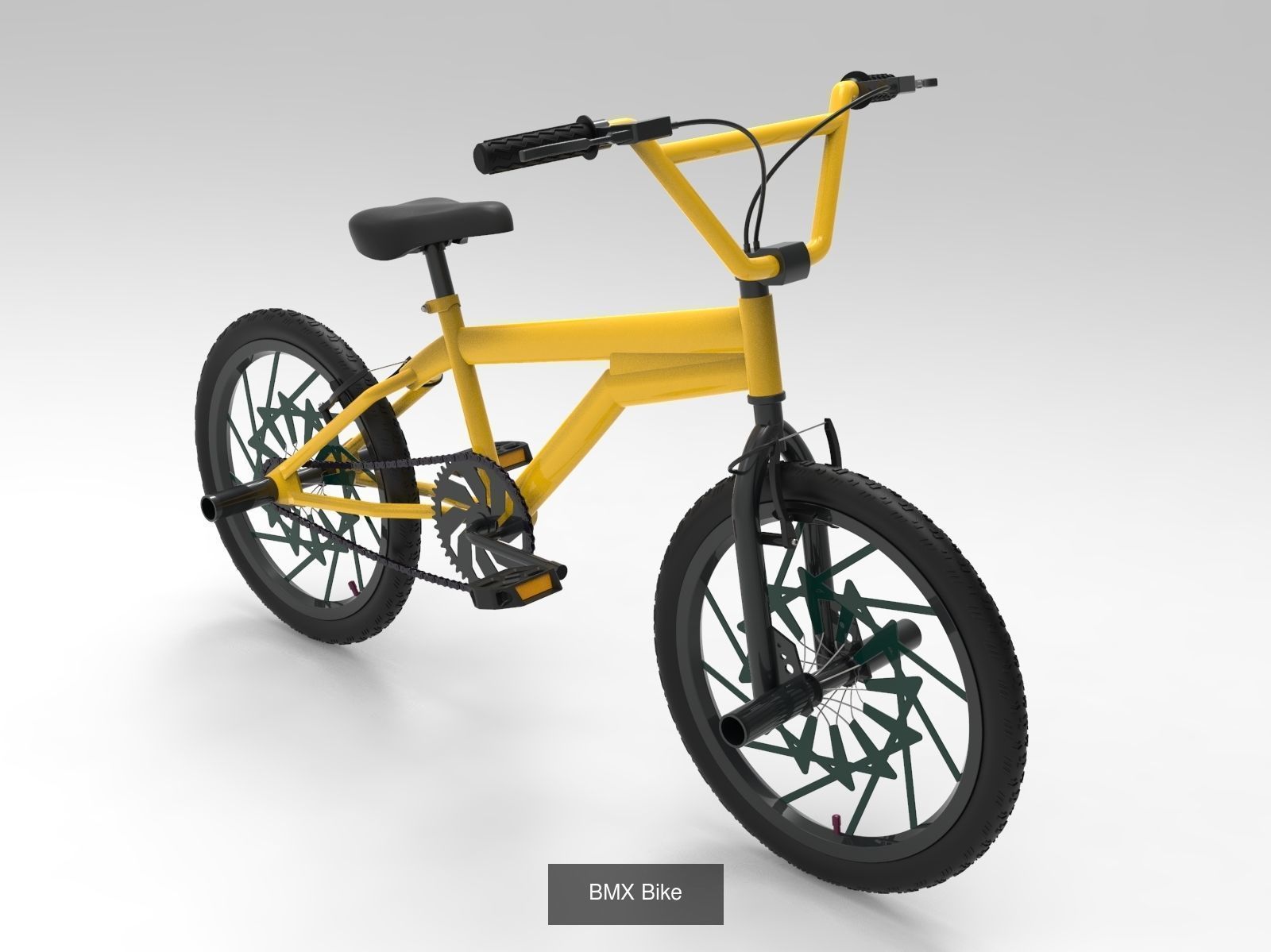

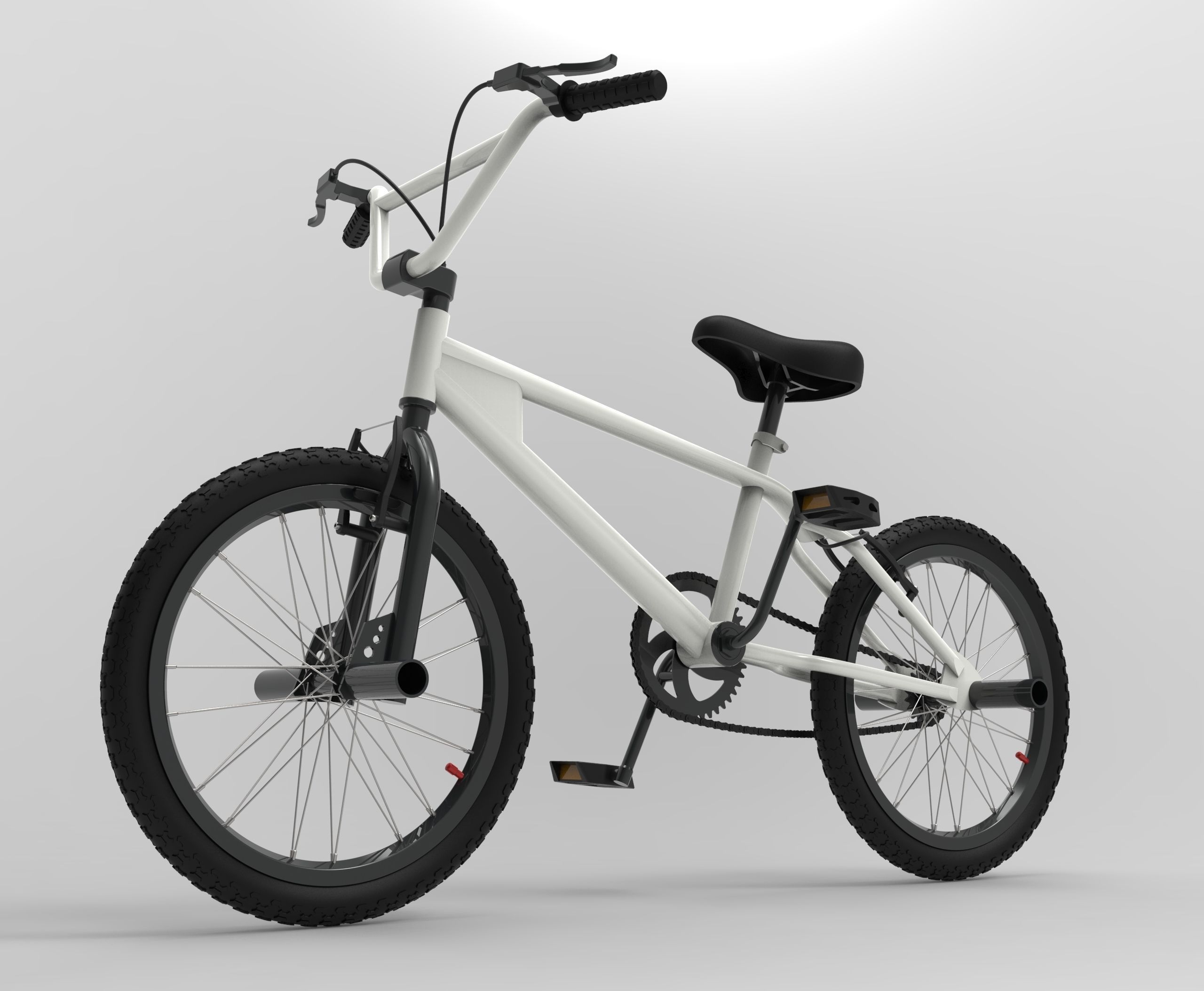

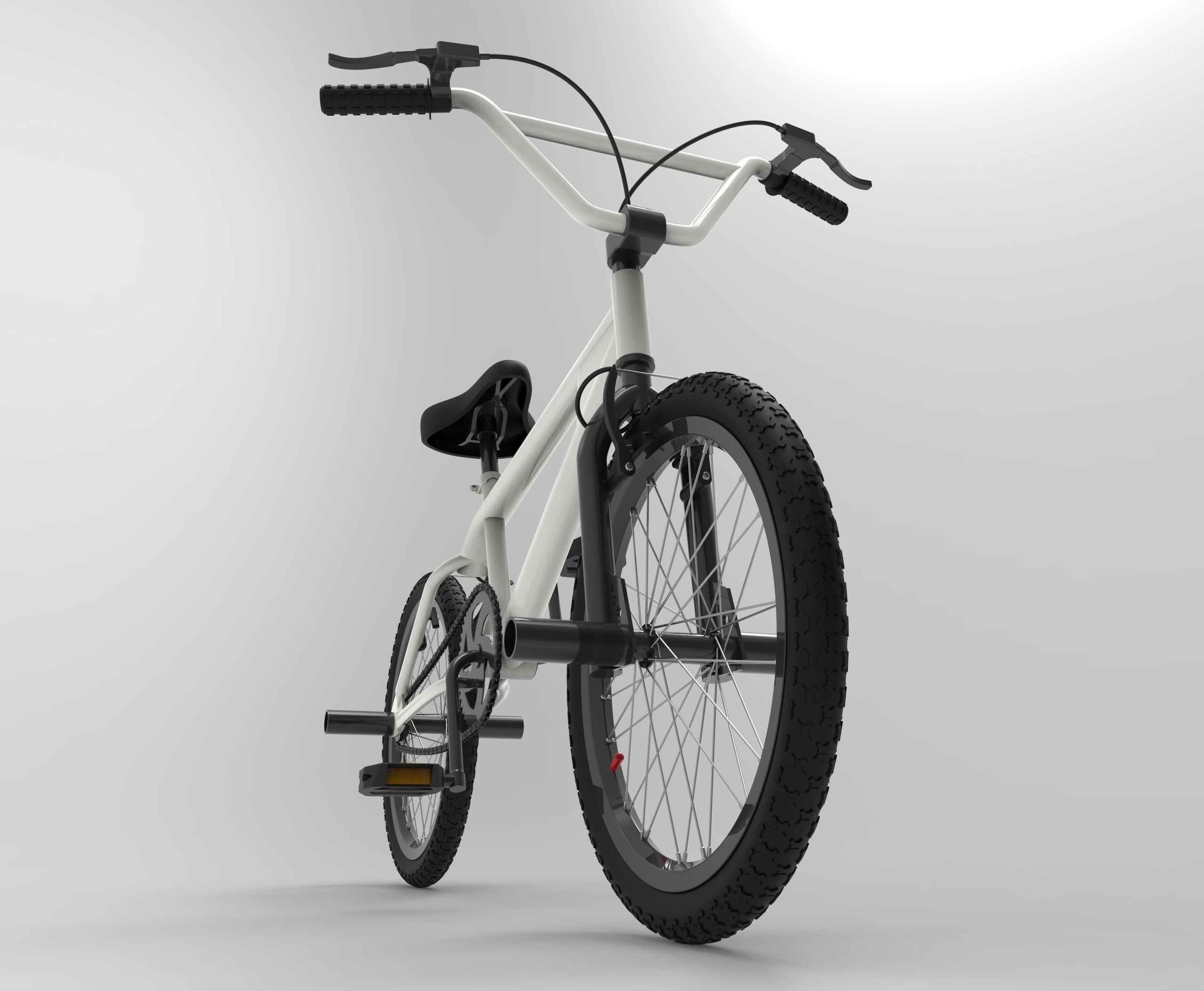

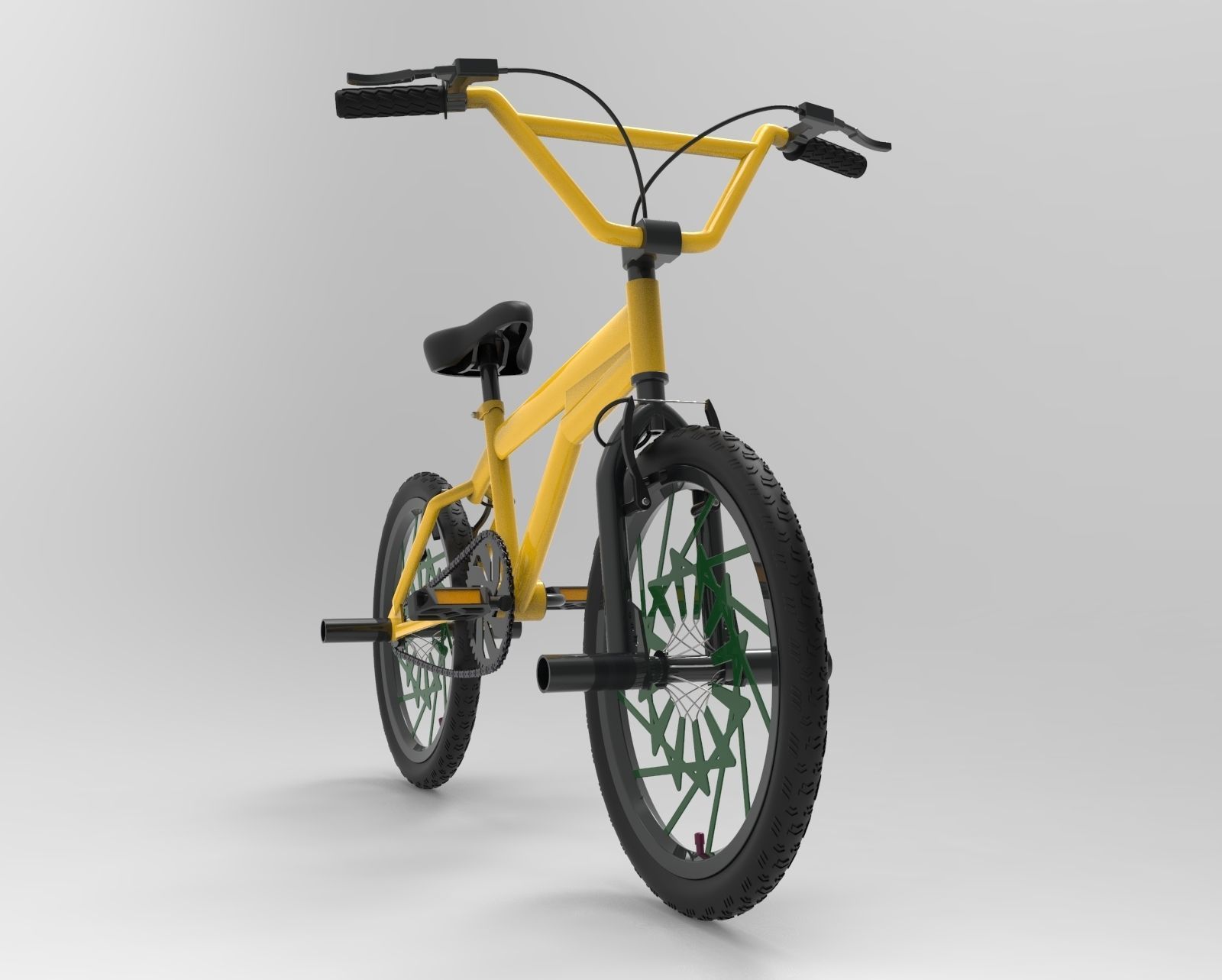

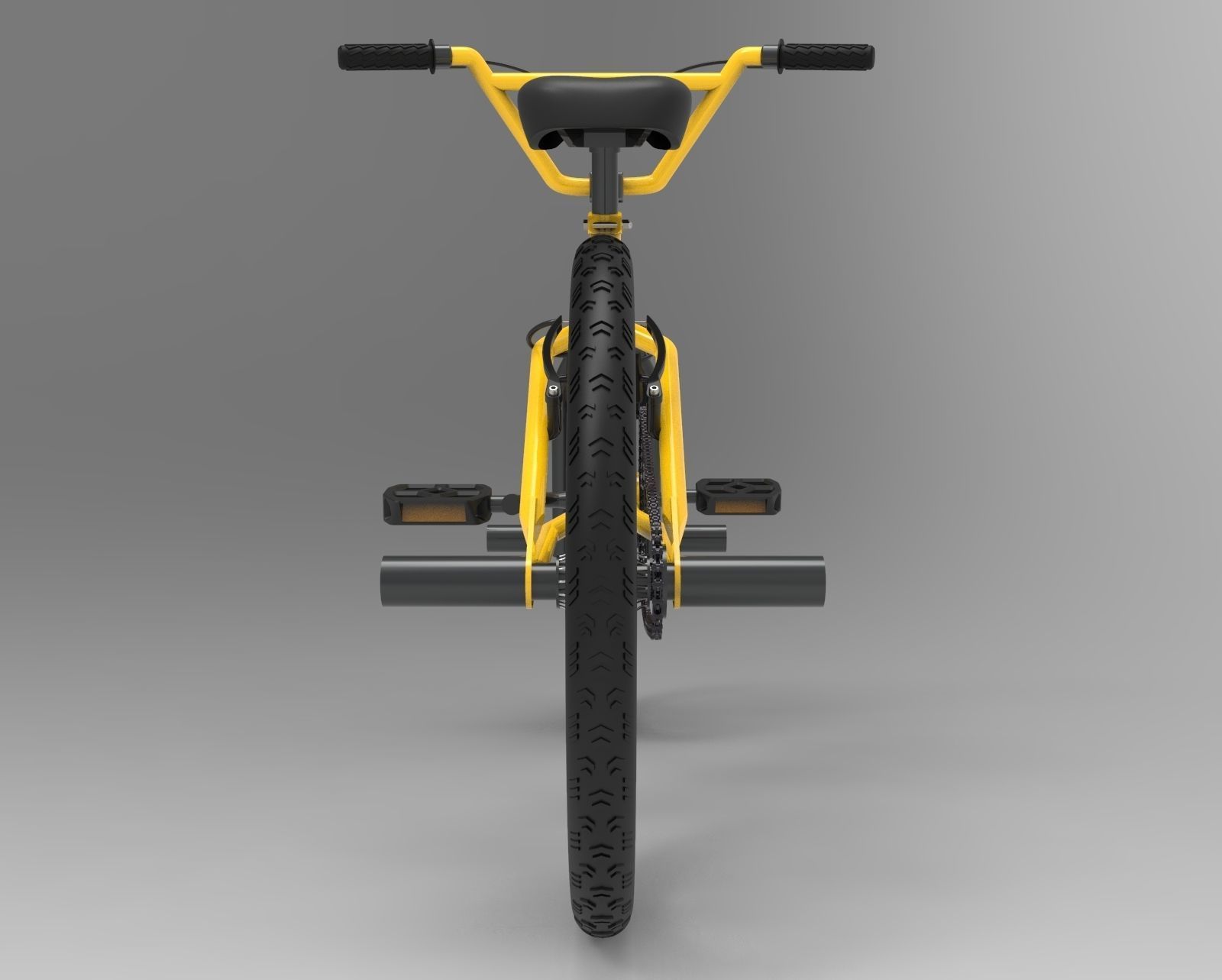

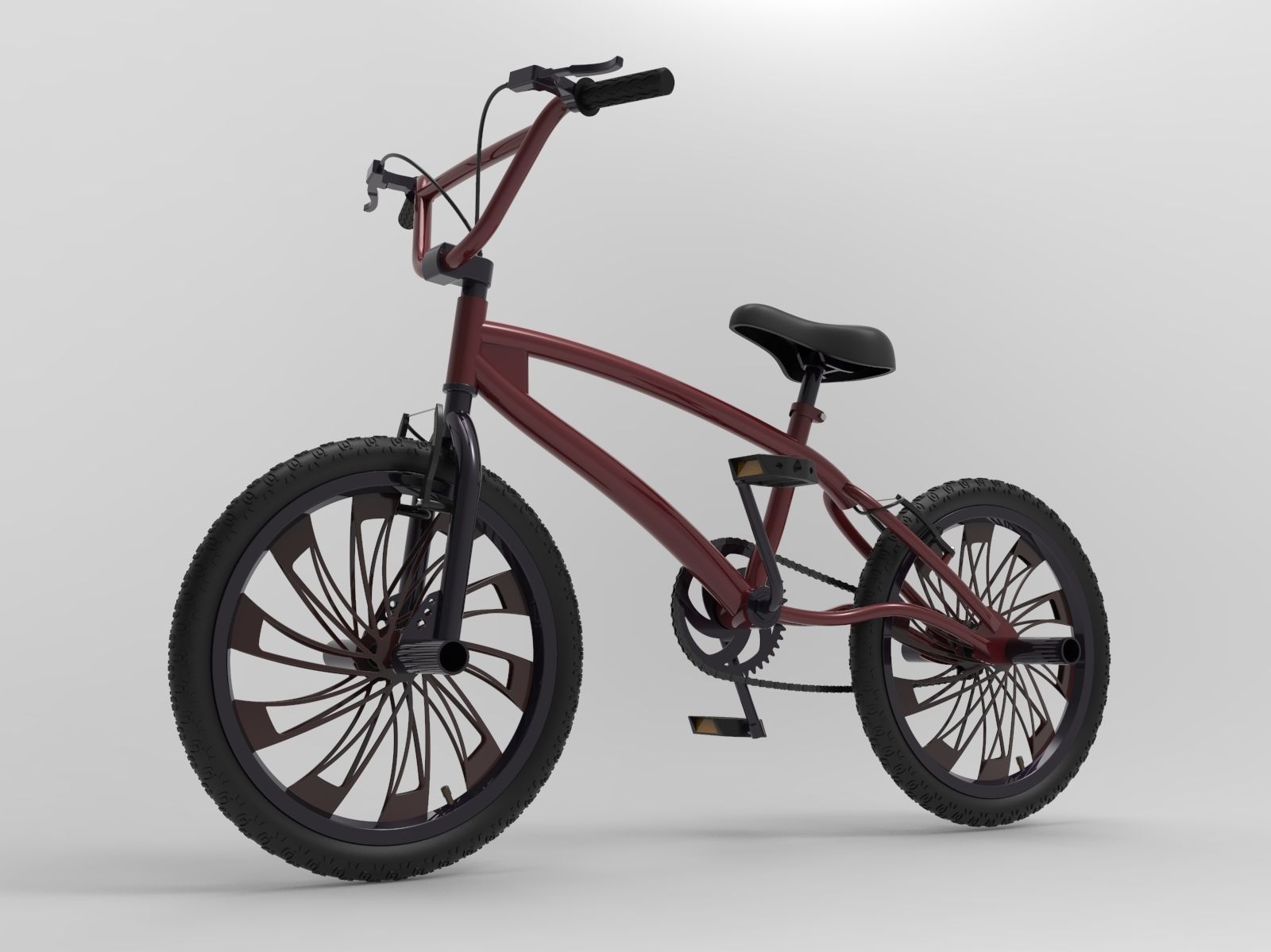

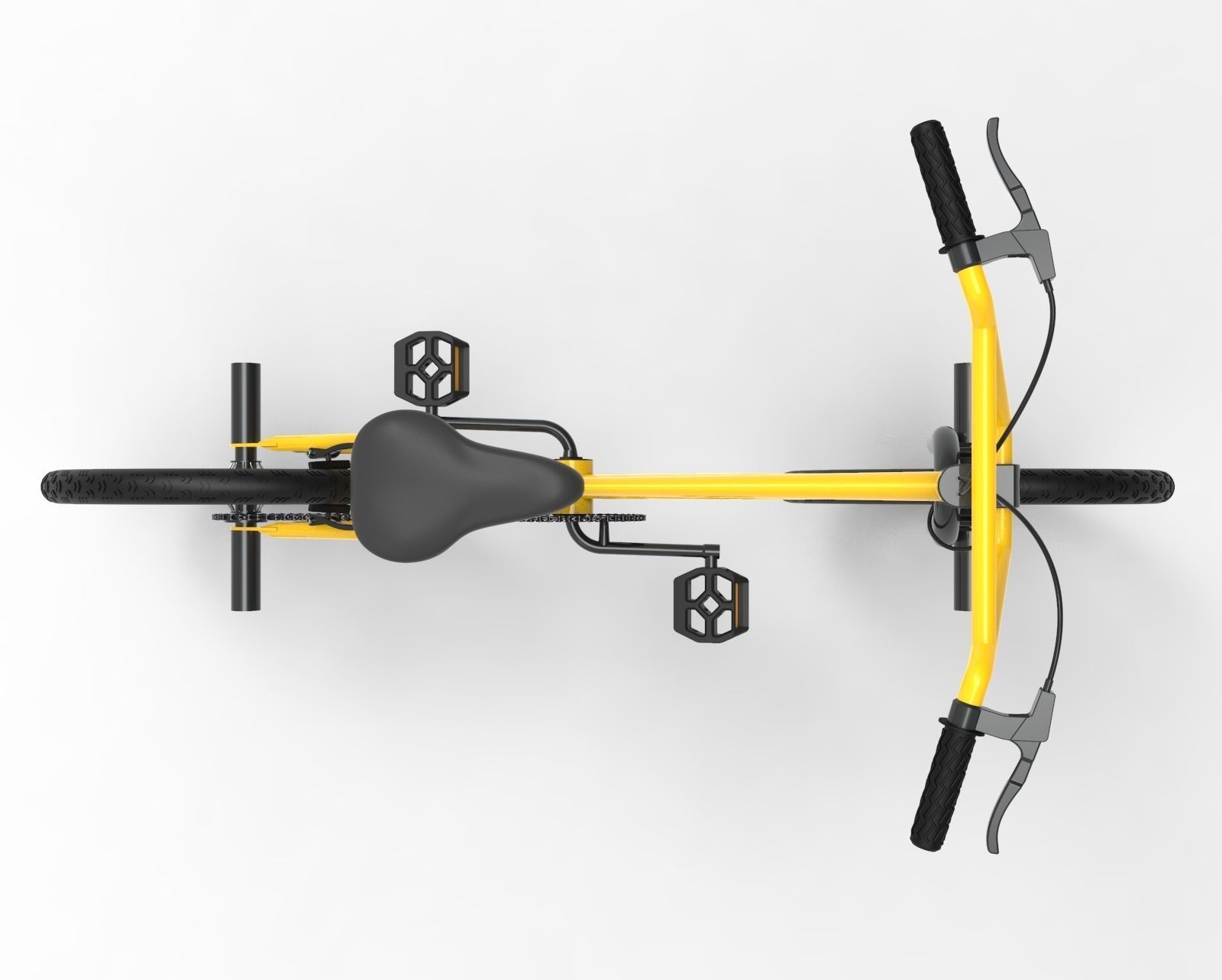

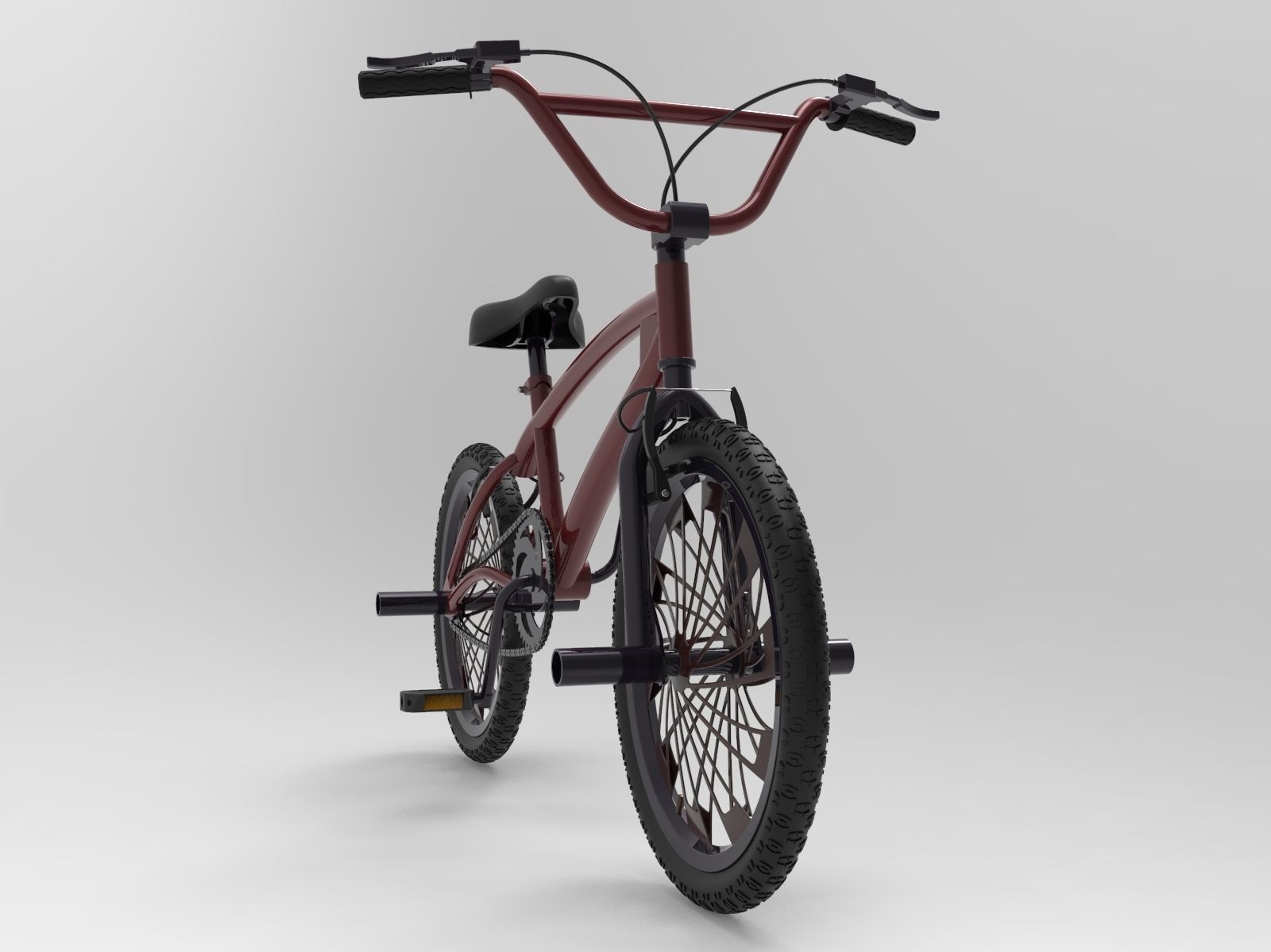

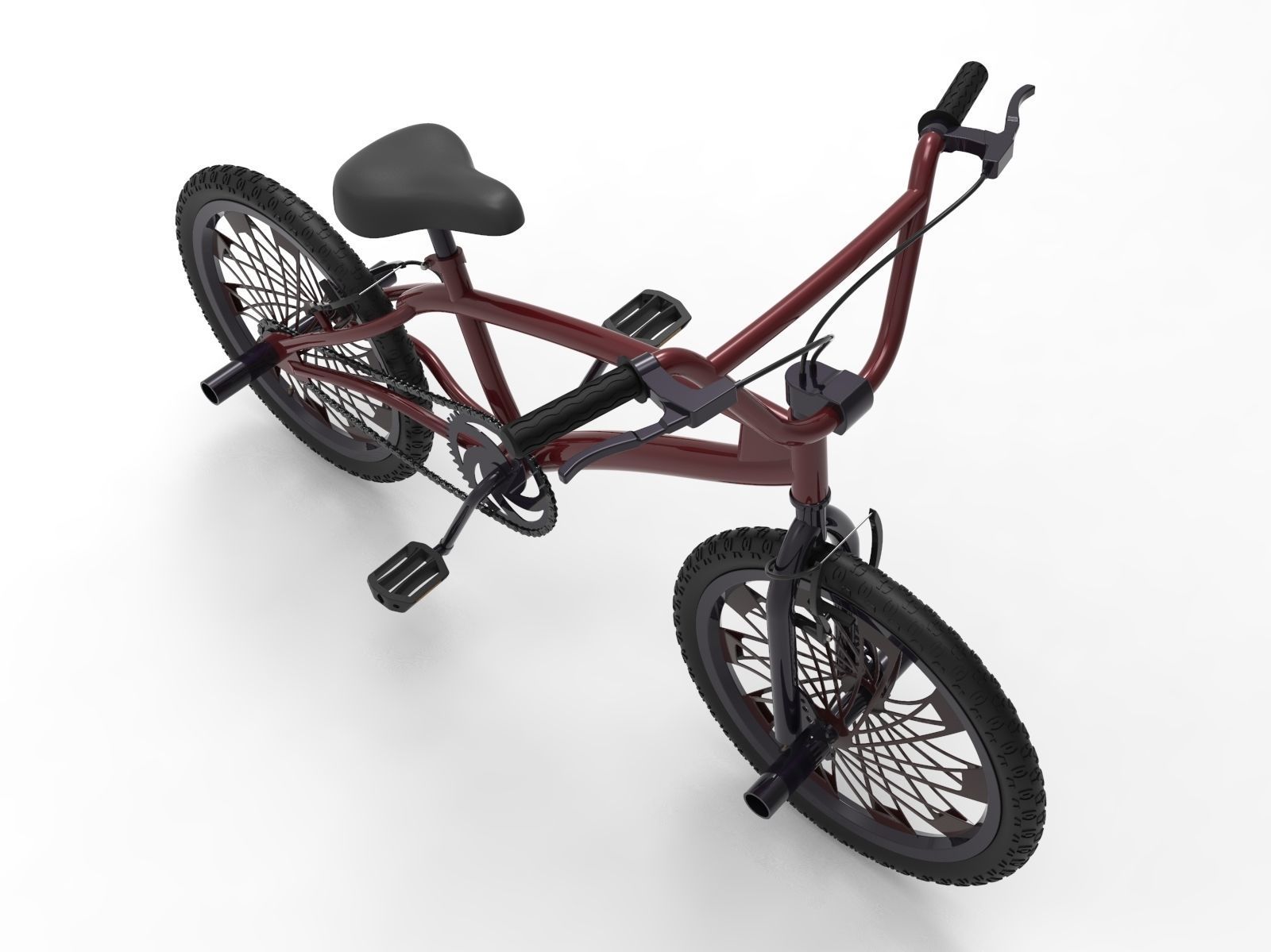

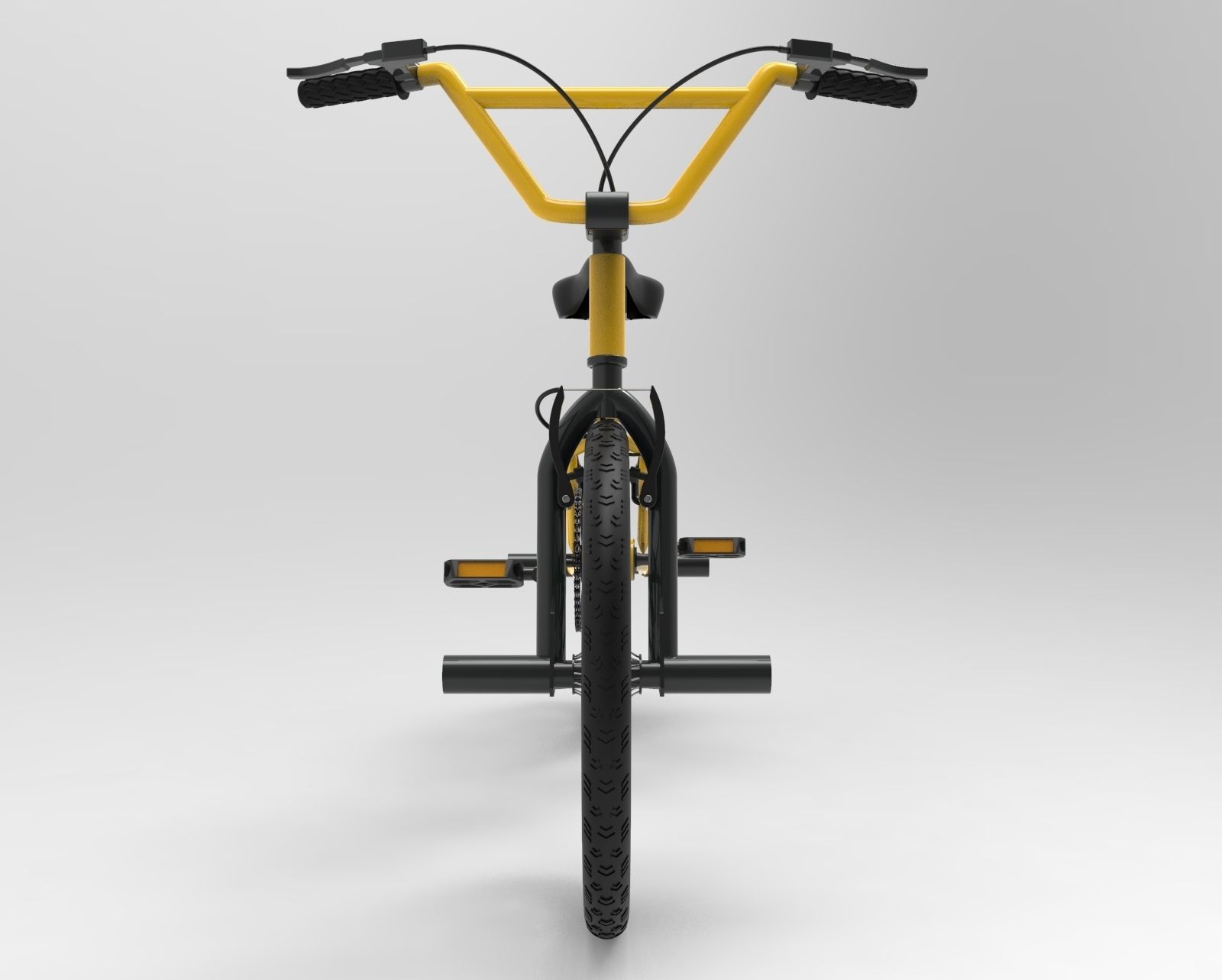

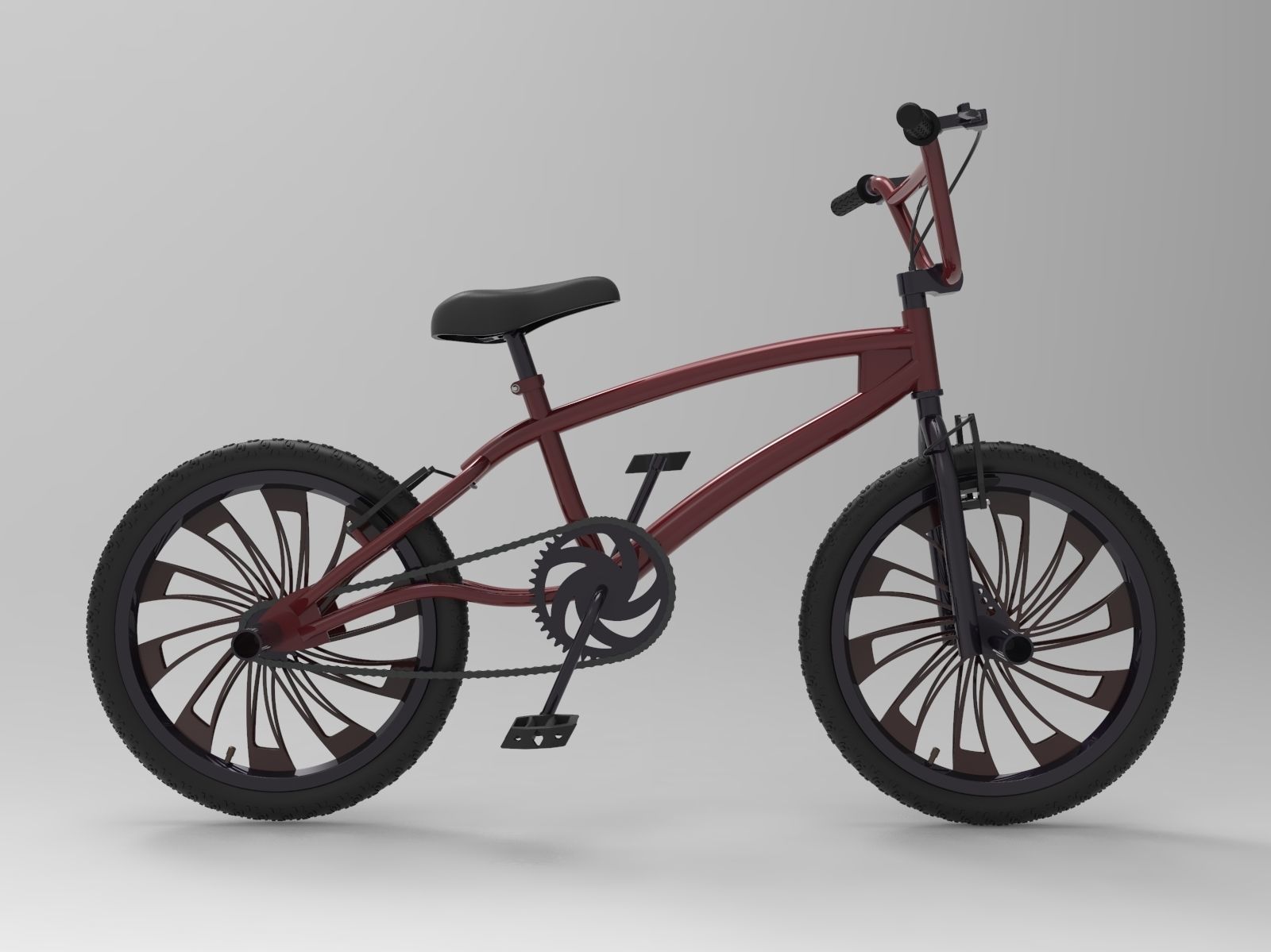

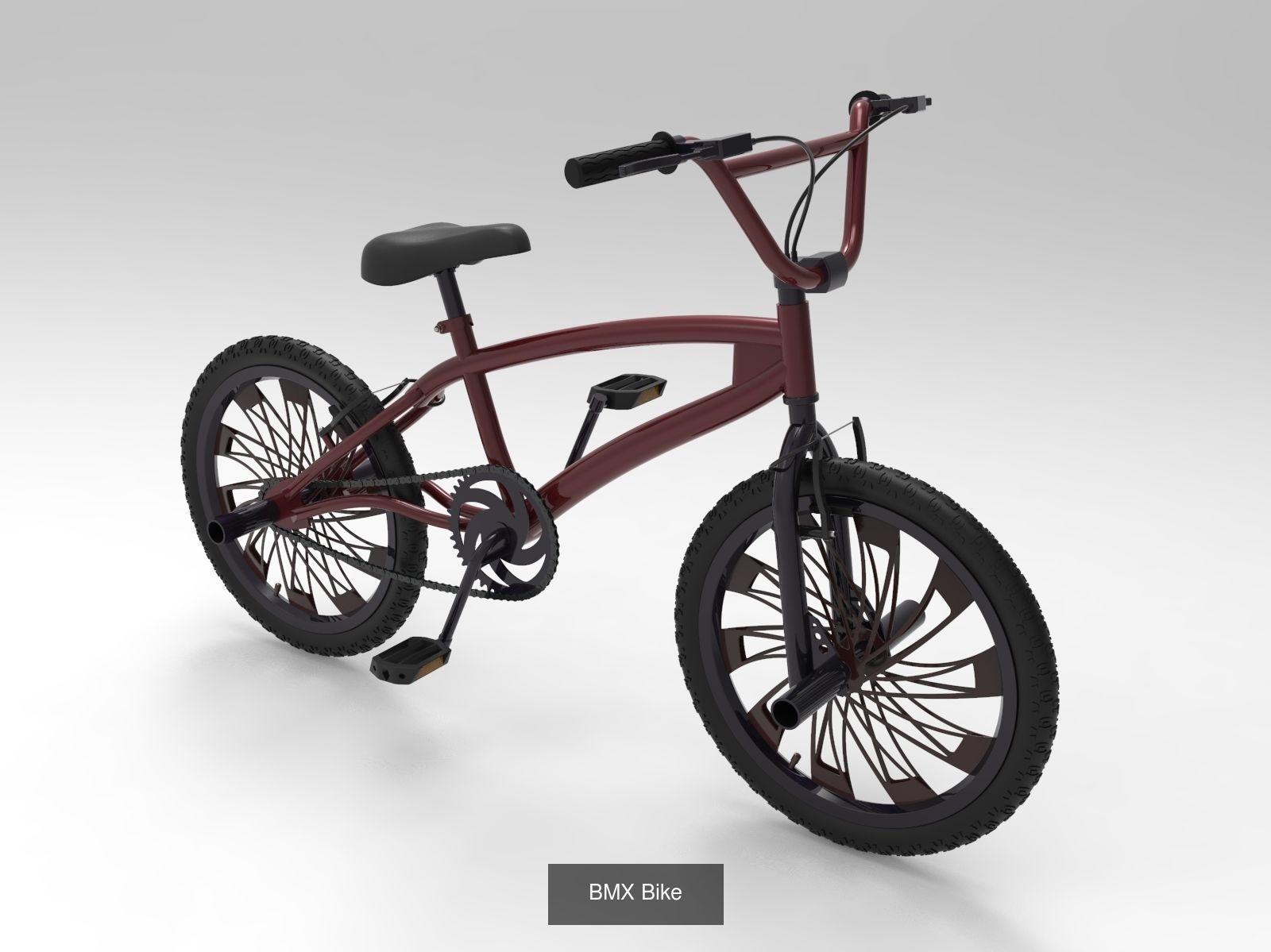

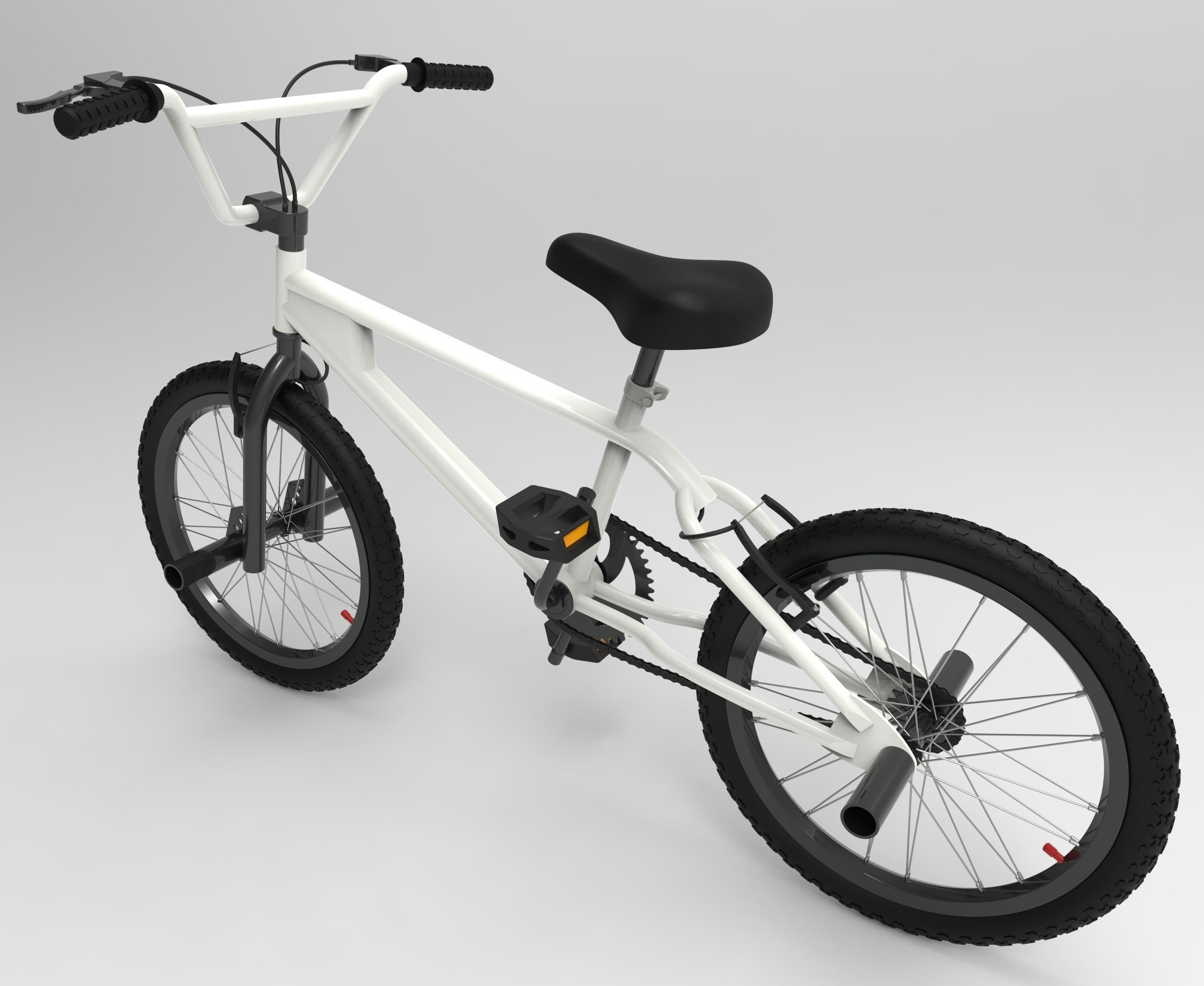

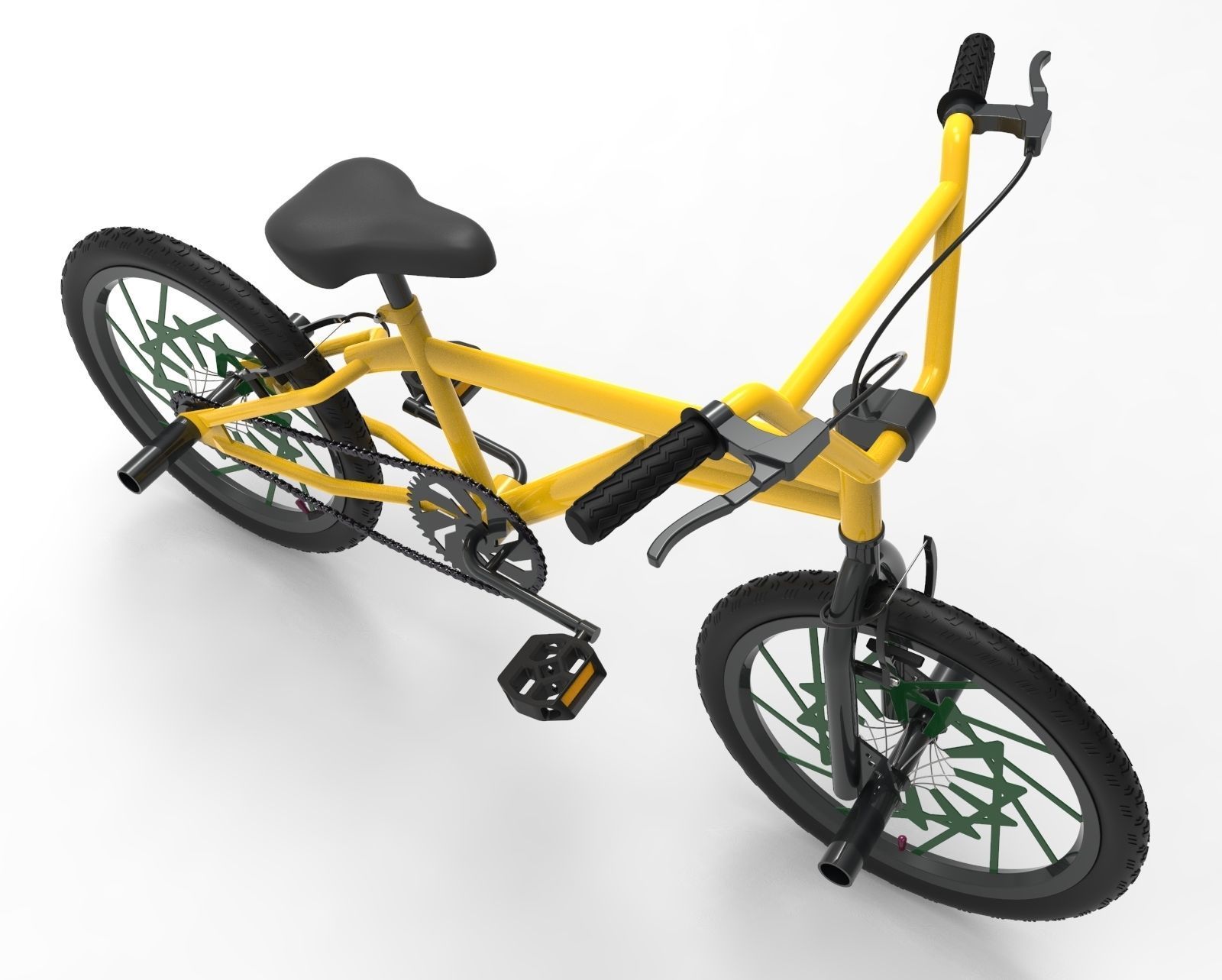

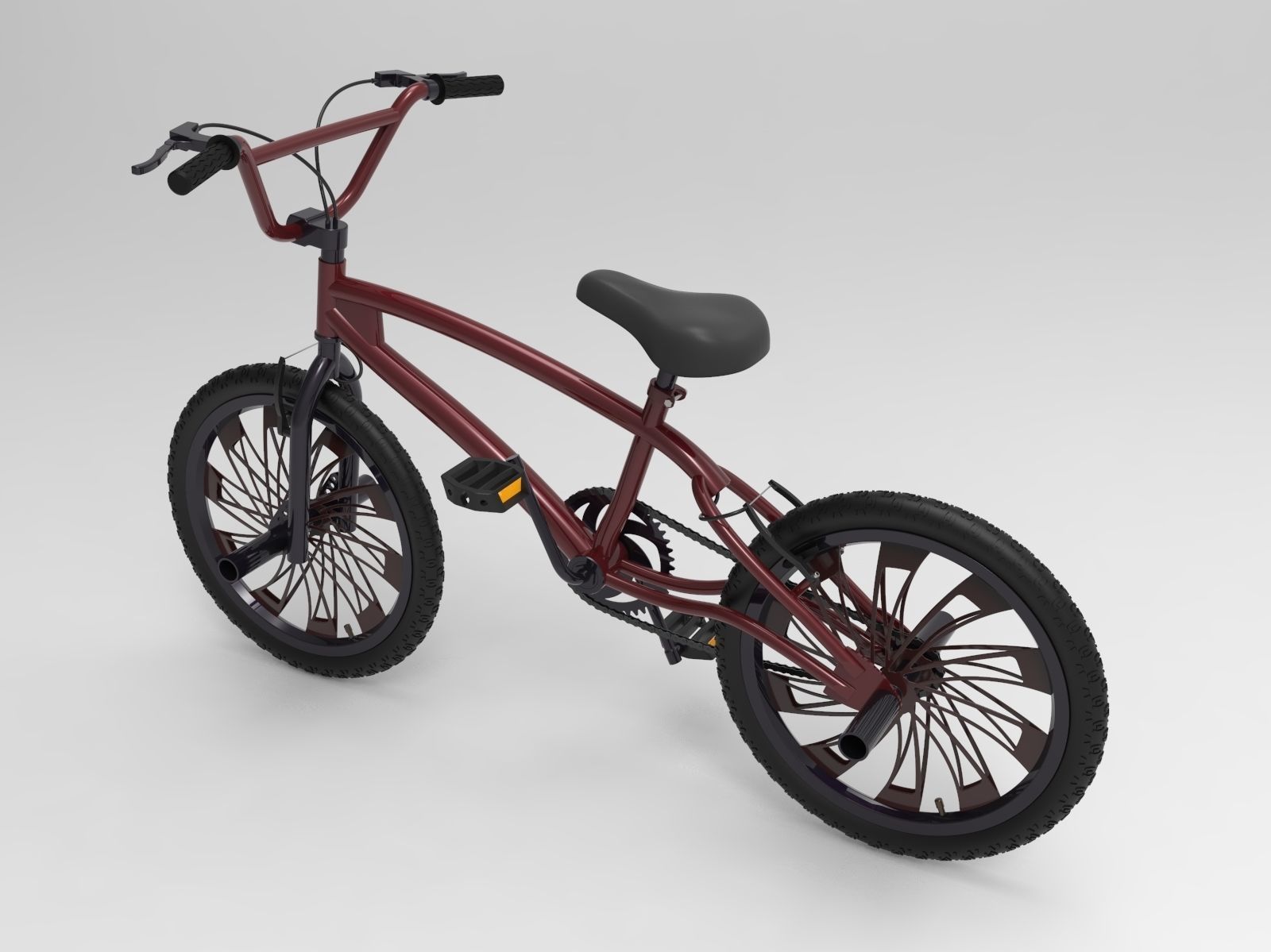

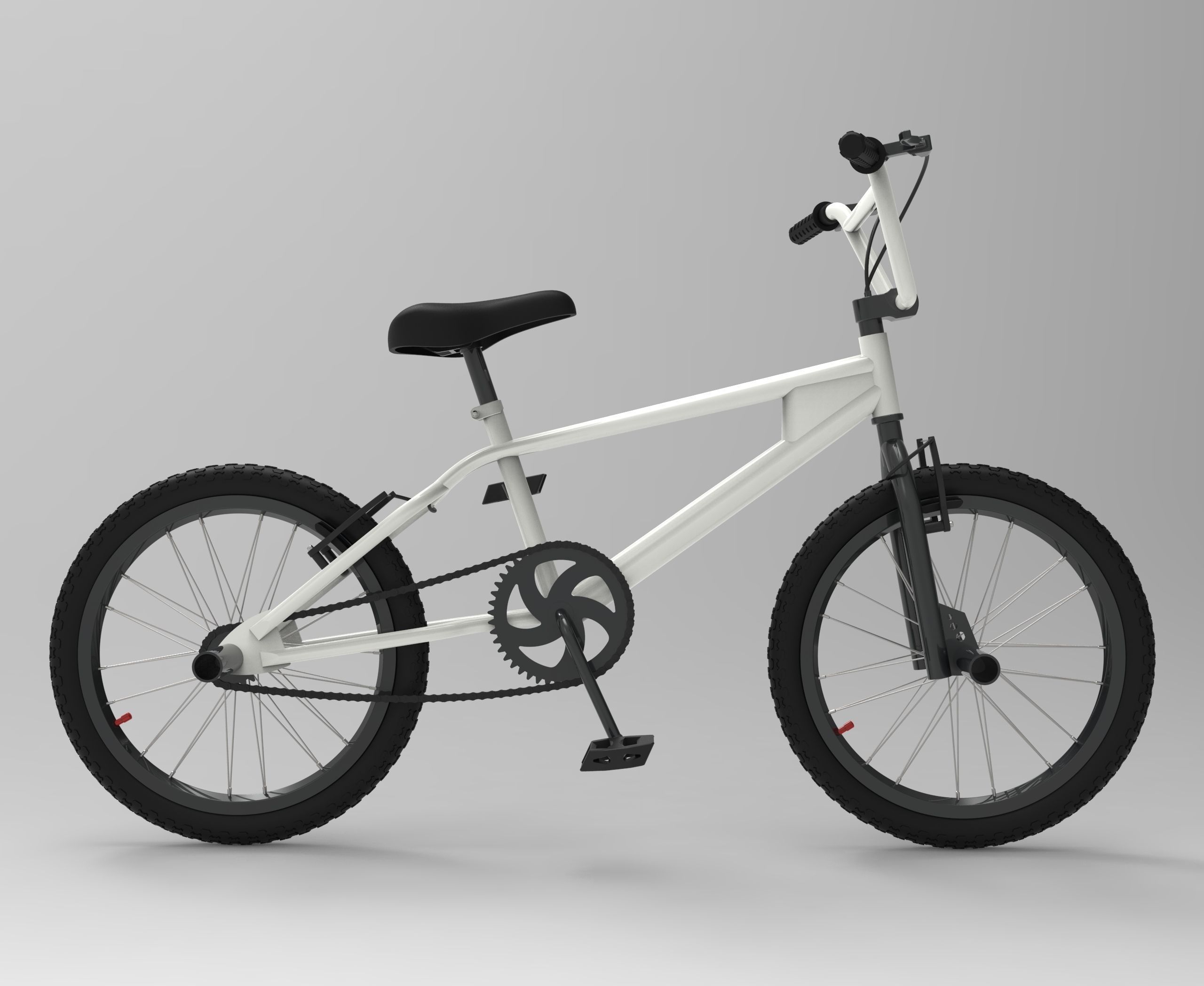

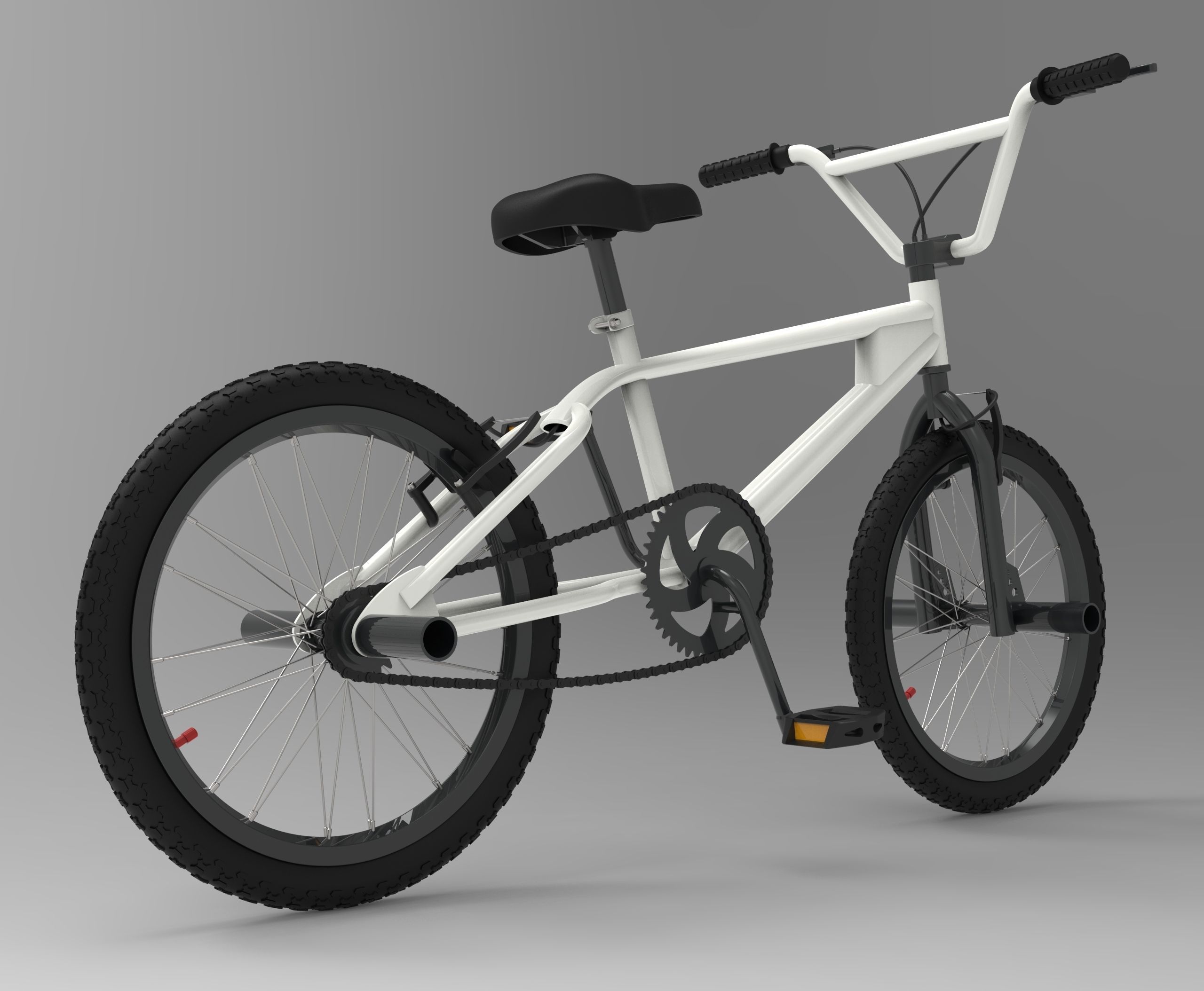

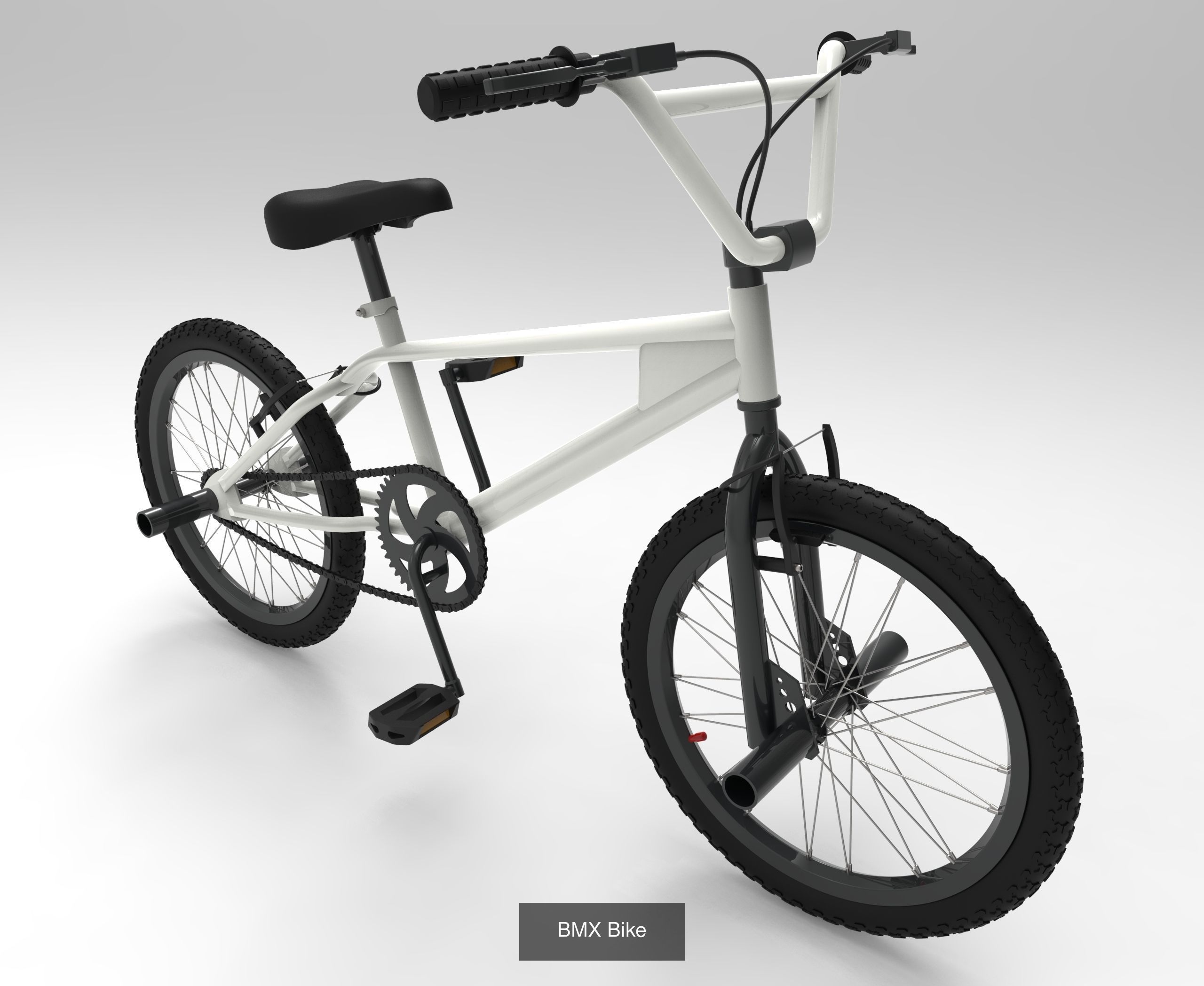

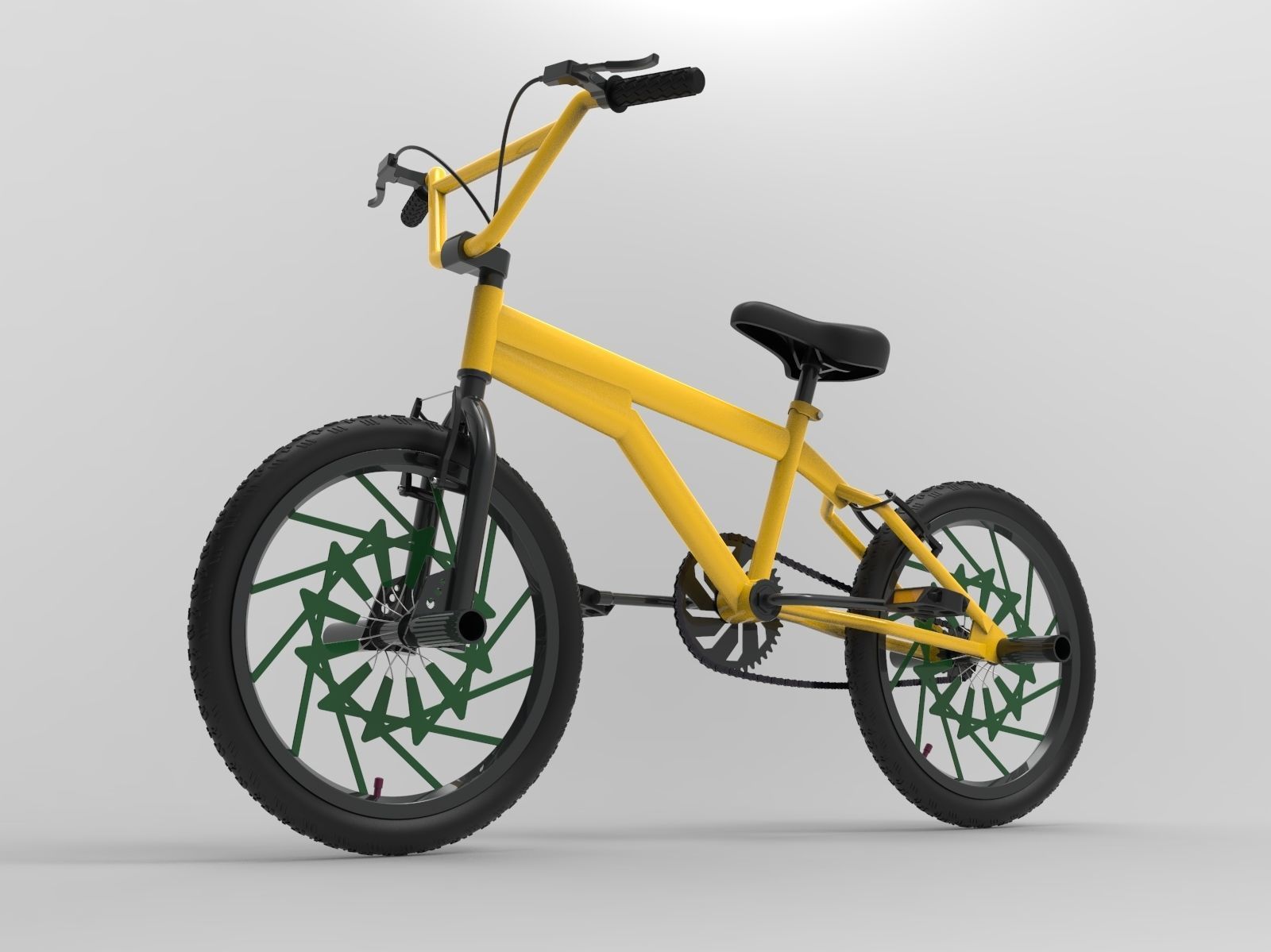

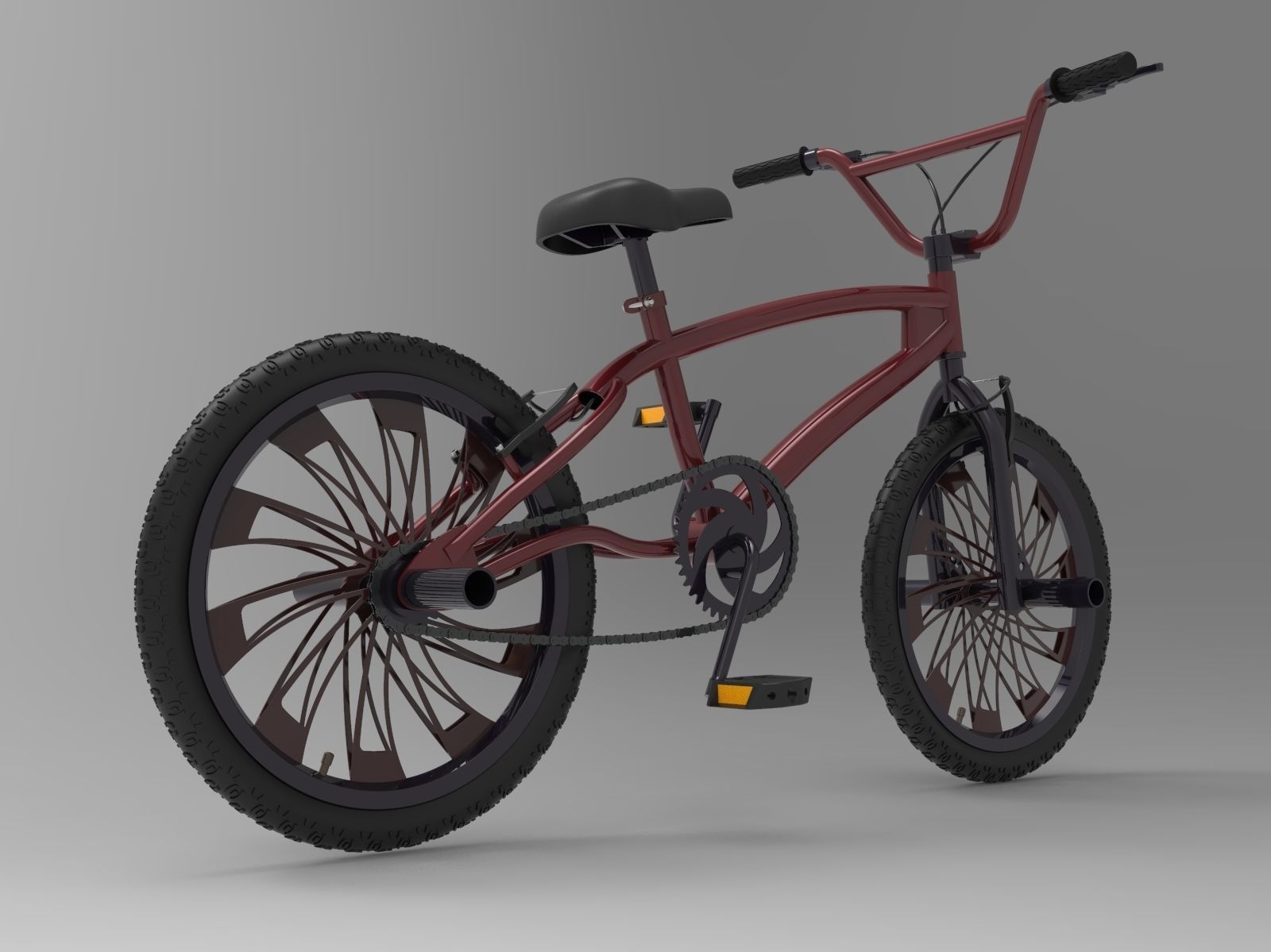

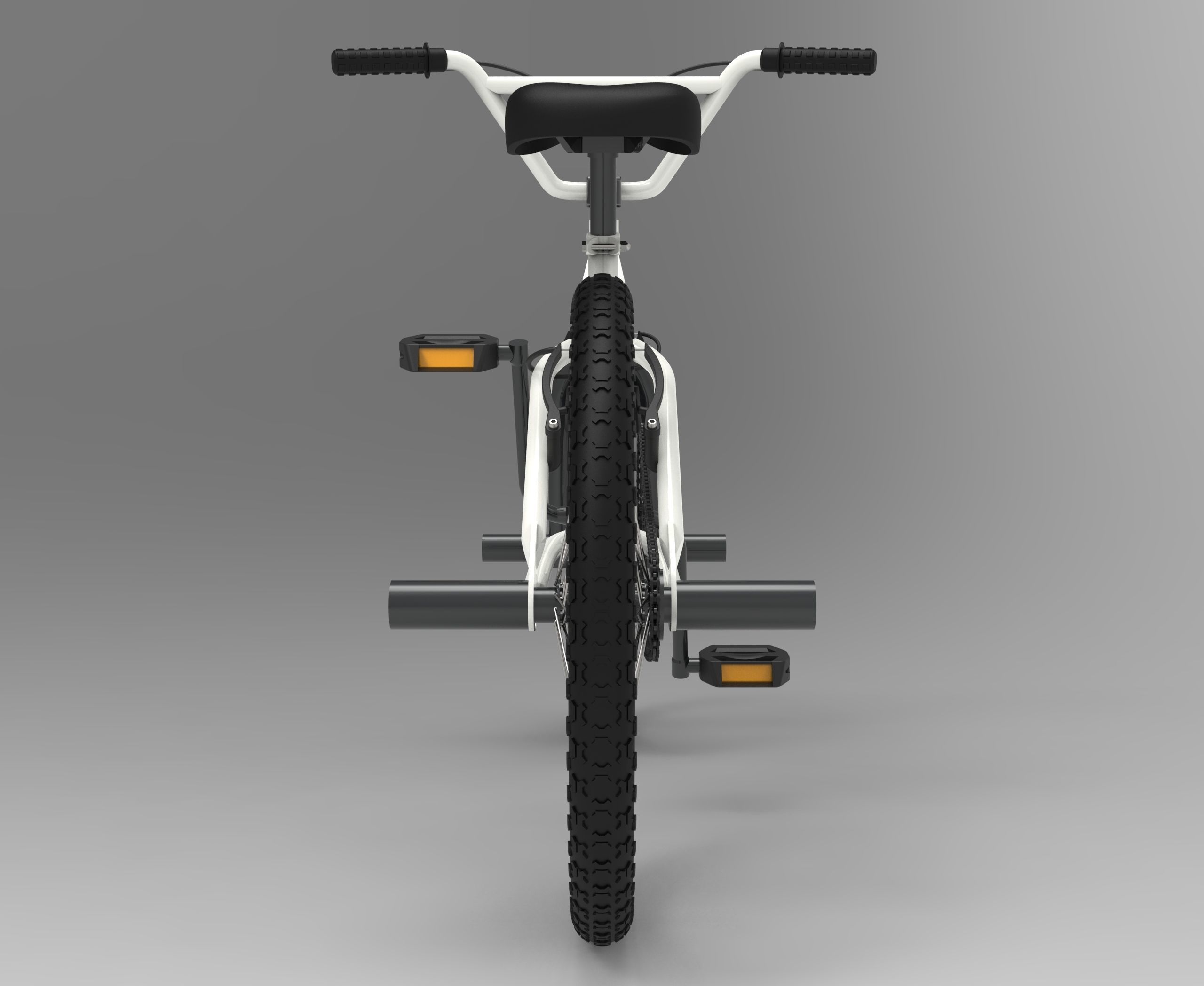

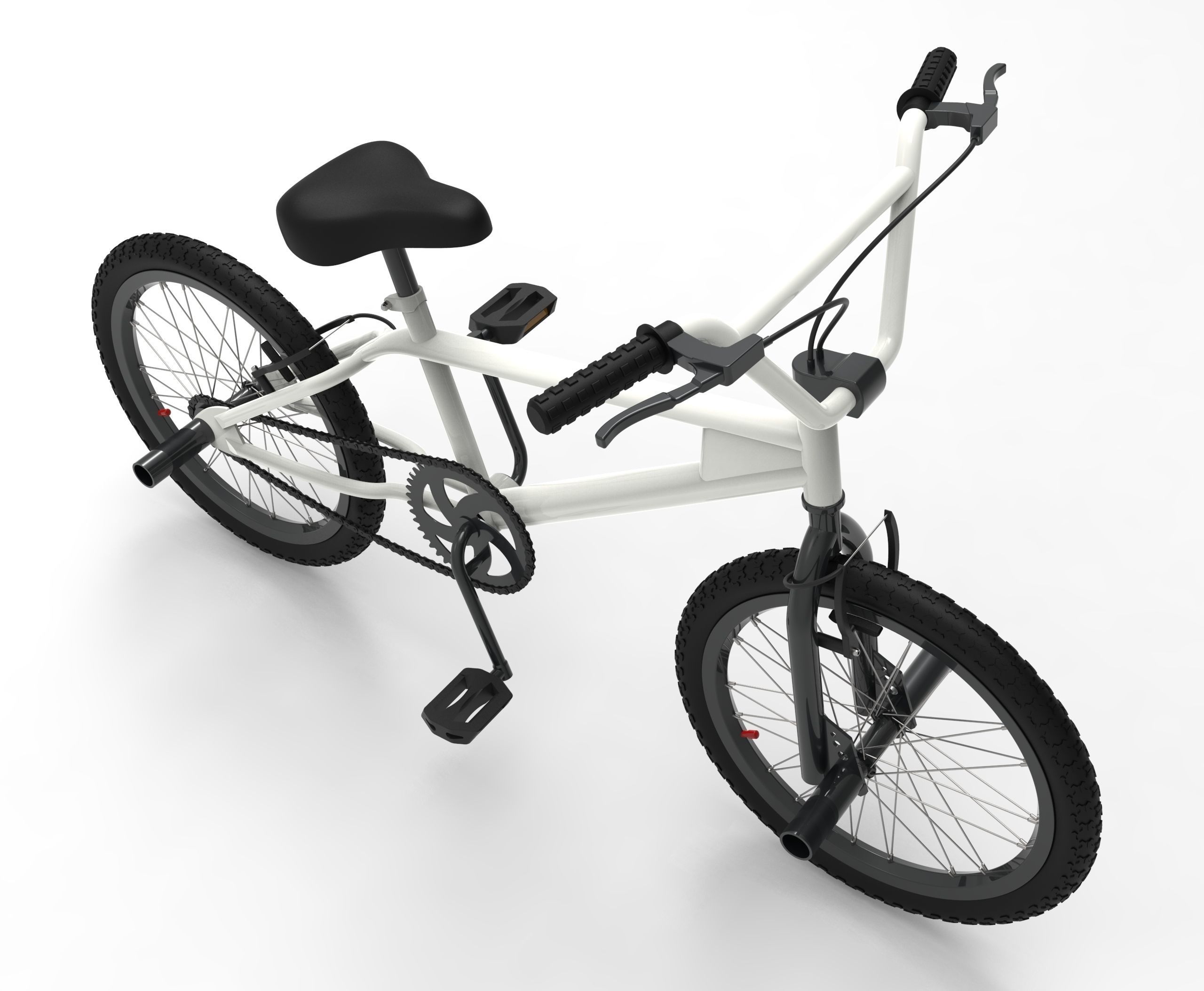

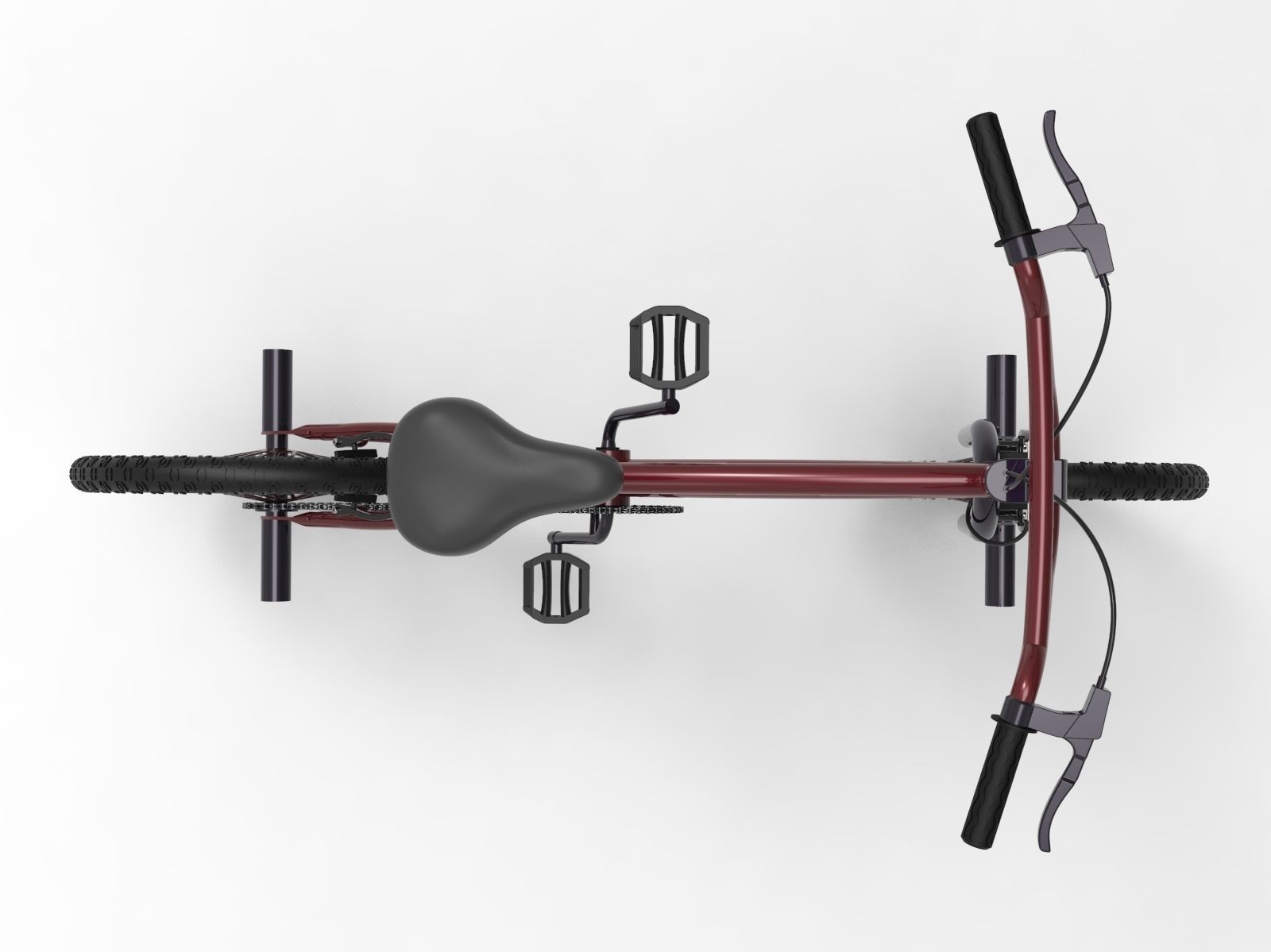

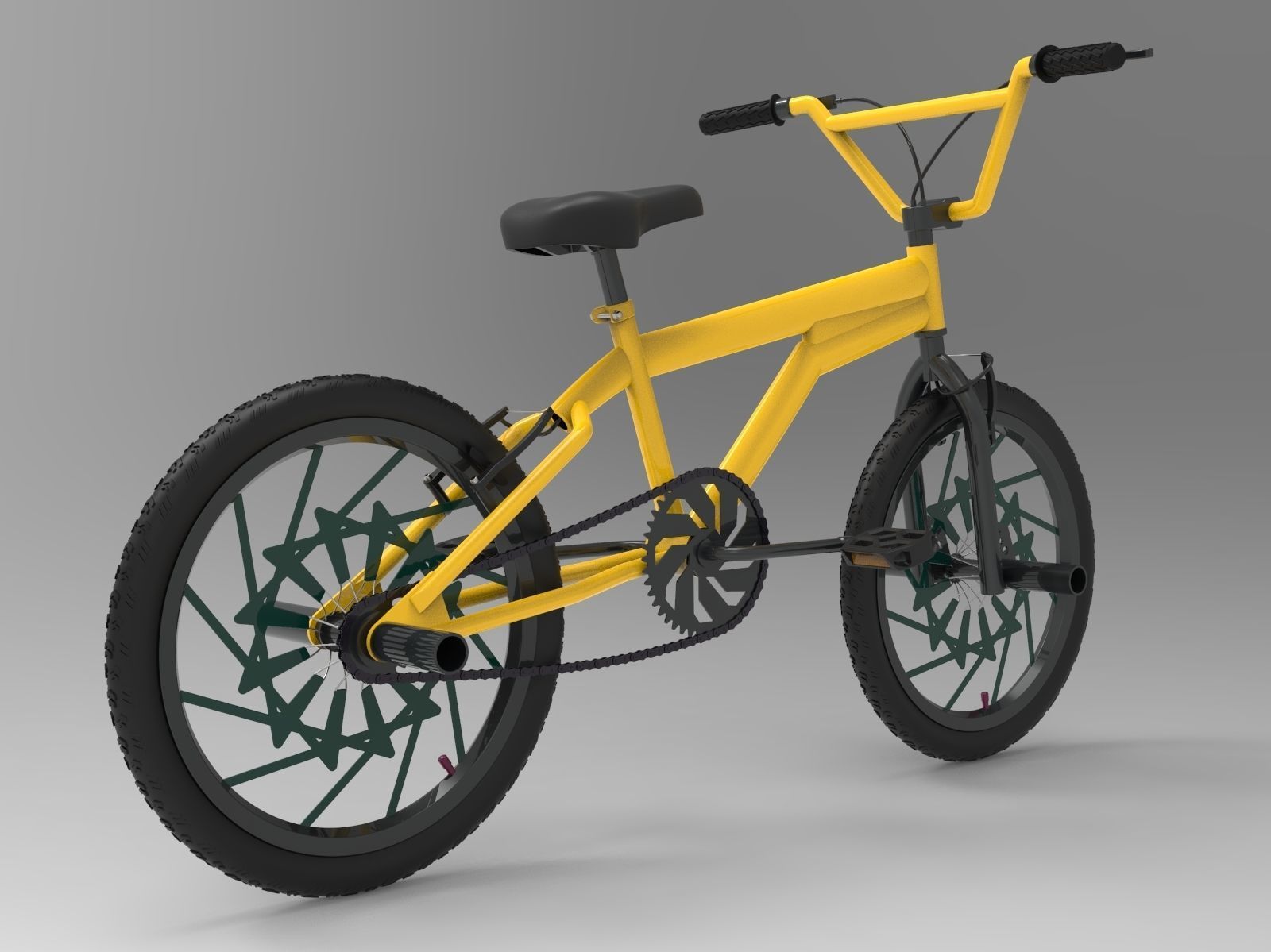

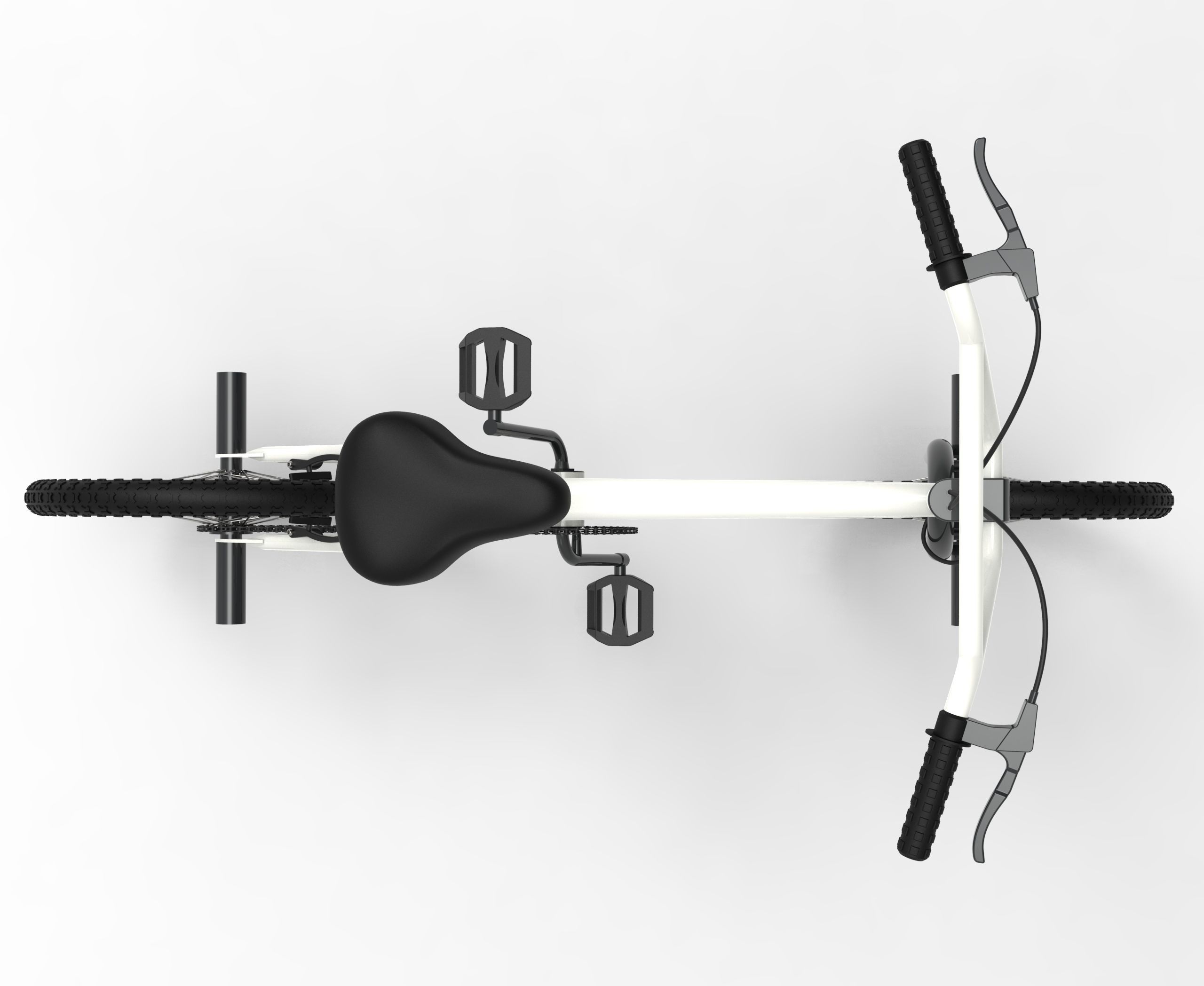

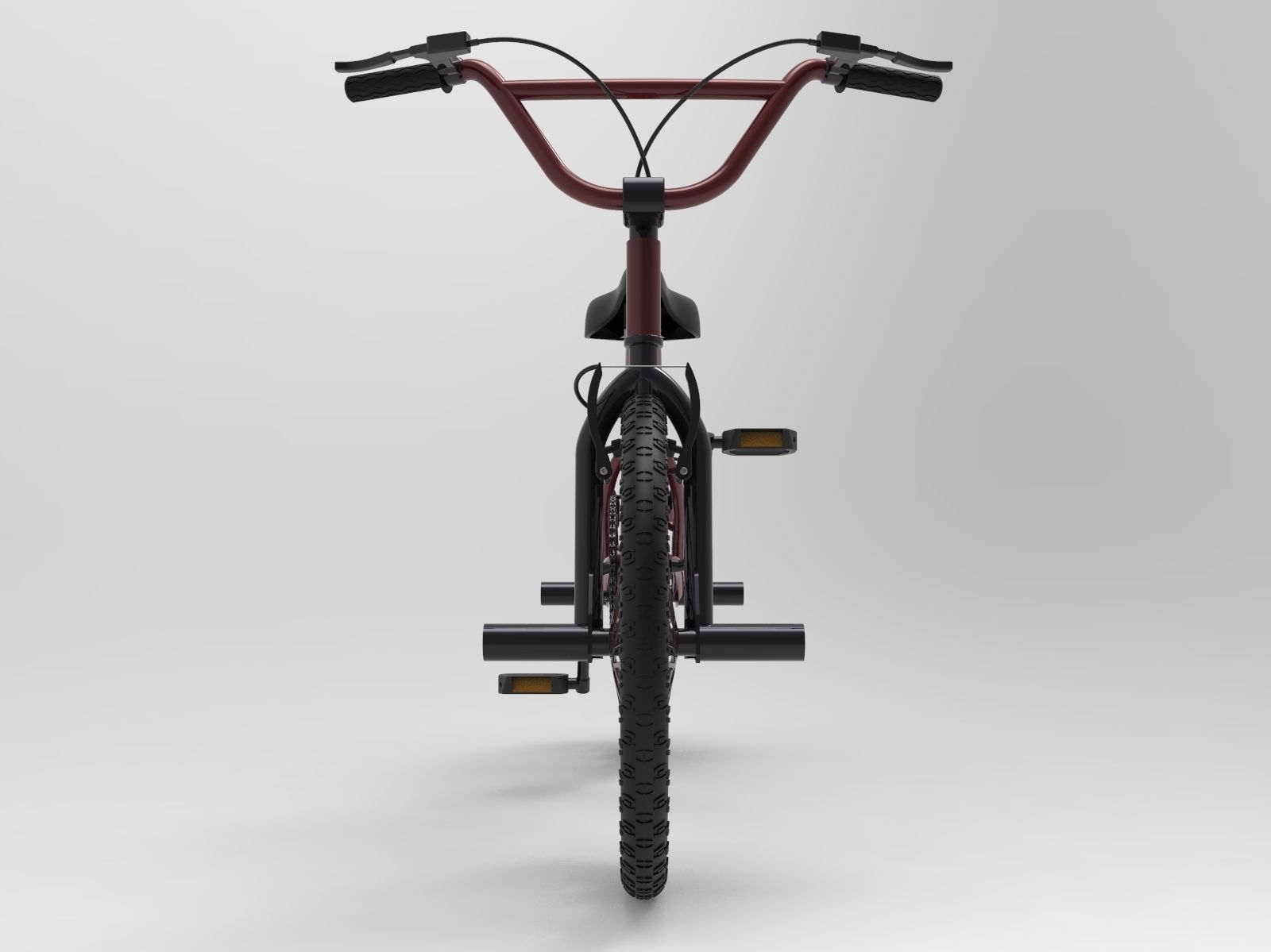

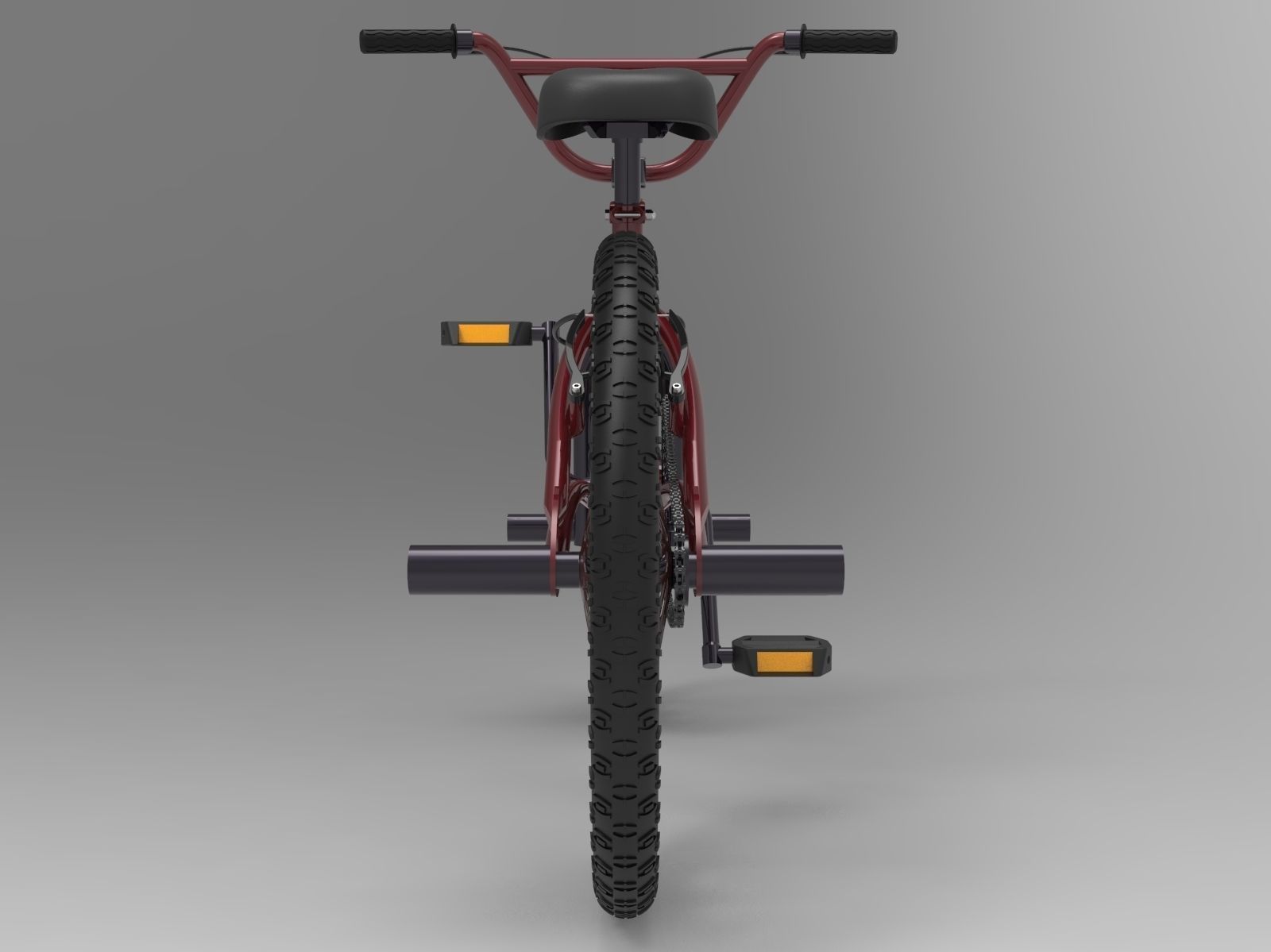

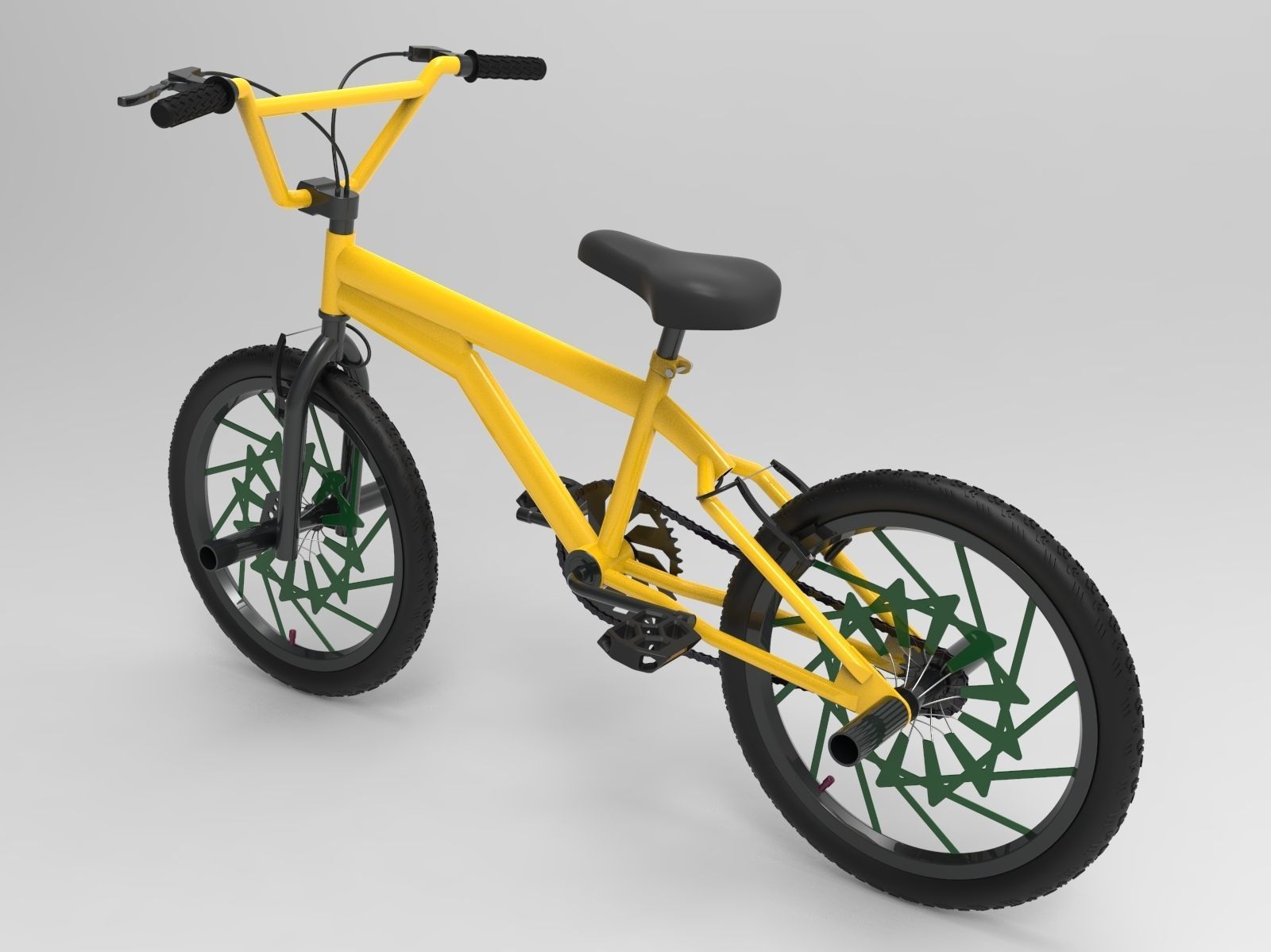

3 BMX Bikes 3D Model Collection

This is a tiny collection of 3 BMX Bikes, all made with the solid surface and parametric design technique. The three of them share the main dimensions and proportions, but their shapes and looks are different. They are made in real life scale and size. However the default measurement units used for modeling were mm, so you might need to scale them down when you import them into your scene.

Upon purchase, you will get (for each of the 3 bikes):

• RAR file including all the pieces of the model in Solidworks file format, as well as the assembly file.
• MAX file: the assembly file was imported into 3dsMax as a mesh.
• FBX file: exported from the previous one.
• OBJ and MTL files.
• BIP file: with Keyshot default materials and lighting used for the renders.

The objects subdivission is: frame, front, front wheel, back wheel, seat, crank, left pedal, right pedal, inner link (chain) (x26), outer link (chain) (x26) for each bike. Which is, in fact, how they were divided and designed originally.

The material subdivission was made in the original files and got exported correctly to the rest, however it can get a bit messy as the materials were not named accordingly.

The chain and the gears do not make a perfect match (but close enough), however, this happens to the vast majority of bike models out there.

The bikes are RIGGED in the solidworks assembly file: the wheels, the front, the pedals and the crank turn as they are supposed to. The crank and the back wheel are linked so as to turn when the other does, and the chain moves along with them aswell. However, most likely this relations were not exported into the other file formats.

More previews, such as detail renders, flattened renders and viewport screenshots available in each bike's individual posts.

We hope you like it, if you have any question do not hesitate to send us a message. Cheers!
