Arduino Thermostat Free 3D print model

For me this is a super handy tool so therefor it may be handy to someone else on the Internet :-)

Connect a 100K NTC, a Heater and Power Supply. Then set the Temperature you need and this Thermostat will keep you heater at the set temperature.

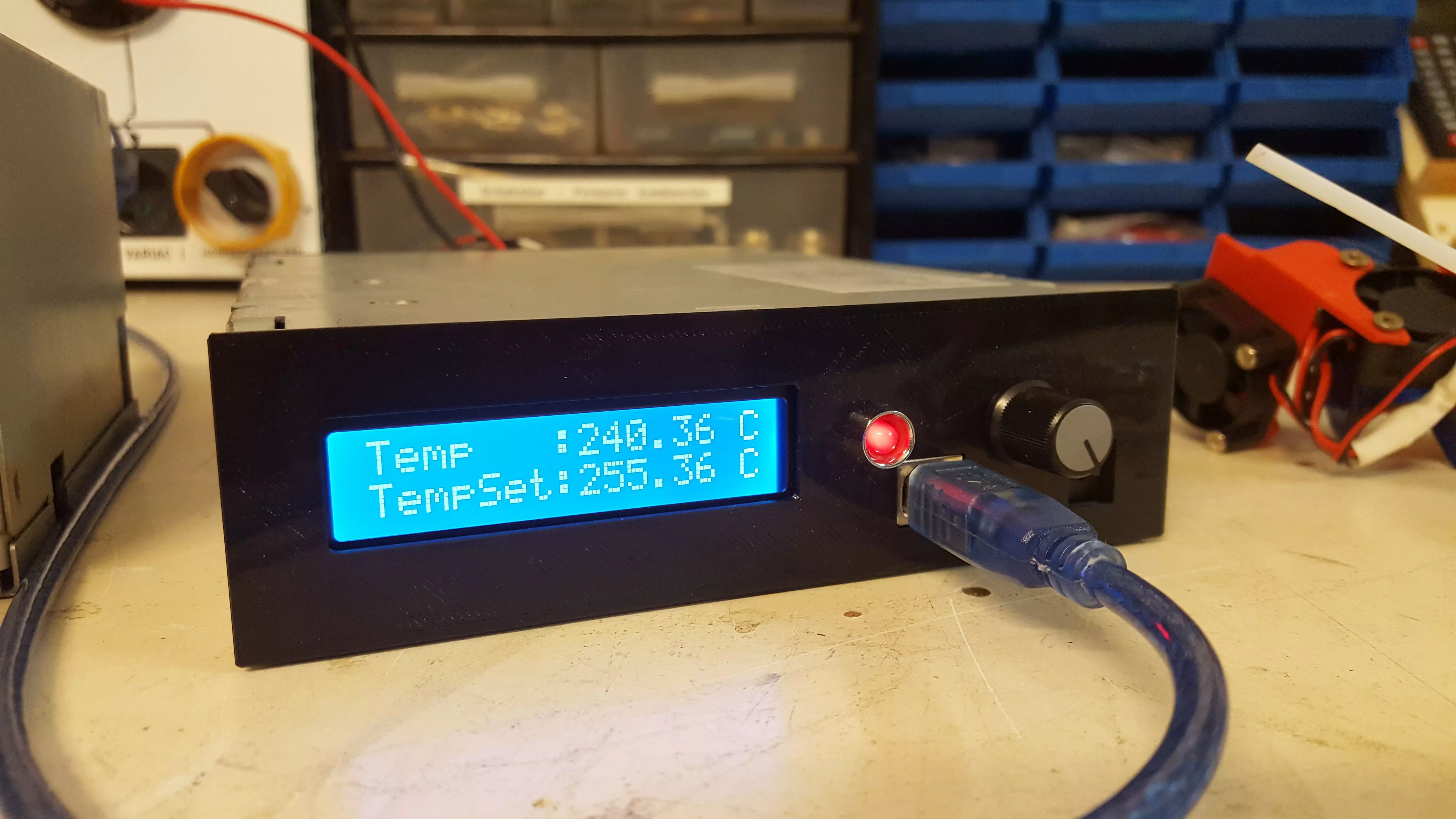

This is a DIY tool used by me to heat up heaters such as Hot End and Heat Beds from 3d printers. This way I can work on them on the bench. It also comes in handy with drying Filament or keeping any chamber at a specific temperature. The Top row in the display shows the Thermistor Temperature. The bottom row shows the Set Temperature. The Red LED Burns when the Heater is activated. The Arduino is powered separate from the FET and Heater part so I have free choice in Power Sup-plays. The Arduino can be powered from the front trough USB or wall adapter or via the back connector.

It is build in the housing of an old DVD Burner (meant for PC cases) The basis is an Arduino Uno that measures the temperature and switches the FET for the heater. In the Photo Section I included a super simple schematic. Also for who is interested a Arduino sketch is included. I have set mine in C but the Fahrenheit option is still (disabled) in the sketch.

Note: I had to clip some leads of the Adruino short to make it slot into the (3d printed ) front.

Note2: the Red LED is not shown on the schematic

Note3: I used a Optacoupler but it also works without. You can skip it an just connect the gate of the FET (trough a resistor) direct to the Arduino. But I think that people who are interested in this will know:-)

Otherwise feel free to ask :-)
