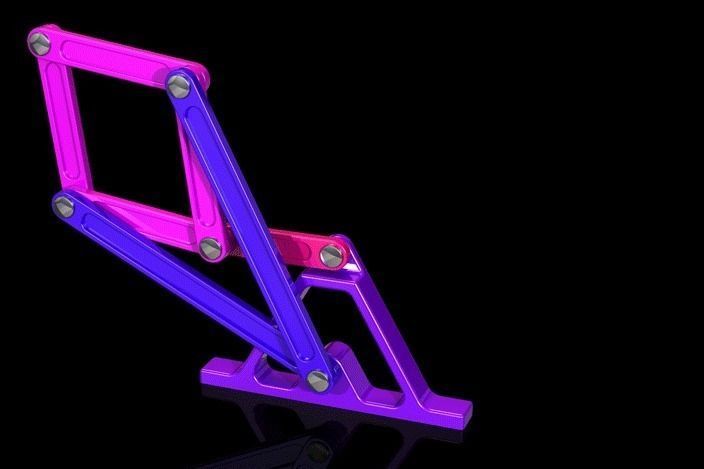

Simple Linkage Animation - Peaucellier Free 3D model
thumbnail
play iconthumbnail
play iconthumbnail
thumbnail
DESCRIPTION

For best results download a much larger animation file (1500x1000), UL.mp4 or UL.mov

Bright plastic parts are a nice break from hard metals and brightens up my day. After the grueling chain and sprockets animation I decided to just use Solidworks and PV 360 for this one day project.

Thank you all for having a look....
