DESCRIPTION

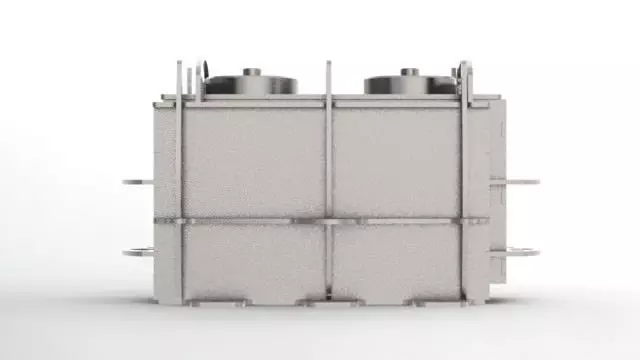

Mould for casting concrete blocks. the design intent of this mould is to allow for the various components to be laser cut from 5mm steel plate and welded up in the quantity required. So what this further means is that somone in a rural setting but with access to a welder, could order the plate parts from the closest laser cutter and have the parts on hand to make up the moulds as production required and not need any engineering machinery to get the job done.

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.

Sht mtl mold asm Free 3D model

Royalty Free License (no AI)
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File formats
STL
Stereolithography<br />File Size: 20.2 KB
RFA
Autodesk Revit | 22 files<br />File Size: 2.22 MB
SLDPRT
SolidWorks | 2 files<br />File Size: 121 KB
Provided by designer
Information and details shared directly by the model's designer.
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is not 3D printable
The designer indicates this model is intended for digital use only (rendering, animation, or AR/VR) and not for 3D printing.
