Cylinder isometric conveying mechanism Free 3D model
thumbnail
DESCRIPTION

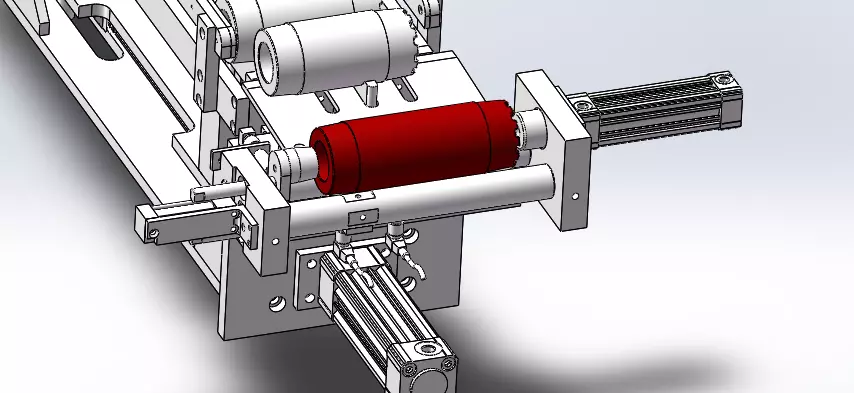

Cylinder isometric conveying mechanism, this mechanism through sliding table and a combination of the cylinder, formed the isometric loading mechanism, at the same time the material in the process of joining the rotation Angle plate, can make the product directly into the station in by positioning clamping cylinder, in feeding and positioning work can be realized using the agency function is a classic, is a good design model of large cylinder lifter, the machine platform through the large cylinder to drive the chain will pipelining platform lift up and down, to lifting mechanismMechanism include:

  1. Equidistant feeding mechanism
  2. Inclined guide plate mechanism************************************** Files format contains-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax
  3. and other formats**************************************
