DESCRIPTION

The Slice of Pi is a convienient 3 in 1 product. In addition to being a small break out board for the Raspberry PI pins, it has also a socket for a wireless module and a small prototyping area.

XBee style connector for XRF / XBee / RN-XV etc (the easiest way to add wireless to you Pi)SPI and I2C pins to a standard 2.54mm pitch 8 way header (fast and easy access)GPIO pins to a standard 2.54mm pitch 8 way header (fast and easy access)Construction is very easy (suitable even for children with basic soldering skills)Featured in popular publications (good base of knowledge around the board)Easy to connect to 3v3, 5v0, GND, RX & TX (solder pads give fast access)Available worldwide (many people now stock the board)Features:

Gold plated finish (Protection against oxidisation means your device will outlast normal solder finished boards)Comes as a complete "self solder" kit of partsUpto 50ma at 3.3v can be drawn by the project or radio (do not exceed 50ma)Has a pad to connect the XBee shaped device's SLEEP pin (pin 9)Can support OTAMP (over the air micro programming) to another XRF family device that supports it (requires modification to AVR dude files)Can be used to upload firmware to the XRFMade in the UK

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.

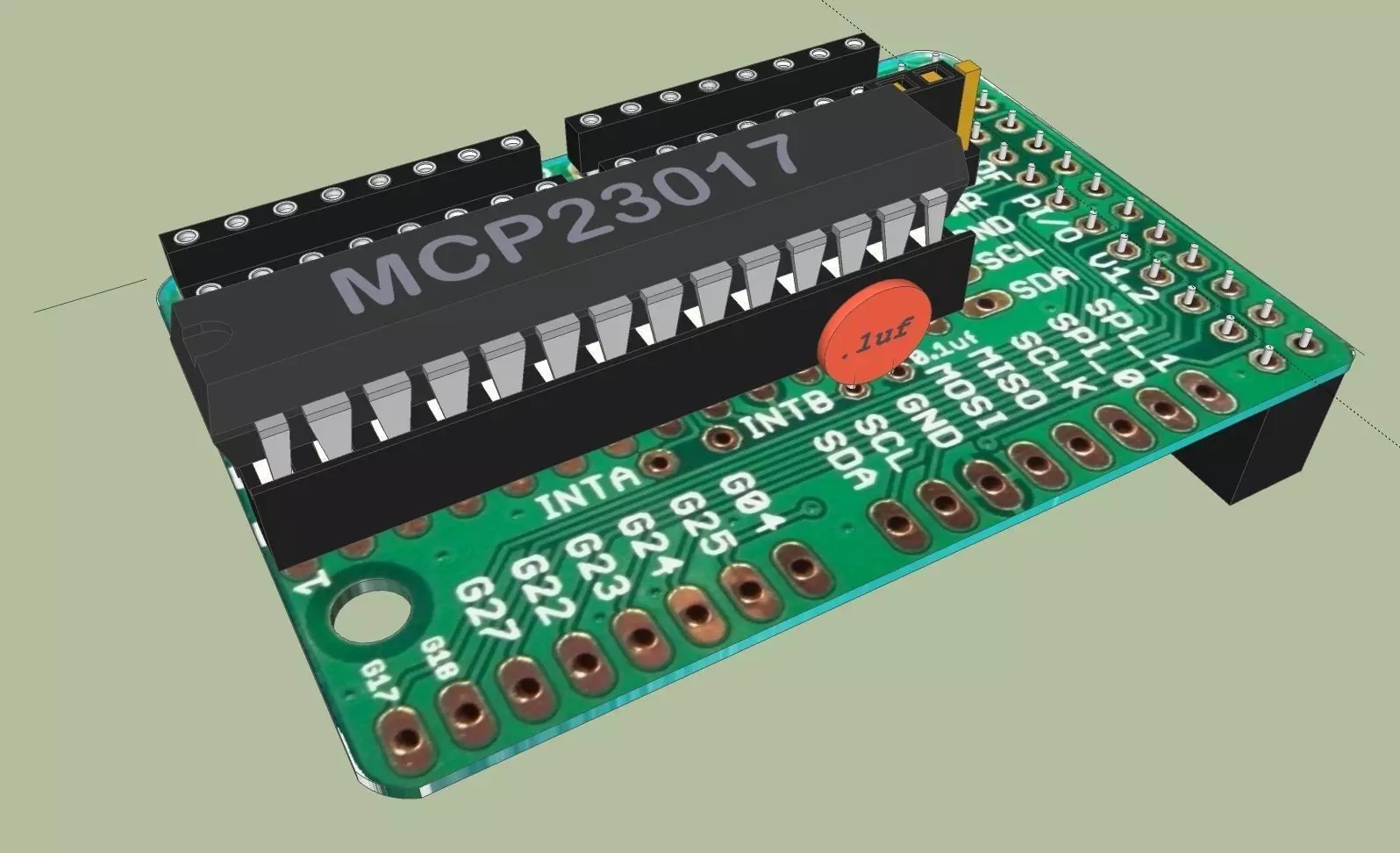

Slice of Pi buffer board for Raspberry Pi Free 3D model
