DESCRIPTION

Type 2271 x 2205mm 2271 x 2052mm Cavity Closer Depth 85.0 85.0 Cavity Closer Offset from Ext 102.5 102.5 Cavity Closer Width 50.0 50.0 Door Panel Thickness 32.0 32.0 FrameDepth 89.0 89.0 FrameOffset - External 25.0 25.0 FrameWidth 42.0 42.0 Function 1 1 Glazing Panel Height 450.0 450.0 Handle Z Distance 1050.0 1050.0 Height 2205.0 2052.0 Keynote L20 L20 Manufacturer Revit Revit Material Door Door - Panel Door - Panel Material Frame Door - Frame/Mullion Door - Frame/Mullion Material Ironmongery Door - Handle Door - Handle O/A Frame Width 64.0 64.0 Operation DoubleDoorSingleSwing DoubleDoorSingleSwing Rough Height 2205.0 2052.0 Rough Width 2271.0 2271.0 Stile Bottom Rail 250.0 250.0 Stile Hanging 175.0 175.0 Stile Lock Rail 200.0 200.0 Stile Shutting 100.0 100.0 Stile Top Rail 200.0 200.0 Structural Tolerance 8.0 8.0 Thickness 32.0 32.0 Tolerance 3.0 3.0 Undercut 10.0 10.0 Vis - Cavity Closers True True Wall Closure 0 0 Width 2271.0 2271.0 Wrap Layers (Ext) from Ext 102.5 102.5 Wrap Layers (Int) from Ext 177.5 177.5



.

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.

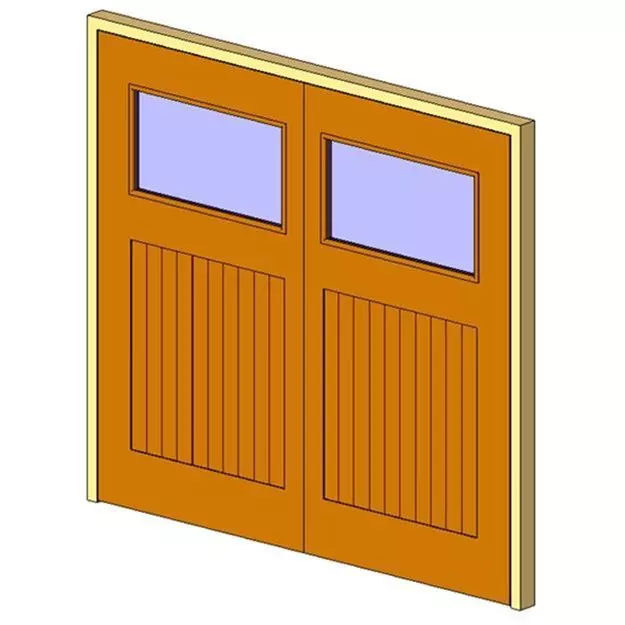

Garage - Timber Side Hung 2 Free 3D model

Royalty Free License (no AI)
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File formats
RFA
Autodesk Revit<br />File Size: 307 KB
OTHER
Other<br />Version: DWFX<br />File Size: 614 KB
