DESCRIPTION

Type Grill Assembly Always vertical True Assembly Code Baluster Diameter 15.0 Baluster Height 1450.0 Baluster Offset Bttm 25.0 Baluster Offset Sides 50.0 Baluster Offset Top 25.0 Cill and Lintol Offset 15.0 Cill Depth 150.0 Construction Type Cost Cut with Voids When Loaded False Default Head Height 2110.0 Description Grill Offset - External 75.0 Height 1500.0 Host 1 Keynote L10 Lintol Bearing Overhang 0.0 Lintol Depth 215.0 Manufacturer Revit Material - Grill Bars Metal - Cast Iron Material Cill/Lintol Masonry - Brick Soldier Course Model No of Balusters 20 No of Rails 3 OmniClass Number OmniClass Title Operation Rail Depth 40.0 Rail Offset - Bttm 150.0 Rail Offset - Top 150.0 Rail Thickness 8.0 Rough Height 1500.0 Rough Width 1770.0 Shared False Type Comments URL Wall Closure 0 Width 1770.0 Wrapping Layers from Ext 102.5



test

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.

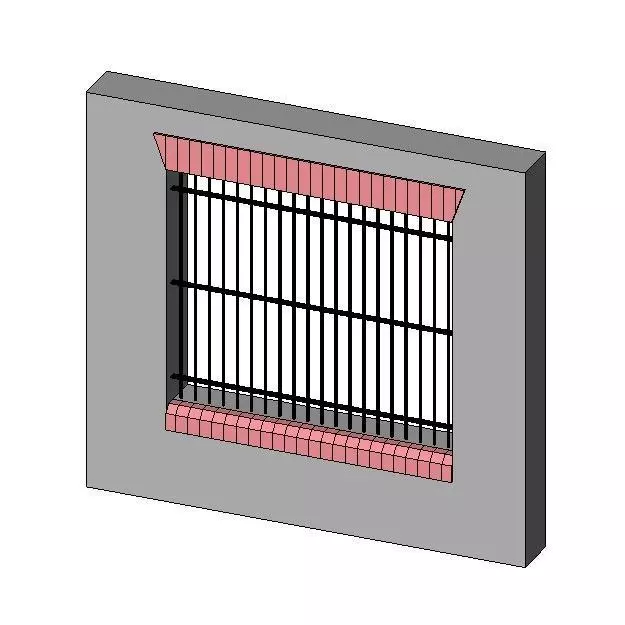

Grill Assembly 3D model

Royalty Free License
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File formats
RFA
Autodesk Revit<br />File Size: 461 KB
OTHER
Other<br />Version: DWFX<br />File Size: 502 KB
Provided by designer
Information and details shared directly by the model's designer.
