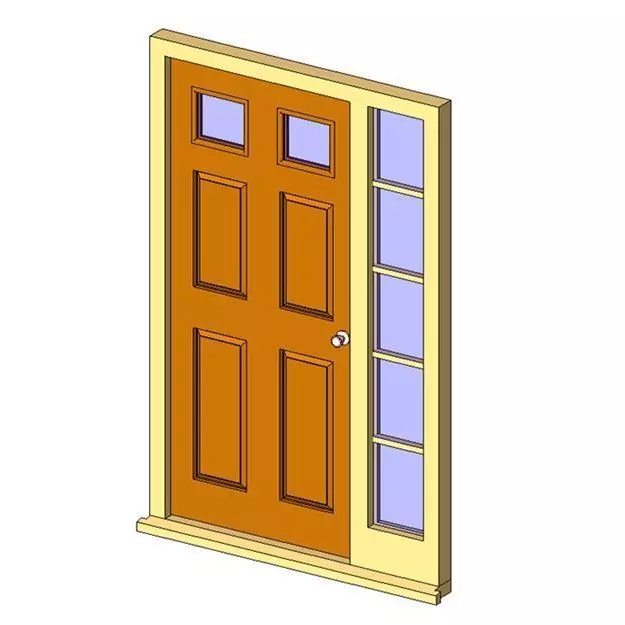

ExtSgl w Side Panel Free 3D model

Type 1360mm Opening using 907 Leaf Cavity Closer Depth 85.0 Cavity Closer Offset from Ext 102.5 Cavity Closer Width 50.0 Cill Extension 25.0 Cill Projection 30.0 Cill Thickness 54.5 Door Panel Height 2000.0 Door Panel Thickness 44.0 Door Panel Width 907.0 FrameDepth 89.0 FrameOffset - External 25.0 FrameWidth 42.0 Function 1 Glazing Bar Thickness 25.0 Glazing Thickness 24.0 Handle Style Handle Domestic (2) Handle X Distance 75.0 Handle Z Distance 1000.0 Height 2110.0 Keynote L20 Material Door Door - Panel Material Frame Door - Frame/Mullion Material Glass Door - Glazing Material Ironmongery Door - Handle O/A Frame Width 64.0 Operation SingleSwingRight Panelling Widths 250.0 Rough Height 2110.0 Rough Width 1360.0 Stile Bottom Rail 175.0 Stile Hanging 125.0 Stile Intermediate/Frieze 125.0 Stile Lock Rail 175.0 Stile Shutting 125.0 Stile Top of Frieze Rail 1625.0 Stile Top of Lock rail 1000.0 Stile Top Rail 150.0 Structural Tolerance 6.5 Thickness 44.0 Tolerance 3.0 Undercut 4.0 Vis - Cavity Closers True Vis - Ironmongery True Vis - SideLight Glazing Bars True Wall Closure 0 Width 1360.0 Wrap Layers (Ext) from Ext 102.5 Wrap Layers (Int) from Ext 177.5

.
