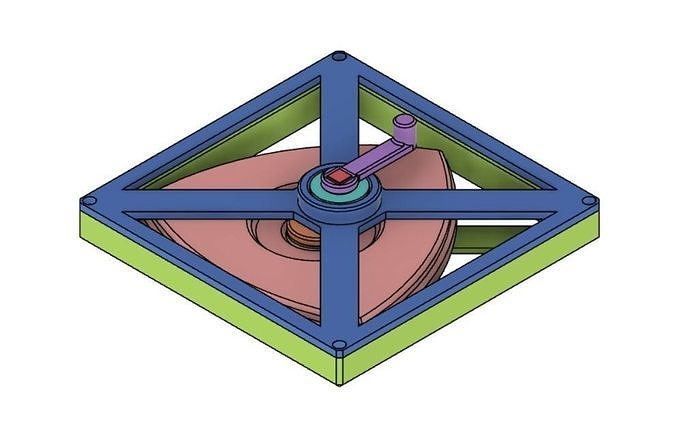

Realeaux Triangle in a Mechanical Cage 3D print model

A Reuleaux triangle is a curved triangle with constant width, the simplest and best-known curve of constant width other than the circle. It is formed from the intersection of three circular disks, each having it's center on the boundary of the other two. It follows a curve made by pieces of four different ellipses, as its axis doesn't stay at a single point while rotating. The 120° angle of the triangle doesn't let the rotor touch the extreme edges of the square, making a curved-edge square. The rotating Reuleaux Triangle traces out 98.77% of the area of the square.

For this Model all the parts are given in the files as per the quantity needed : Each 1x

(Note: The Bearings in the final model are place holders)

3d-Print Settings : 0.16mm Layer height 15 - 20% Infill Suggested Supports may be required for certain components based on how you orient them Pla at 200C Use Bed Adhesive ( Glue or Good Build Plate ) For Bed Adhesion Use Rafts on Smaller Components

(Note : Sand All Parts After Print)

Other Components

• 4x M3x0.35 3MM Screws -2x (624ZZ_2 : 4x13x5mm 4mm Radial Bearings)
