Geometric Dimensioning and Tolerances Template 3D print model

File: GD&T Template.stl
Name: GD&T Template
PLA Material: 12.56 grams (0.028 lbs) Infill = 11%
Size: 42.57 mm (1.78") x 42.57 mm (1.78") x 16 mm (0.63")
Resolution: 0.20mm
Layers: 19 layers Rafts: Yes Supports: No
Print Time: 0 hr 49 min

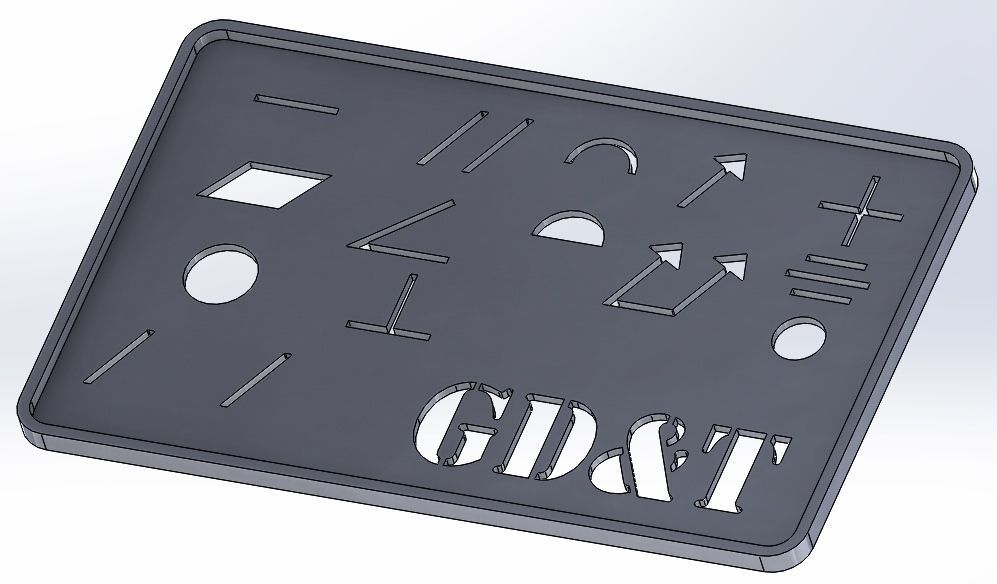

Function: Back in the old days, people made drawings and needed drafting templates to create unique symbols. This is a wallet sized template for he fourteen Geometric Dimensioning and Tolerances (GD&T) symbols.
