Cylindrical gear - paired - z55 m2 D114 d15

Cylindrical gear - paired - z55 m2 D114 d15 3D print model

Description

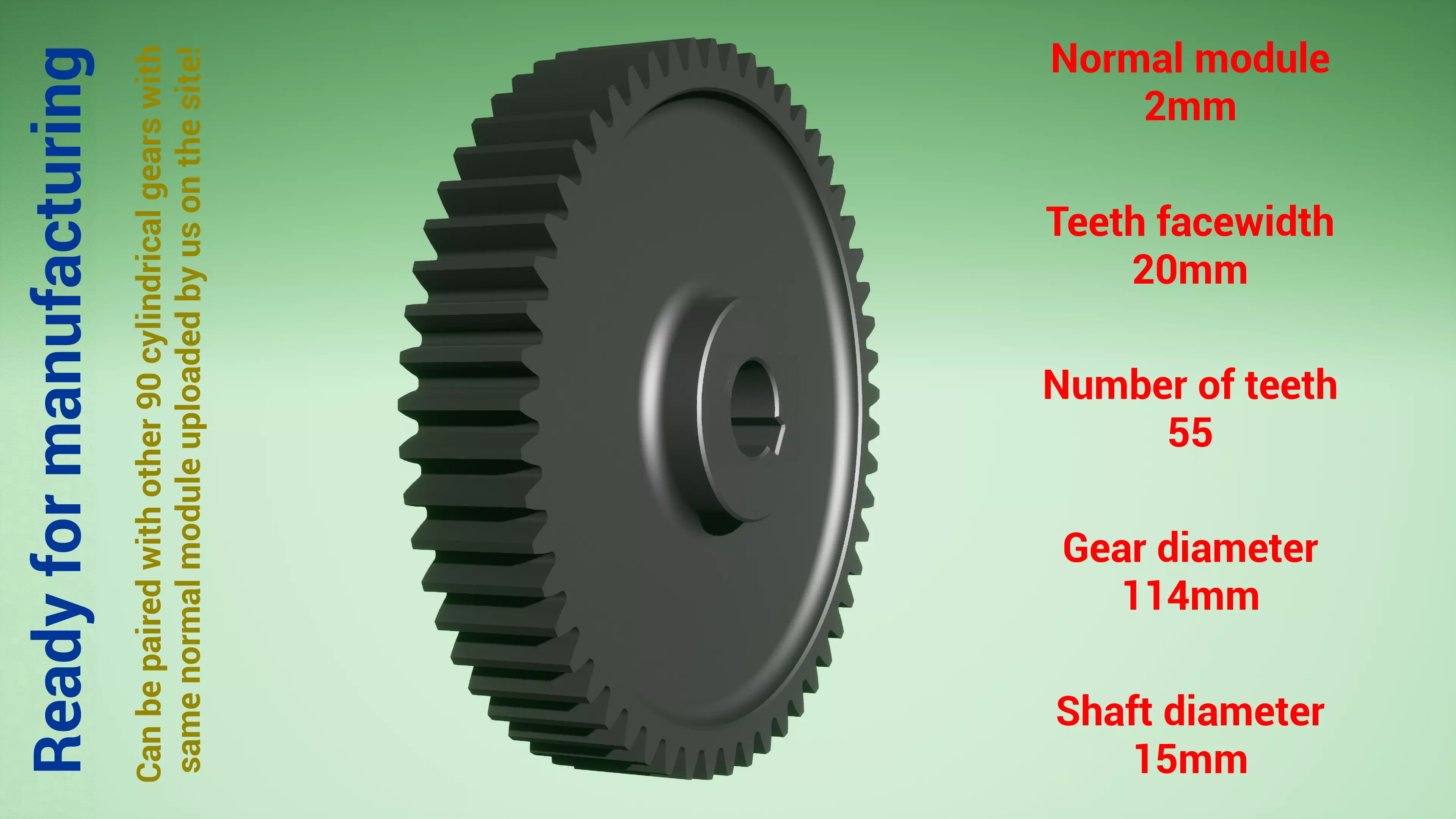

High precision gear - ready for manufacturing/printable. This gear can be paired with any of the 90 other gears that we upload on the site with the same normal module (m). We uploaded gears from 10 teeth to 100 teeth, so you can create the necessary combination.

  • Number of teeth (z) = 55

  • Normal module (m) = 2mm

  • External diameter (D) = 114mm

  • Internal diameter (d) = 15mm (the same gear with other variations of the shaft uploaded: 20mm and 25mm)

  • Facewidth (b) = 20mm

All the gears that will be uploaded on the site can be found on the link below:
