UNIVERSAL FRAME for CNC LASER 3D PRINTING 3D print model

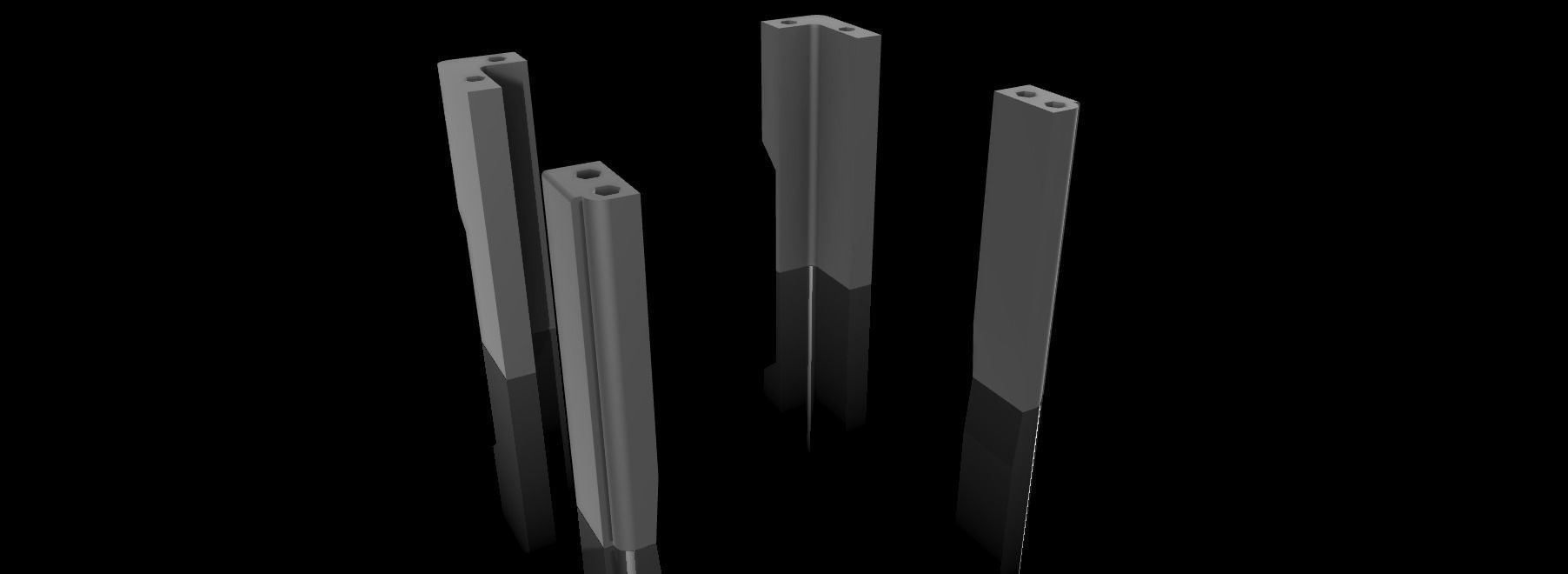

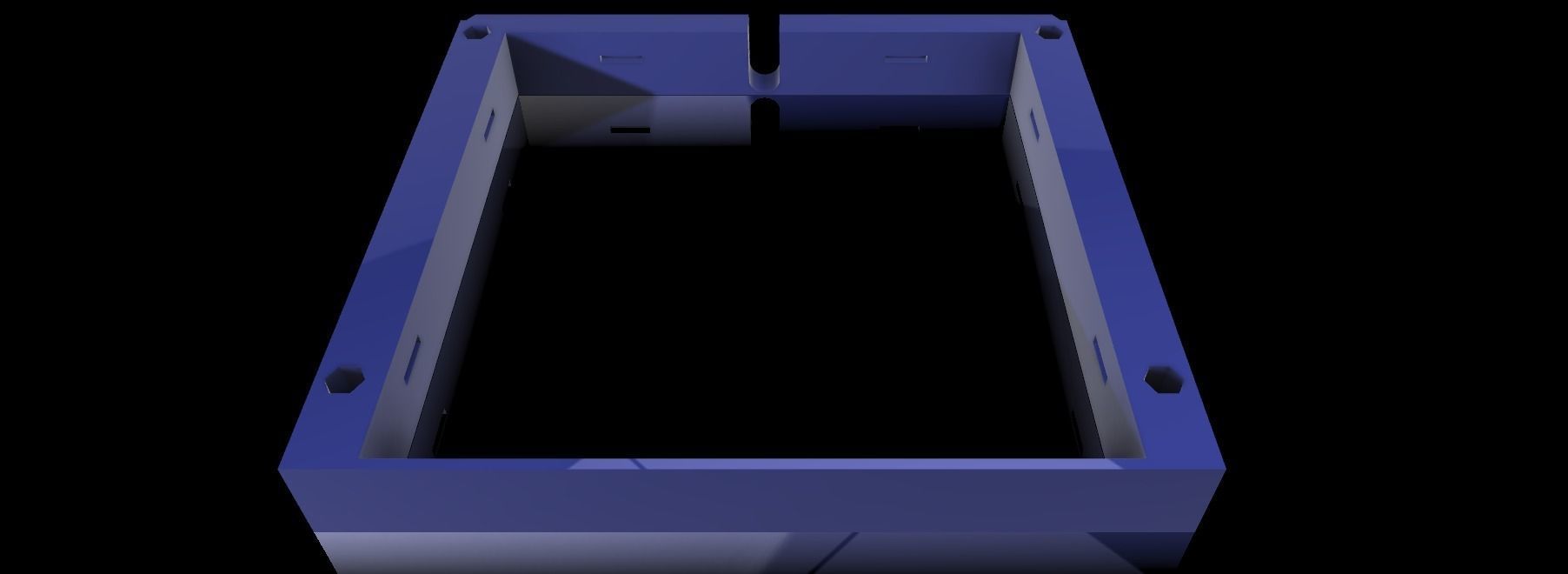

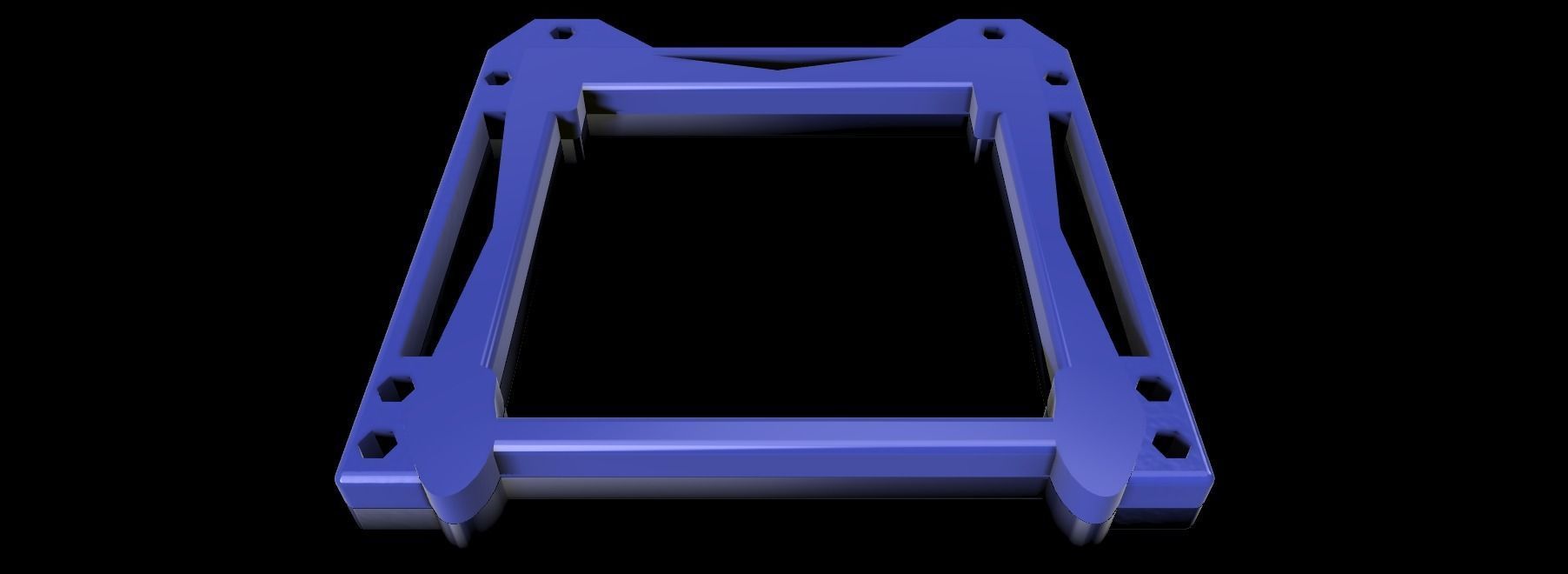

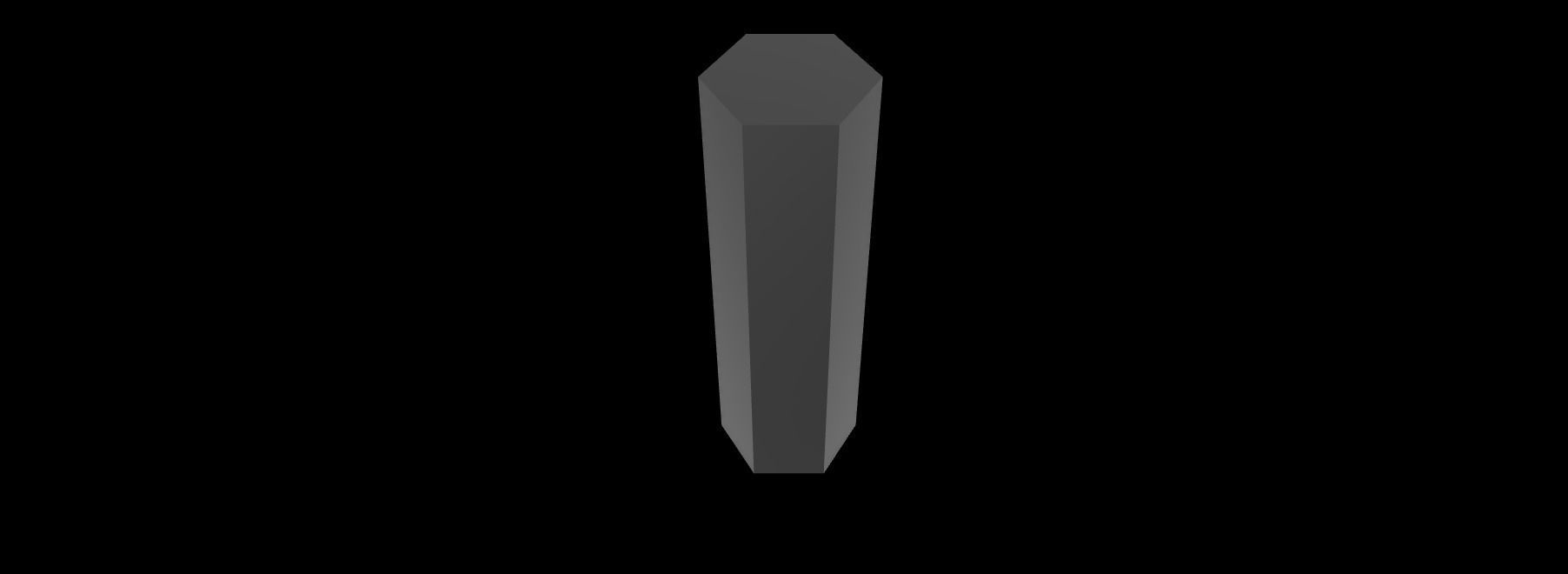

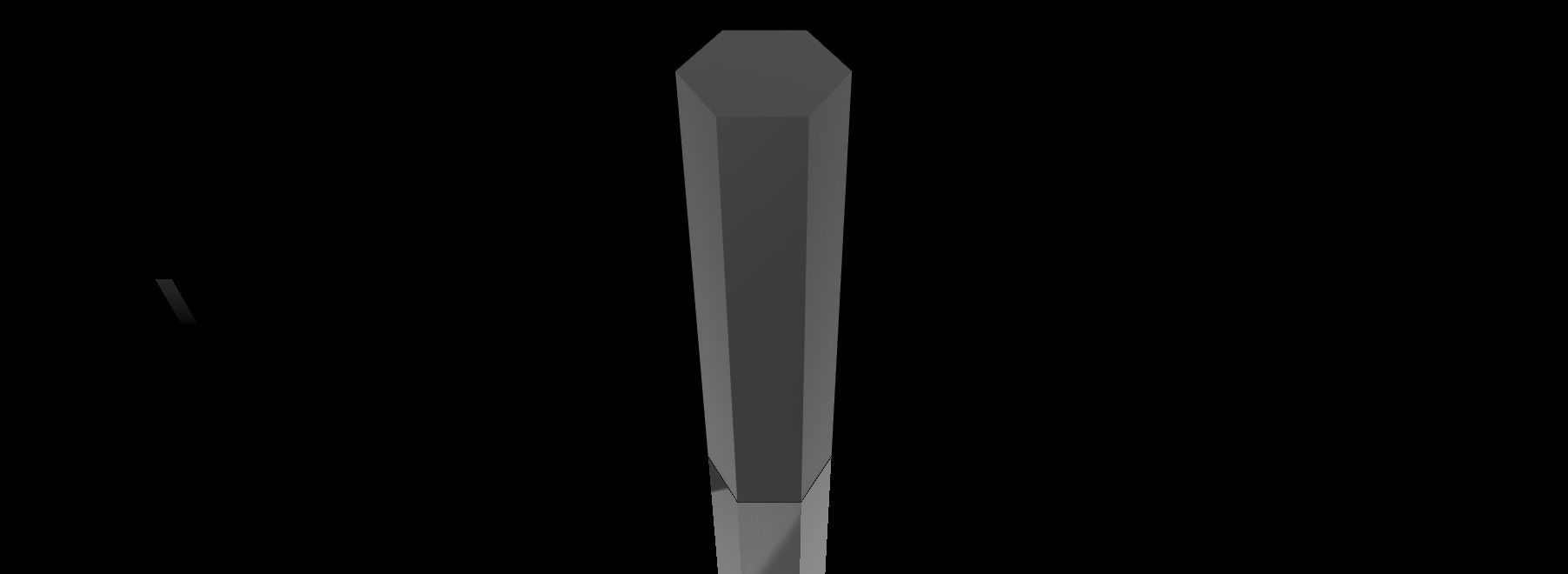

I designed this for a project of mine for a solder bot running modified GRBL.Tested and fully printed using my Anycubic Korba 2 Pro.List of files/components:1.) Top2.) Legs - All seperate3.) Bottom4.) Peg inserts (Bottom = x4, Top = x8)

These all come in STL. format.Their is also a STEP file included where you can edit each part (Body) individually if you wish to modify :)

To assemble:1.) Take the bottom piece, as well as 4 of the bottom pegs. Insert all 4 pegs into the top of the bottom slots (Do this carefully to avoud breaking the pegs inside)2.) Take your top piece and flip it upside down. (You will see circuler slots for 685 size ball bearings) Inserts all 8 of the top pegs inside. (Be carefull!)3.) Through preference; Insert all legs onto either the bottom or top. (I like to insert the legs into the top first since there's more slots)4.) Lastly take your remaining part and assemble it carefully together.

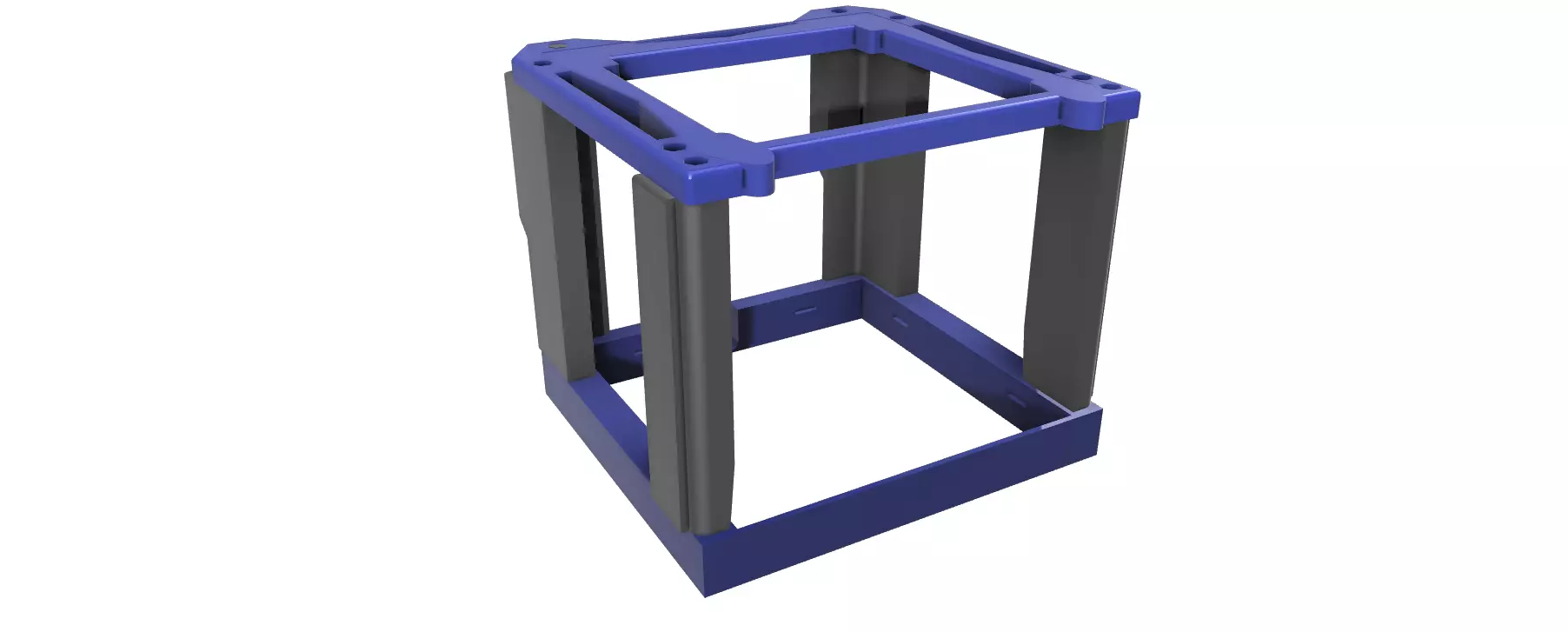

You have a sturdy frame or enclosure for your mini CNC,Router, Laser, or printer! :)

If you have any questions just send a message. I check emails frequently.
